VIKING (PST150-8)

/

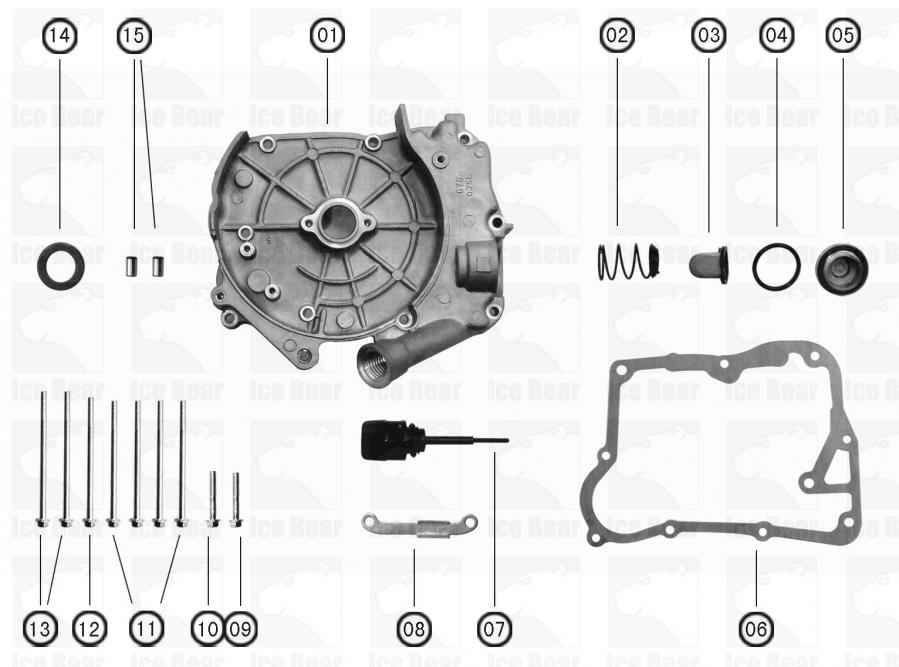

150CC-Engine-H
ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 150CC-Engine-H-001 152QMI-067 Cover ,R 右盖 1
2 150CC-Engine-H-002 152QMI-068 Spring,oilfilter screen 滤油网弹簧 1
3 150CC-Engine-H-003 152QMI-069 Spring,oilfilter 滤油网 1
4 150CC-Engine-H-004 152QMI-070 2.5*30.8 滤油O形圈 1
5 150CC-Engine-H-005 152QMI-071 Filtrate bolt 滤油盖 1
6 150CC-Engine-H-006 152QMI-072 Washer,R cover 右盖纸纸垫 1
7 150CC-Engine-H-007 152QMI-073 Gauge,oil level 机油尺 1
8 150CC-Engine-H-008 152QMI-074 Clamper,generator cord 磁电机导线夹 1
9 150CC-Engine-H-009 152QMI-075 Bolt 螺栓M6×32 1
10 150CC-Engine-H-010 152QMI-076 Bolt 螺栓M6×35 1
11 150CC-Engine-H-011 152QMI-077 Bolt 螺栓M6×95 4
12 150CC-Engine-H-012 152QMI-078 Bolt 螺栓M6×100 1
13 150CC-Engine-H-013 152QMI-079 Bolt 螺栓M6×110 2
14 150CC-Engine-H-014 152QMI-080 Seal 19.8×30×5 油封 1
15 150CC-Engine-H-015 152QMI-081 Pin dowel 定位销 2
