VIKING (PST150-8)

/

150CC-Engine-N

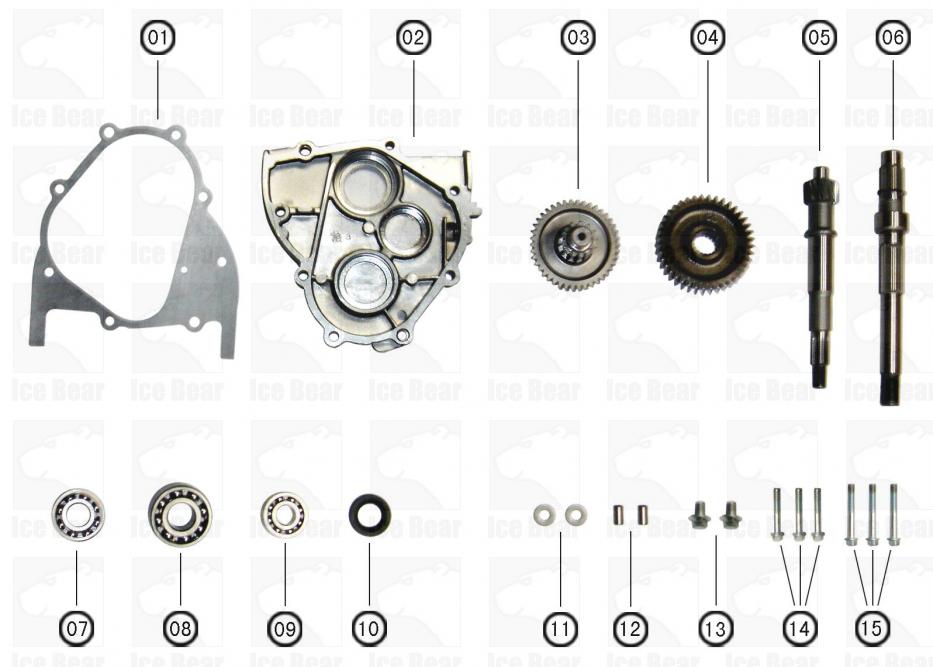

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 150CC-Engine-N-001 152QMI-143 Gasket gear cover 齿轮室盖纸垫 1
2 150CC-Engine-N-002 152QMI-144 Cover rear drive 齿轮室盖 1
3 150CC-Engine-N-003 152QMI-145 Counter shaft comp 副轴组 1
4 150CC-Engine-N-004 152QMI-146 Gear final 最终齿轮 1
5 150CC-Engine-N-005 152QMI-147 Shaft fina/circlip mm20 最终轴/卡簧20 1/1
6 150CC-Engine-N-006 152QMI-148 Shaft drive 驱动轴 1
7 150CC-Engine-N-007 152QMI-149 Bearing ball 203 轴承6203 1
8 150CC-Engine-N-008 152QMI-150 L-bearing 轴承6204 1
9 150CC-Engine-N-009 152QMI-151 Bearing ball 202 轴承6202 1
10 150CC-Engine-N-010 152QMI-152 Seal 20×32×6 驱动轴油封 1
11 150CC-Engine-N-011 152QMI-153 Washer 放油螺栓垫圈 2
12 150CC-Engine-N-012 152QMI-154 Pin 定位销 2
13 150CC-Engine-N-013 152QMI-155 Bolt 螺栓M8×16 2
14 150CC-Engine-N-014 152QMI-156 Bolt 螺栓M8×28 3
15 150CC-Engine-N-015 152QMI-157 Bolt 螺栓M8×35 3
