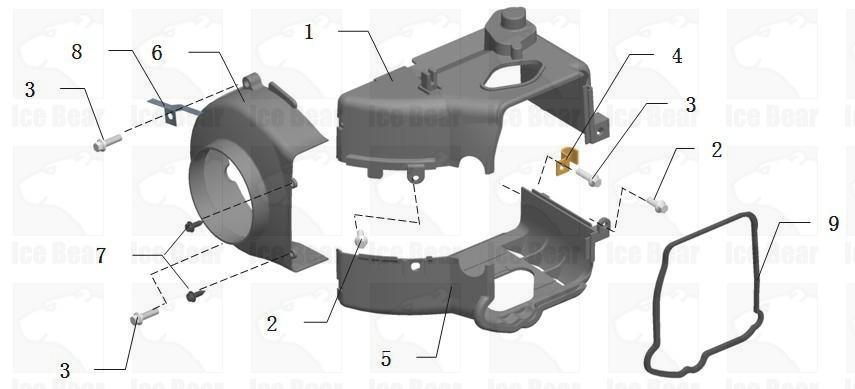

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 50CC-Engine-B-001 139.05.001 SHROUD assembly,A B罩组合(上导风罩)
2 50CC-Engine-B-002 GB/T 16674.1 BOLT M6X16 螺栓M6×16
3 50CC-Engine-B-003 GB/T 16674.1 BOLT M6X25 螺栓M6×25
4 50CC-Engine-B-004 152.11.509 Oil pipe folder 溢油管夹
5 50CC-Engine-B-005 139.05.002 SHROUD assembly,b A罩组合(下导风罩)
6 50CC-Engine-B-006 139.05.200 fan cover wind 风扇挡风罩
7 50CC-Engine-B-007 GB/T 16824.1 screw ST4.8×16 自攻螺钉ST 4.8×16
8 50CC-Engine-B-008 152.11.505 Motor Clamp 马达线夹
9 50CC-Engine-B-009 139.12.114 SEAL,SHROUD 缸头盖胶圈
