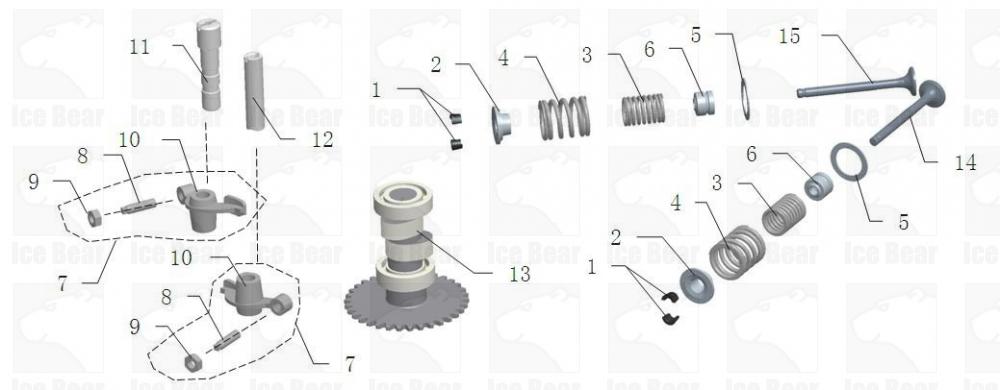

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 50CC-Engine-E-001 139.04.212 COTTER,valve 气门锁夹
2 50CC-Engine-E-002 139.04.210 UPPER SEAT,valve spring 气门弹簧保持器
3 50CC-Engine-E-003 139.04.208 SPRING,valve innter 气门内弹簧
4 50CC-Engine-E-004 139.04.209 SPRING,valve outer 气门外弹簧
5 50CC-Engine-E-005 139.04.211 SEAL,spring 气门弹簧座
6 50CC-Engine-E-006 139.12.105 OIL SEAL 气门油封
7 50CC-Engine-E-007 ARM,valve rocket assembly 气门摇臂组合
8 50CC-Engine-E-008 139.02.105 SCREW, adjusting 气门间隙调节螺钉
9 50CC-Engine-E-009 139.02.106 NUT,tappet adjusting 气门调节螺母
10 50CC-Engine-E-010 139.02.102 ARM,valve rocket 气门摇臂
11 50CC-Engine-E-011 139.02.103 ARM,inlet rocker arm 进气门摇臂轴
12 50CC-Engine-E-012 139.02.104 ARM,outlet rocker arm 排气门摇臂轴
13 50CC-Engine-E-013 139.02.200 CAMSHAFT COMP 凸轮轴总成
14 50CC-Engine-E-014 139.04.206 INLET VALVE 进气门
15 50CC-Engine-E-015 139.04.207 EXHAUST VALVE 排气门
