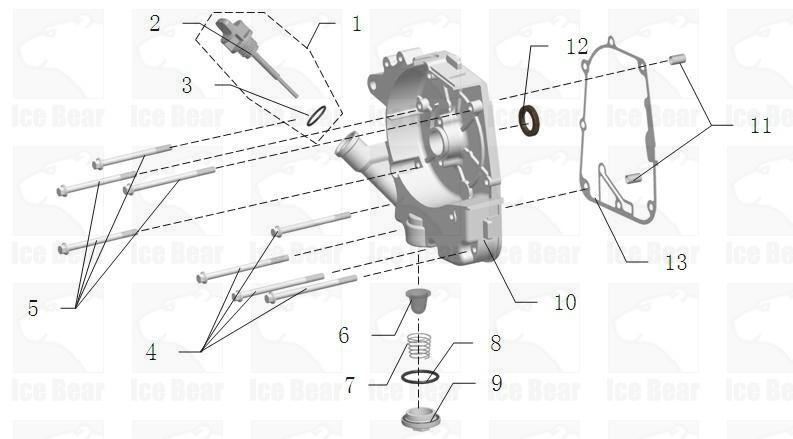

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 50CC-Engine-H-001 139.12.200 GUIUDE assembly 机油尺组件 1
2 50CC-Engine-H-002 139.12.201 GUIUDE,oil level 机油尺 1
3 50CC-Engine-H-003 139.12.109 O-ring 18 × 3 O形圈18×3 1
4 50CC-Engine-H-004 GB/T 16674.1 BOLT M6X85 螺栓M6×85 4
5 50CC-Engine-H-005 GB/T 16674.1 BOLT M6X100 螺栓M6×100 4
6 50CC-Engine-H-006 139.09.002 STAINER OIL 机油滤网 1
7 50CC-Engine-H-007 139.09.003 SPRING,stainer 滤油网弹簧 1
8 50CC-Engine-H-008 139.12.112 O-RING 30.8 × 3.2 O形圈30.8×3.2 1
9 50CC-Engine-H-009 139.09.001 PLUG,DRAIN 滤油网螺帽盖 1
10 50CC-Engine-H-010 139.03.004 COVER,clutch 右曲轴箱盖 2
11 50CC-Engine-H-011 139.11.511 PIN 8 × 6.5 × 14 定位销8×6.5×14 1
12 50CC-Engine-H-012 139.12.103 Oil seal 16.4 × 30 × 5 油封16.4×30×5 1
