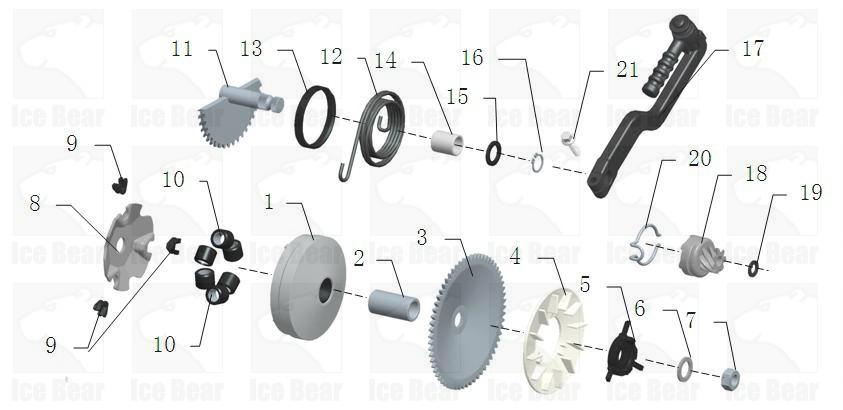

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 50CC-Engine-M-001 139.10.108 FACE, movable drive 主动轮右半轮 1
2 50CC-Engine-M-002 139.10.106 COLLER 14×20×38.5 主动轮轴套14×20×38.5 1
3 50CC-Engine-M-003 139.10.103 FACE,FIXED DRIVE 主固定齿轮 1
4 50CC-Engine-M-004 139.10.102 FAN 风扇叶轮 1
5 50CC-Engine-M-005 139.10.101 Start-up disk 起动盘 1
6 50CC-Engine-M-006 139.11.406 Washer 12 × 20 × 2 垫圈12×20×2 1
7 50CC-Engine-M-007 GB/T 6171 NUT M12 × 1.25 螺母M12×1.25 1
8 50CC-Engine-M-008 139.10.105 PLATE,MOVABLE DRIVE 斜坡板 1
9 50CC-Engine-M-009 139.10.104 DAMPER 斜坡板边件 3
10 50CC-Engine-M-010 139.10.107 ROLLER 5.7g 滚珠 5.7g 6
11 50CC-Engine-M-011 139.06.500 SHAFT, KICK STARTER 起动轴组合 1
12 50CC-Engine-M-012 139.06.101 SPRING 起动回位扭簧 1
13 50CC-Engine-M-013 139.06.104 BUSH 衬套 1
14 50CC-Engine-M-014 139.06.102 Starting shaft BUSH 14×18×21 起动轴衬套 14×18×21 1
15 50CC-Engine-M-015 139.11.403 WASHER 垫圈14×21×2 1
16 50CC-Engine-M-016 GB/T 894.1 CIRCLIP 挡圈 1
17 50CC-Engine-M-017 139.06.300 STARTING SHAFT SILVER 脚起动杆组合 1
18 50CC-Engine-M-018 139.06.400 Starting driven gear assembly 起动从动齿轮组合 1
19 50CC-Engine-M-019 139.11.404 Washer 8.2 × 14× 1.5 垫圈8.2×14×1.5 1
20 50CC-Engine-M-020 139.06.103 spring 摩擦弹簧 1
21 50CC-Engine-M-021 GB/T 16674.1 HEXAGPNAL BOLT FLANGE M6*22 六角法兰面螺栓M6×22 1
