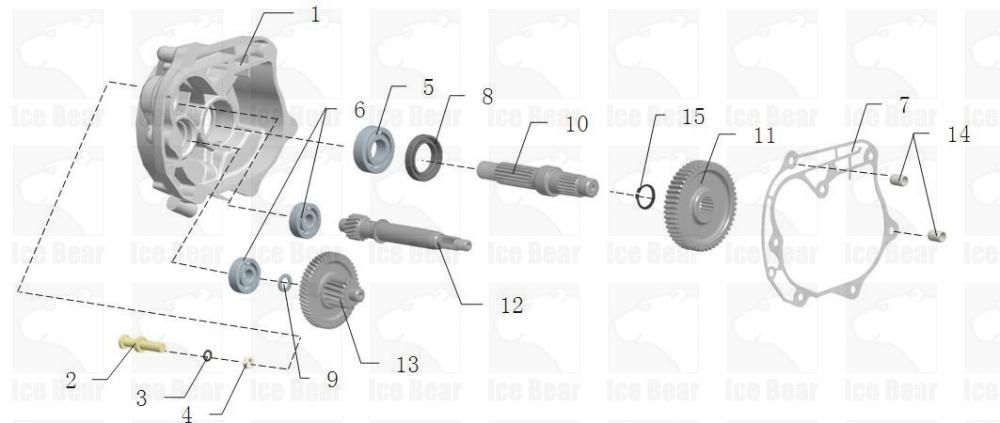

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 50CC-Engine-O-001 139.03.005 Transmission Box 变速箱箱体 1
2 50CC-Engine-O-002 139.11.514 Brake pin 制动销轴 1
3 50CC-Engine-O-003 139.12.106 O ring 7.5×1.5 O形圈7.5×1.5 1
4 50CC-Engine-O-004 GB 6187.1 nut M8 自锁螺母M8 1
5 50CC-Engine-O-005 GB/T 279 Bearing 6004 6004轴承 1
6 50CC-Engine-O-006 GB/T 276 Bearing 6201 6201轴承 2
7 50CC-Engine-O-007 139.12.305 GASKET 变速箱箱体纸垫 1
8 50CC-Engine-O-008 139.12.102 oil Seal 27 × 42 × 7 油封27×42×7 1
9 50CC-Engine-O-009 139.12.310 plastic gasket 12.5 塑料垫片 12.5 1
10 50CC-Engine-O-010 139.10.402 FINAL SHAFT 最终轴 1
11 50CC-Engine-O-011 139.10.403 FINAL GEAR (z=52) 最终齿轮 (z=52) 1
12 50CC-Engine-O-012 139.10.401 DRIVESHAFT (z=15) 驱动轴 (z=15) 1
13 50CC-Engine-O-013 139.10.410 VICE SHAFT ASSEMBLY (z1=53,z2=14) 副轴组 (z1=53,z2=14) 1
14 50CC-Engine-O-014 139.11.513 PIN 10 × 8.5 × 20 定位销10×8.5×20 2
15 50CC-Engine-O-015 GB/T894.1 CIRCLIP 挡圈17 1
