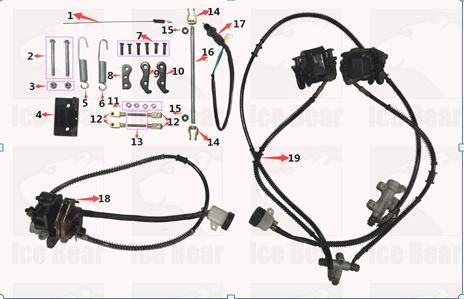

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1 PAZ125-1-U-001 PAZ125-1-U-1 Spring 后刹开关弹簧 1
2 PAZ125-1-U-002 PAZ125-1-U-2 Bolt 螺栓 2
3 PAZ125-1-U-003 PAZ125-1-U-3 Self locking nut 自锁螺母 3
4 PAZ125-1-U-004 PAZ125-1-U-4 Mounting plate for rear disc brake 后碟刹安装板 1
5 PAZ125-1-U-005 PAZ125-1-U-5 Spring 刹车油门弹簧 1
6 PAZ125-1-U-006 PAZ125-1-U-6 Spring 刹车油门弹簧 1
7 PAZ125-1-U-007 PAZ125-1-U-7 Dowel 销子 6
8 PAZ125-1-U-008 PAZ125-1-U-8 Comma slice 1 逗号片1 1
9 PAZ125-1-U-009 PAZ125-1-U-9 Comma slice 2 逗号片2 1
10 PAZ125-1-U-010 PAZ125-1-U-10 Comma slice 3 逗号片3 1
11 PAZ125-1-U-011 PAZ125-1-U-11 Nut 螺母 4
12 PAZ125-1-U-012 PAZ125-1-U-12 Card head 小卡头 4
13 PAZ125-1-U-013 PAZ125-1-U-13 Brake connecting link 刹车连接杆 2
14 PAZ125-1-U-014 PAZ125-1-U-14 Card head big 大卡头 2
15 PAZ125-1-U-015 PAZ125-1-U-15 Nut 螺母 2
16 PAZ125-1-U-016 PAZ125-1-U-16 Brake connecting rod 刹车拉杆 1
17 PAZ125-1-U-017 PAZ125-1-U-17 Rear brake switch 后刹车开关 1
18 PAZ125-1-U-018 PAZ125-1-U-18 Rear disc brake 后碟刹 1
19 PAZ125-1-U-019 PAZ125-1-U-19 Front disc brake 前碟刹 1
