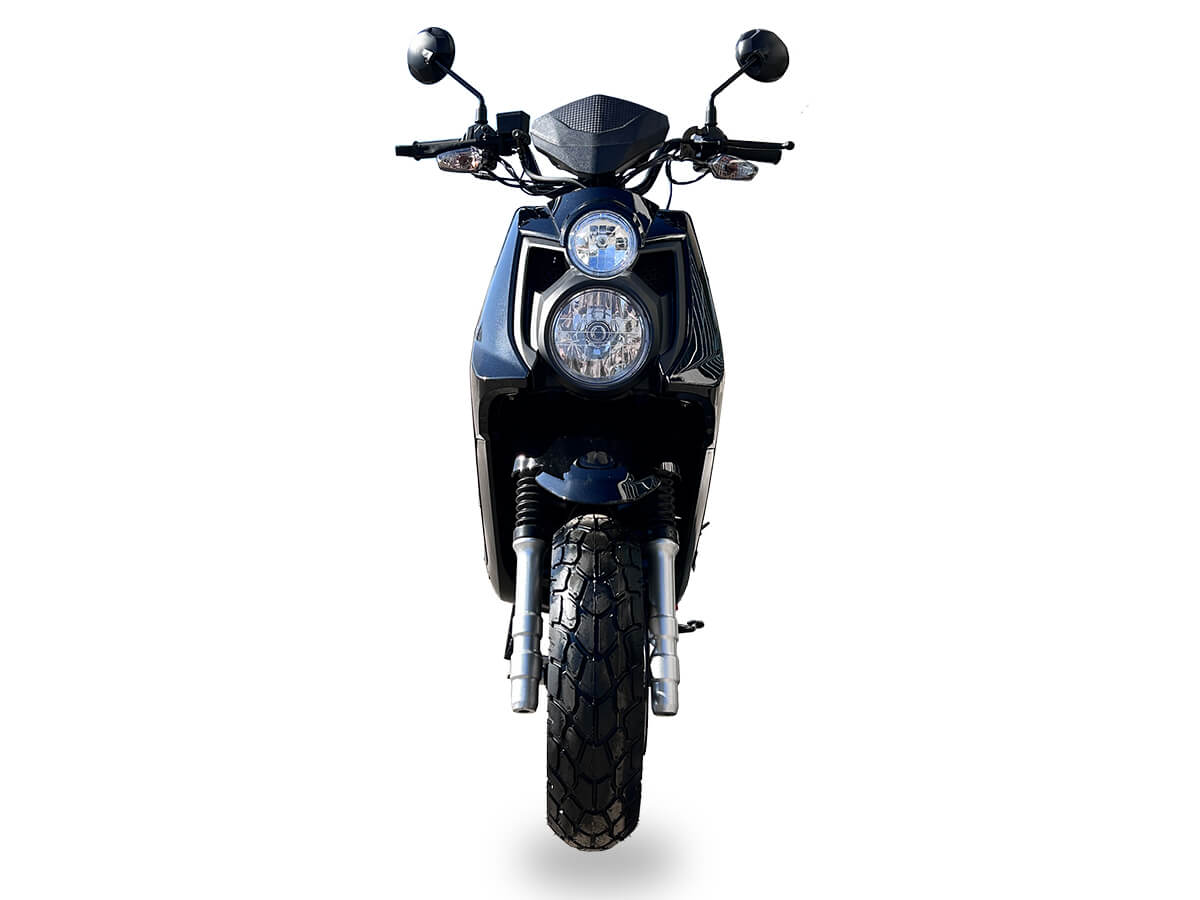

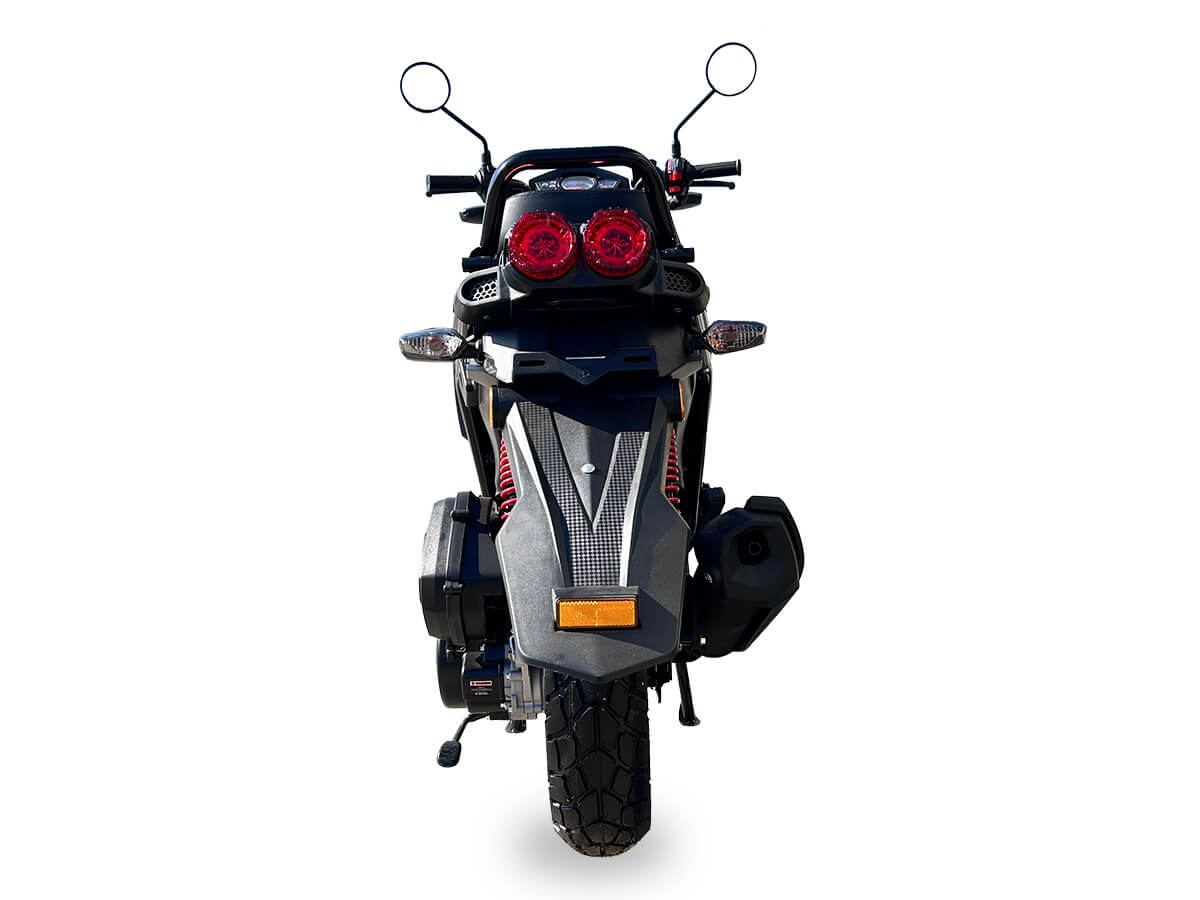

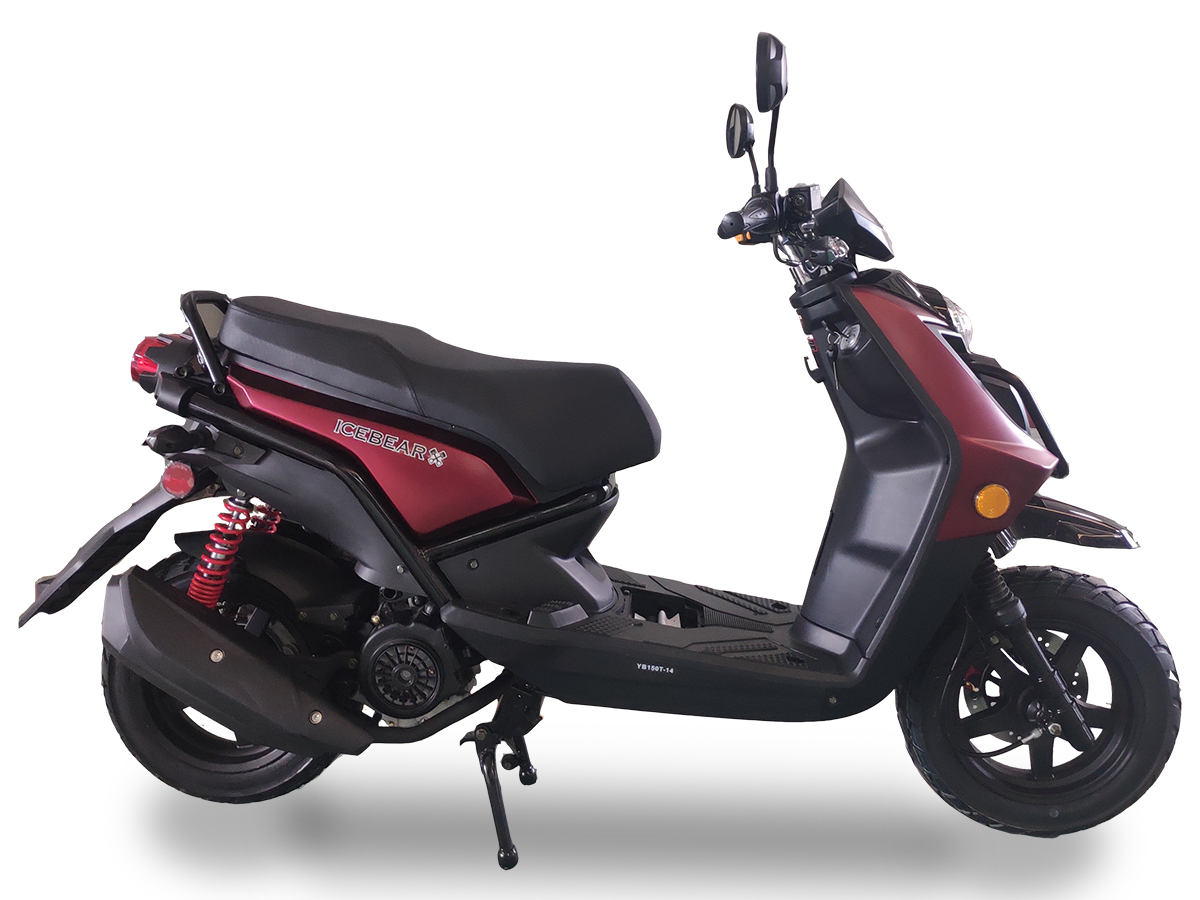

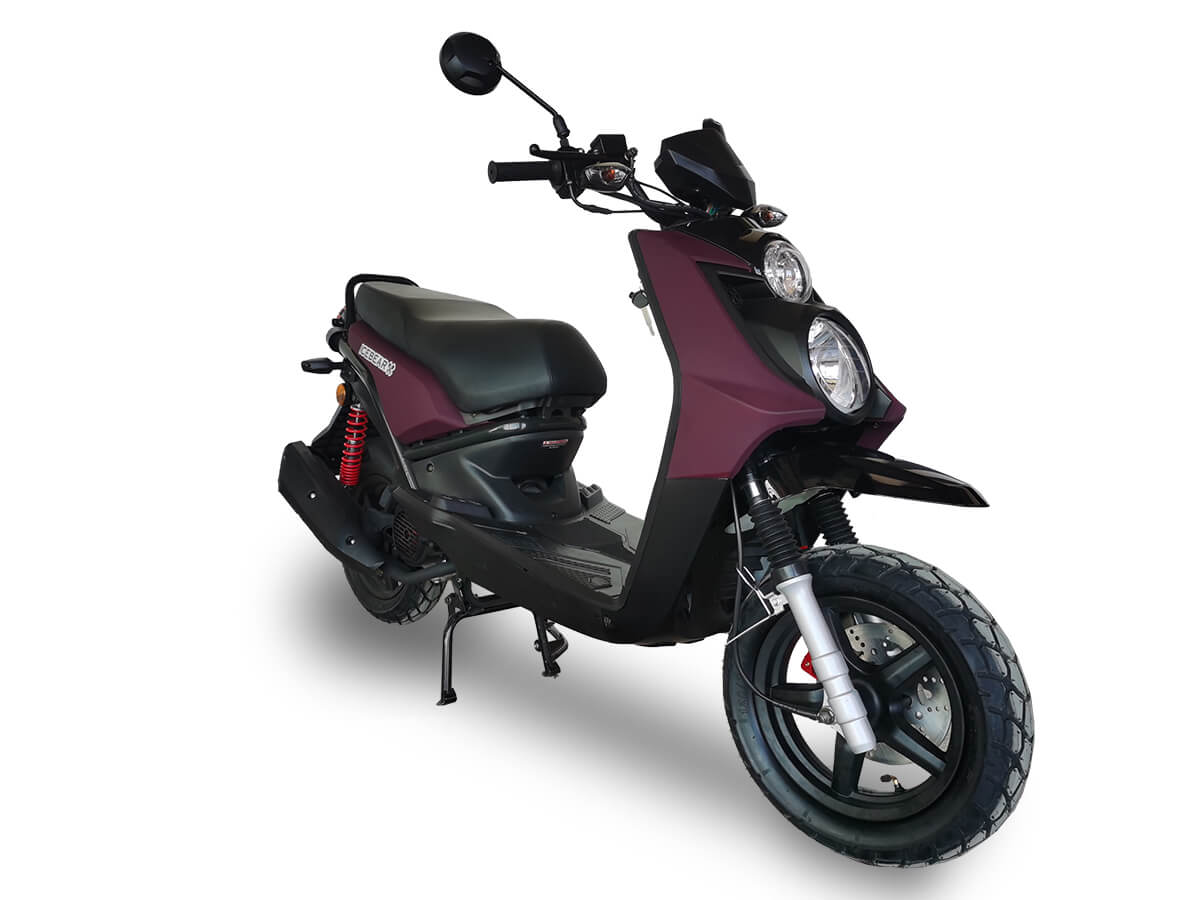

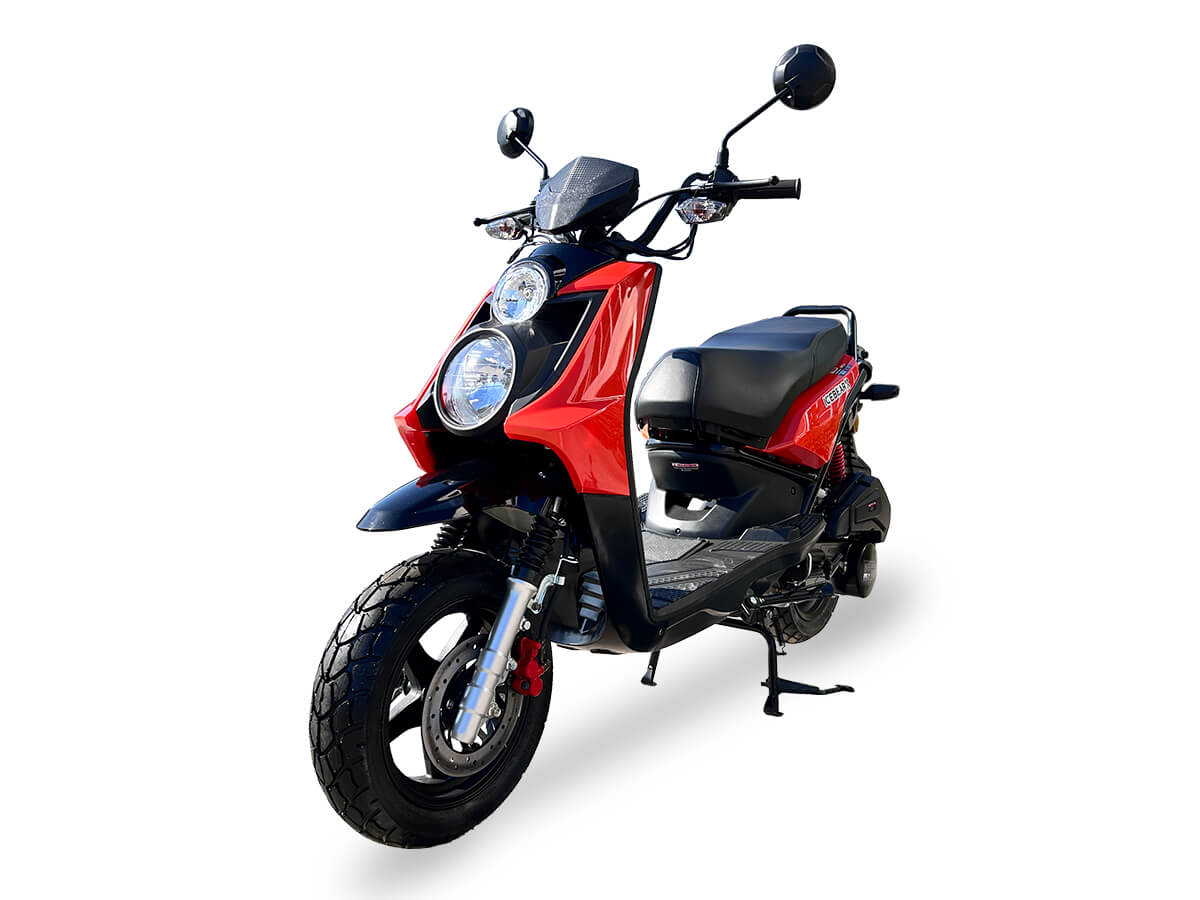

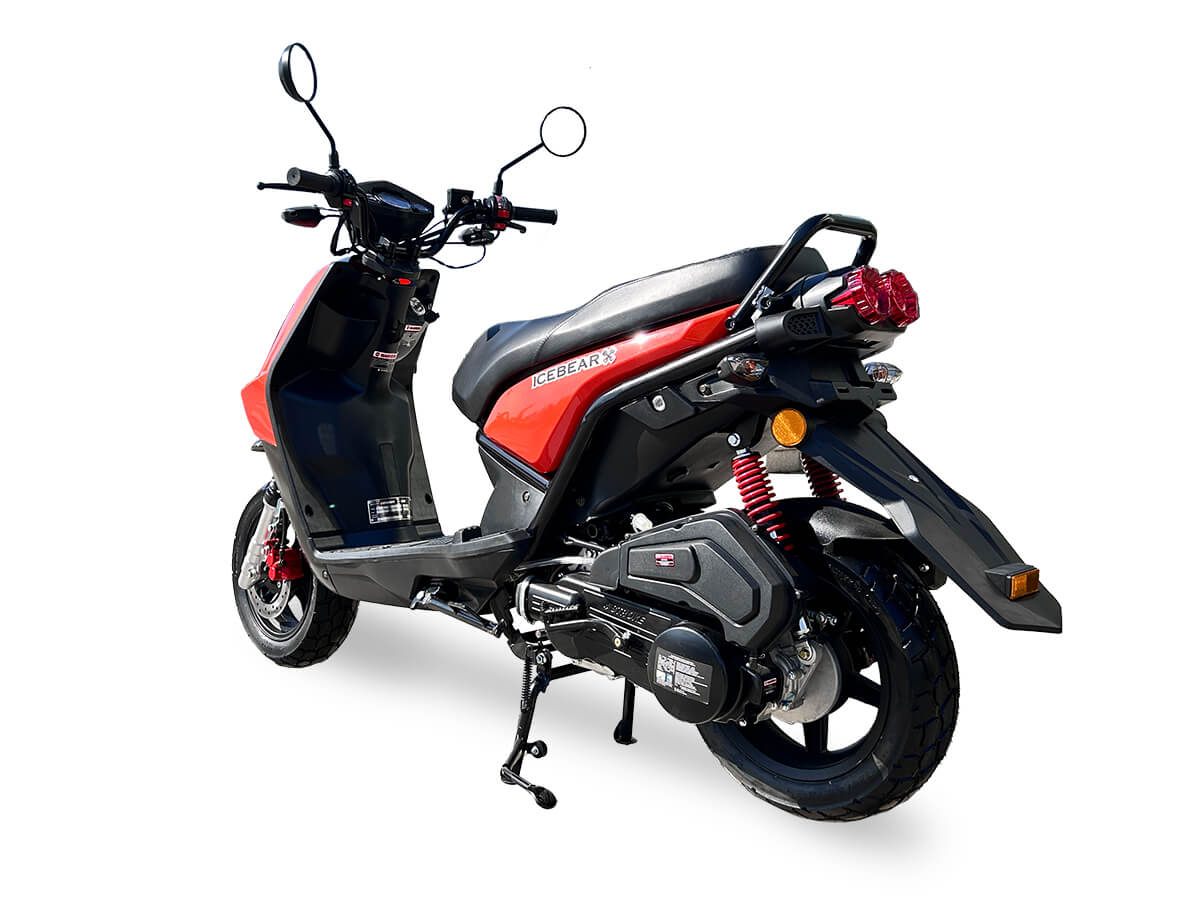

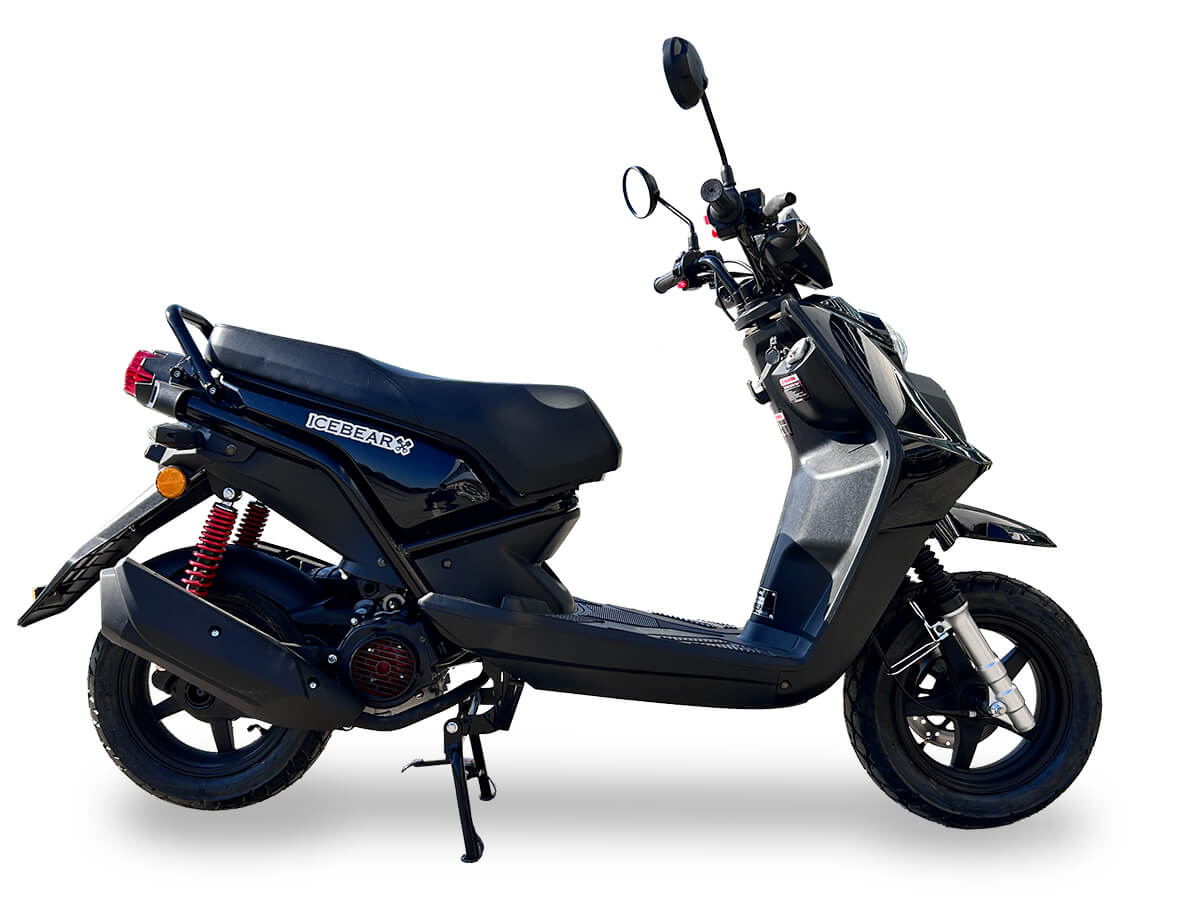

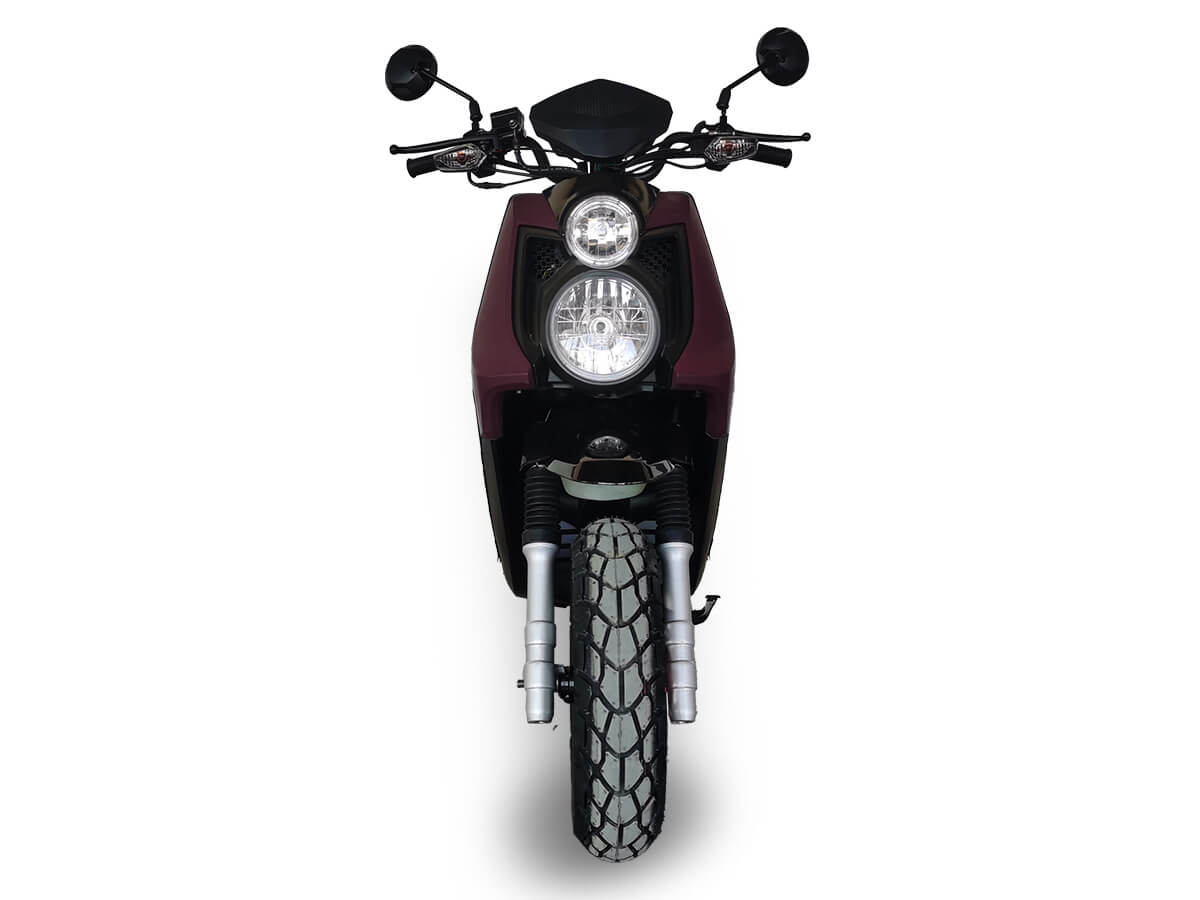

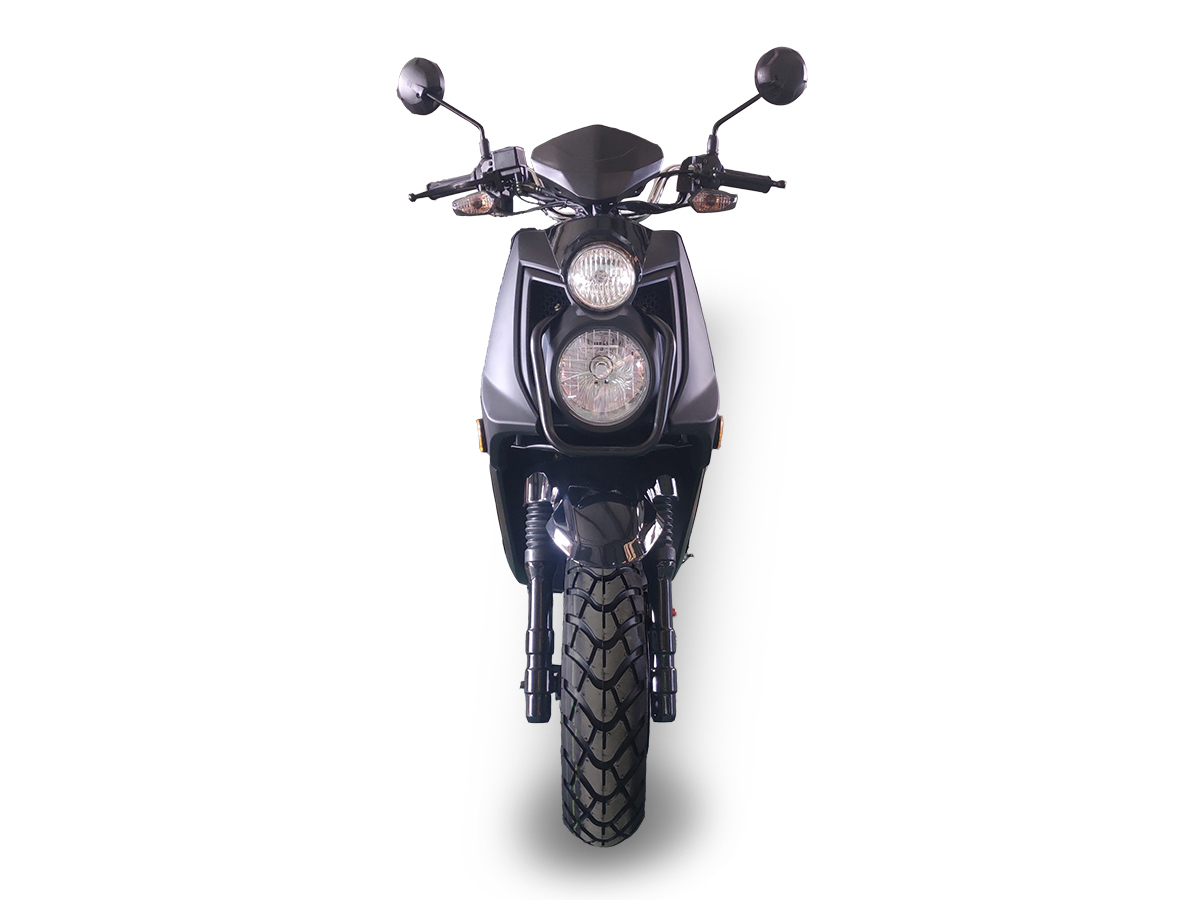

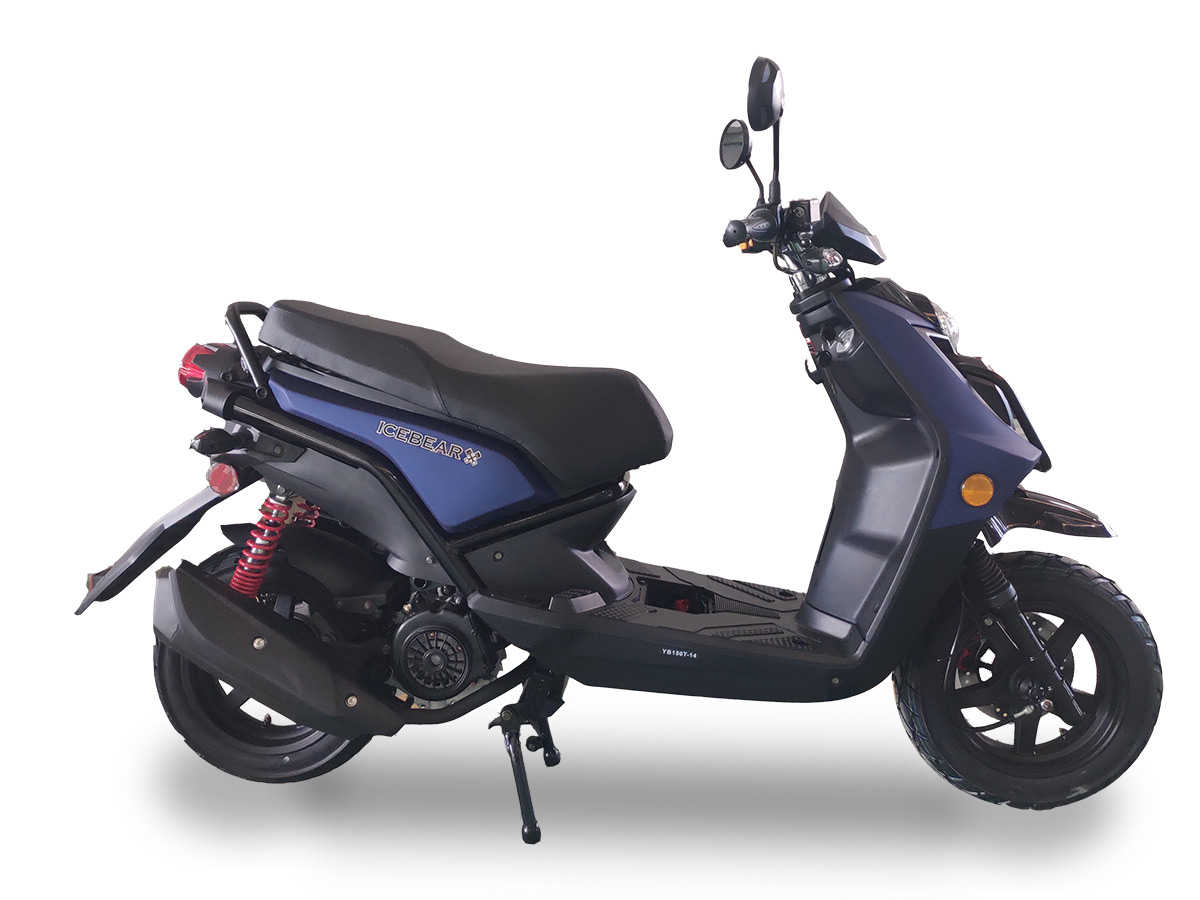

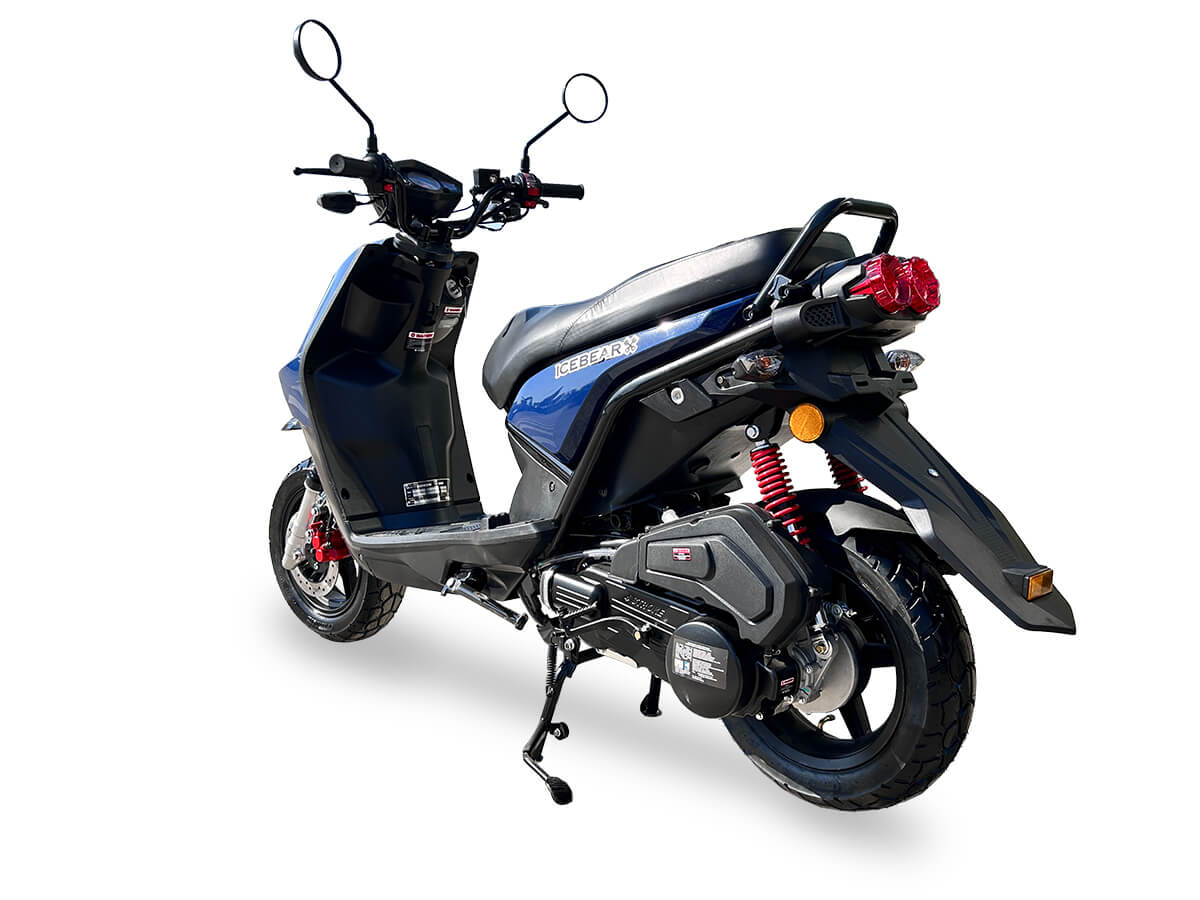

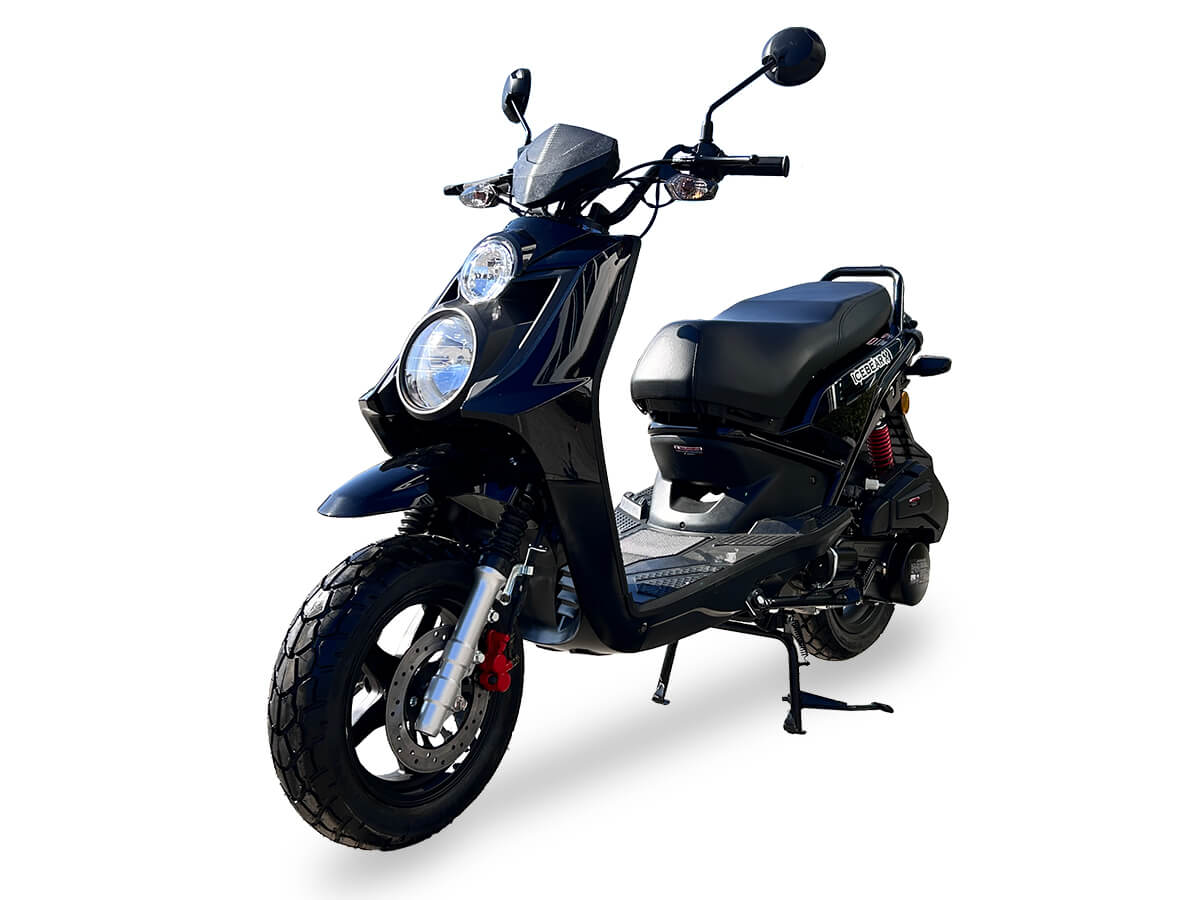

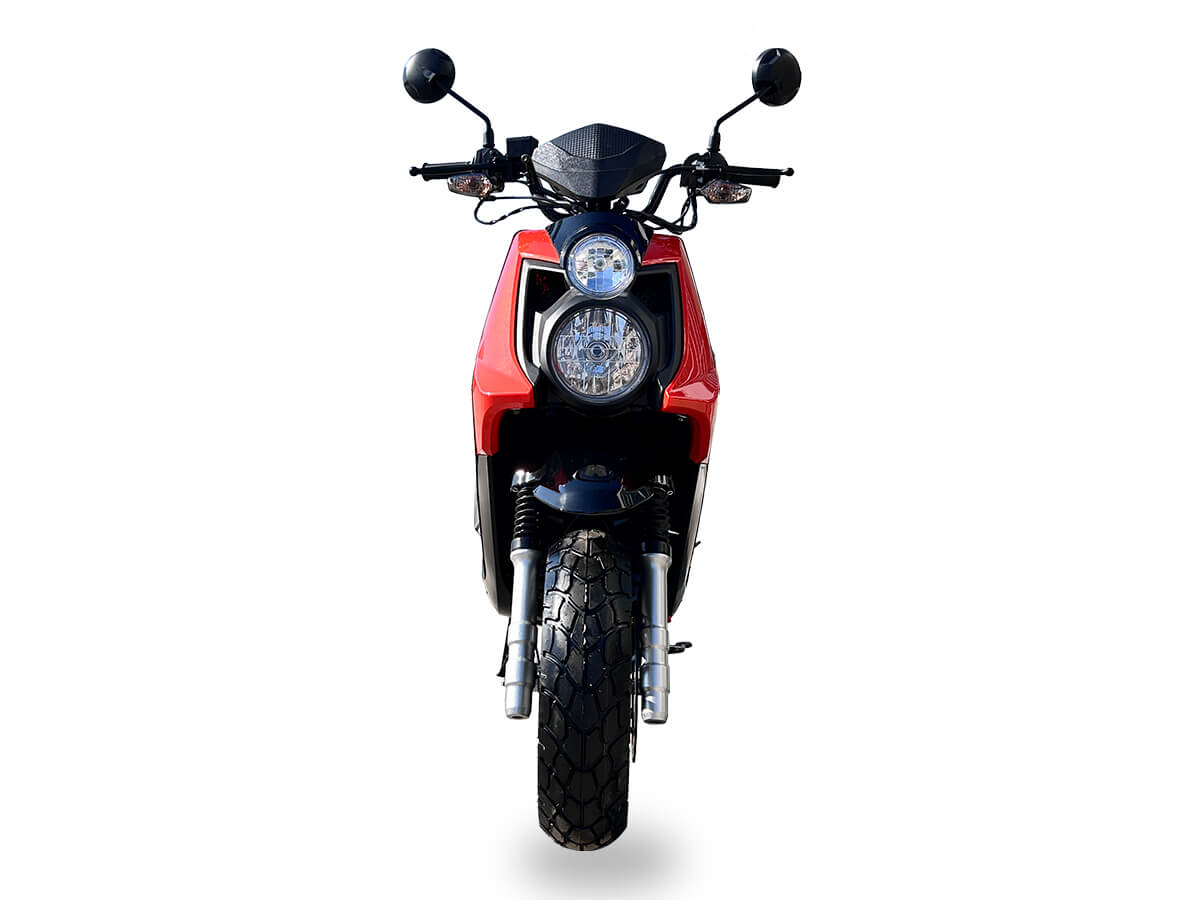

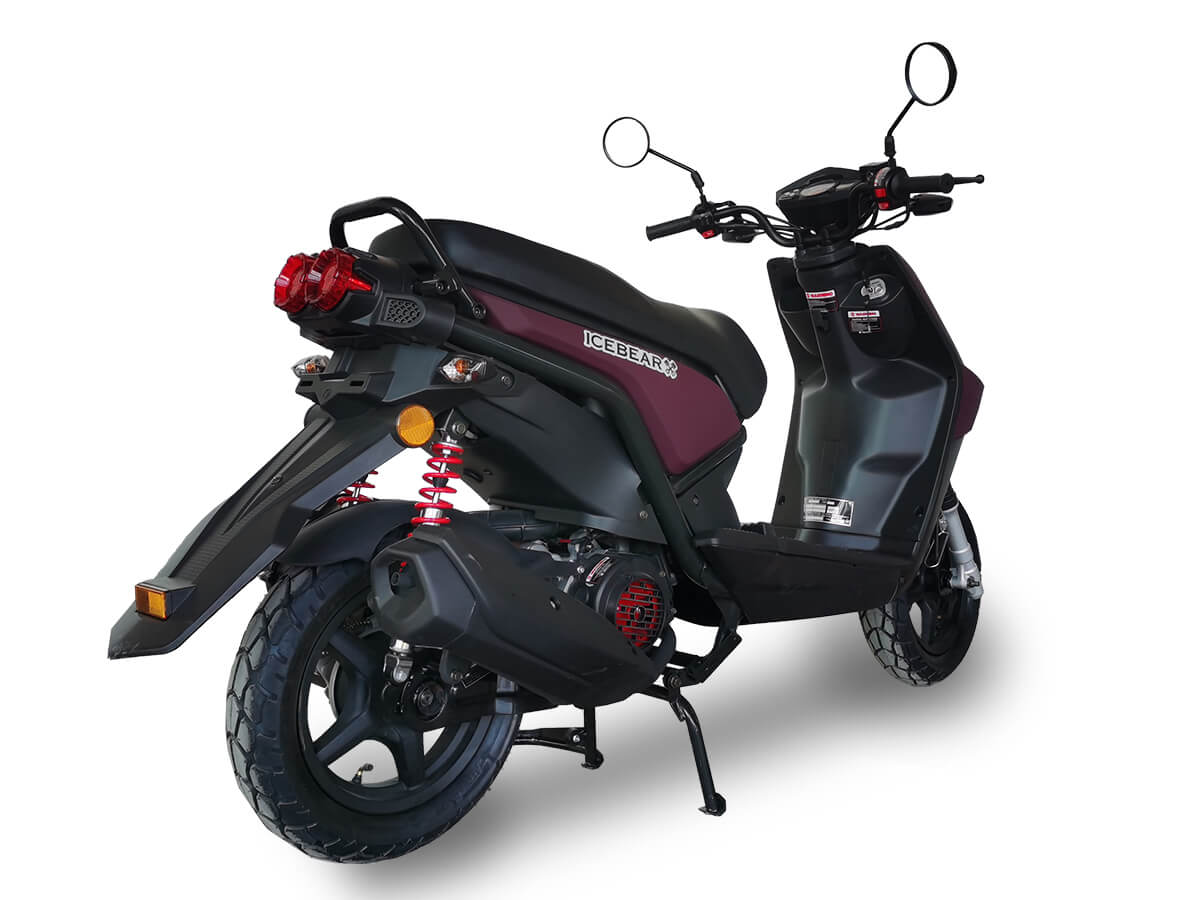

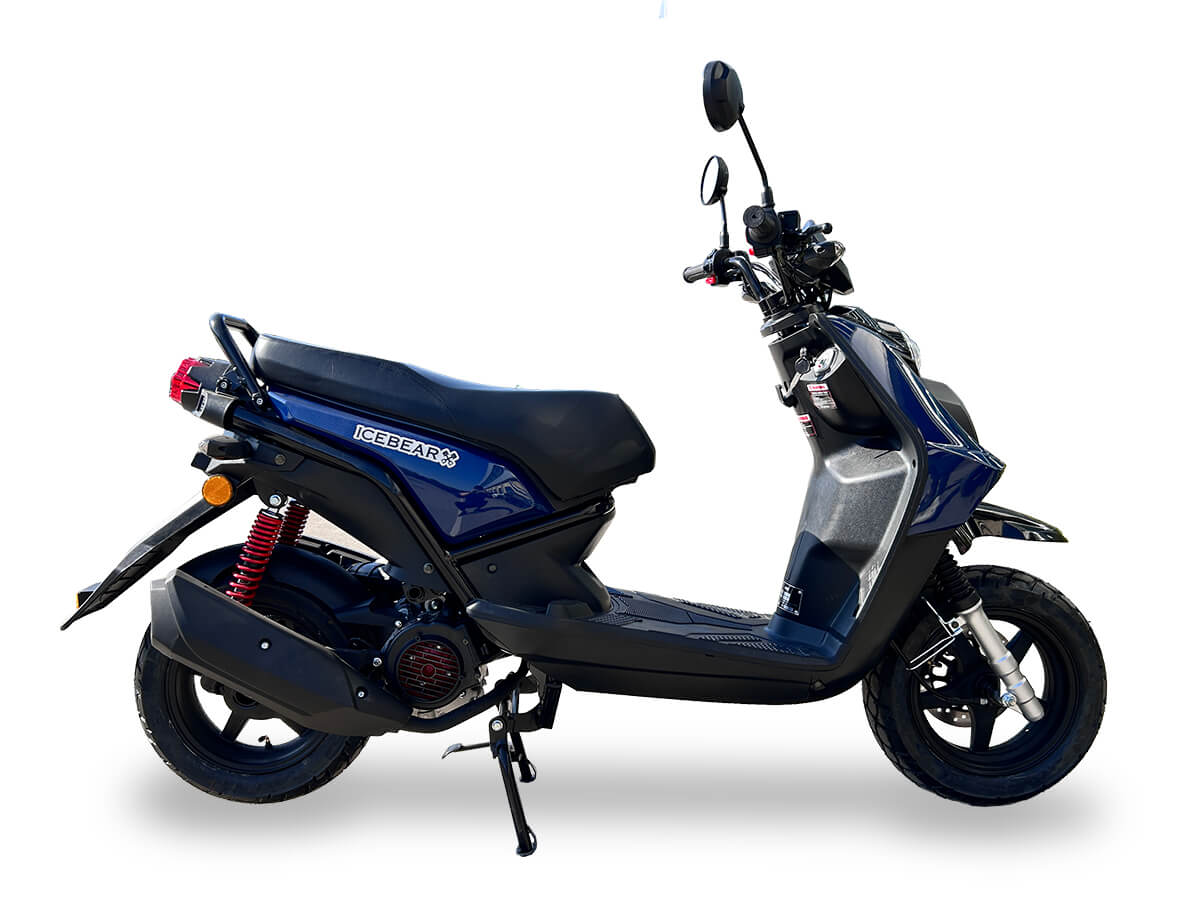

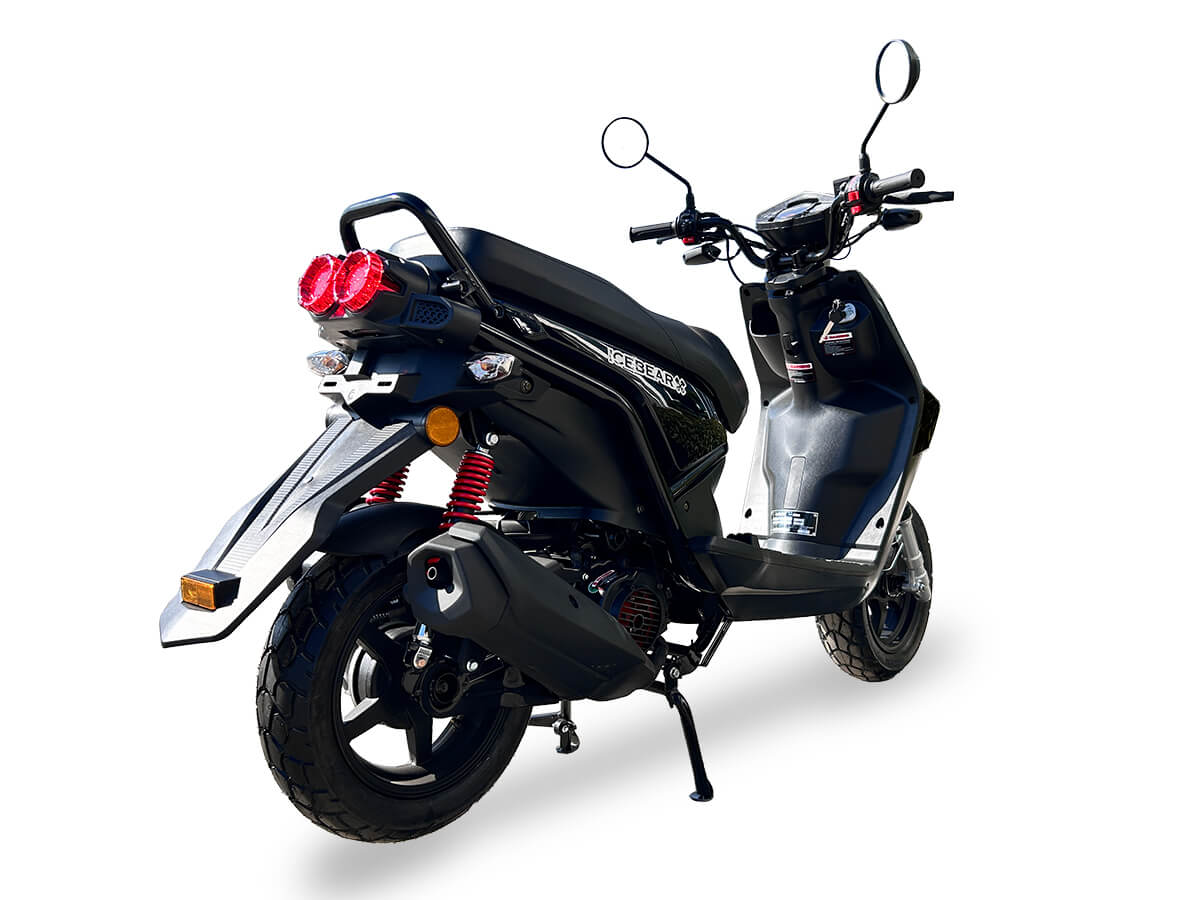

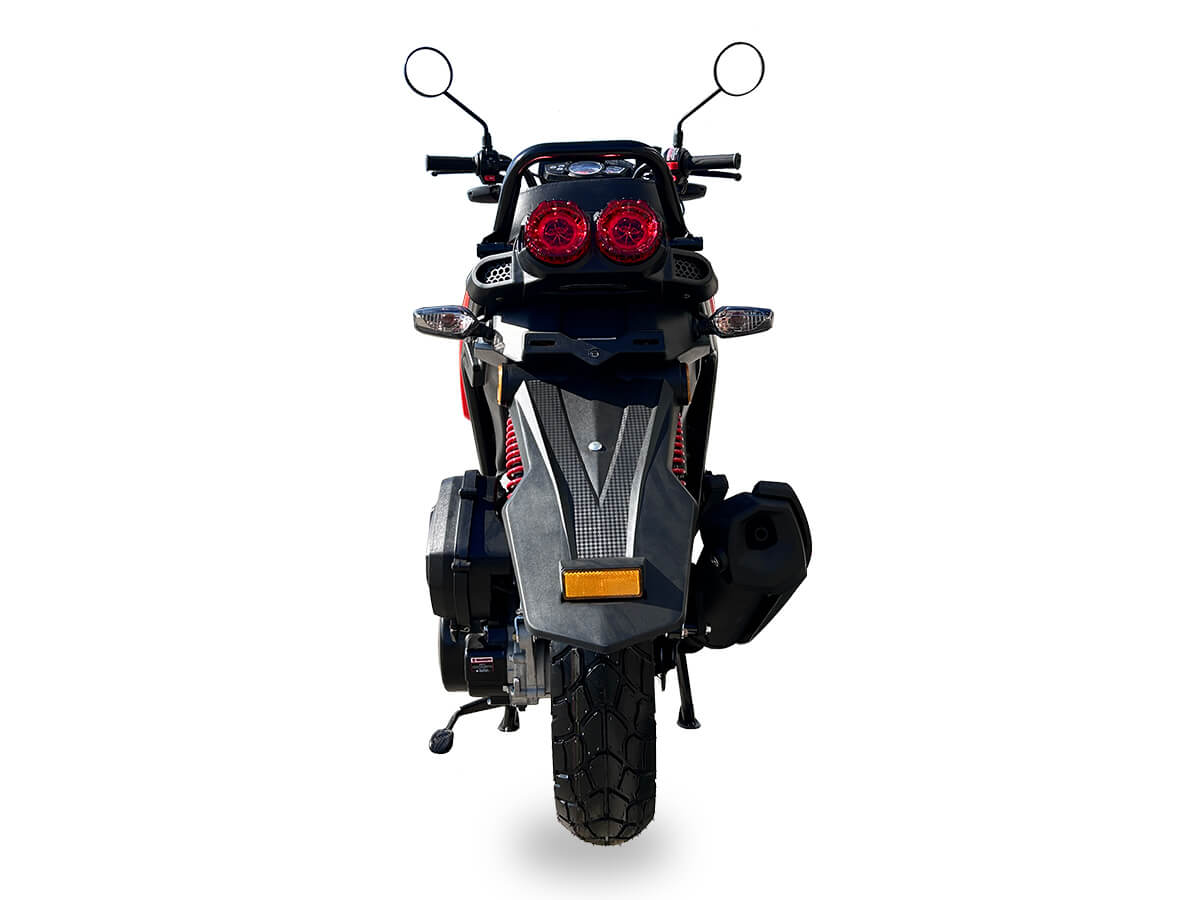

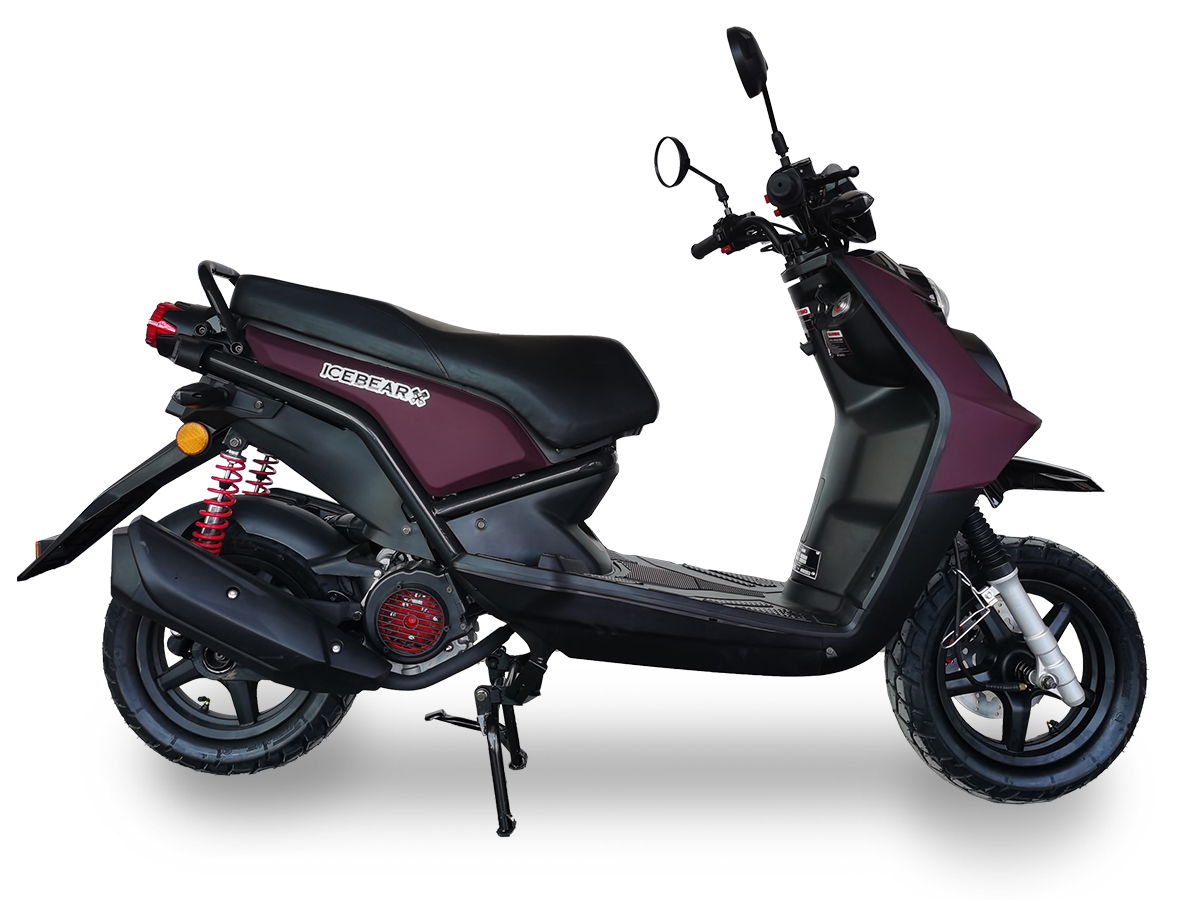

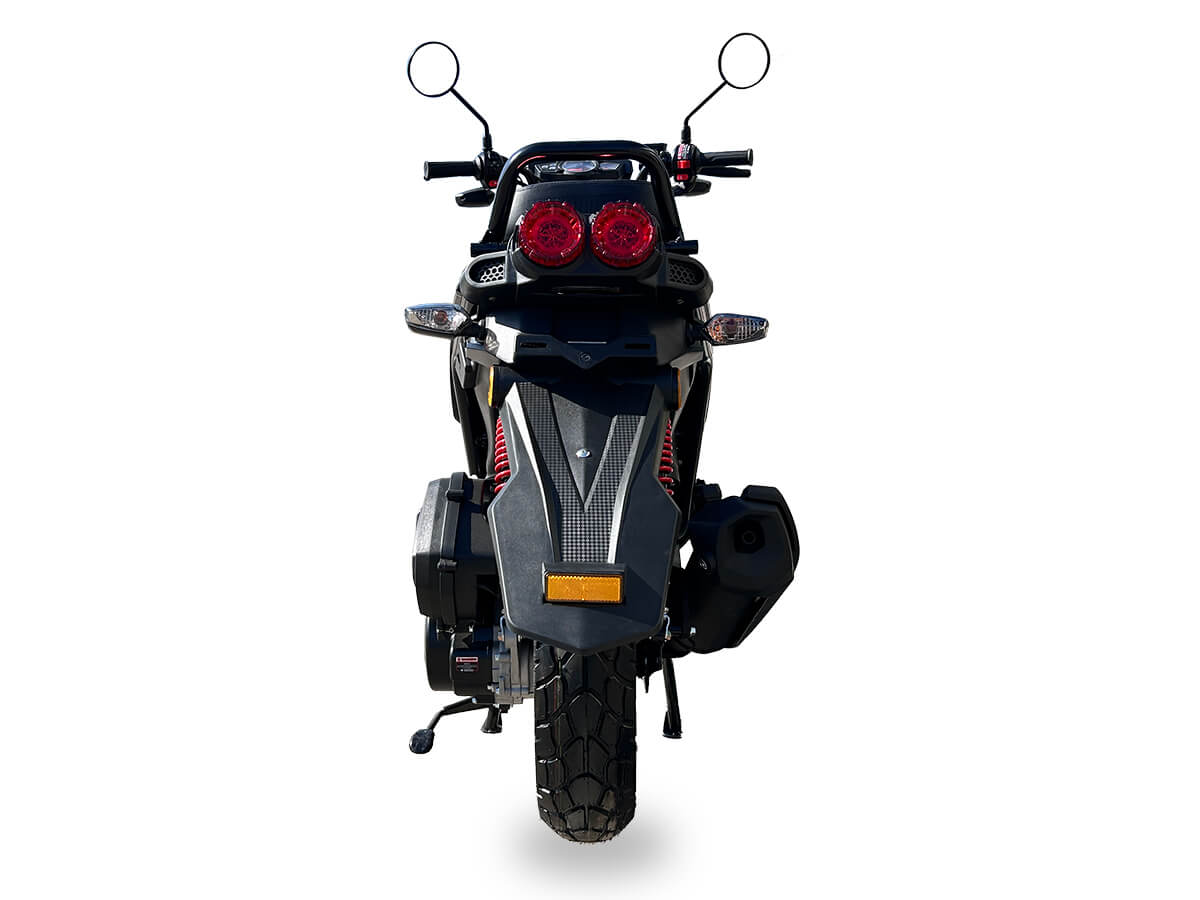

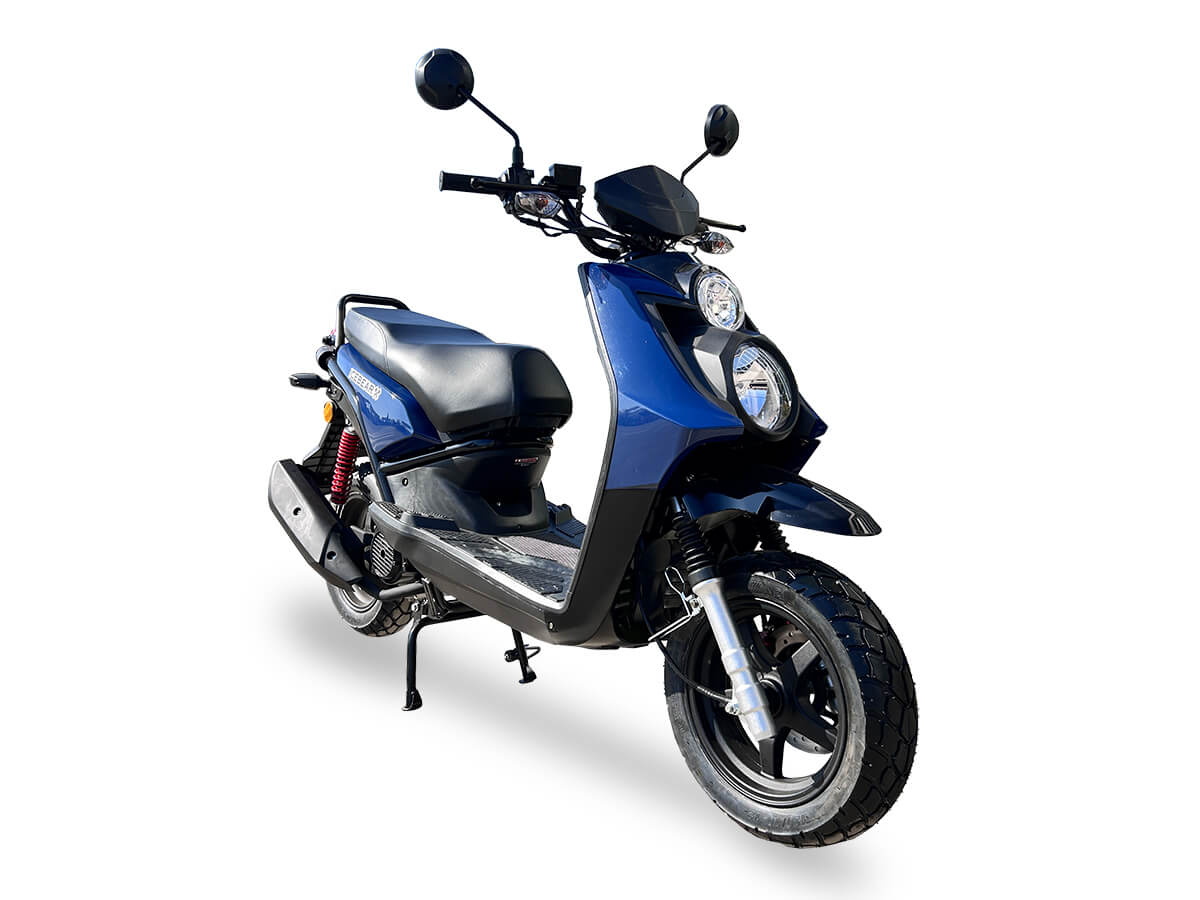

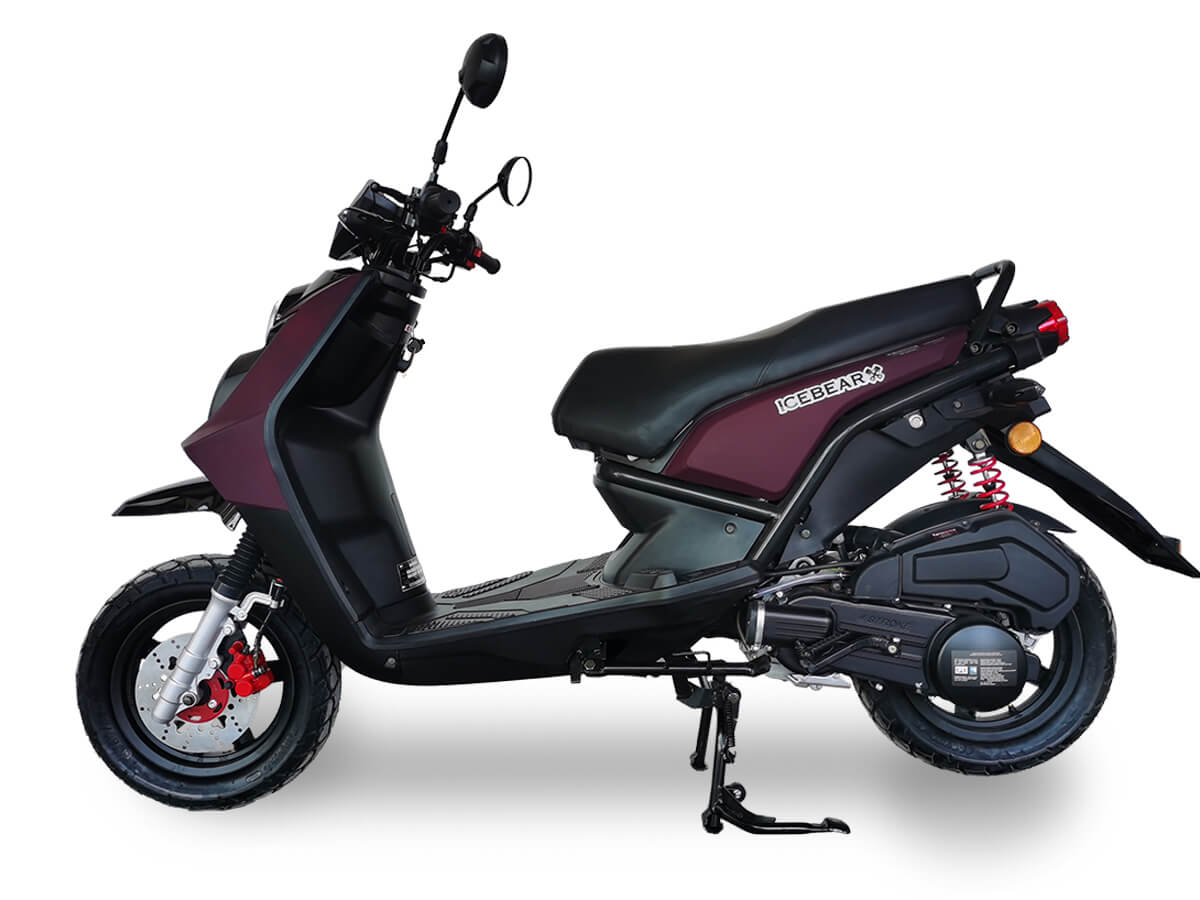

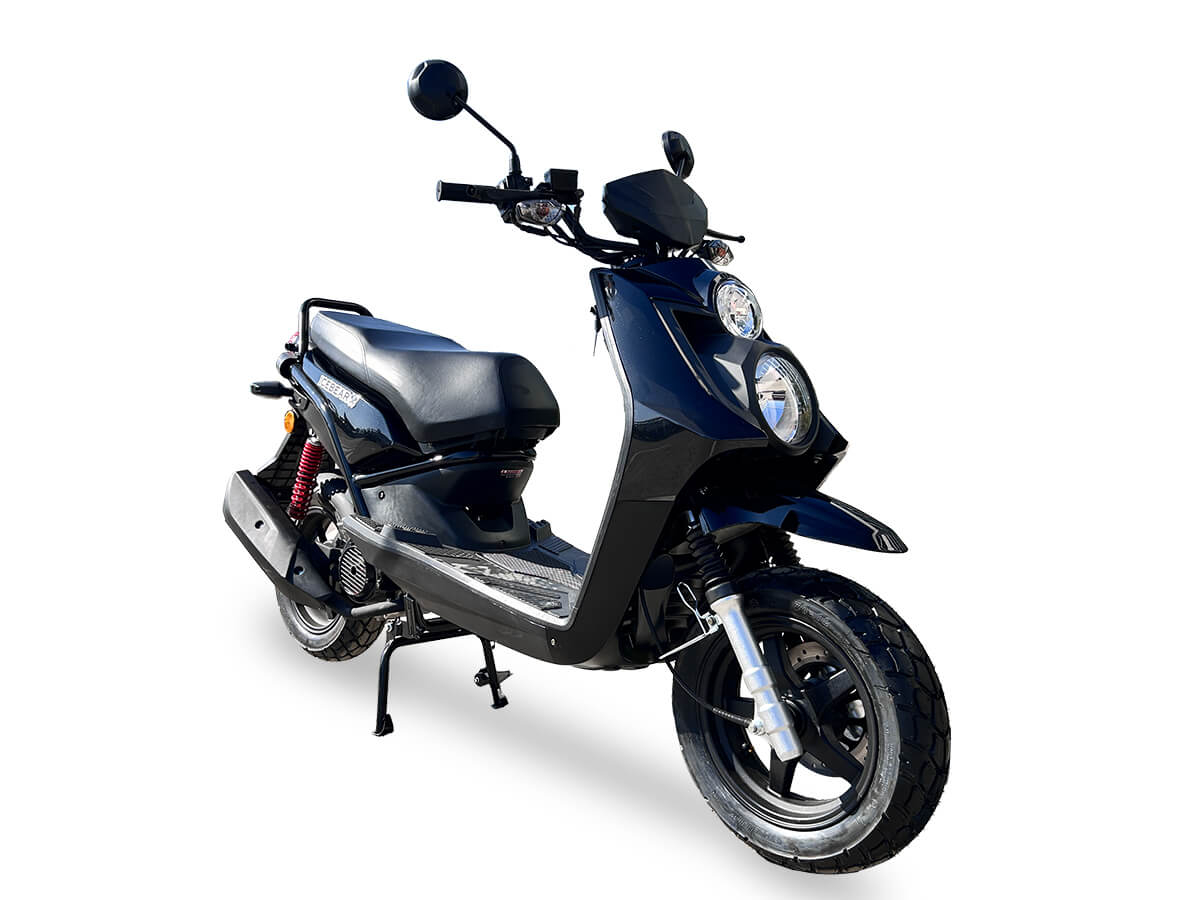

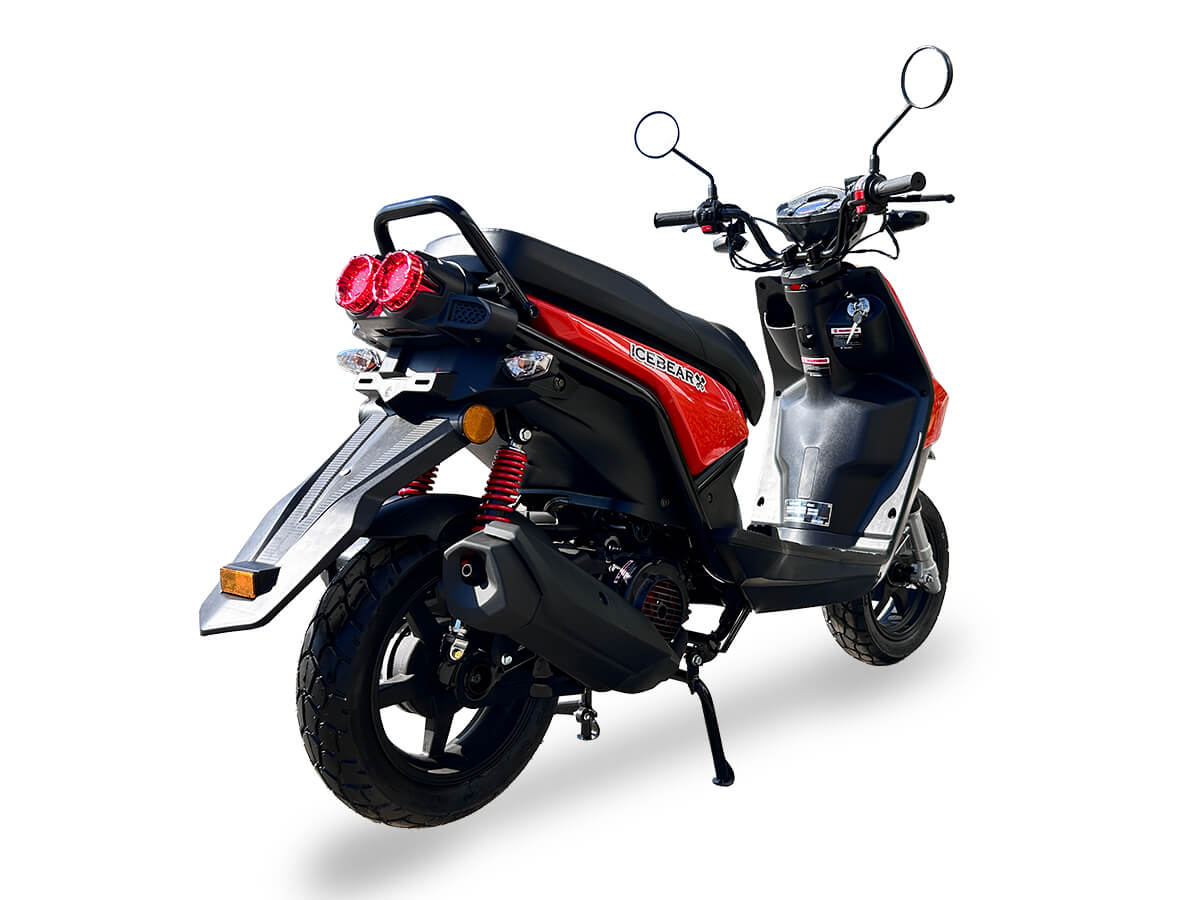

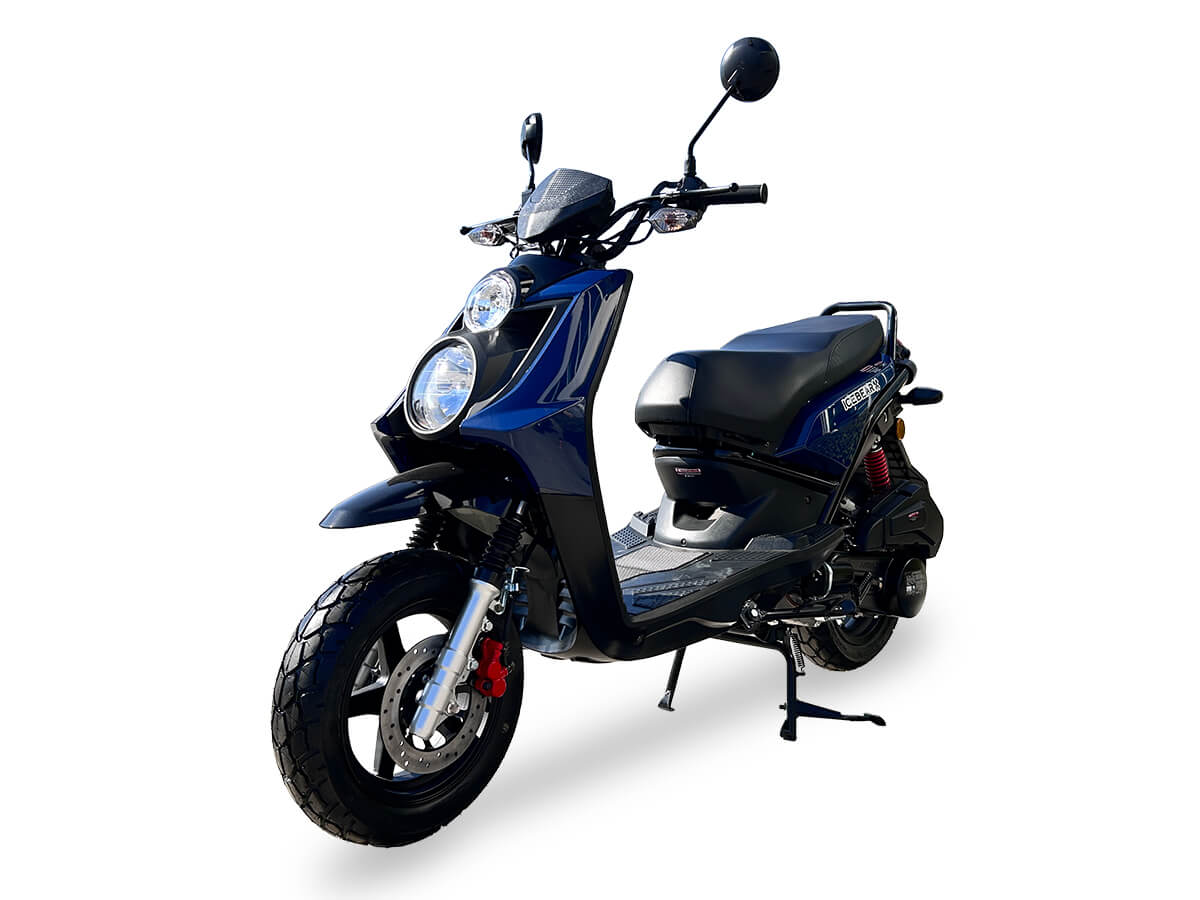

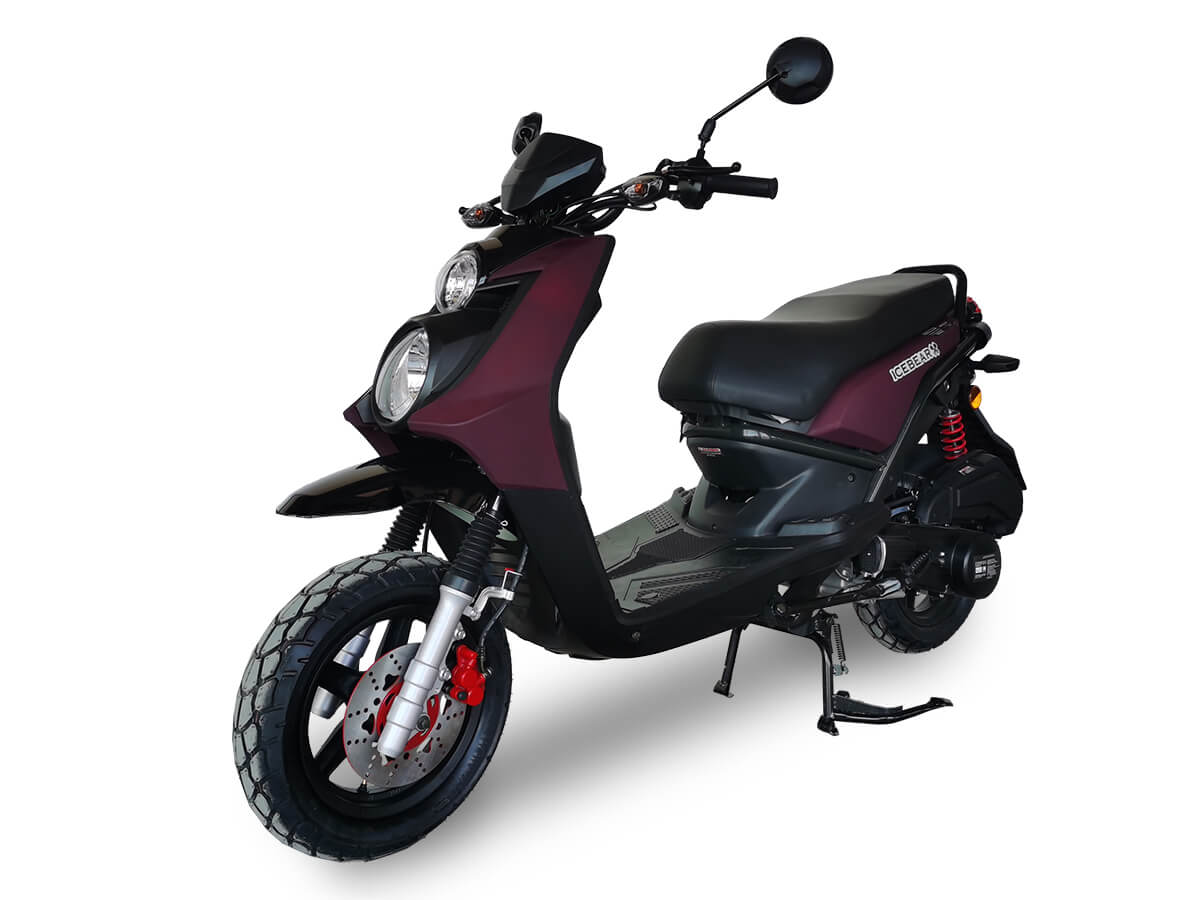

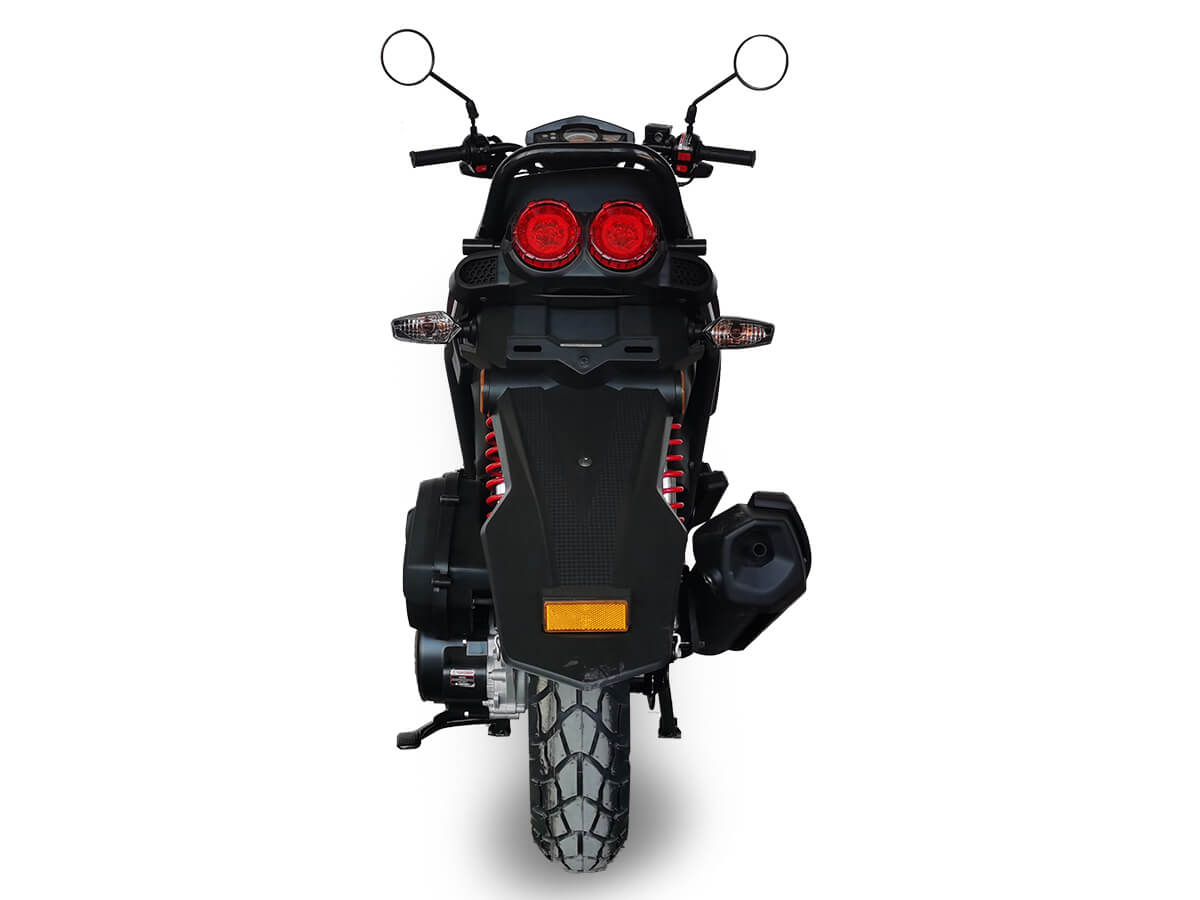

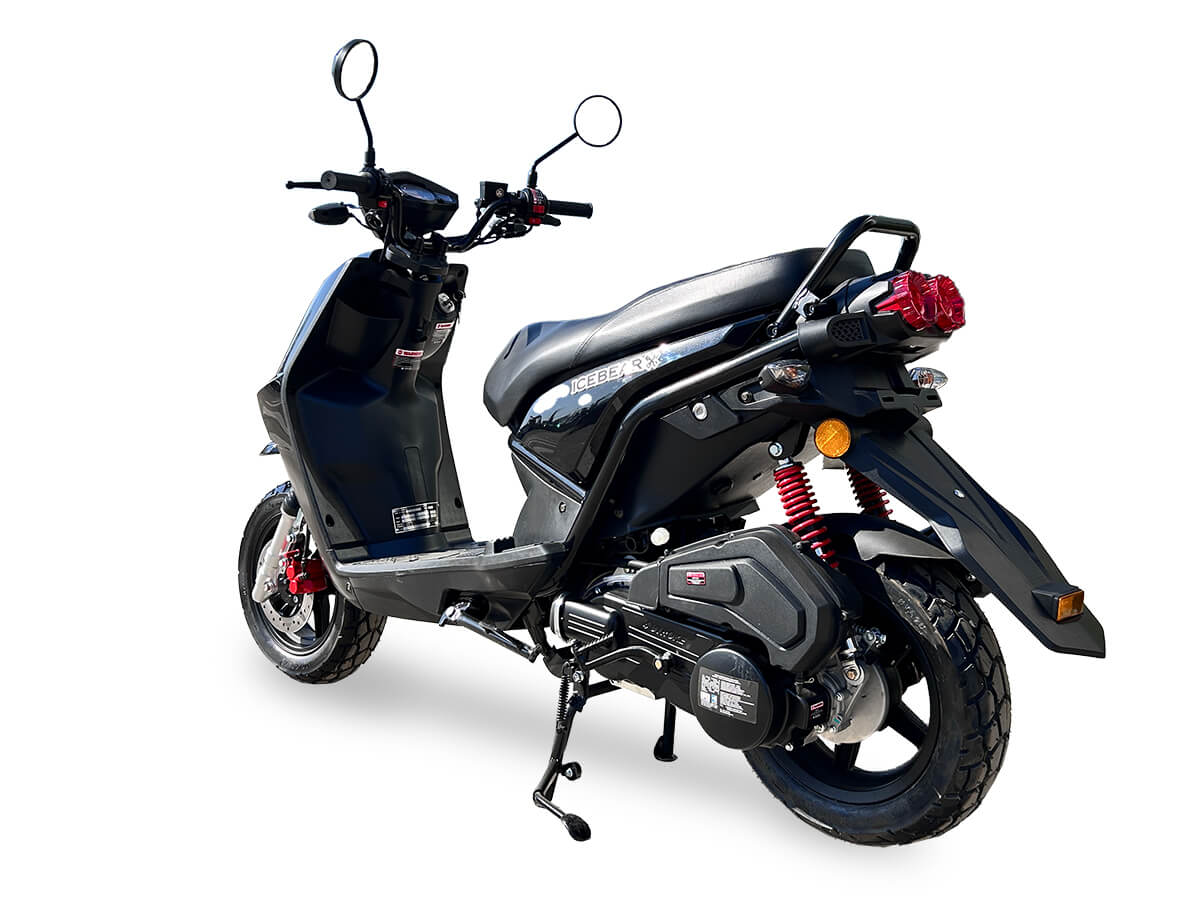

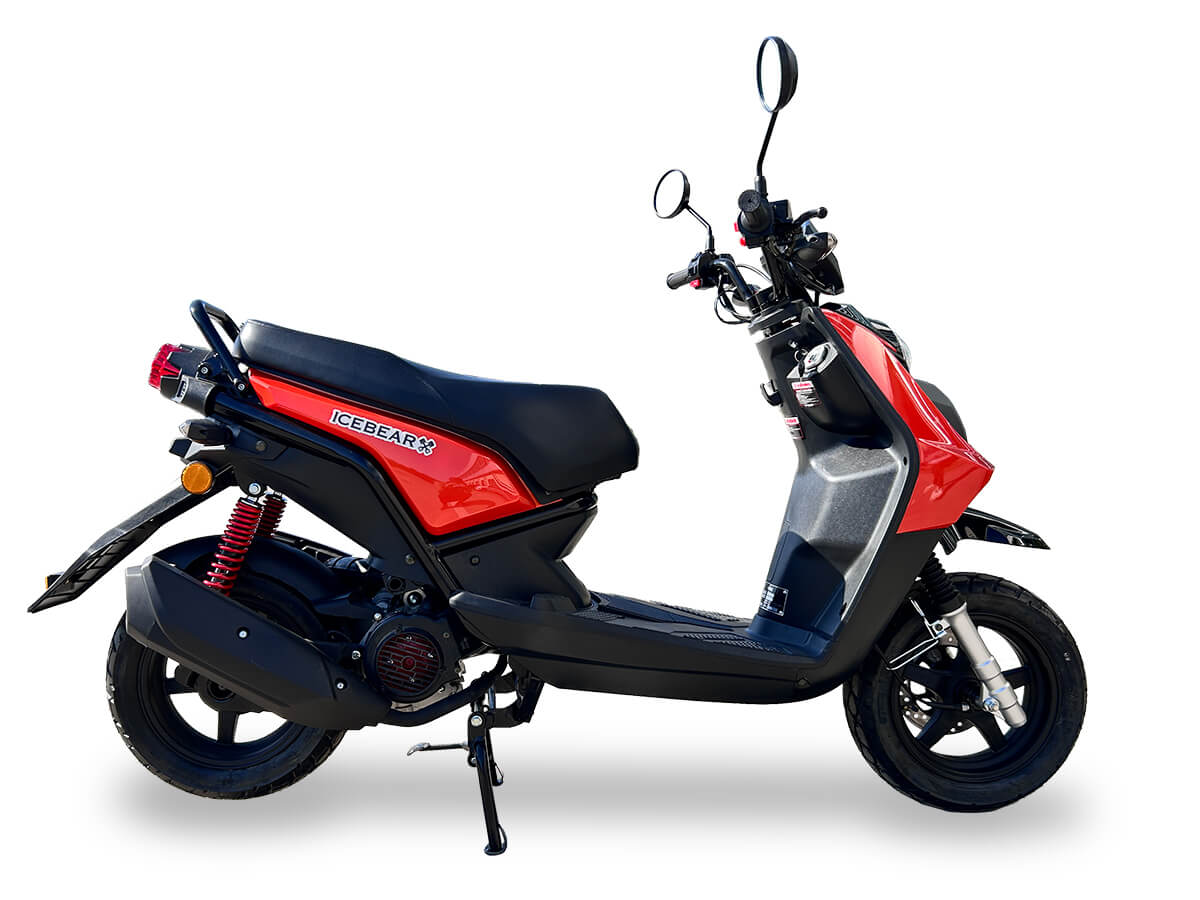

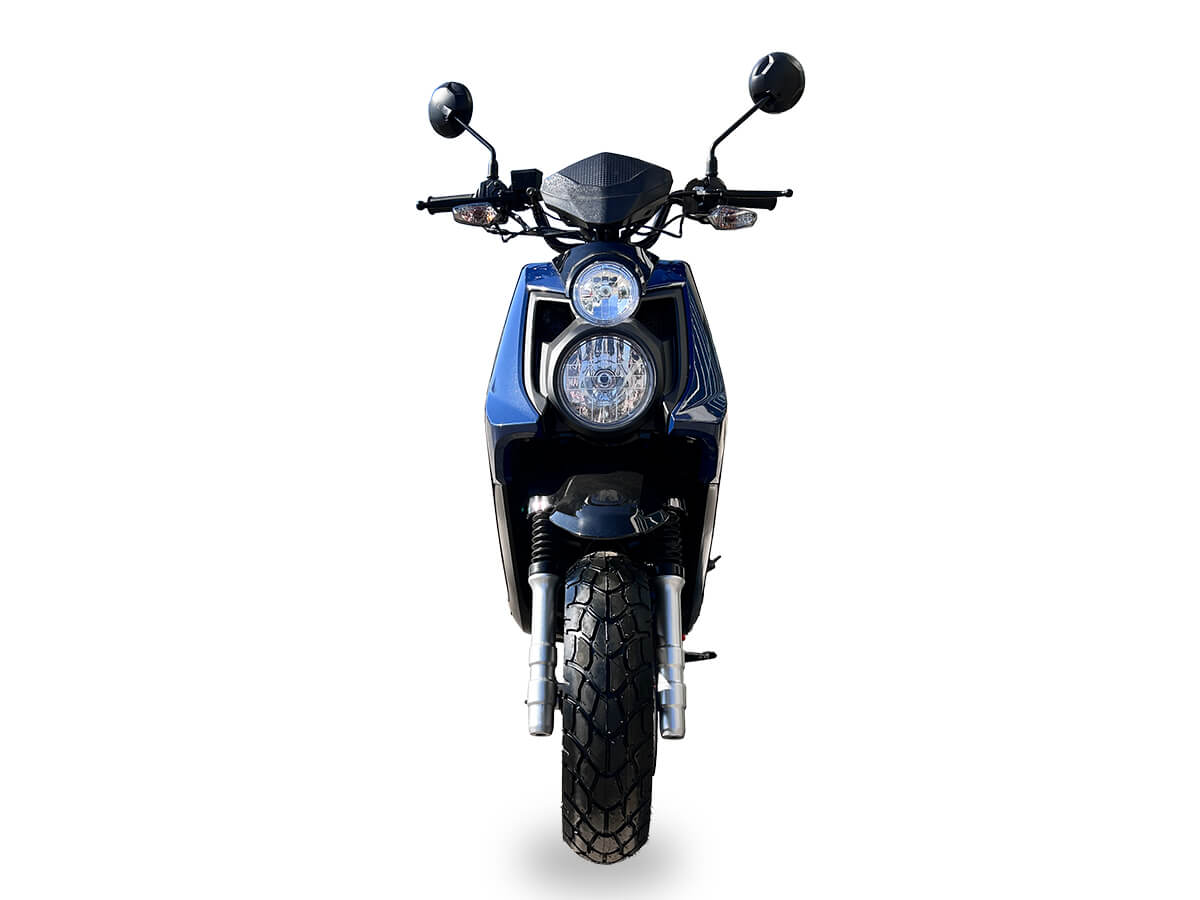

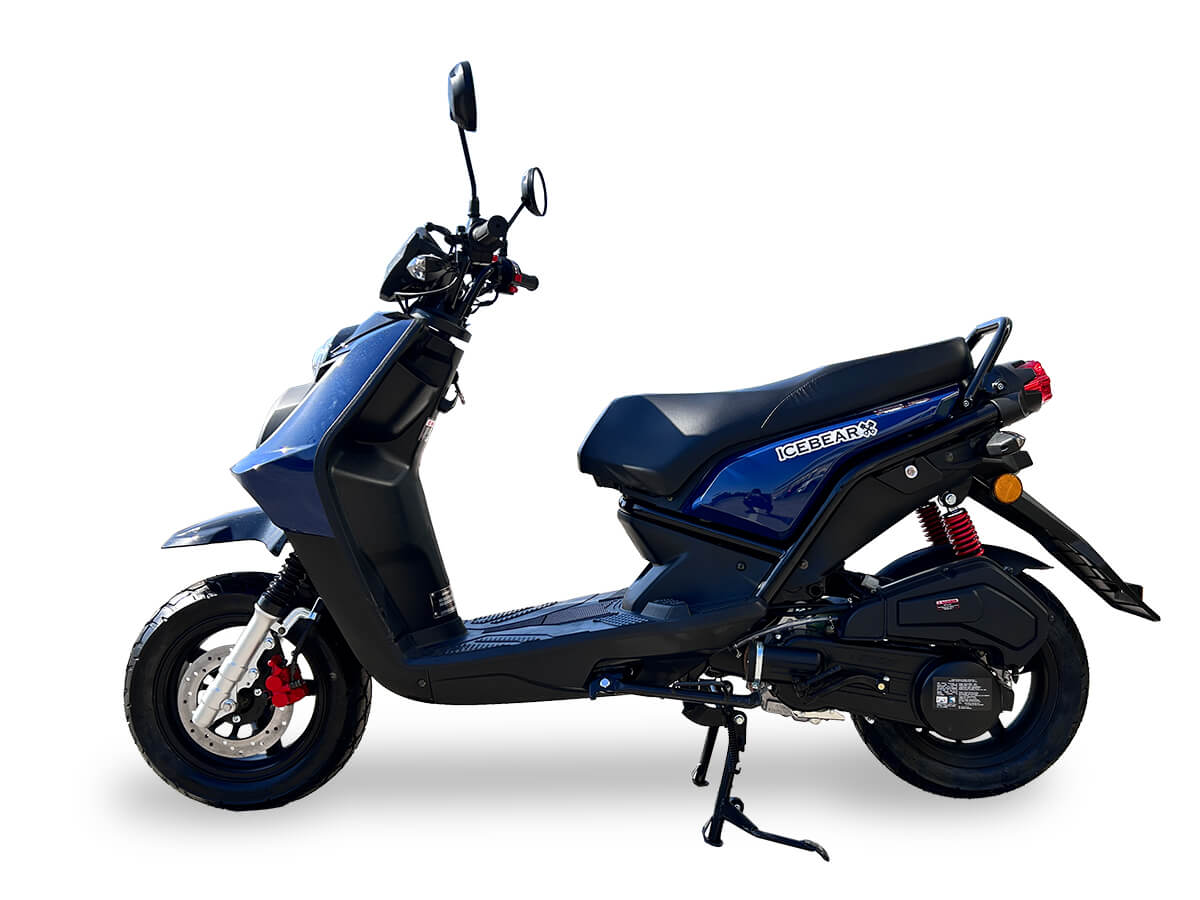

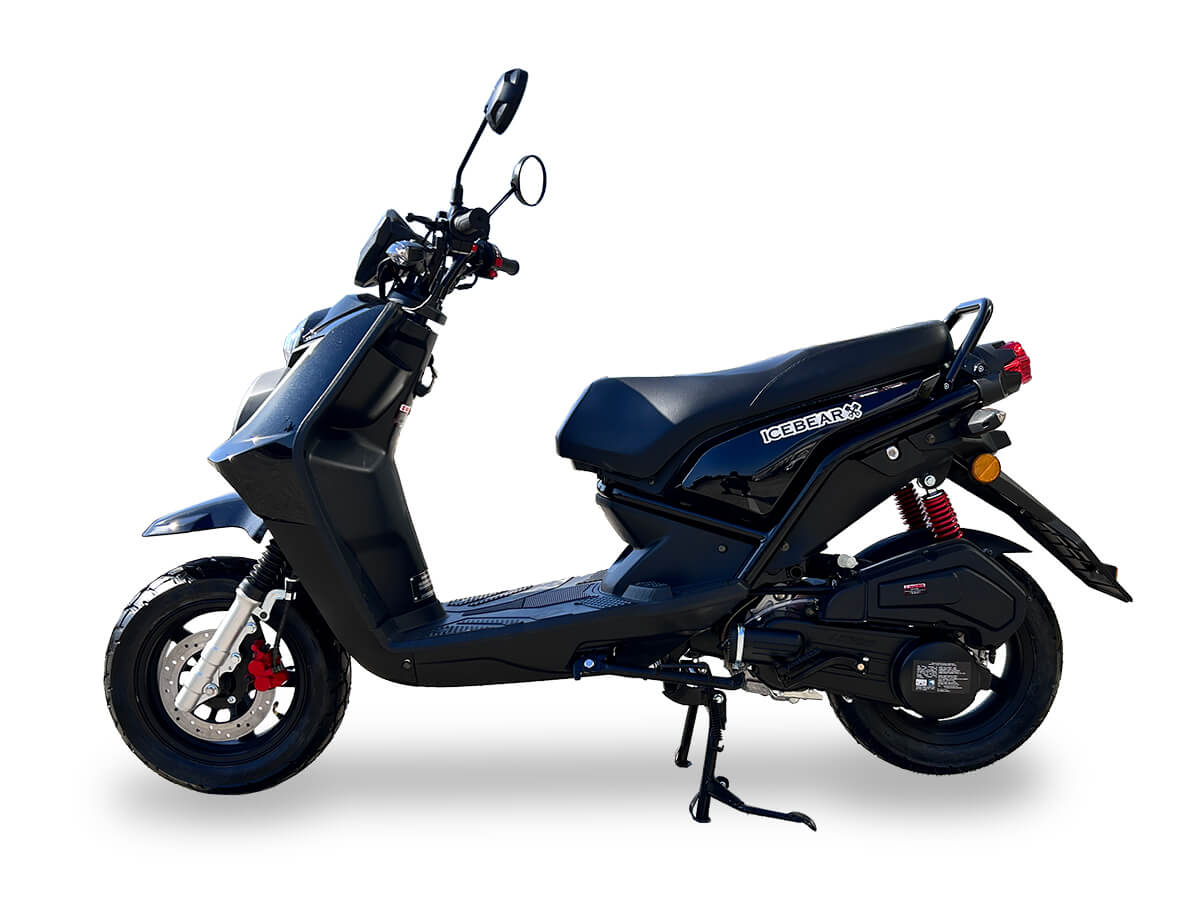

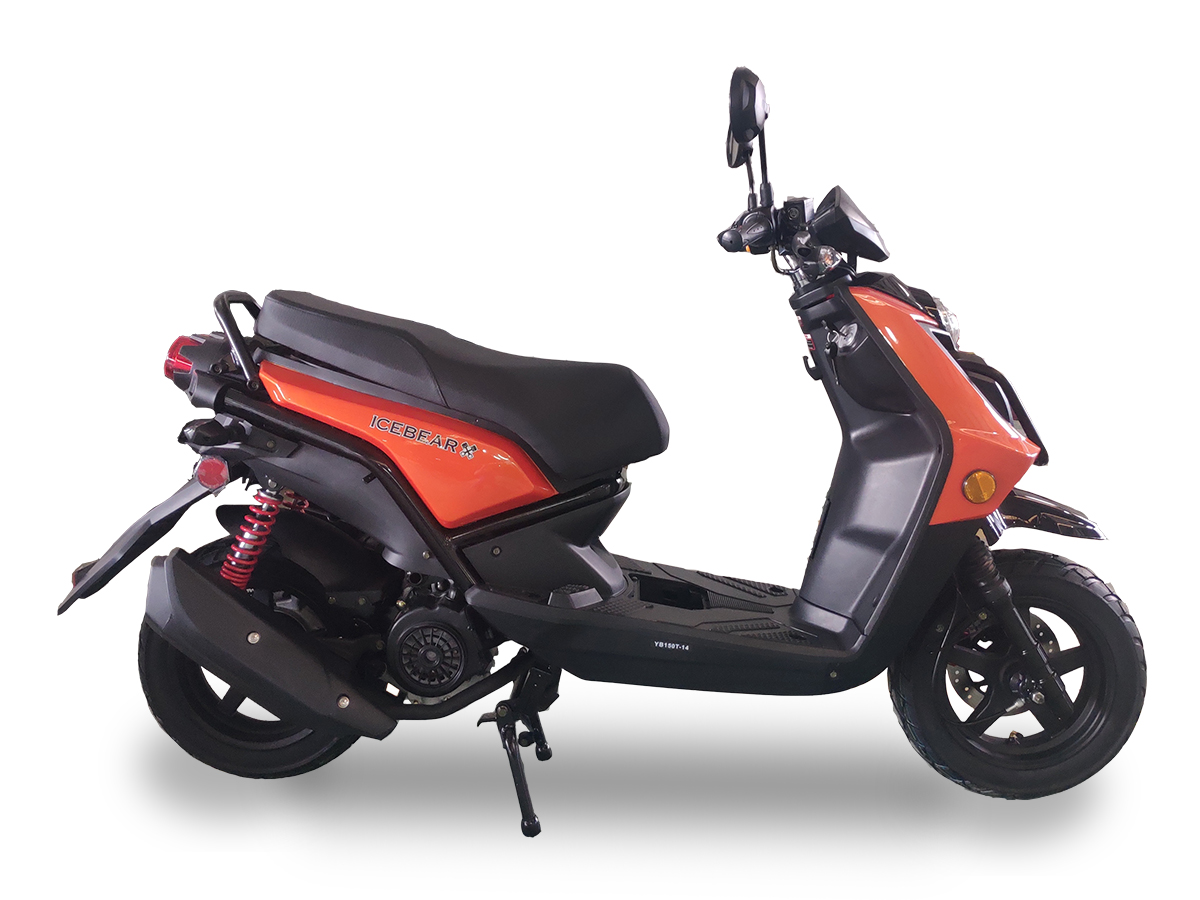

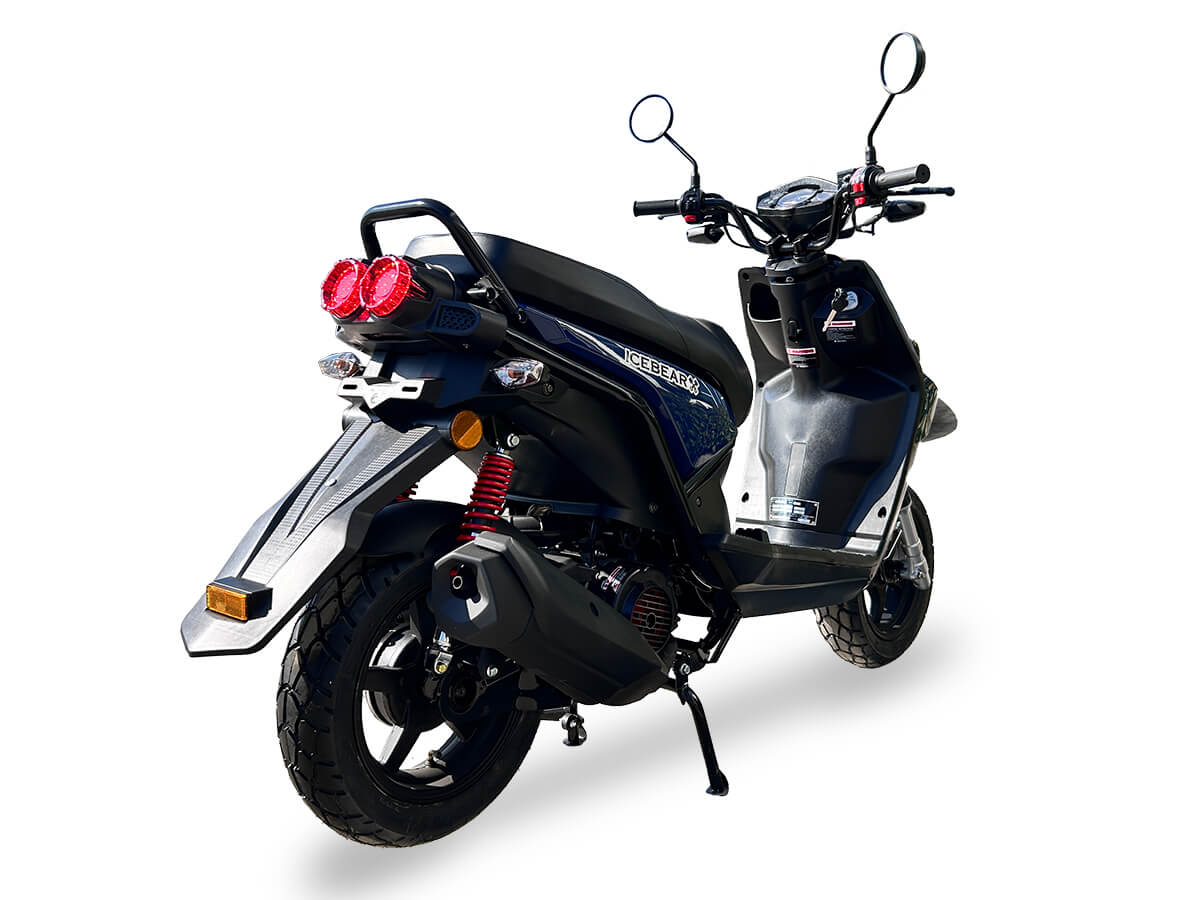

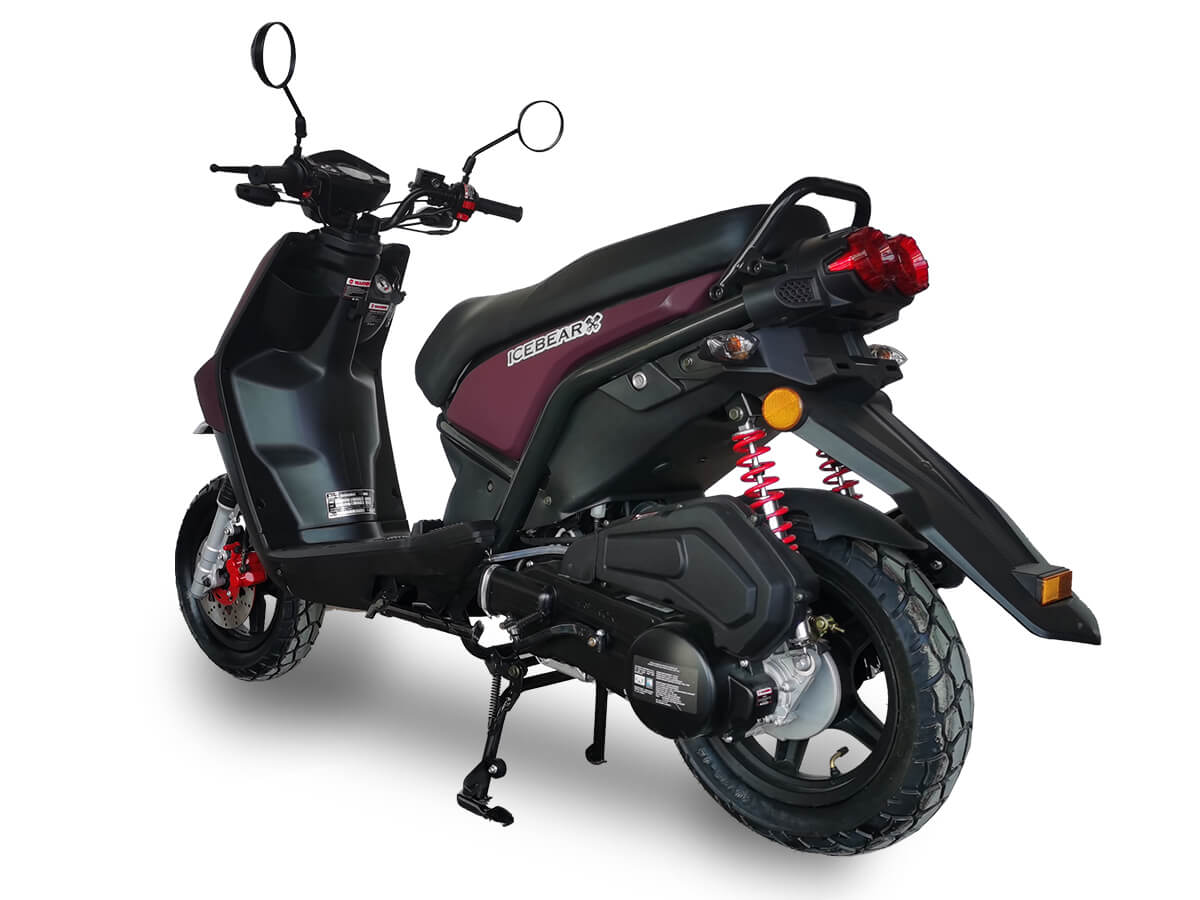

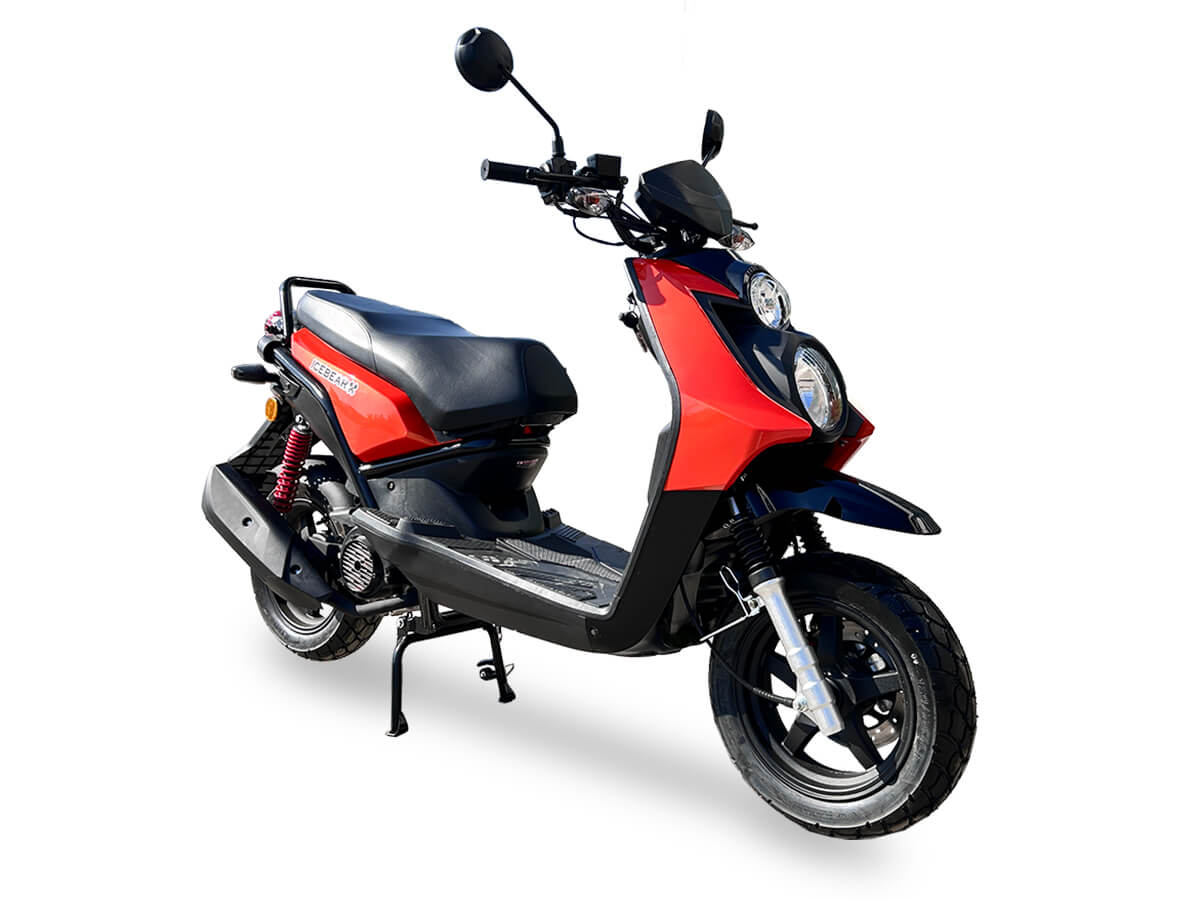

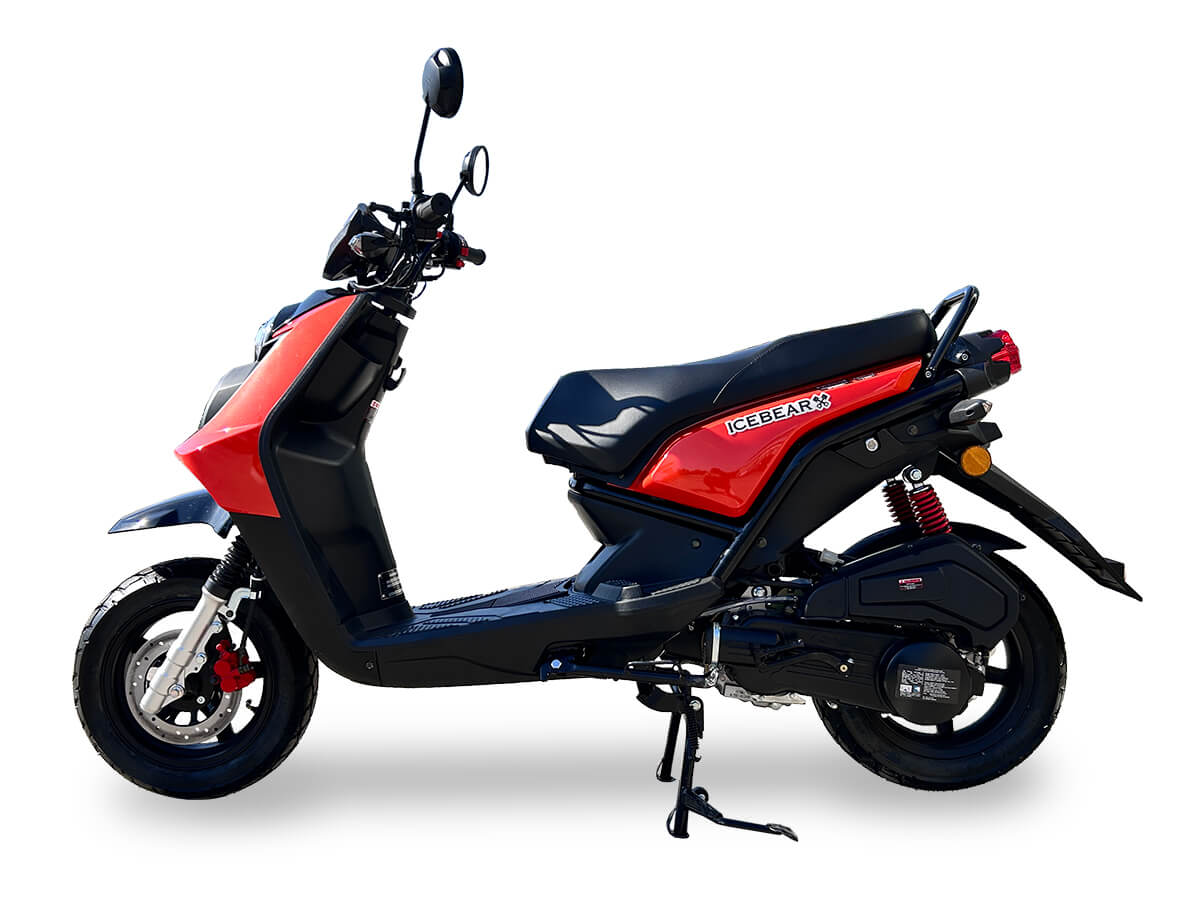

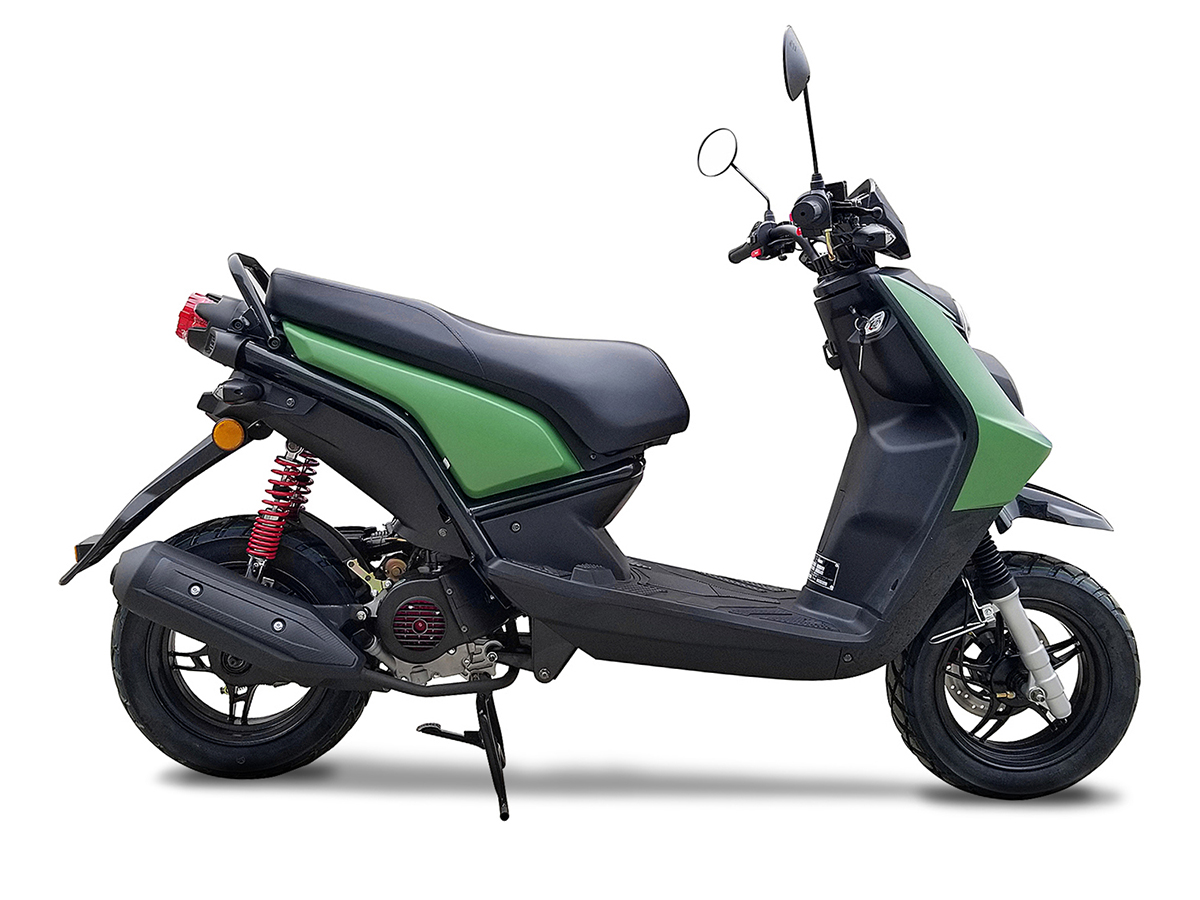

VISION (PMZ150-17)

150cc, air cooled, front disc/rear drum, 120/70-12" aluminum wheels, kenda tires

Specifications MSRP N/A

Engine 150cc, 157QMJ, Xinba
Transmission Automatic
Drive type Belt
Belt and/or chain size 842*20*30
Starter System Electric /kick
Fuel system Gasoline, 1.7gal, carbureted
Brakes (Front/Rear) Disc/Drum
Tire size(Front/Rear) 120/70-12
Wheel size and type(Front/Rear) 12, Alunimum
Oil capacity and type (in liters) 0.8L, 10w40 aircooled engine oil (non-synthetic)
Gear oil type and capacity( in liters) GL-3, 0.25L
Battery 12V/9Ah
Lights Standard lights
Suspension(Front/Rear) Double shock
Dimensions(in inches) Assembled(LxWxH): 73.6x26x44, crated(LxWxH): 81.5*29.1*45.3, seat height:33, wheelbase:56.7
Weight 350 lbs
Weight capacity 320 lbs
Ground clearance (in inches) 3.9
Assembly required Handlebars, front wheel,front fender, speedometer,mirrors
Special features Include:mirrors, horn, odometer, speedometer
EPA approved EPA approved
Colors

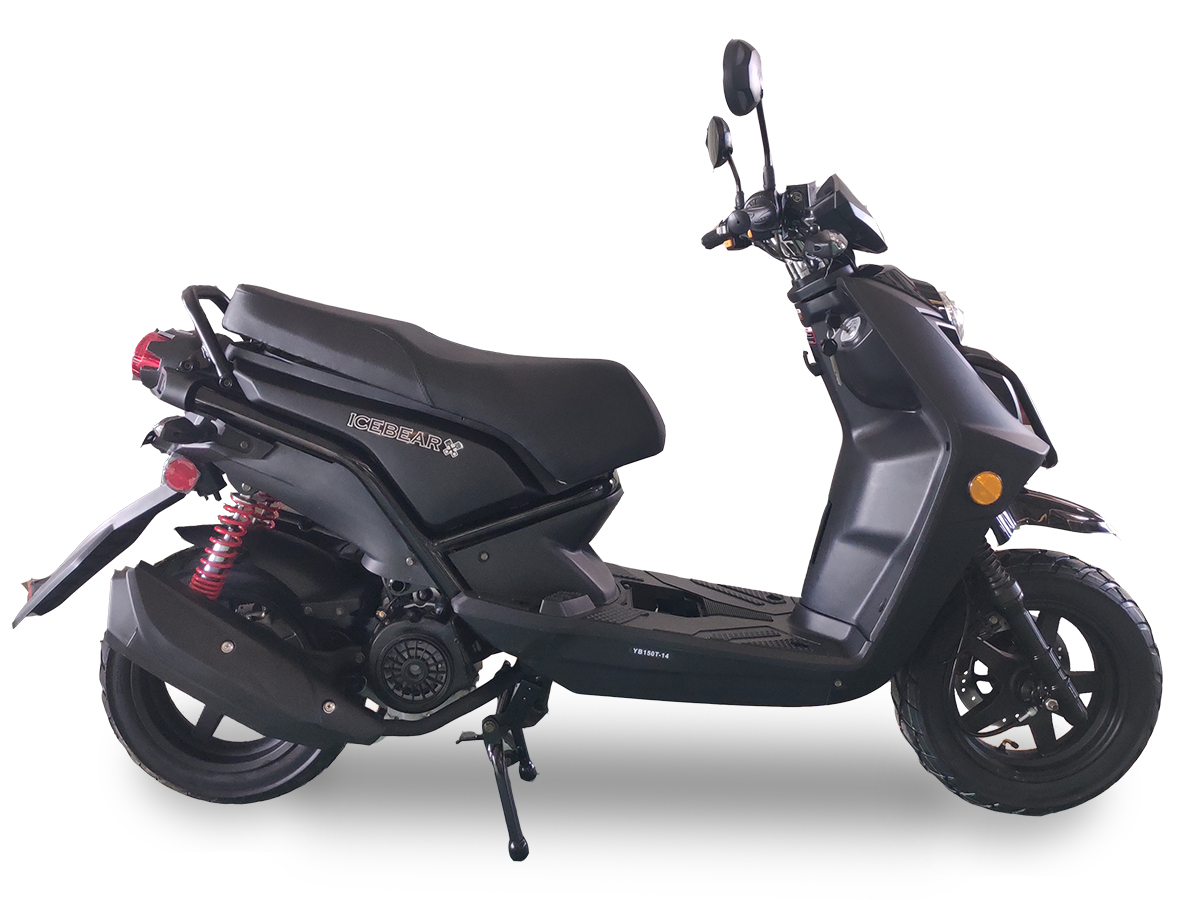

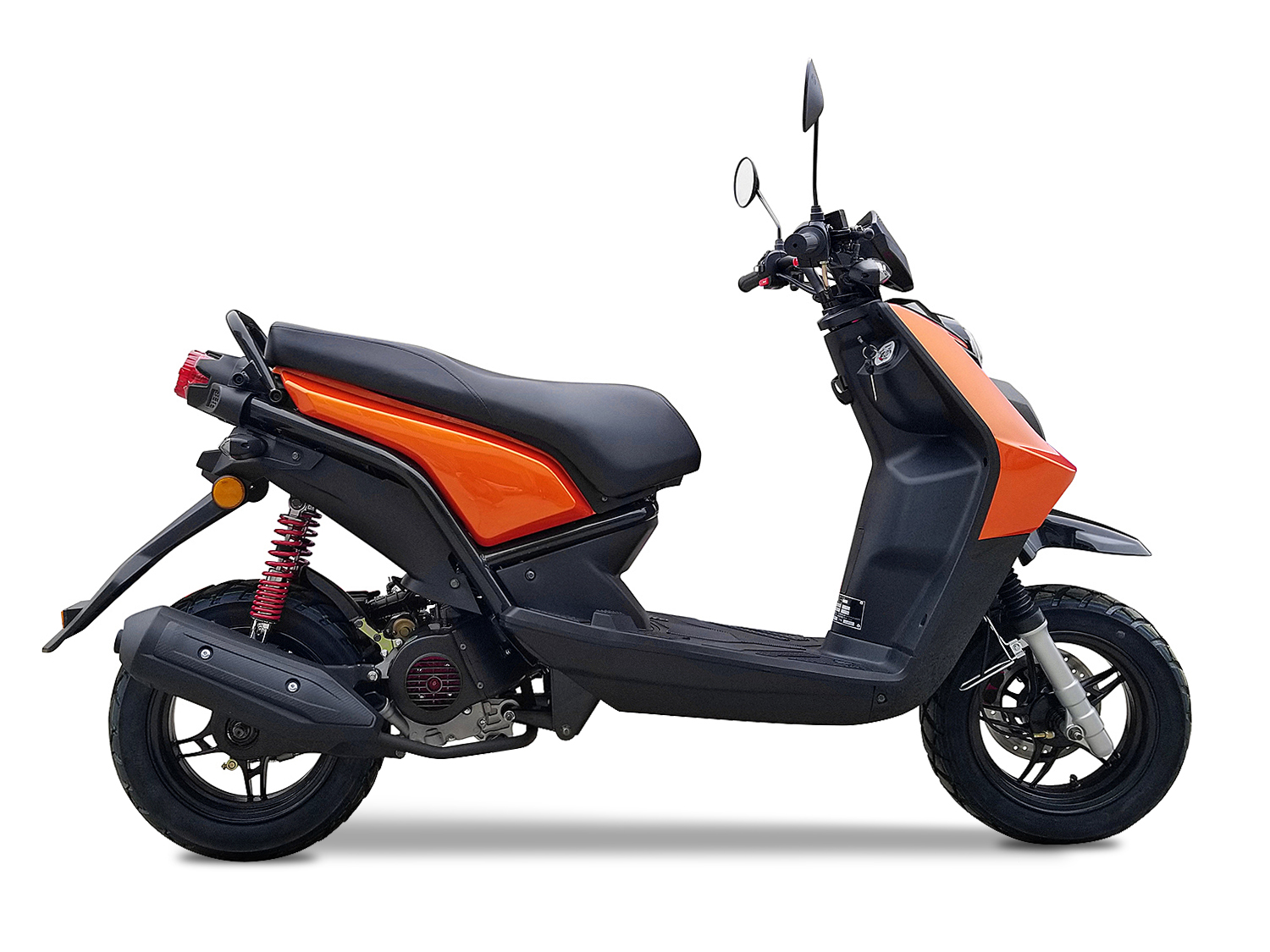

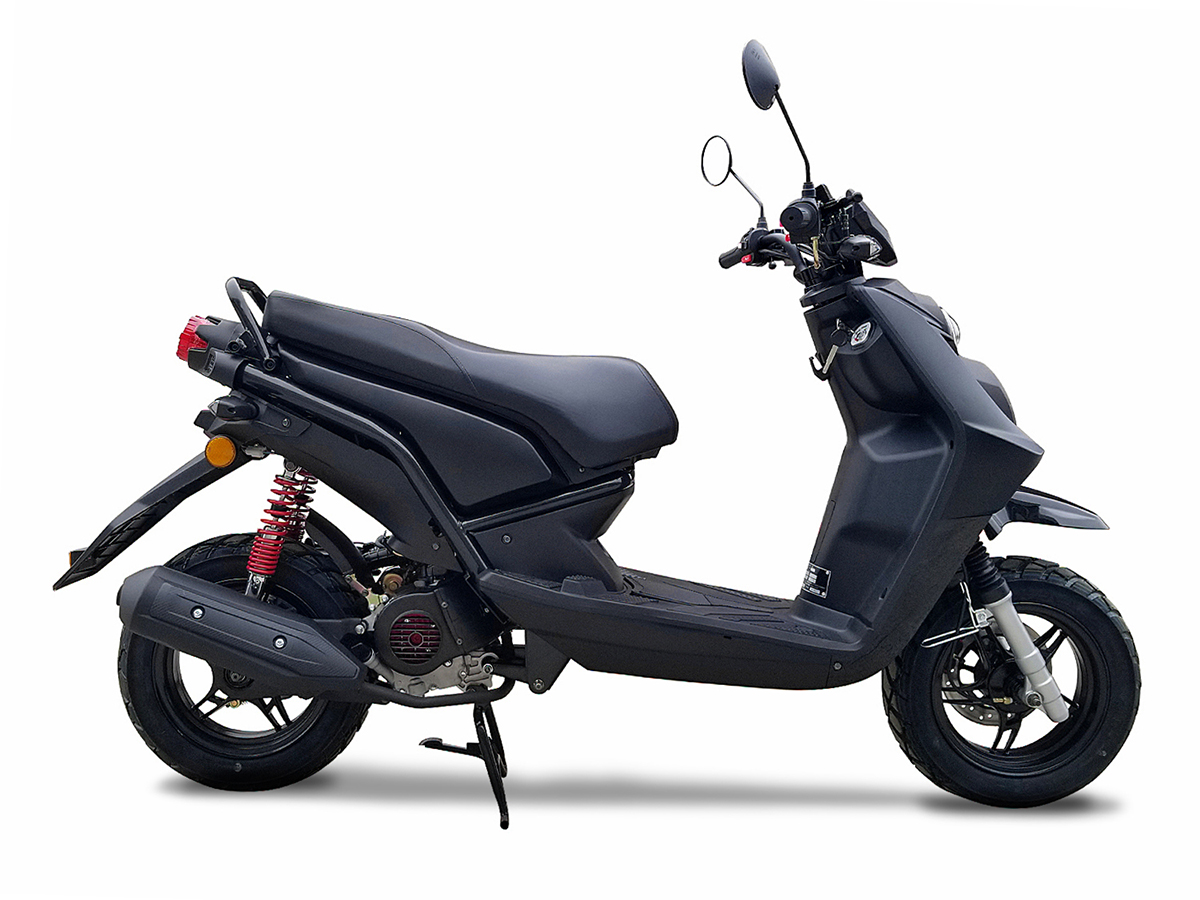

Matte Black Matte Green Metallic Orange/Black

Click the icon to see all the parts for this model
