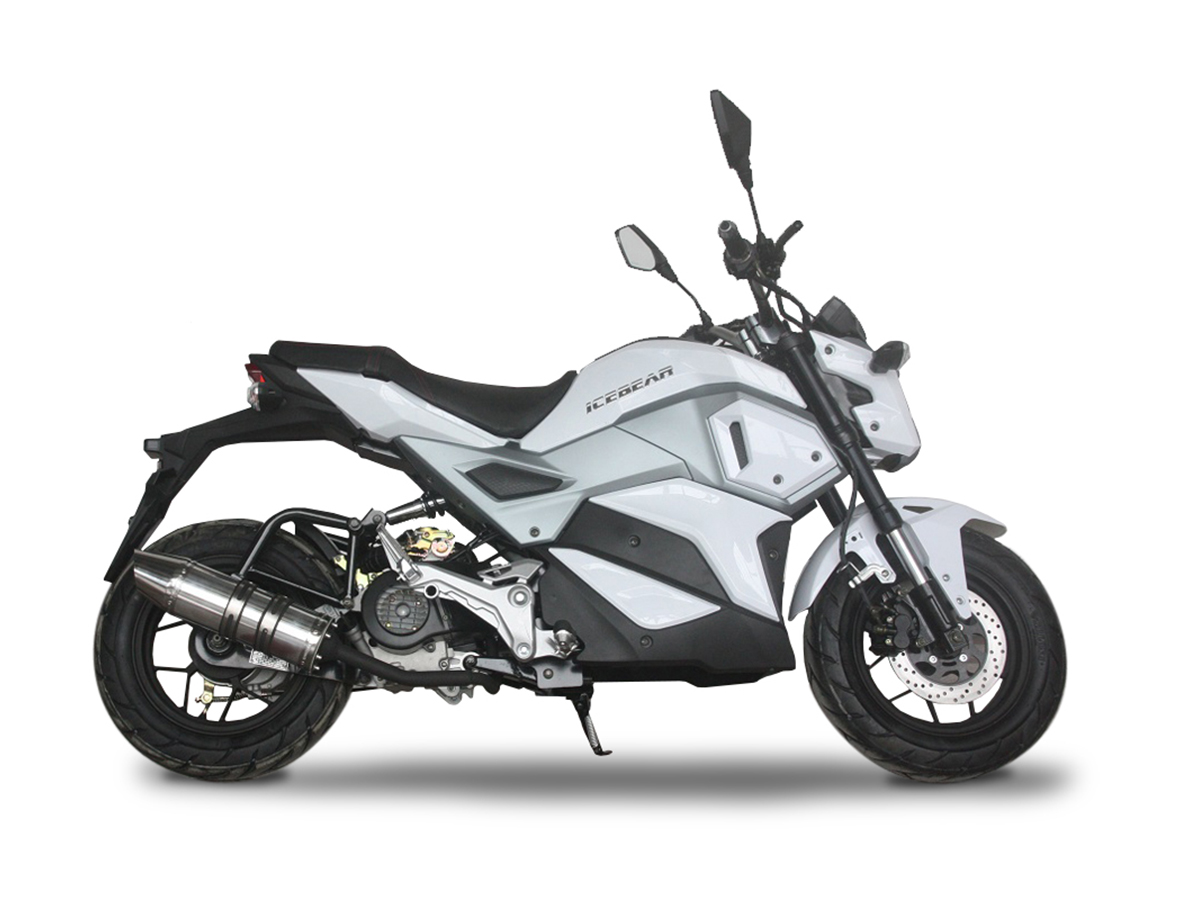

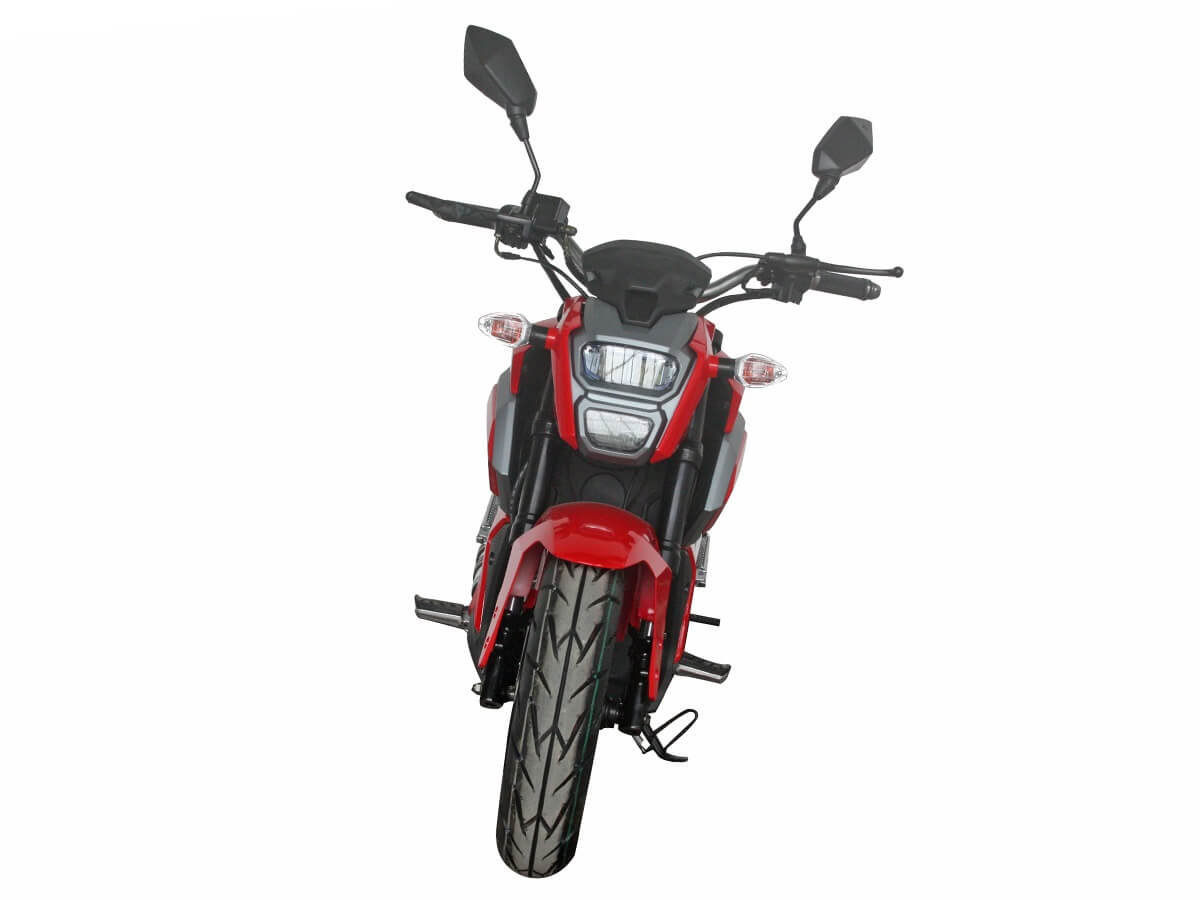

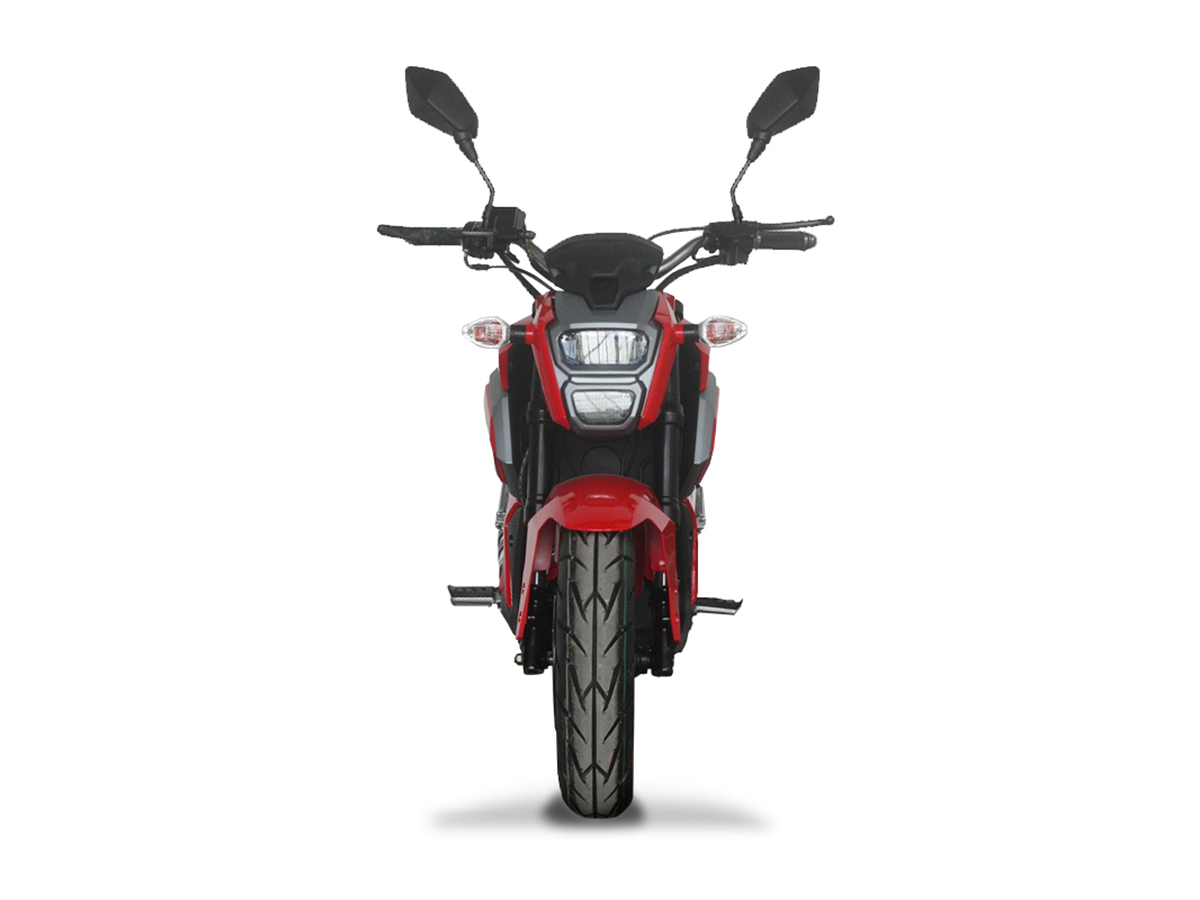

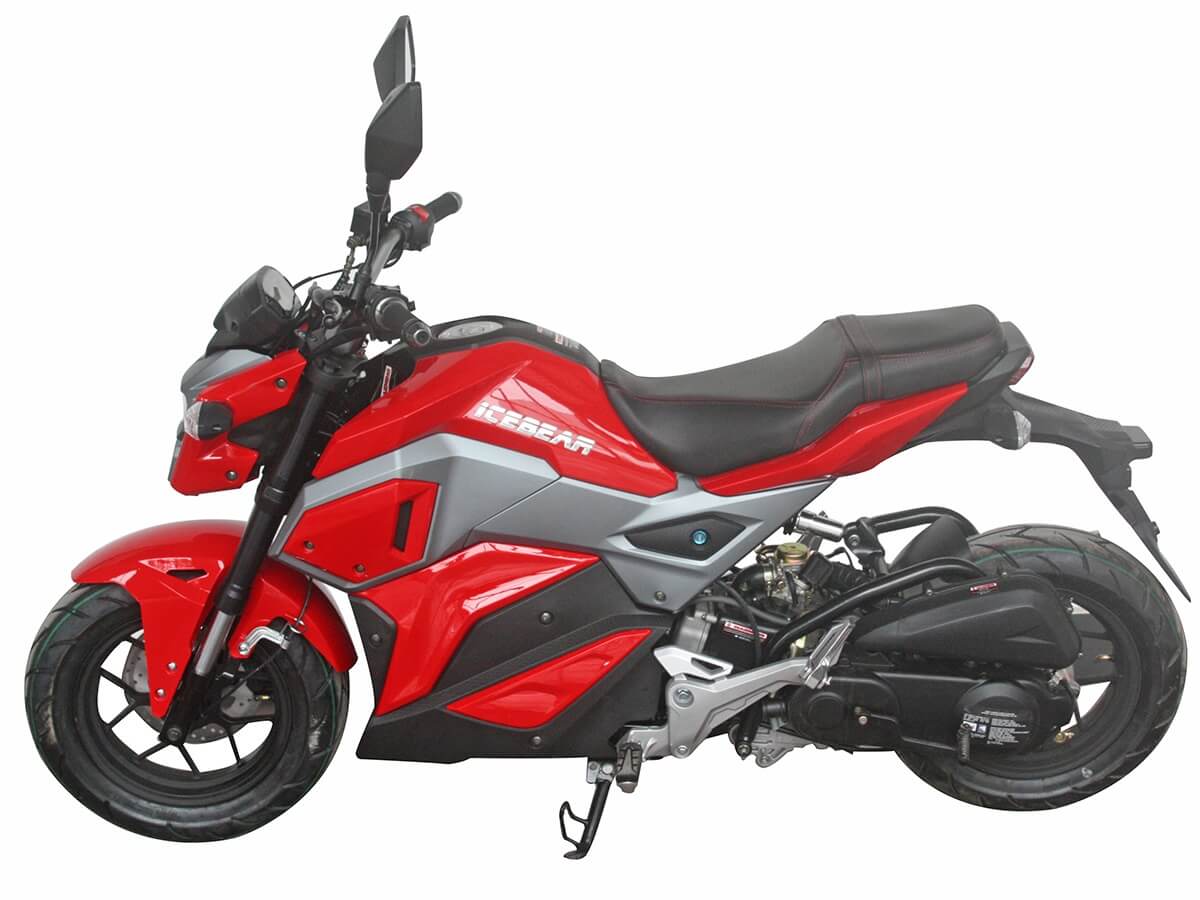

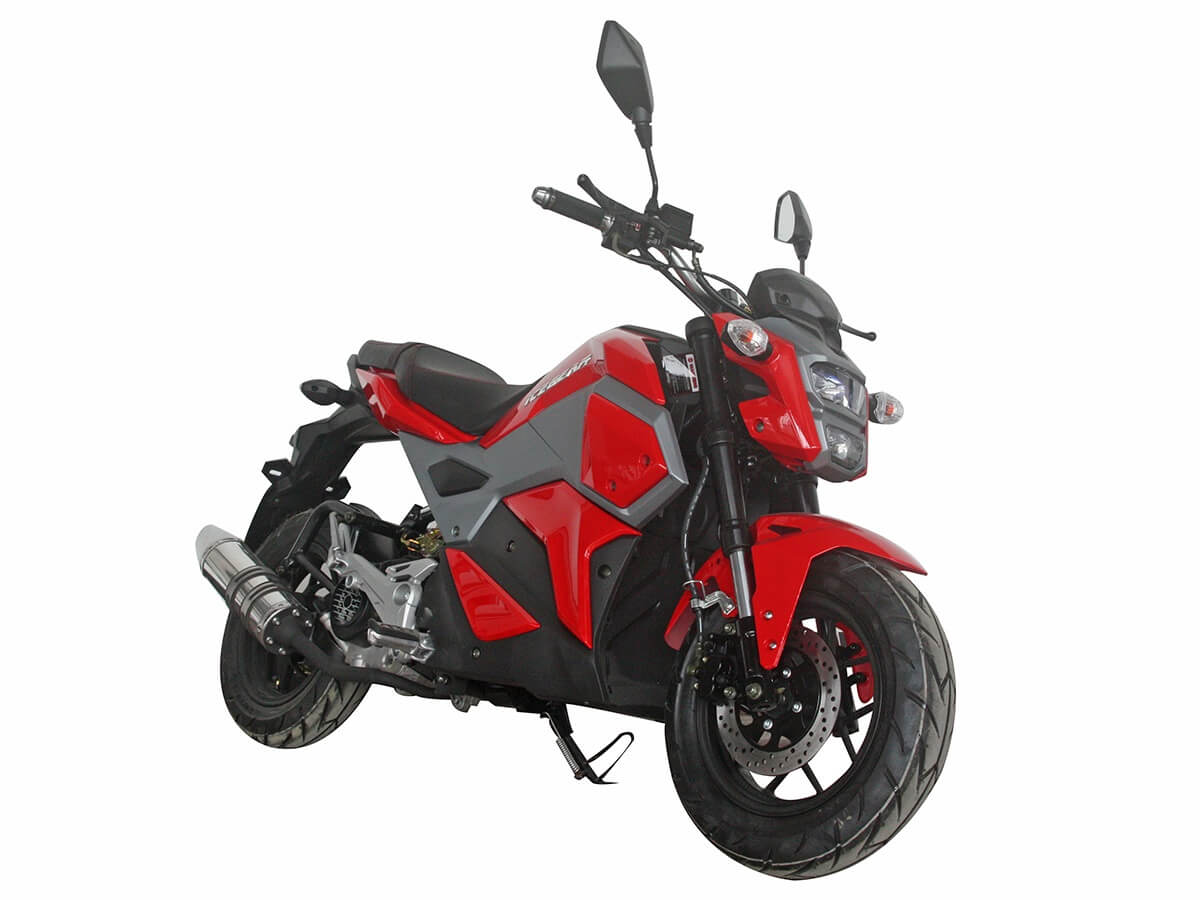

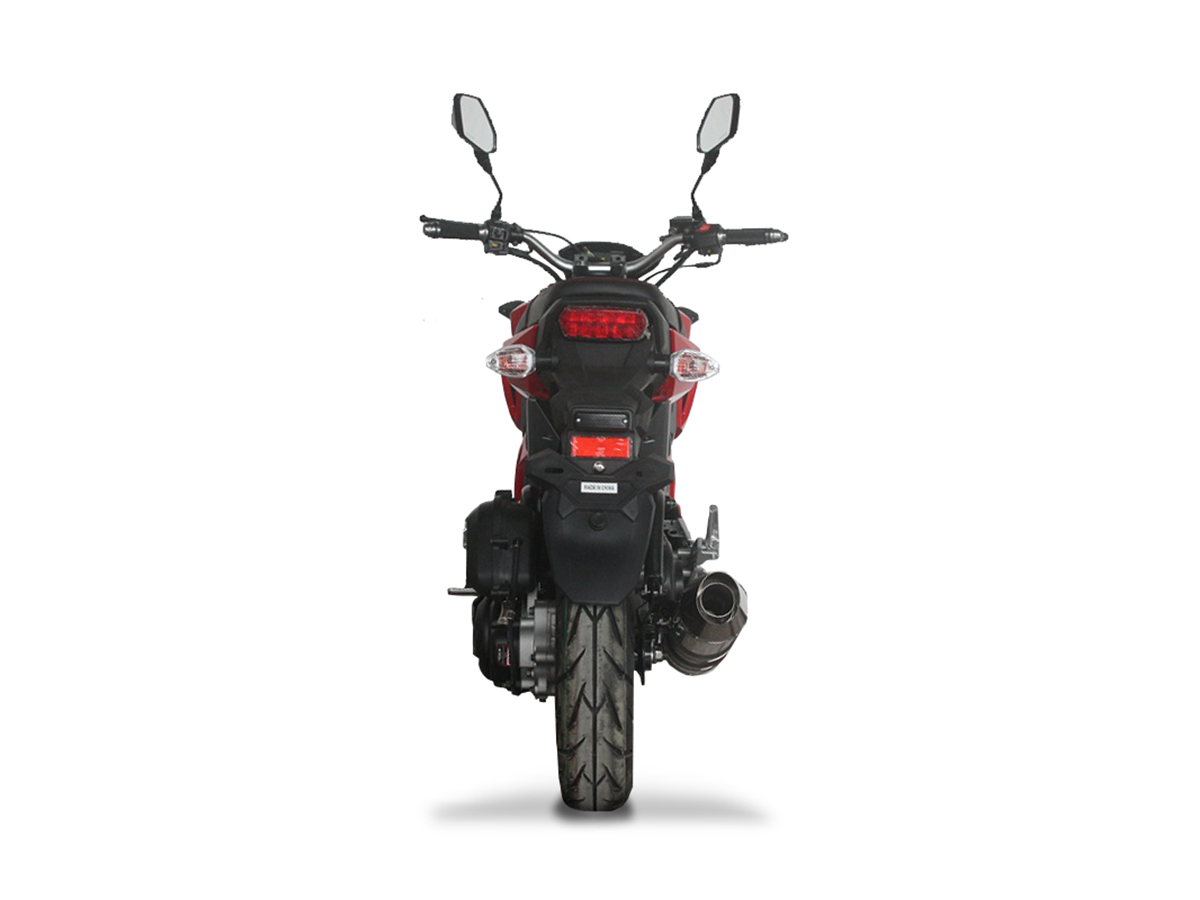

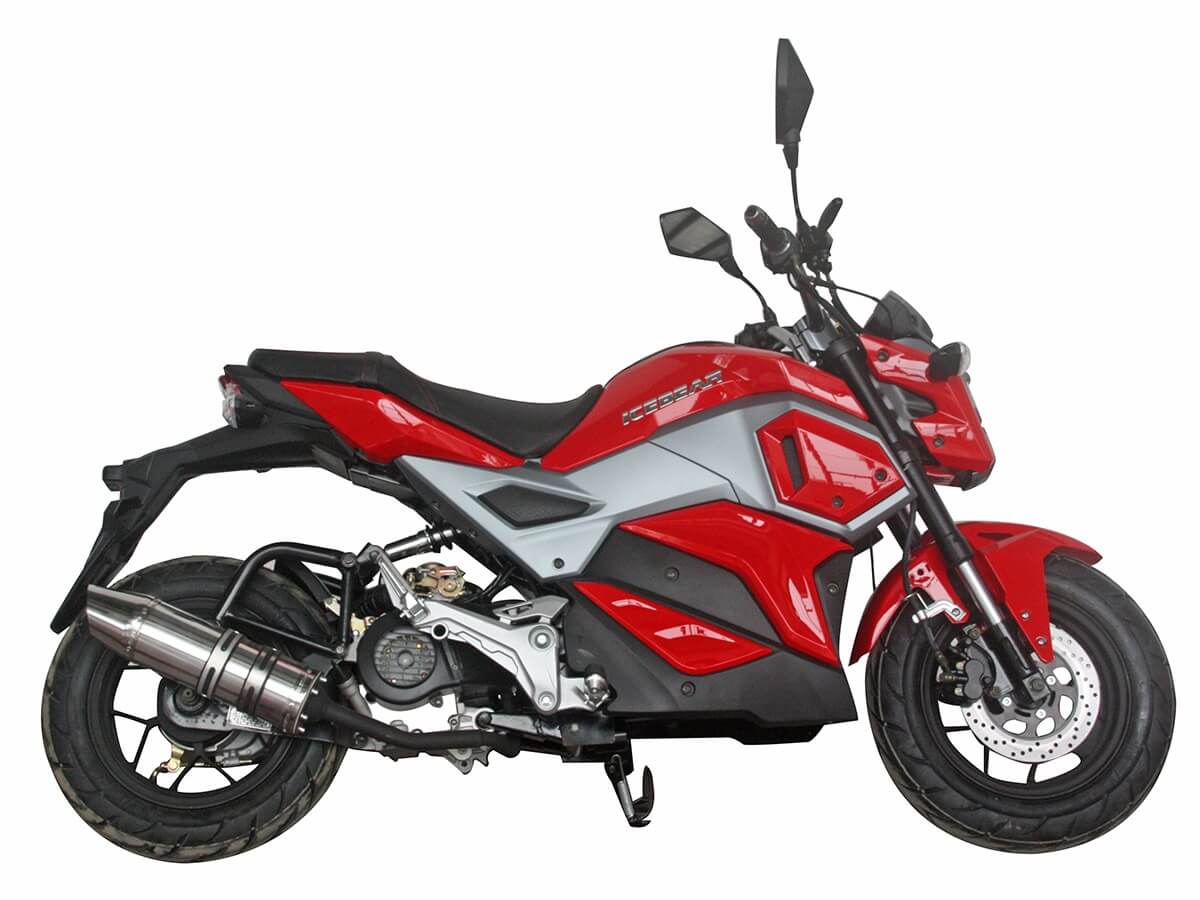

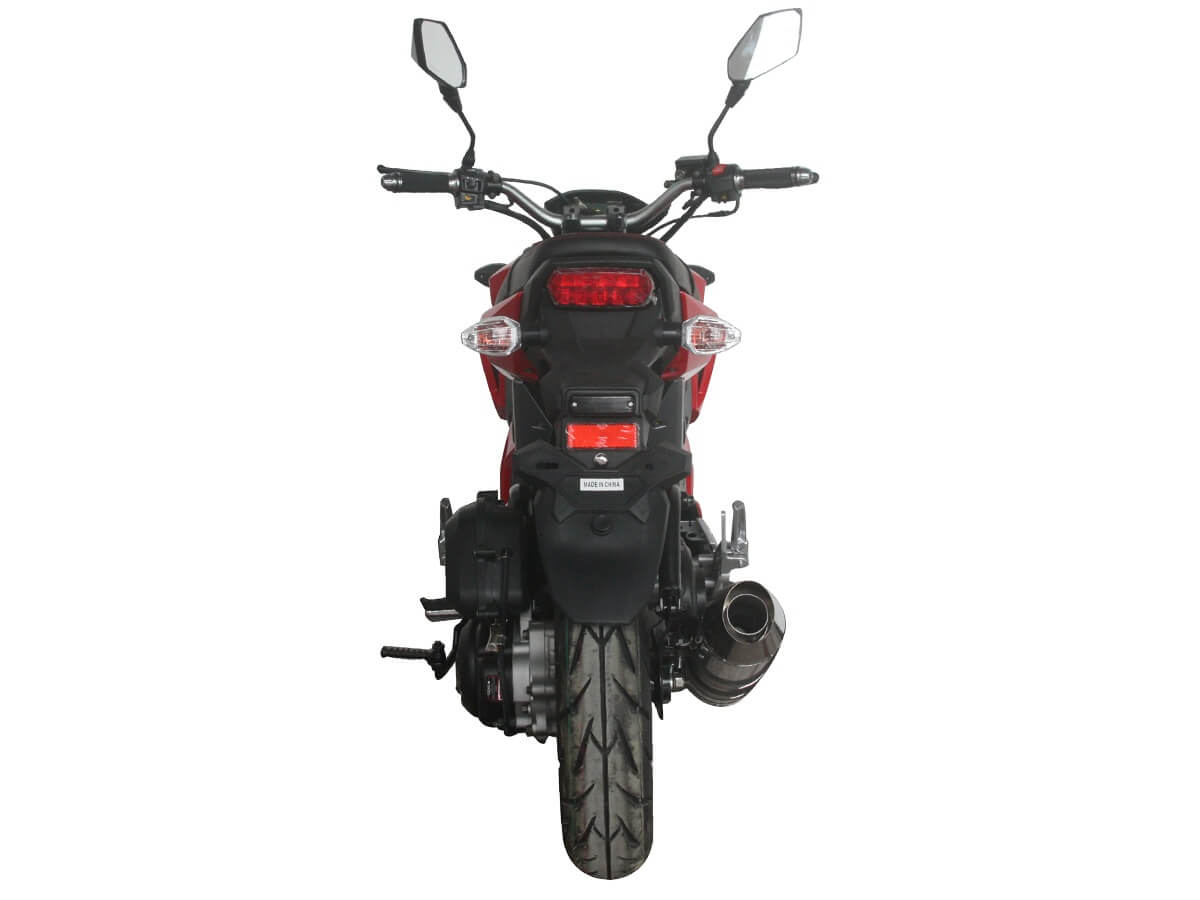

MINI MAX 50(PMZ50-M1)

Extended frame motorcycle, 50cc air cooled 4-stroke engine, automatic trans-mission, 12″ aluminum wheels, front disc/rear drum brakes.

Specifications MSRP N/A

Engine 50cc, 139QMB, Xinba
Transmission Automatic
Drive type Belt
Belt and/or chain size Belt: 729*18*30
Starter System Electric /kick
Fuel system Gasoline, 1.4gal, carbureted
Brakes (Front/Rear) Disc / Drum
Tire size(Front/Rear) 120/70-12
Wheel size and type(Front/Rear) 12, Alunimum
Oil capacity and type (in liters) 0.8L, 10w40 aircooled engine oil (non-synthetic)
Gear oil type and capacity( in liters) GL-3, 0.25L
Battery 12V/7A
Lights Headlight and tail light are Led. Turn lights are standard.
Suspension(Front/Rear) Dual telescopic forks /single shock
Dimensions(in inches) Assembled(LxWxH): 70.1x28.7x34.6, crated(LxWxH): 73.6x22.4x39.4, seat height:31.5, wheel base:50.8
Weight 265 lbs
Weight capacity 198.4 lbs
Ground clearance (in inches) 4.7
Assembly required Front wheel, front fender, handlebars, mirrors, battery
Special features Include: speedometer, horn, odometer, mirrors
EPA approved EPA approved, CARB exempt
Colors

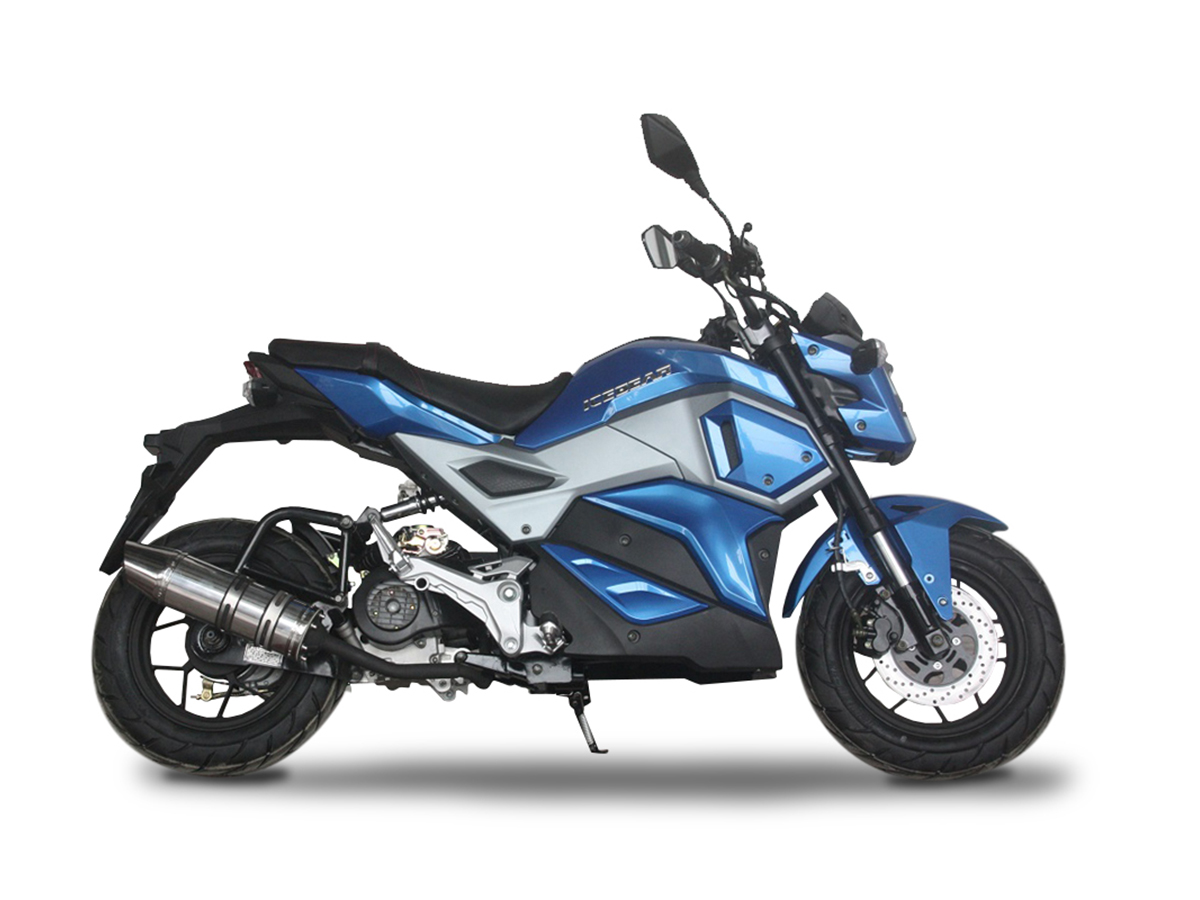

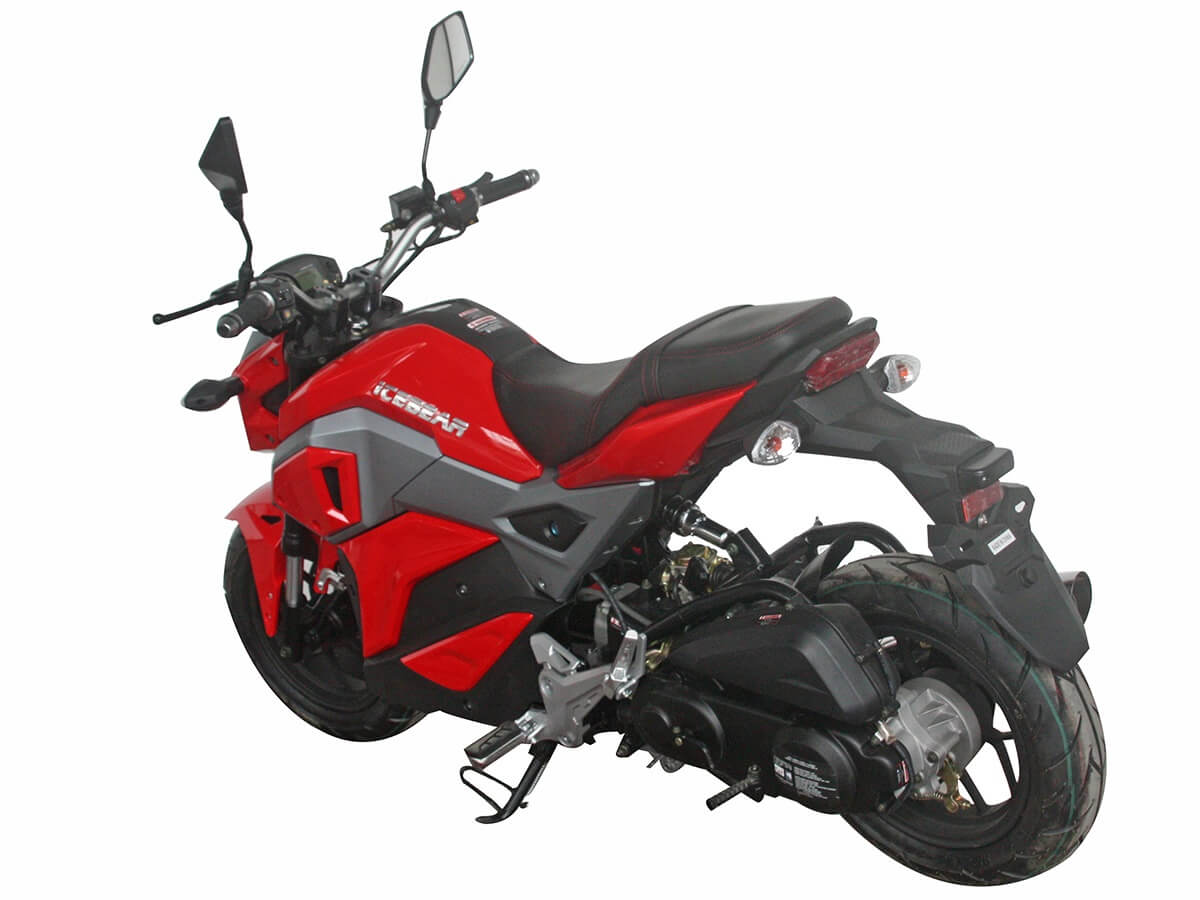

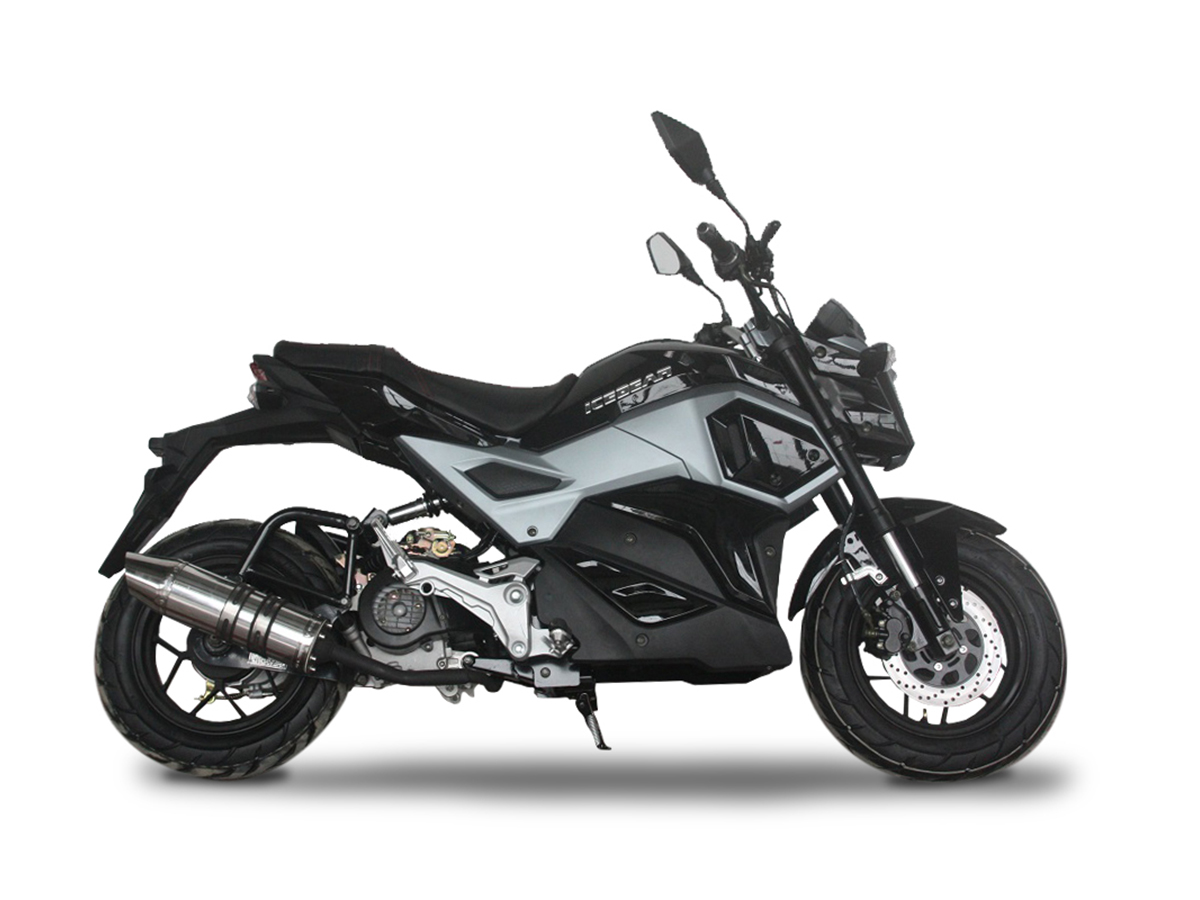

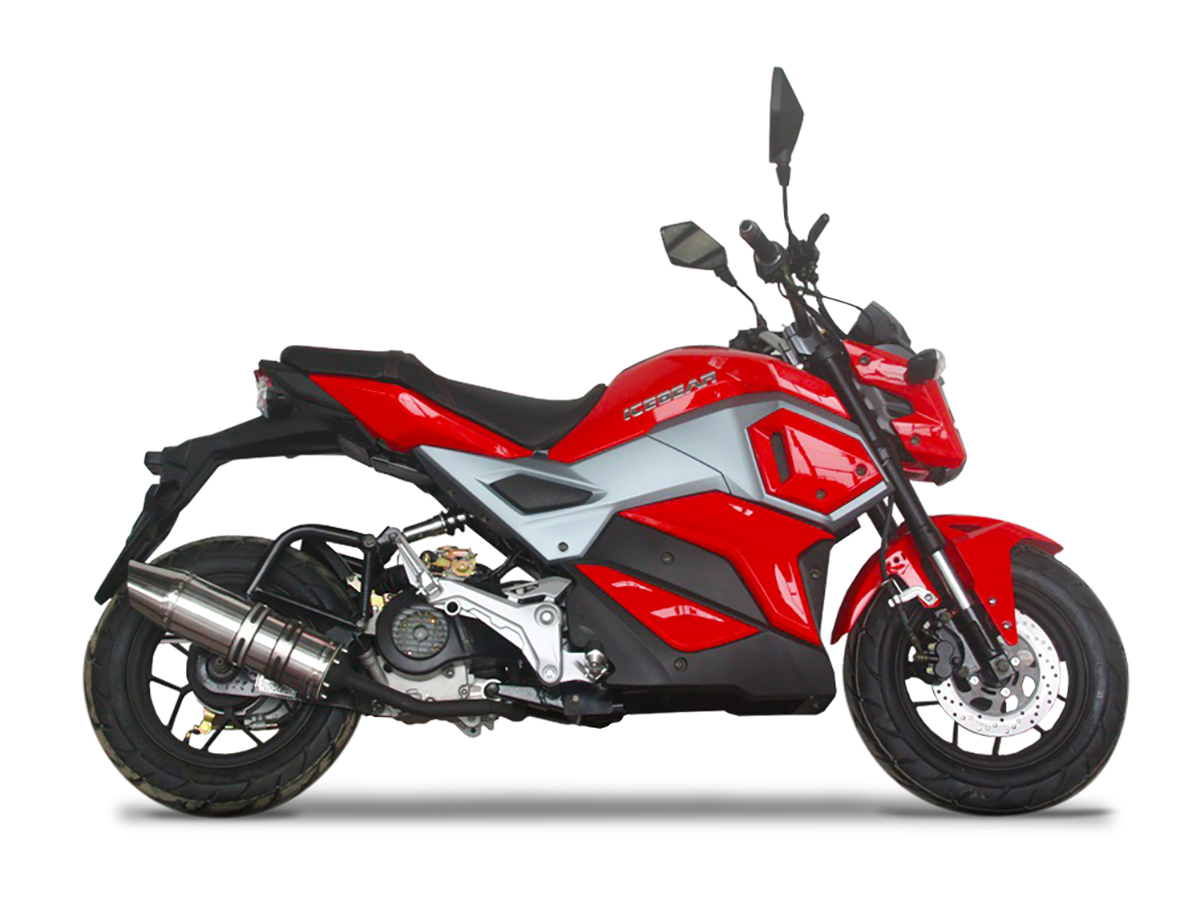

Metallic Red Metallic Black Metallic Blue Metallic White
