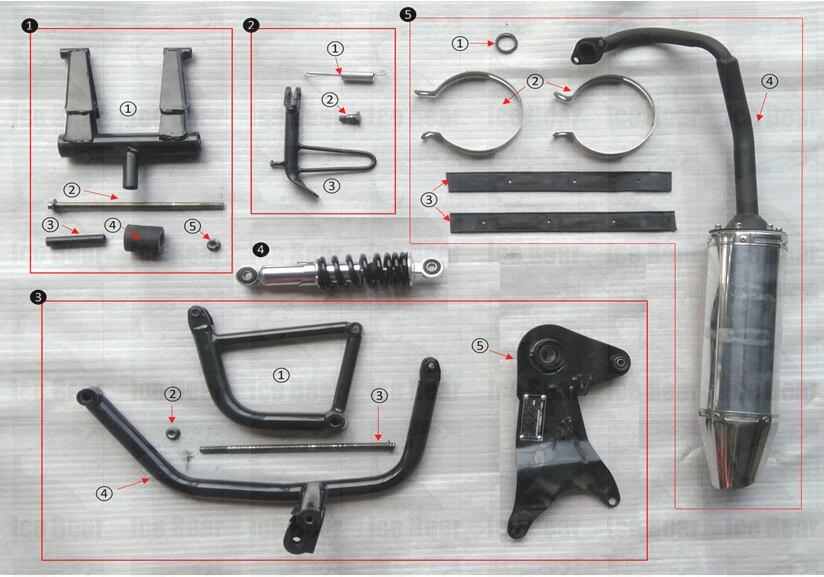

ID PART NO. Item NO. Name Chinese Name Image Description QTY(pcs/set)
1-1 PMZ50-M1-E-001 ZH-M1-5-01-01 Rear Swing Arm 后摇臂 1
1-2 PMZ50-M1-E-002 ZH-M1-5-01-02 Shaft to Enigine 发动机连接轴 1
1-3 PMZ50-M1-E-003 ZH-M1-5-01-03 Bush 衬套 1
1-4 PMZ50-M1-E-004 ZH-M1-5-01-04 Rubber Damping Ring 减震胶圈 1
1-5 PMZ50-M1-E-005 ZH-M1-5-01-05 Nut 螺母 1
2-1 PMZ50-M1-E-006 ZH-M1-5-02-01 Tension Spring 拉簧 1
2-2 PMZ50-M1-E-007 ZH-M1-5-02-02 Fix Bolt 固定螺栓 1
2-3 PMZ50-M1-E-008 ZH-M1-5-02-03 Kick Stand 单撑 1
3-1 PMZ50-M1-E-009 ZH-M1-5-03-01 Right Frame for Enigine 发动机右吊架 1
3-2 PMZ50-M1-E-010 ZH-M1-5-03-02 Nut 螺母 1
3-3 PMZ50-M1-E-011 ZH-M1-5-03-03 Shaft for Engine 发动机吊装轴 1
3-4 PMZ50-M1-E-012 ZH-M1-5-03-04 Left Frame for Enigine 发动机左吊架 1
3-5 PMZ50-M1-E-013 ZH-M1-5-03-05 Rear ASSY plate 后轮联板 1
4 PMZ50-M1-E-014 ZH-M1-5-04-01 Rear Shock Absorber 后减震 1
5-1 PMZ50-M1-E-015 ZH-M1-5-05-01 Gasket on Exhaust 消音器垫圈 1
5-2 PMZ50-M1-E-016 ZH-M1-5-05-02 Exhaust Holder 消音器卡箍 2
5-3 PMZ50-M1-E-017 ZH-M1-5-05-03 Rubber Gasket 胶皮垫片 2
5-4 PMZ50-M1-E-018 ZH-M1-5-05-04 Exhaust 消音器 1
