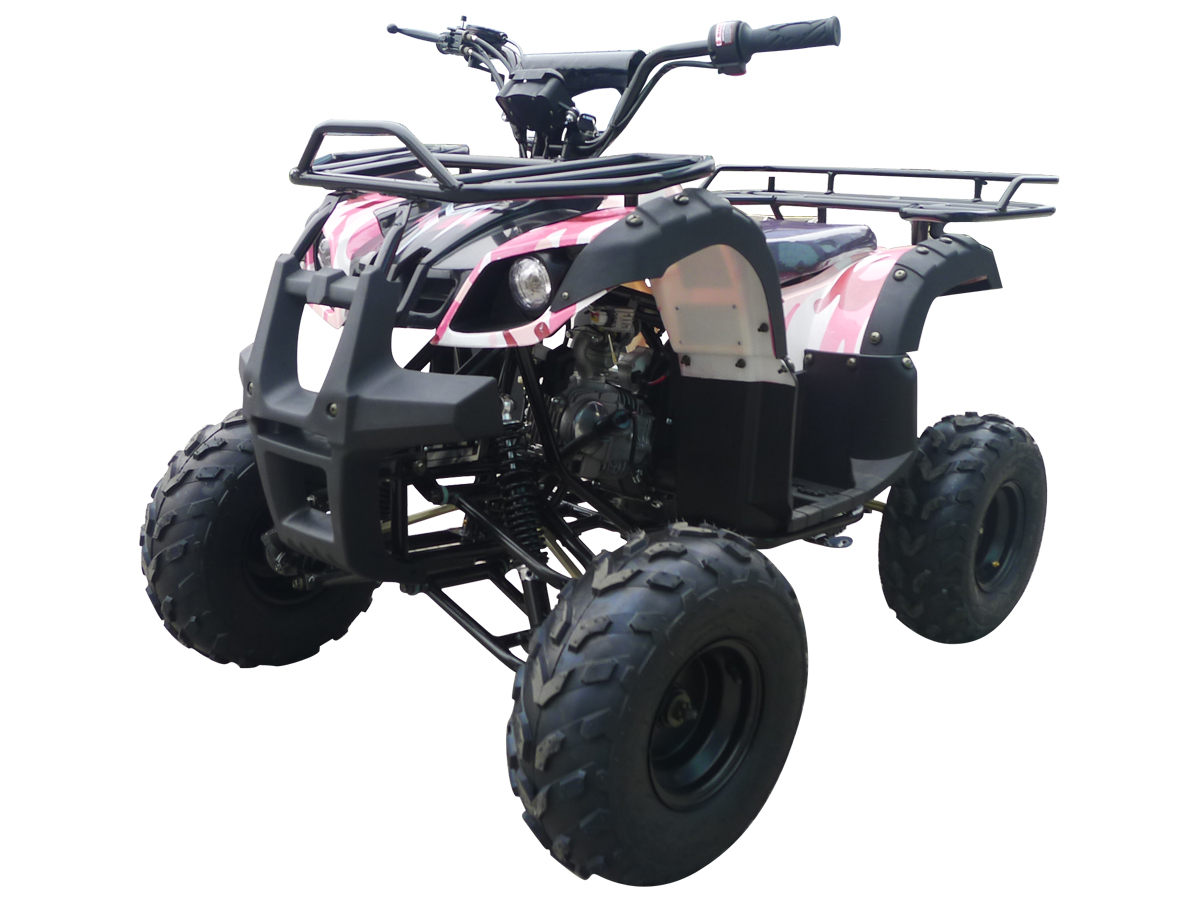

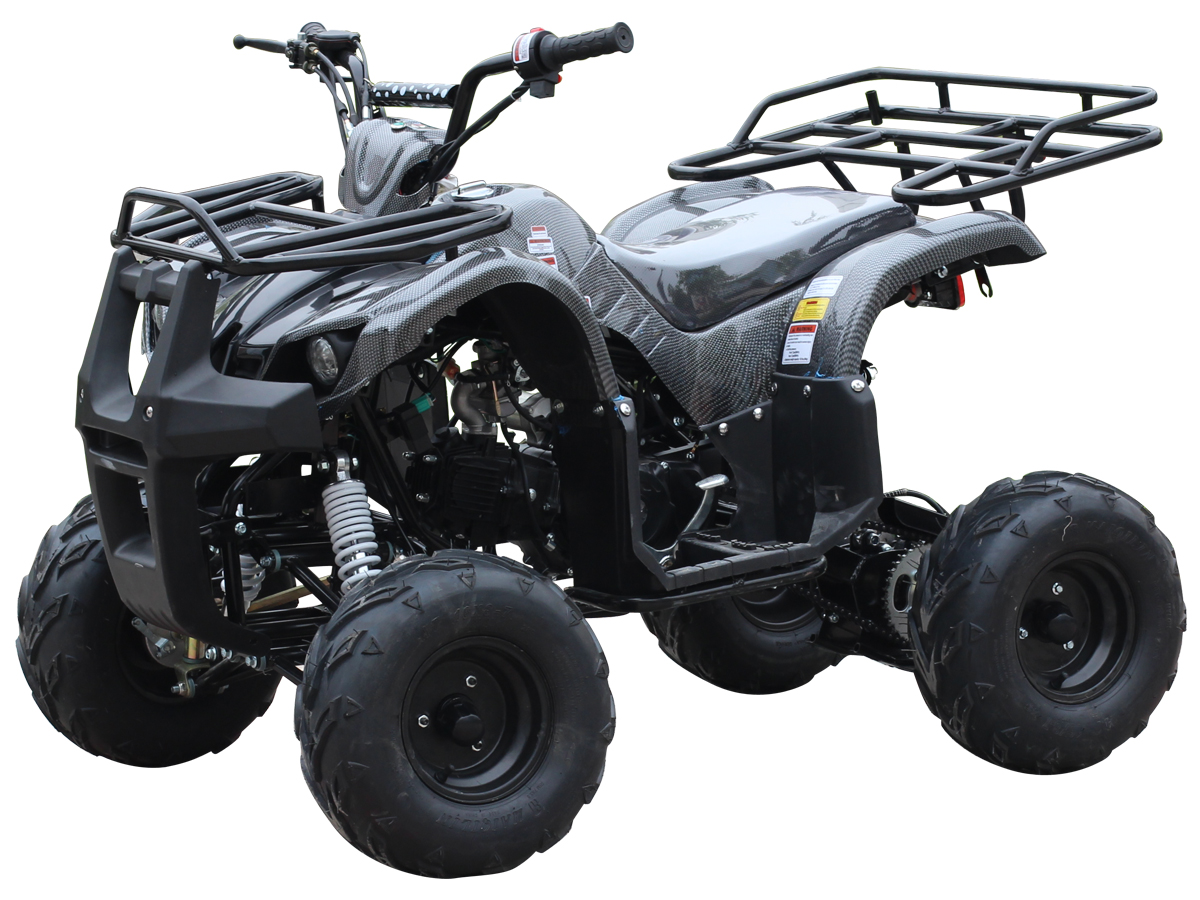

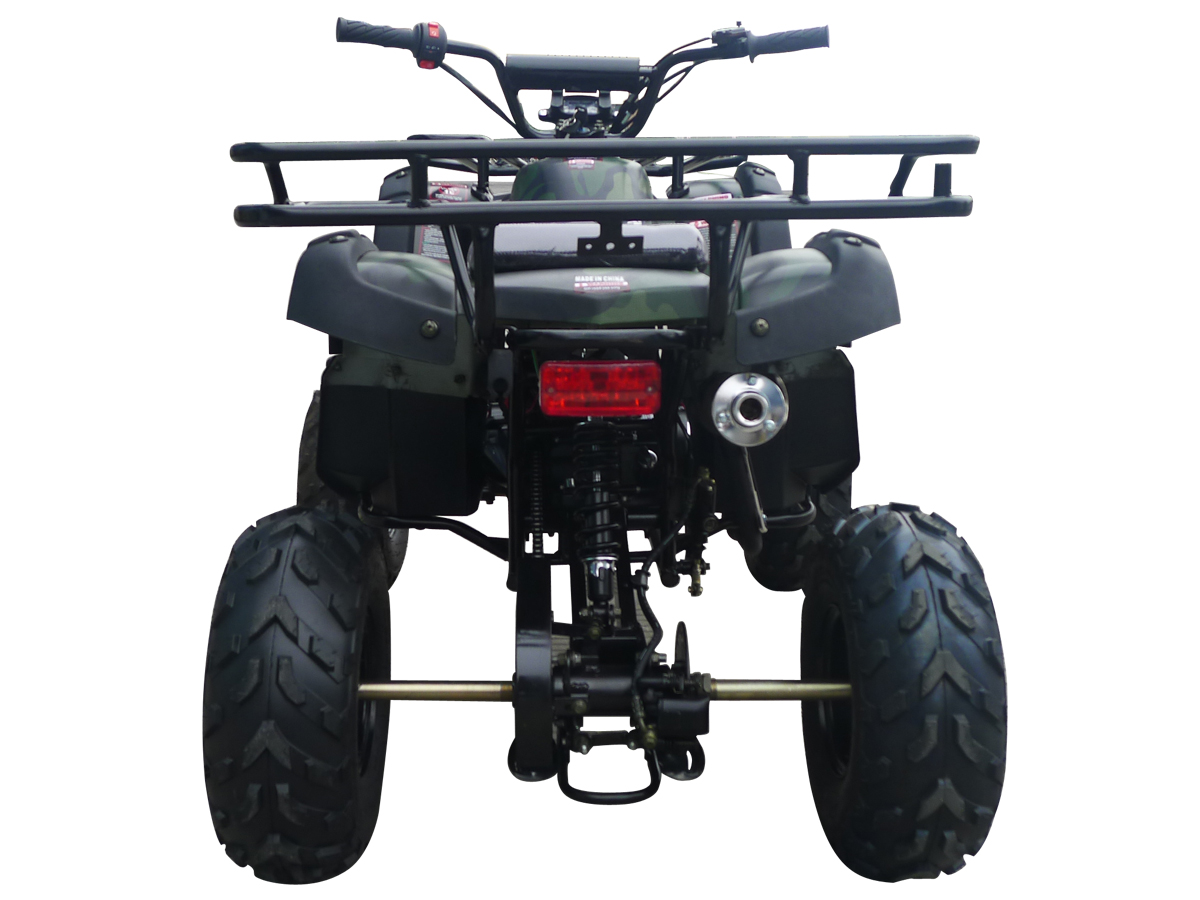

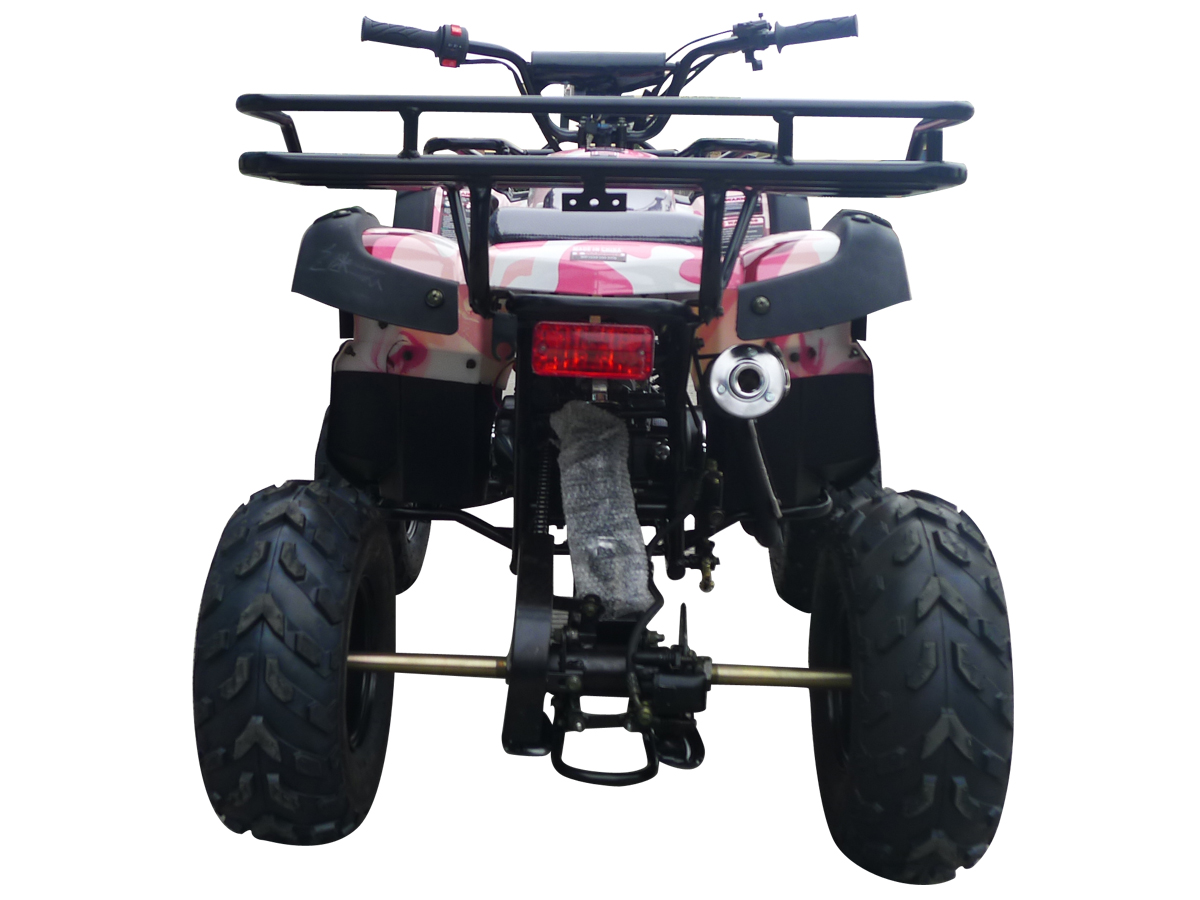

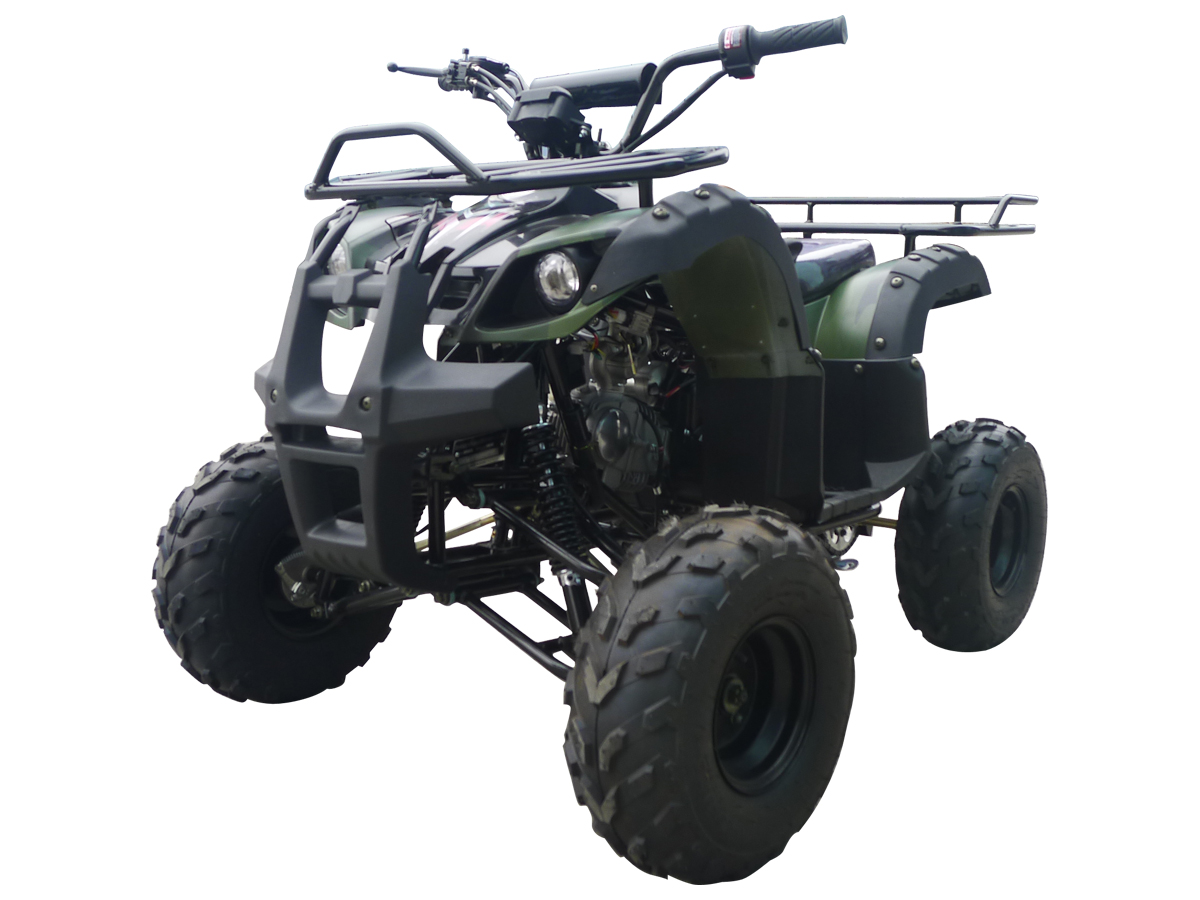

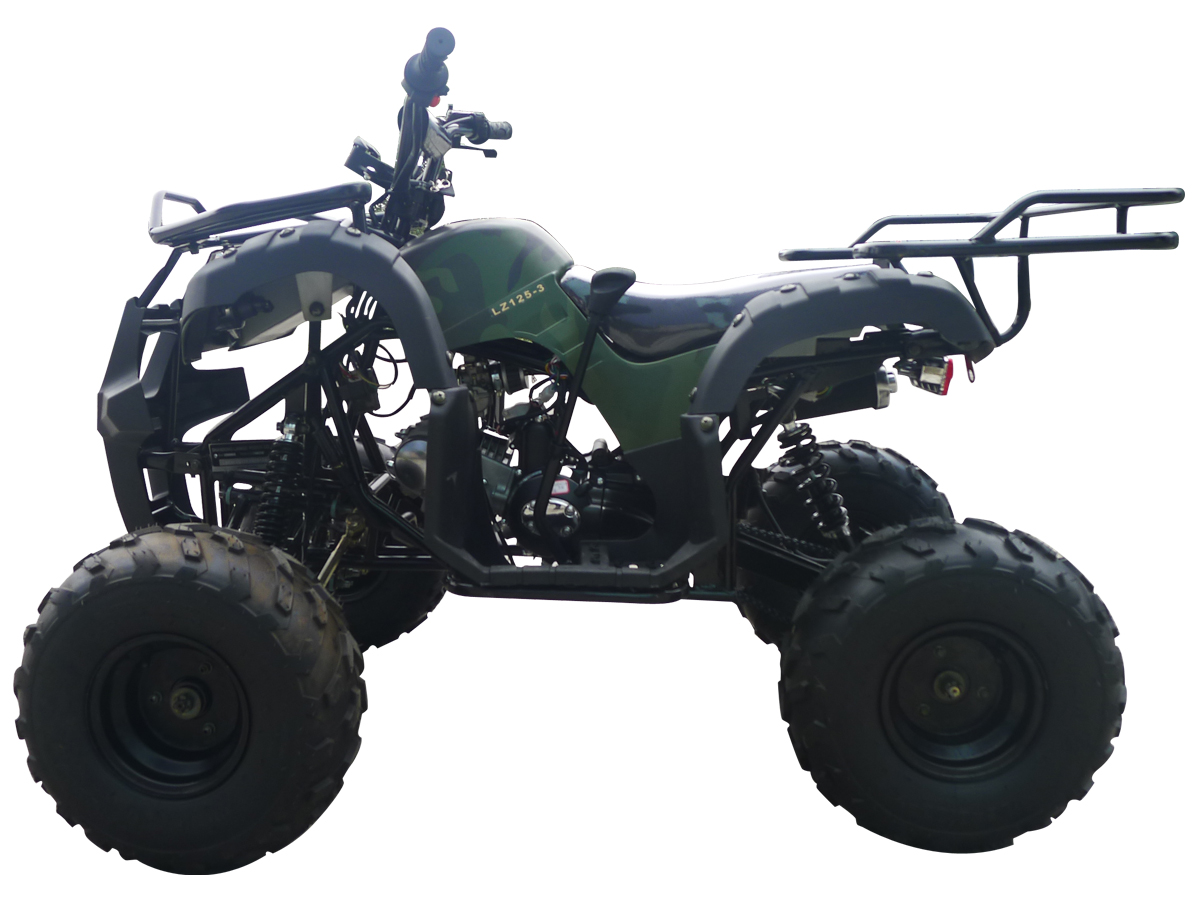

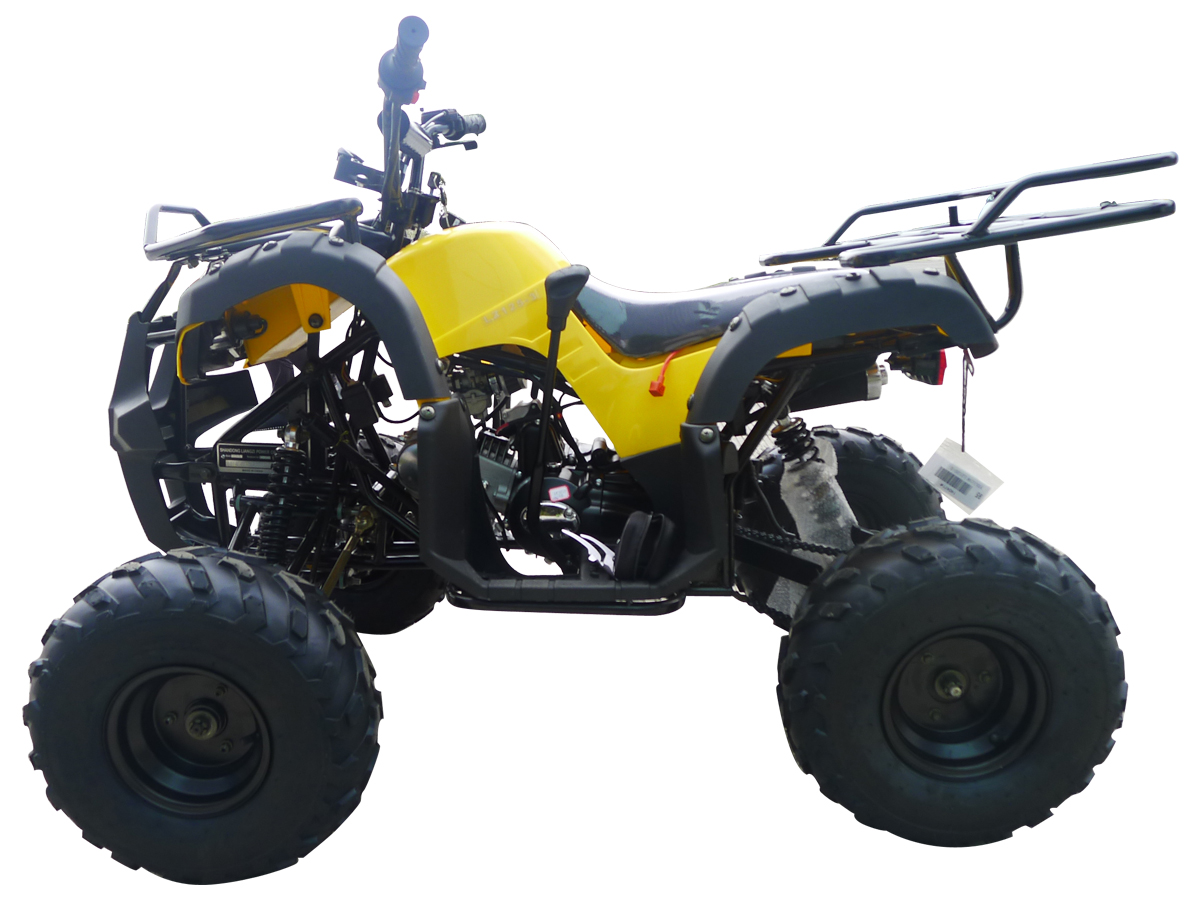

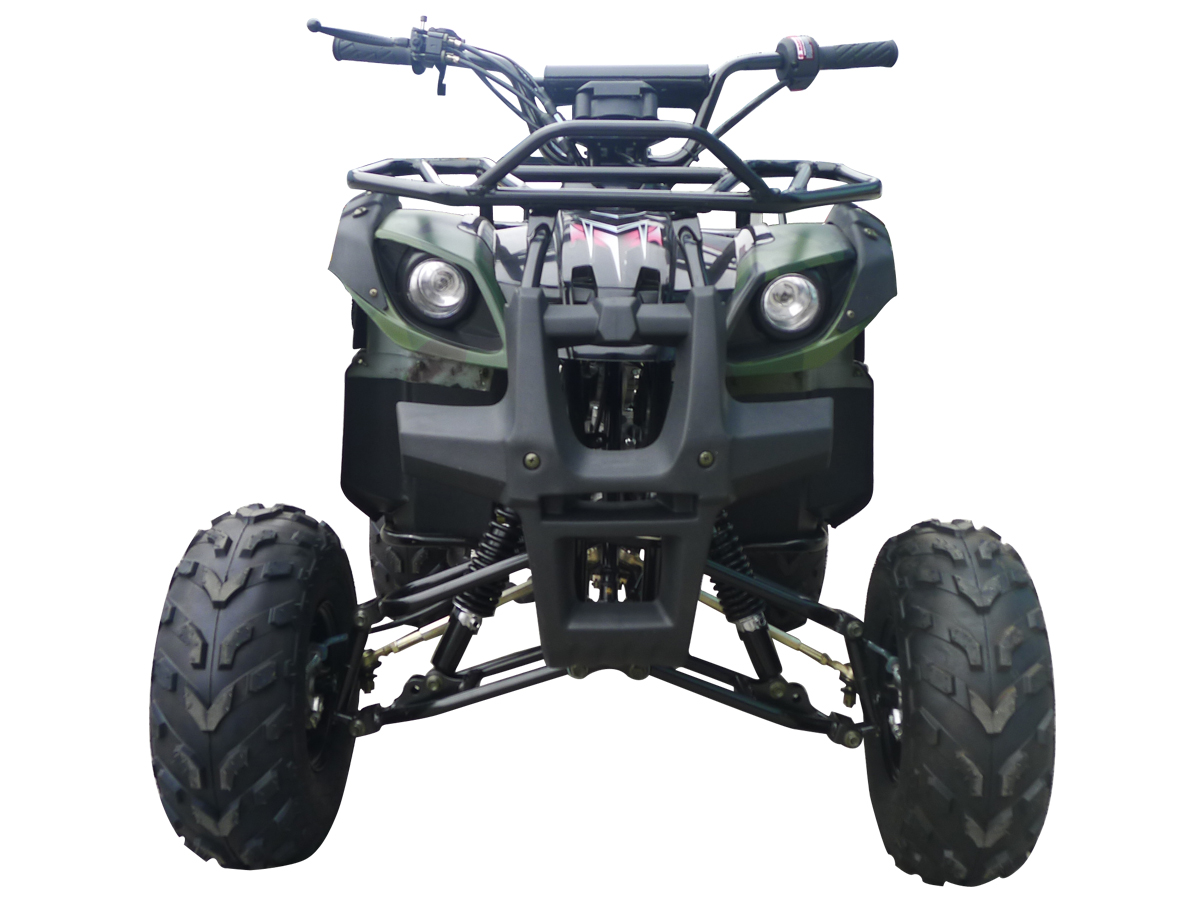

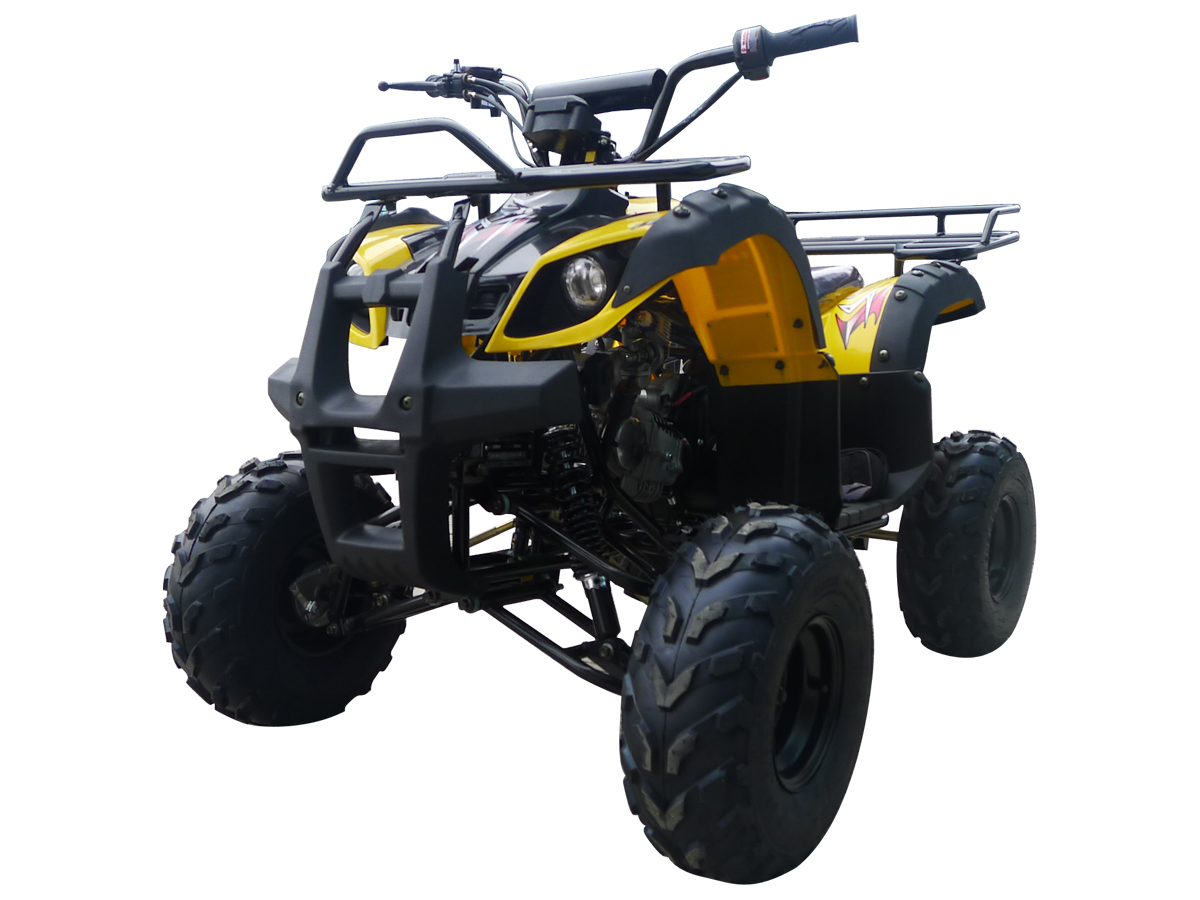

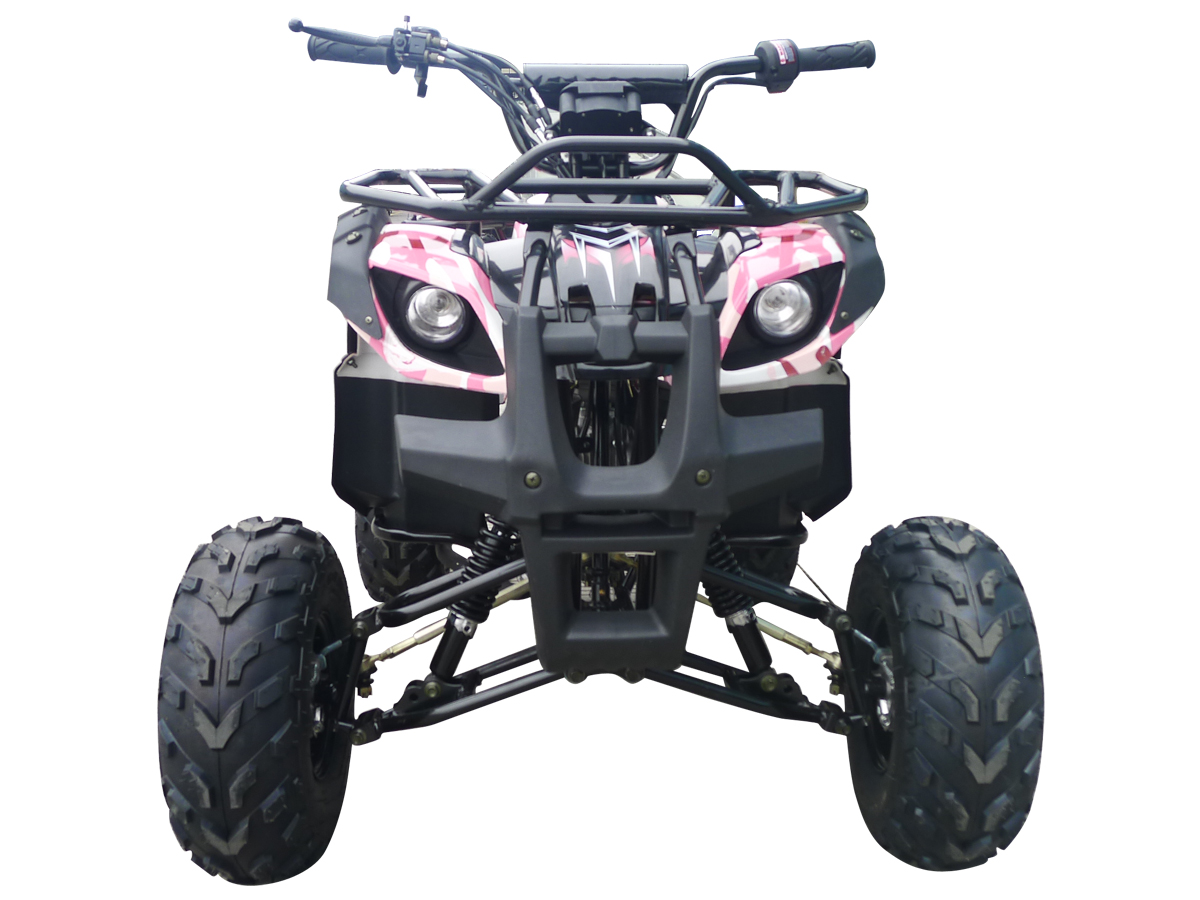

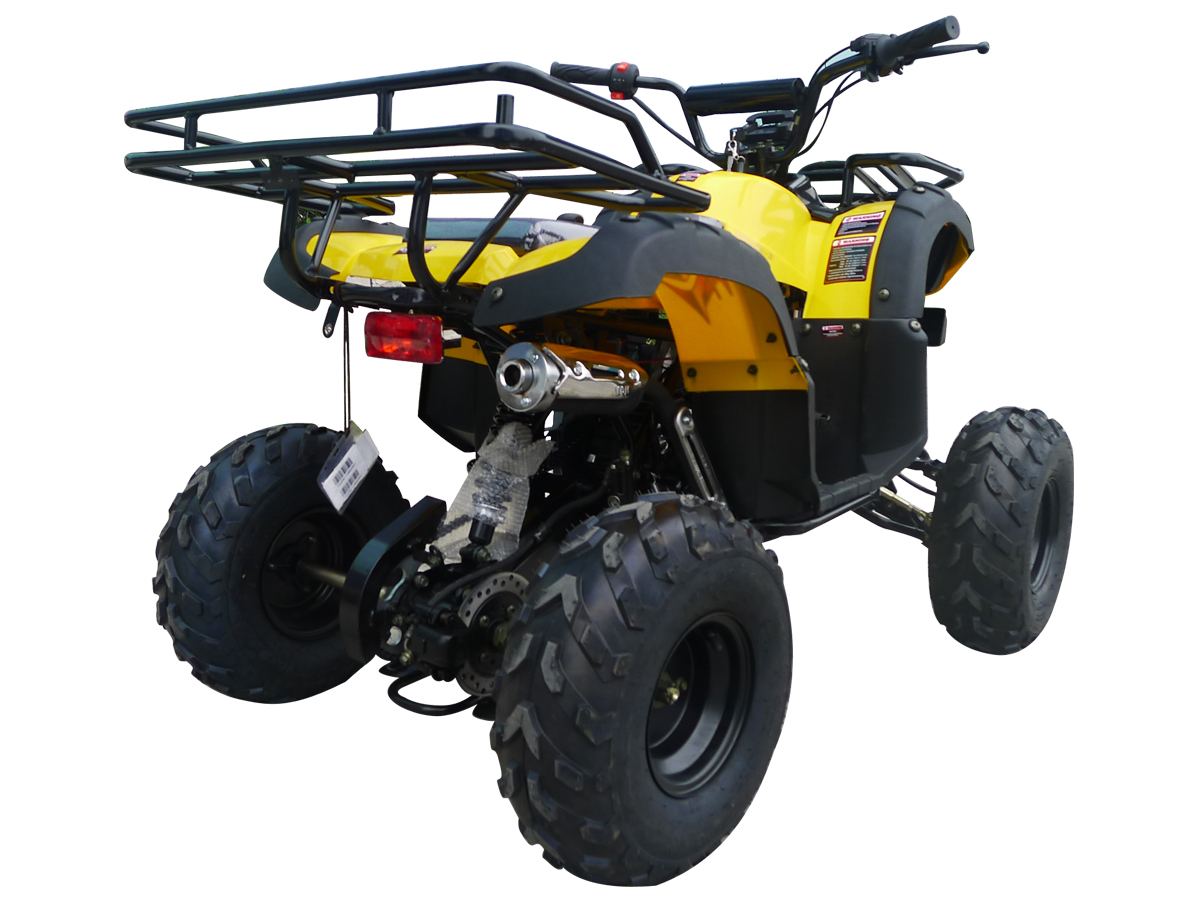

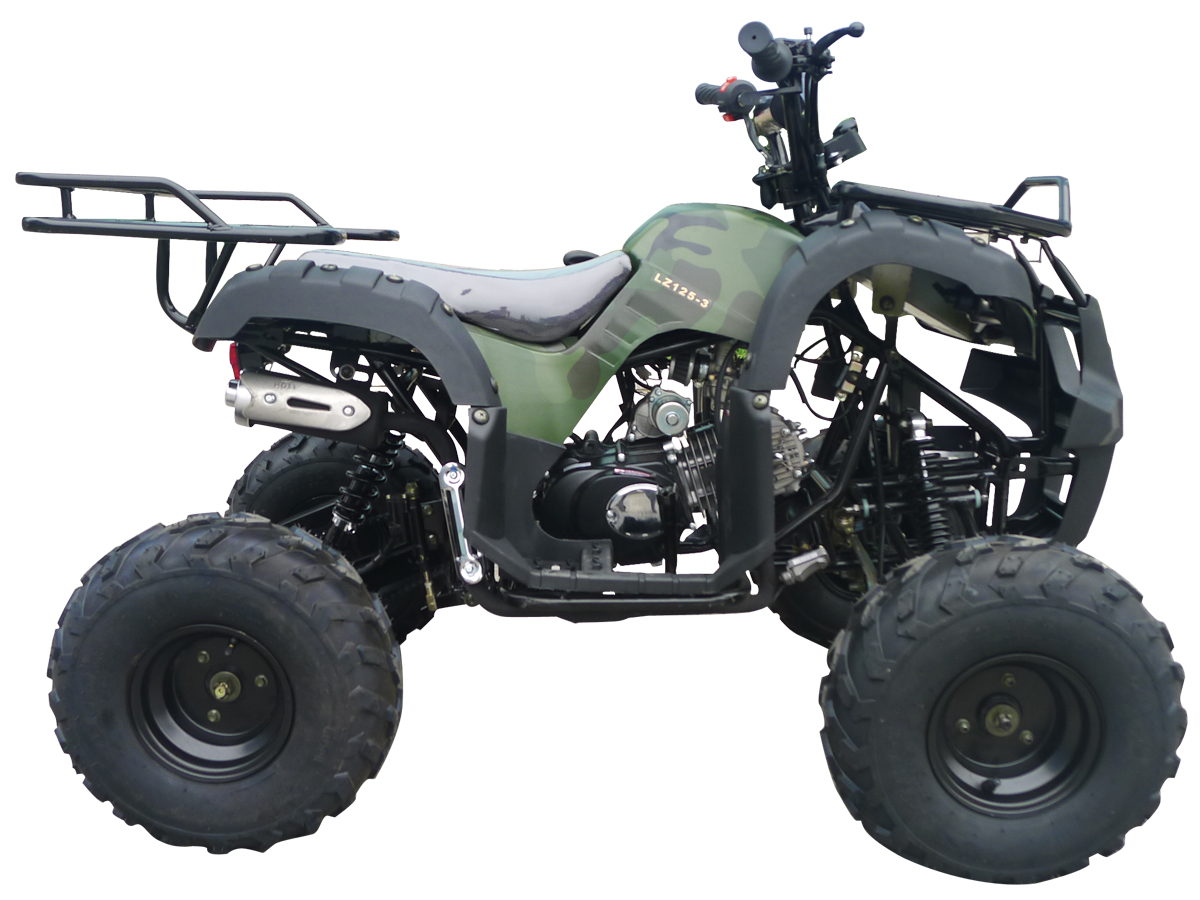

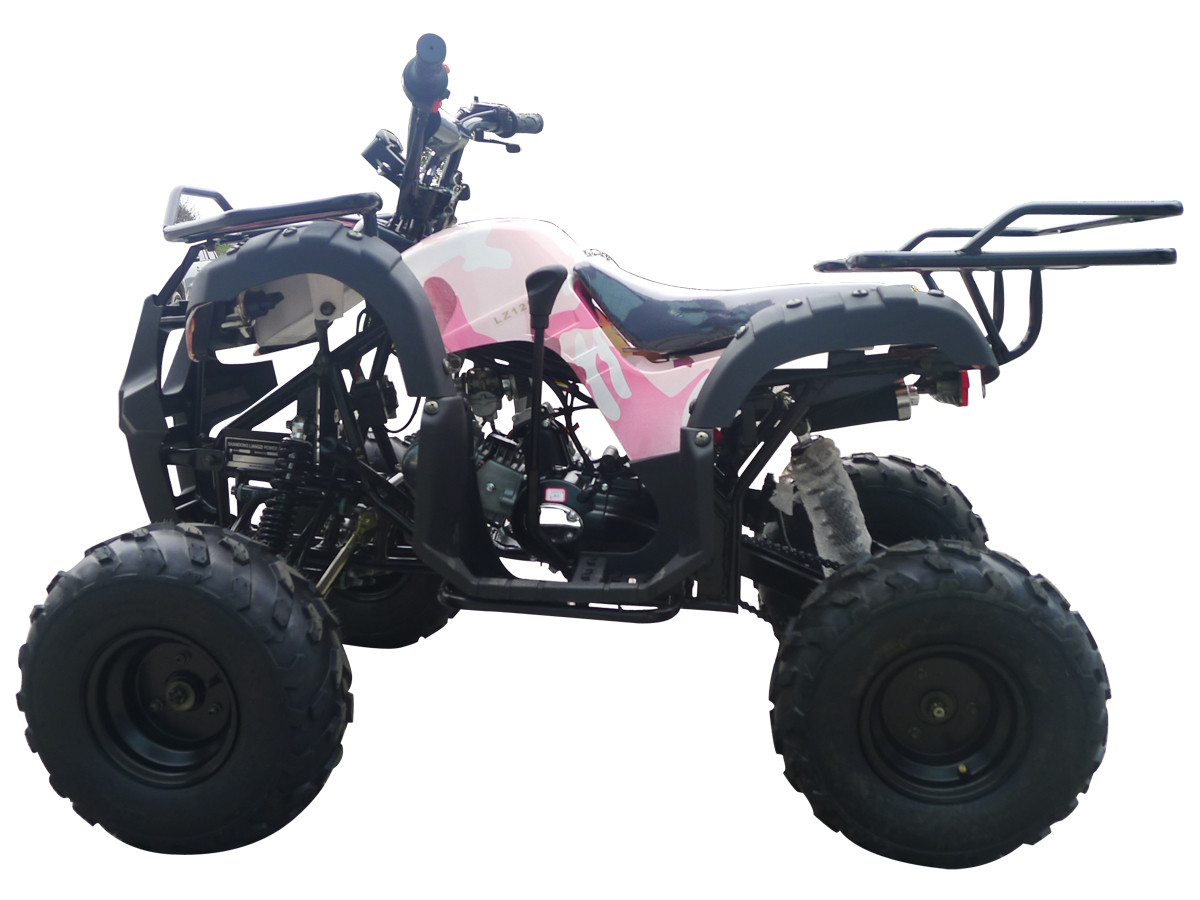

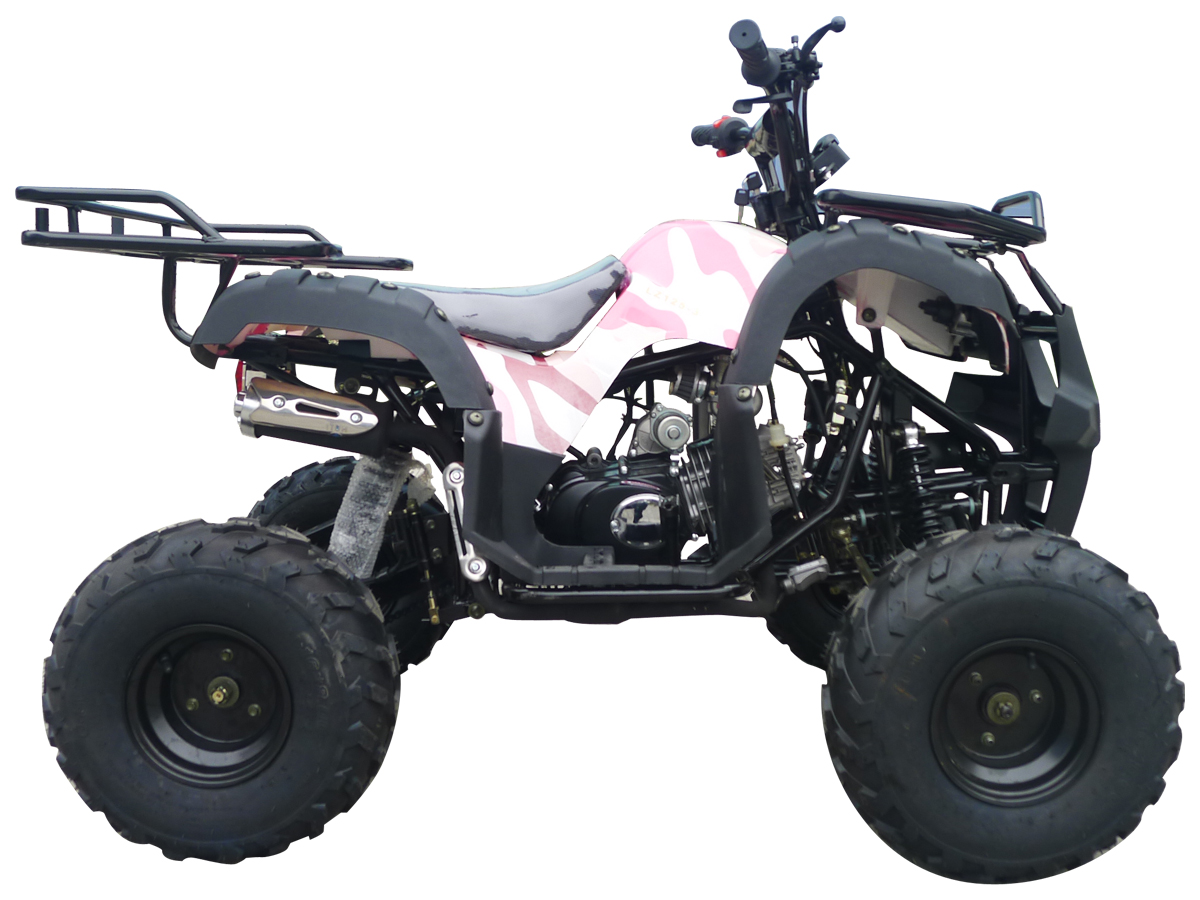

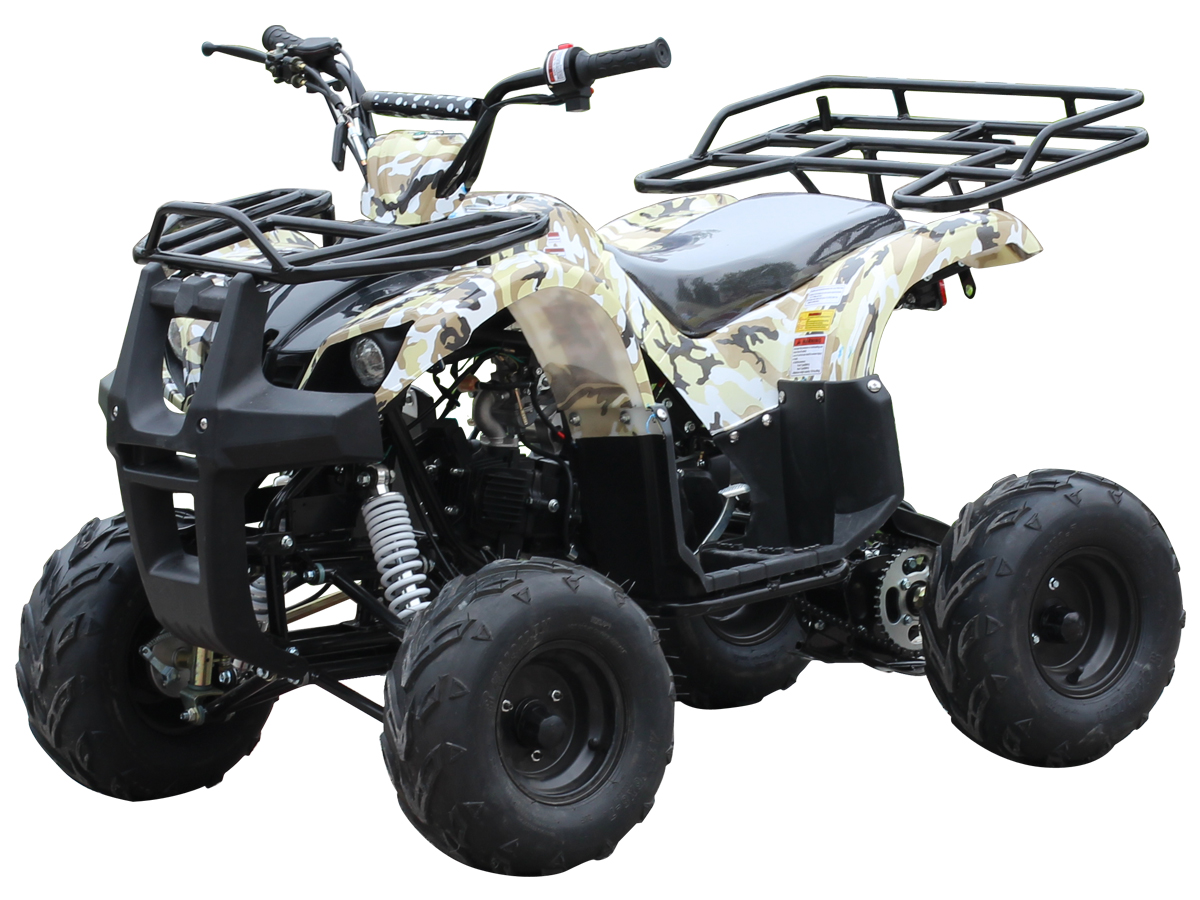

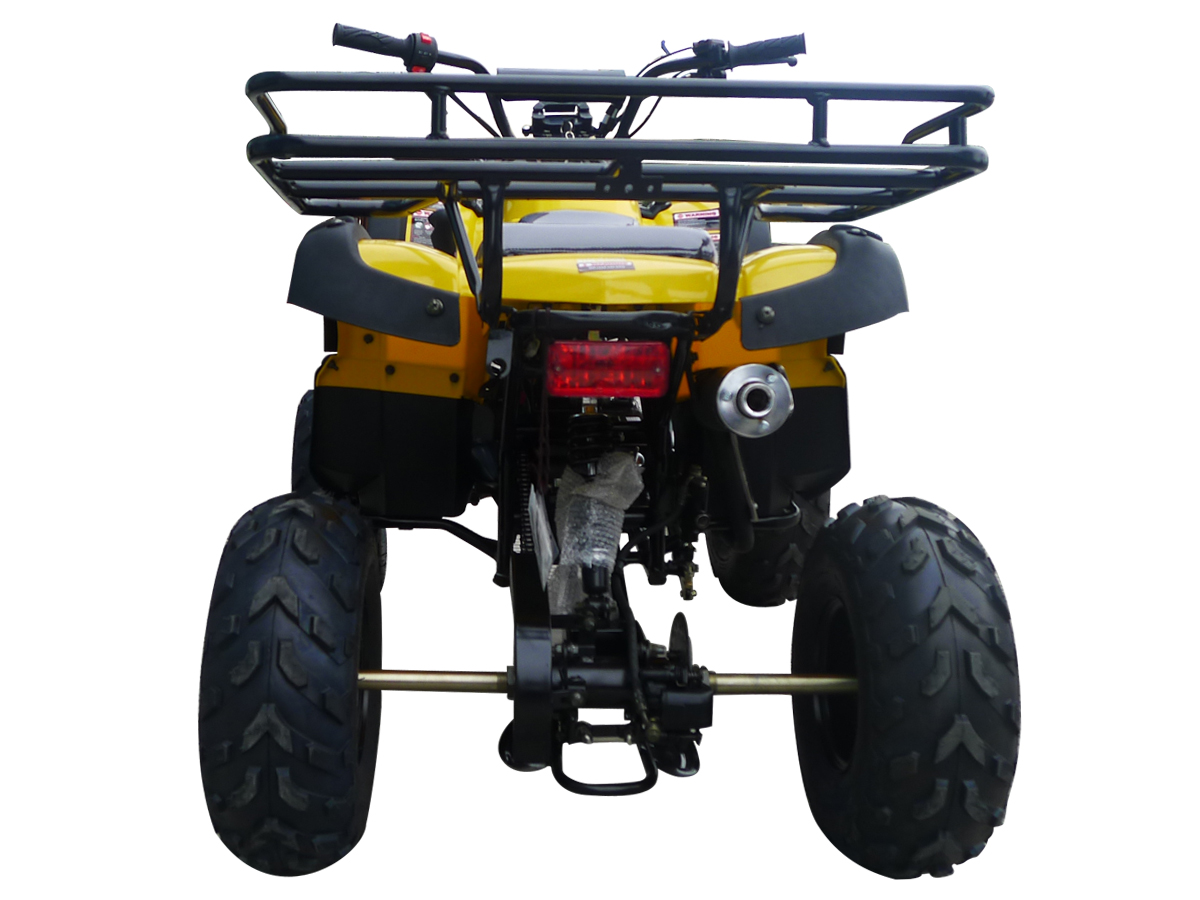

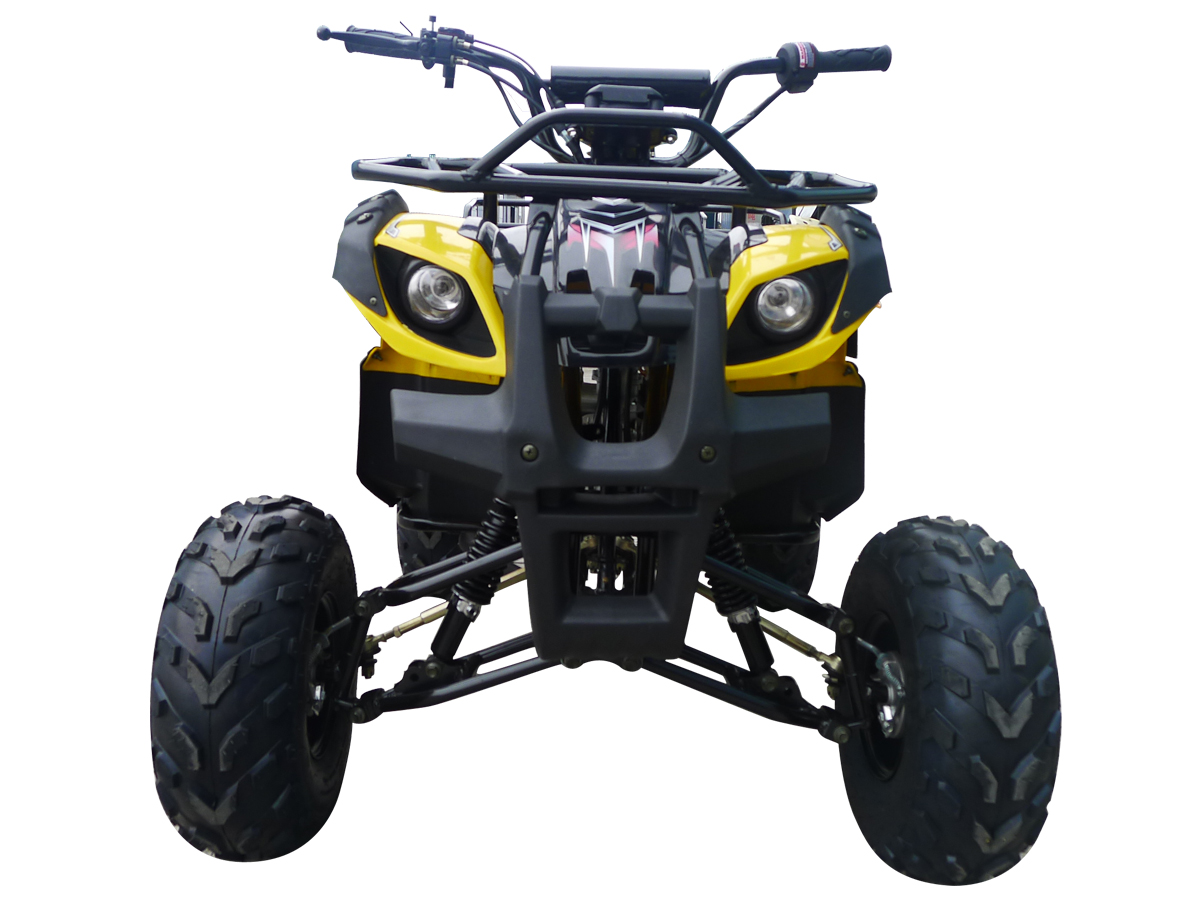

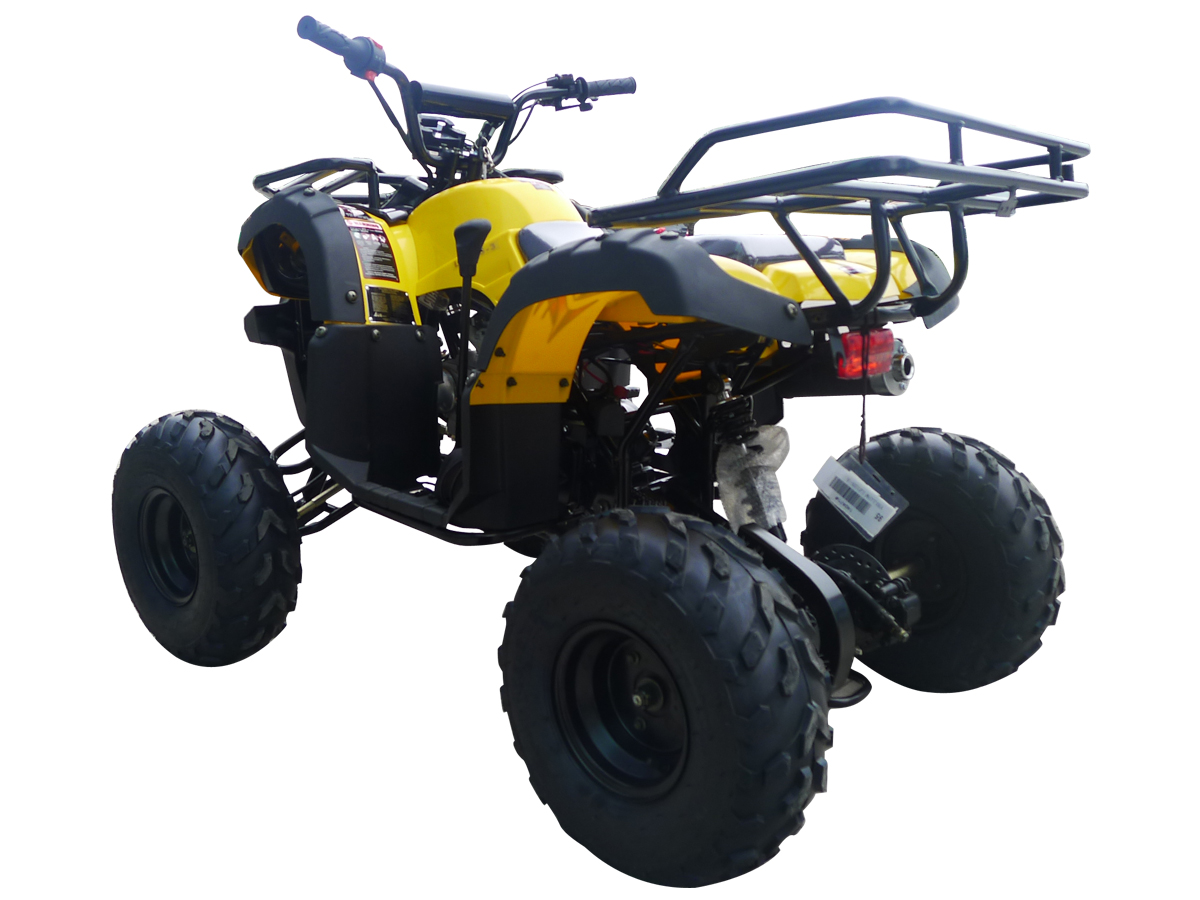

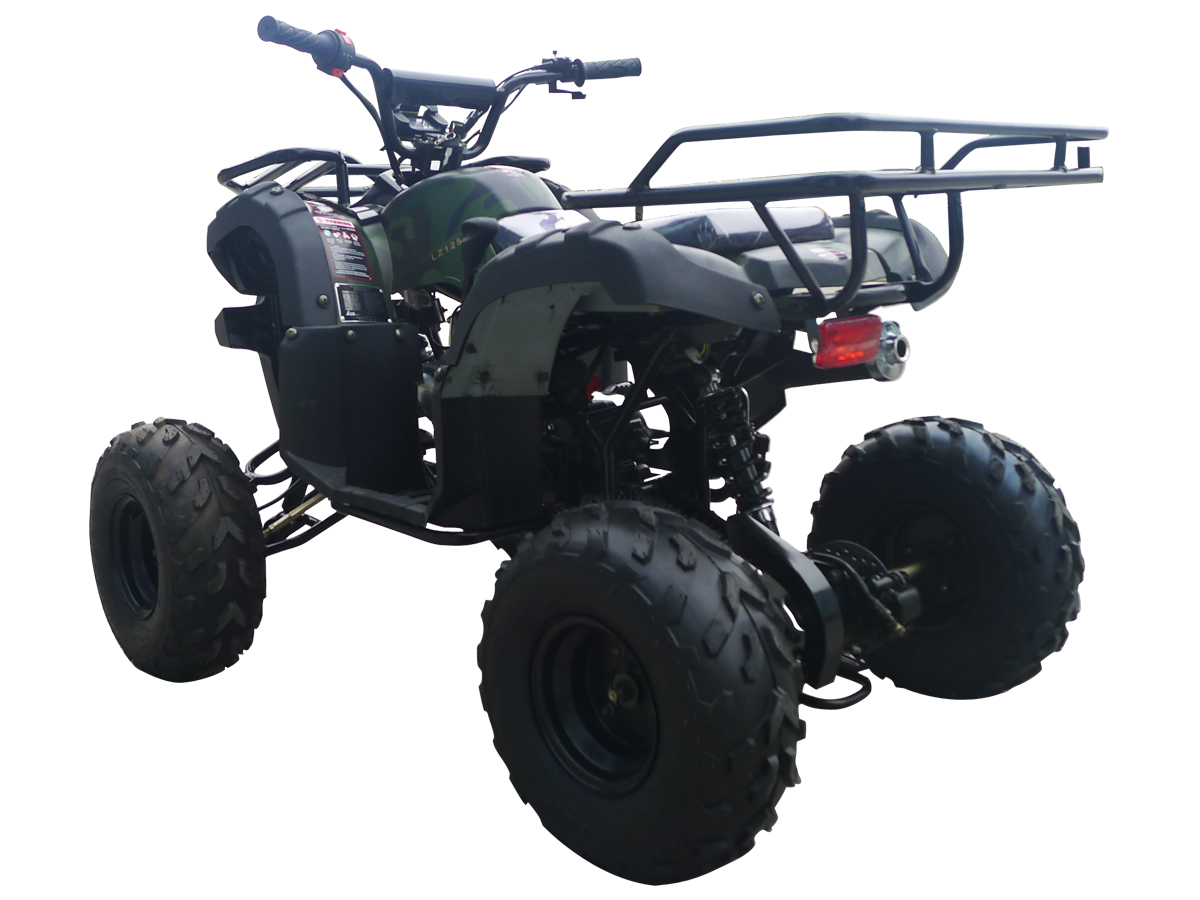

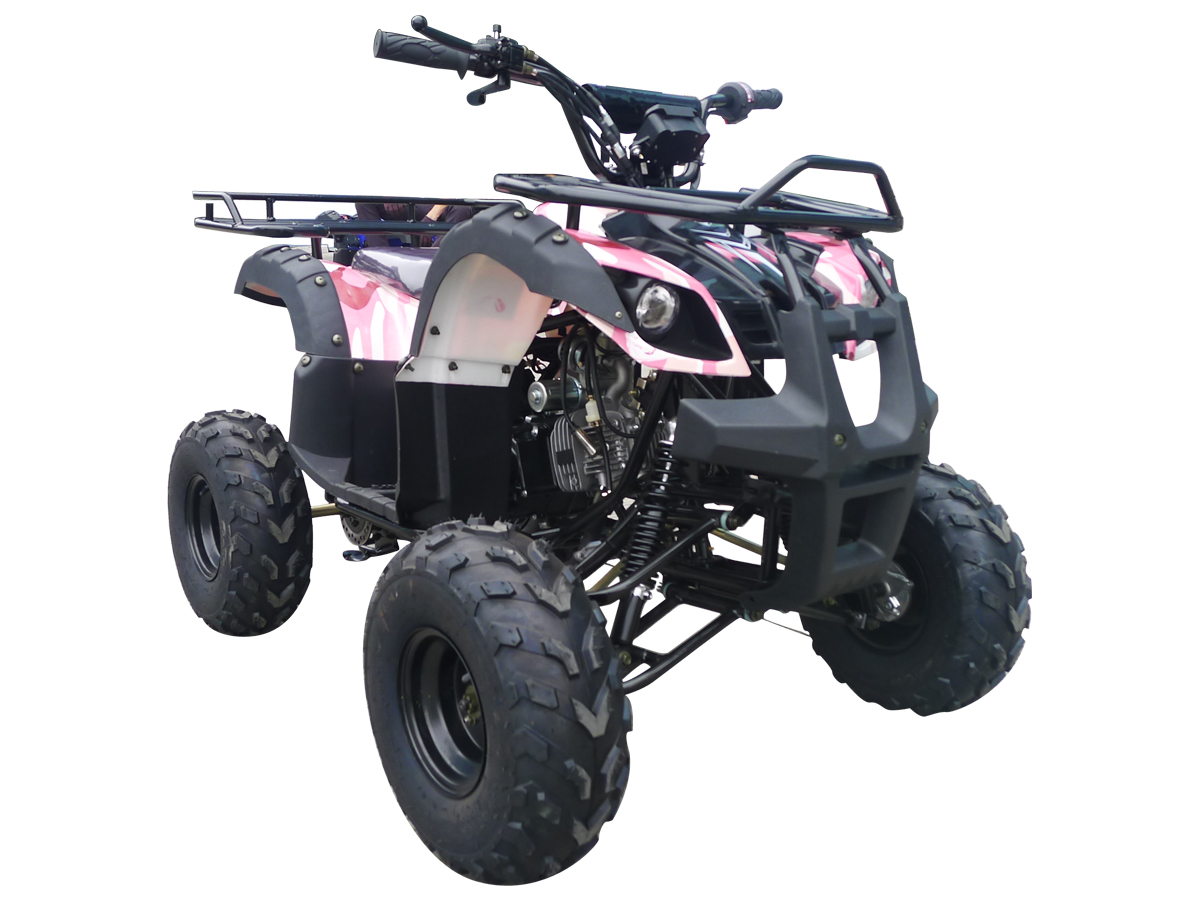

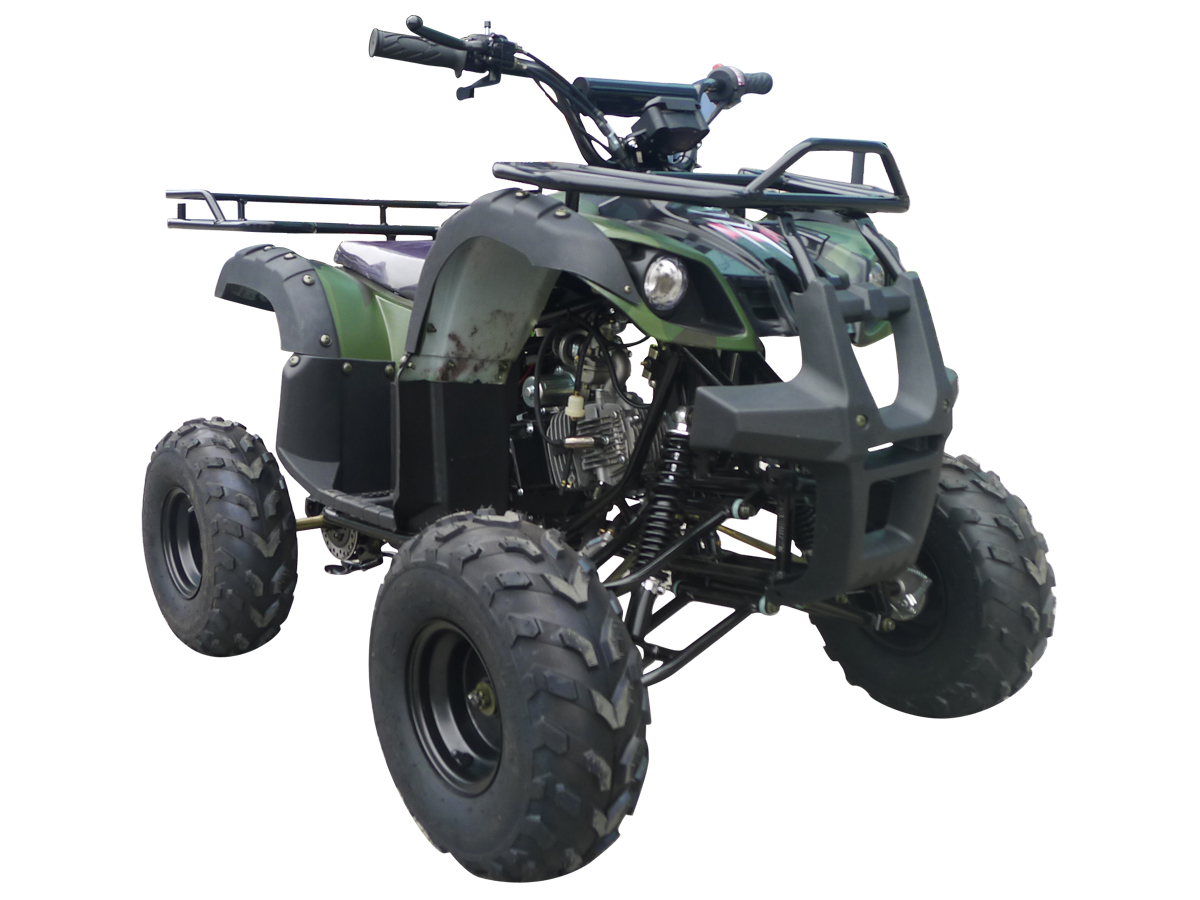

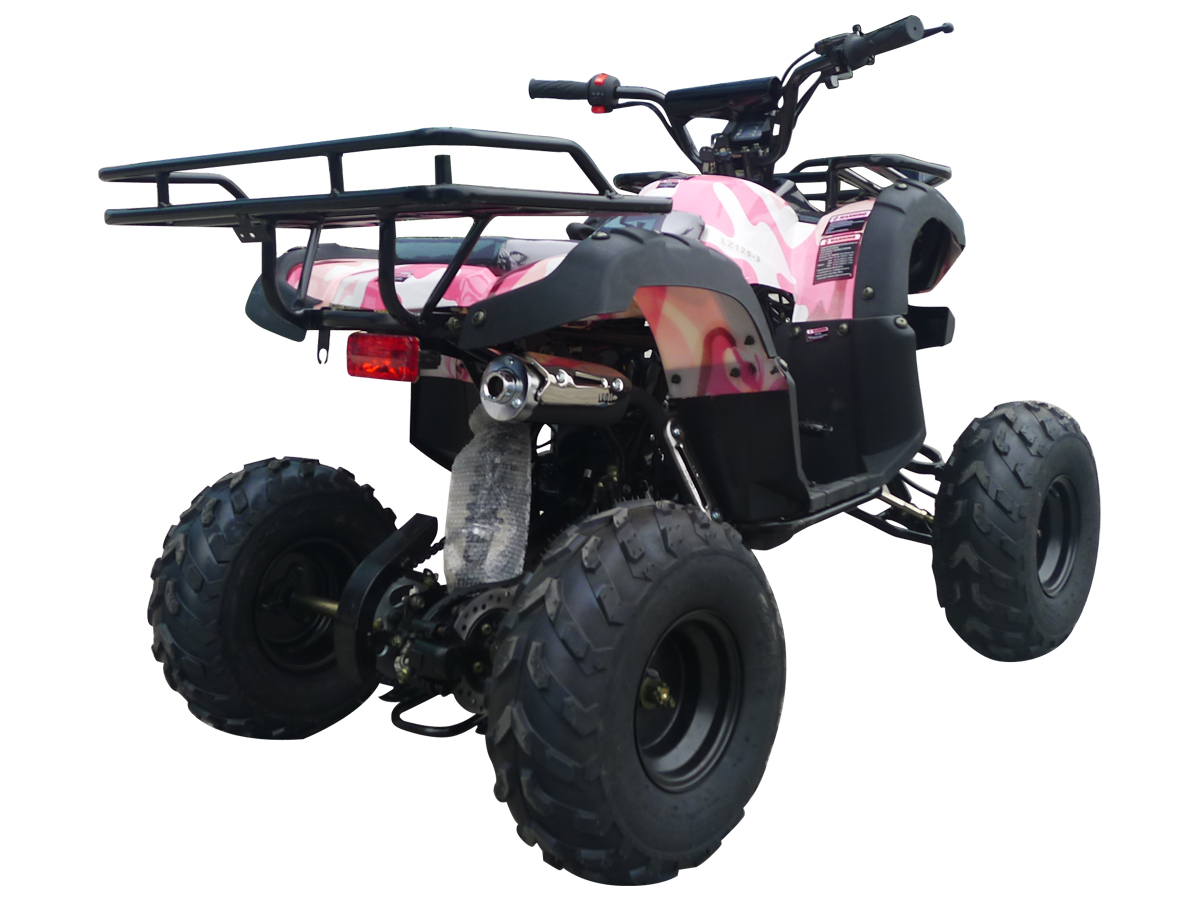

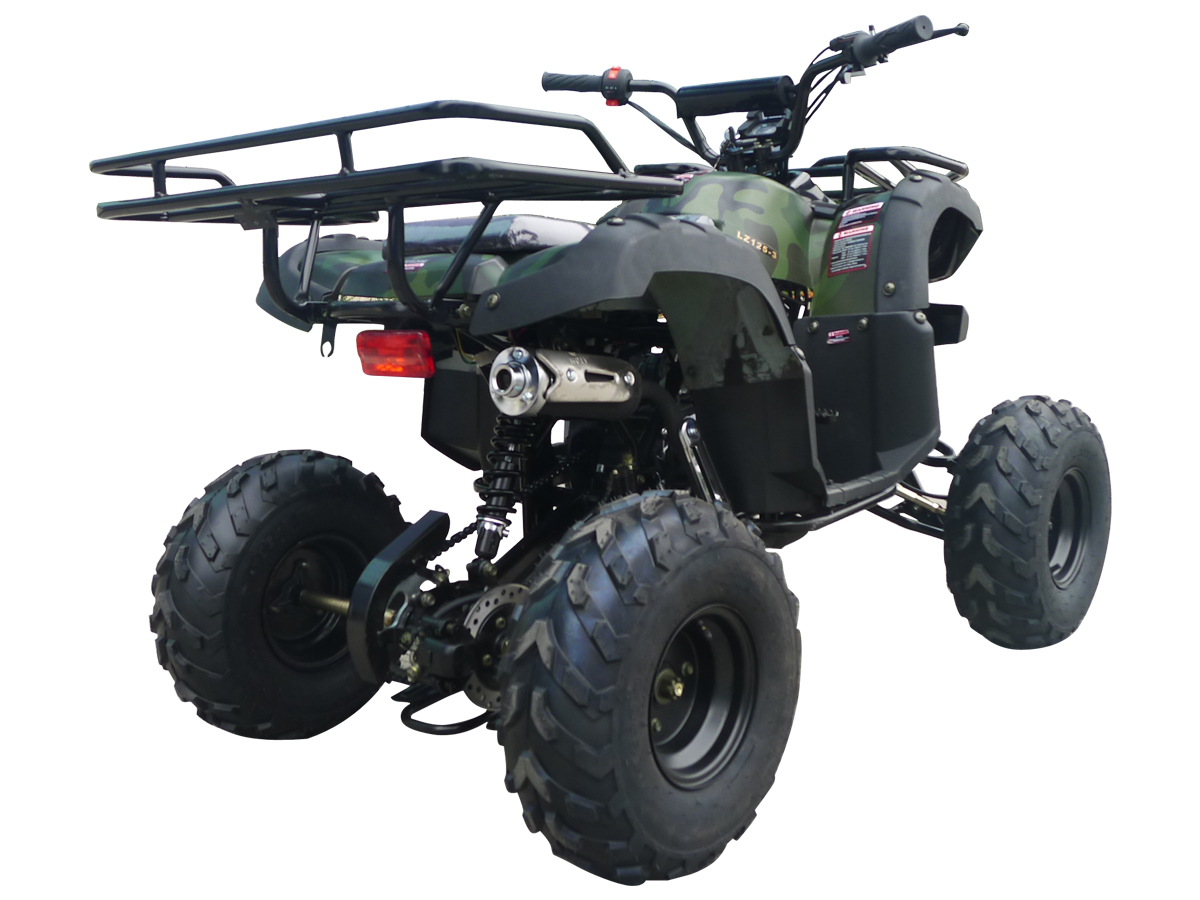

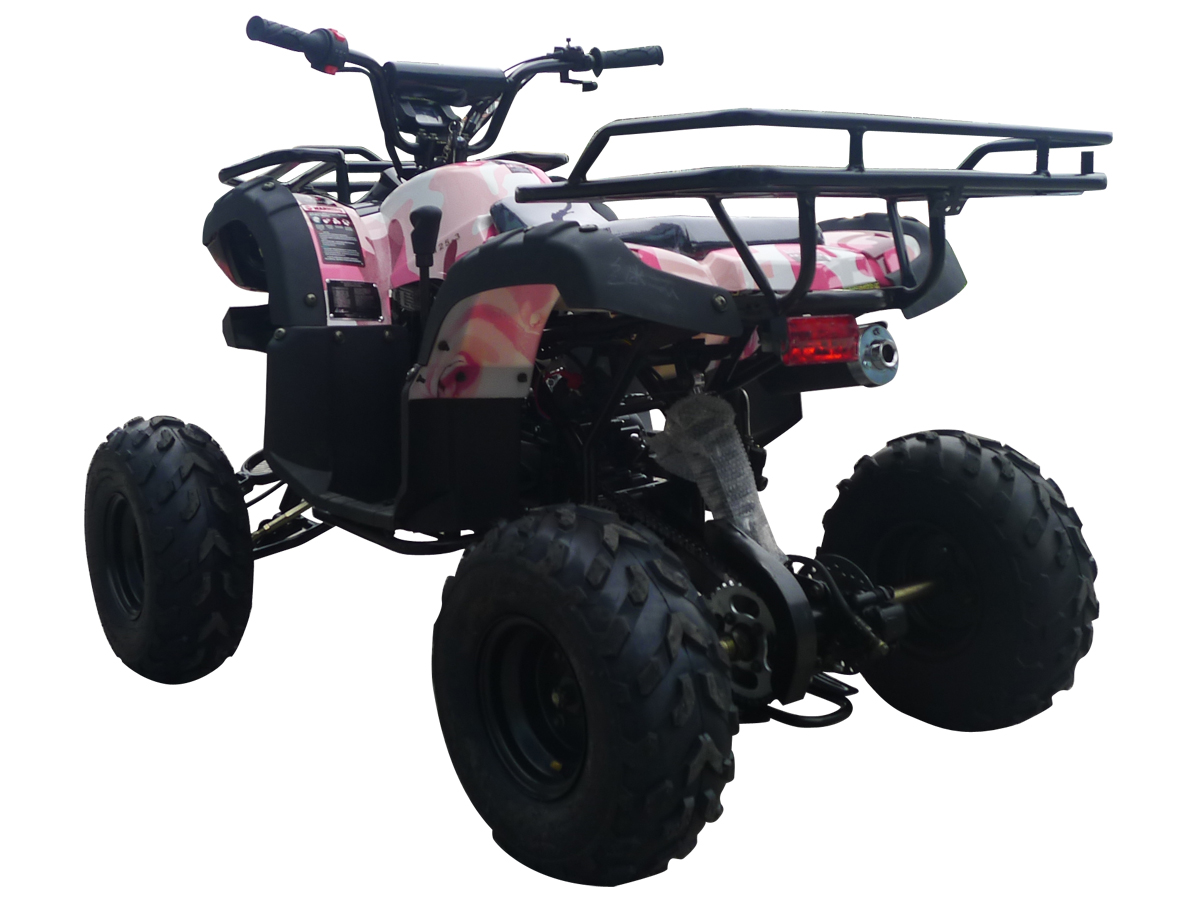

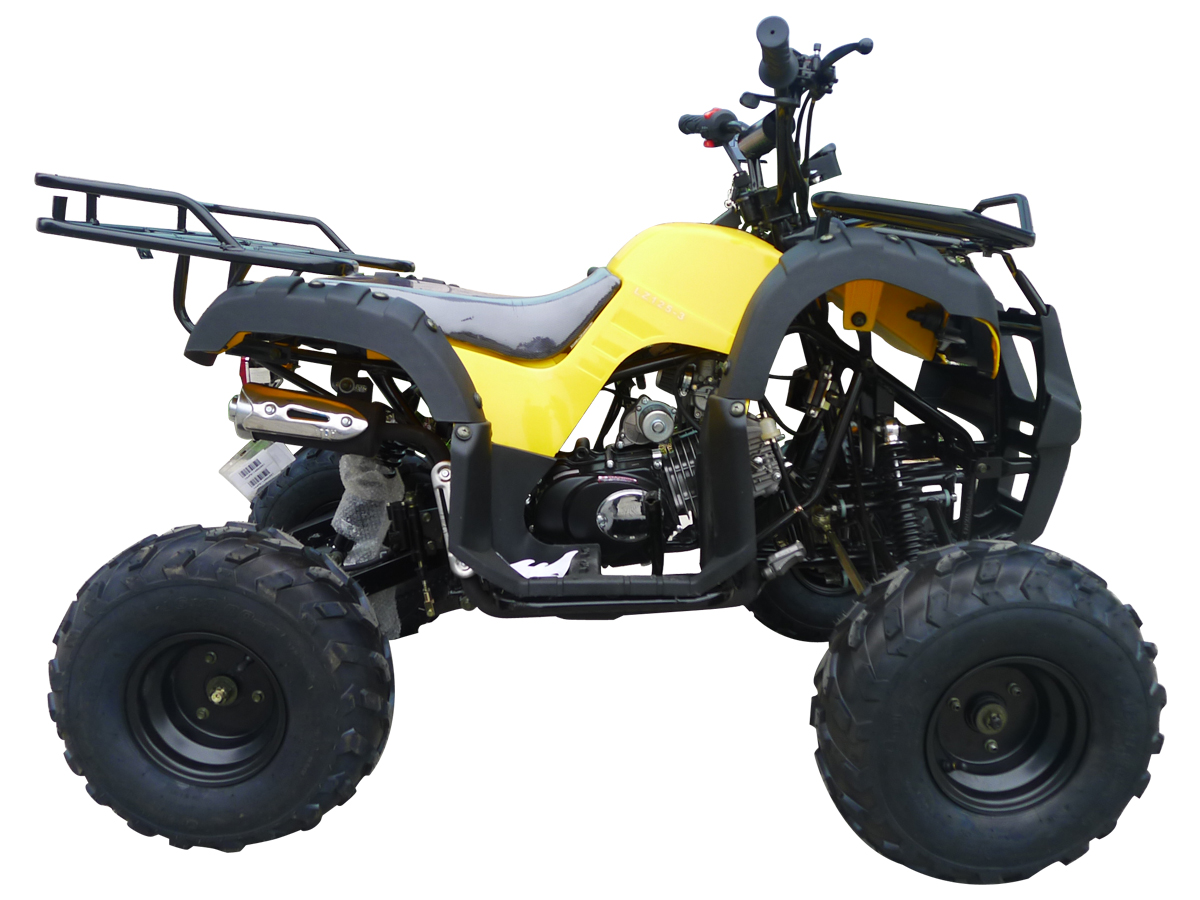

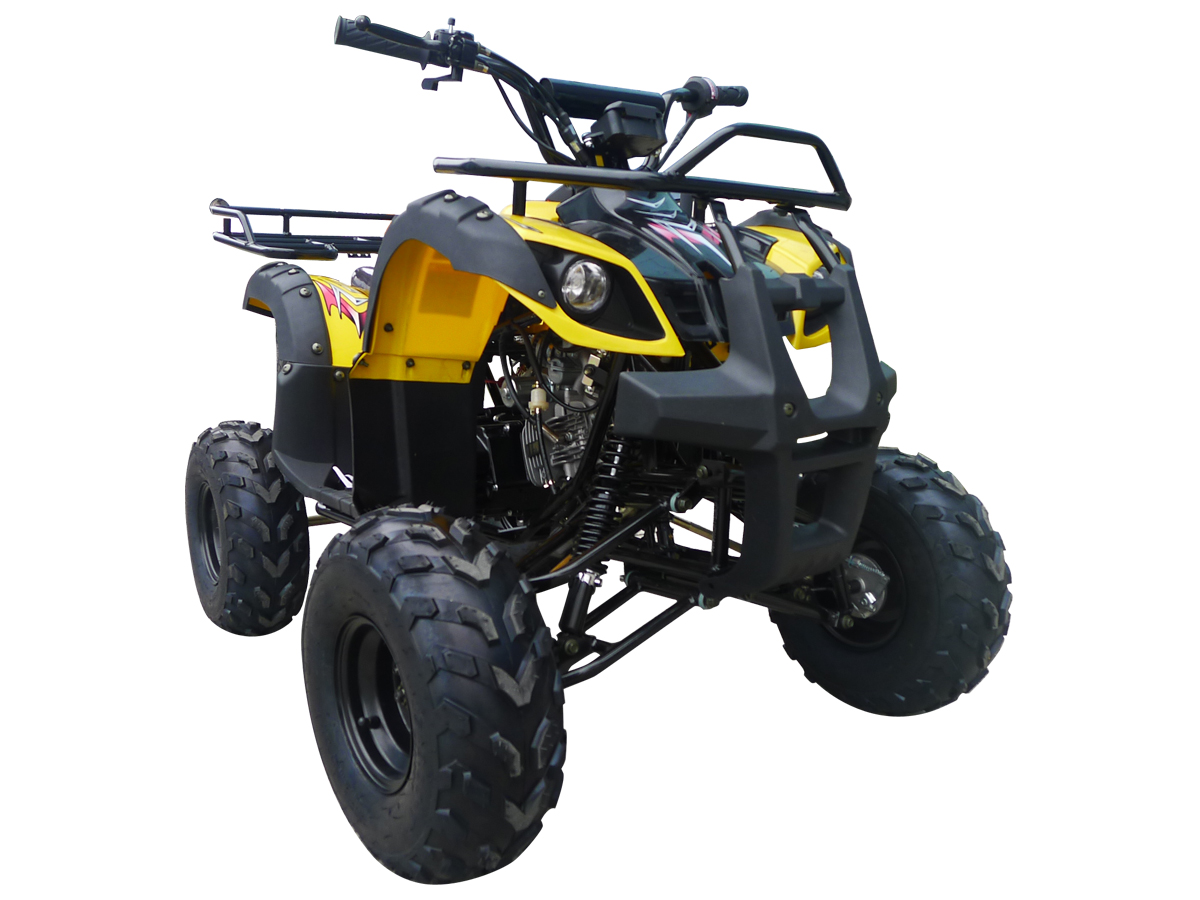

RANGER(PAH110-8S)
RANGER(PAH110-8S)
110cc, Air Cooled, Automatic with Reverse, 7 inches Wheel, Front Drum, Rear Disc Brake.
MSRP

N/A

Product Details

Engine 110cc, 152FMH, Kangdi
Transmission Fully automatic
Drive type Chain
Belt and or chain size Chain: 420H 82L
Starter System Elec start
Fuel system Gasoline, 0.53gal, carburator
Brake (Front/Rear) Drum/Disk
Tire size(Front/Rear) 16x8-7
Wheel size and type(Front/Rear) 7, Steel
Oil capacity and type (in liters) 0.8L, Air cooled motorcycle oil with clutch additive
Gear oil type and capacity( in liters) N/A
Battery 12V/5Ah
Light Headlight is Led, taillight is standard, no turn lights
Suspension(Front/Rear) Double a-arm suspension / Single arm suspension
Dimensions(in inch) Assembled(LxWxH): 57x33.8x34.6, Crated(LxWxH): 46.9x29.5x26.8, Seat height: 24.4, Wheelbase: 34.2
Weight 265 lbs
weight capacity 198 lbs
Ground Clearance (in inch) 3.35
Assembly Require Wheels, handlebars, front rear racks, battery
Any special features Remote kill key fob, throttle limiter
EPA/carb approved Yes/No
