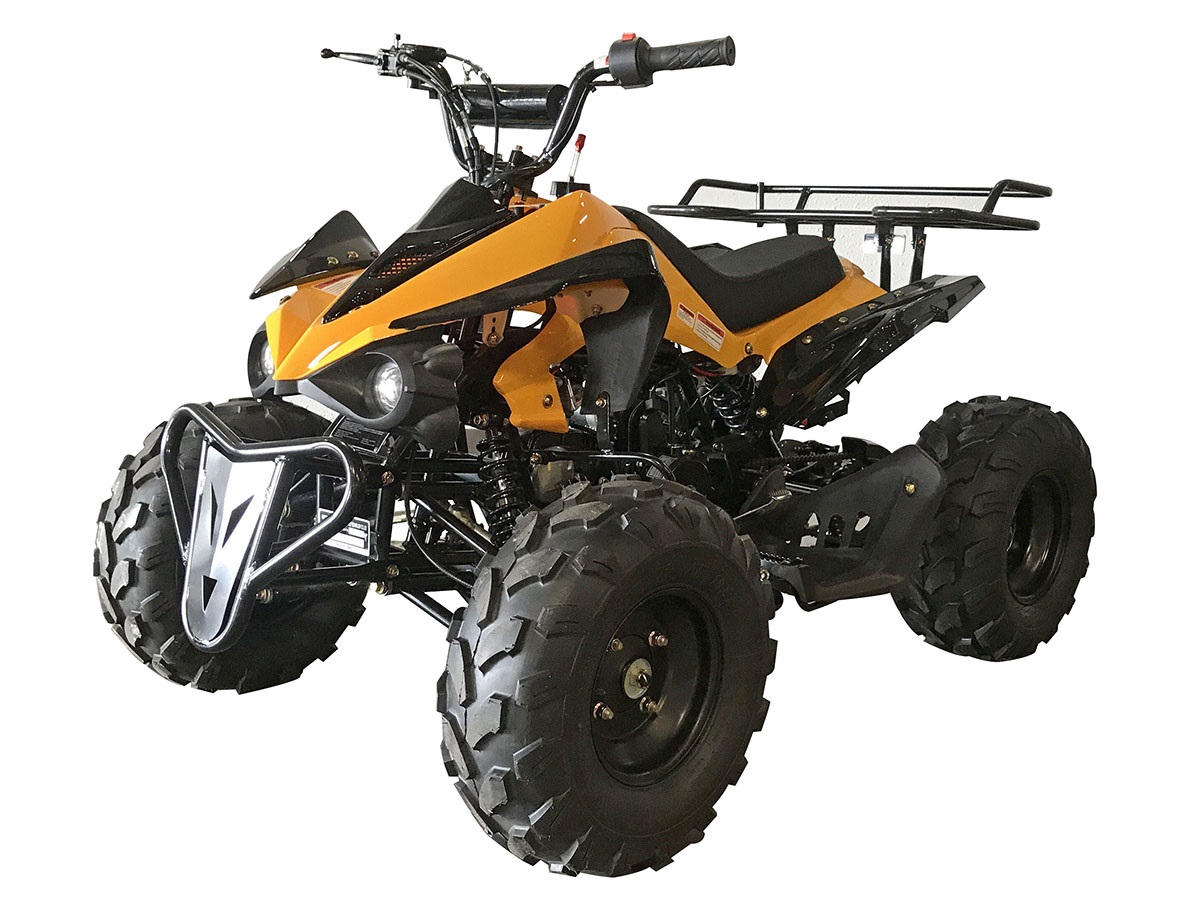

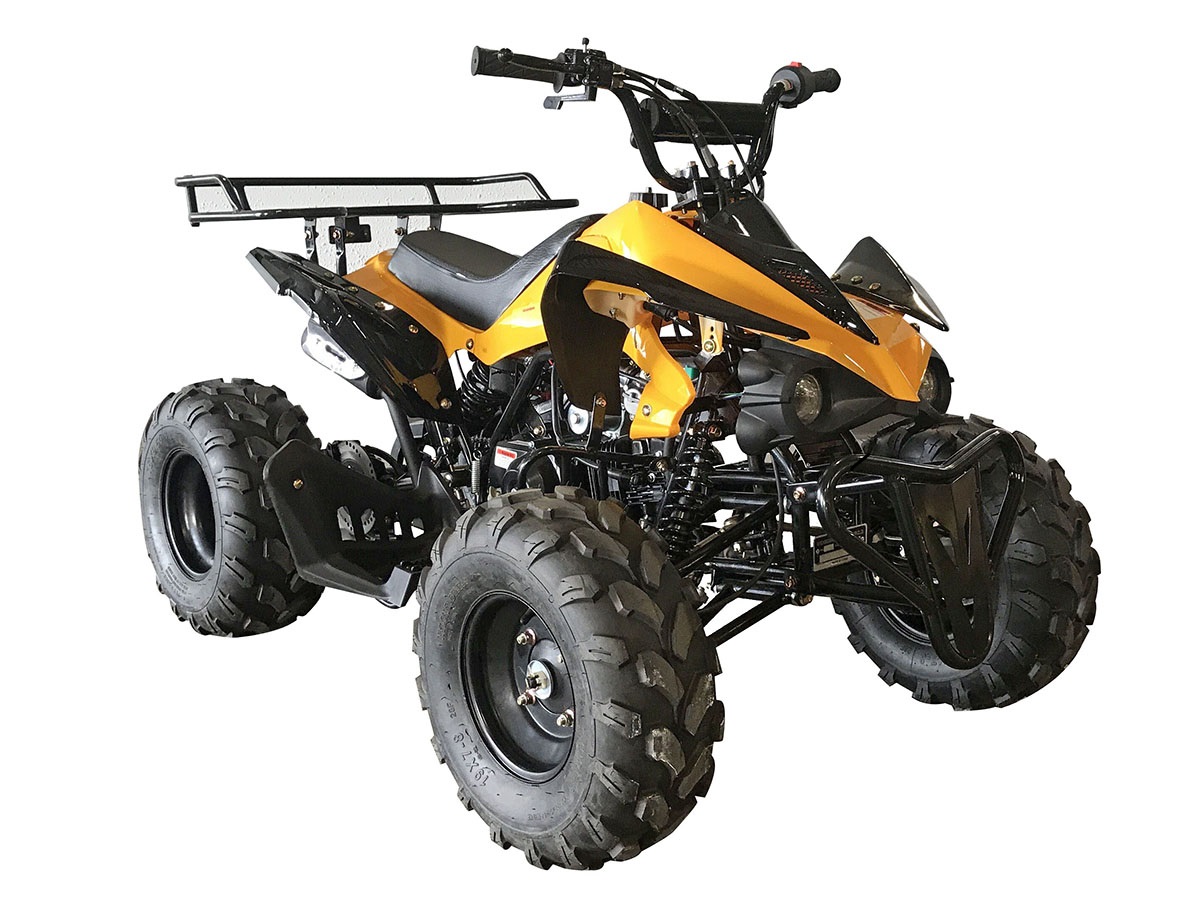

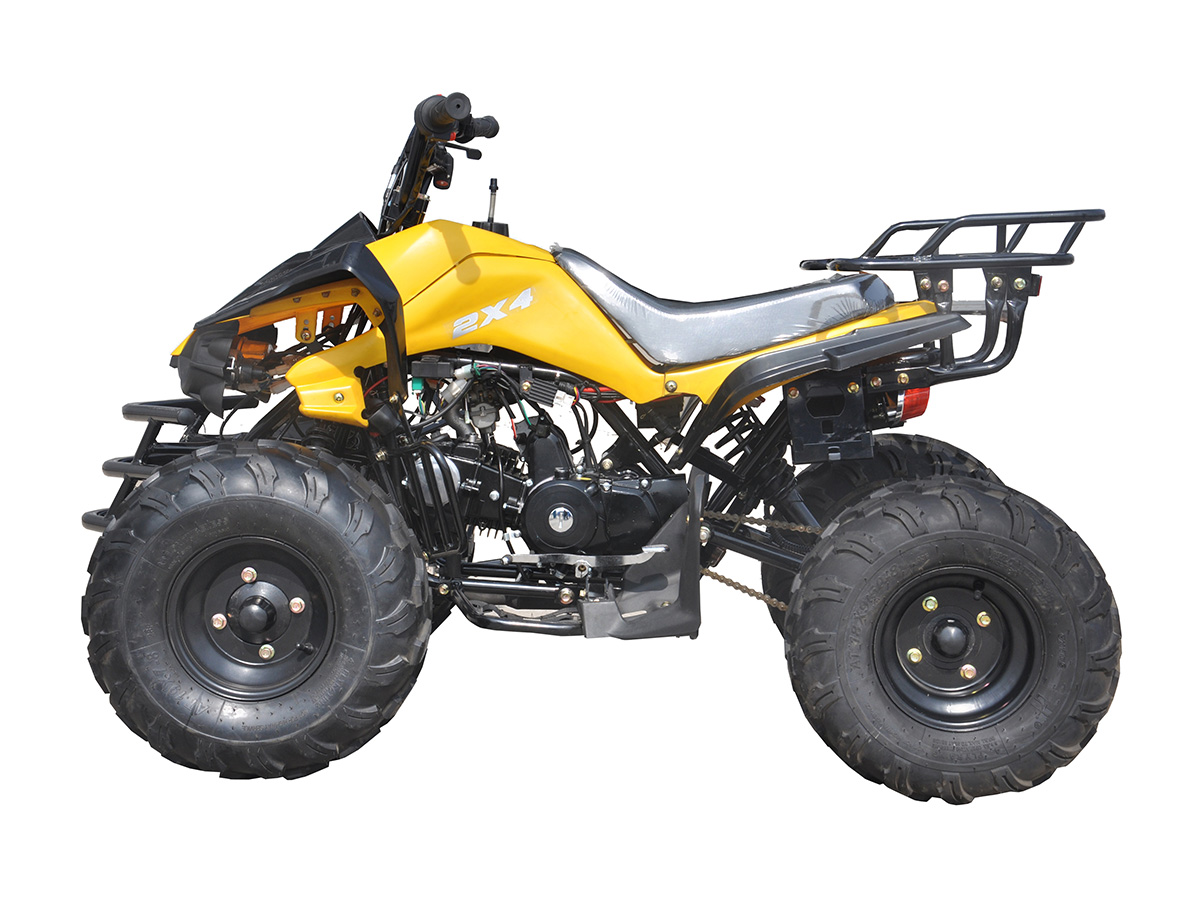

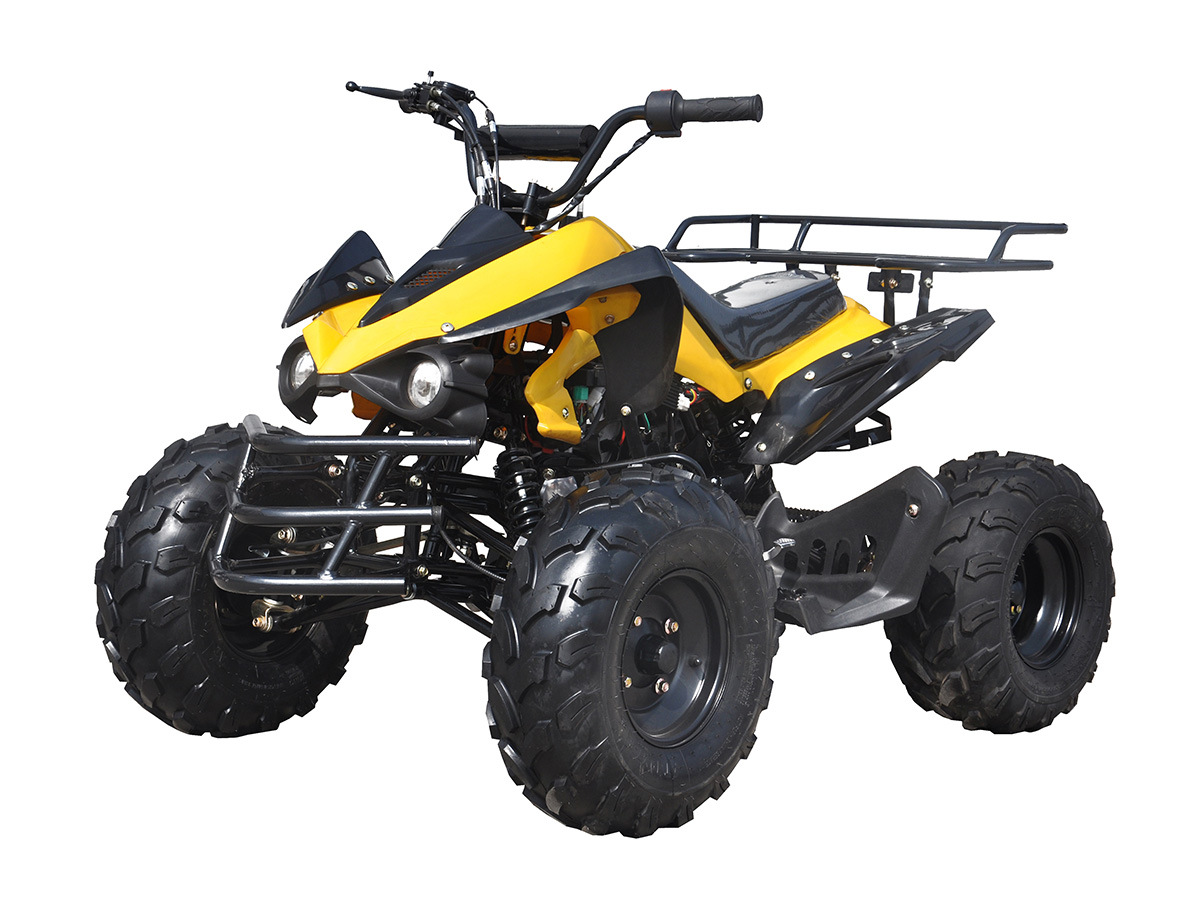

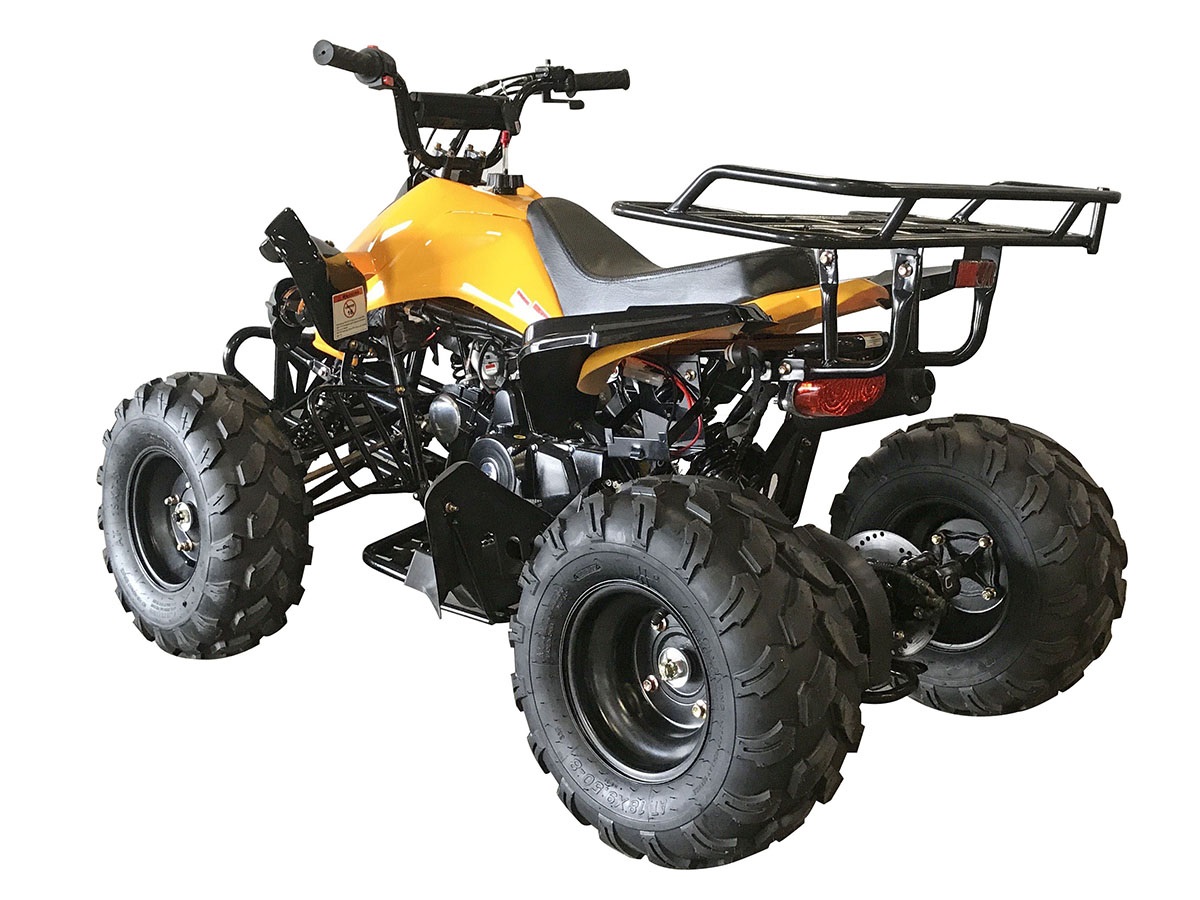

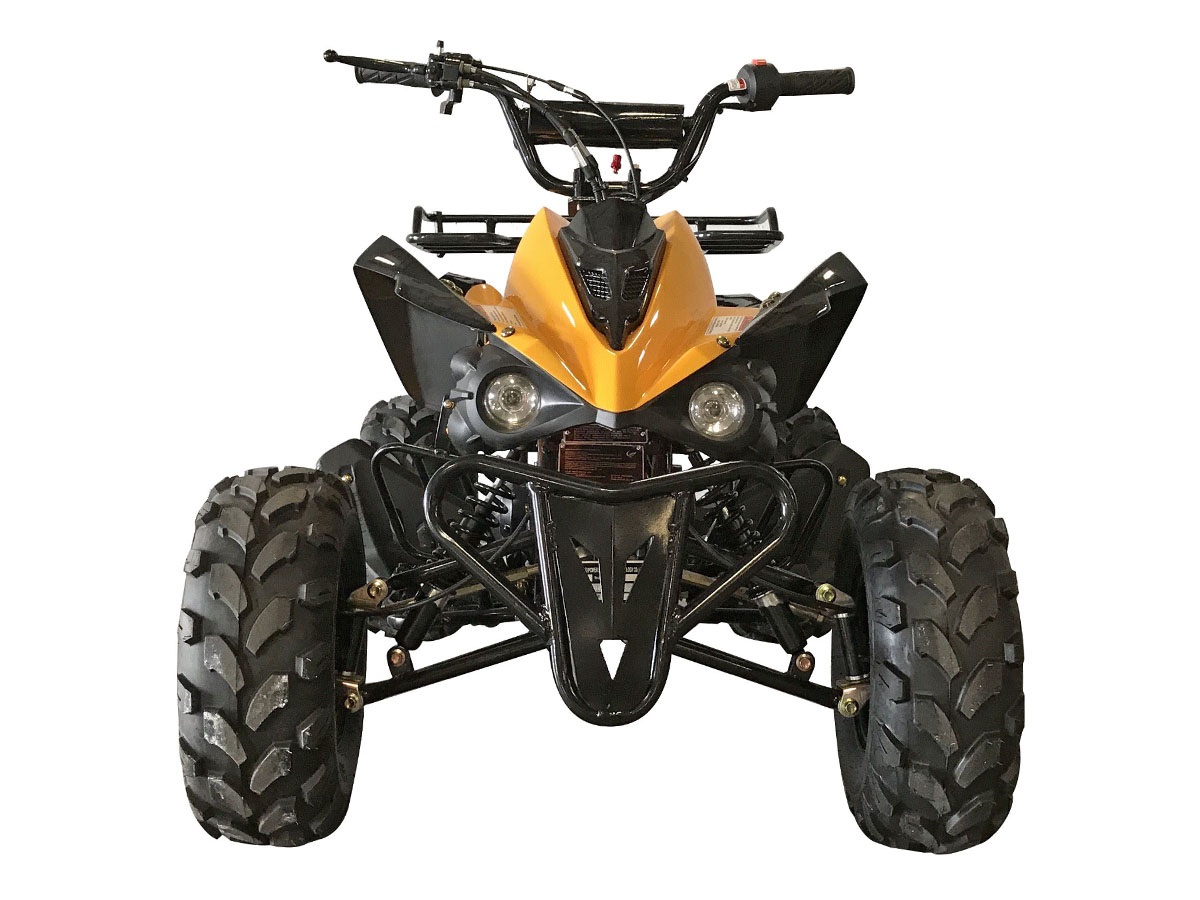

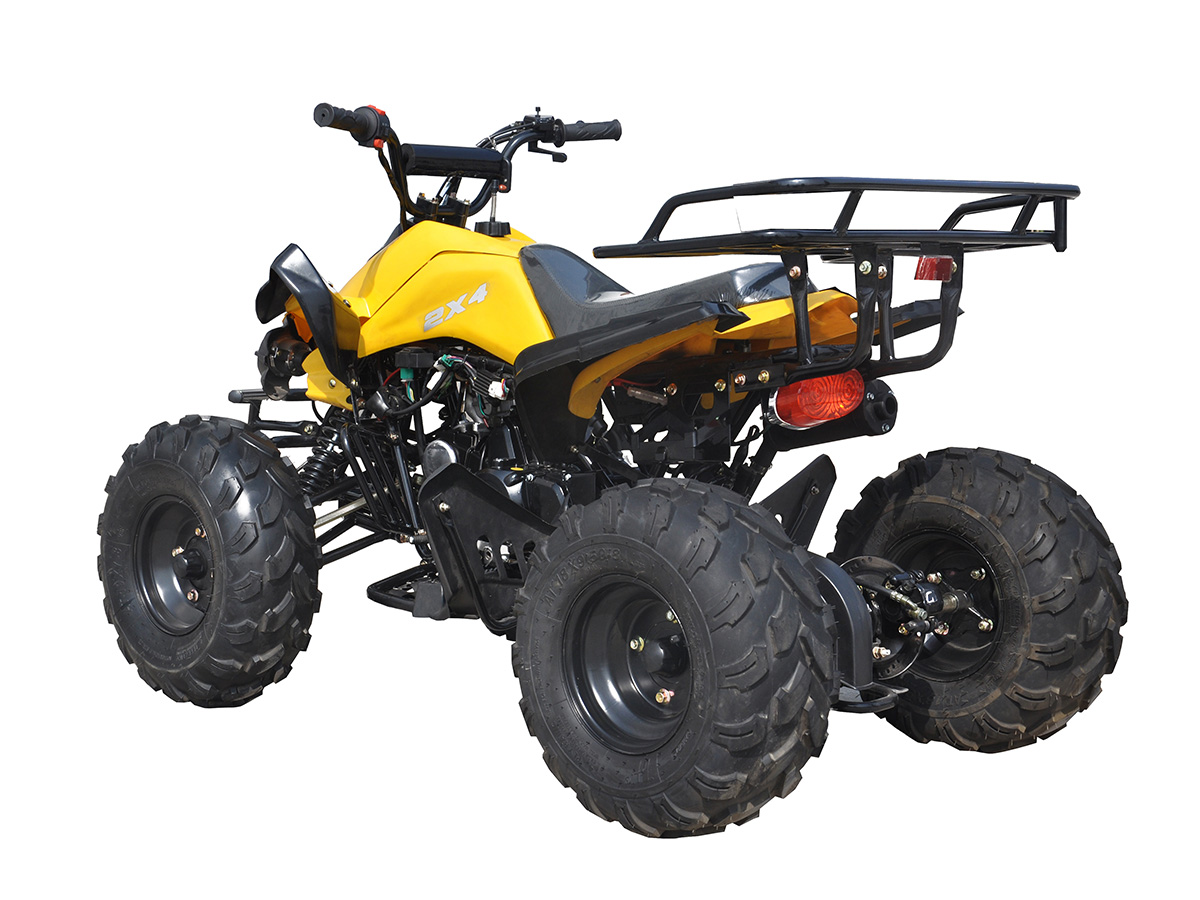

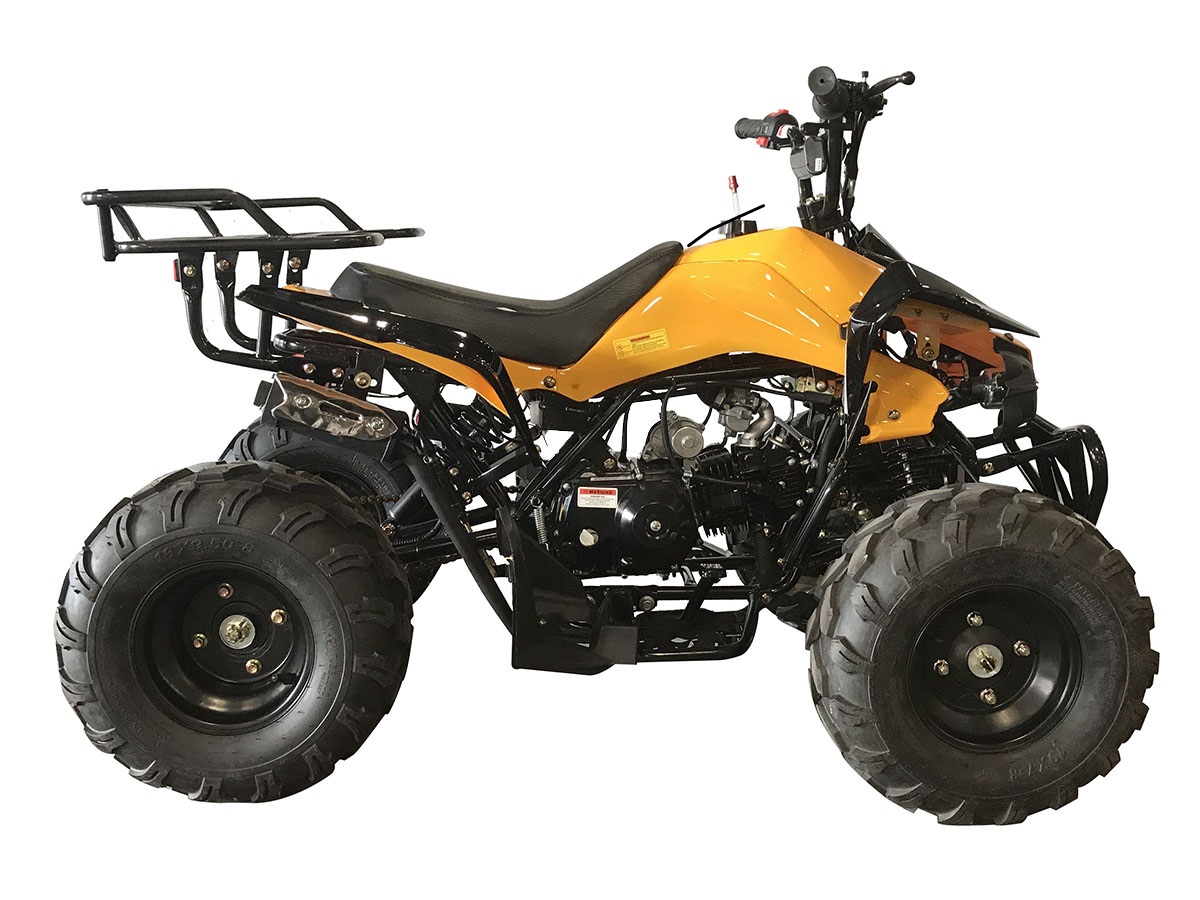

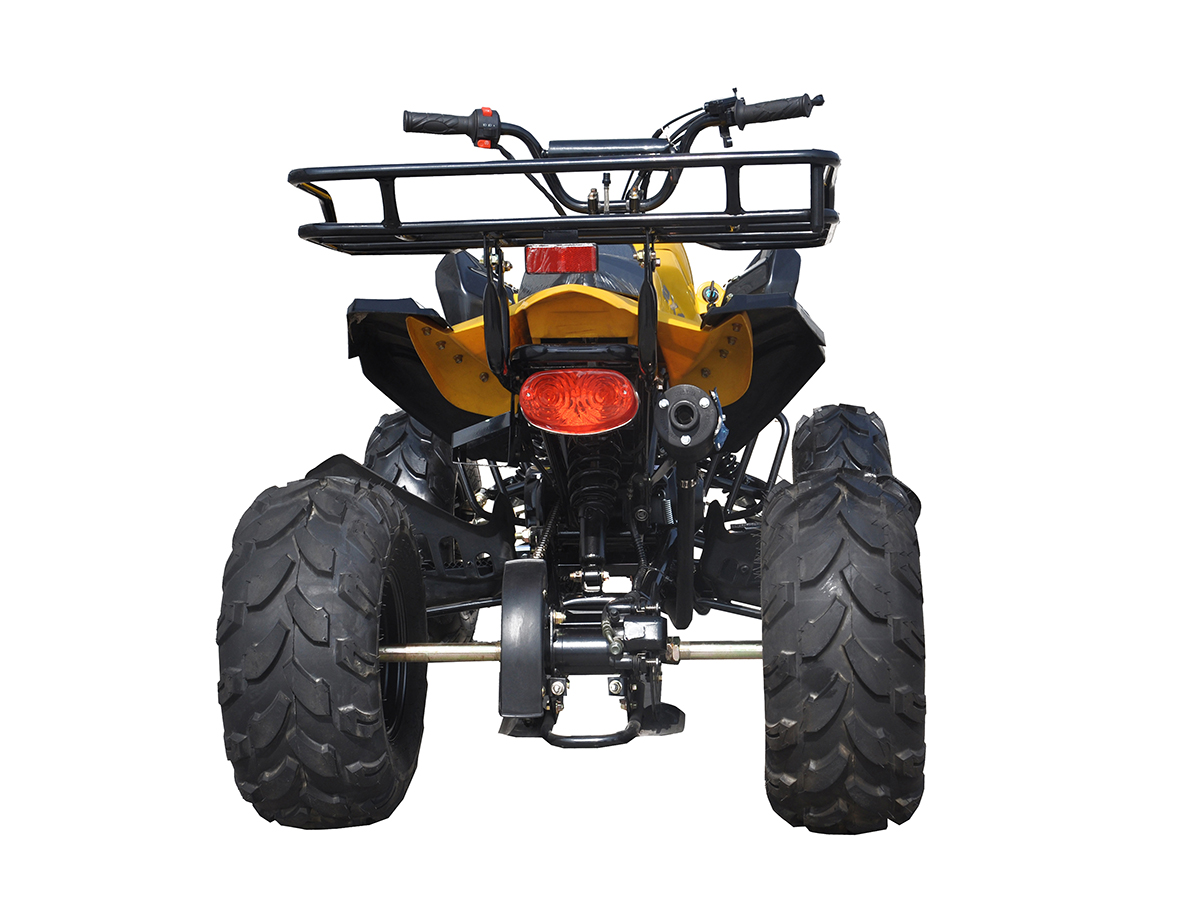

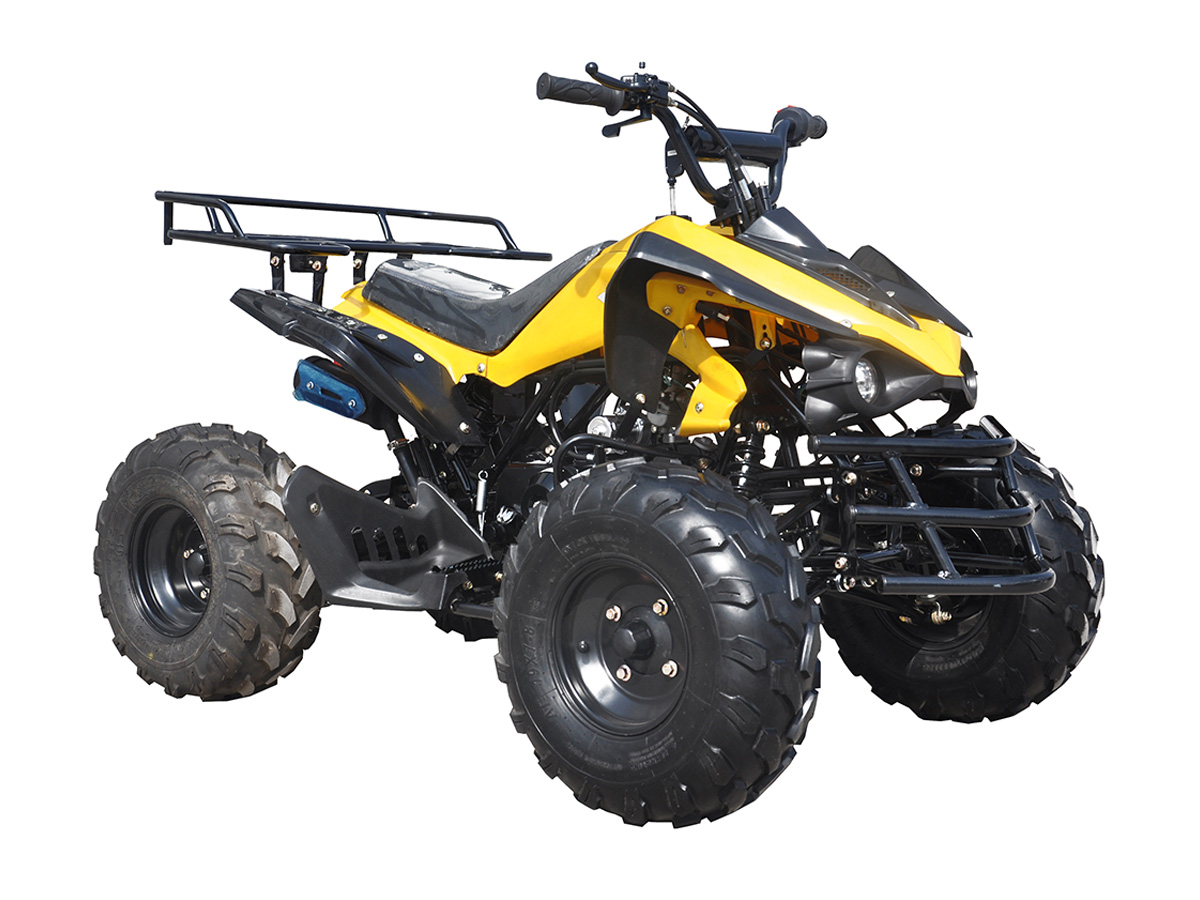

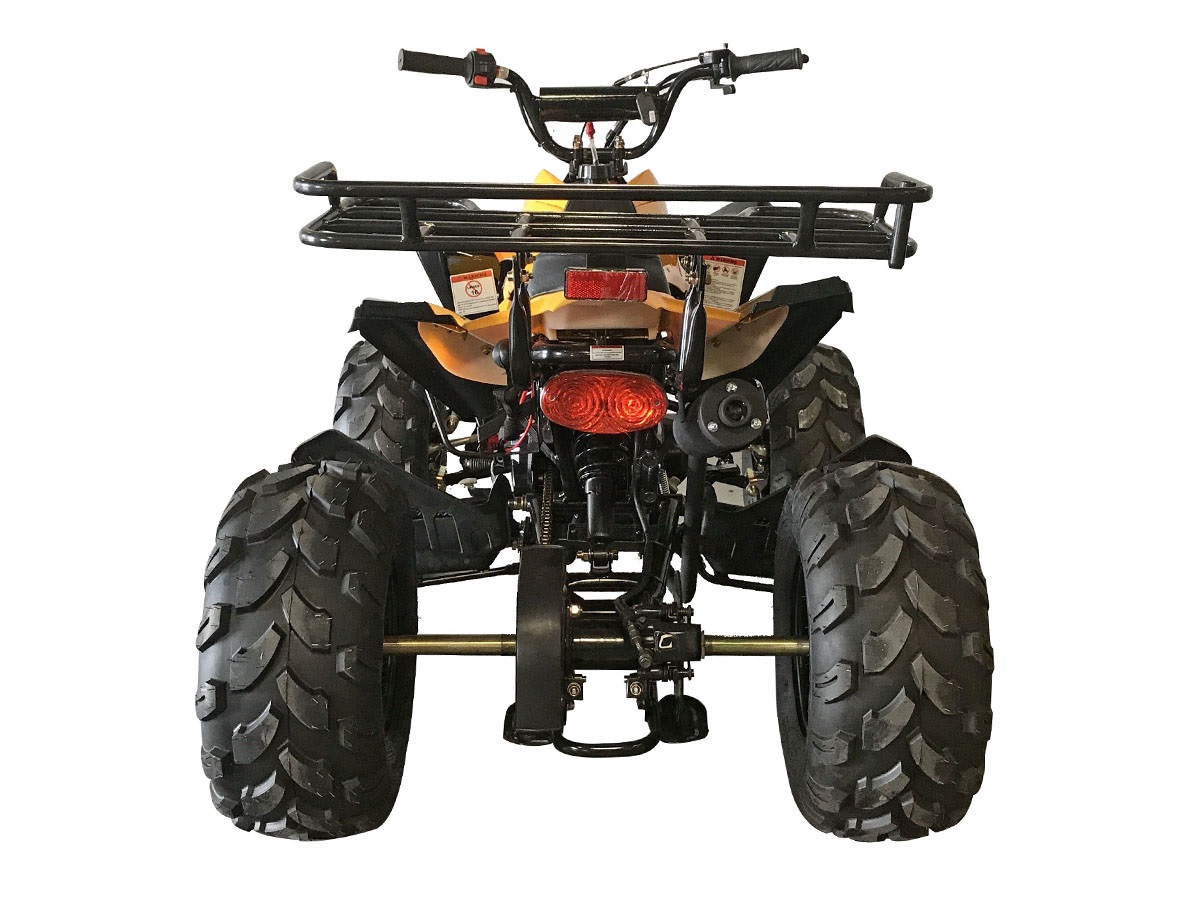

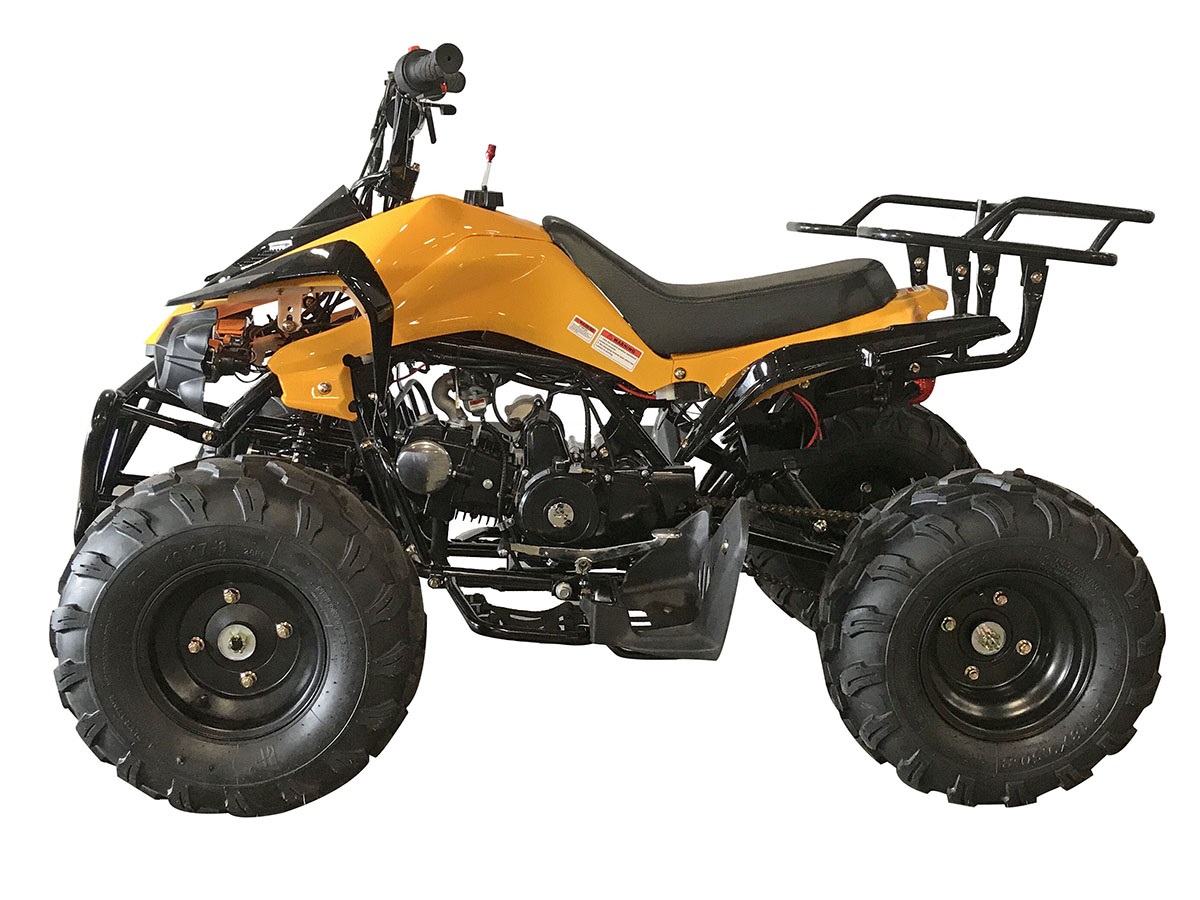

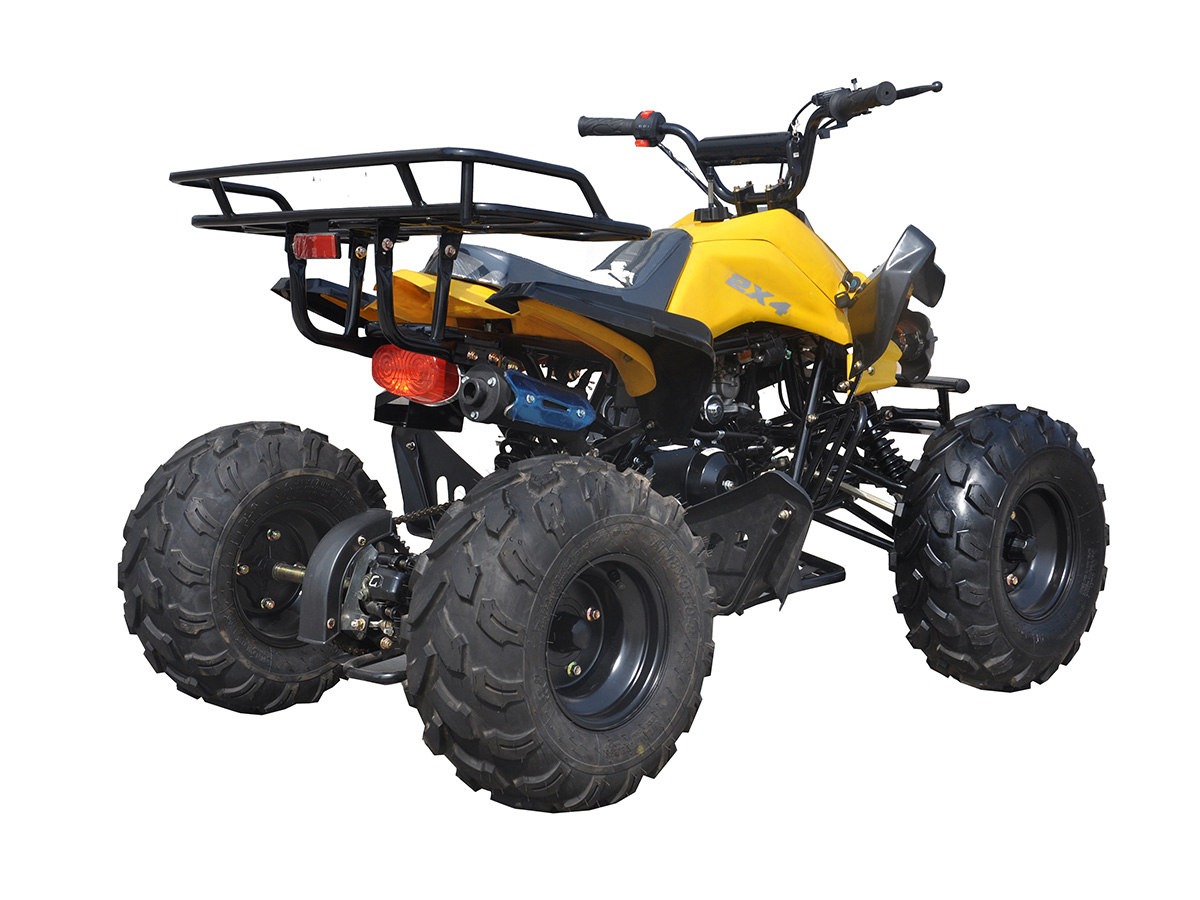

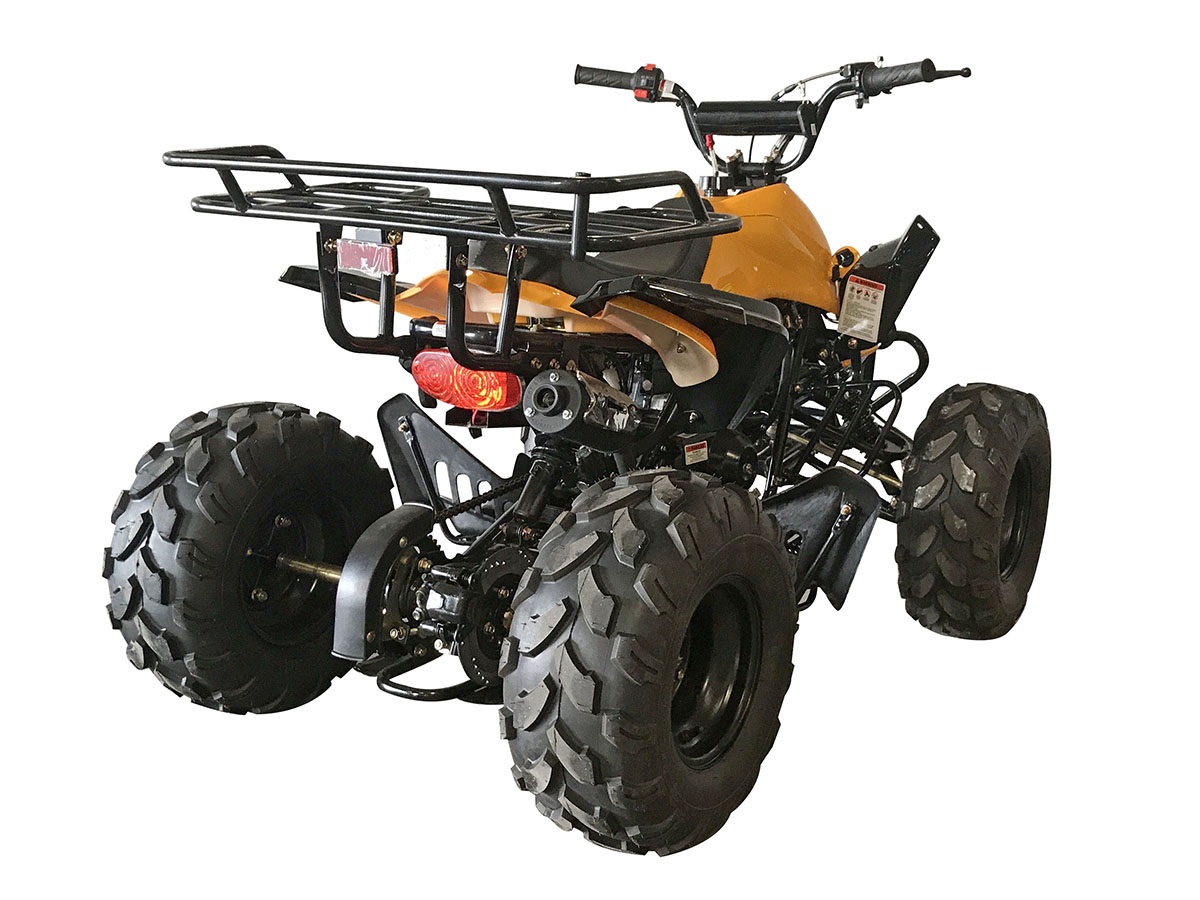

VIPER (PAH125-11)
VIPER (PAH125-11)
125cc, Air Cooled, Automatic, 8" Wheel, Front Drum, Rear Disc Brake.


Product Details

Engine 125cc, 157FMI, Kangdi
Transmission Fully automatic with Reverse
Drive type Chain
Belt and or chain size 420H 100L
Starter System Electric start
Fuel system Gasoline, 0.53gal, carburator
Brake (Front/Rear) Drum/Disk
Tire size(Front/Rear) 19x7-8 ; 18x 9.5-8
Wheel size and type(Front/Rear) 8, Steel
Oil capacity and type (in liters) 0.8L, Air cooled motorcycle oil with clutch additive
Gear oil type and capacity( in liters) N/A
Battery 12V/5Ah
Light Headlight and taillight are standard, no turn lights
Suspension(Front/Rear) Independent double swing arm/Single swing arm
Dimensions(in inch) Assembled(LxWxH): 59.4x37.2x37, Crated(LxWxH): 50.8x29.9x25.6, Seat height 25.6, Wheel base:37.8
Weight(net/gross/capacity) 233.7/ 280 lbs
weight capacity 198lbs
Ground Clearance (in inch) 3.5
Assembly Require
Any special features Remote kill key fob, throttle limiter
EPA/carb approved EPA/CARB Approved
