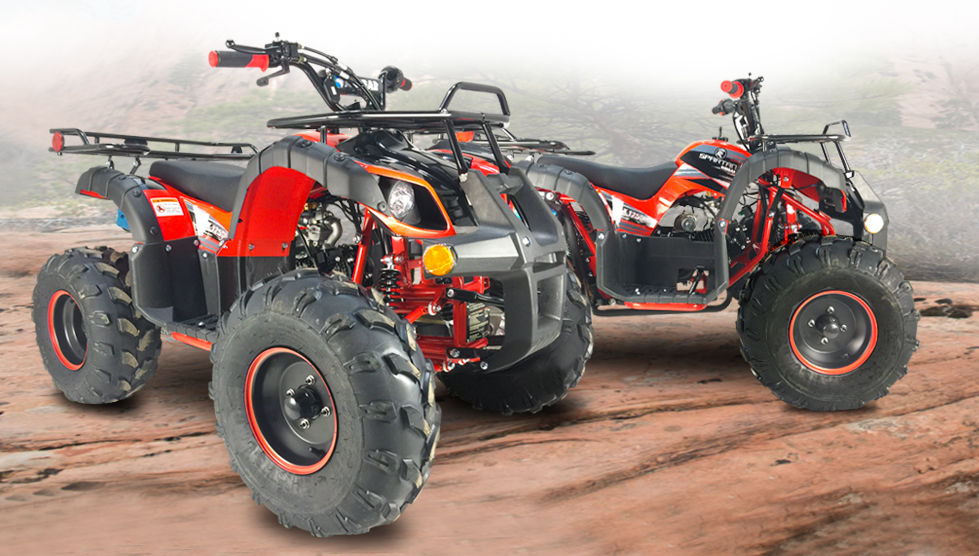

SPARTAN8(PAH125-8E)

125cc, 8” wheels, automatic transmission with reverse, LED headlight/taillight, front/rear rack,remote controll kill switch

Specifications MSRP $1550.00

Engine 125cc, 157FMI, Kangdi
Transmission Fully automatic with reverse
Drive type Chain
Belt and/or chain size Chain: 420H 100L
Starter System Elec start
Fuel system Gasoline, 0.53gal, carburator
Brakes (Front/Rear) Drum/Disk
Tire size(Front/Rear) 19x7-8 ; 18x 9.5-8
Wheel size and type(Front/Rear) 8, Steel
Oil capacity and type (in liters) 0.8L, air cooled motorcycle oil with clutch additive
Gear oil type and capacity( in liters) N/A
Battery 12V/5Ah
Lights Headlight is led, taillight is standard, no turn lights
Suspension(Front/Rear) Double a-arm suspension /single arm suspension
Dimensions(in inches) Assembled(LxWxH): 55.528x35.43x37.4, crated(LxWxH): 51.6x31.1x26.8, seat height: 26-3/8", wheelbase: 37.8
Weight 325 lbs
Weight capacity 198 lbs
Ground clearance (in inches) 3.5
Assembly required Wheels handlebars, front rear racks, battery
Special features Remote kill key fob, throttle limiter
EPA approved Yes/No
Colors

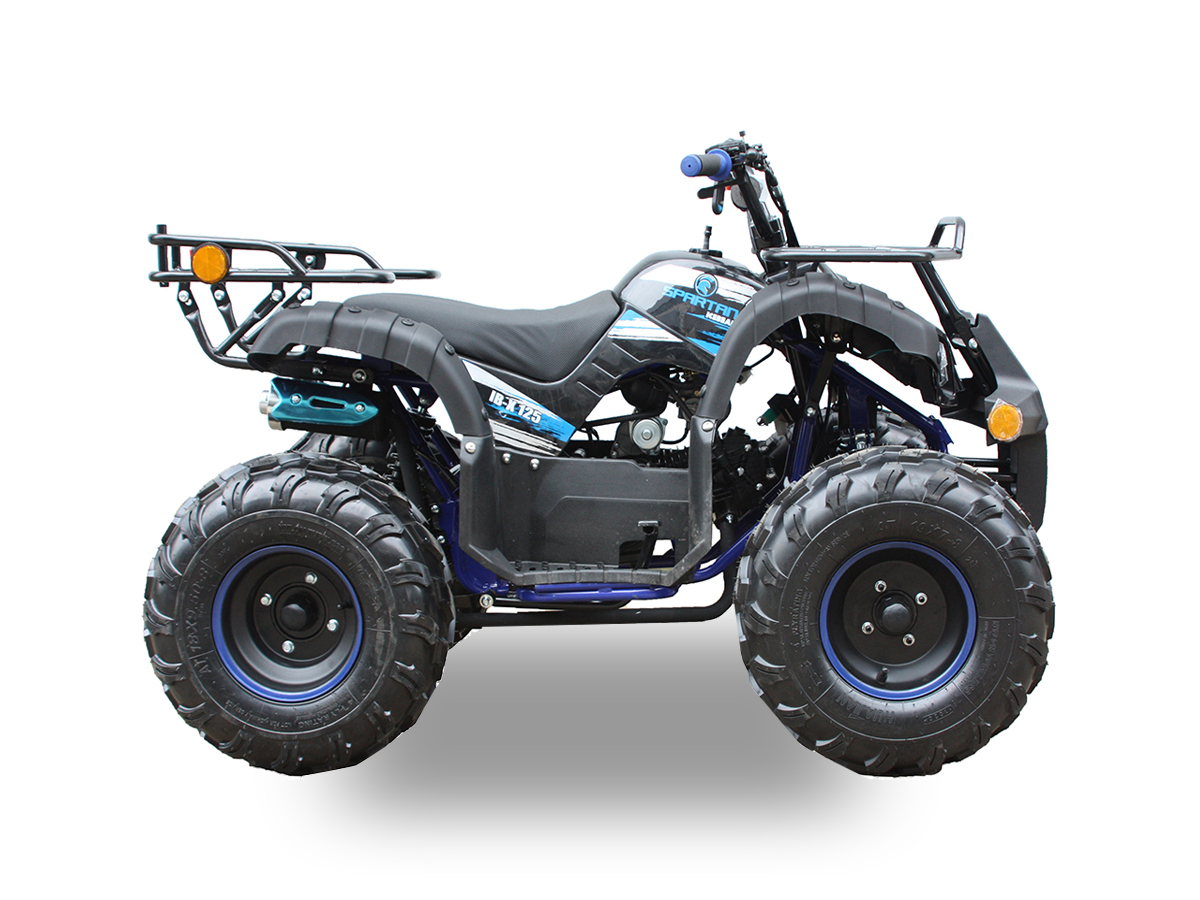

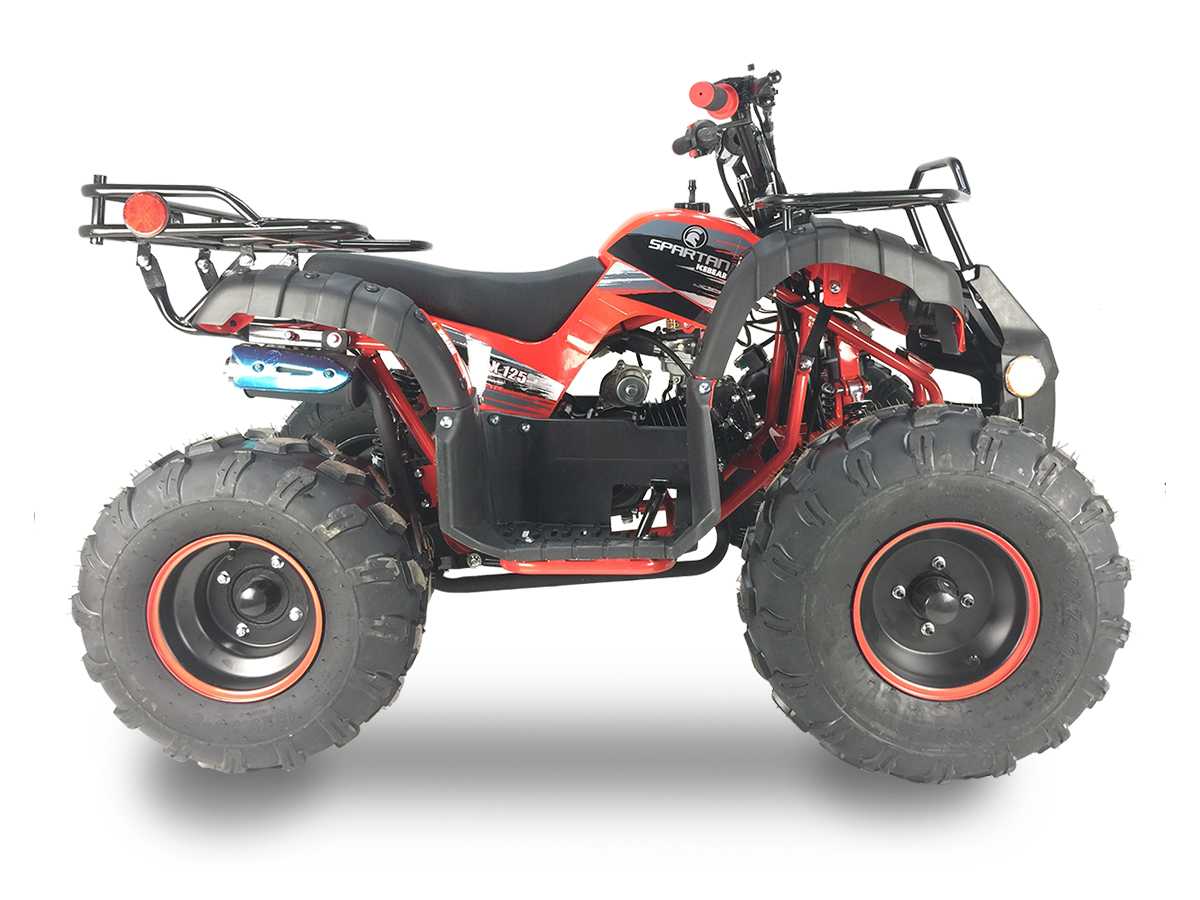

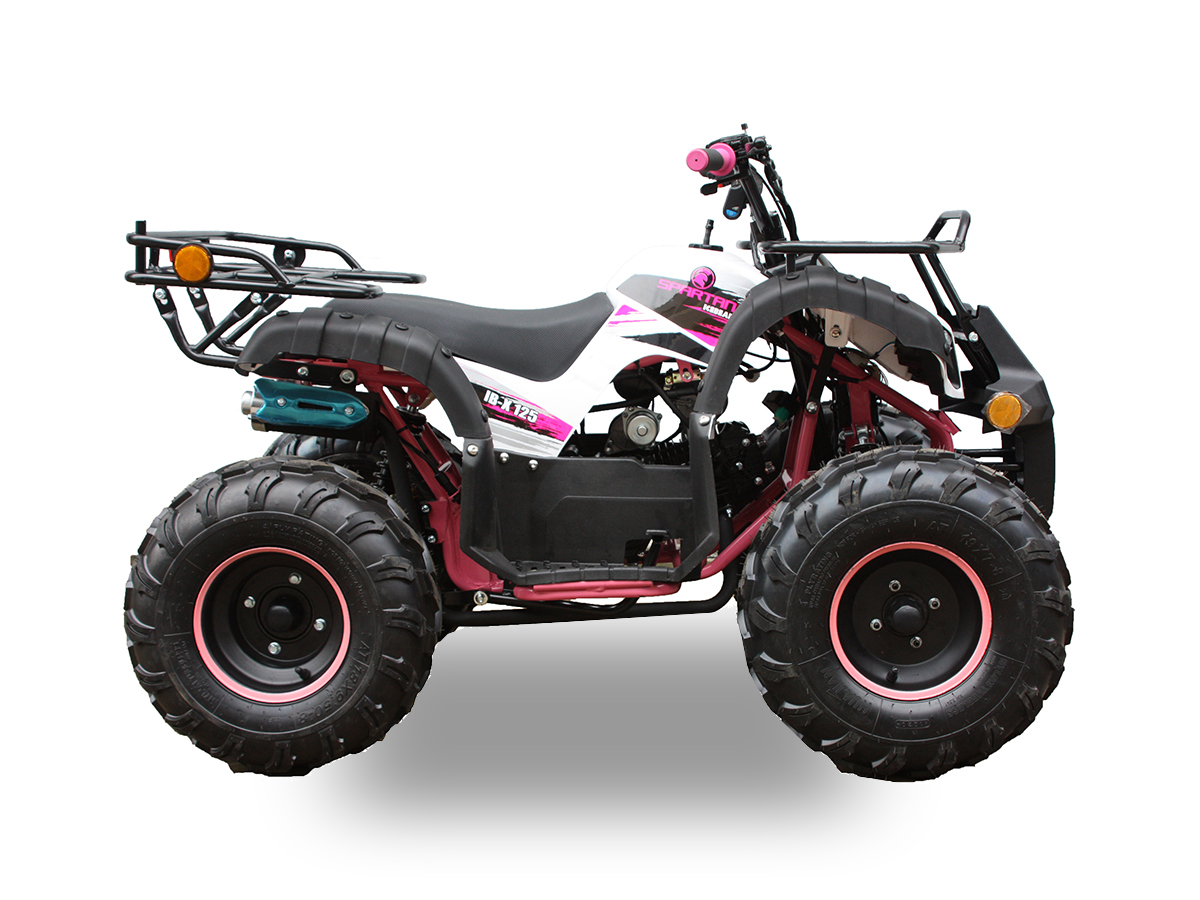

White with Pink Black with Blue Red with Grey

Click the icon to see all the parts for this model
