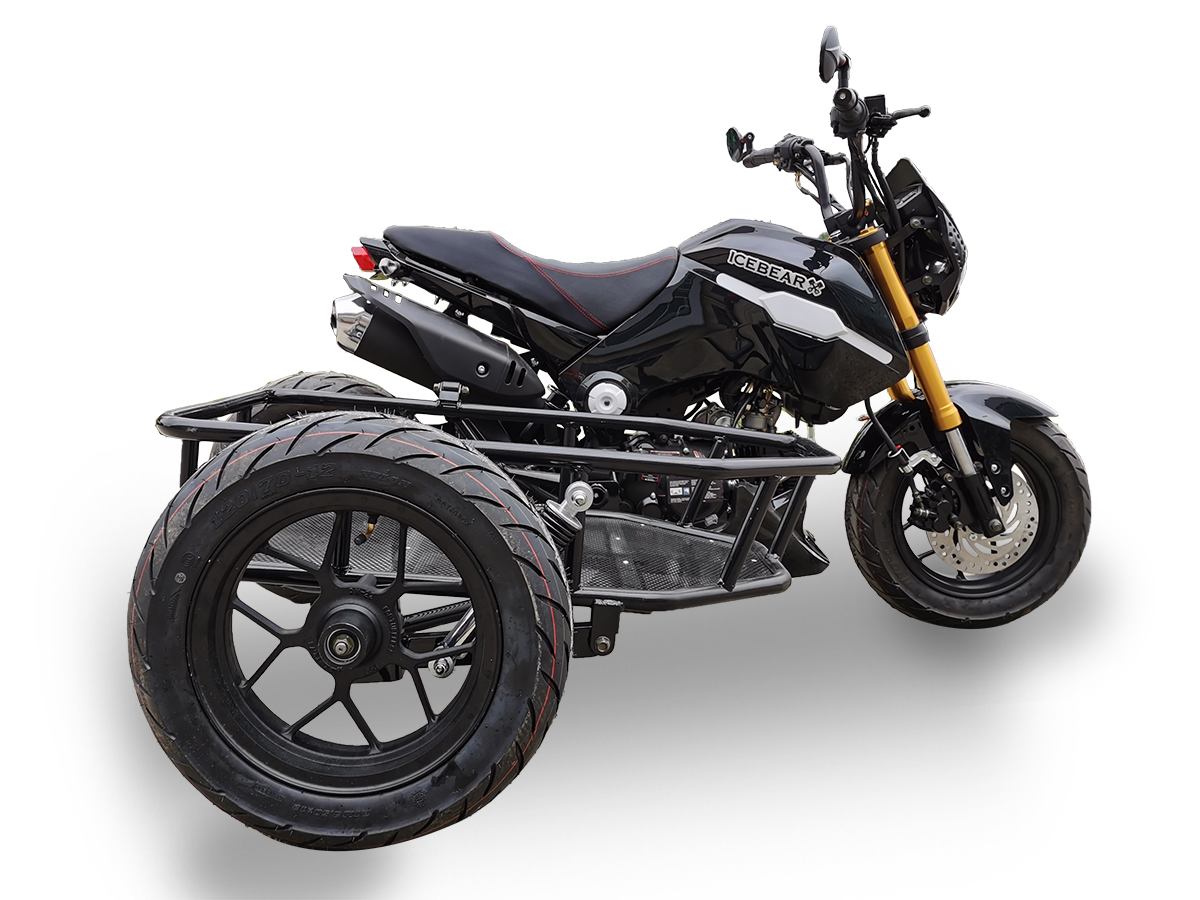

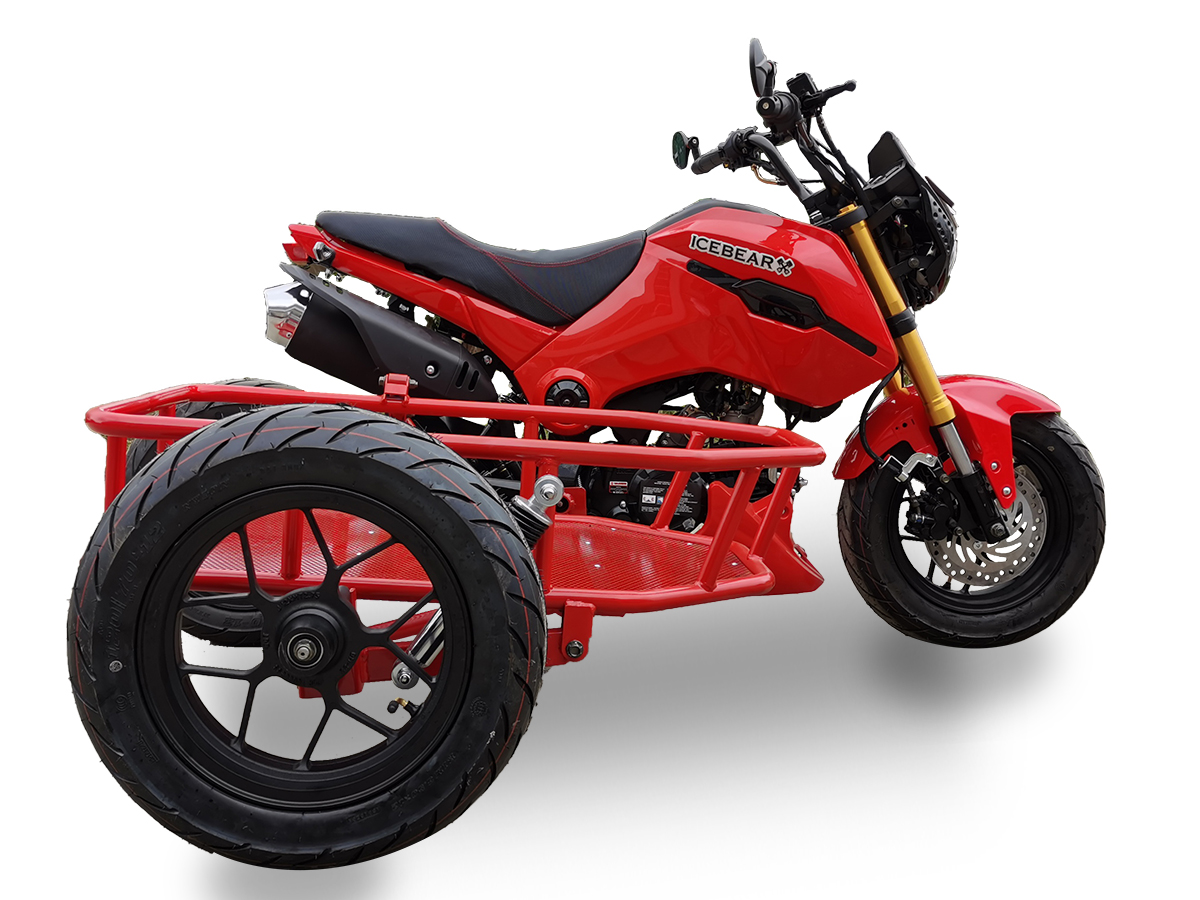

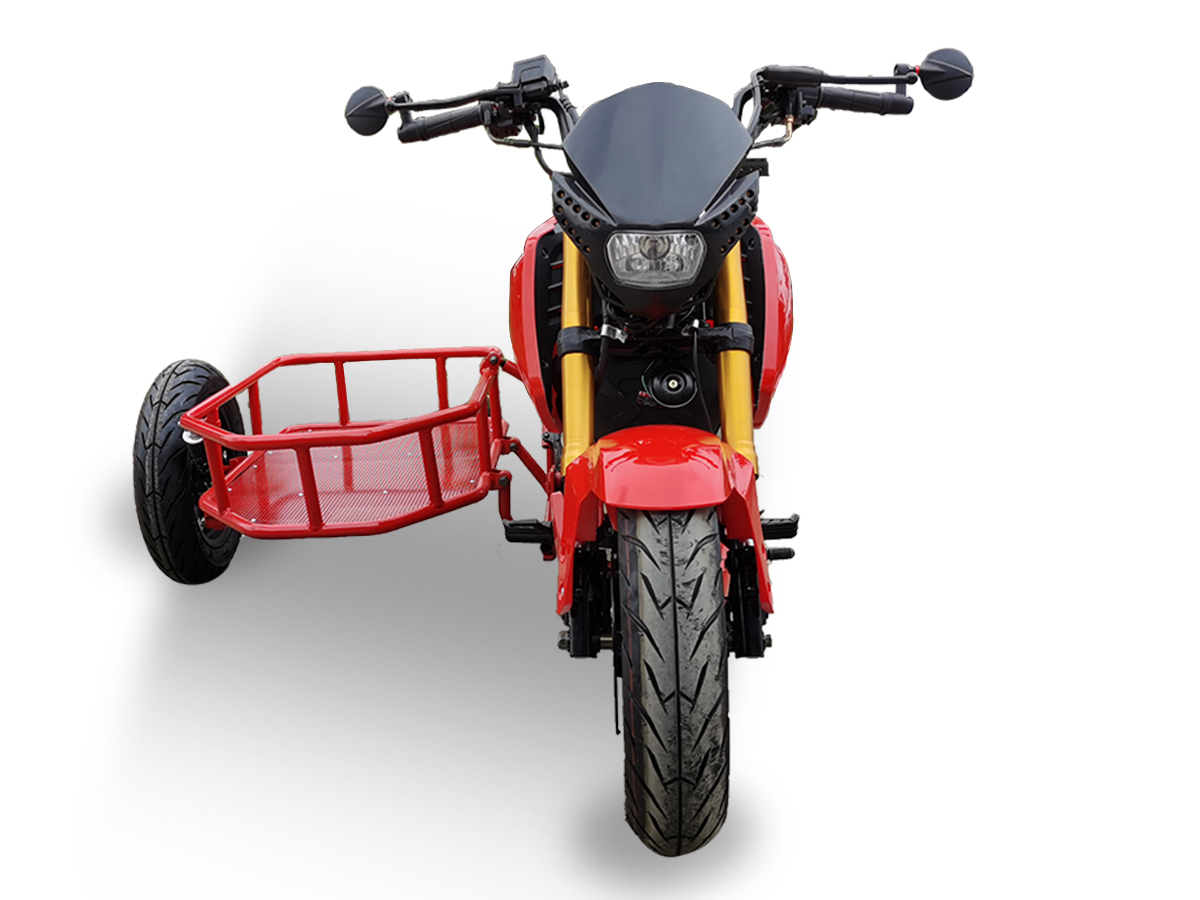

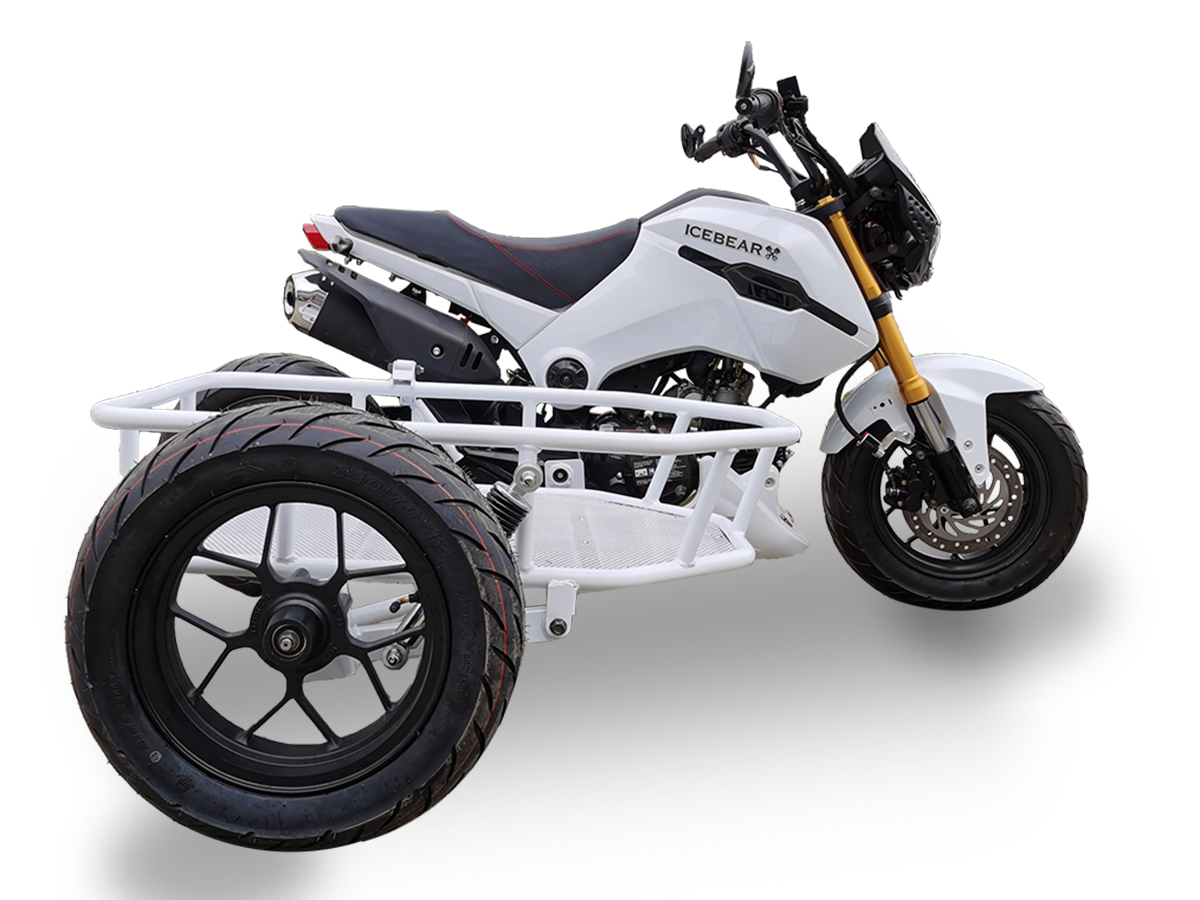

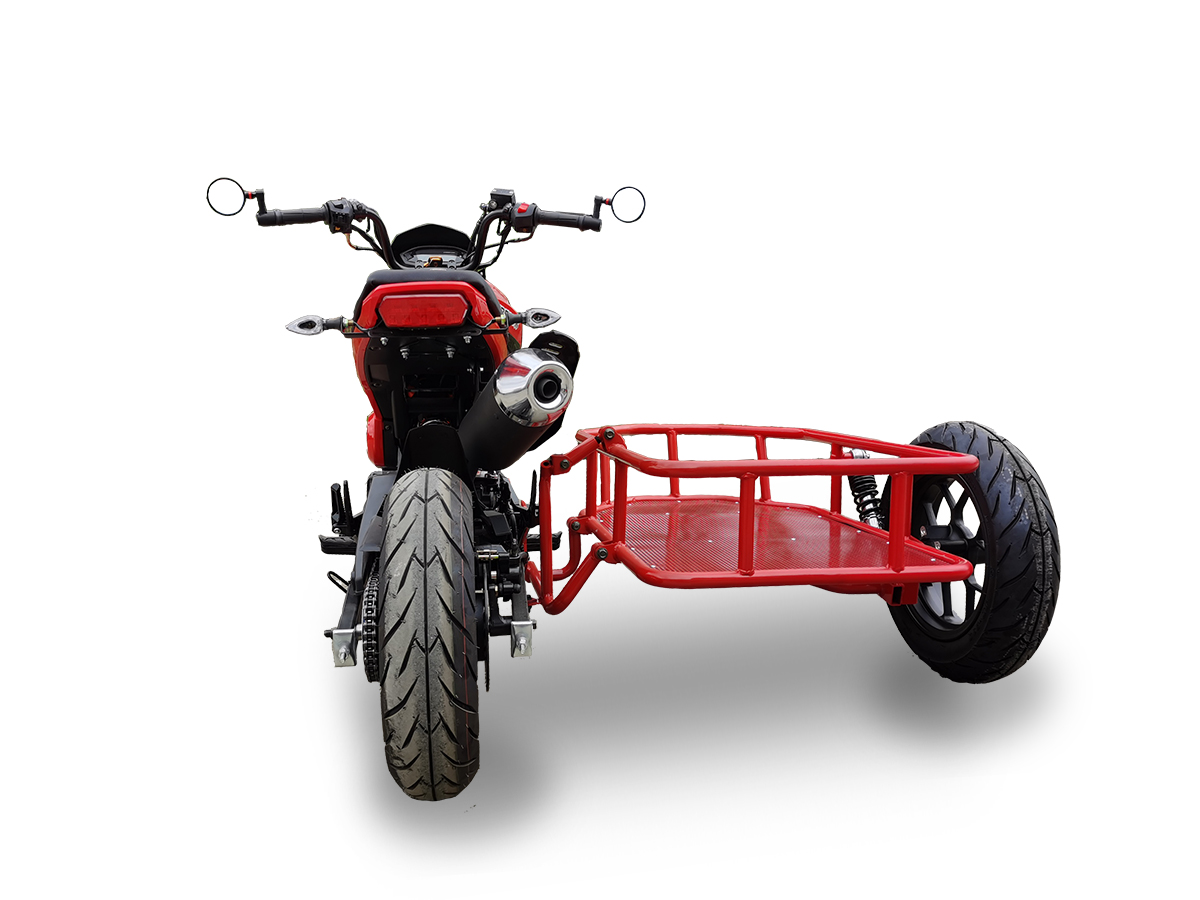

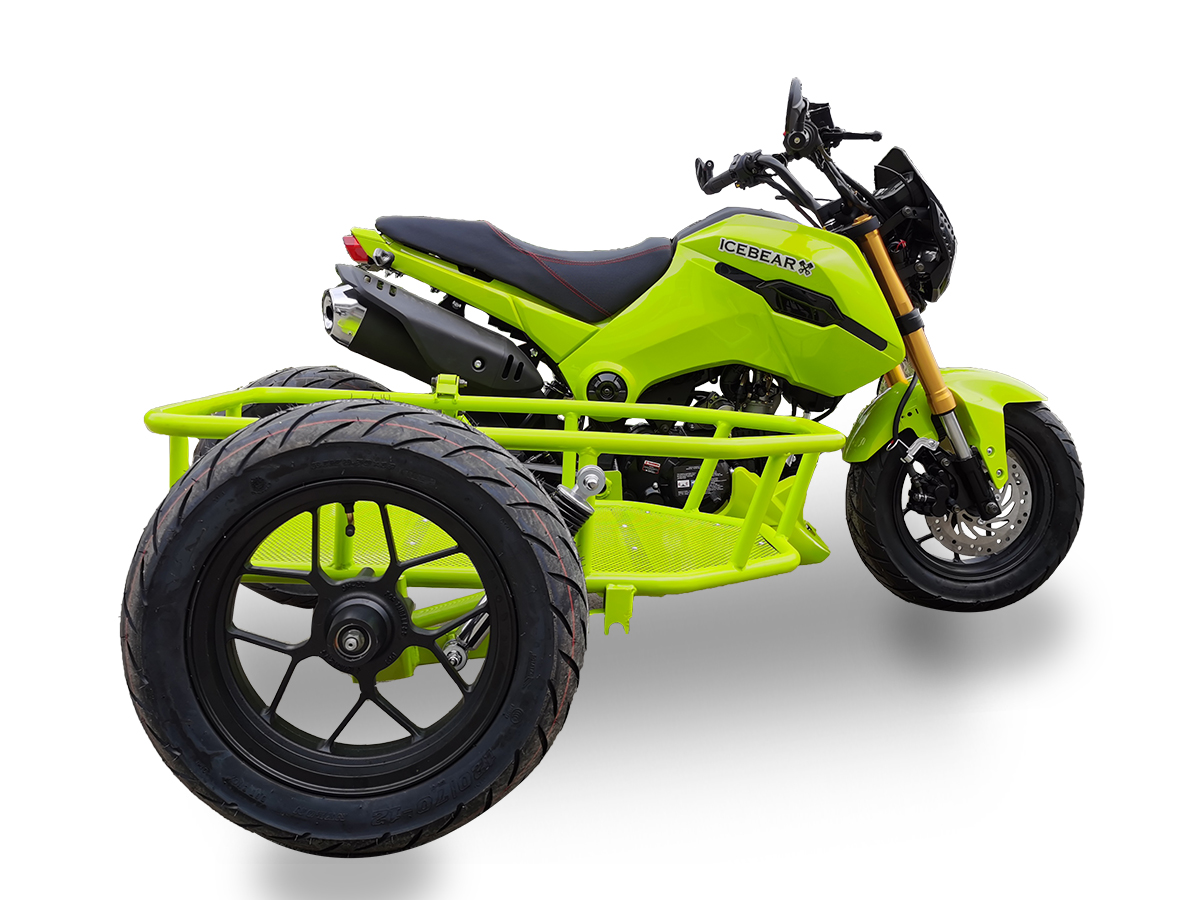

PMZ125-1S

125cc air cooled 4-stroke engine, 4-speed manual transmission, 12″ aluminum wheels, with side cart.

Specifications MSRP N/A

Engine 125cc, LC152FMI, Yinxiang
Transmission 4 speeds manual
Drive type Chain
Belt and/or chain size Chain: 428H 116L
Starter System Elec start
Fuel system Gasoline, 2.64gal, carbureted
Brakes (Front/Rear) Disc/Disc
Tire size(Front/Rear) 100/90-12 ; 120/70-12
Wheel size and type(Front/Rear) 12, Aluminum
Oil capacity and type (in liters) 0.8L, Air cooled motorcycle oil with clutch additive
Gear oil type and capacity( in liters) N/A
Battery 12V/7A
Lights Led
Suspension(Front/Rear) Dual telescopic forks / Single shock
Dimensions(in inches) Assembled(LxWxH): 65.0x50.4.x39.0, crated(LxWxH):63.8x38.2.x34.3, seat height: 30.0, wheelbase: 45.7
Weight 265 lbs
Weight capacity 198.4 lbs
Ground clearance (in inches) 5.9
Assembly required Front wheel, front fender, handlebars, mirrors, clutch lever, battery
Special features Include: digital speedometer, horn, odometer, mirrors
EPA approved EPA approved
Colors

Metallic Red Metallic Black Neon Yellow Metallic White

Click the icon to see all the parts for this model
