ROCKET(PMZ50-4J)

49.5cc, Air Cooled, Automatic, Front Disc, Rear Drum Brake, 10" Wheel, Trunk Included. Rims Have Different Colours: with Body Colour, Black Colour, Silver colour

Specifications MSRP N/A

Engine 50cc, 139QMB, Yinxiang
Transmission Automatic
Drive type Belt
Belt and/or chain size Belt: 669*18*30
Starter System Electric / kick
Fuel system Gasoline, 1.32gal, carbureted
Brakes (Front/Rear) Disc/Drum
Tire size(Front/Rear) 3.50-10
Wheel size and type(Front/Rear) 10, Steel
Oil capacity and type (in liters) 0.8L, 10w40 aircooled engine oil (non-synthetic)
Gear oil type and capacity( in liters) GL-3,0.25L
Battery 12V/7Ah
Lights Standard lights
Suspension(Front/Rear) Dual telescopic forks / single shock
Dimensions(in inches) Assembled(LxWxH): 65.35x26.77x42.13, crated(LxWxH): 66 x18x34, seat height: 30.57, wheelbase:47.05
Weight 260 lbs
Weight capacity 242 lbs
Ground clearance (in inches) 4.63
Assembly required Front wheel, front fender, handlebars, mirrors, kickstand, fuel line,trunk
Special features Include: trunk, mirrors, horn, odometer, speedometer
EPA approved EPA approve, CARB exempt
Colors

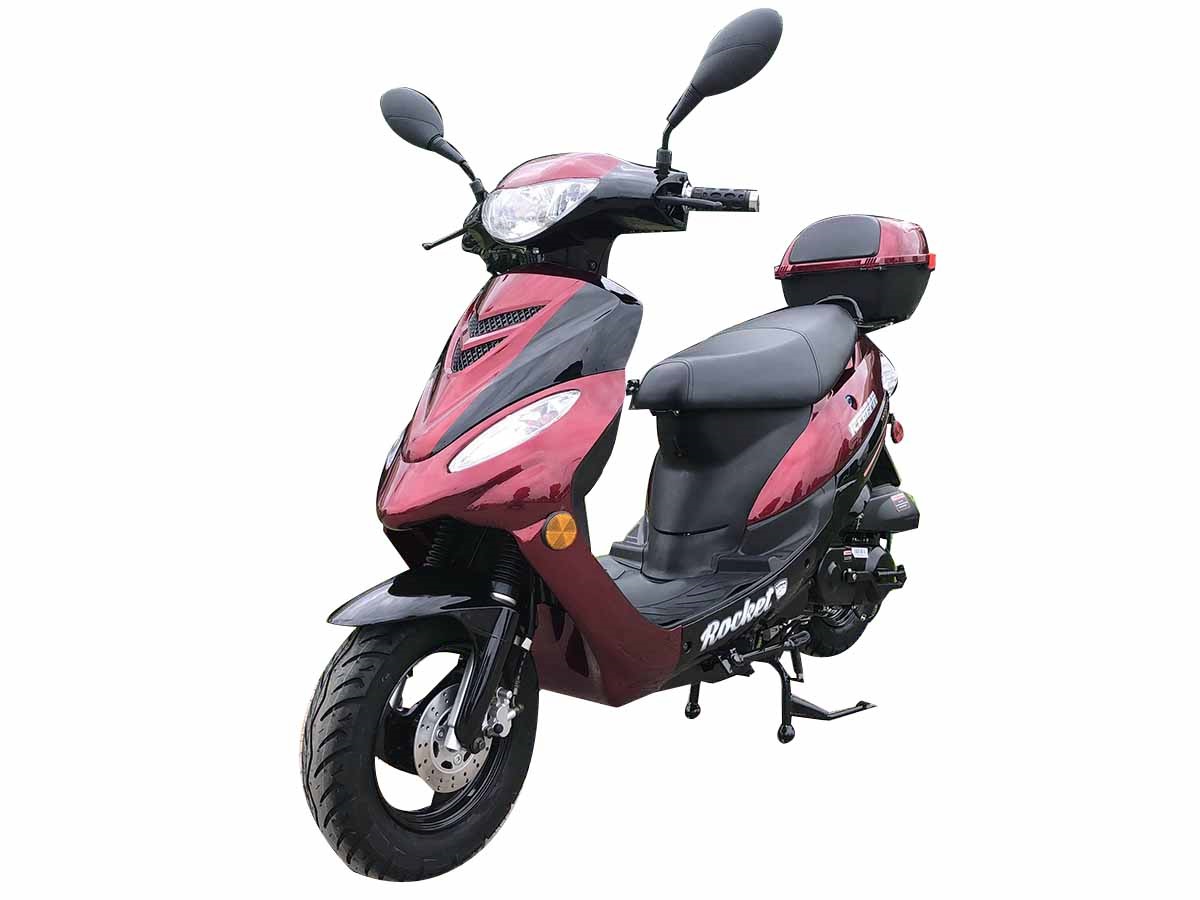

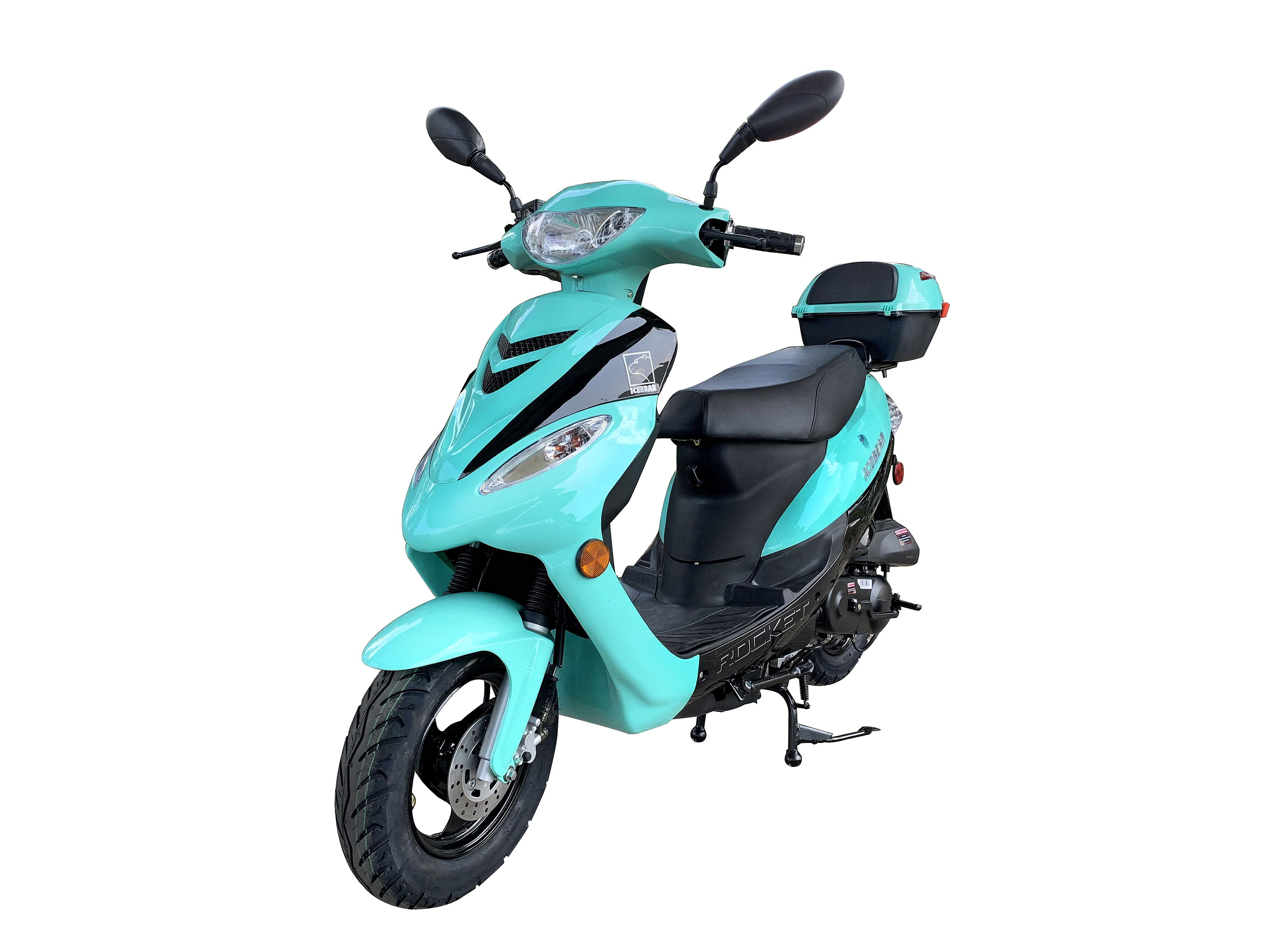

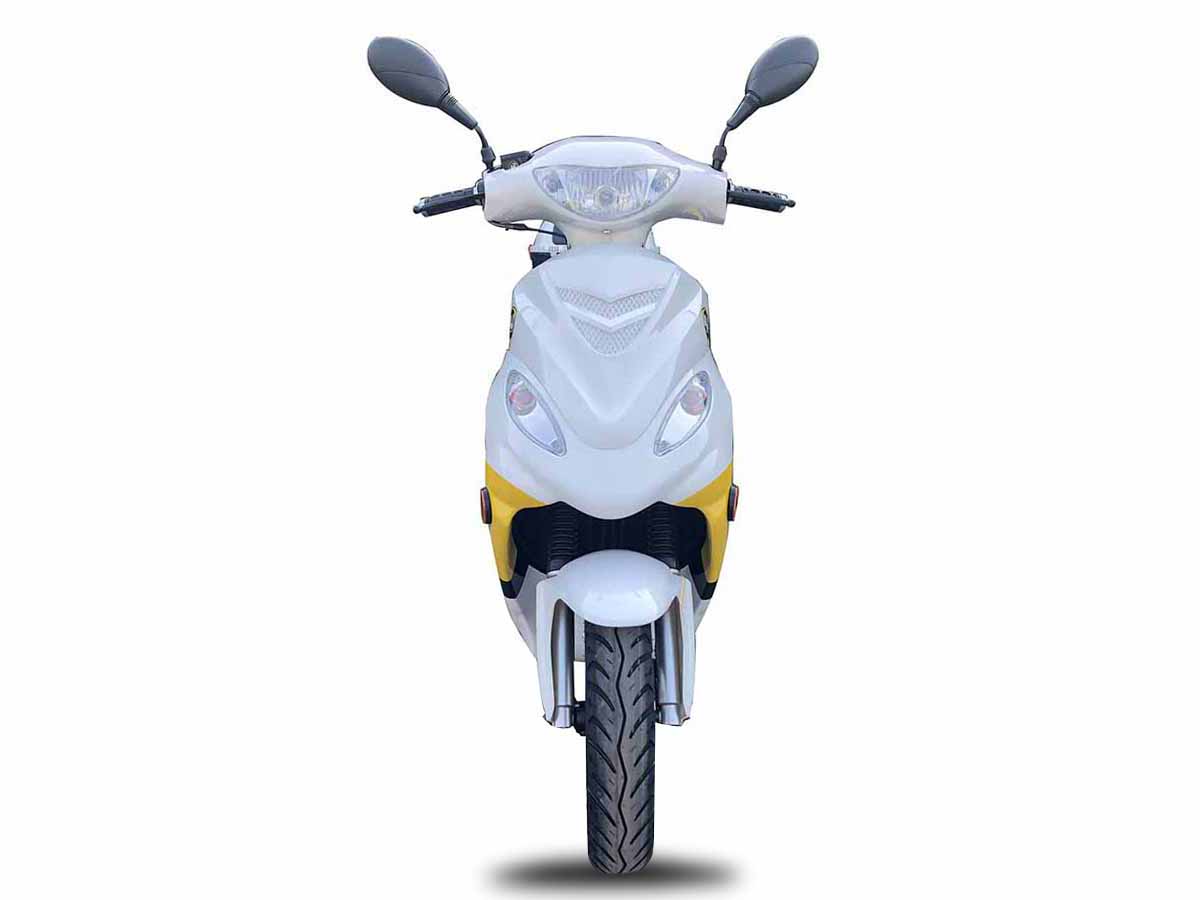

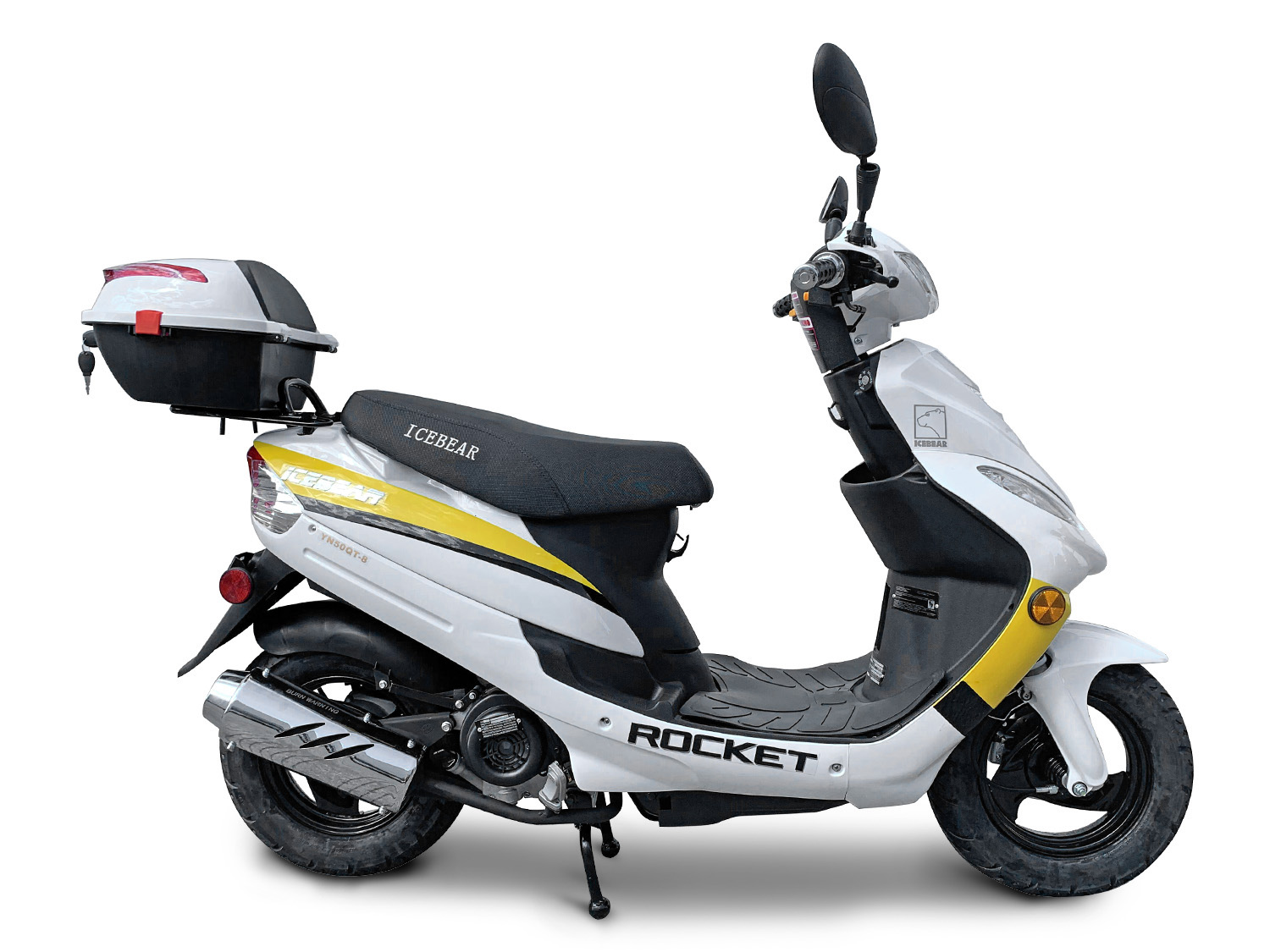

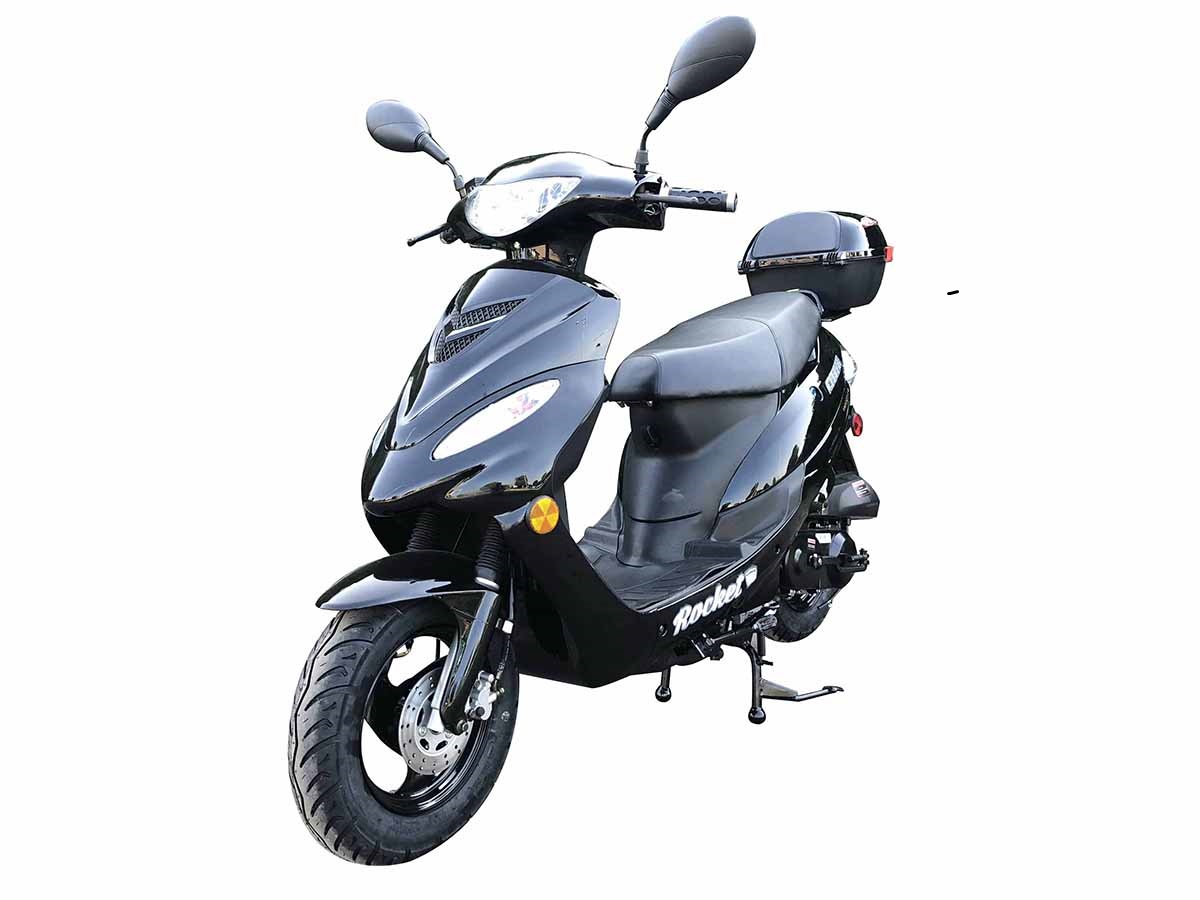

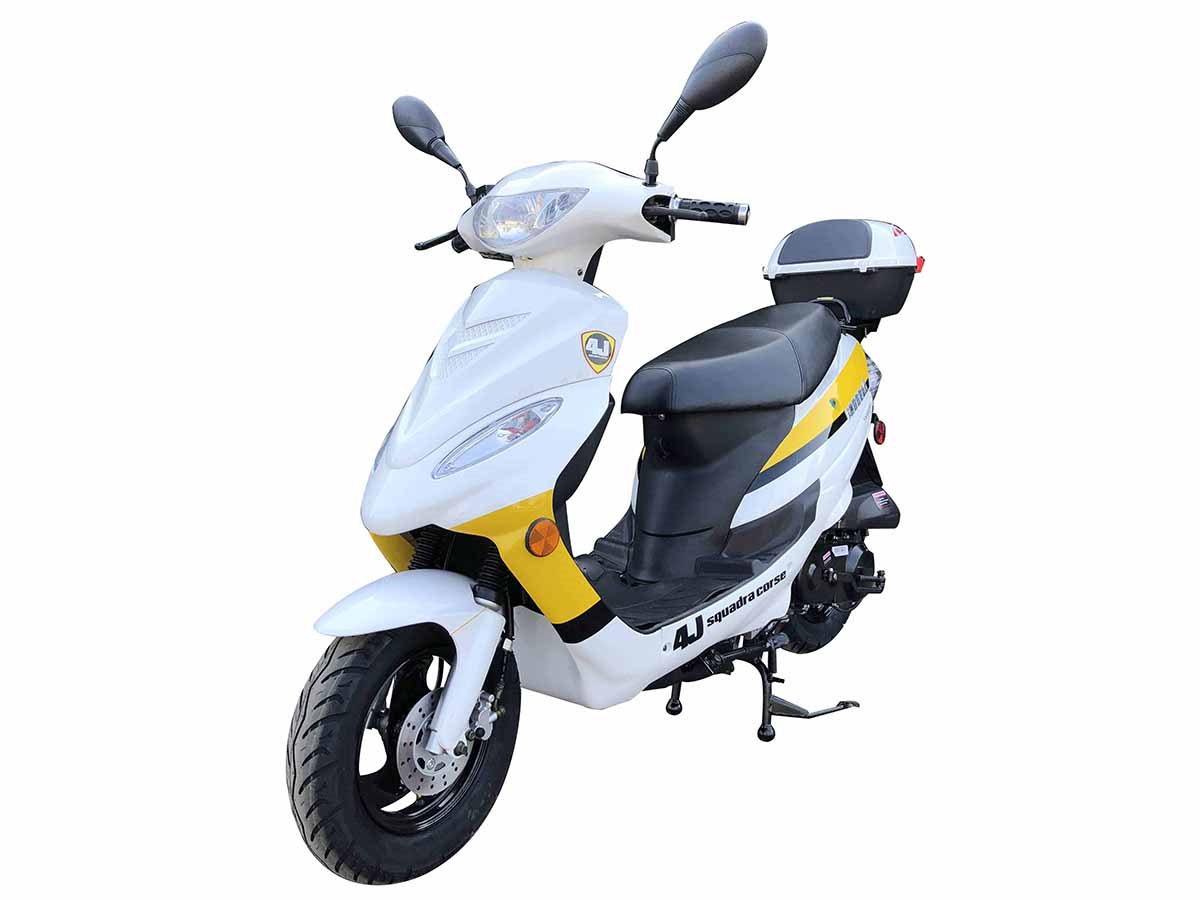

Metallic Black Metallic Burgundy Metallic White/Yellow Mint Green Sky Blue
