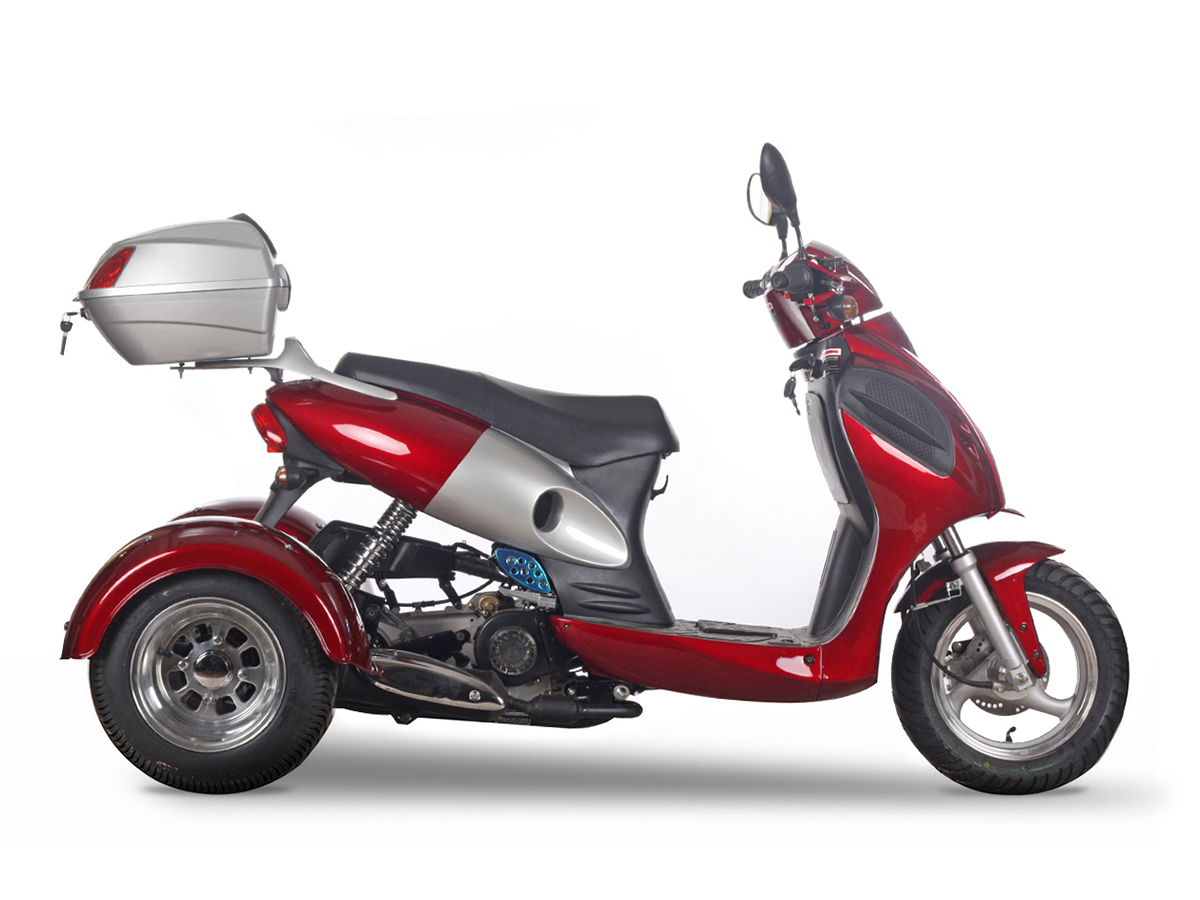

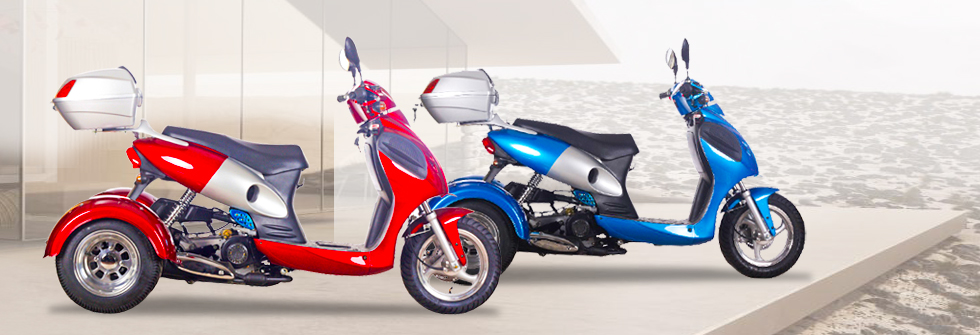

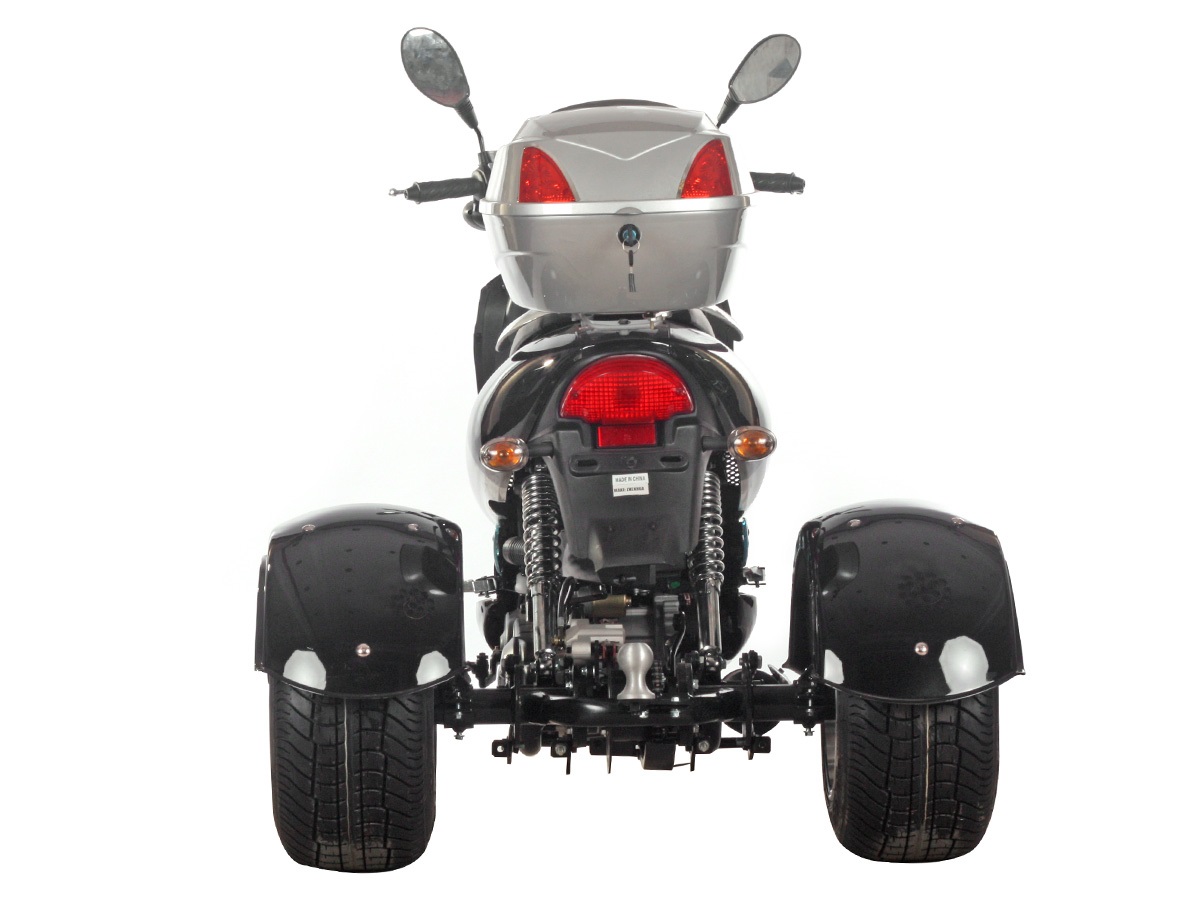

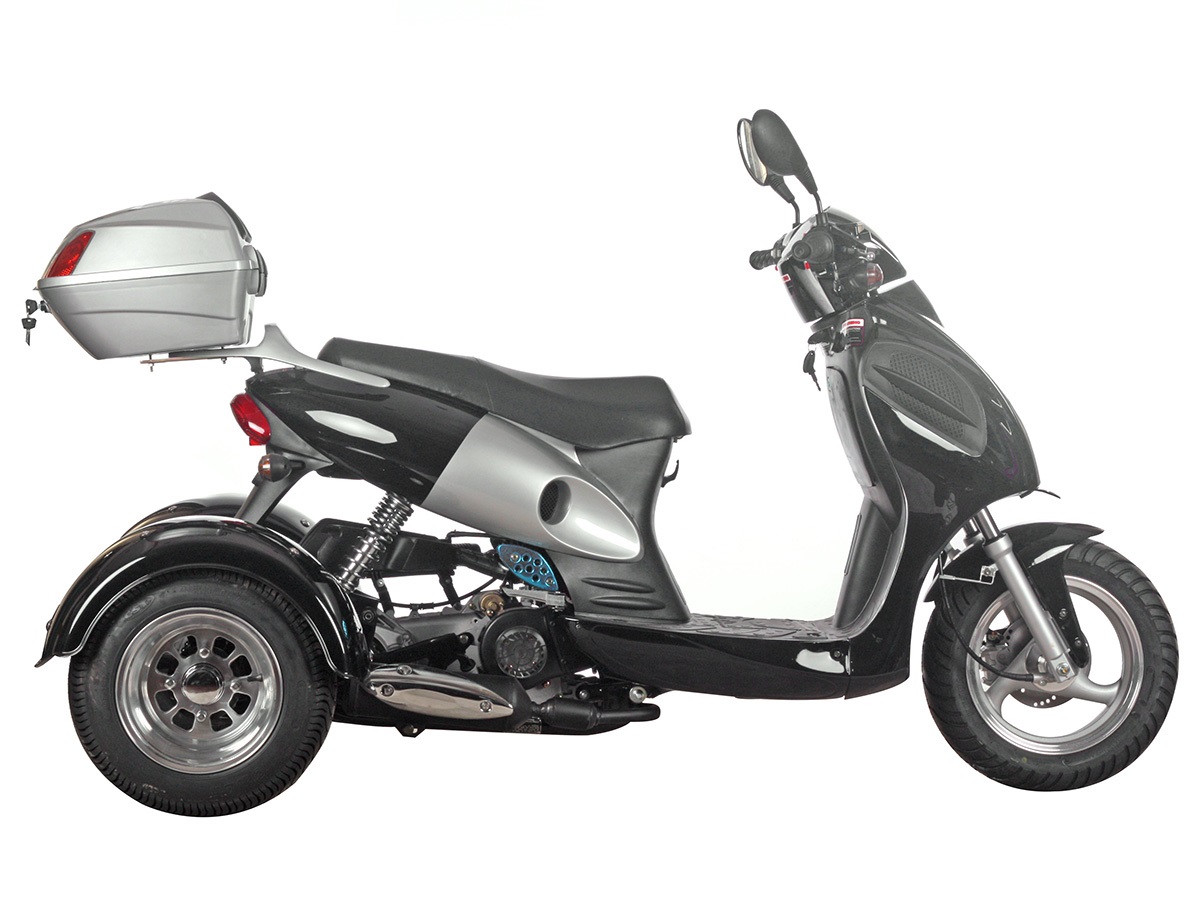

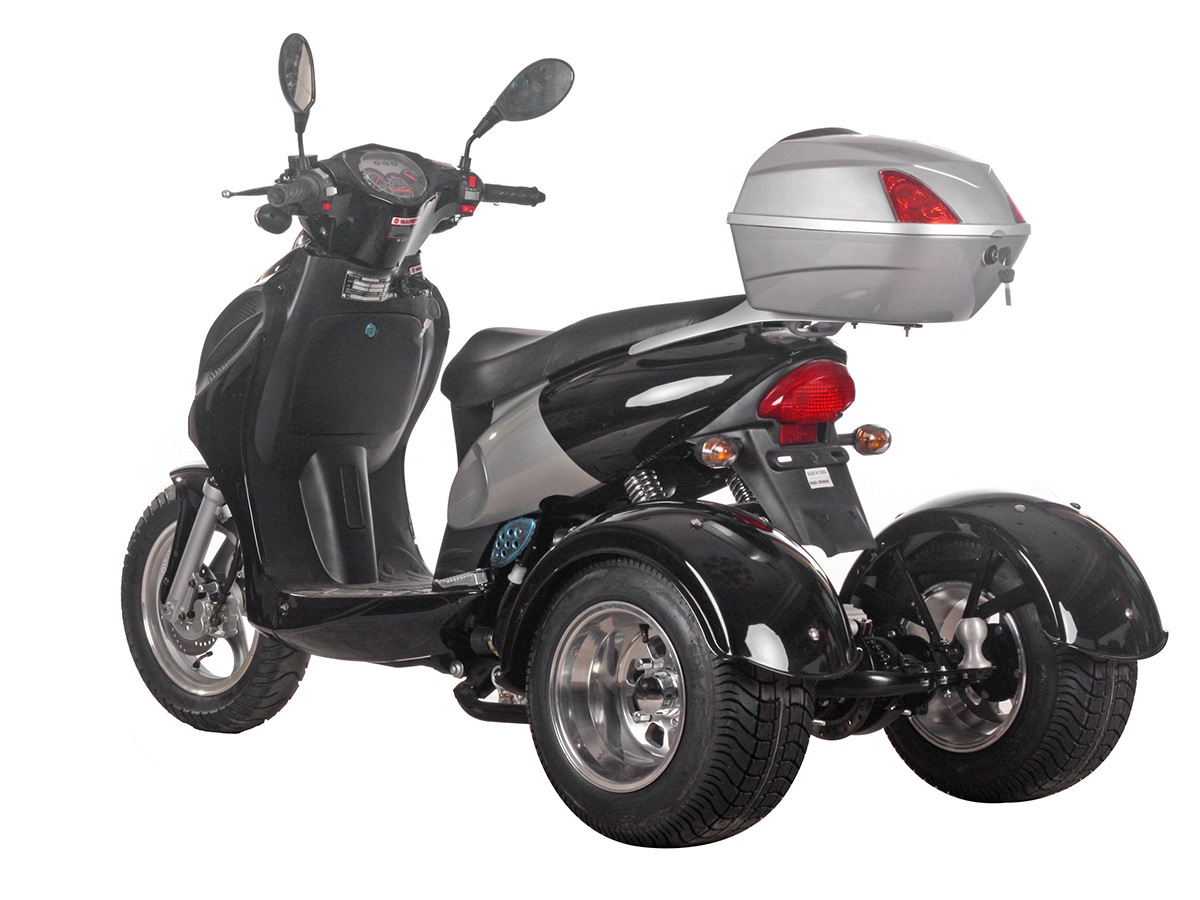

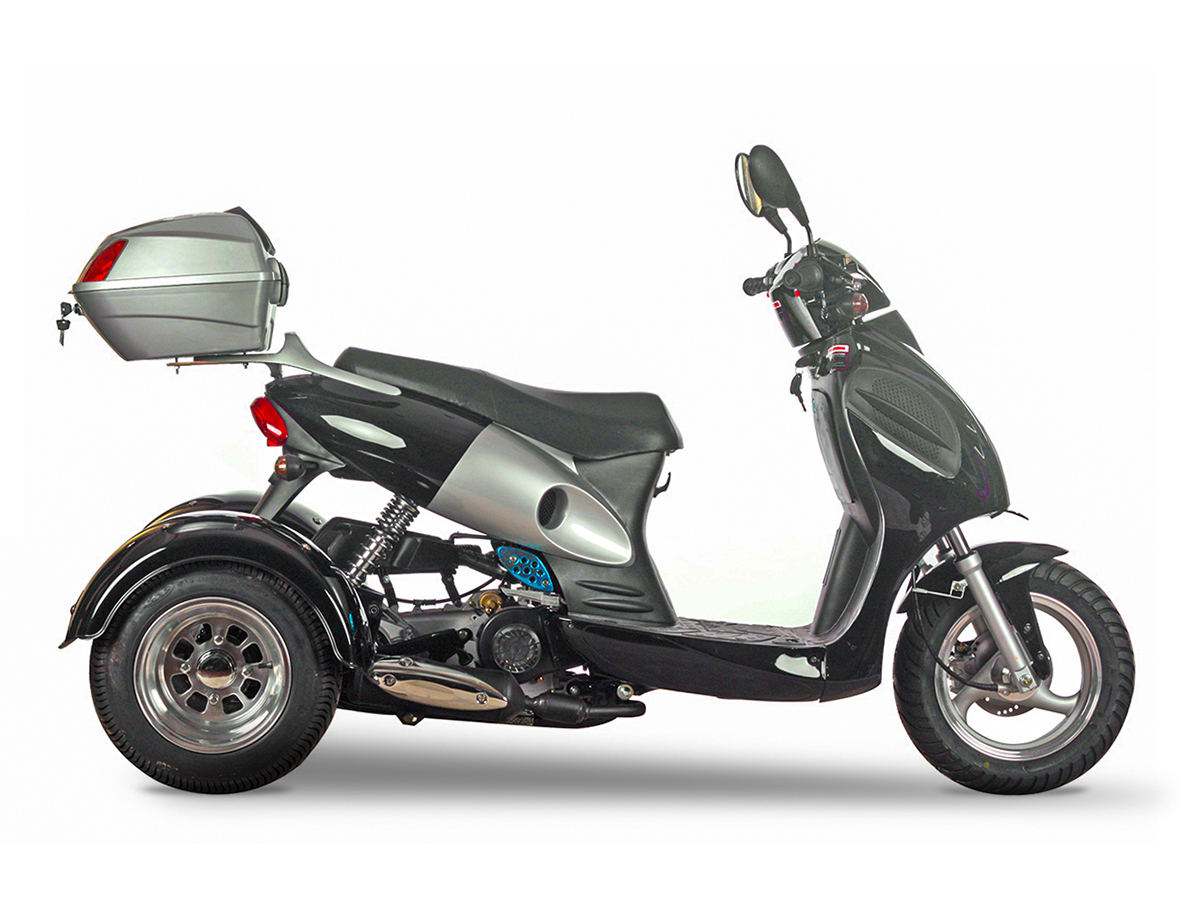

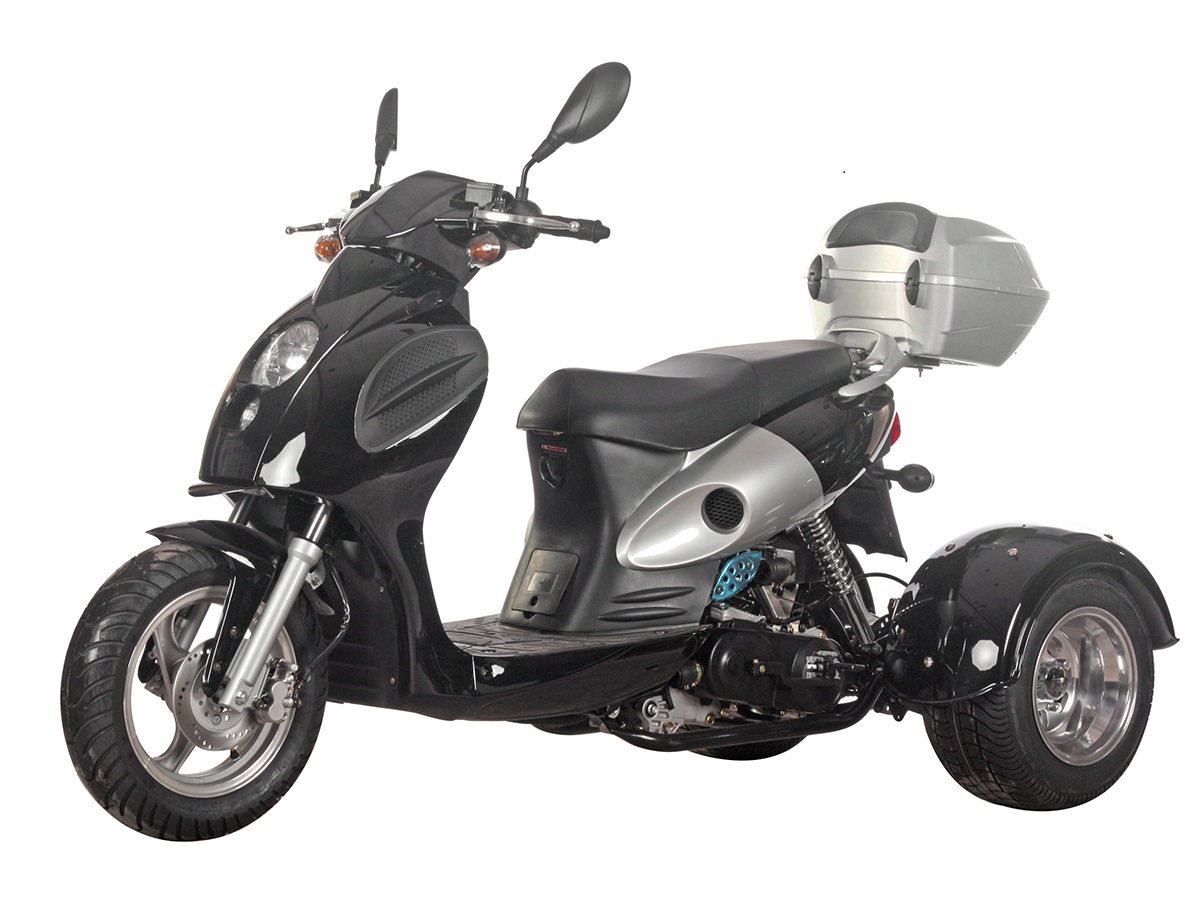

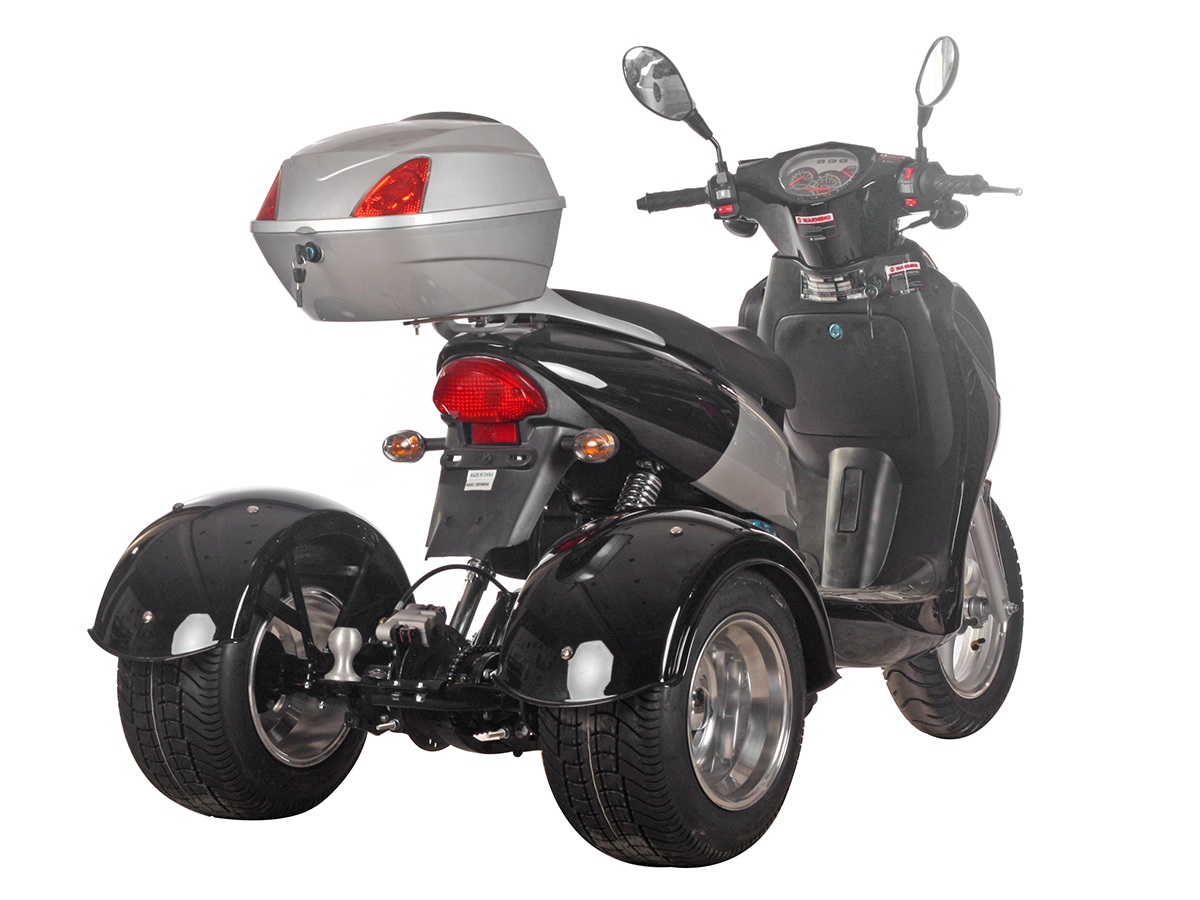

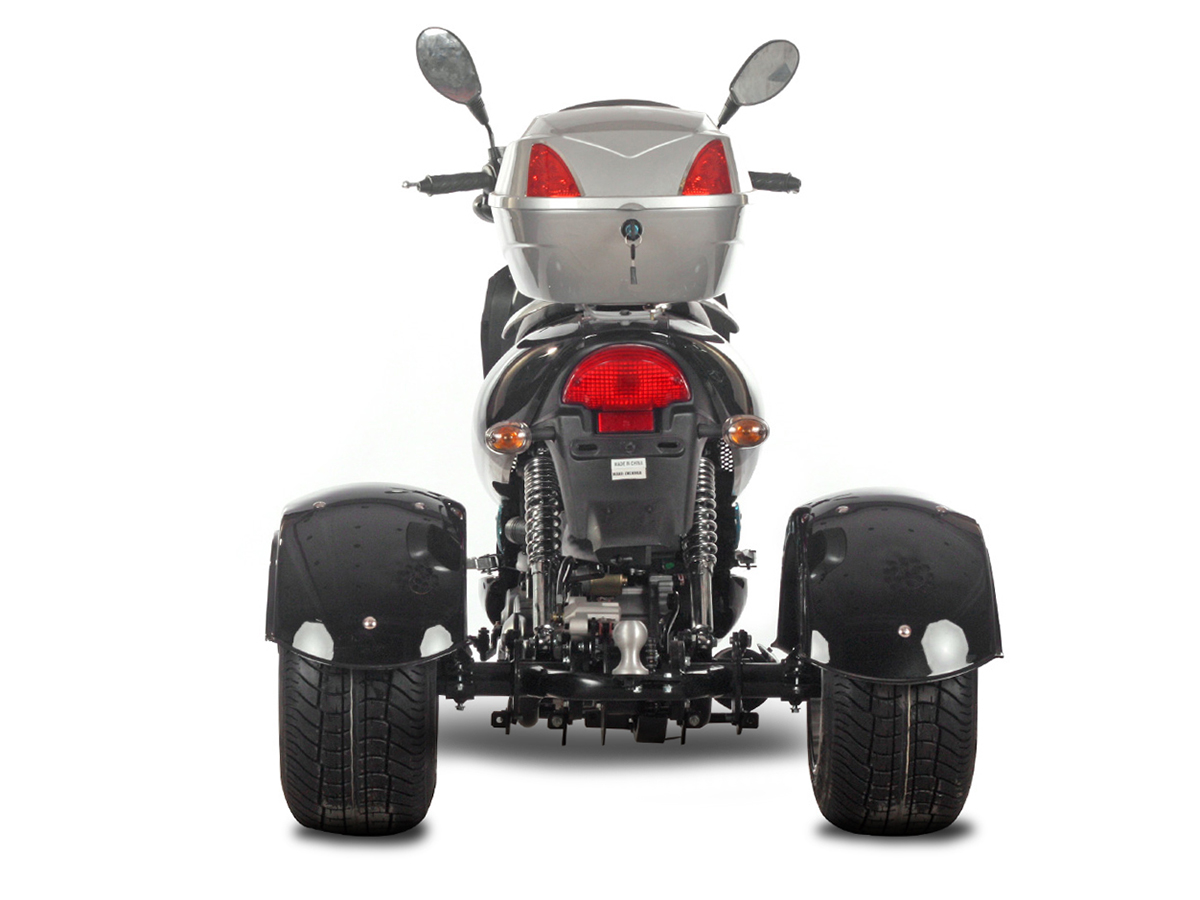

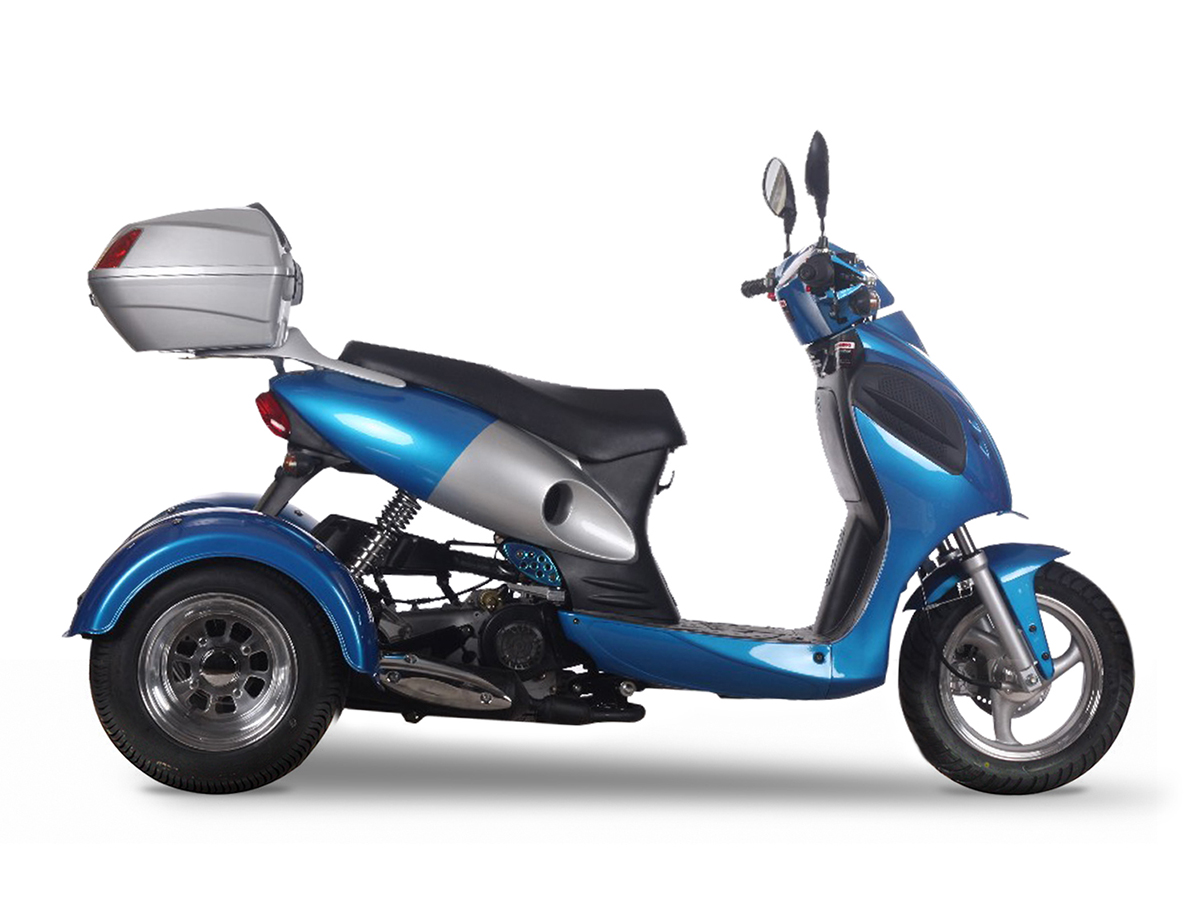

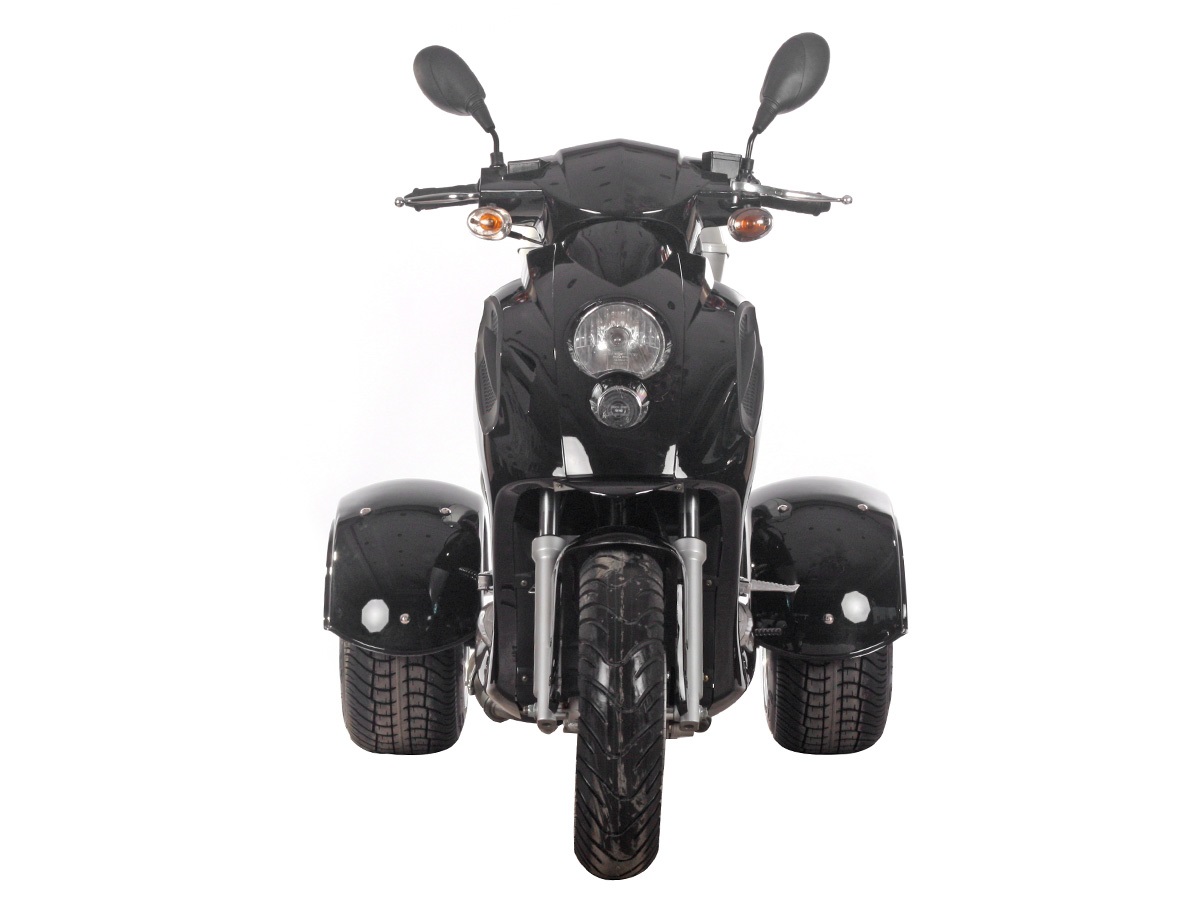

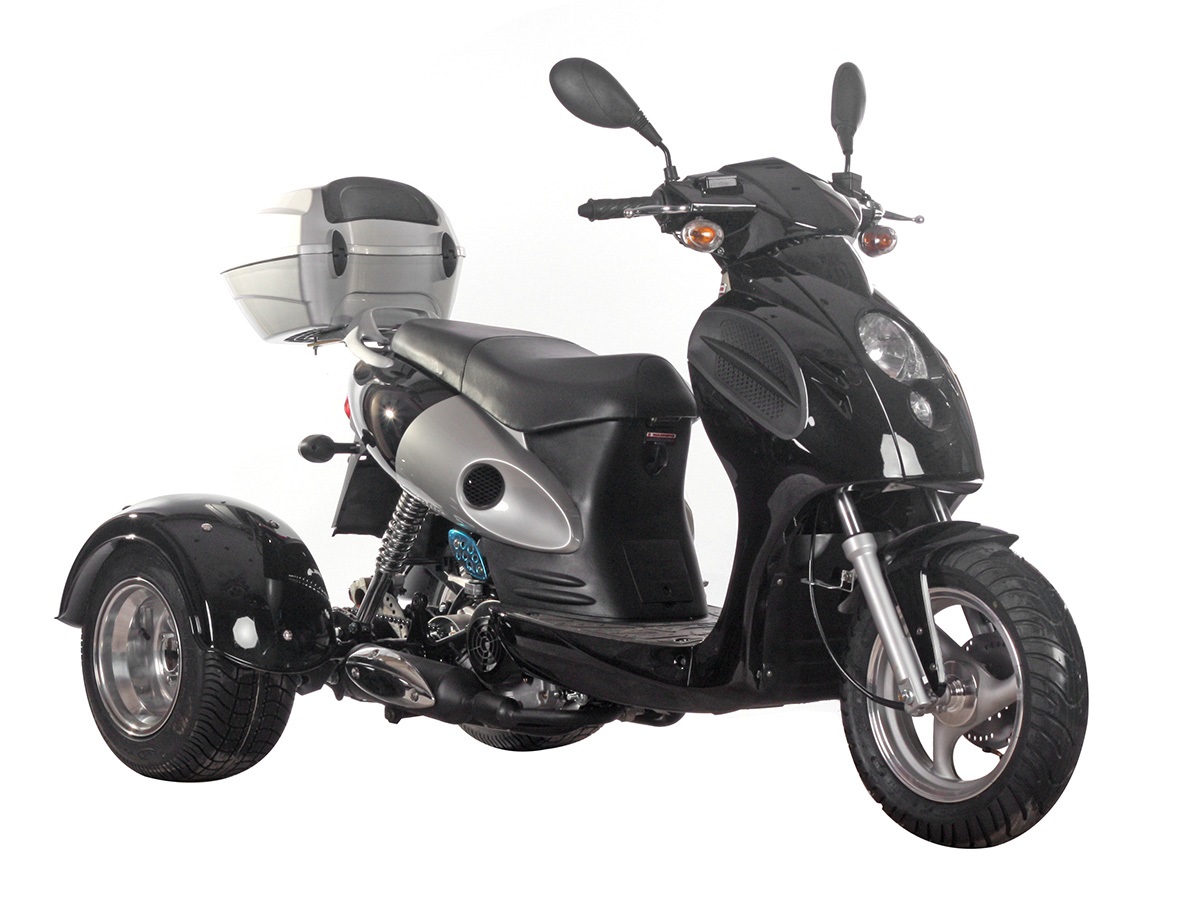

BULLSEYE (PST50-14)
50cc, FR/RR disc brake, aluminum FR 12"/RR 10", RR open differential gear; trunk
Specifications
MSRP N/A
| Engine | 50cc,139QMB |
| Transmission | Automatic |
| Drive type | Belt/Chain |
| Belt and/or chain size | Belt:669×18×20 |
| Starter System | Elec/kick start |
| Fuel system | Gasoline, 1.2gal, carbureted |
| Brakes (Front/Rear) | disc / disc |
| Tire size(Front/Rear) | 120/70-12;205/50-10 |
| Wheel size and type(Front/Rear) | Front:12; Rear:10 |
| Oil capacity and type (in liters) | 0.8L, 10w40 aircooled engine oil (non-synthetic) |
| Gear oil type and capacity( in liters) | GL-3, 0.25L |
| Battery | 12V/7A |
| Lights | Standard lights |
| Suspension(Front/Rear) | Dual telescopic forks/dual shock |
| Dimensions(in inches) | Assembled(LxWxH): 76.7x39.7x44.1, crated(LxWxH): 75.6x34.2x47.2, seat height: 31.1, wheelbase: 59 |
| Weight | 330 lbs |
| Weight capacity | 220 lbs |
| Ground clearance (in inches) | 2.8 |
| Assembly required | front wheel,front fender,rear box,pothook,rear box loop |
| Special features | Include: tow hitch, trunk, mirrors, horn, odometer, speedometer |
| EPA approved | EPA approve, CARB exempt |
Colors
