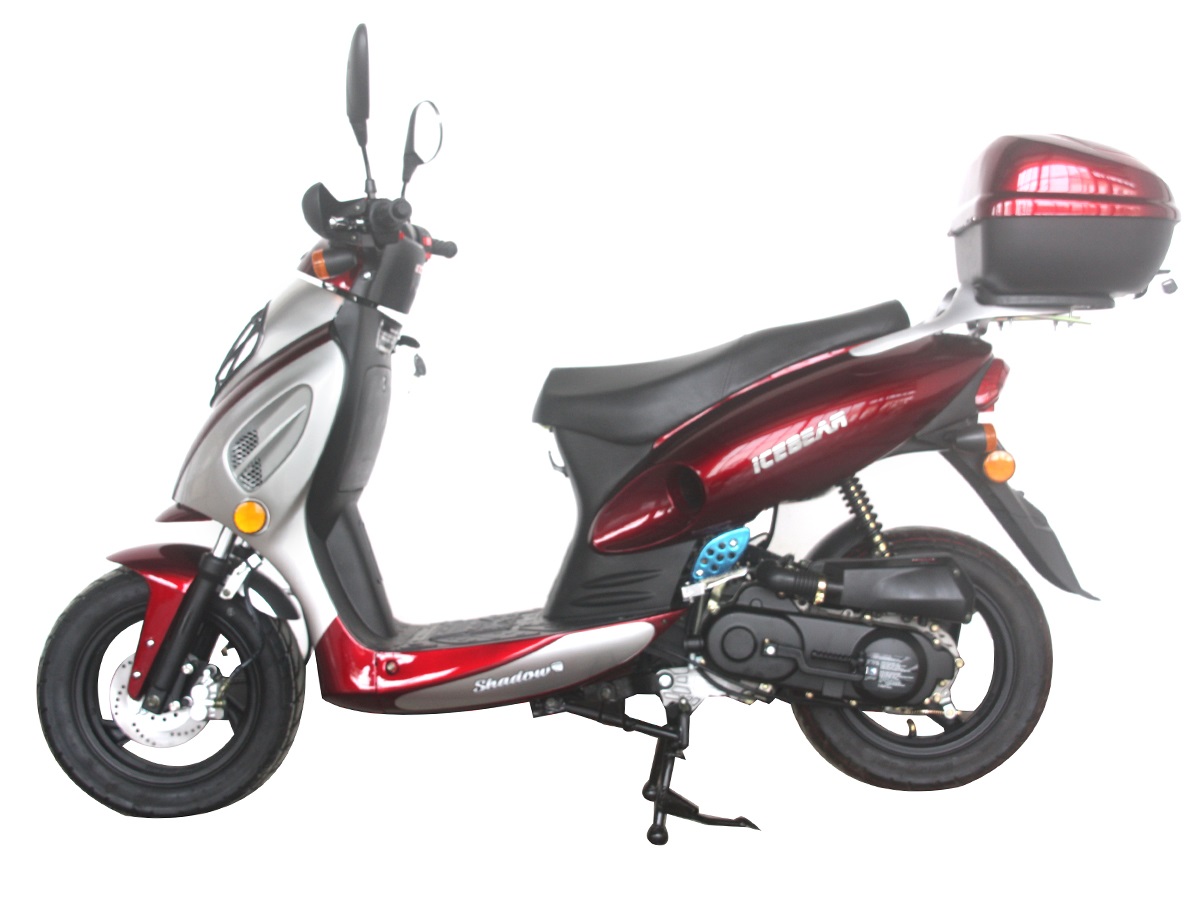

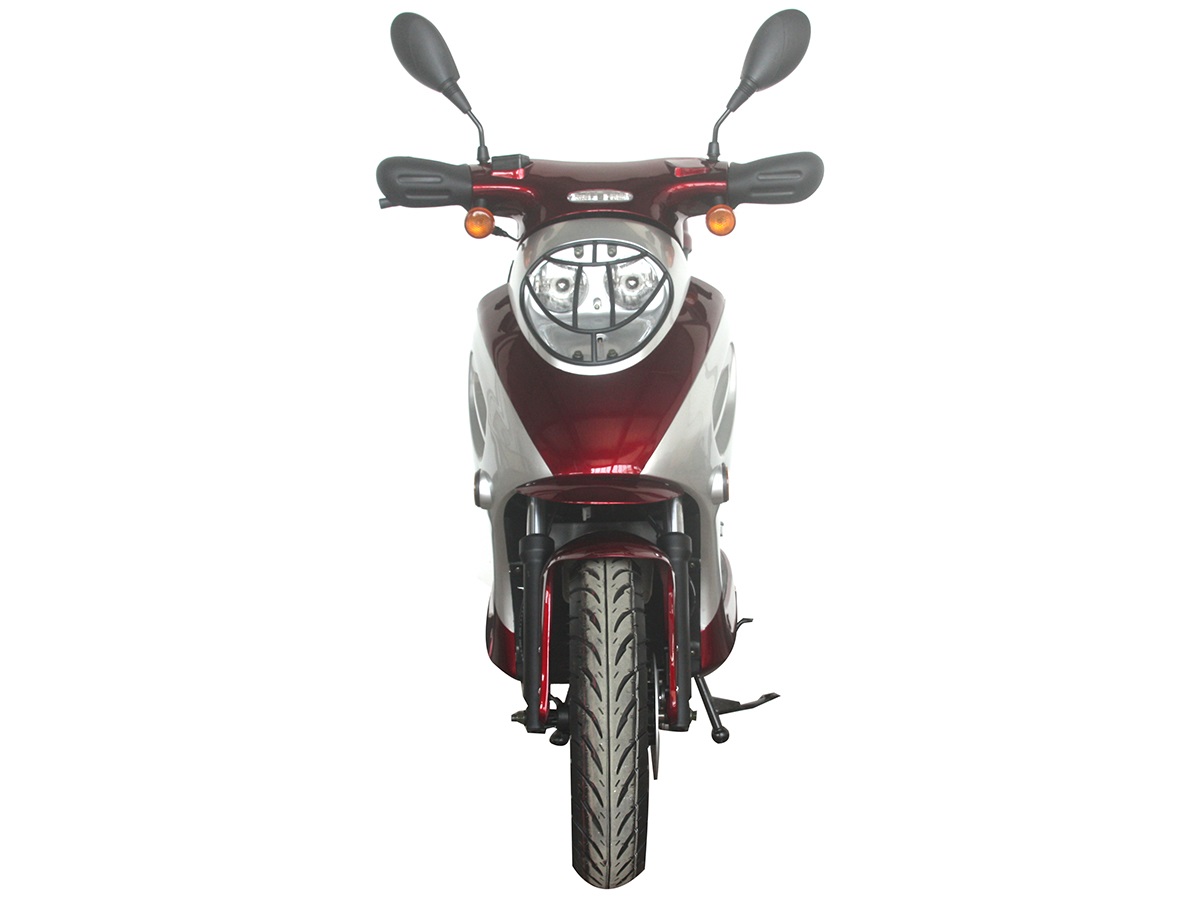

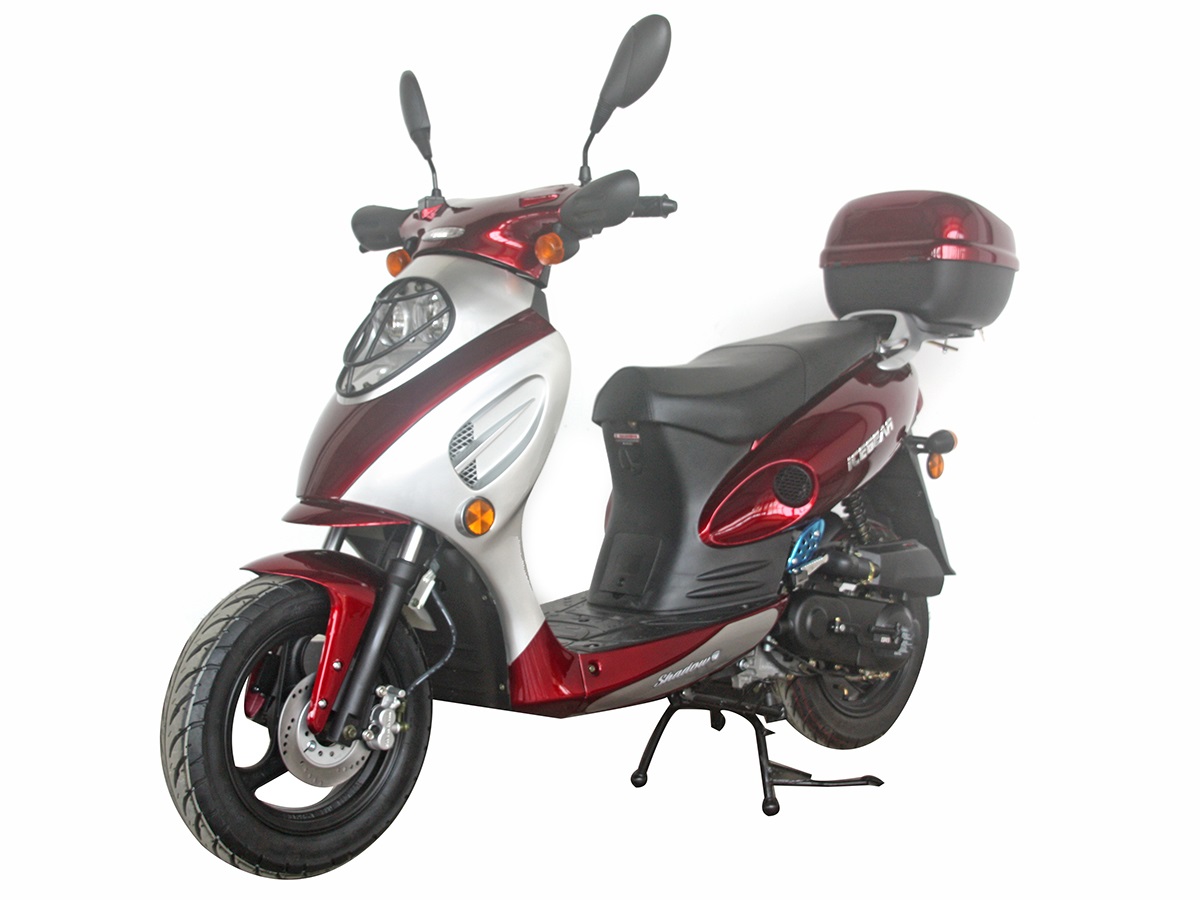

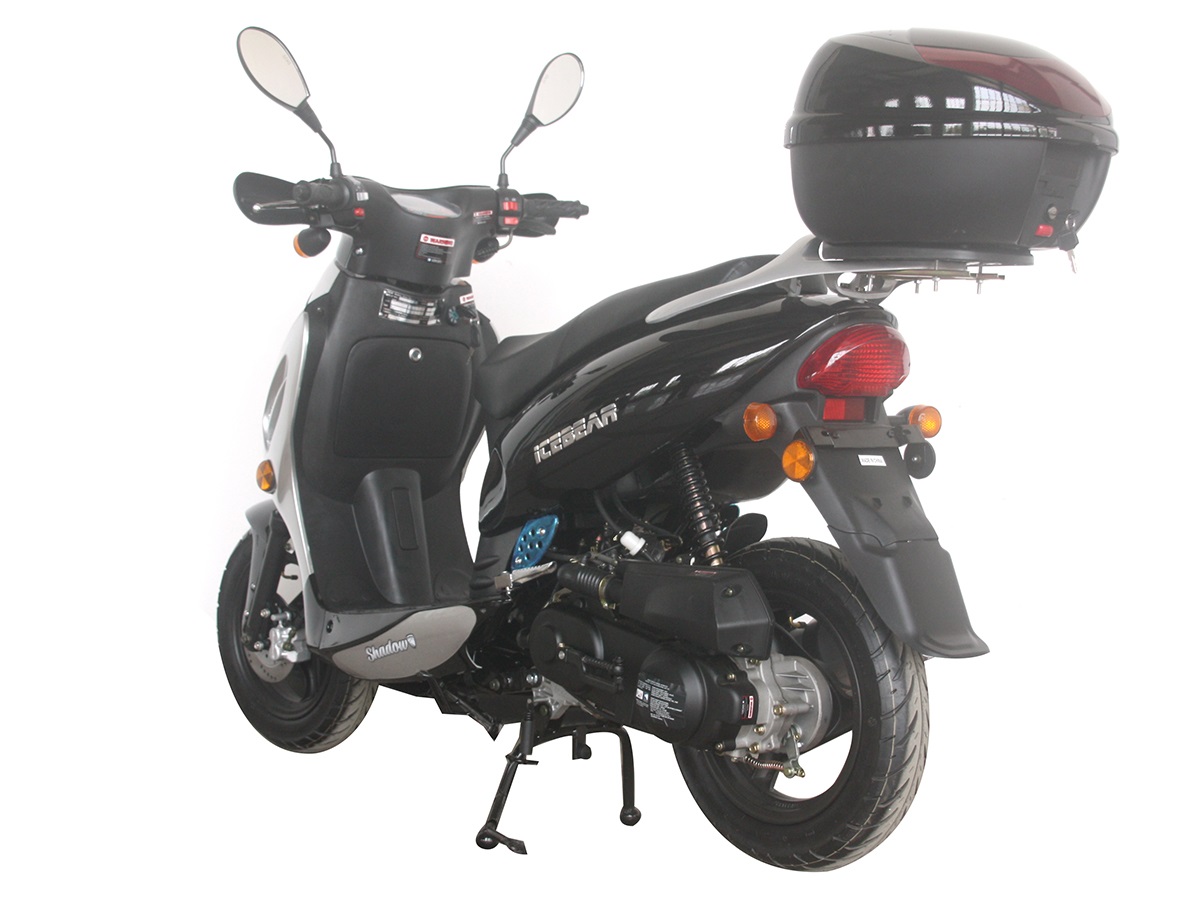

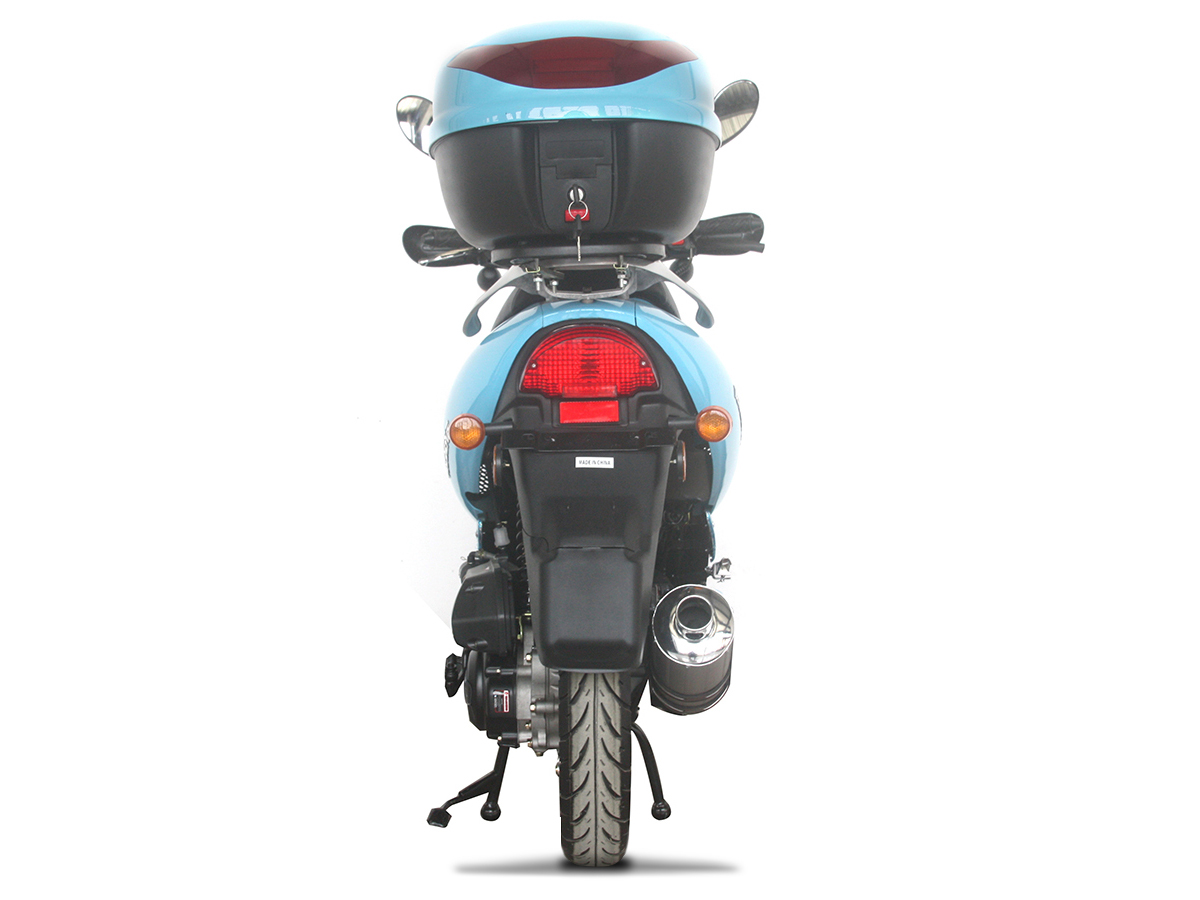

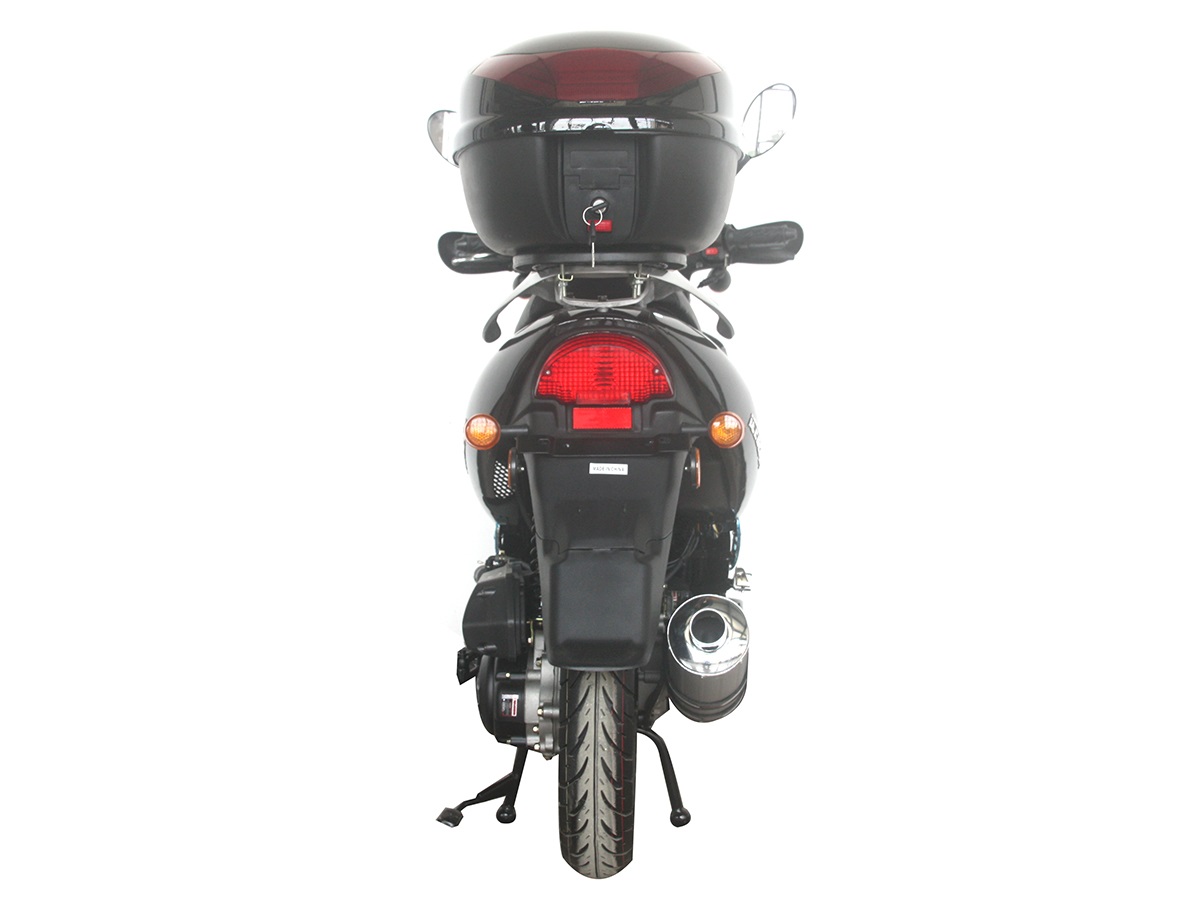

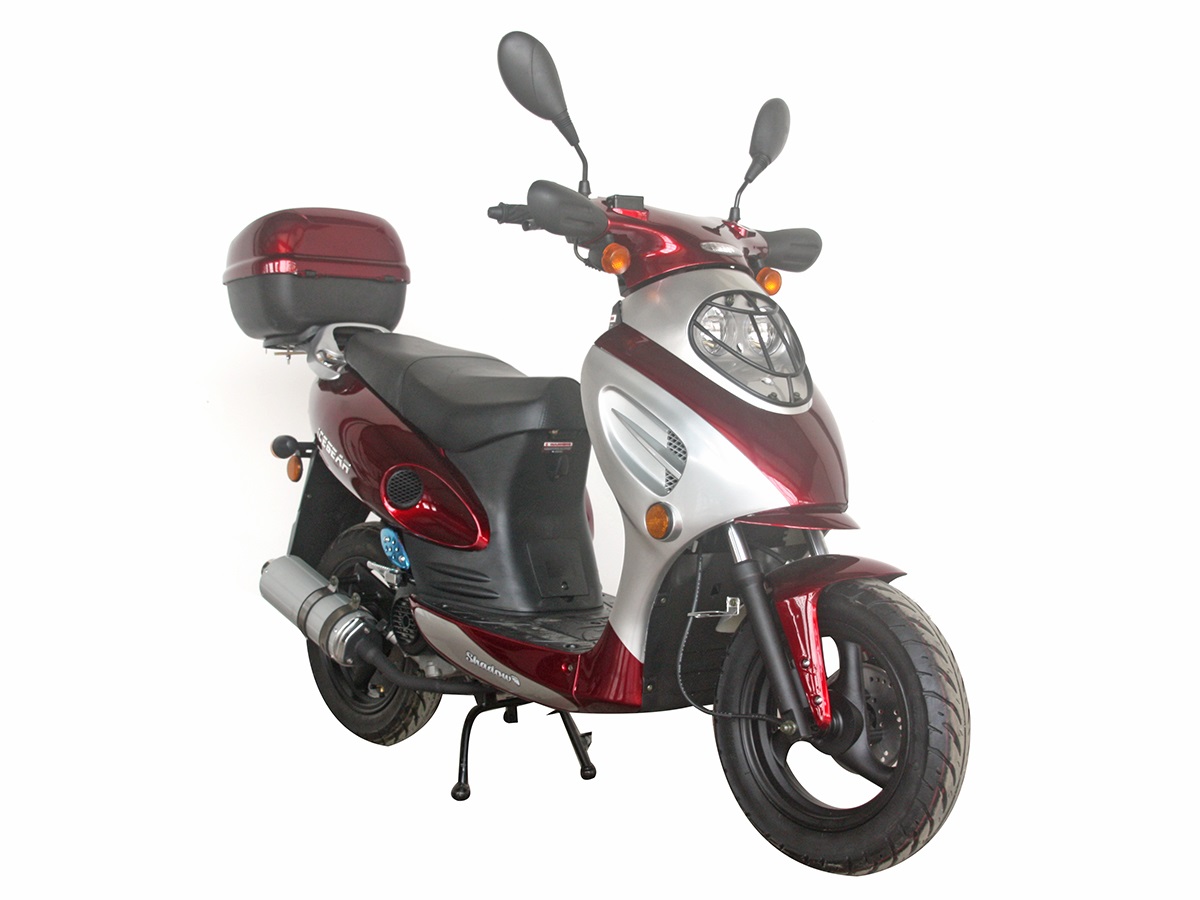

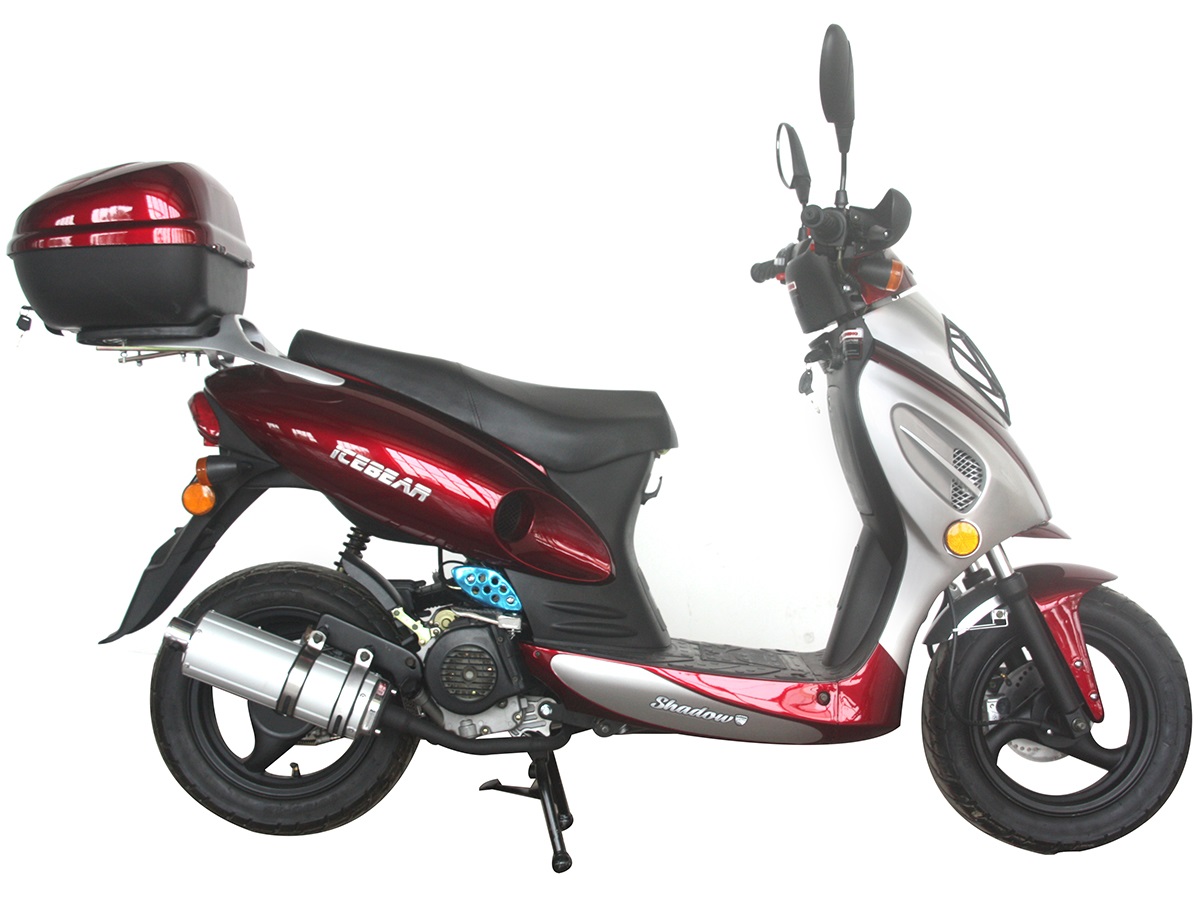

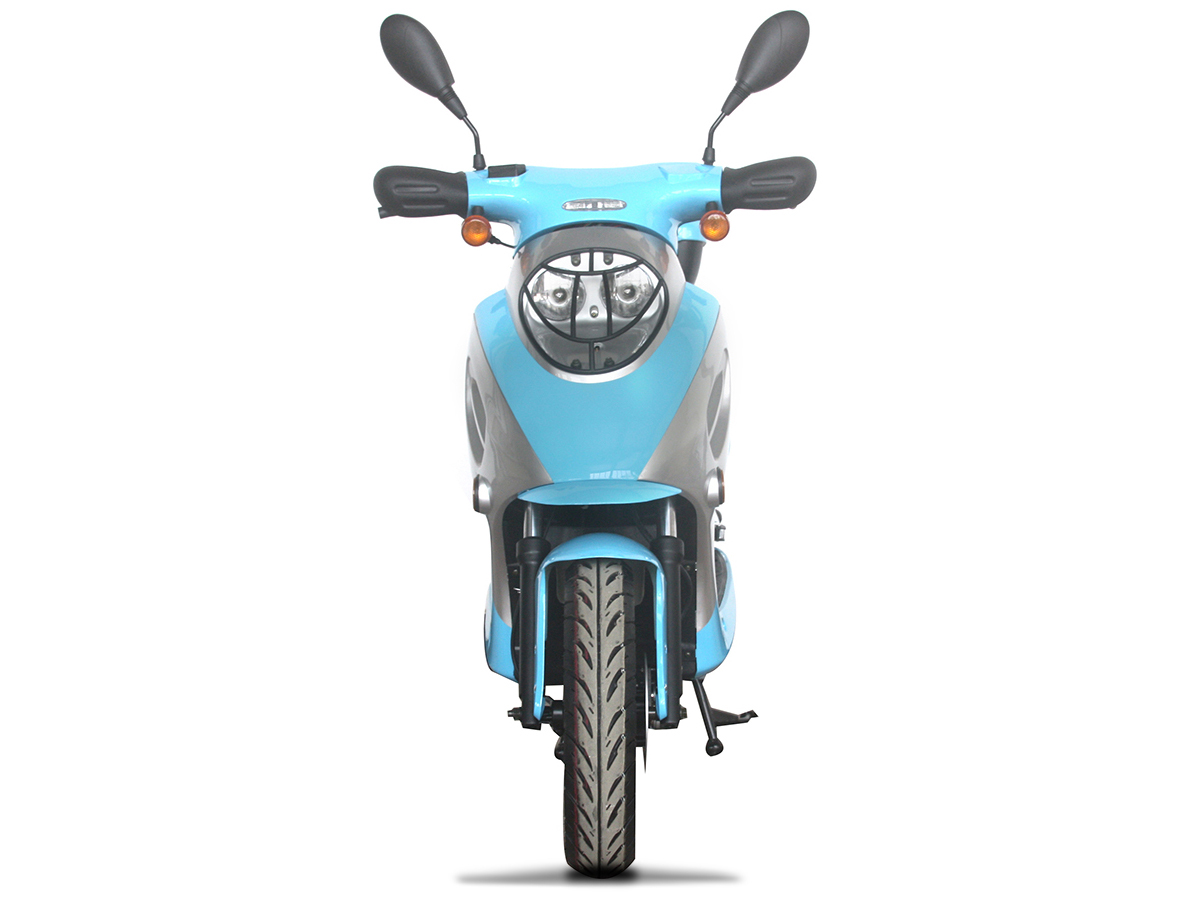

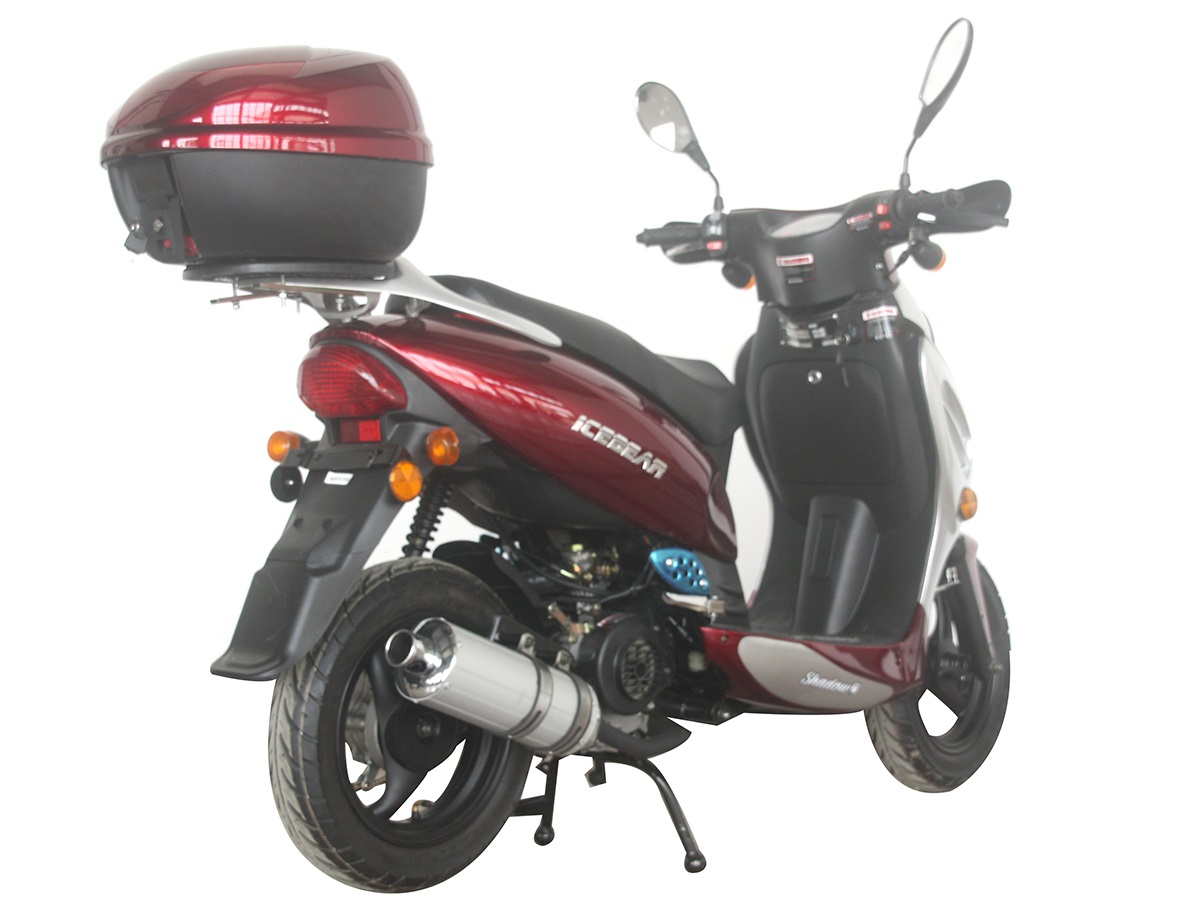

SHADOW(PMZ50-1)

49.5 cc, Air Cooled, Automatic, Front Disc, Rear Drum Brake, 10" Aluminum Wheel, Trunk Included. Actual products may differ from photos due to ongoing development.

Specifications MSRP N/A

Engine 50cc, 139QMB, Xinba
Transmission Automatic
Drive type Belt
Belt and/or chain size Belt: 729*18*30
Starter System Electric / kick
Fuel system Gasoline, 1.4gal, carbureted
Brakes (Front/Rear) Disc/Drum
Tire size(Front/Rear) 90/90-12
Wheel size and type(Front/Rear) 12, Alunimum
Oil capacity and type (in liters) 0.8L, 10w40 aircooled engine oil (non-synthetic)
Gear oil type and capacity( in liters) GL-3, 0.25L
Battery 12V/7Ah
Lights Standard lights
Suspension(Front/Rear) Dual telescopic forks / single shock
Dimensions(in inches) Assembled(LxWxH): 73.6x26x44, crated(LxWxH): 66.9x22.4x33.4, seat height:29.9, wheelbase:51.6
Weight 330 lbs
Weight capacity 220 lbs
Ground clearance (in inches) 4.3
Assembly required Front wheel, front fender, front cover, trunk rack, trunk, handlebars, mirrors, handguards
Special features Include: trunk, mirrors, horn, odometer, speedometer
EPA approved EPA approve, CARB exempt
Colors

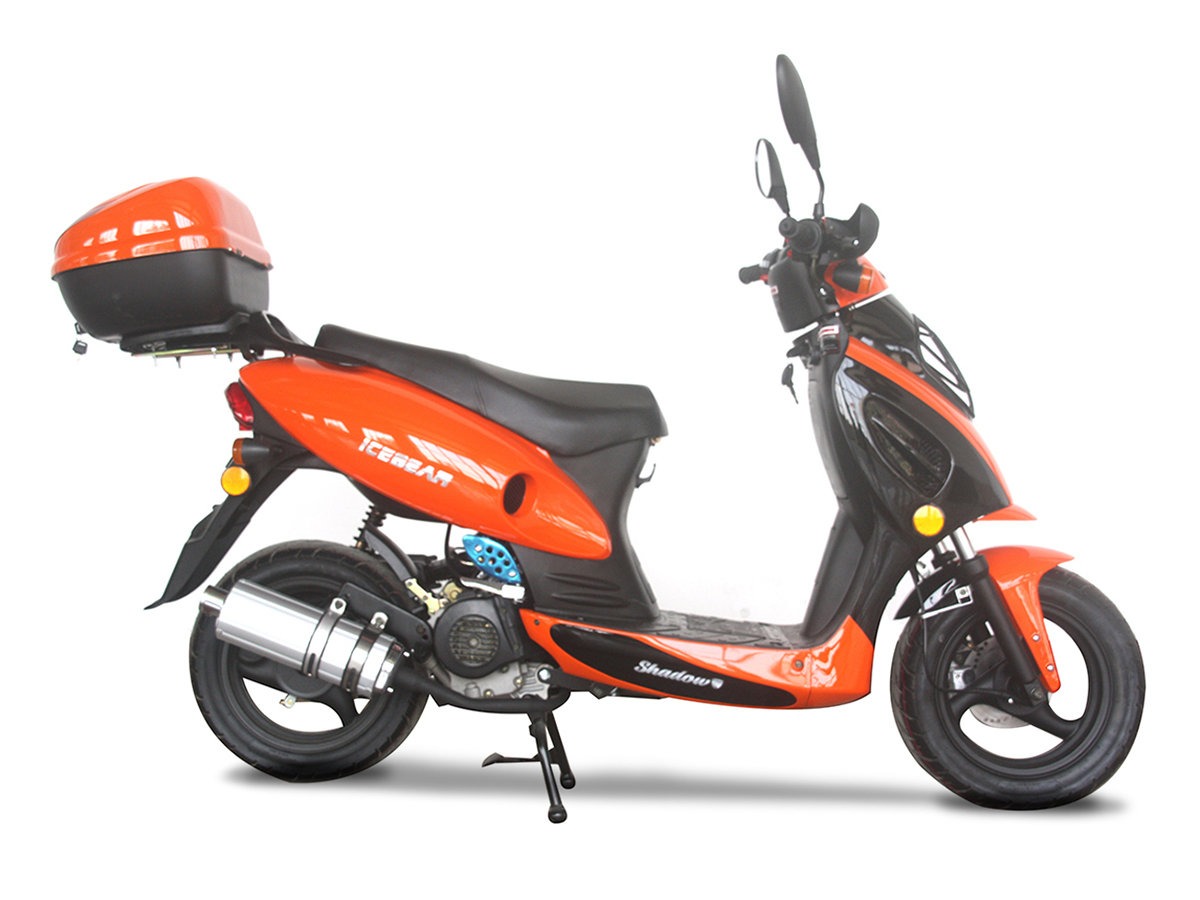

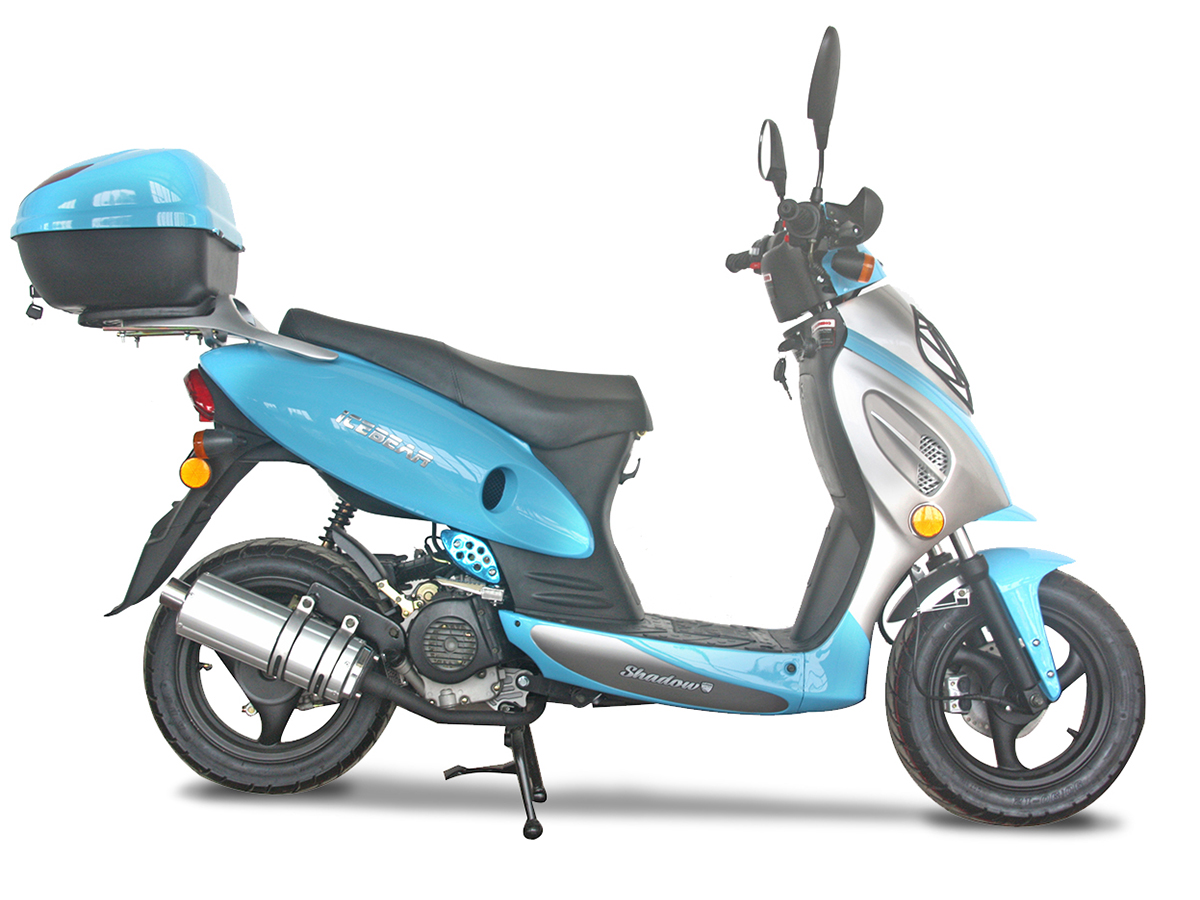

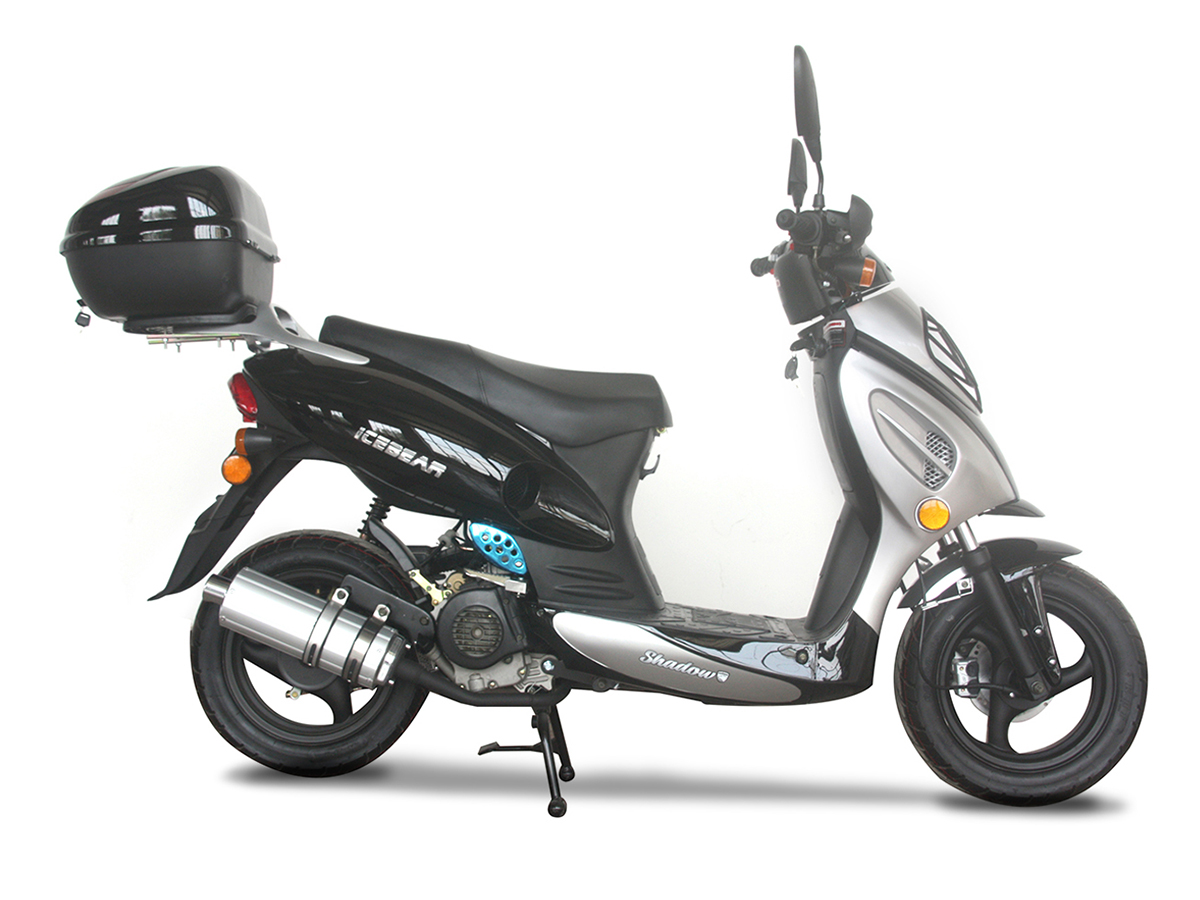

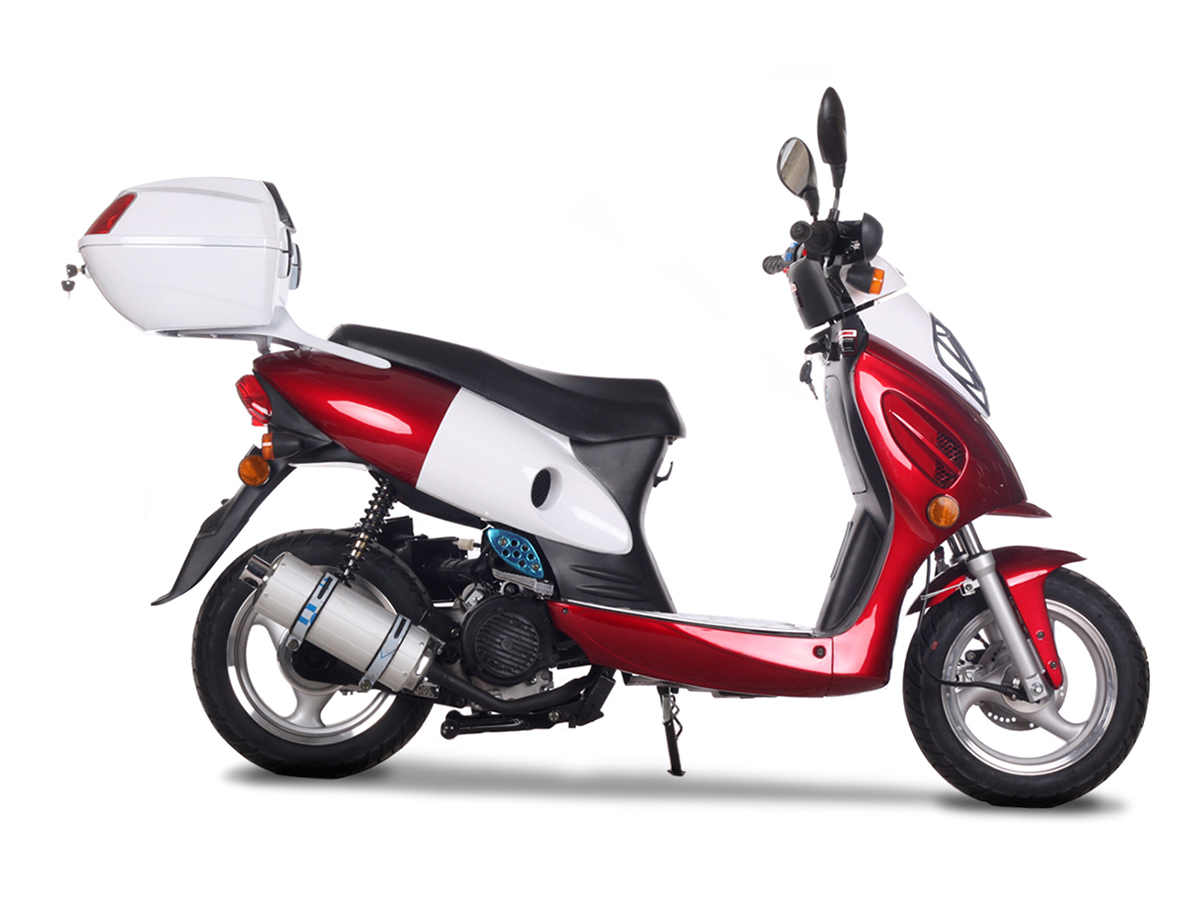

Metallic Silver/Black Metallic Blue/Silver Metallic Orange/Black Metallic Burgundy/White

Click the icon to see all the parts for this model
