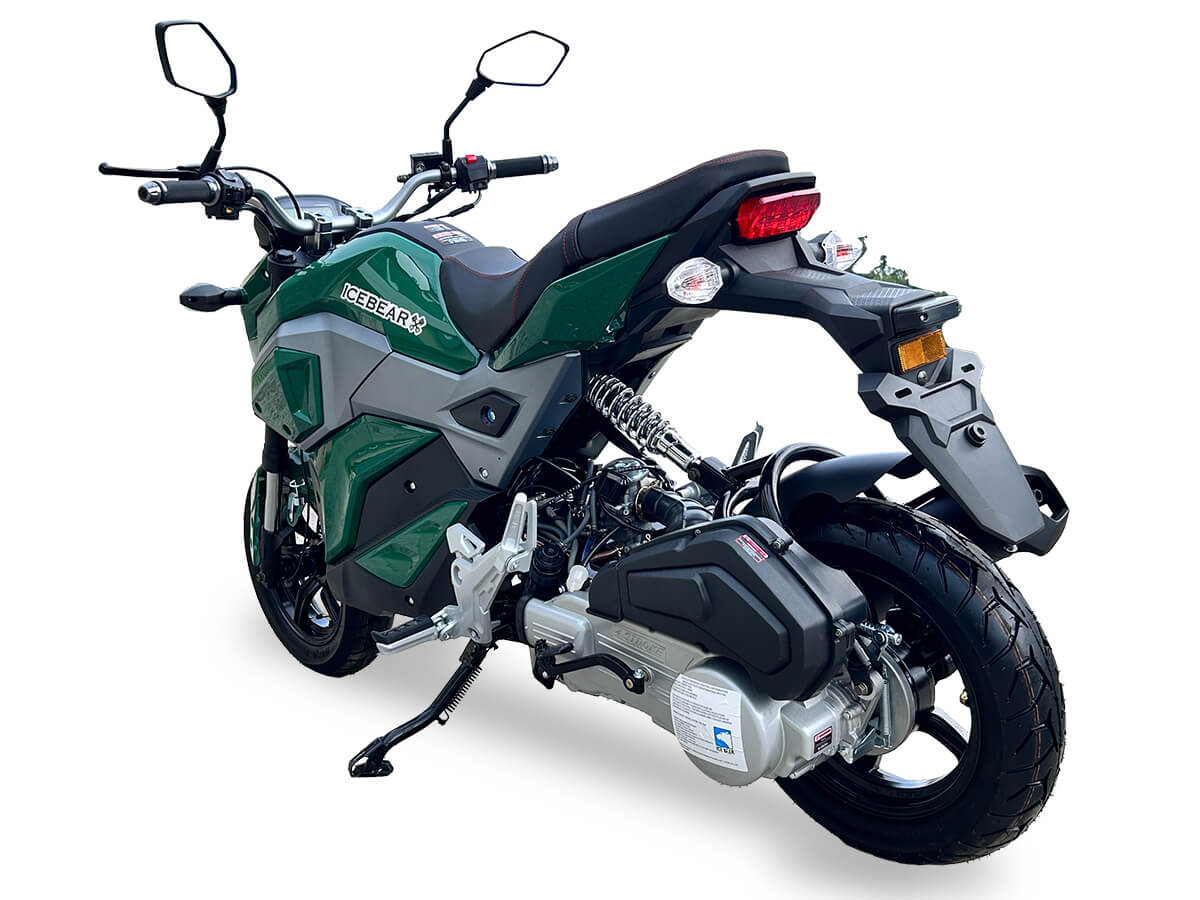

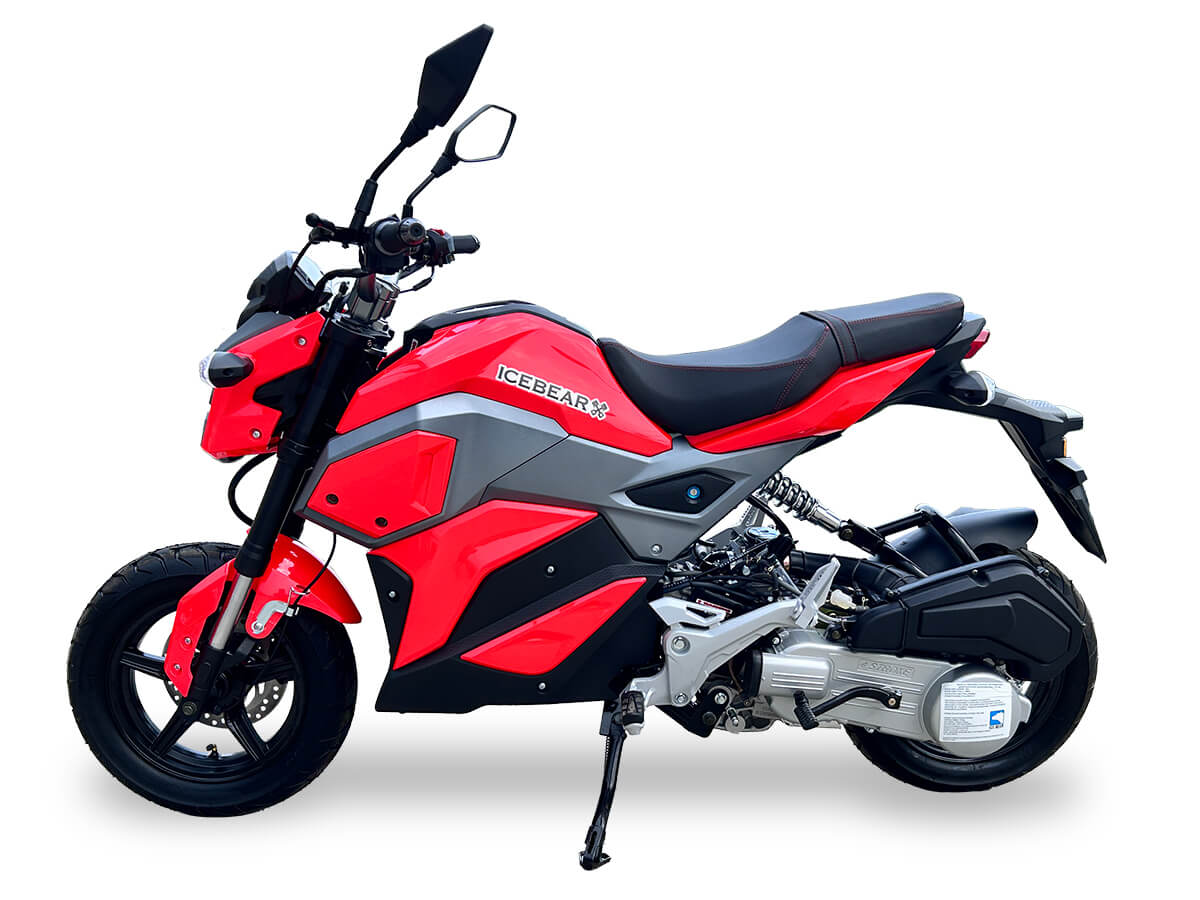

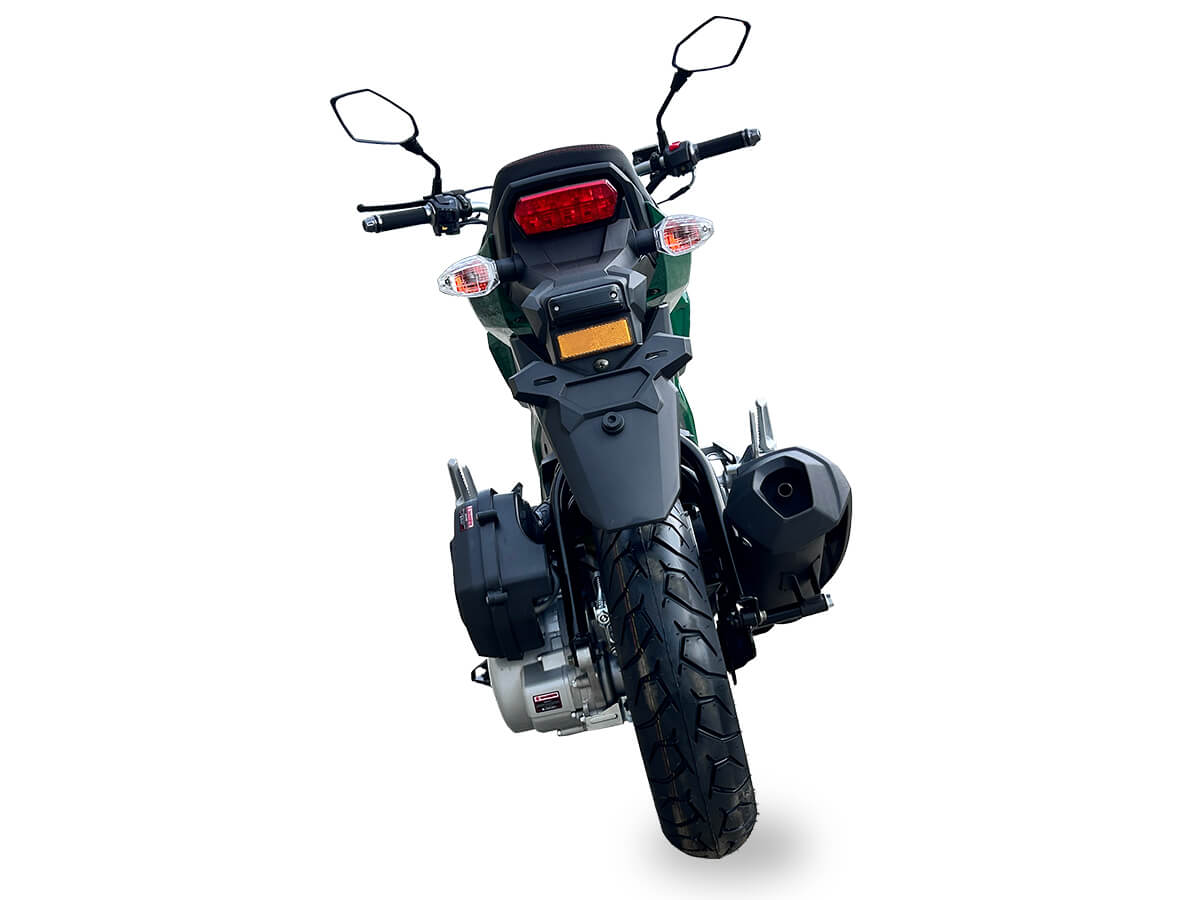

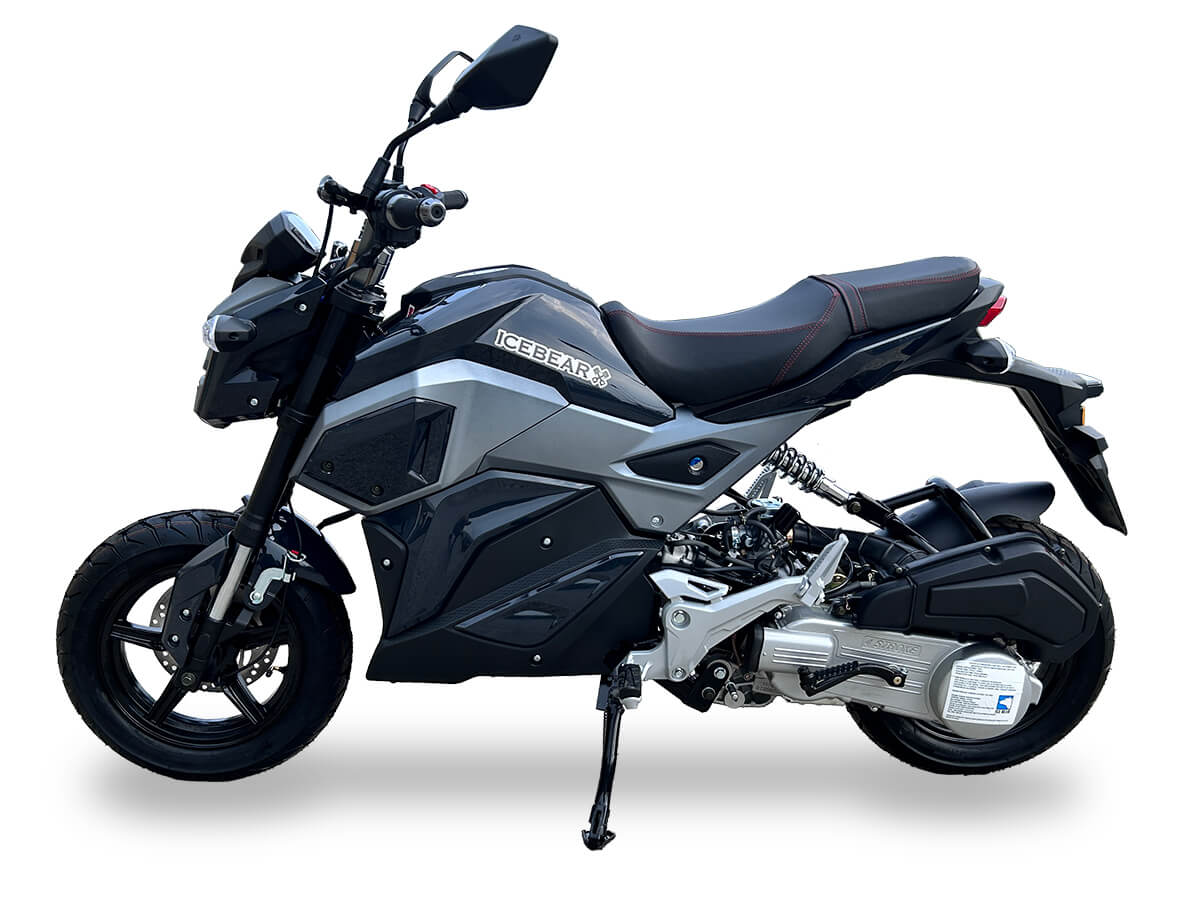

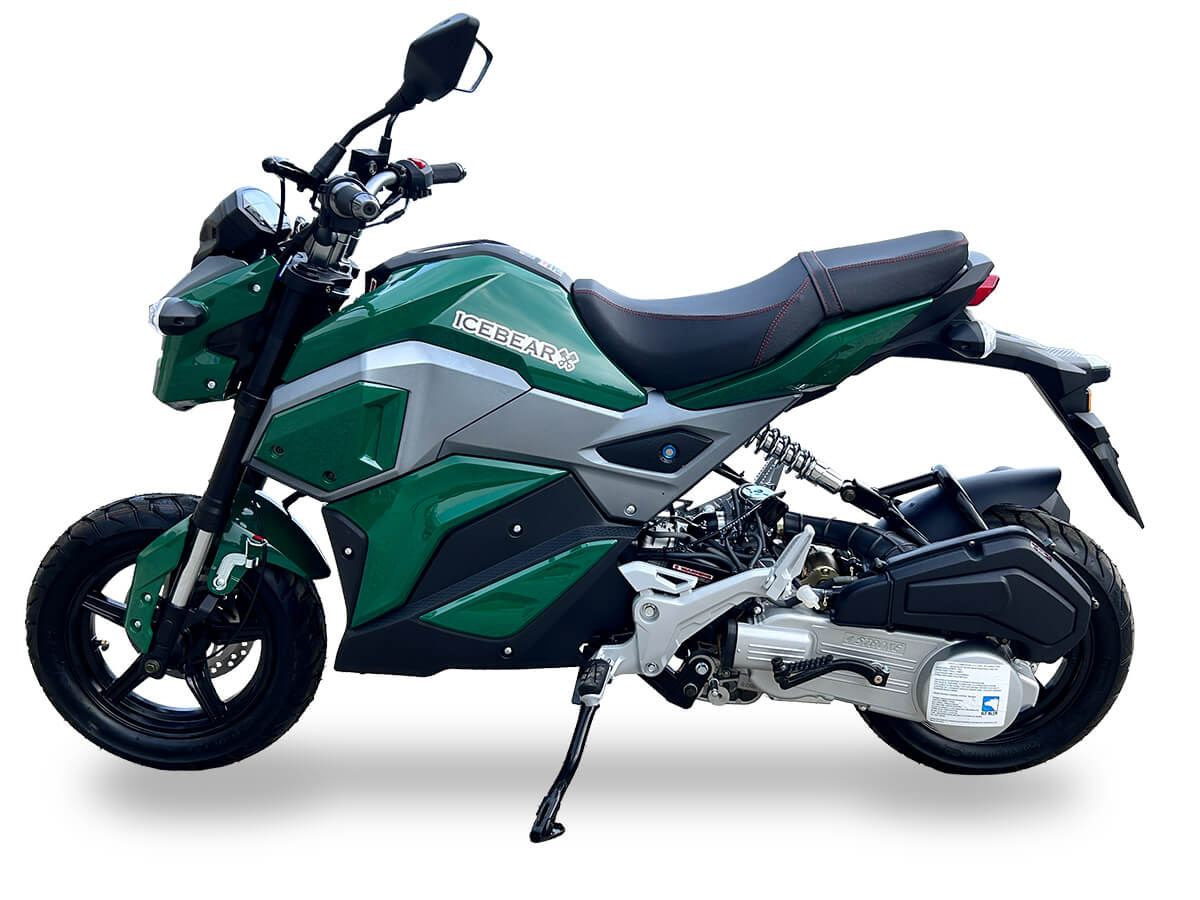

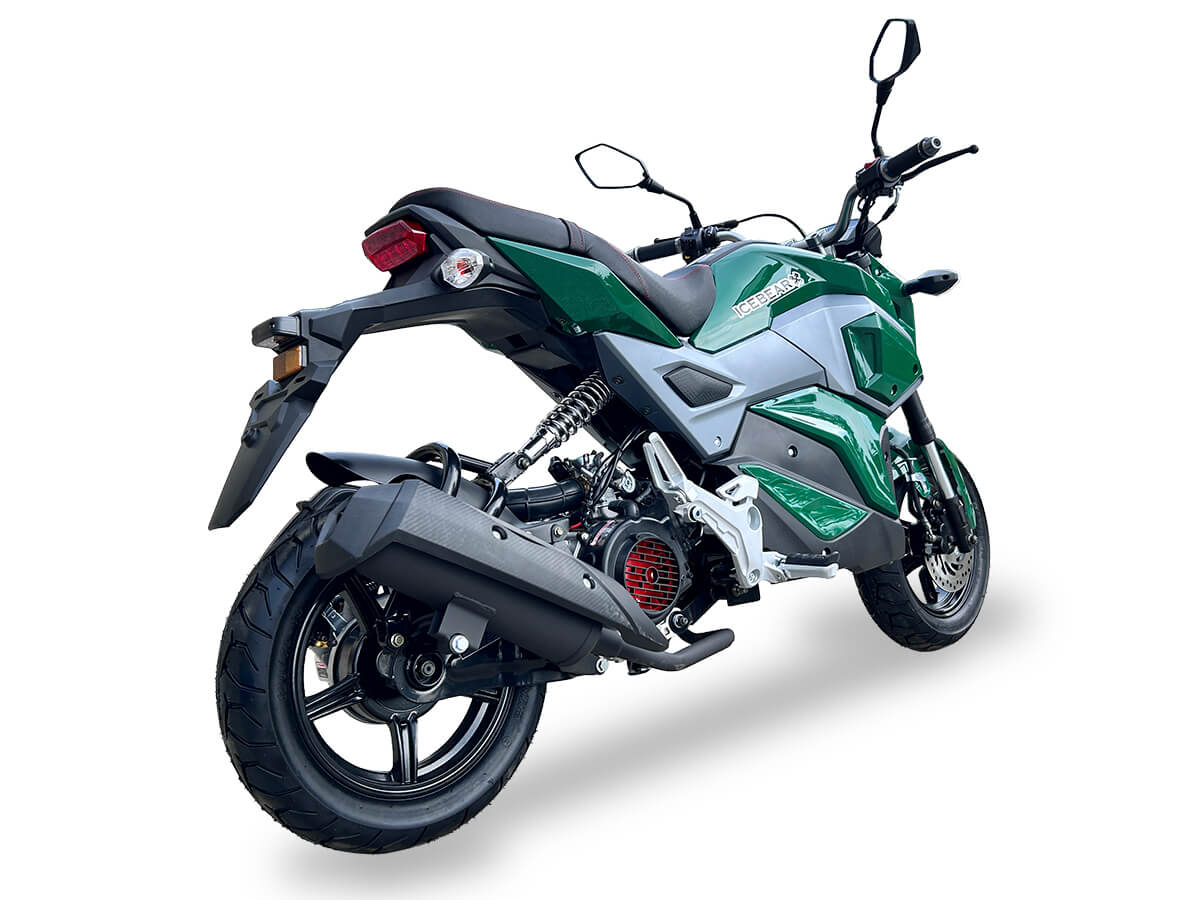

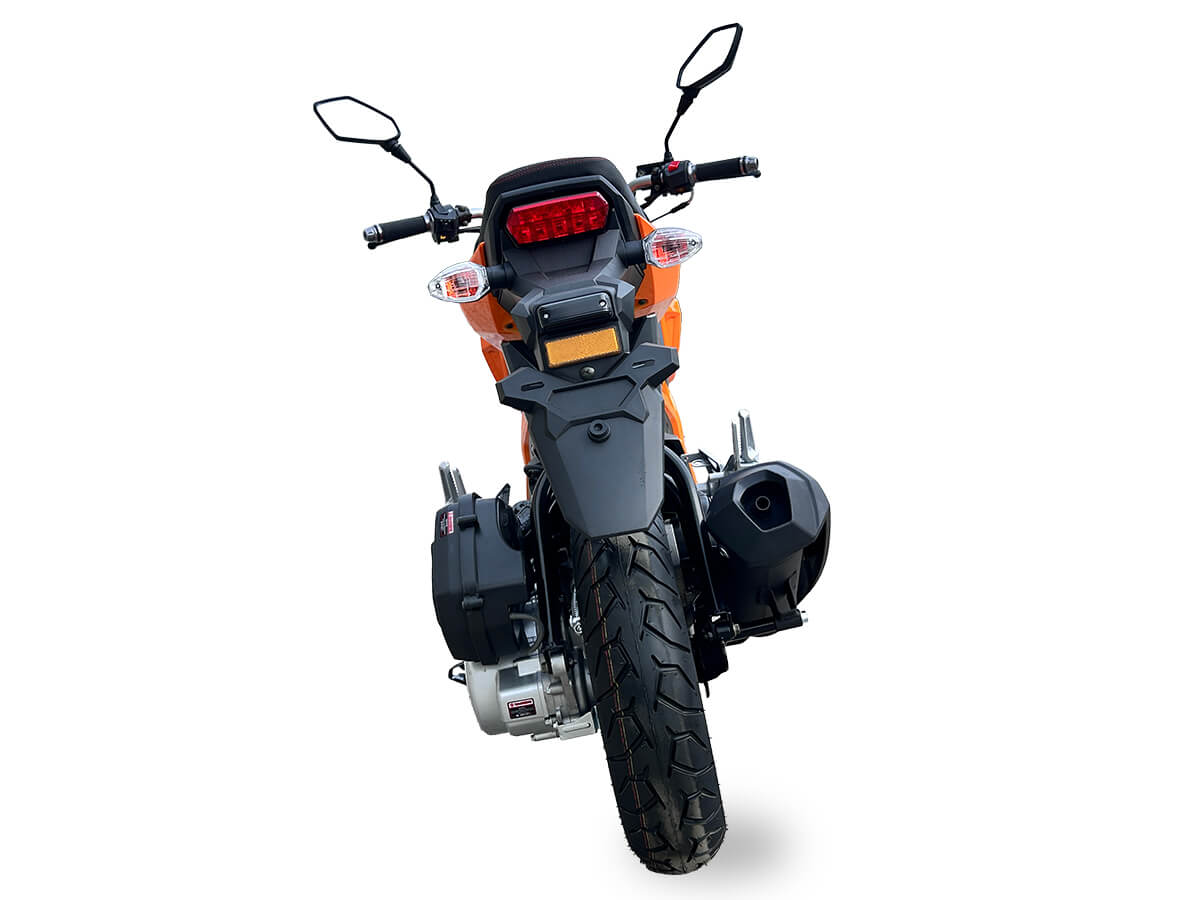

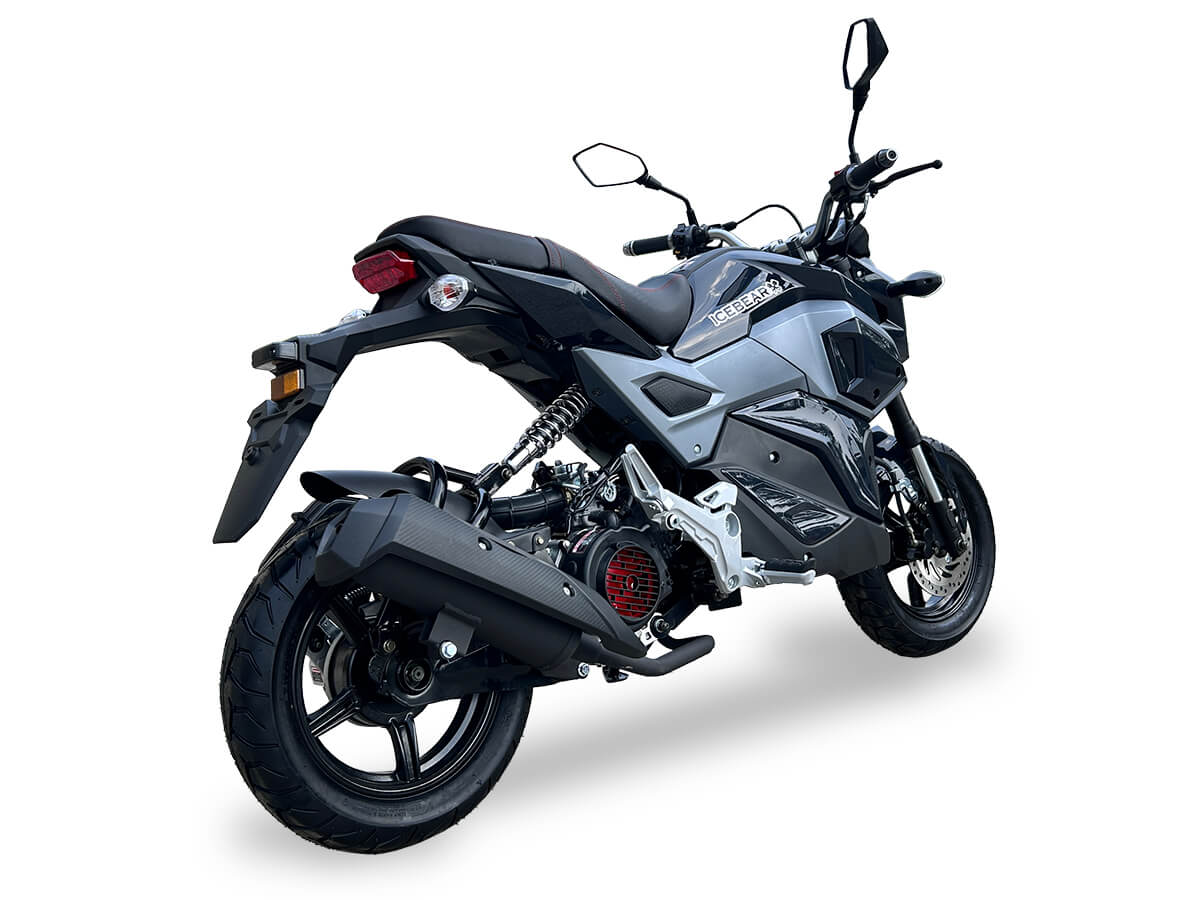

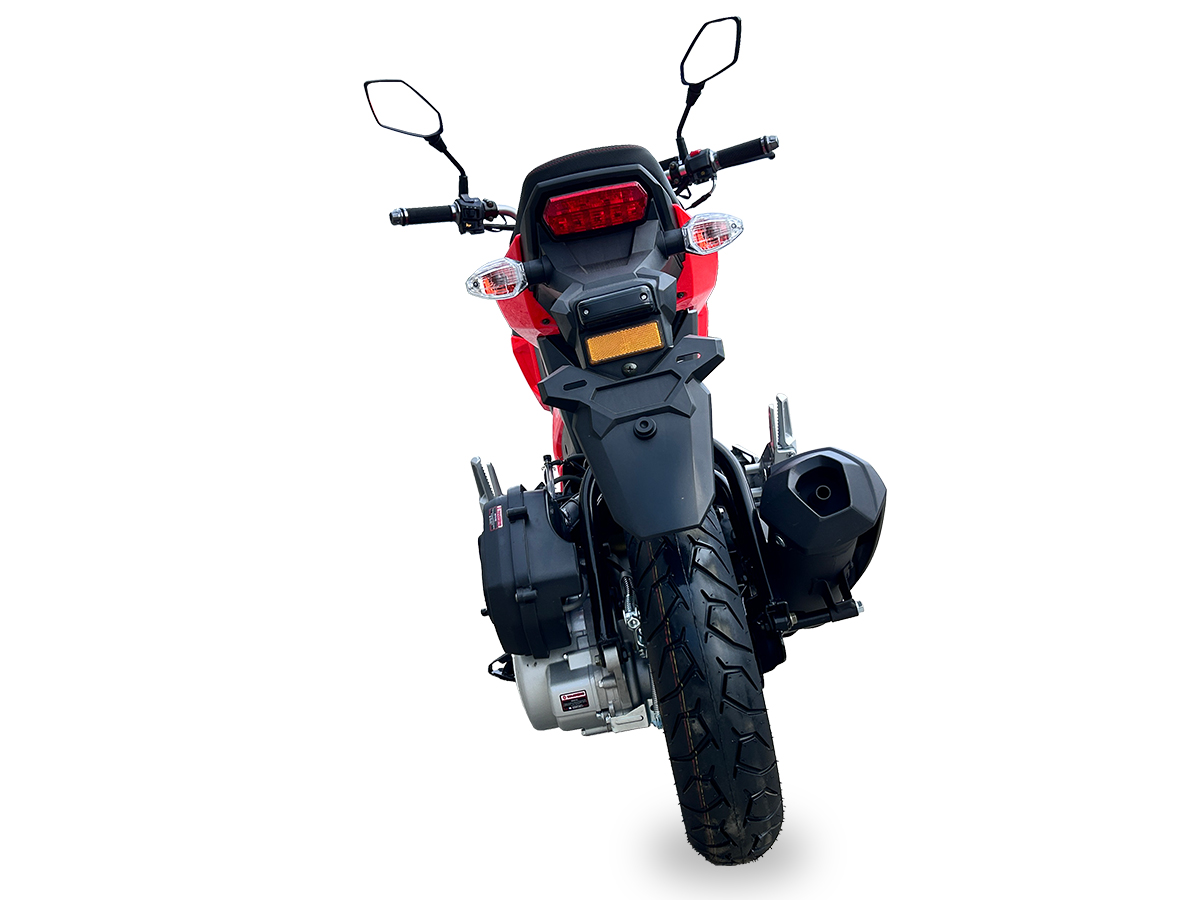

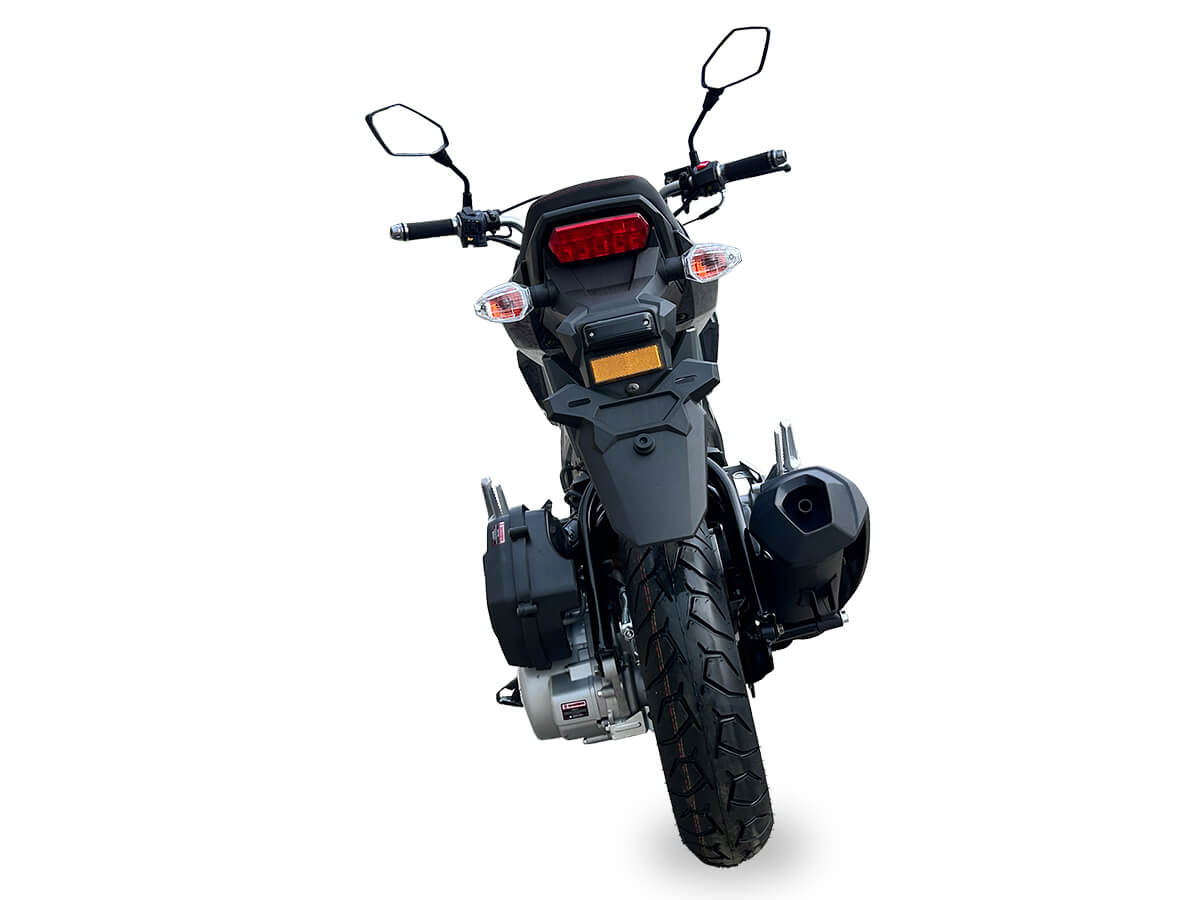

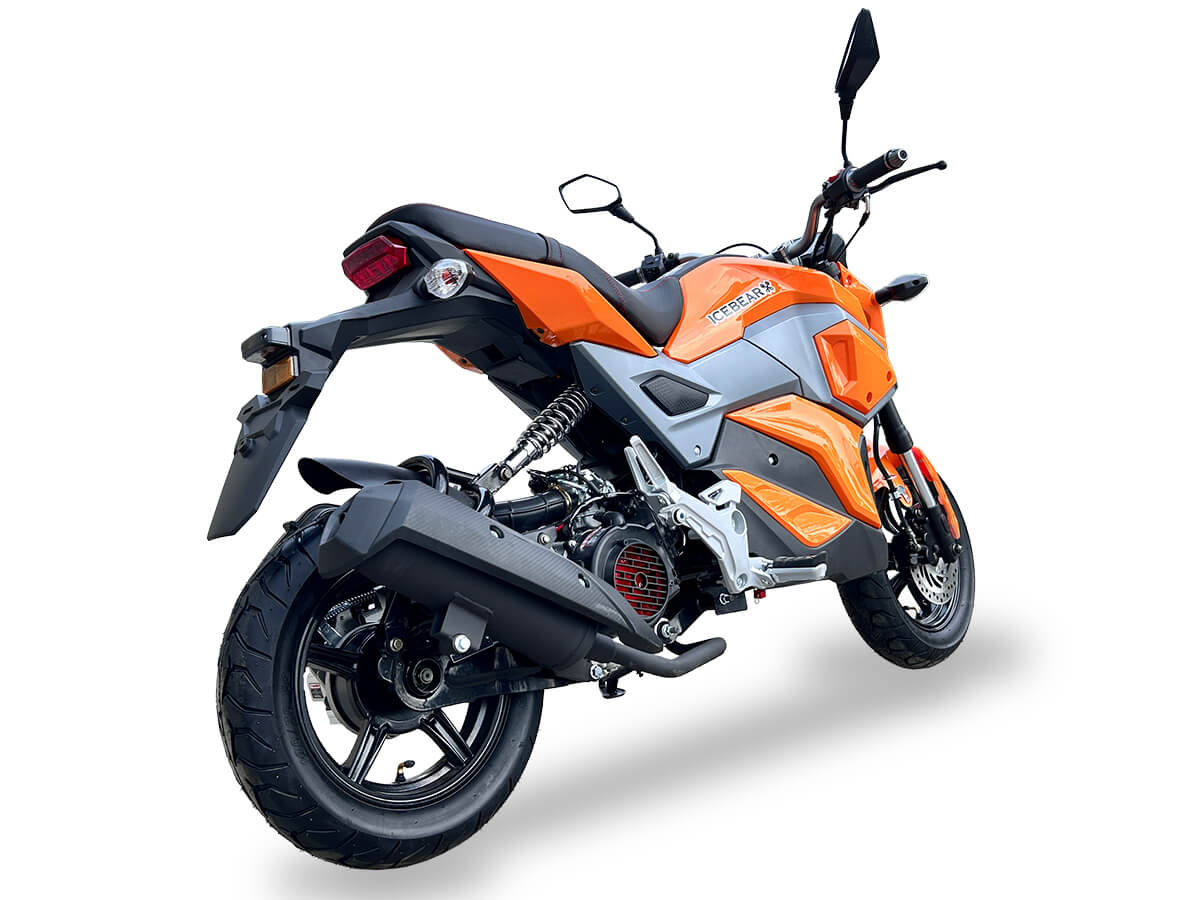

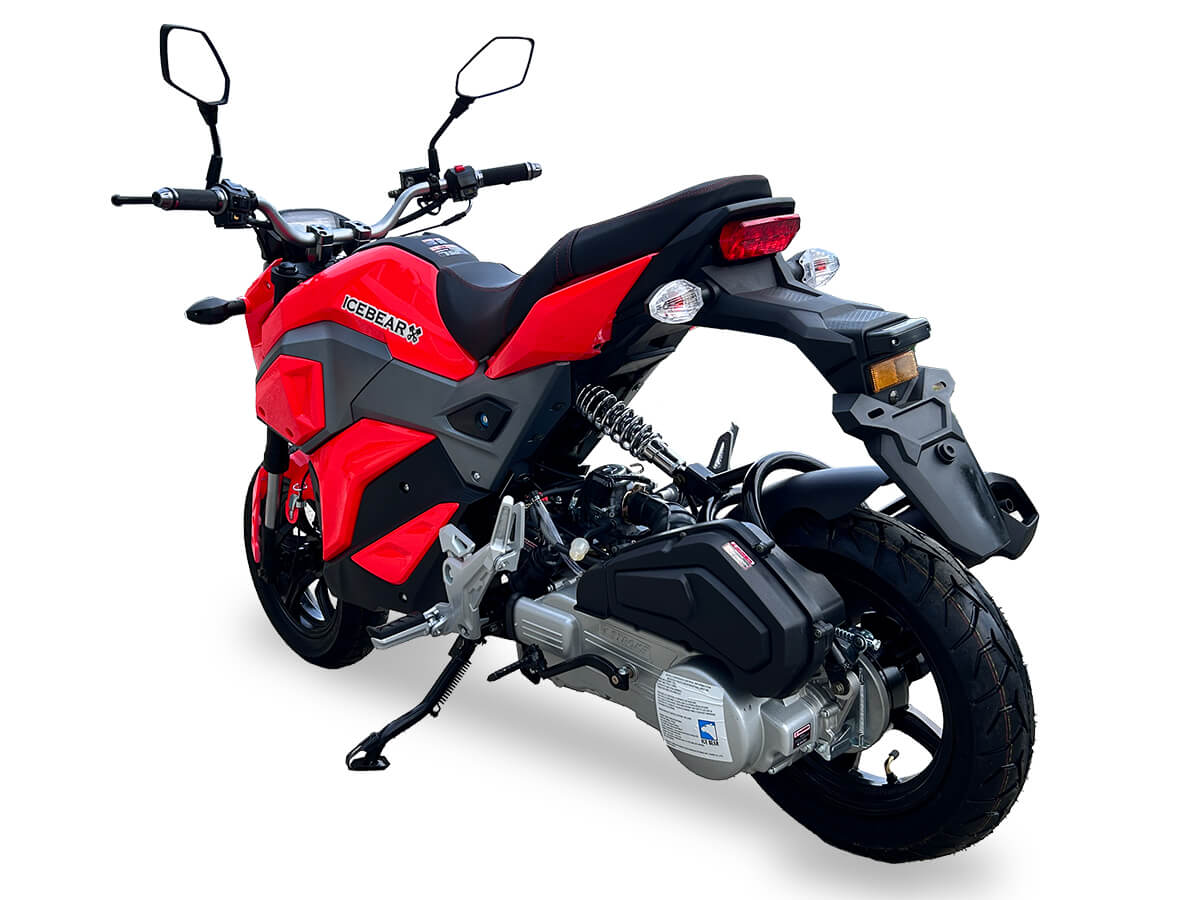

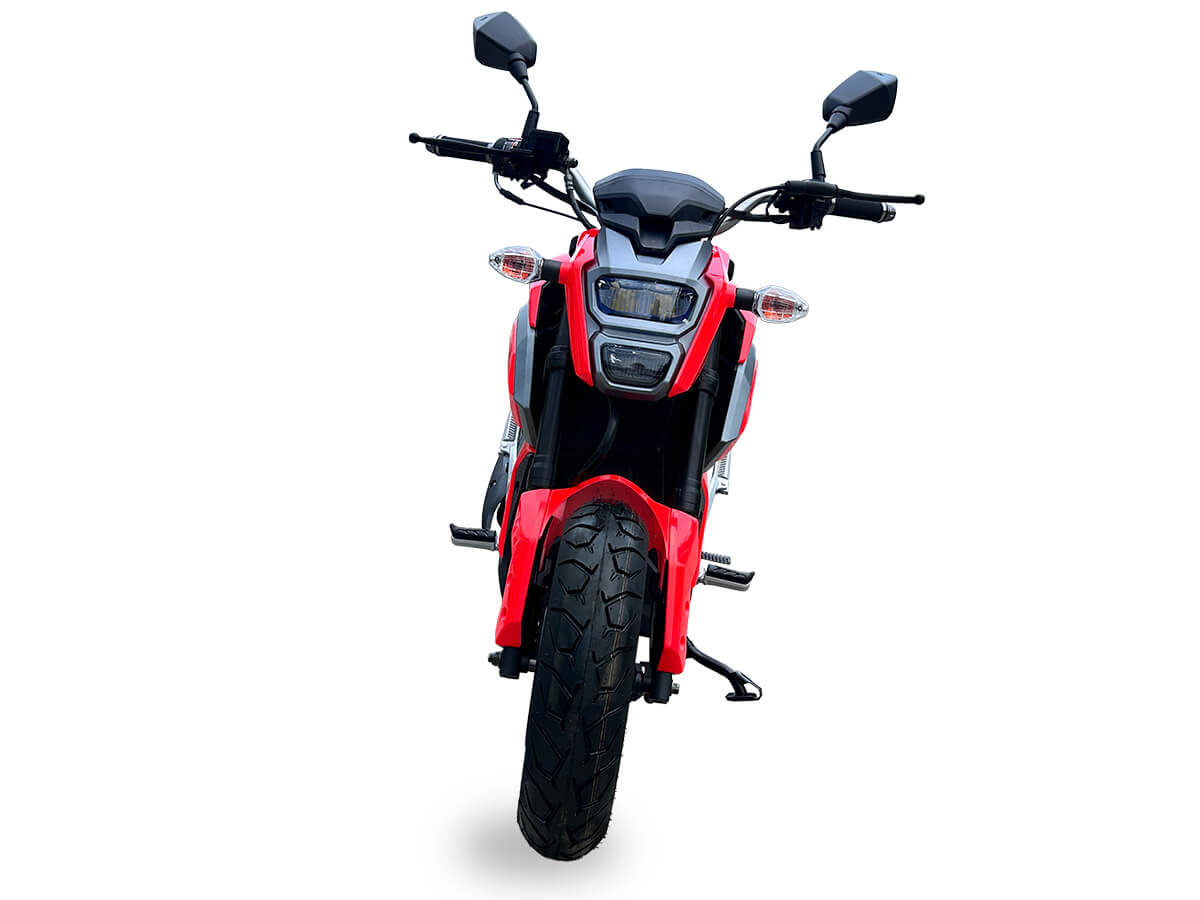

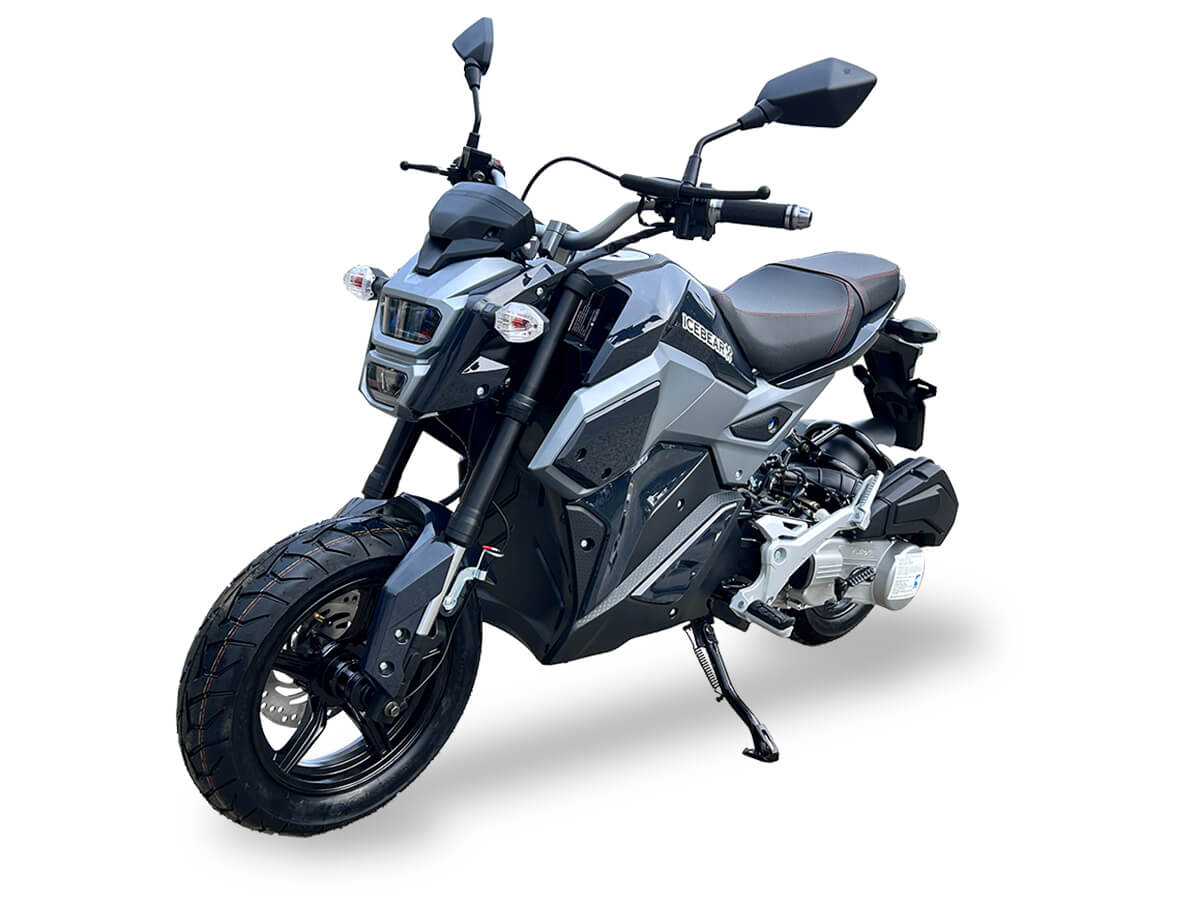

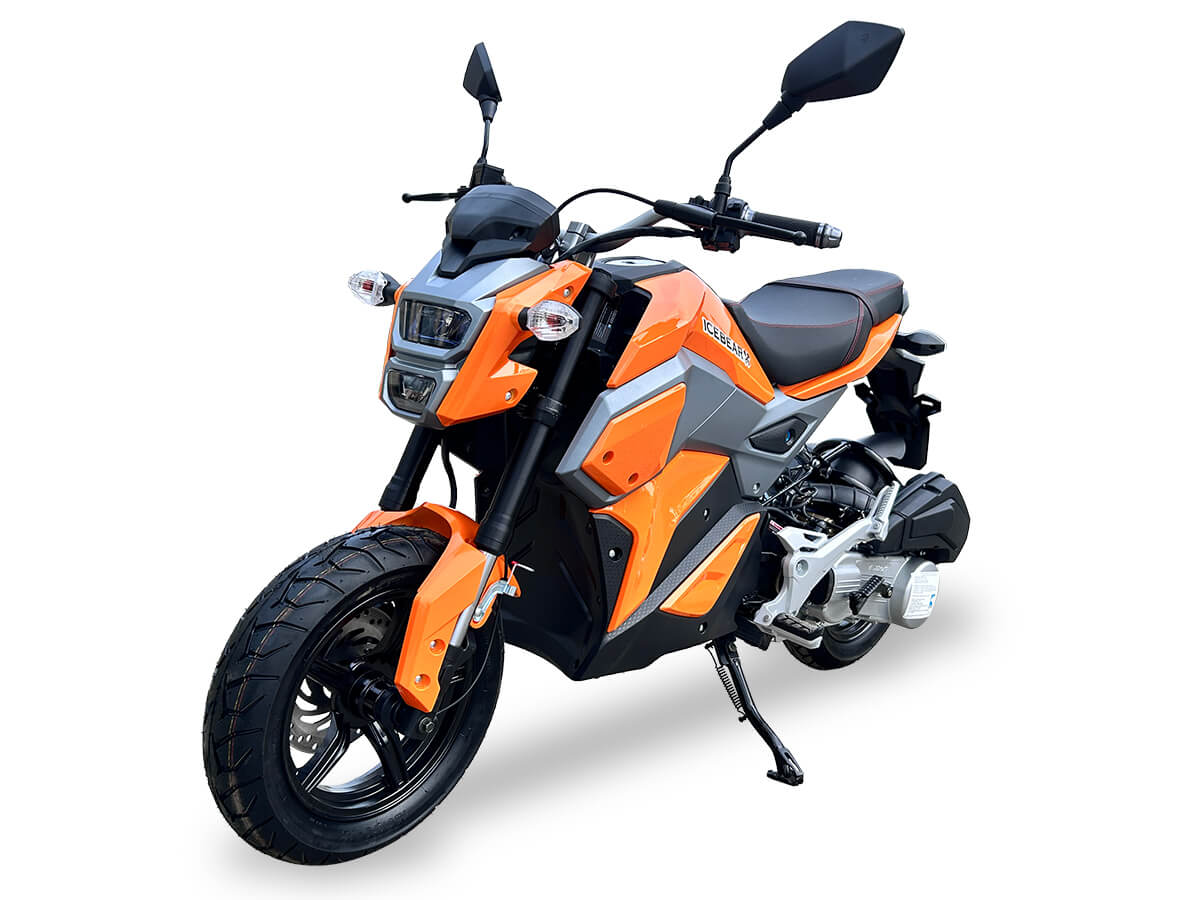

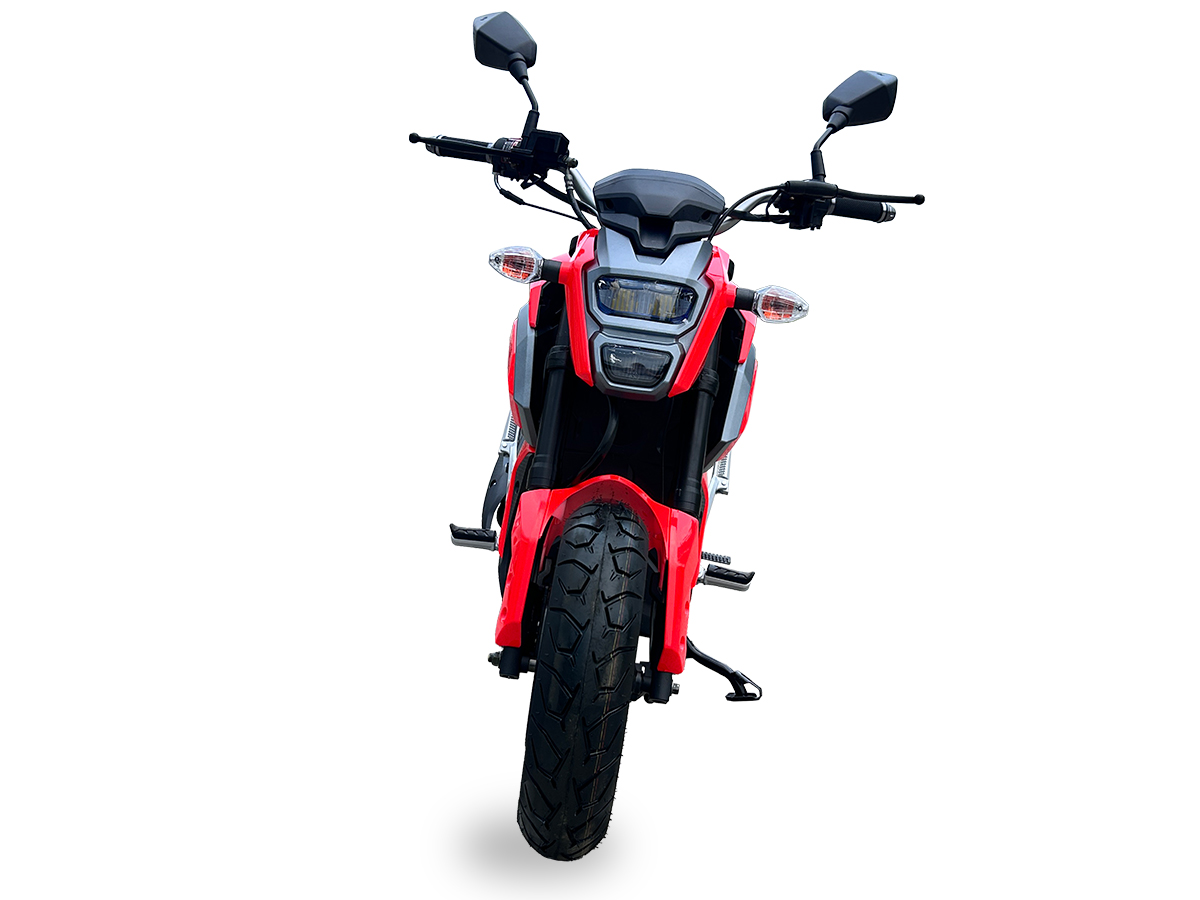

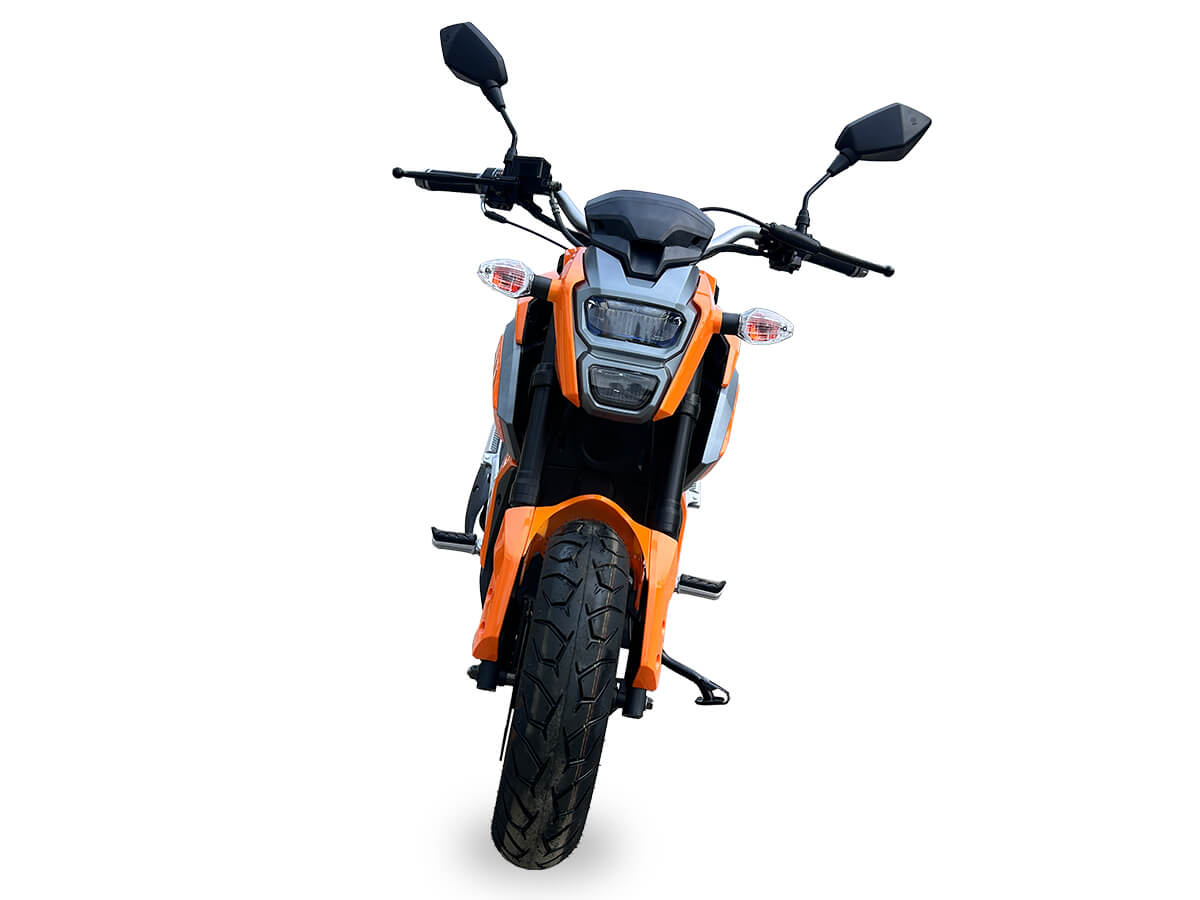

MINI MAX 150(PMZ150-M1)

CARB approved 150cc engine, fully automatic, 12" aluminum wheels, front disc/ rear drum brake. inverted forks. led lights, digital speedometer

Specifications MSRP $1800.00

*Prices do not include destination or dealer setup fees


Engine 150cc, 157QMJ, Xinba
Transmission Automatic
Drive type Belt
Belt and/or chain size Belt: 842*20*30
Starter System Electric /kick
Fuel system Gasoline, 1.4gal, carbureted
Brakes (Front/Rear) Disc / Drum
Tire size(Front/Rear) 120/70-12
Wheel size and type(Front/Rear) 12, Alunimum
Oil capacity and type (in liters) 0.8L, 10w40 aircooled engine oil (non-synthetic)
Gear oil type and capacity( in liters) GL-3, 0.25L
Battery 12V/9Ah
Lights Headlight and tail light are Led. Turn lights are standard.
Suspension(Front/Rear) Trailing link coilover shocks / single shock
Dimensions(in inches) Assembled(LxWxH): 70x30.7x37, crated(LxWxH): 65.7x22.4x32.2, seat height 31.9, wheelbase: 50.4
Weight 320 lbs
Weight capacity 220 lbs
Ground clearance (in inches) 3.9
Assembly required Front wheel, handlebars, mirrors, battery,rear shock
Special features Include: speedometer, horn, odometer, mirrors
EPA approved EPA approved, CARB exempt
Colors

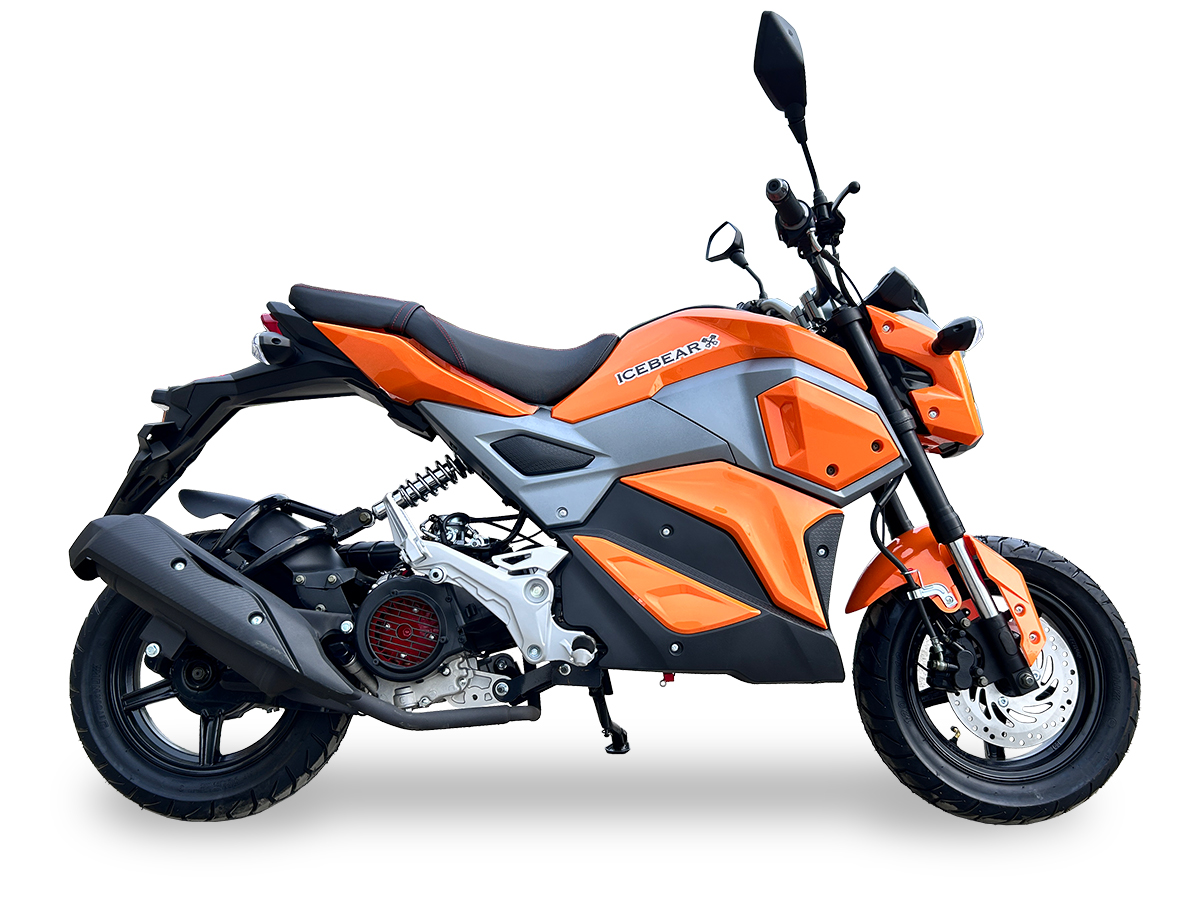

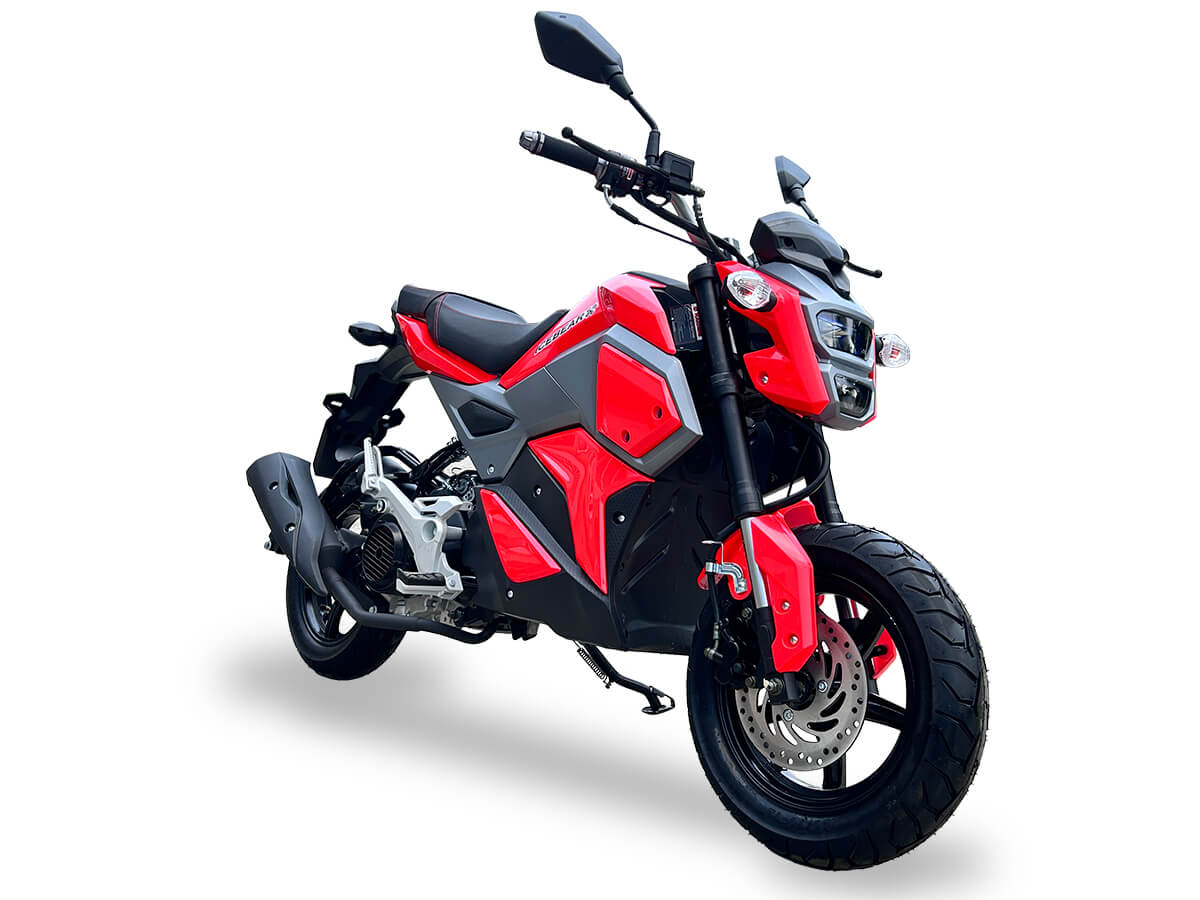

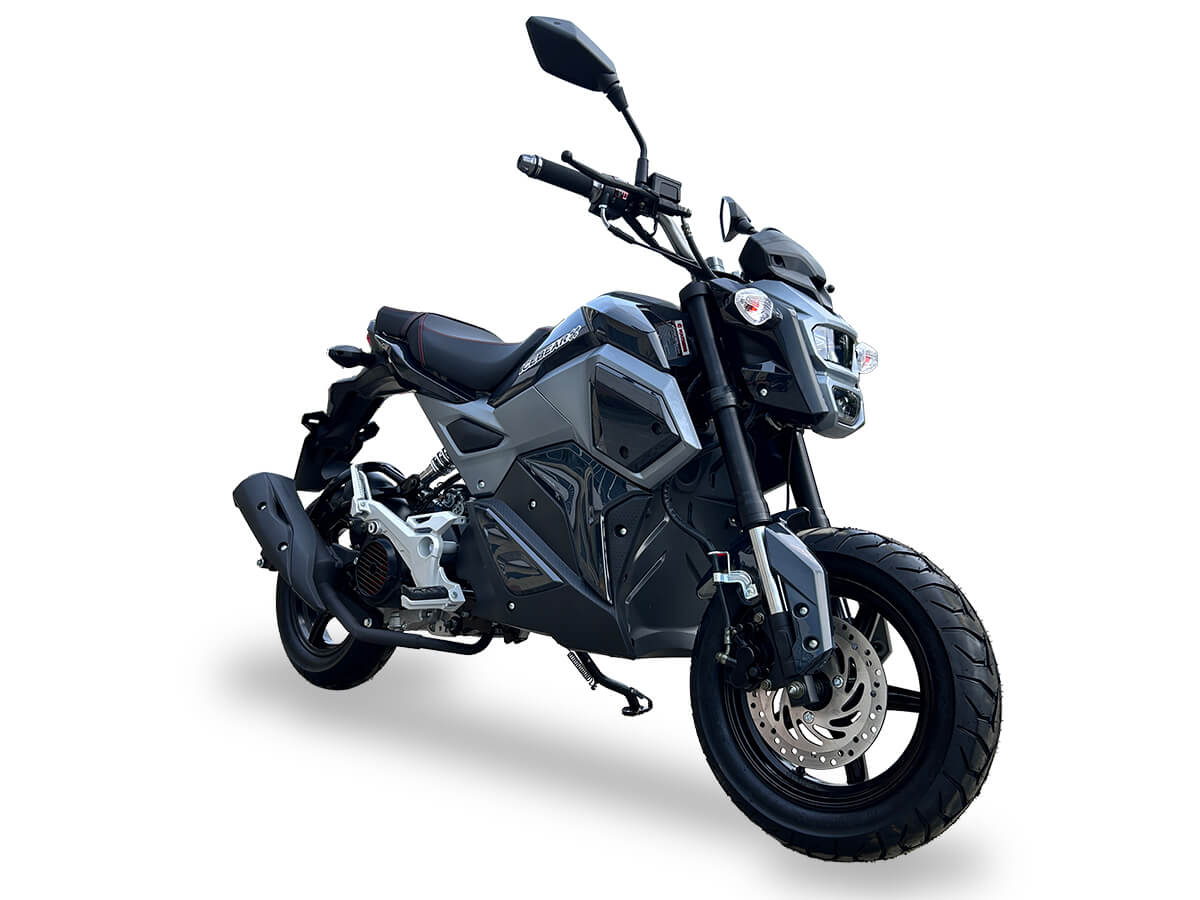

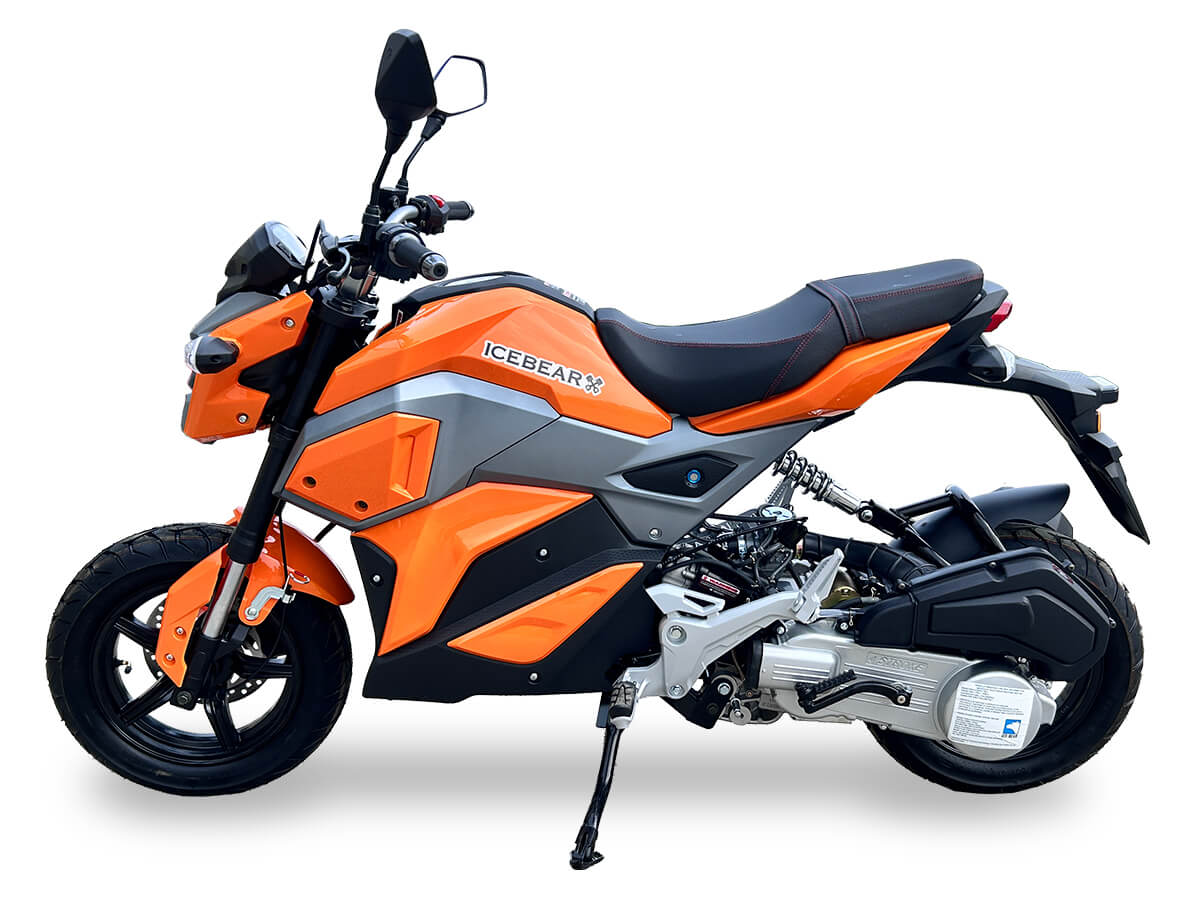

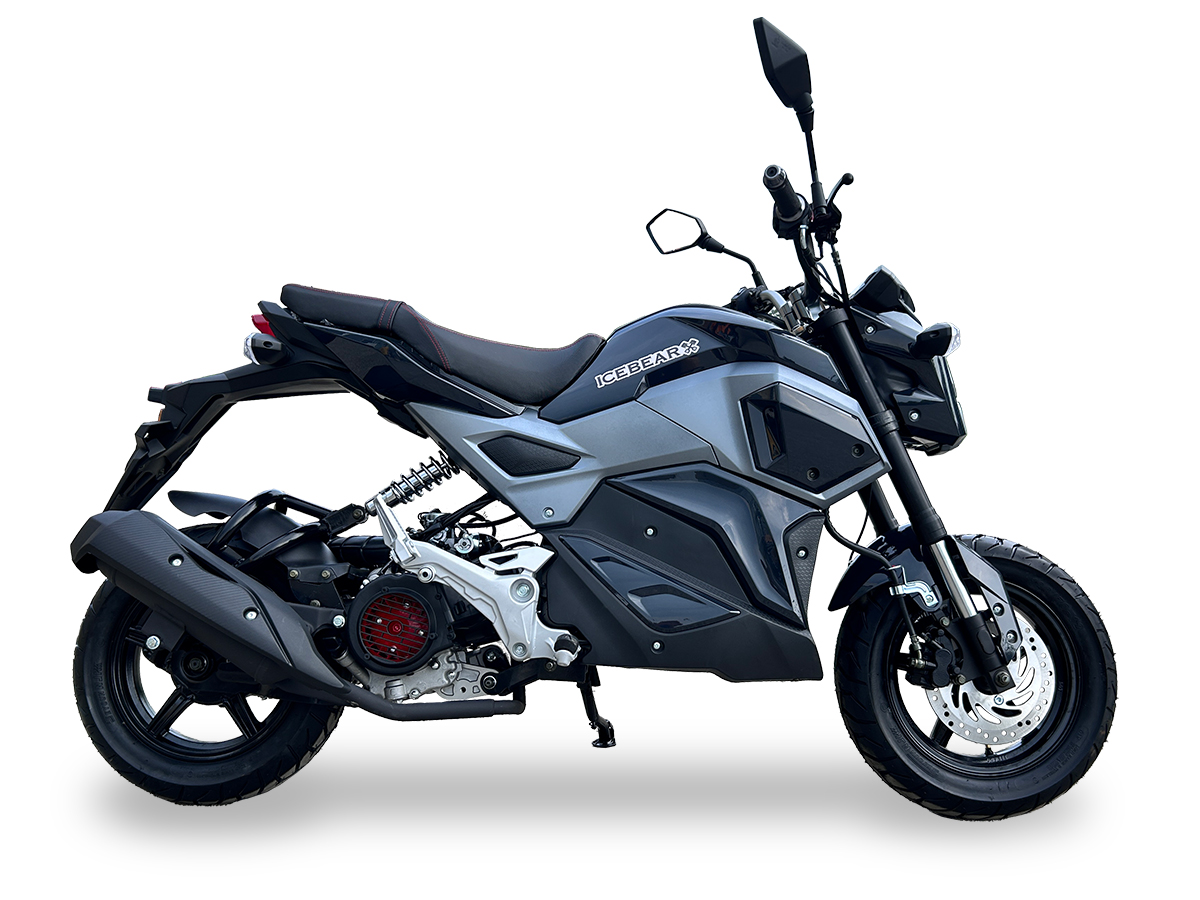

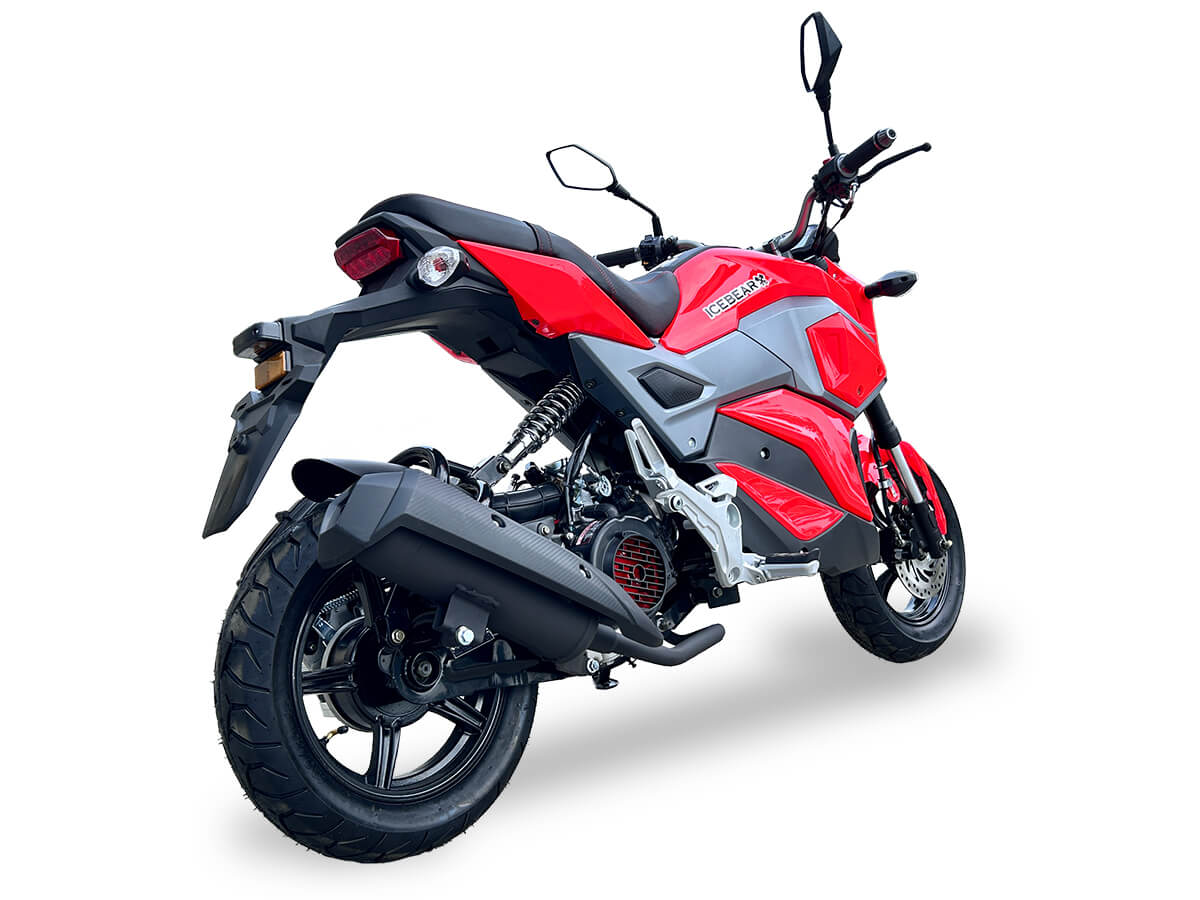

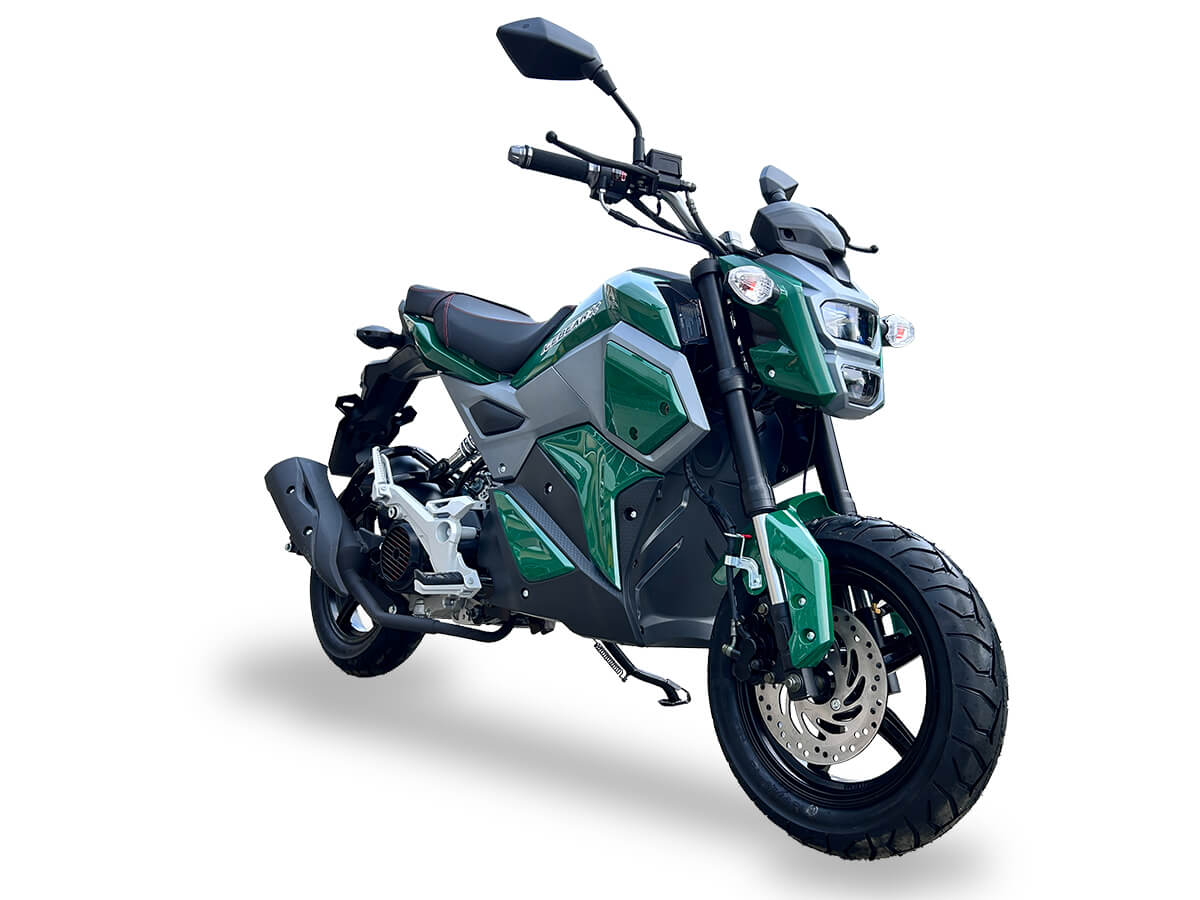

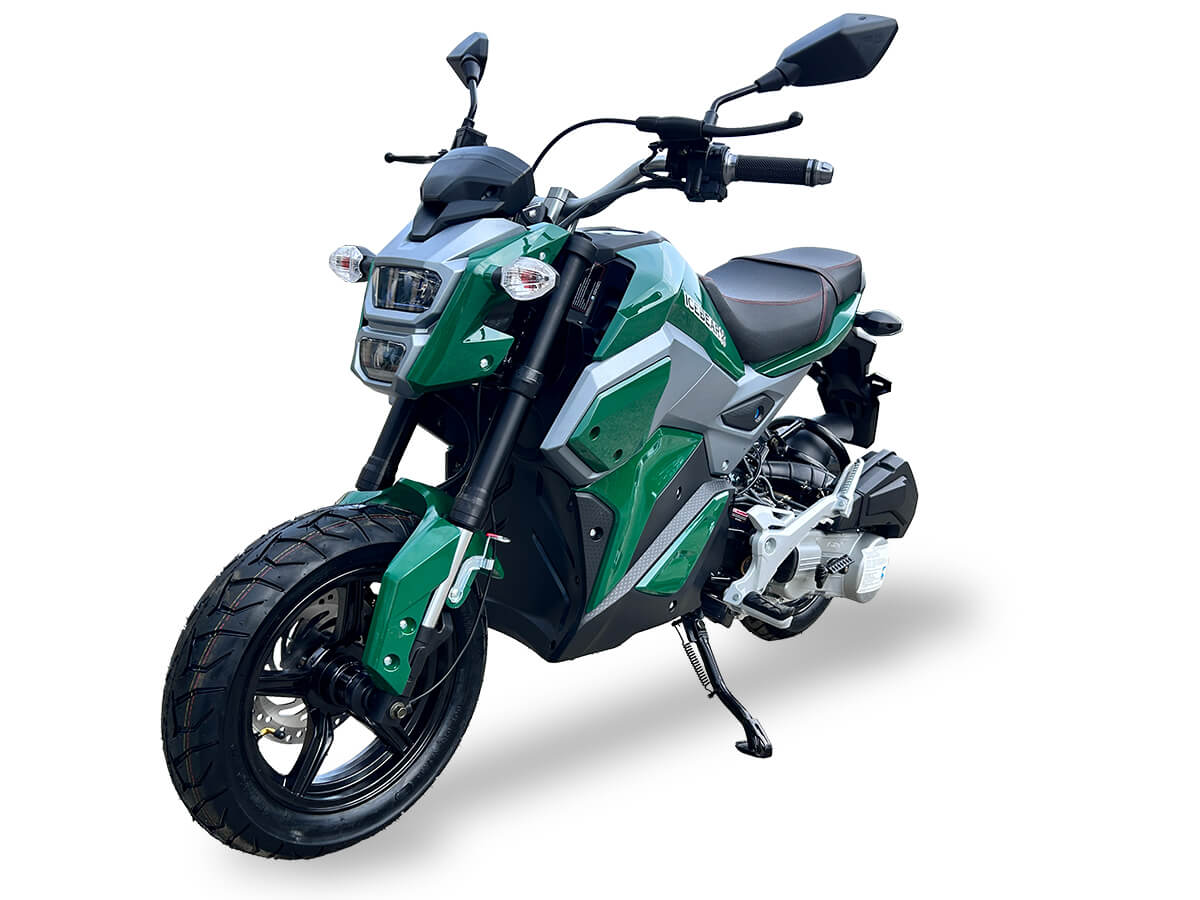

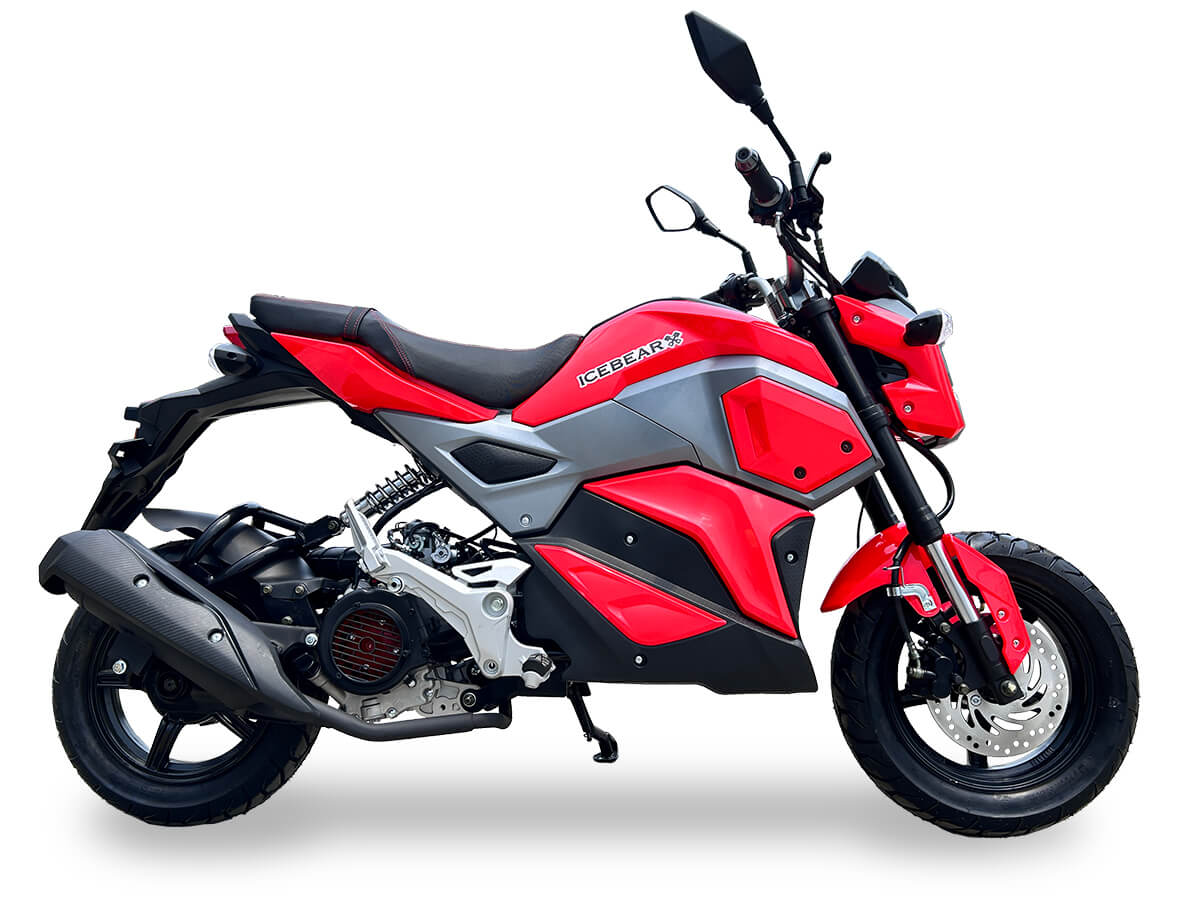

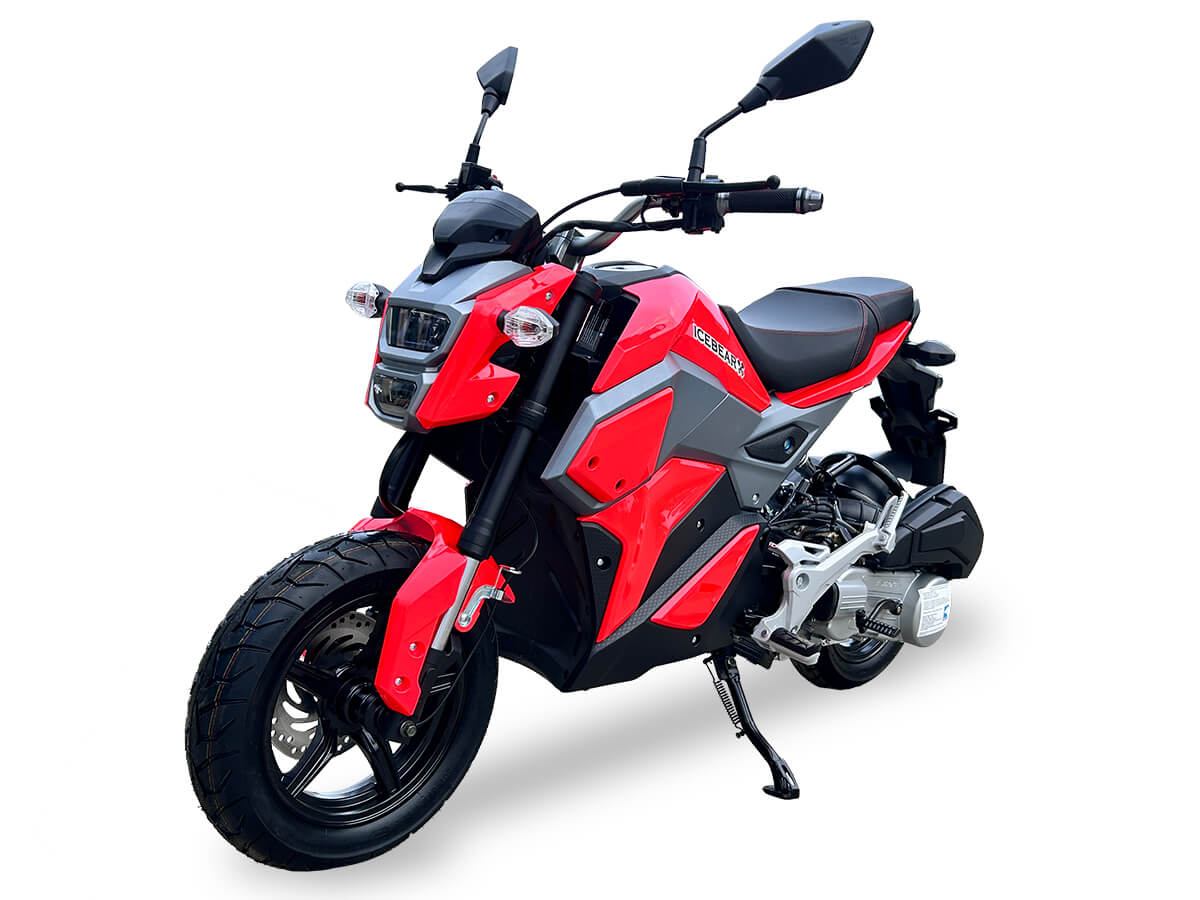

Meatllic Dark  Teal Meatllic Charcoal Grey Metallic Orange Metallic Red

Click the icon to see all the parts for this model
