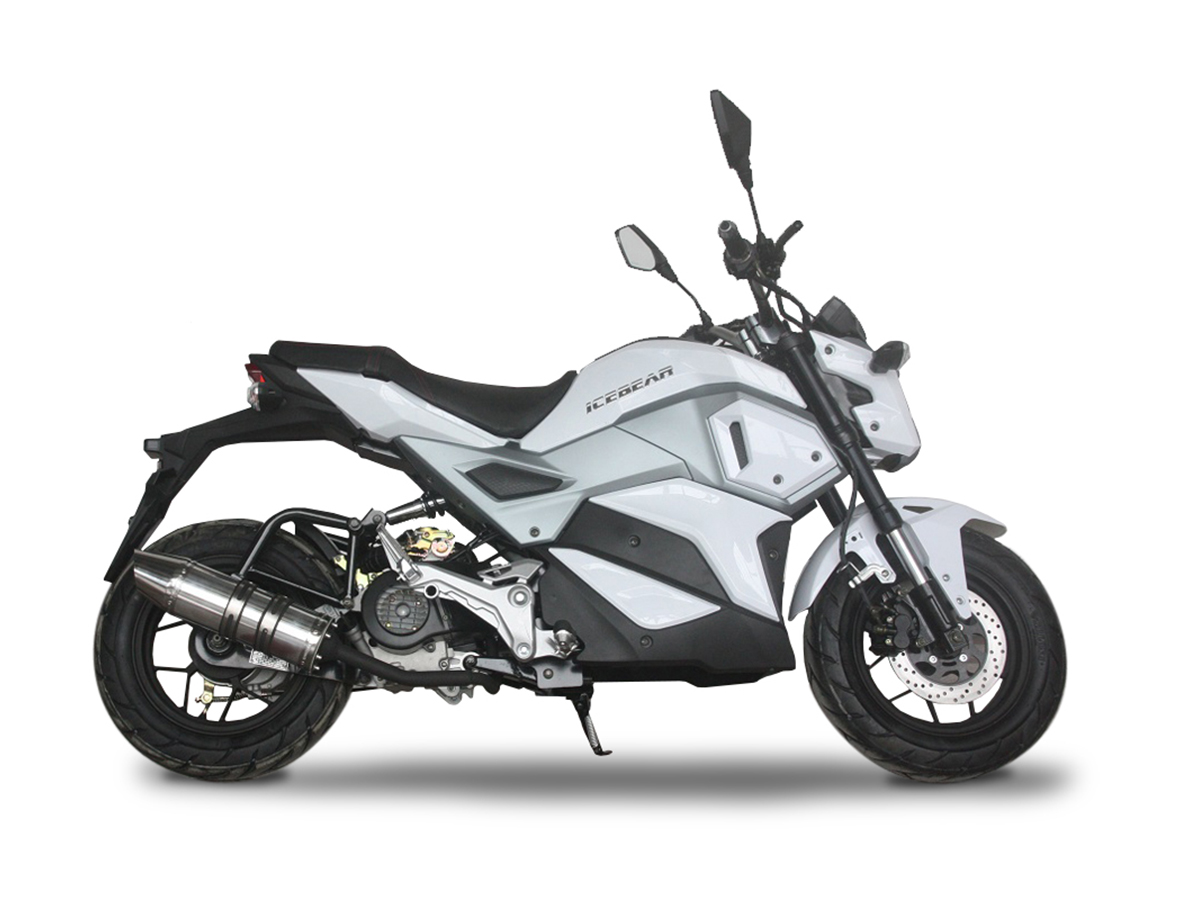

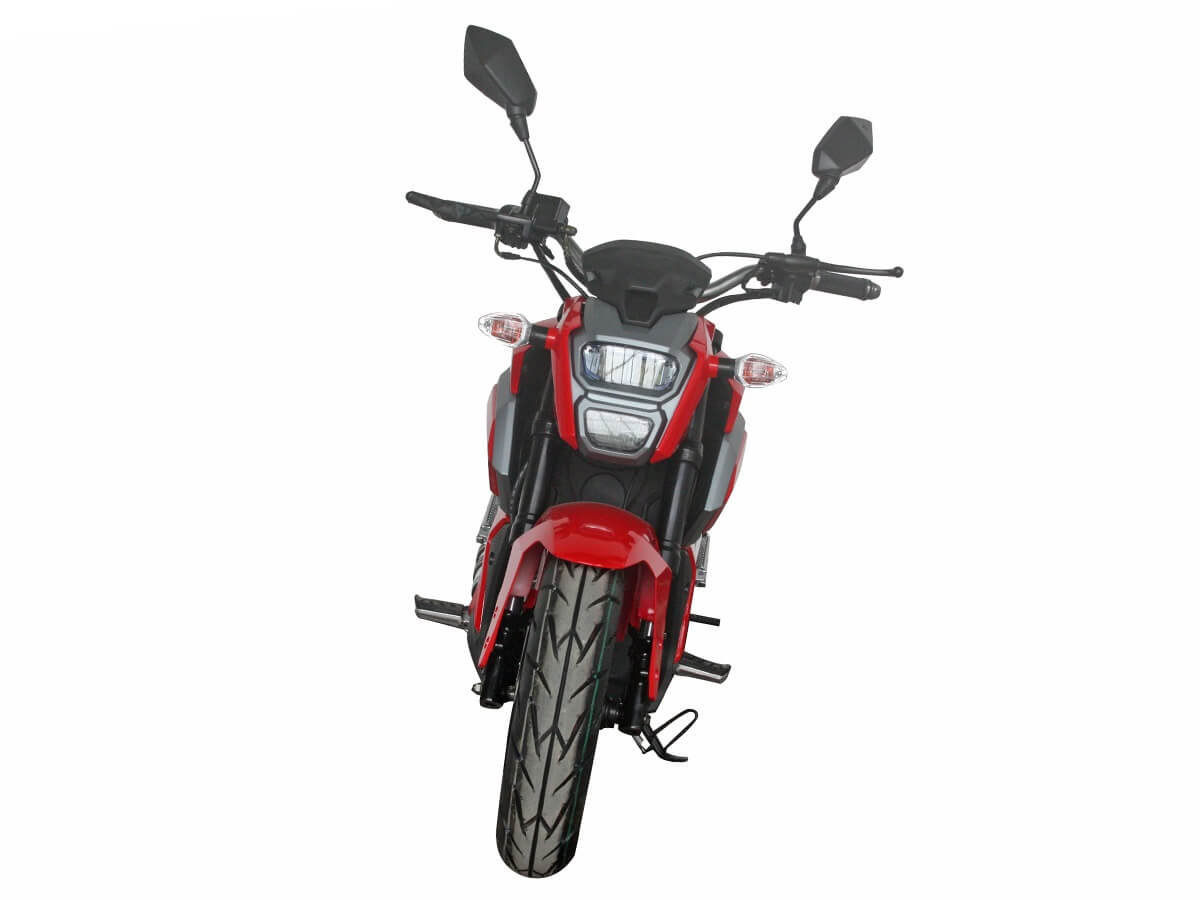

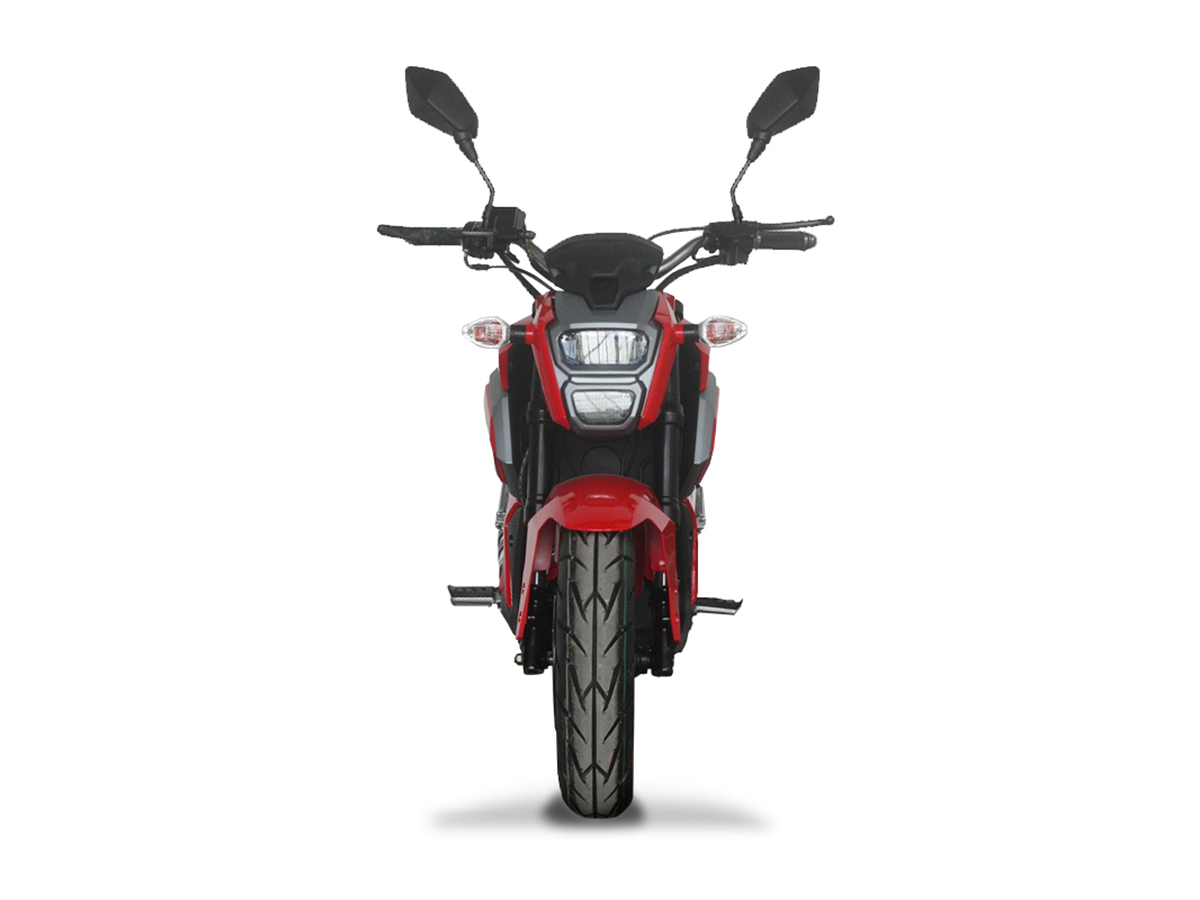

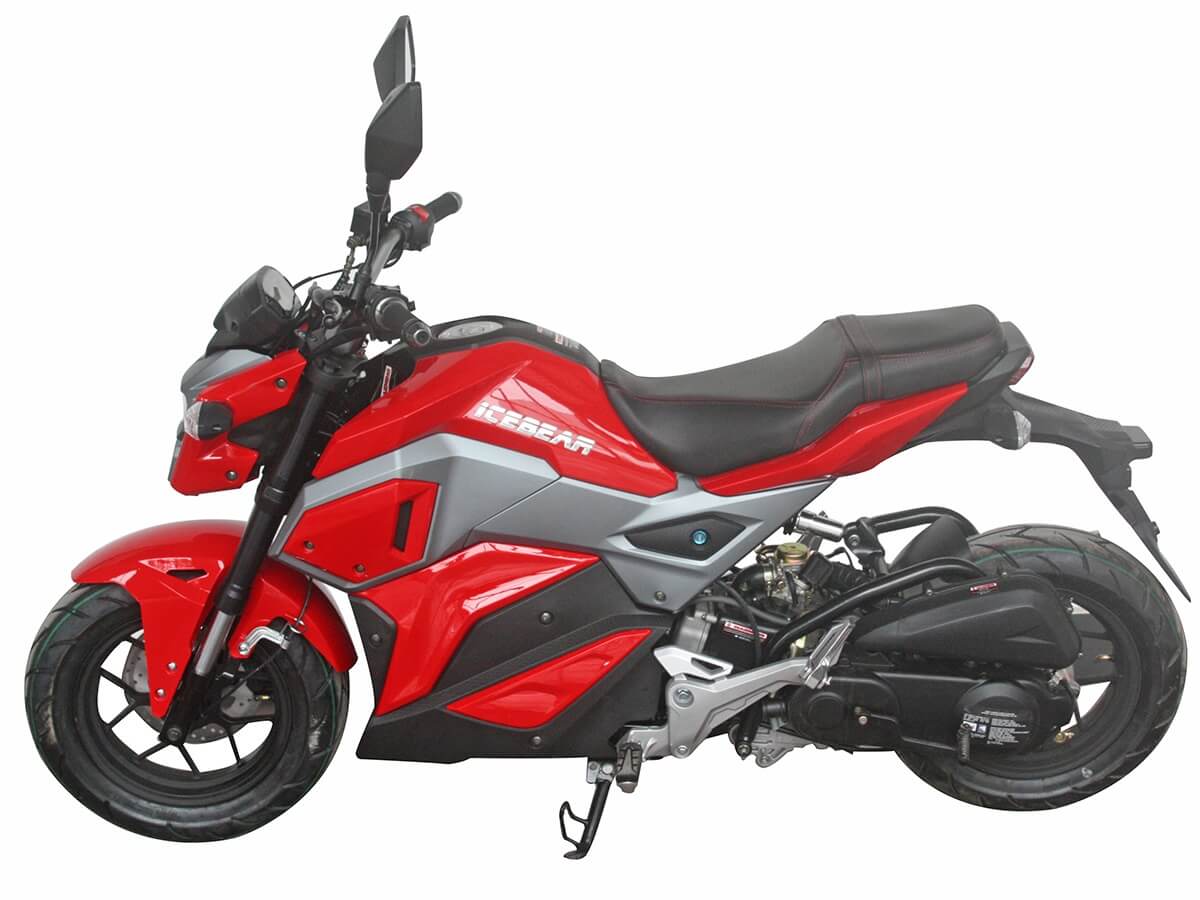

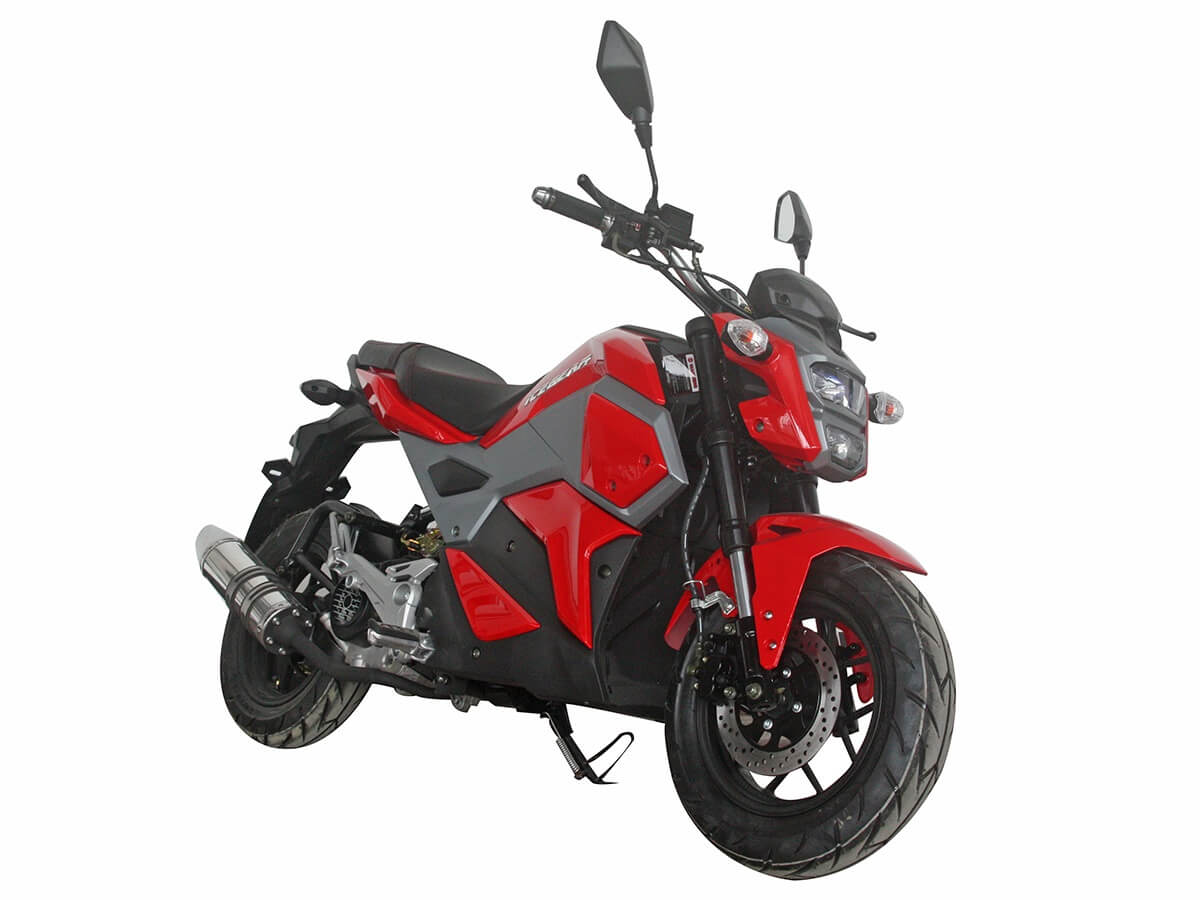

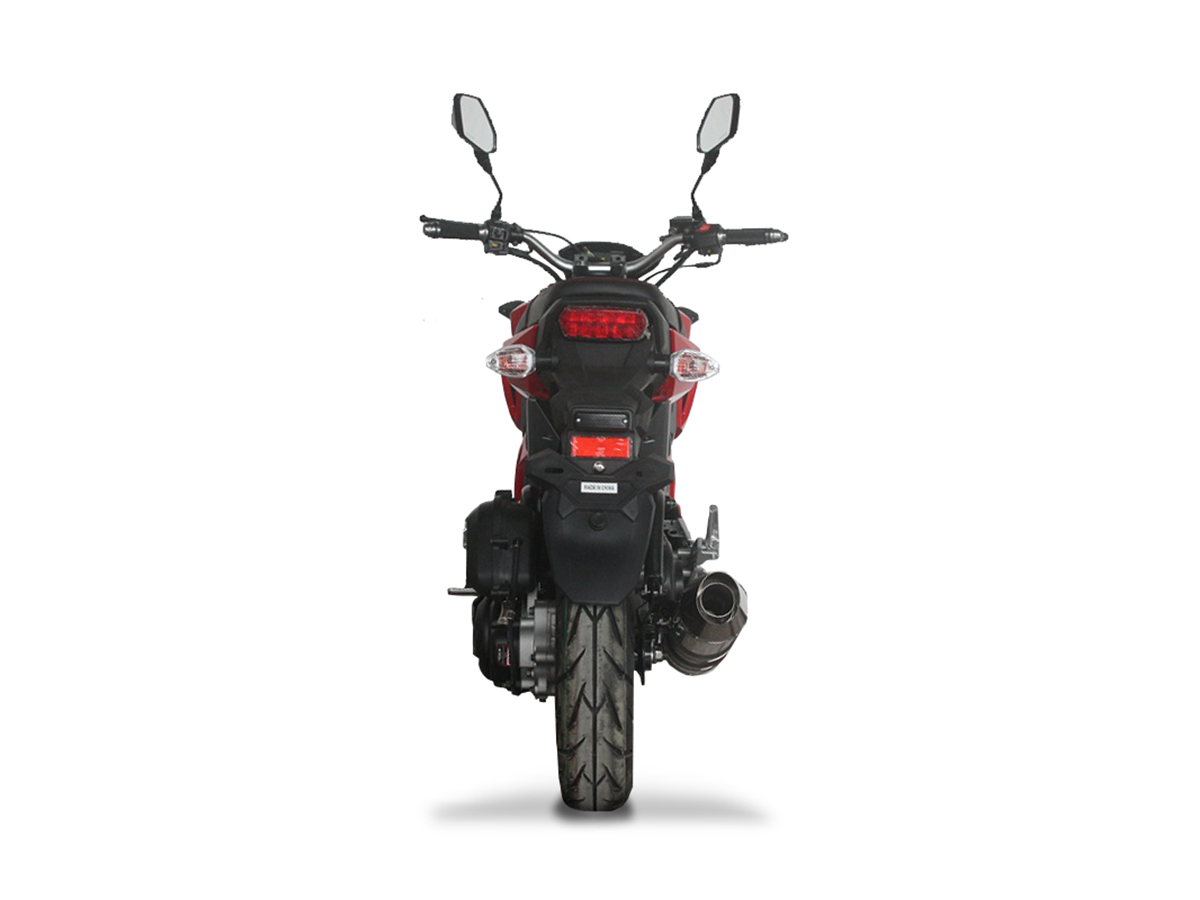

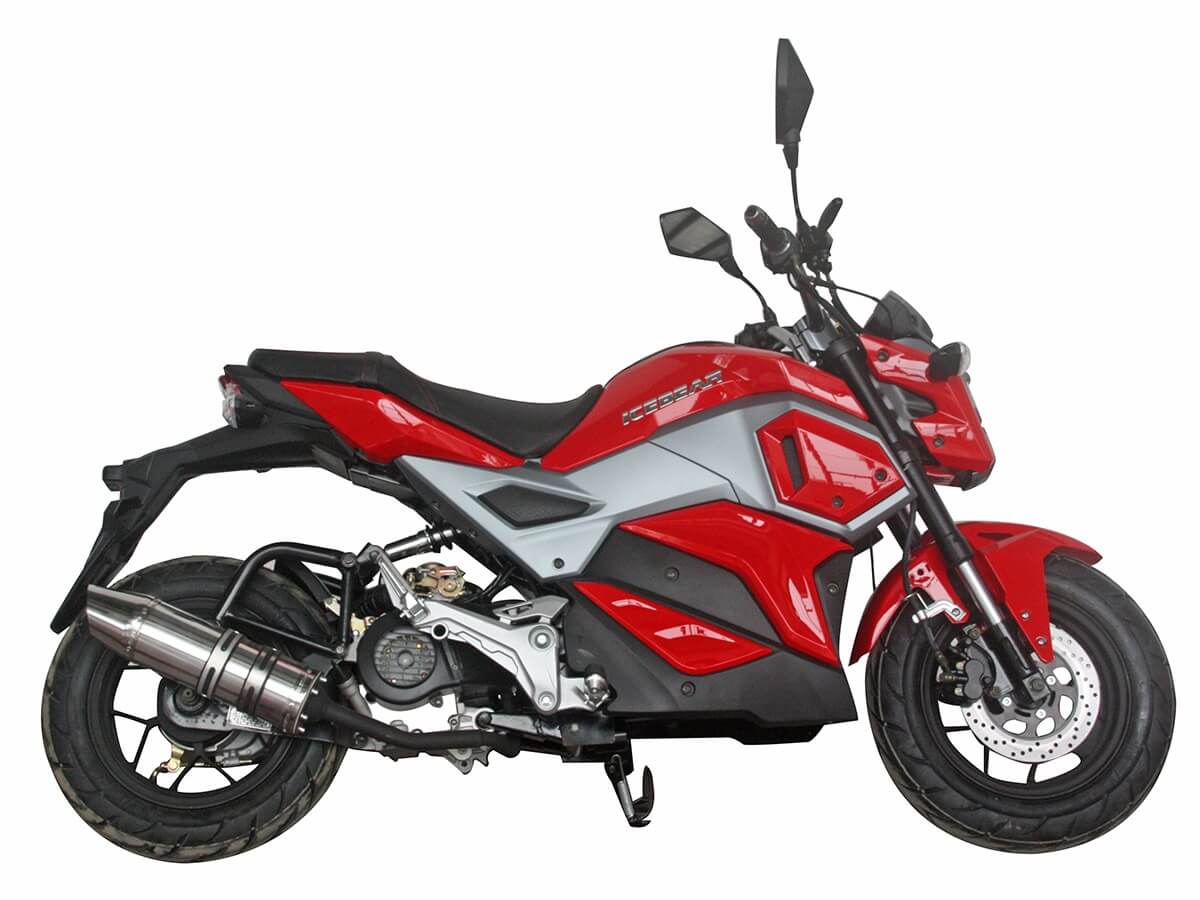

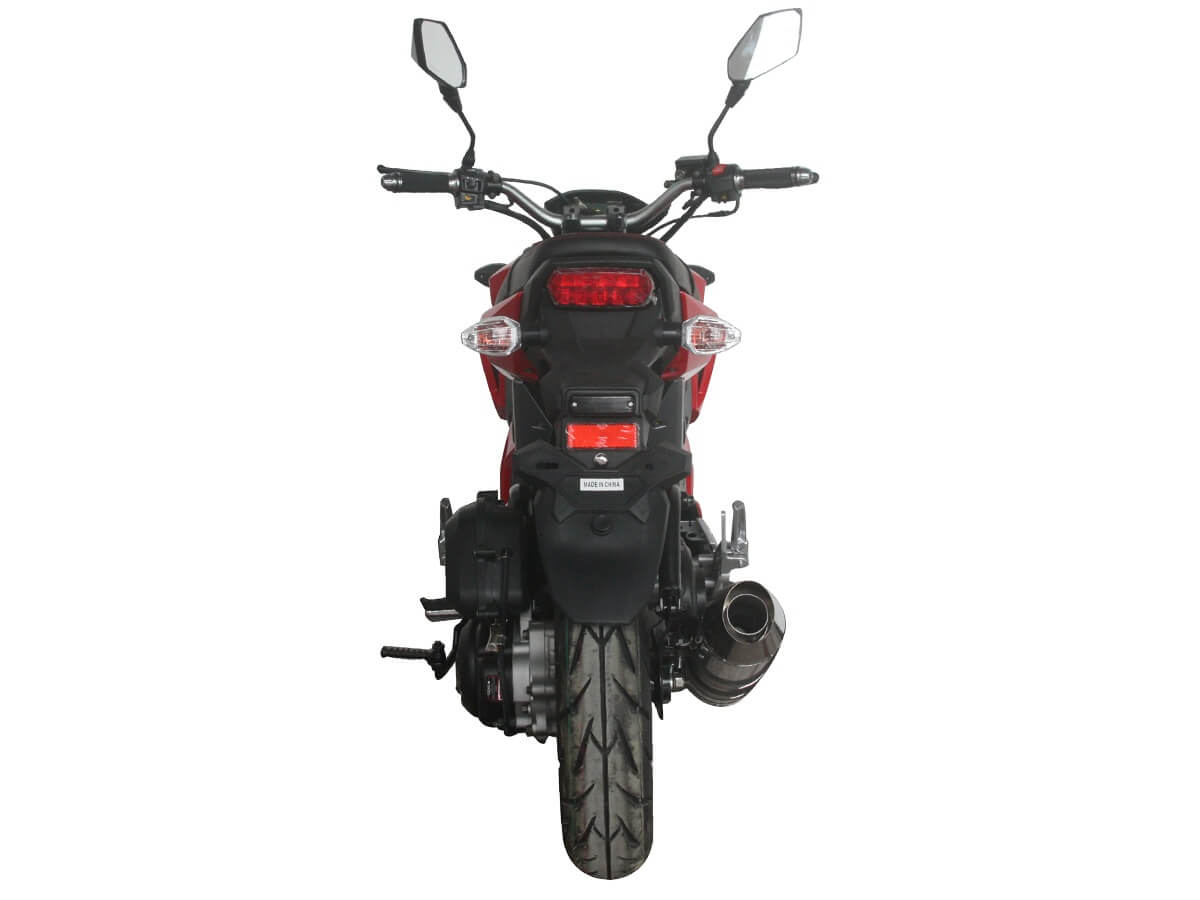

MINI MAX 50(PMZ50-M1)
Extended frame motorcycle, 50cc air cooled 4-stroke engine, automatic trans-mission, 12″ aluminum wheels, front disc/rear drum brakes.
Specifications
MSRP $1800.00
*Prices do not include destination or dealer setup fees
| Engine | 50cc, 139QMB, Xinba |
| Transmission | Automatic |
| Drive type | Belt |
| Belt and/or chain size | Belt: 729*18*30 |
| Starter System | Electric /kick |
| Fuel system | Gasoline, 1.4gal, carbureted |
| Brakes (Front/Rear) | Disc / Drum |
| Tire size(Front/Rear) | 120/70-12 |
| Wheel size and type(Front/Rear) | 12, Alunimum |
| Oil capacity and type (in liters) | 0.8L, 10w40 aircooled engine oil (non-synthetic) |
| Gear oil type and capacity( in liters) | GL-3, 0.25L |
| Battery | 12V/7A |
| Lights | Headlight and tail light are Led. Turn lights are standard. |
| Suspension(Front/Rear) | Dual telescopic forks /single shock |
| Dimensions(in inches) | Assembled(LxWxH): 70.1x28.7x34.6, crated(LxWxH): 73.6x22.4x39.4, seat height:31.5, wheel base:50.8 |
| Weight | 265 lbs |
| Weight capacity | 198.4 lbs |
| Ground clearance (in inches) | 4.7 |
| Assembly required | Front wheel, front fender, handlebars, mirrors, battery |
| Special features | Include: speedometer, horn, odometer, mirrors |
| EPA approved | EPA approved, CARB exempt |

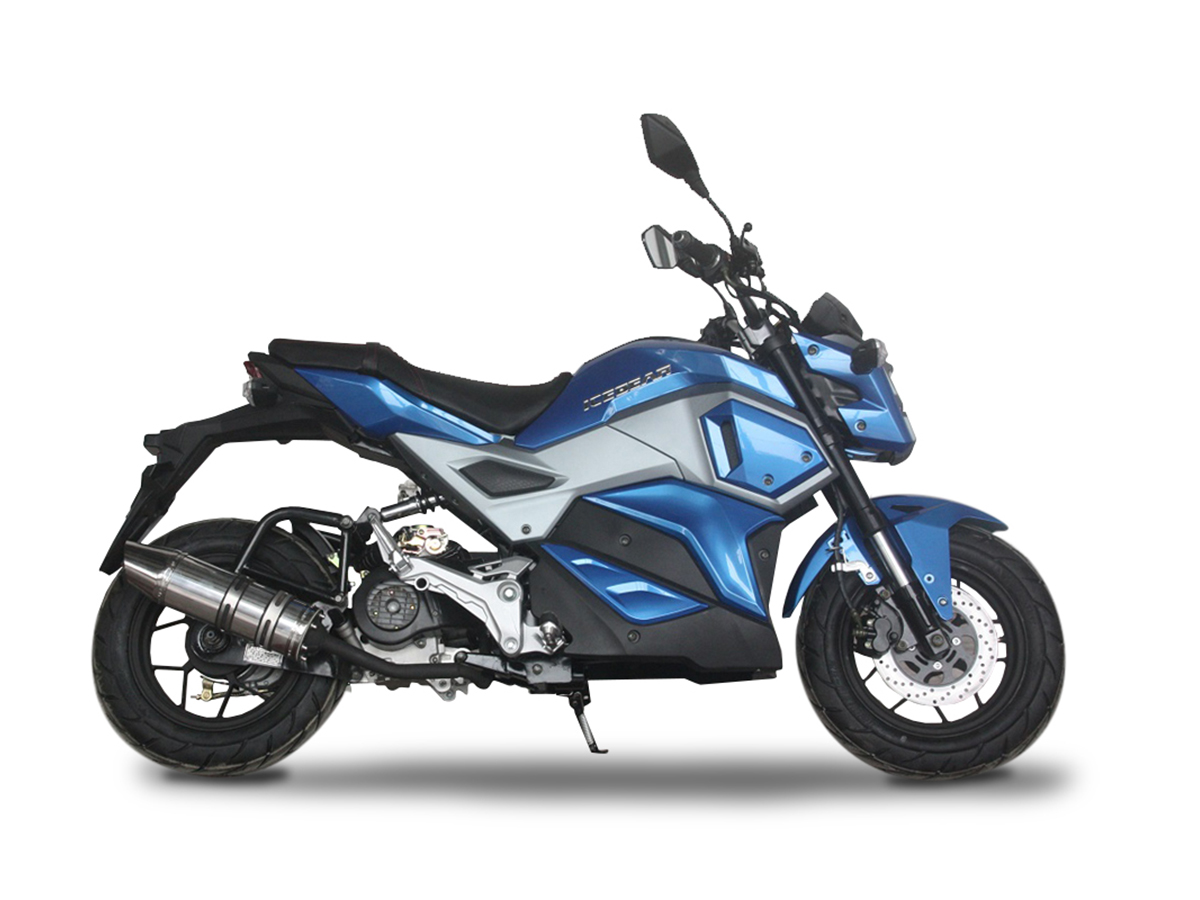

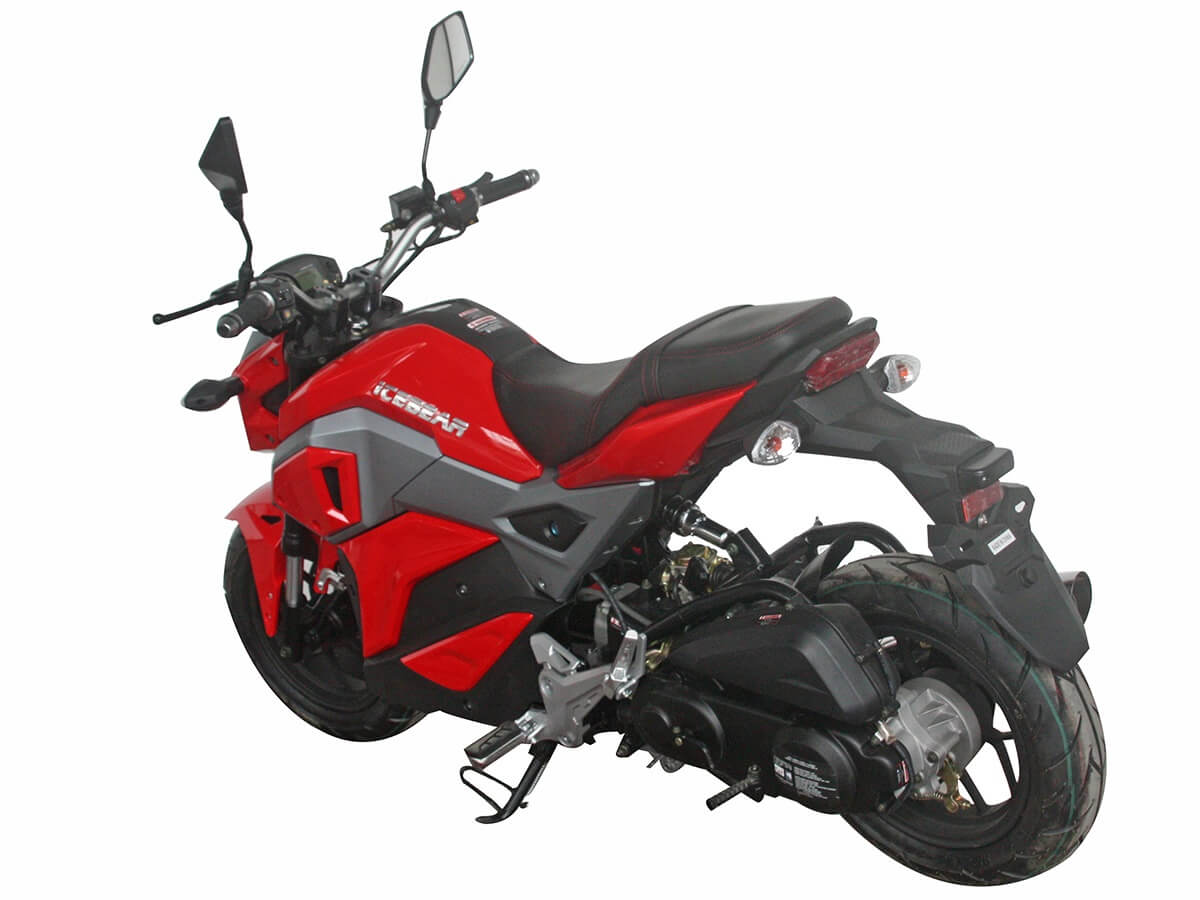

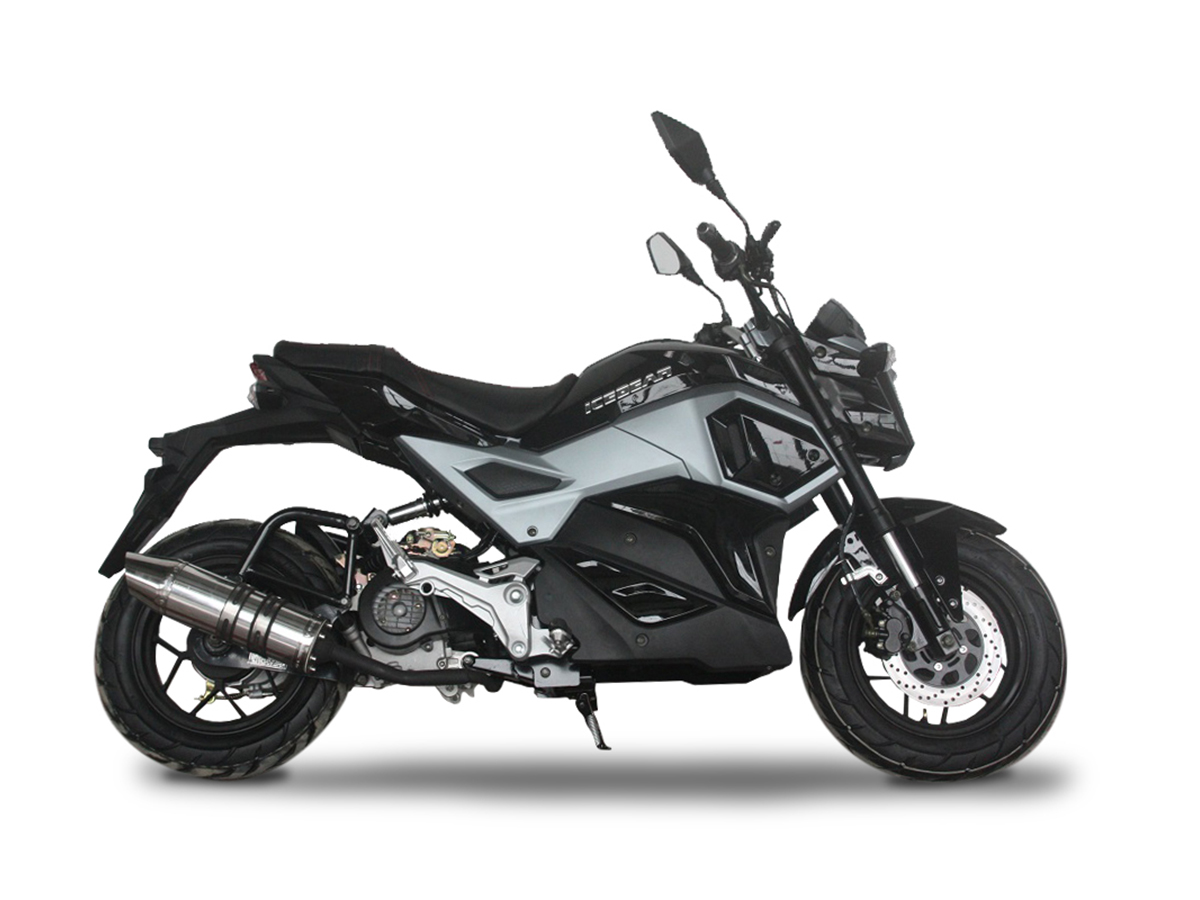

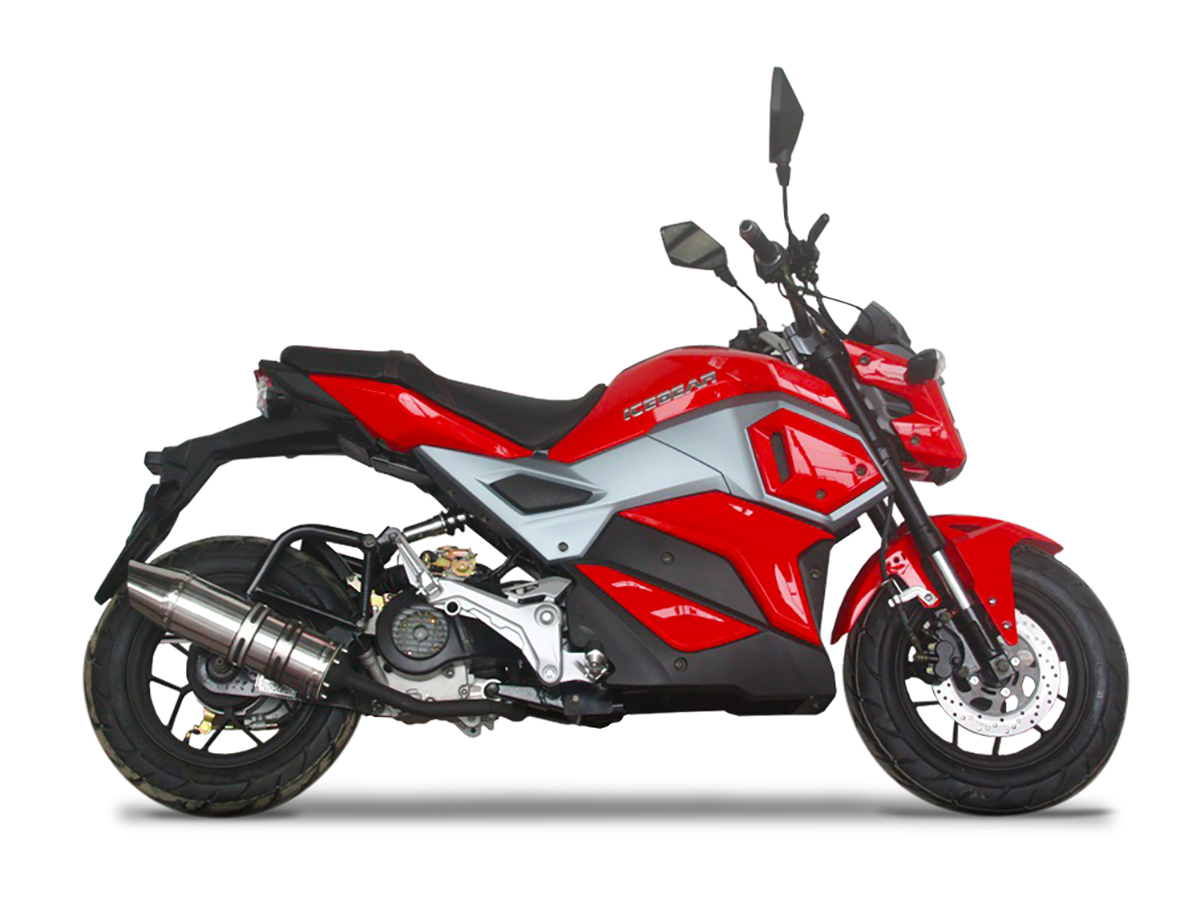

Colors
