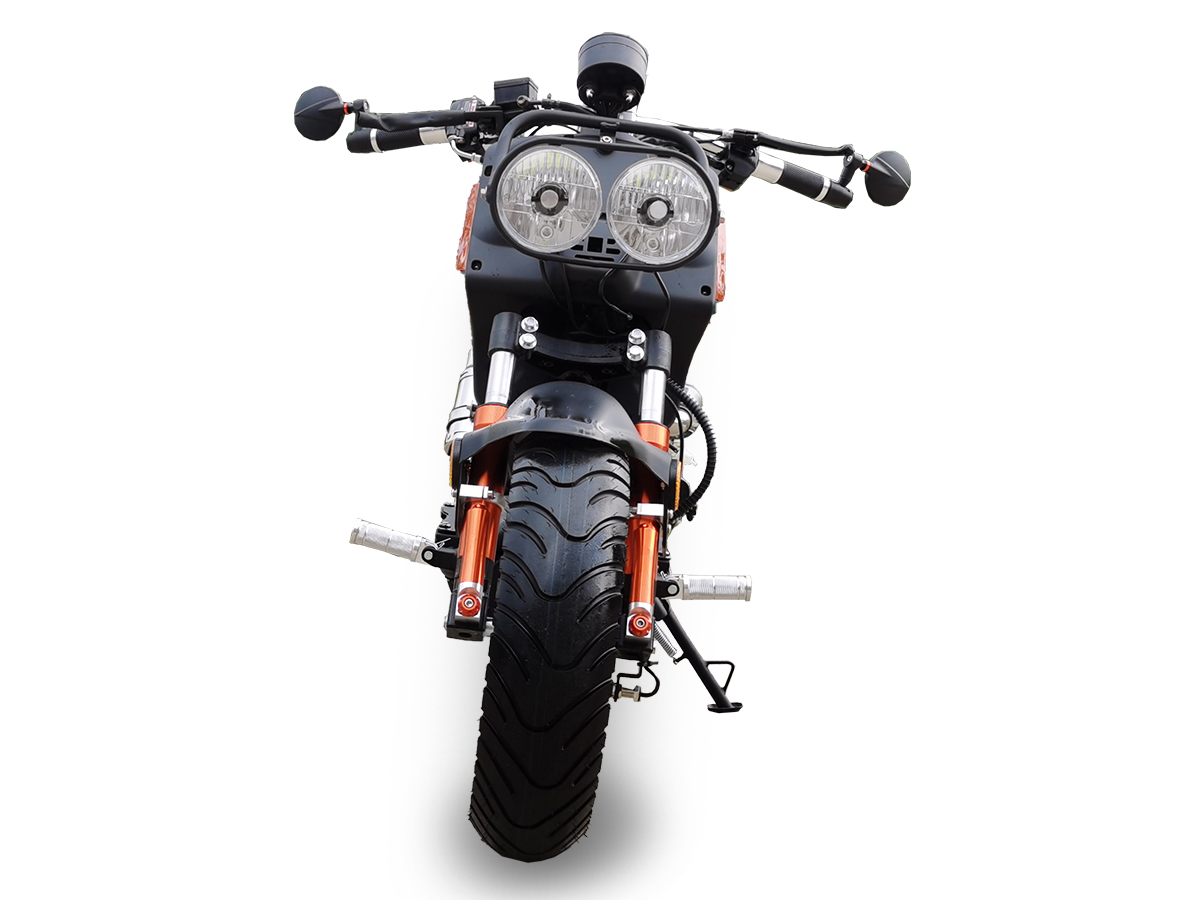

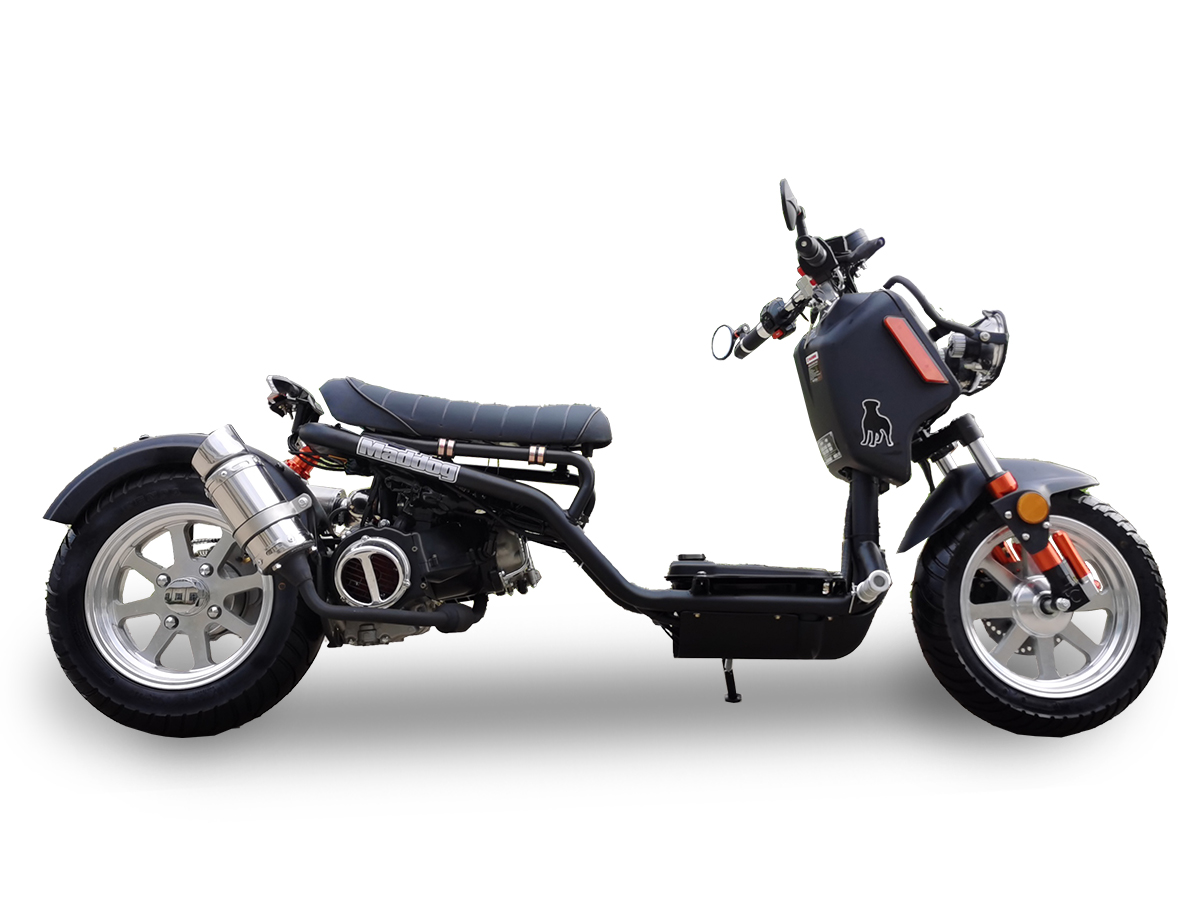

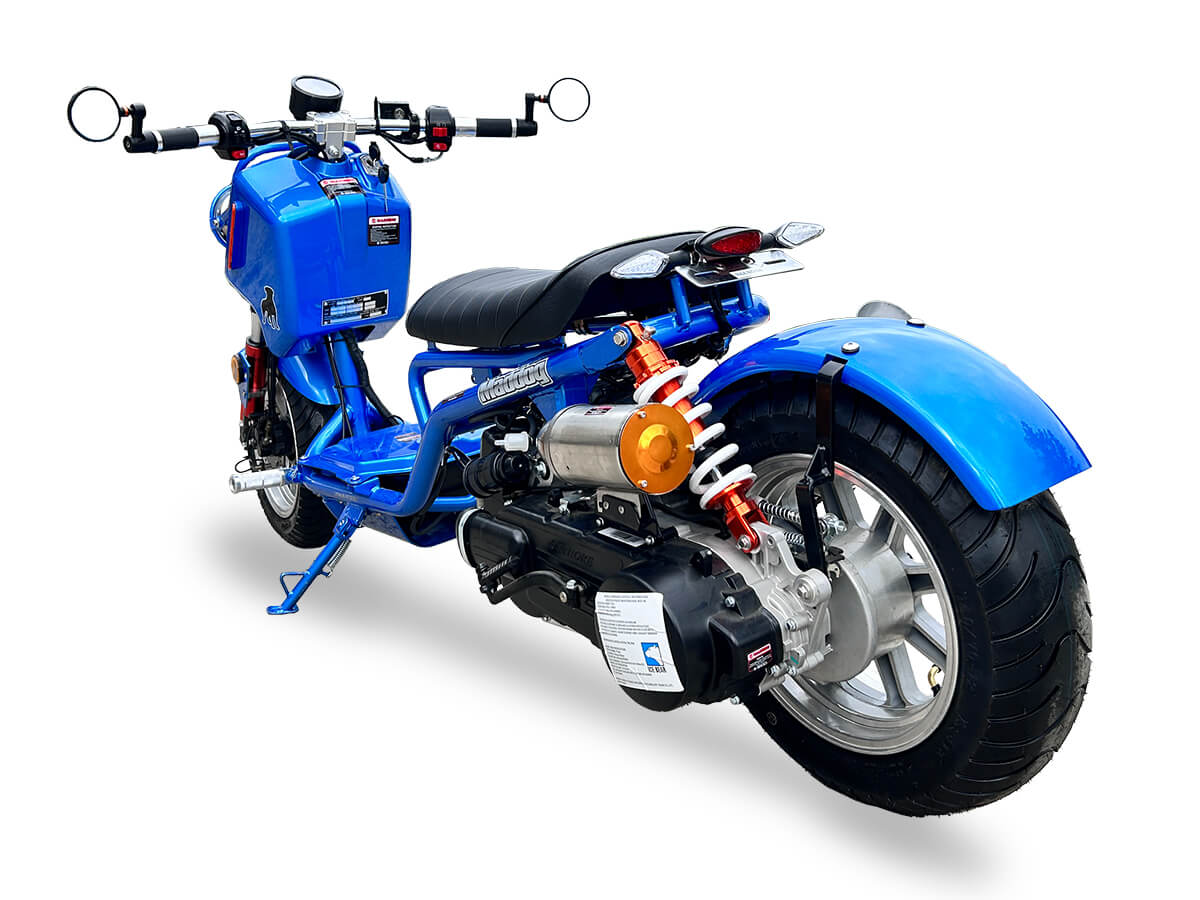

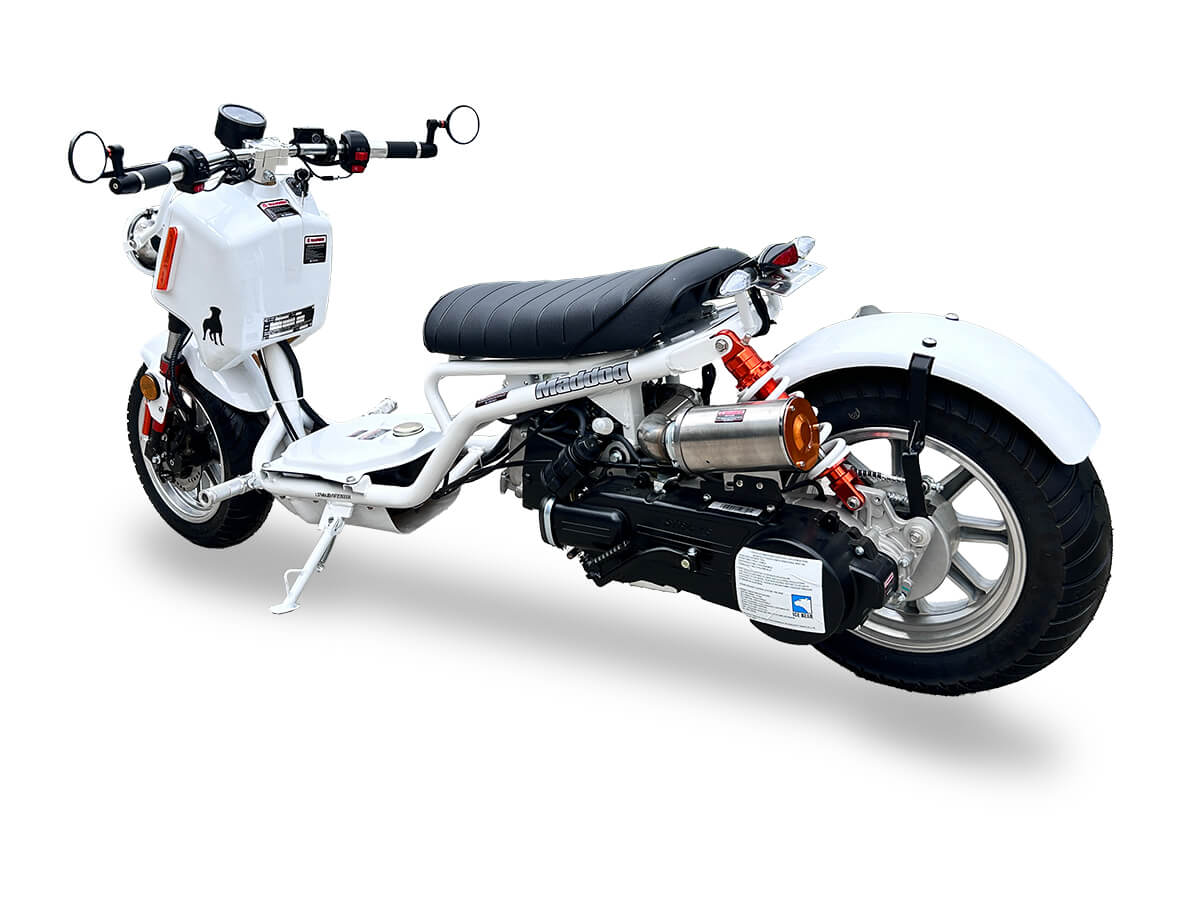

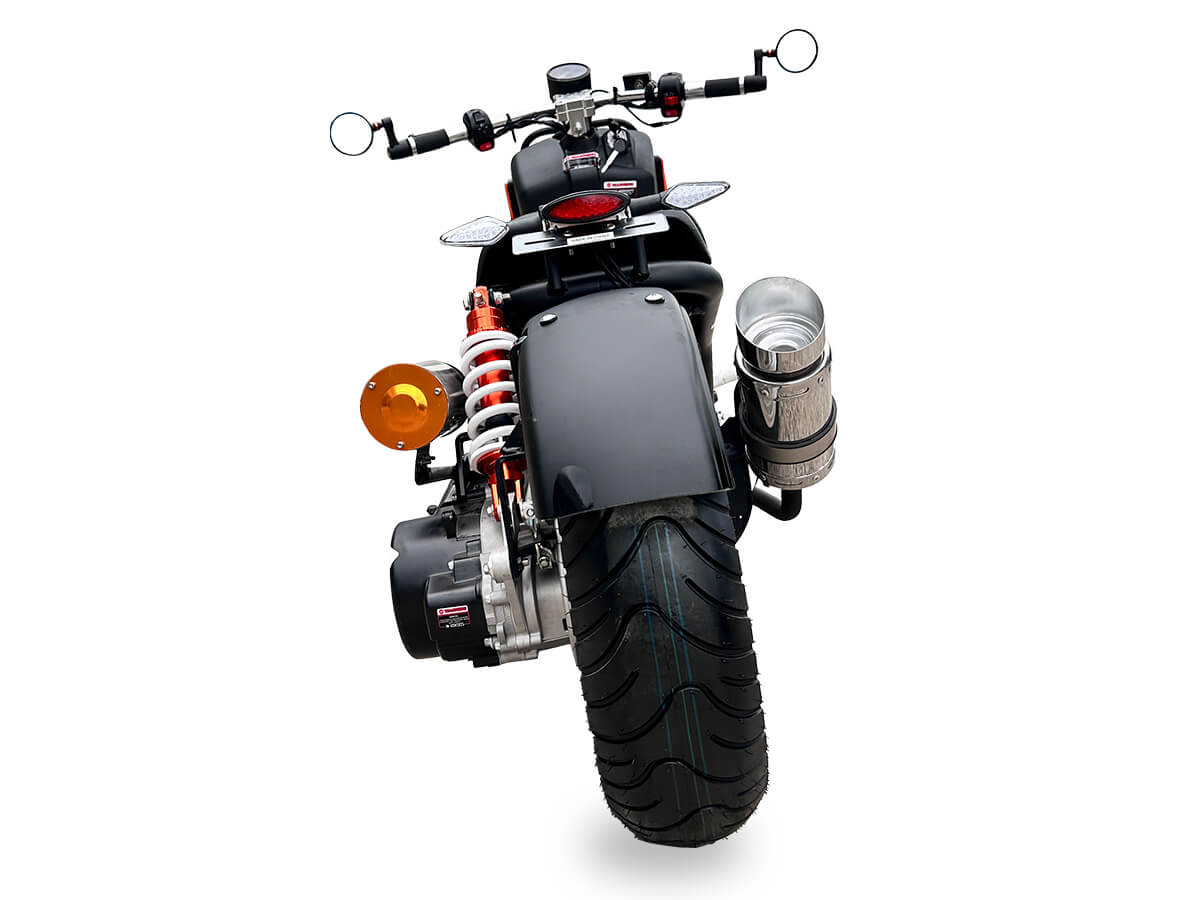

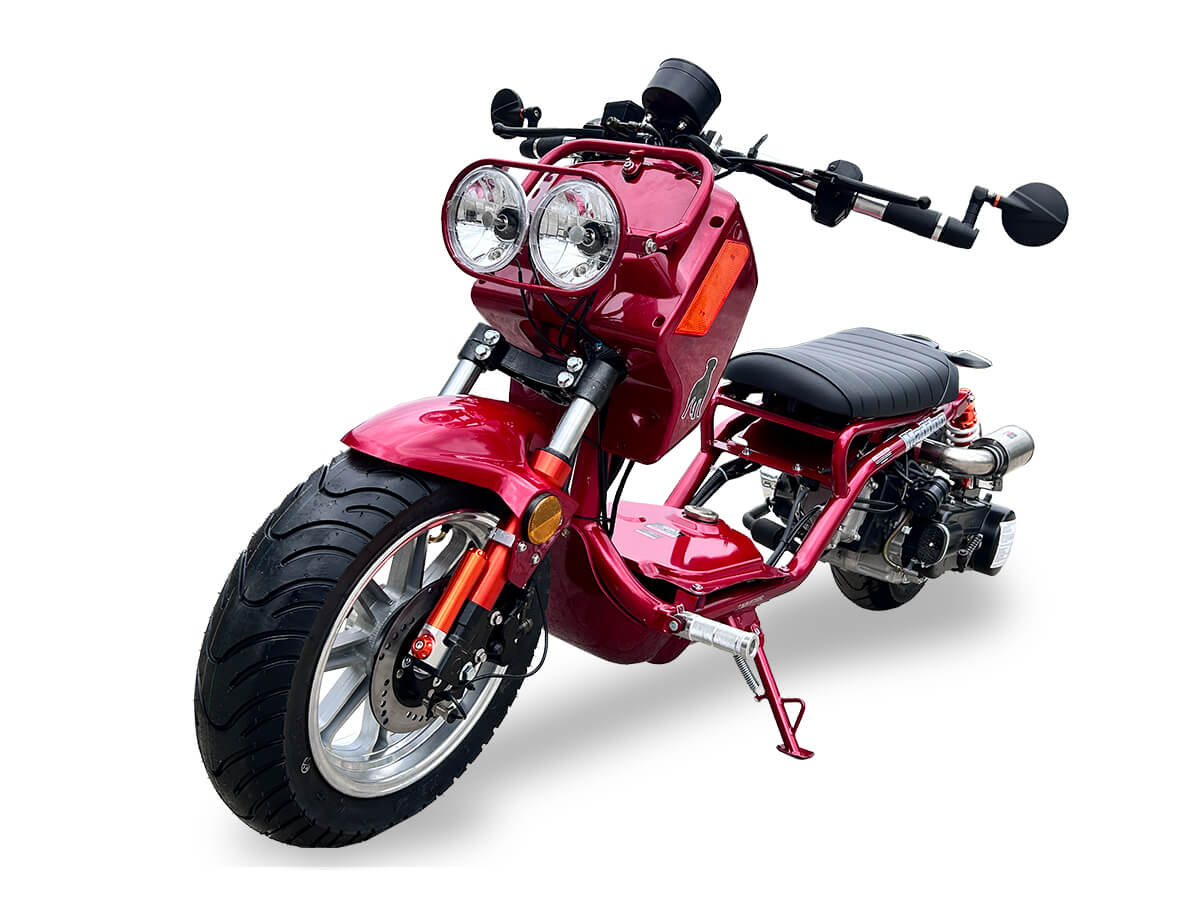

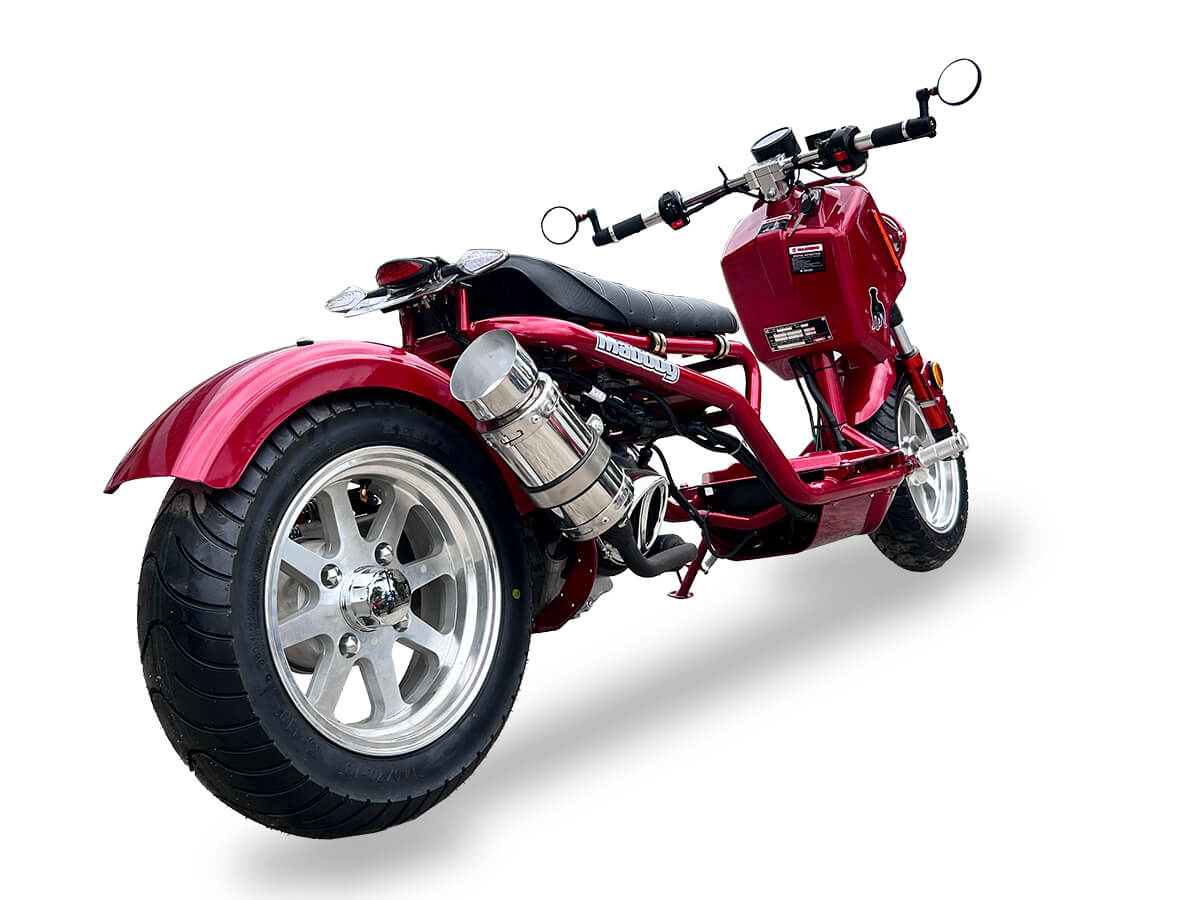

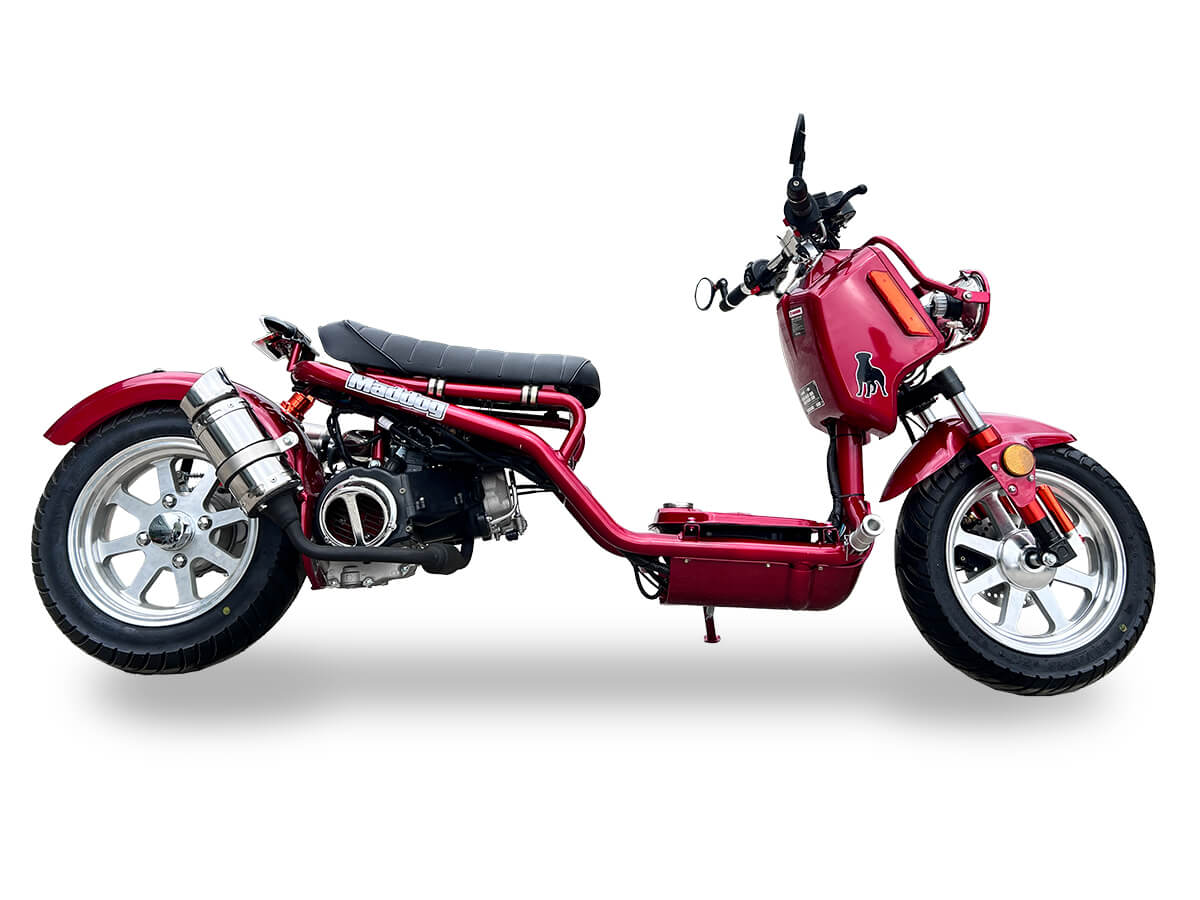

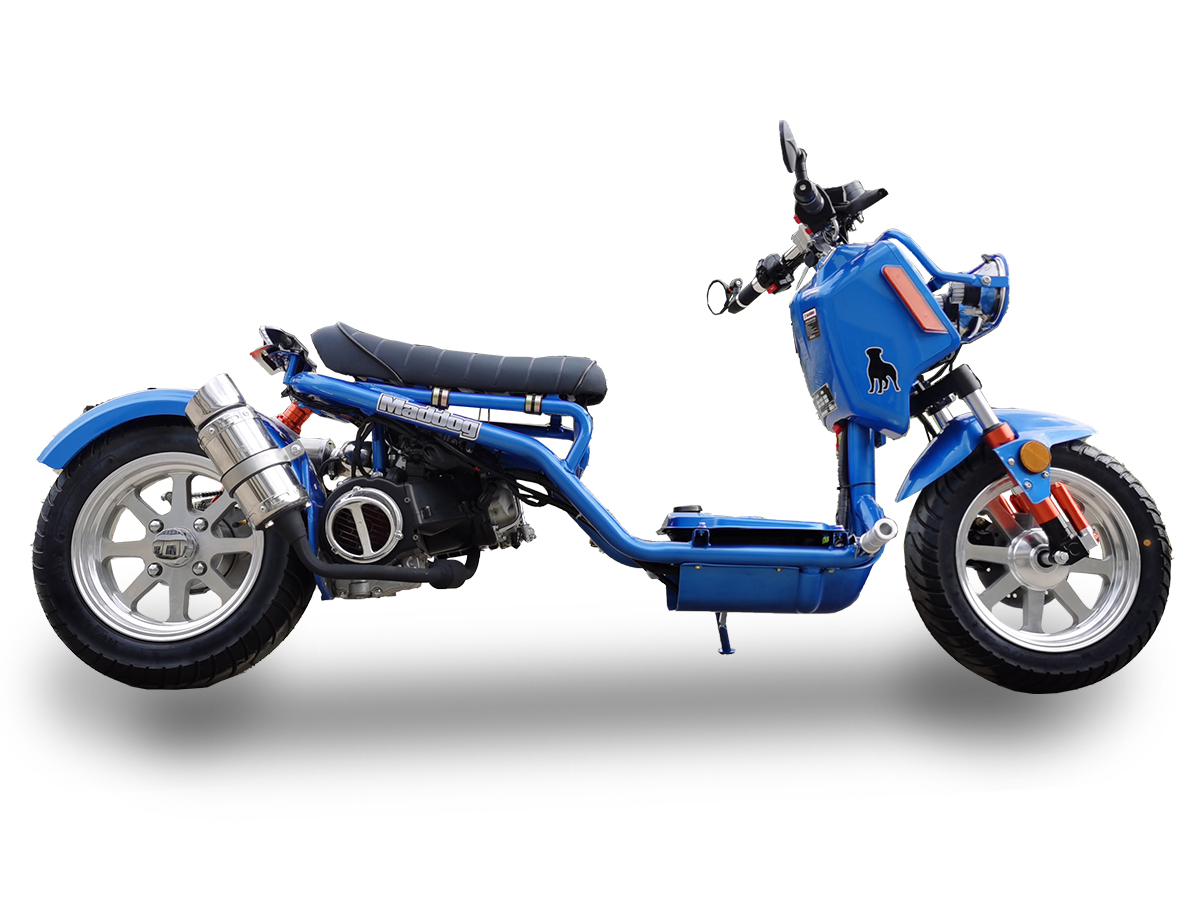

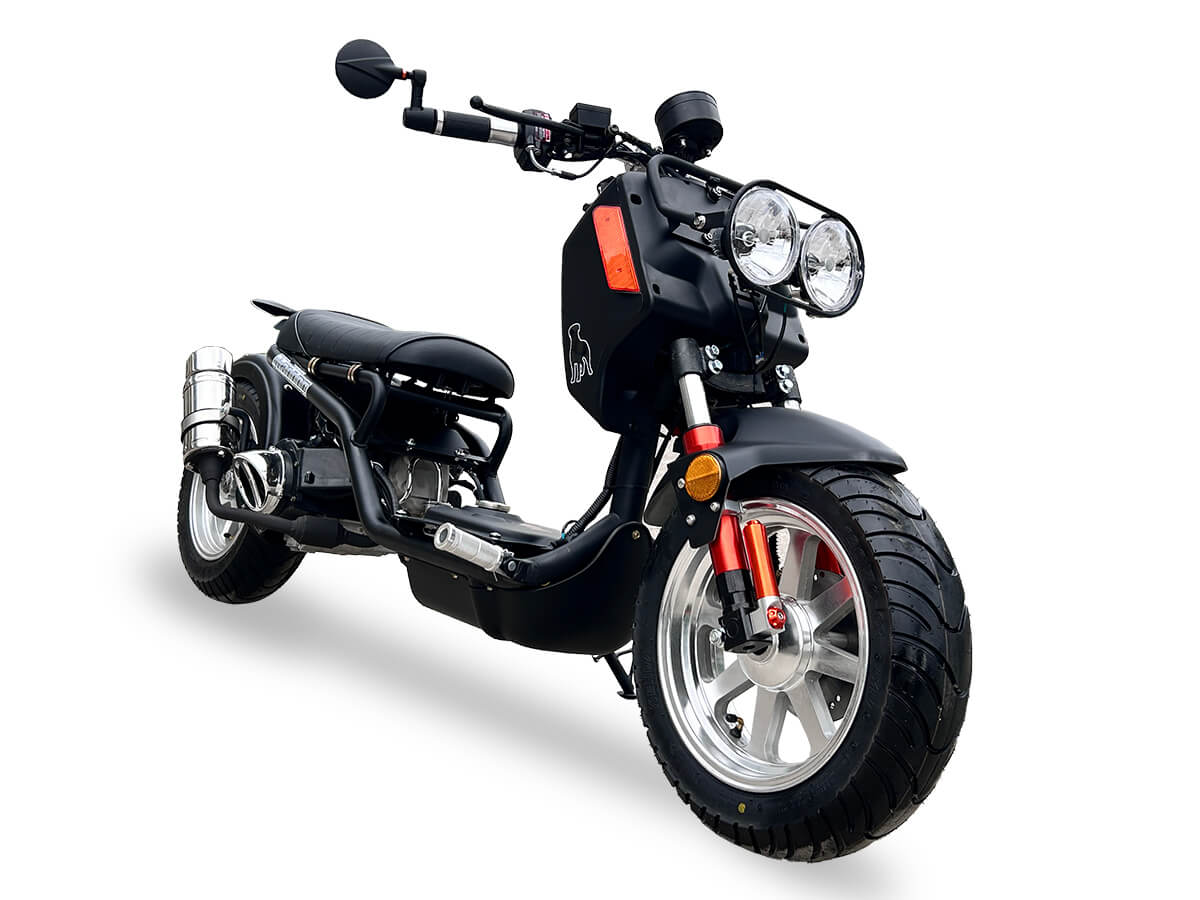

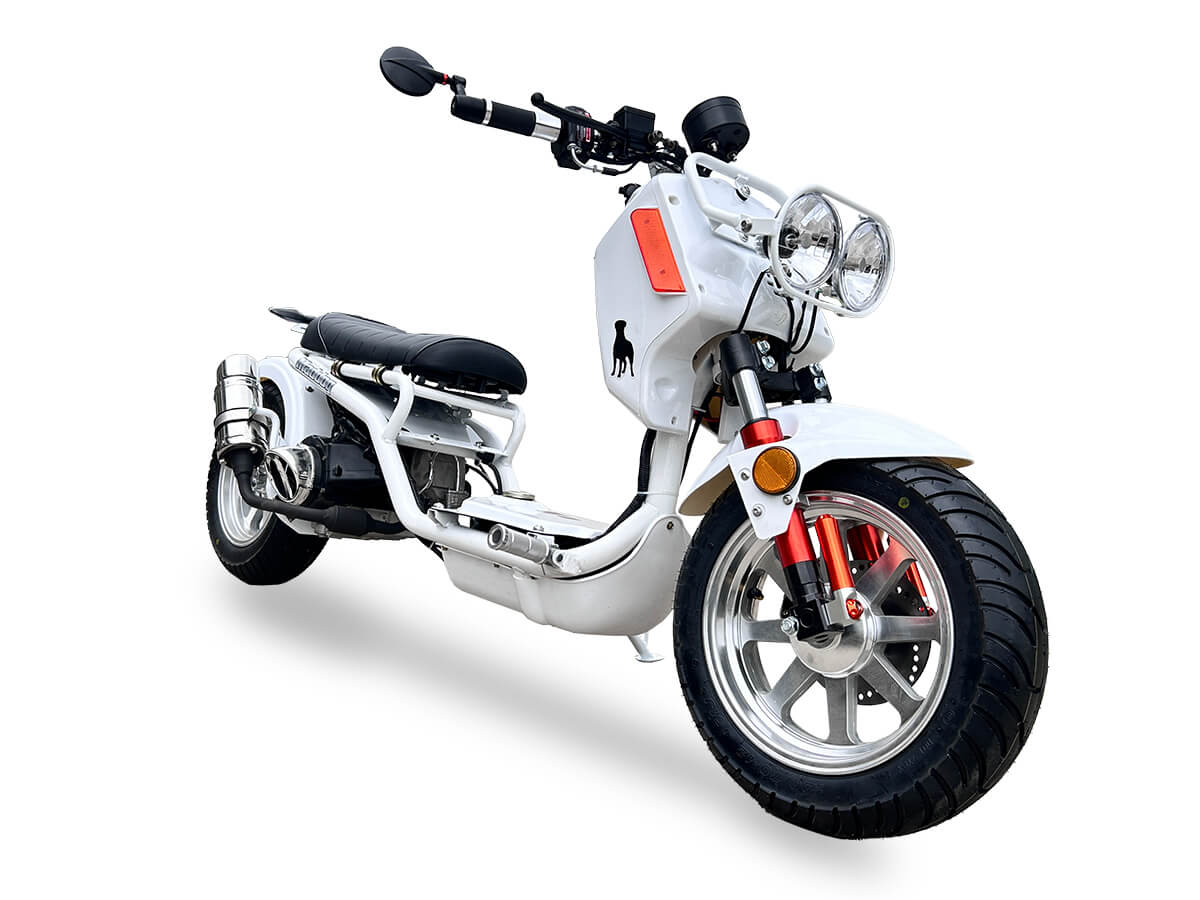

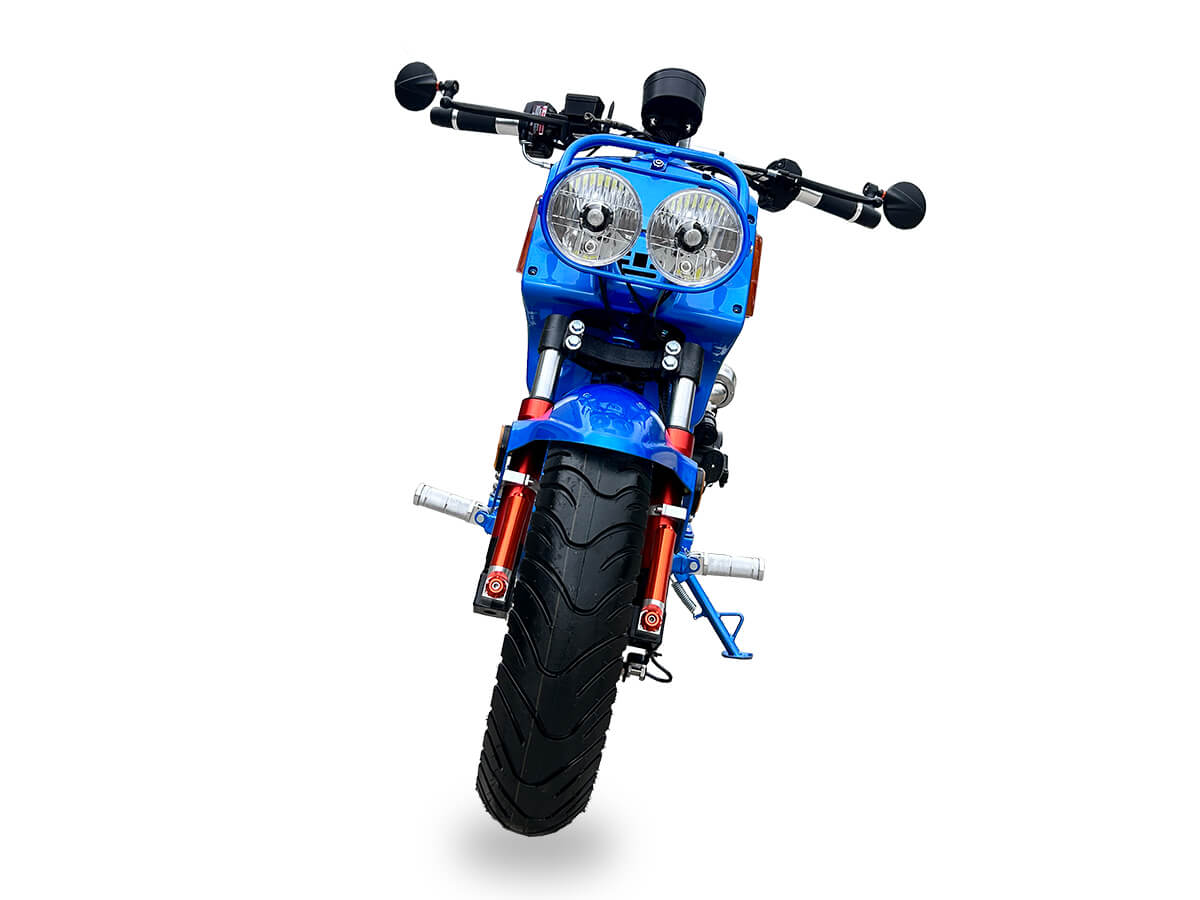

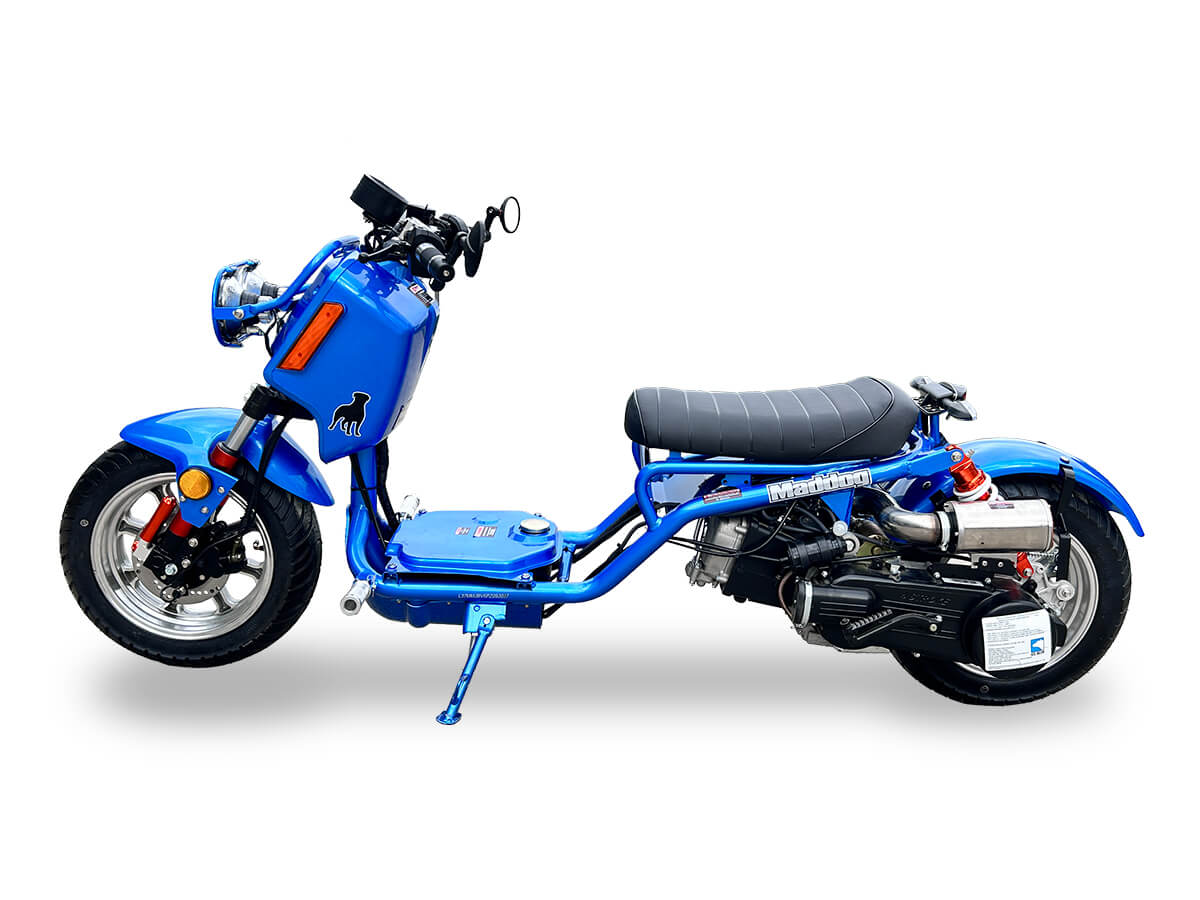

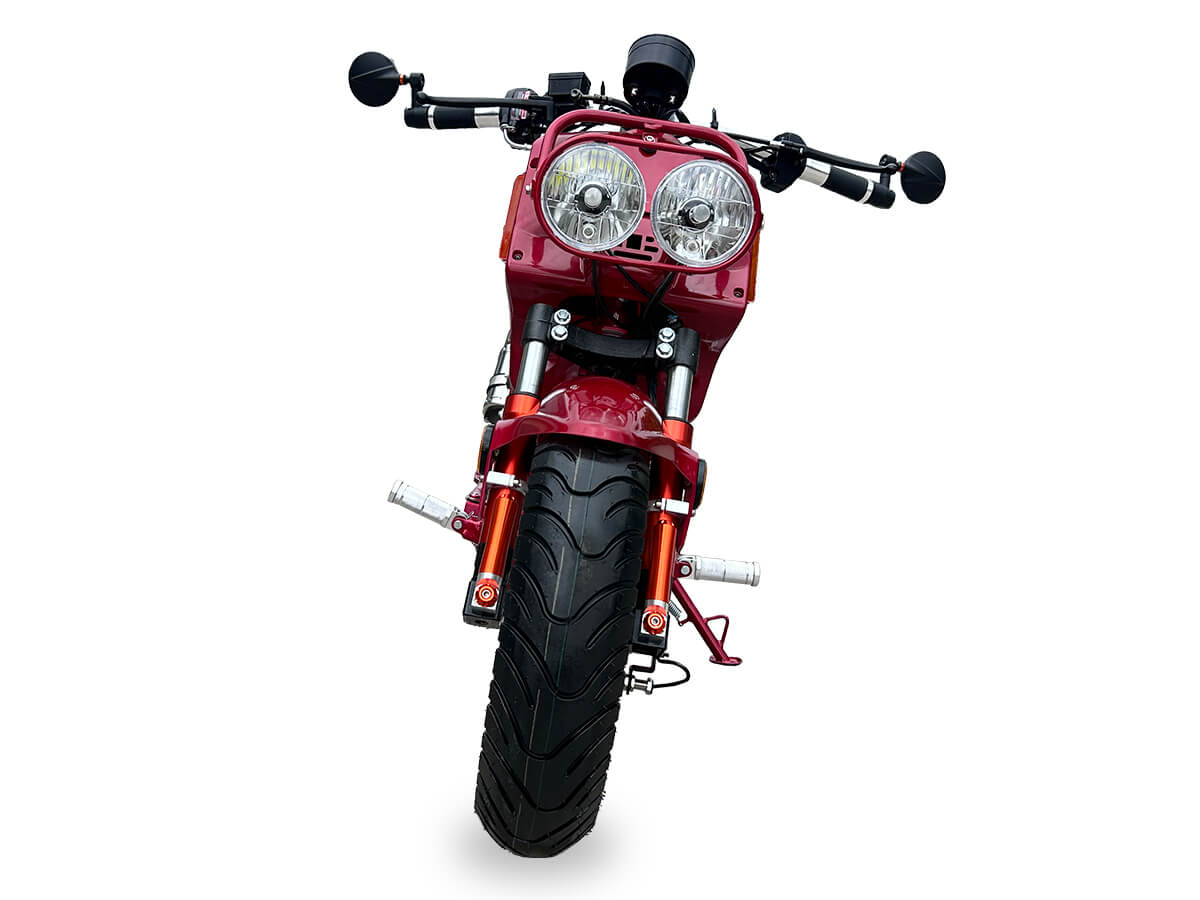

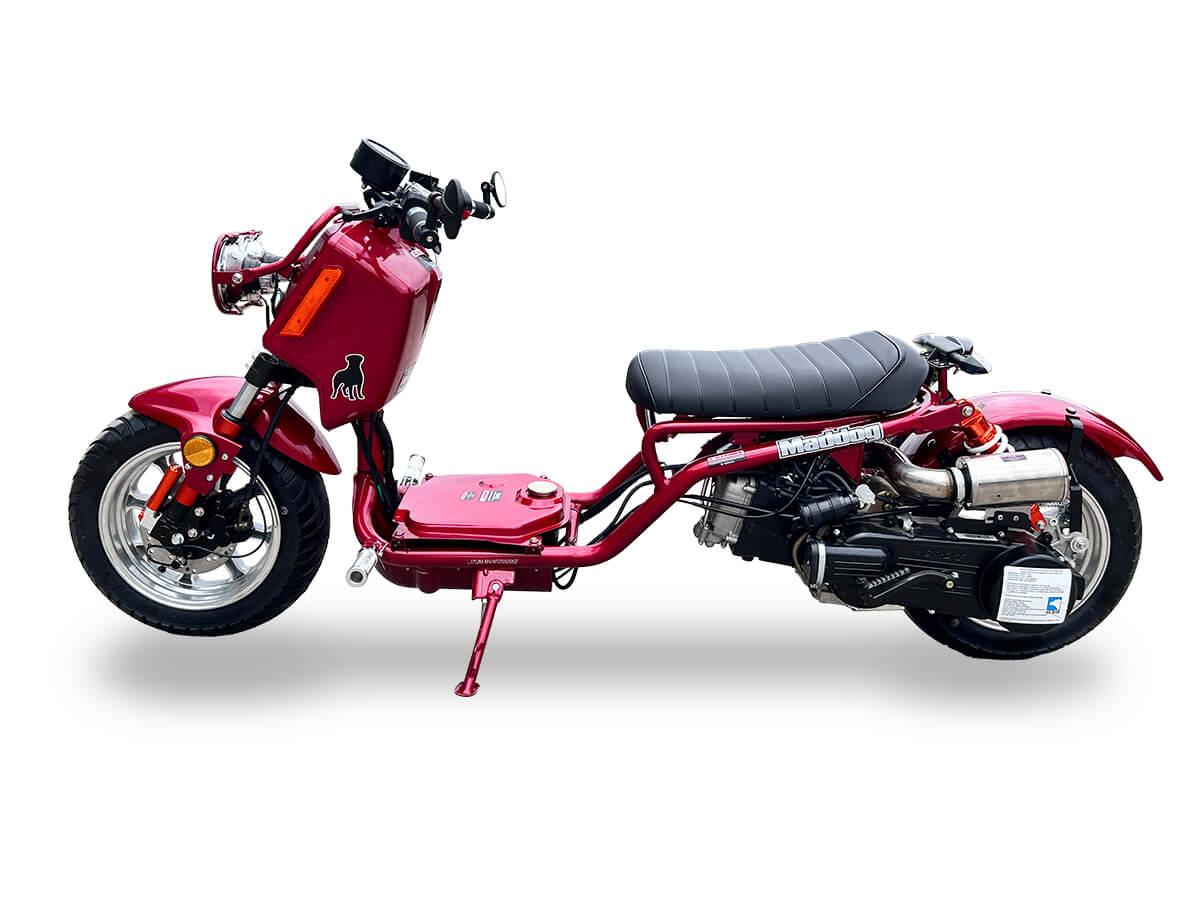

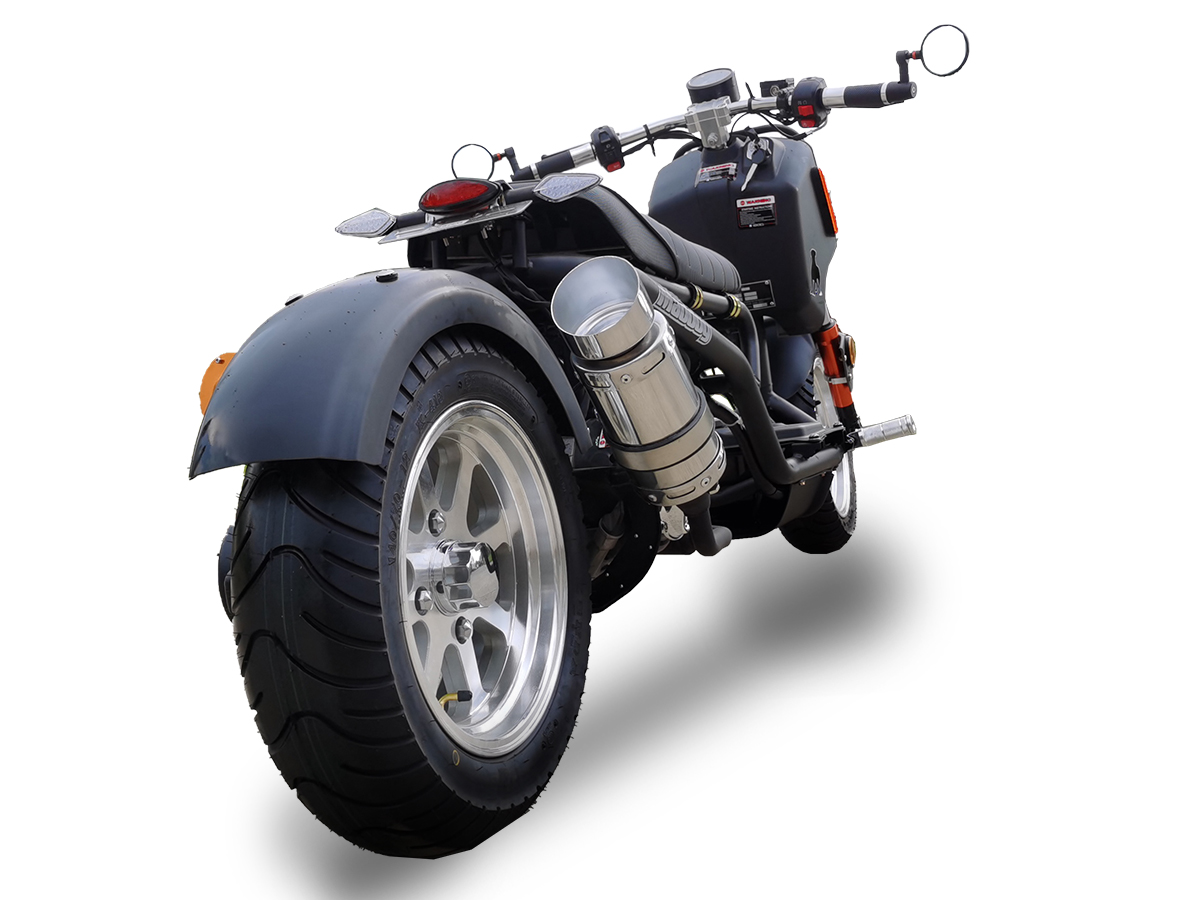

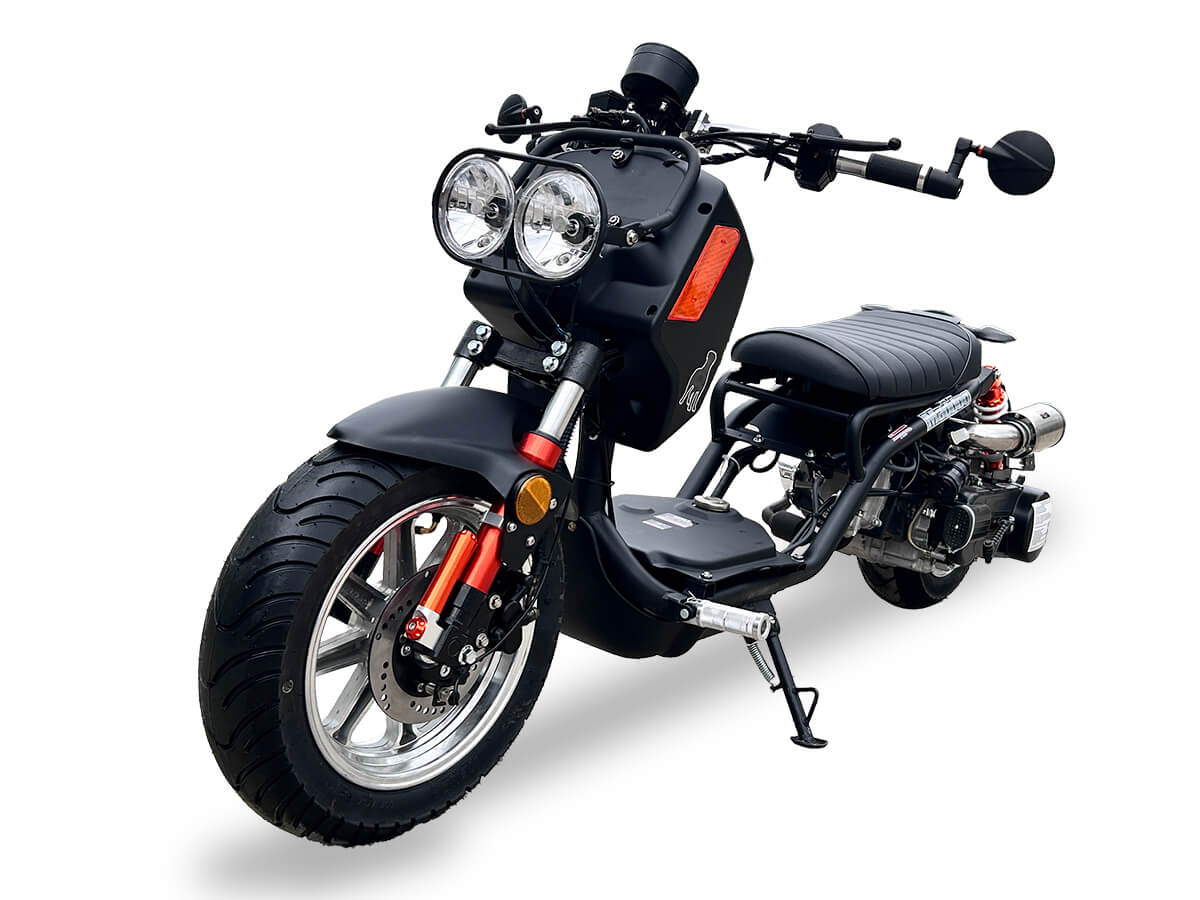

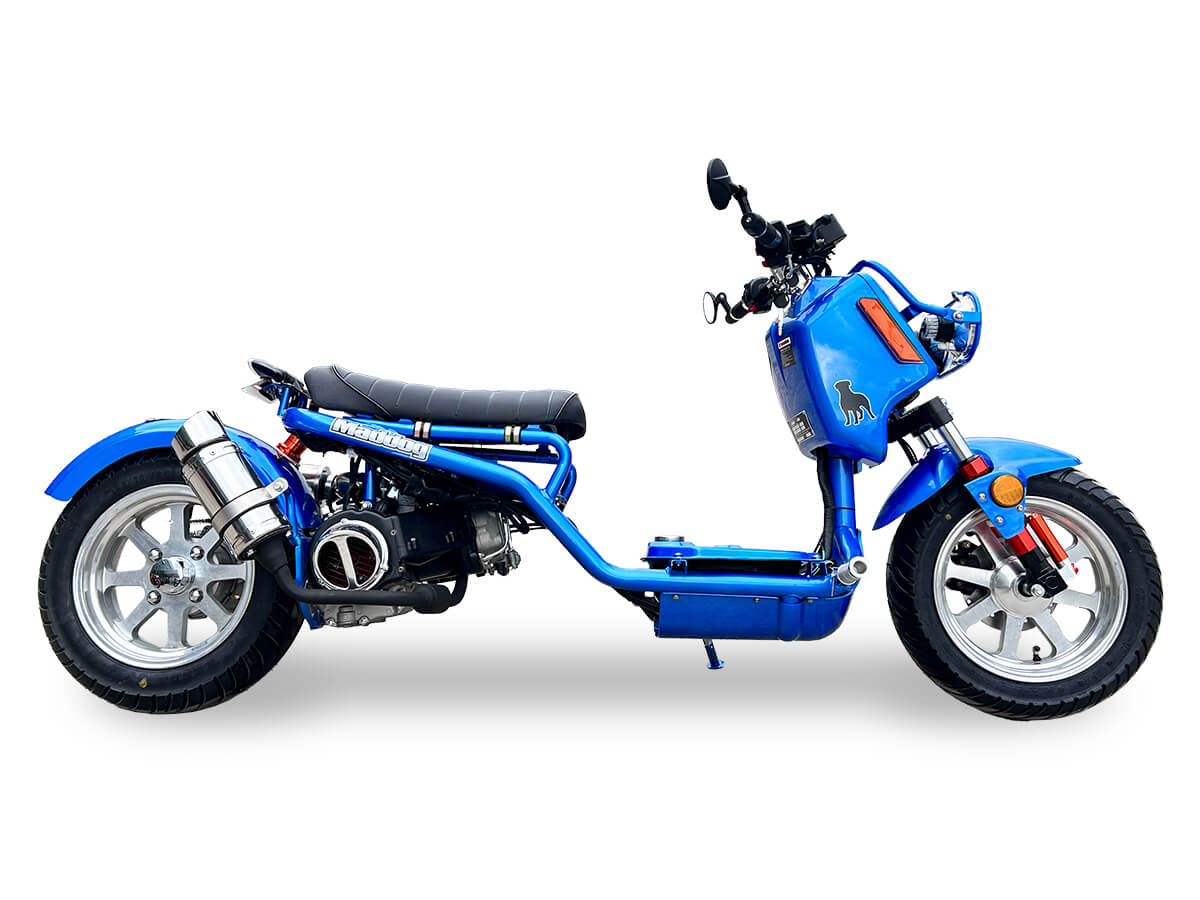

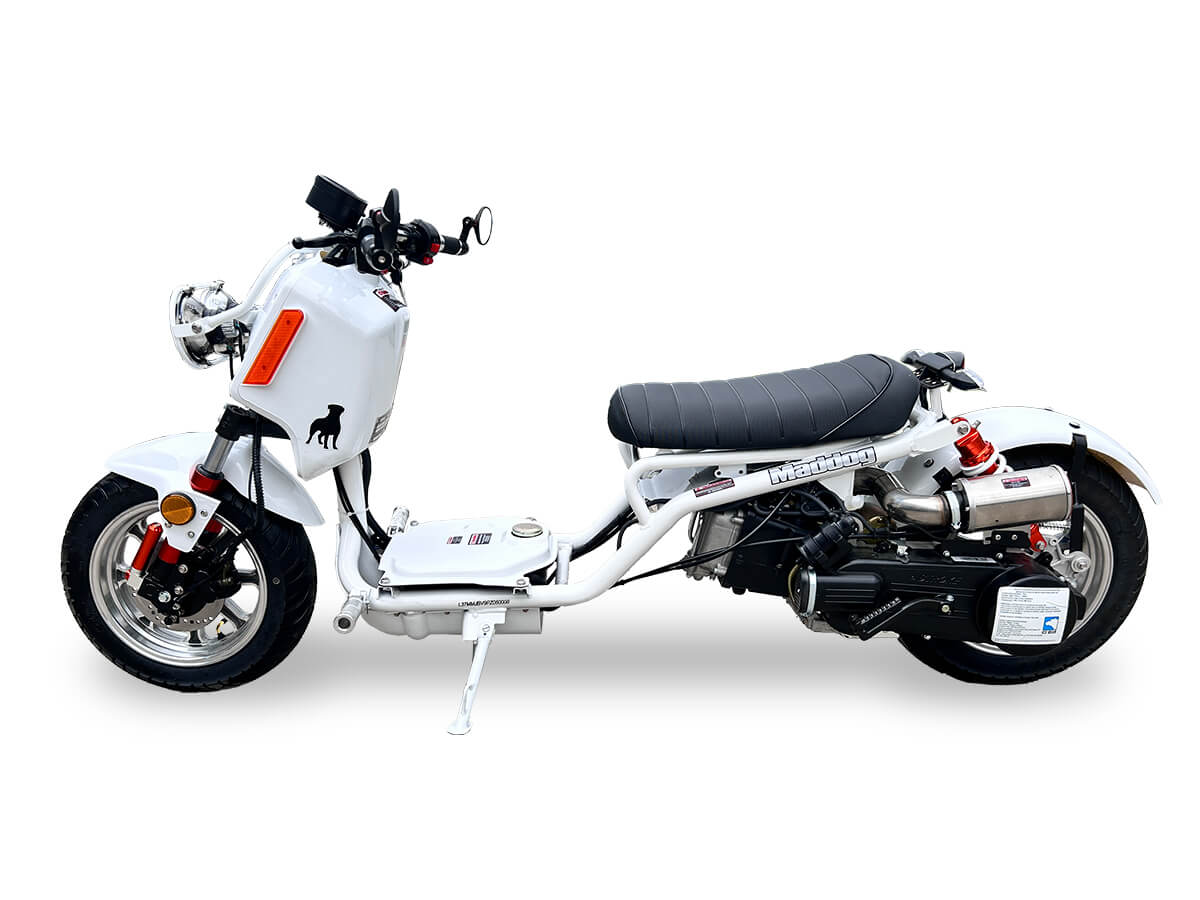

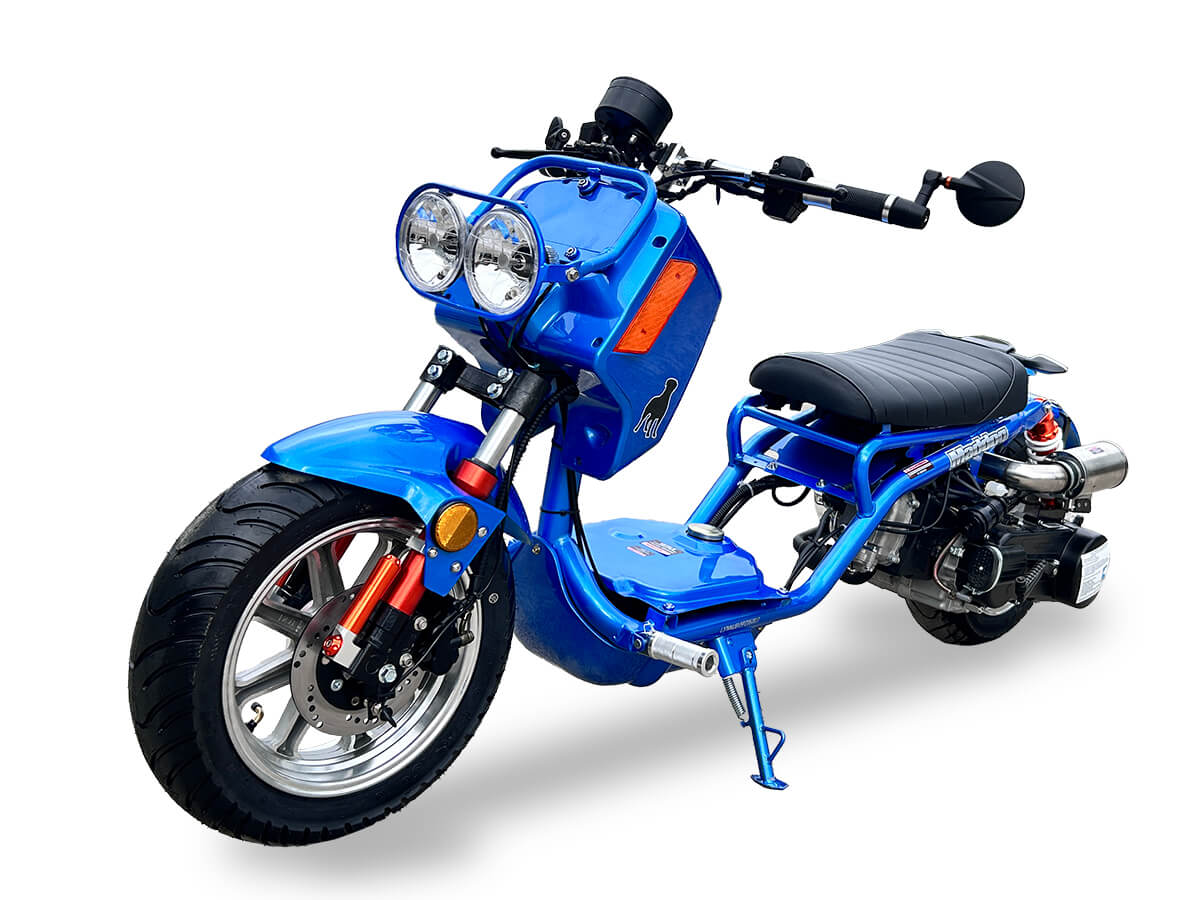

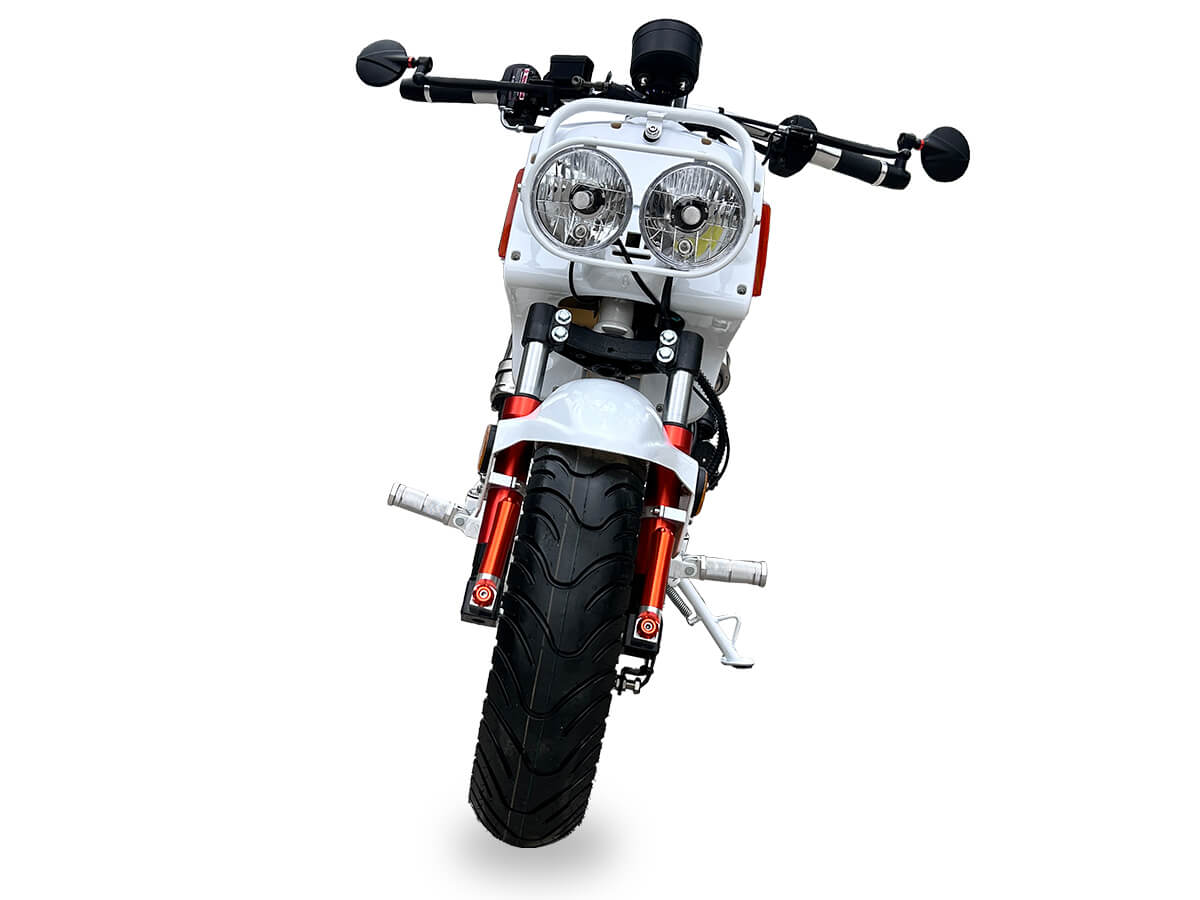

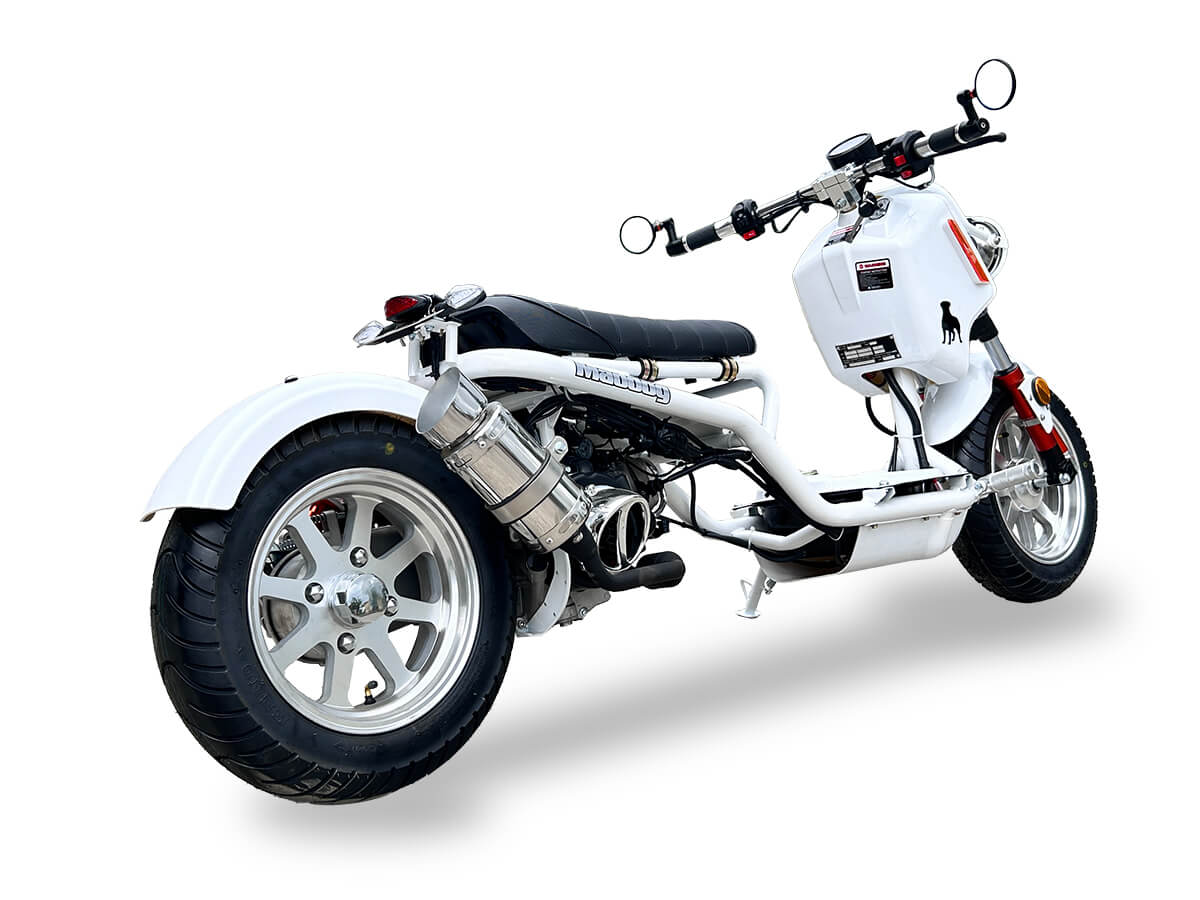

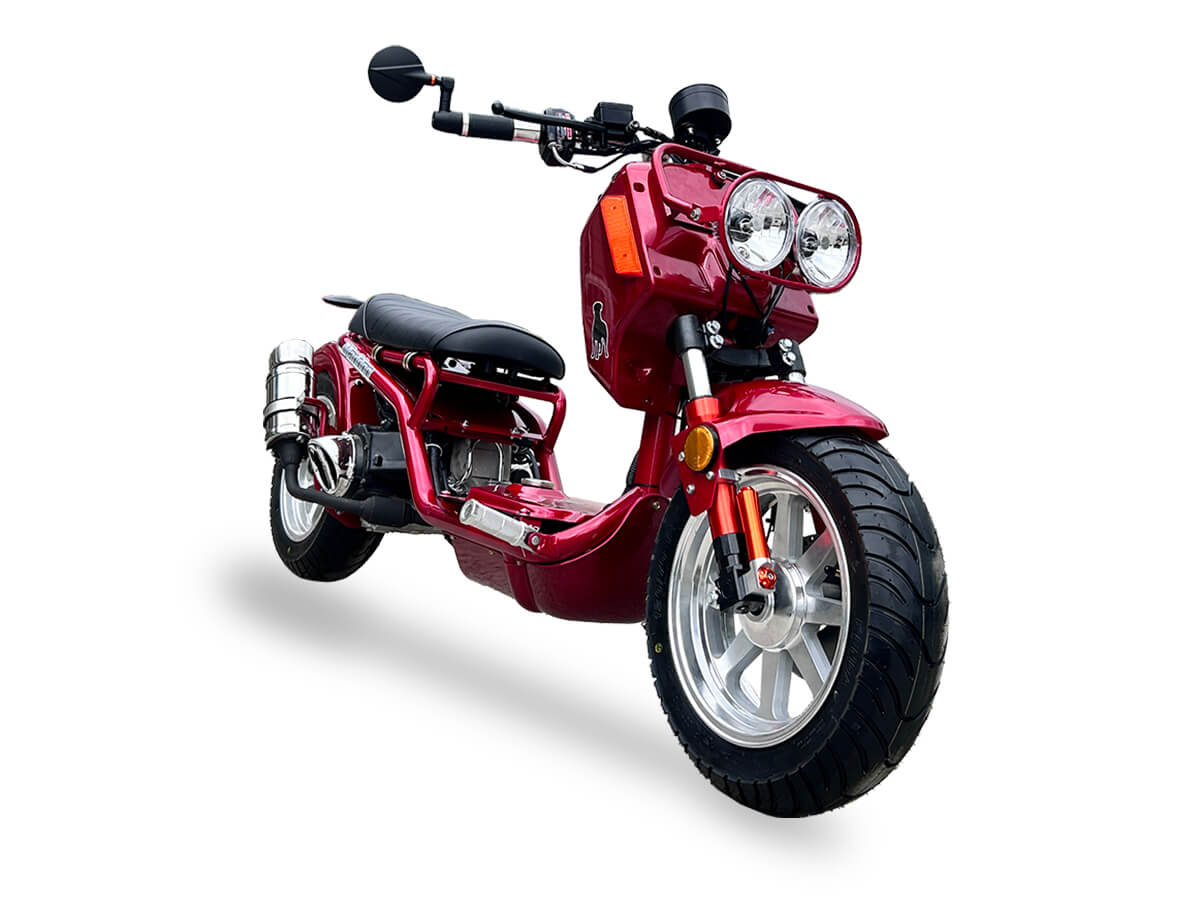

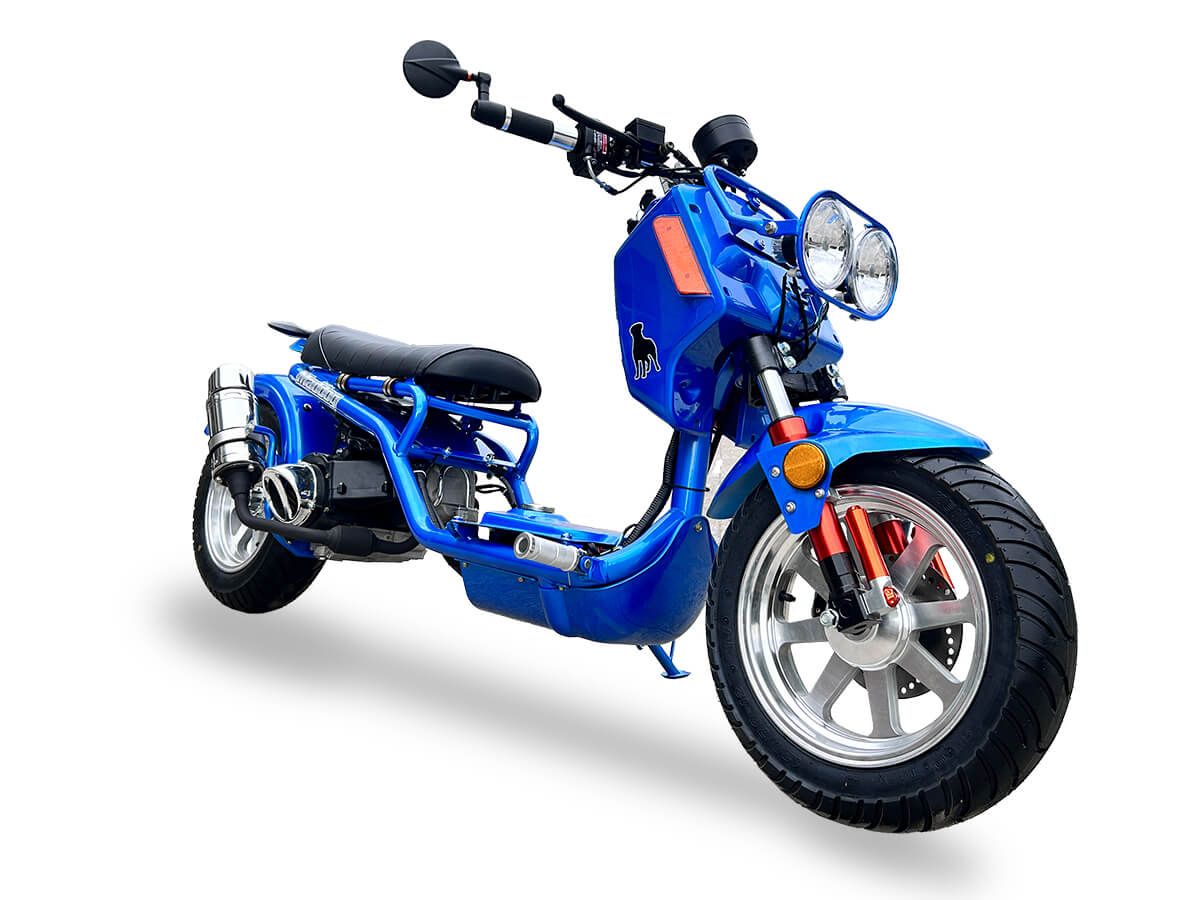

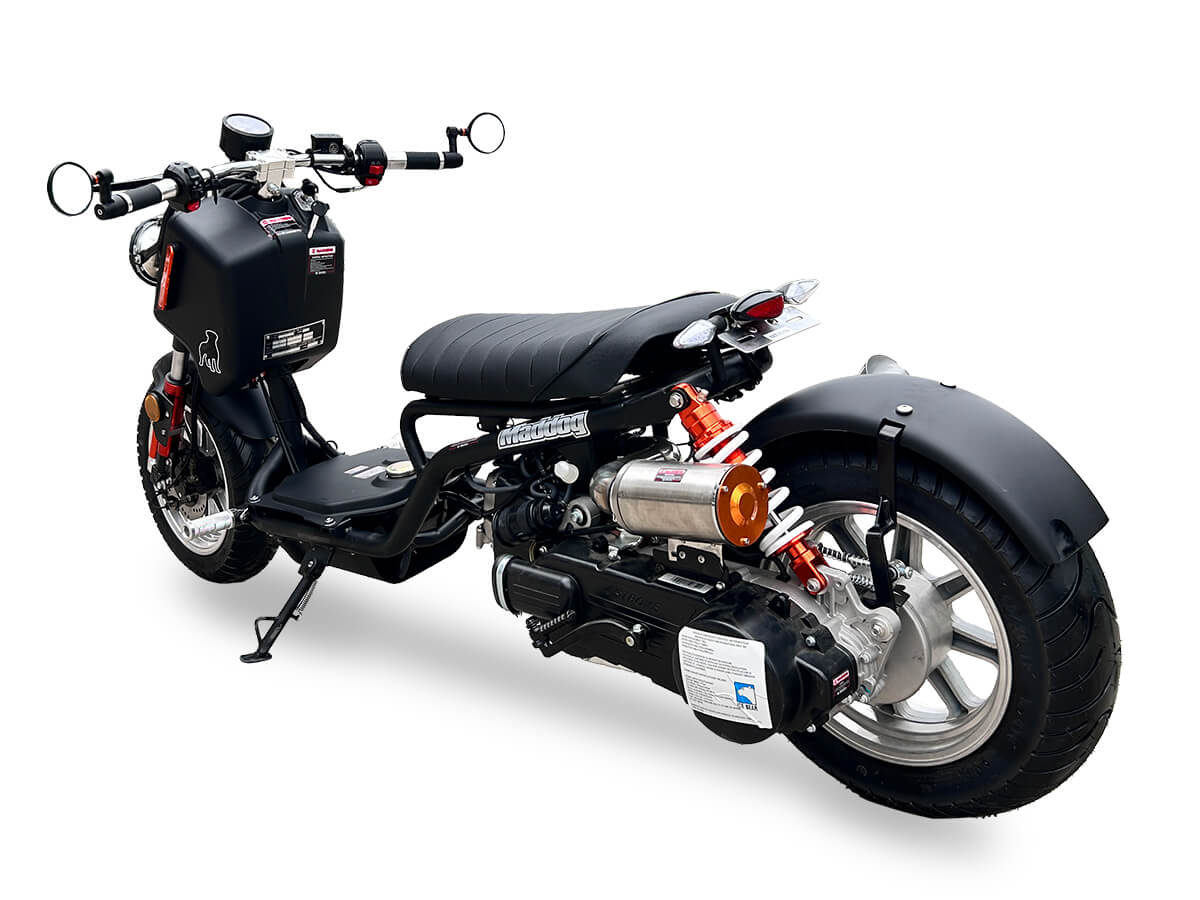

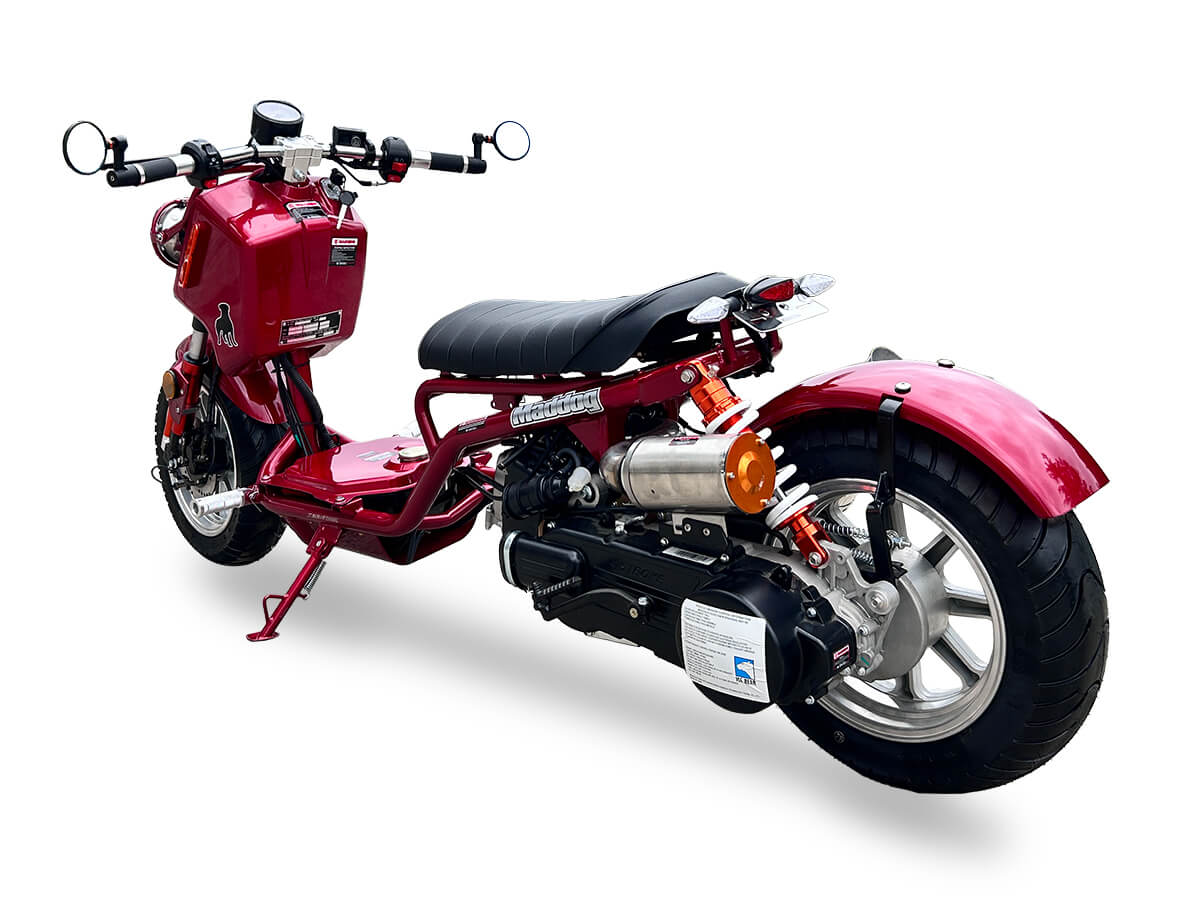

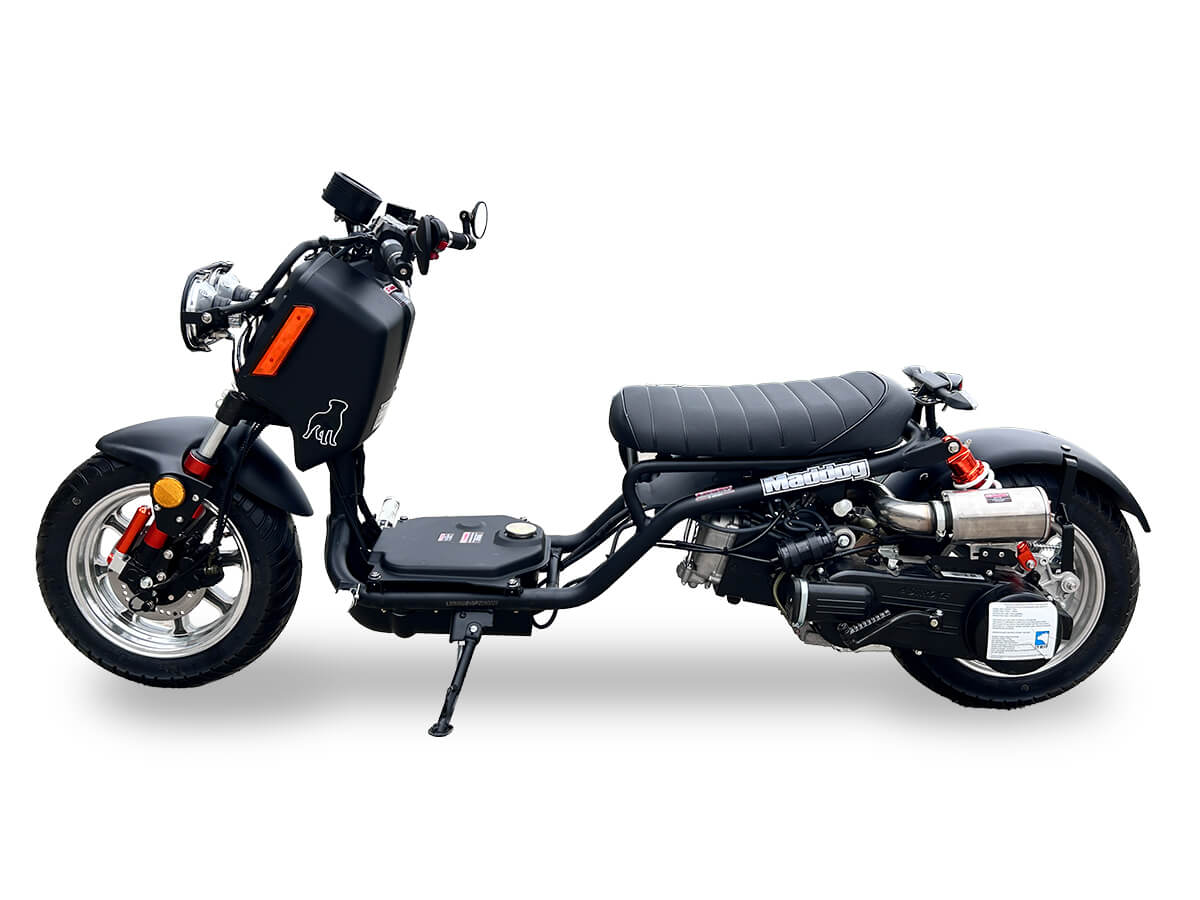

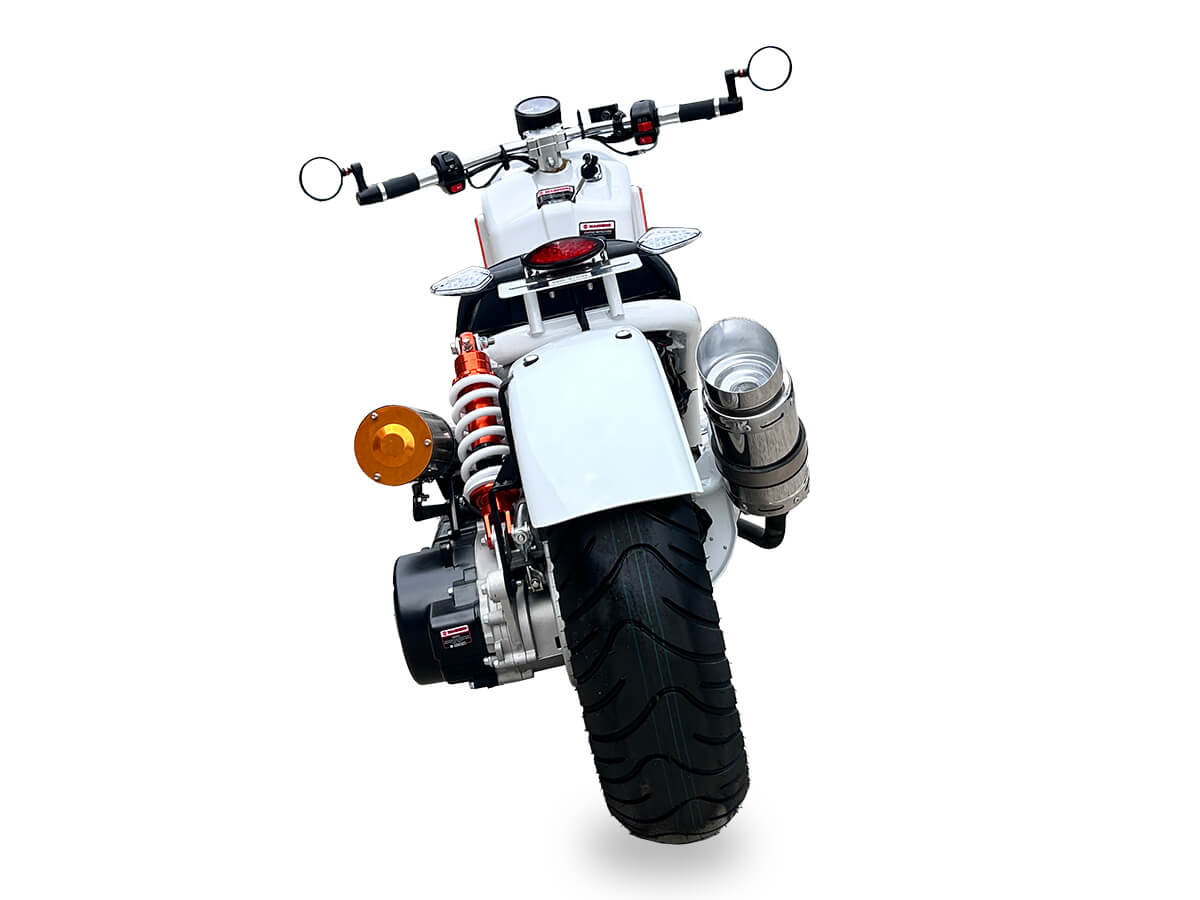

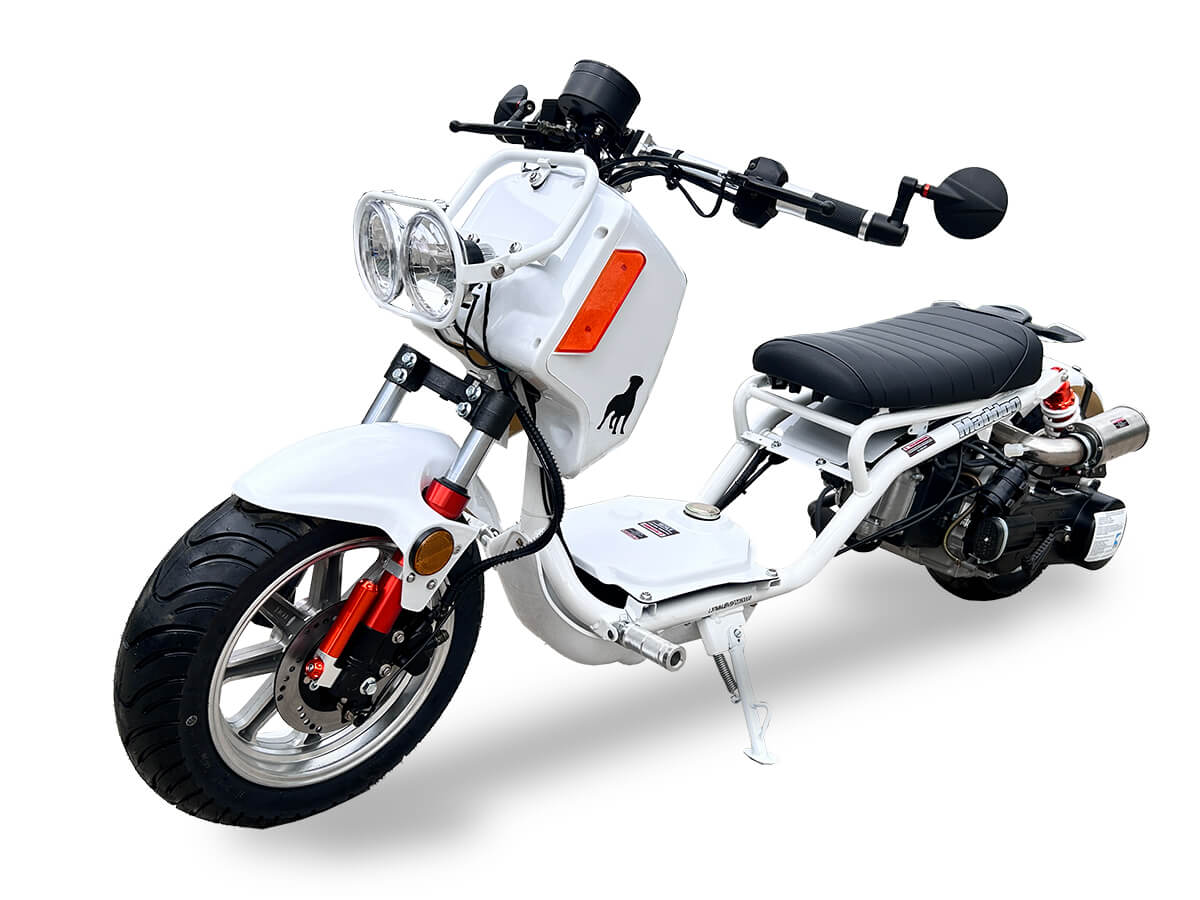

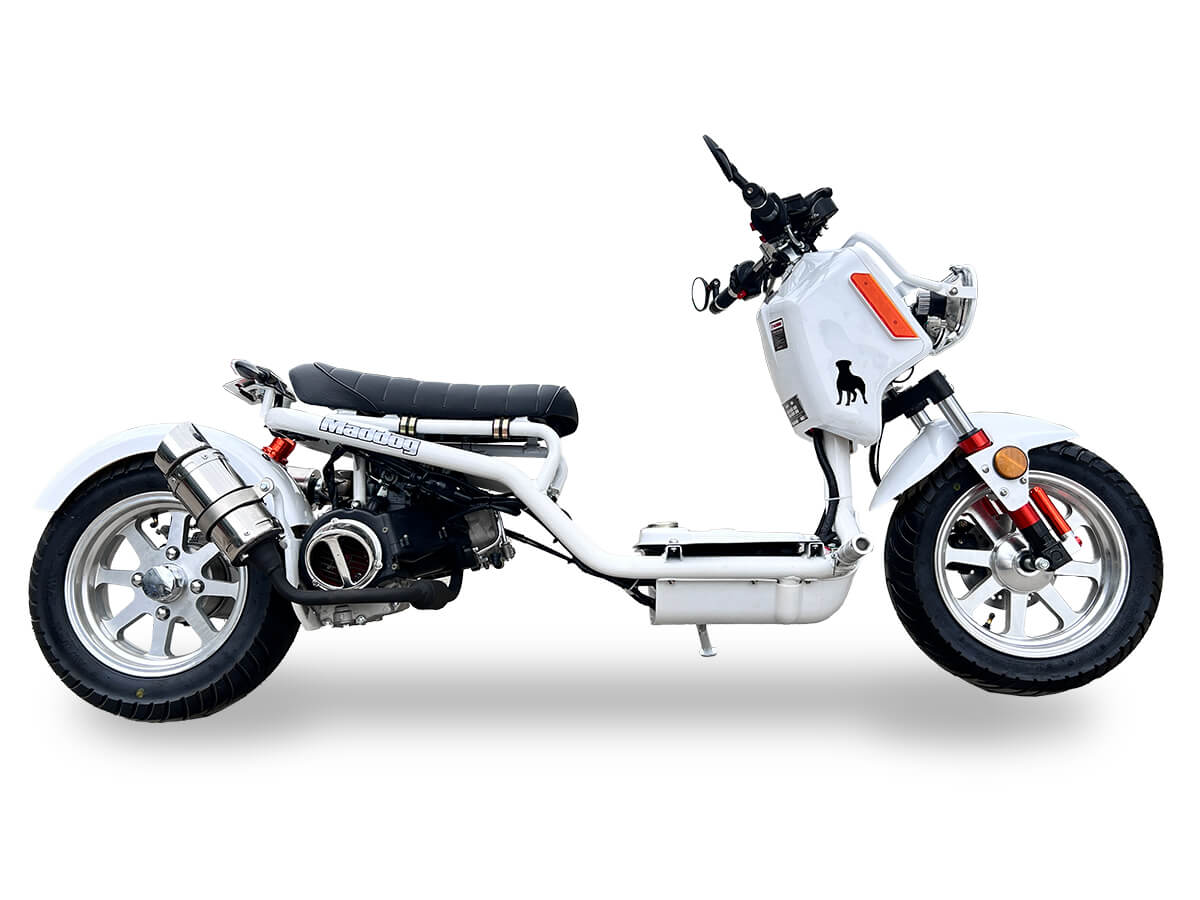

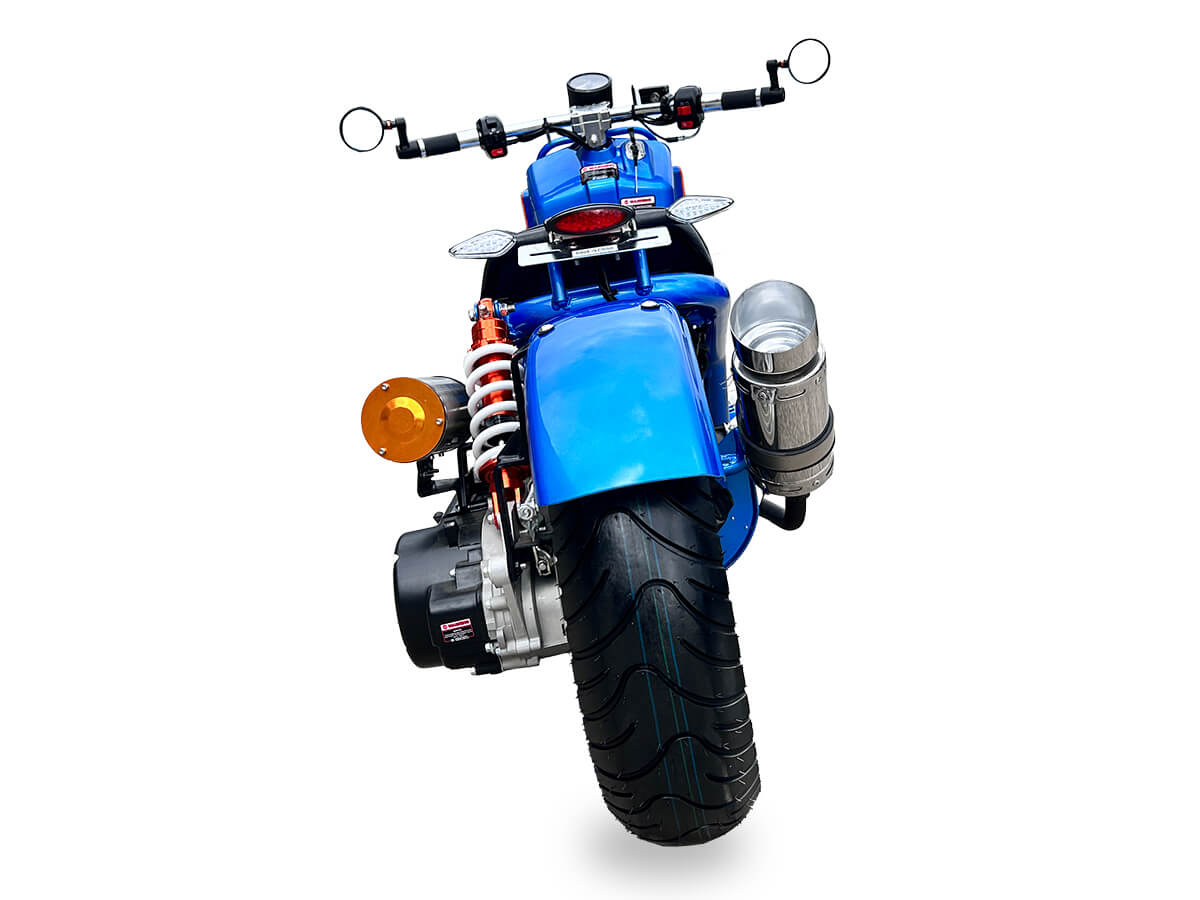

GEN IV MADDOG 150CC (PMZ150-21)
149.6cc, generation IV maddog, FR Disc/RR drum brake, aluminum FR 12"/RR 12", LED lights, digital speedomter
Specifications
MSRP $2450.00
*Prices do not include destination or dealer setup fees
| Engine | 150cc, 157QMJ, Xinba |
| Transmission | Automatic |
| Drive type | Belt |
| Belt and/or chain size | Belt: 835*20*30 |
| Starter System | Elec/kick start |
| Fuel system | Gasoline, 1.6gal, carbureted |
| Brakes (Front/Rear) | Disc/Drum |
| Tire size(Front/Rear) | 120/70-12 ; 140/70-12 |
| Wheel size and type(Front/Rear) | 12, Alunimum |
| Oil capacity and type (in liters) | 0.8L, 10w40 aircooled engine oil (non-synthetic) |
| Gear oil type and capacity( in liters) | GL-3, 0.25L |
| Battery | 12V/9Ah |
| Lights | Led lights |
| Suspension(Front/Rear) | Dual telescopic forks / single shock |
| Dimensions(in inches) | Assembled(LxWxH): 80.7x26.4x37.4, crated(LxWxH): 74.8x22.4x32, seat height: 23.2, wheelbase: 61 |
| Weight | 350 lbs |
| Weight capacity | 246 lbs |
| Ground clearance (in inches) | 5.1 |
| Assembly required | Front wheel, front and rear fenders, handlebars, mirrors, speedometer, battery |
| Special features | Include: digital speedometer, horn, odometer, bar end mirrors |
| EPA approved | EPA approved |

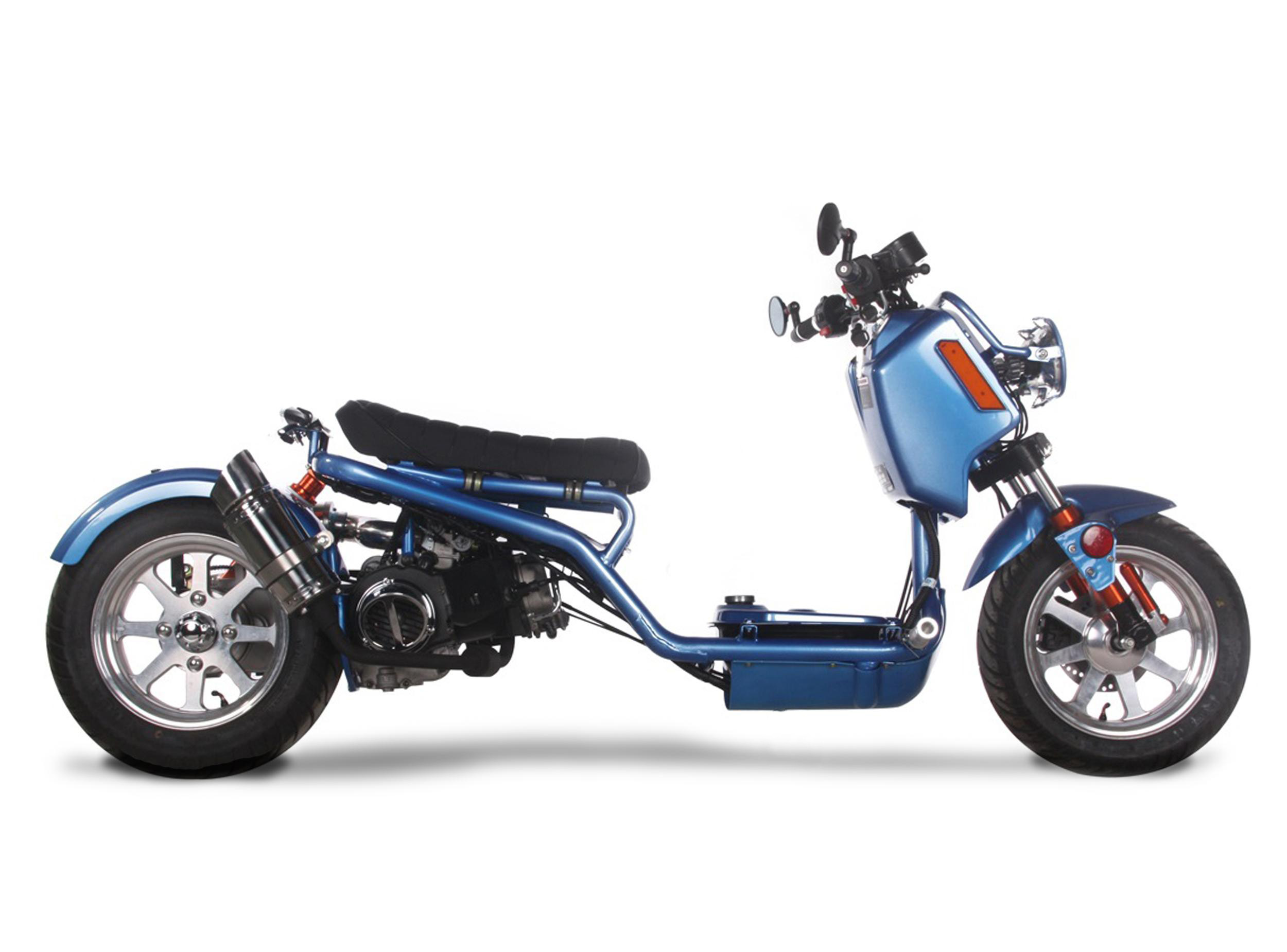

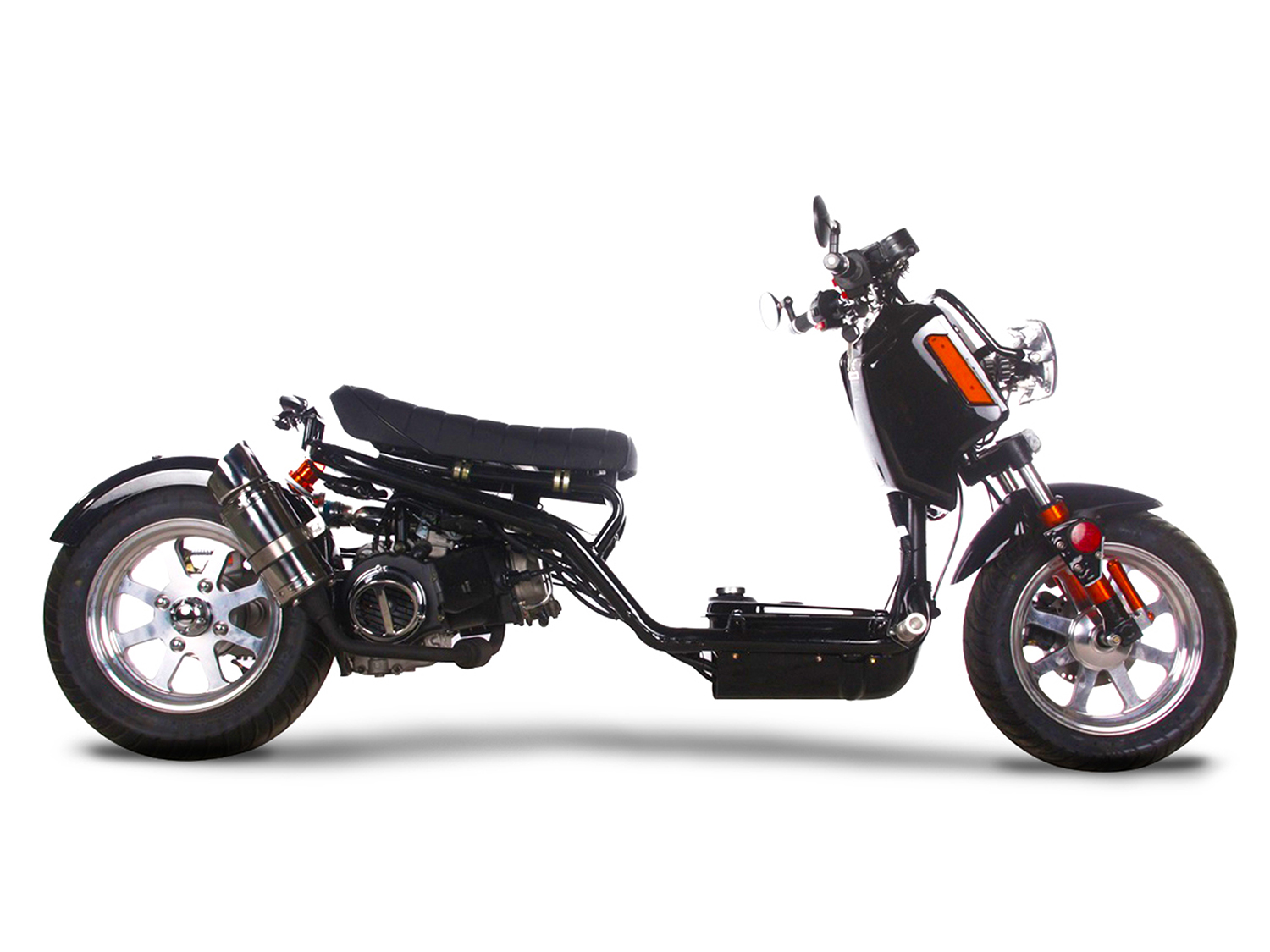

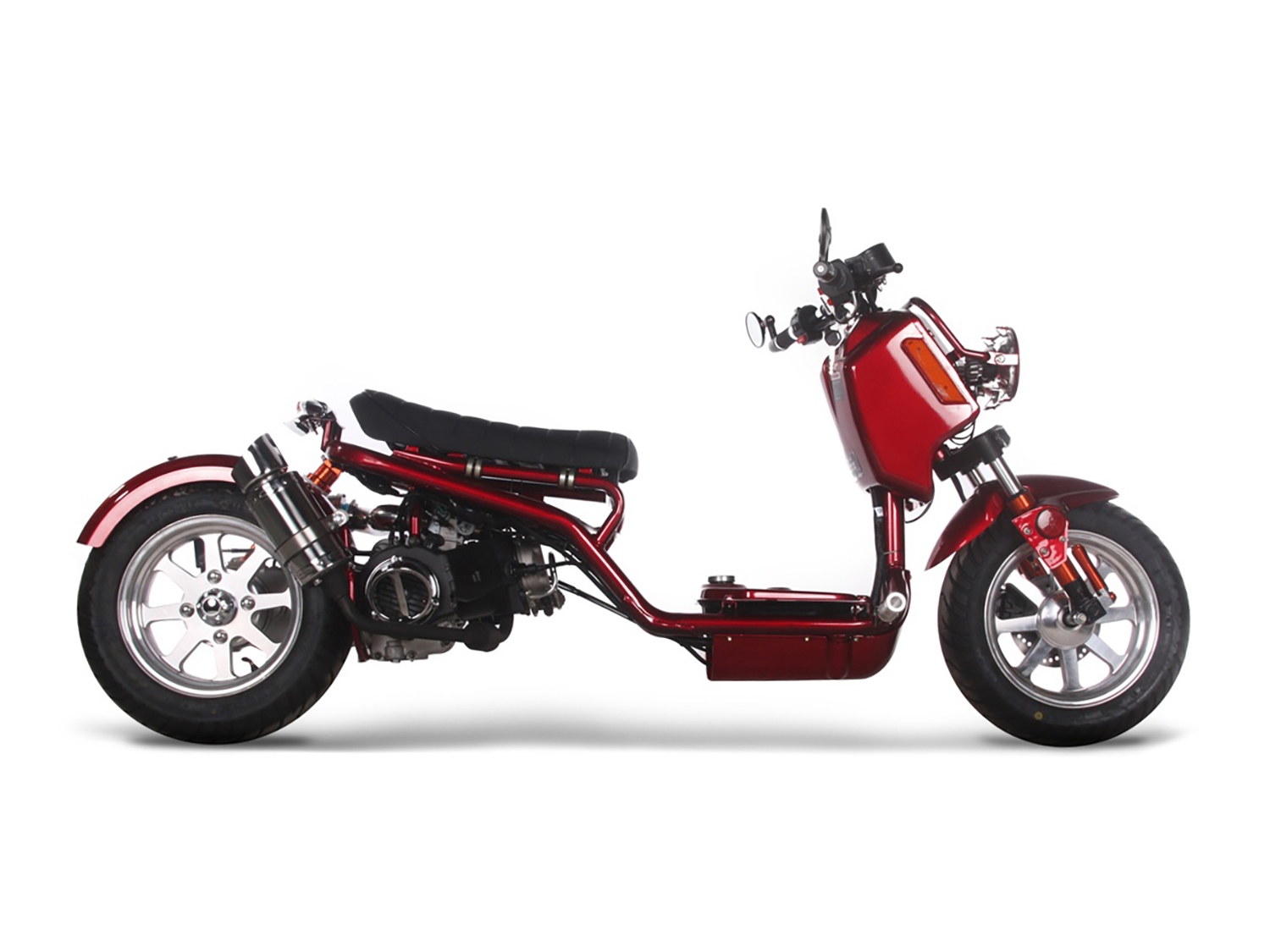

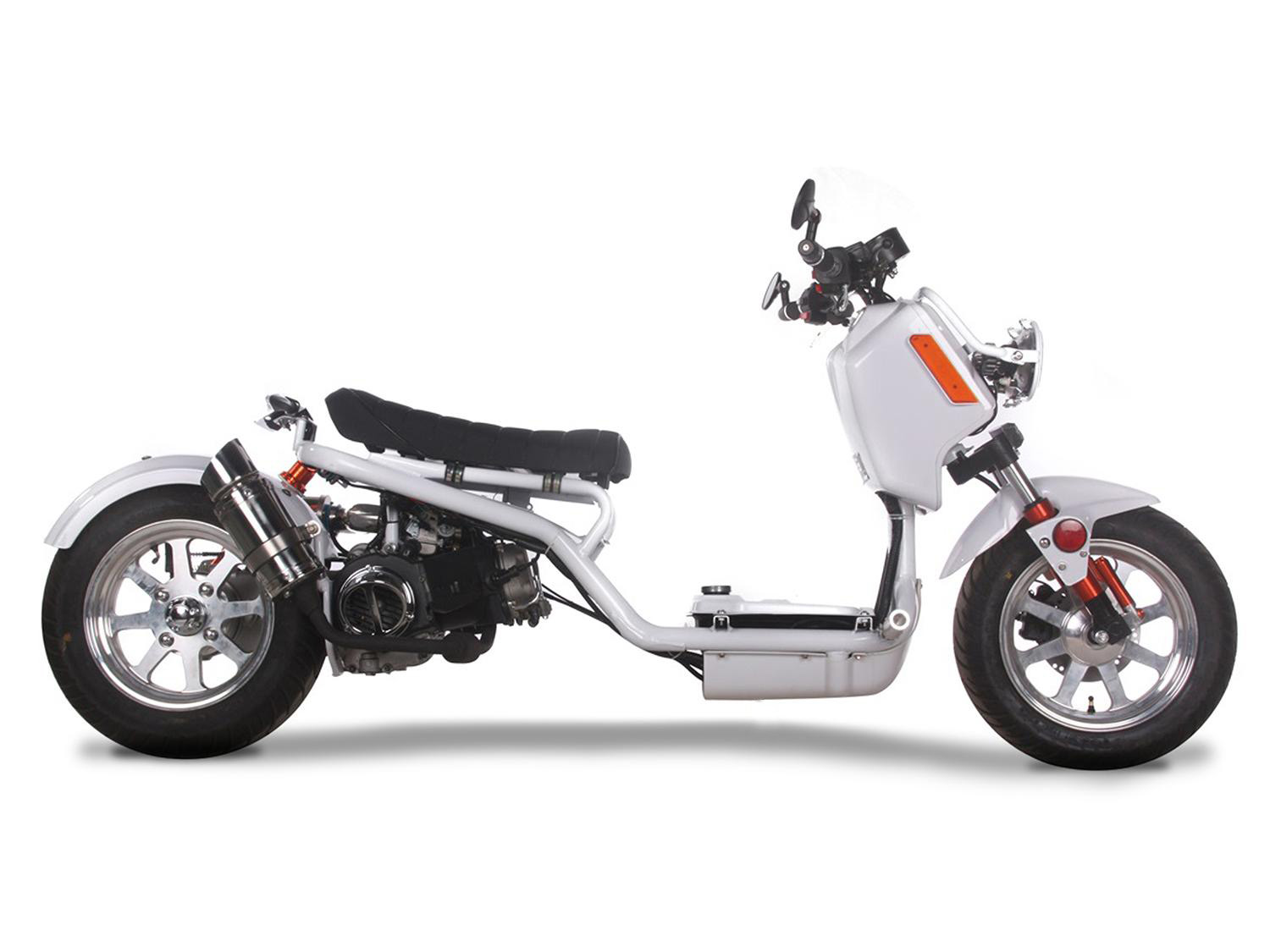

Colors
