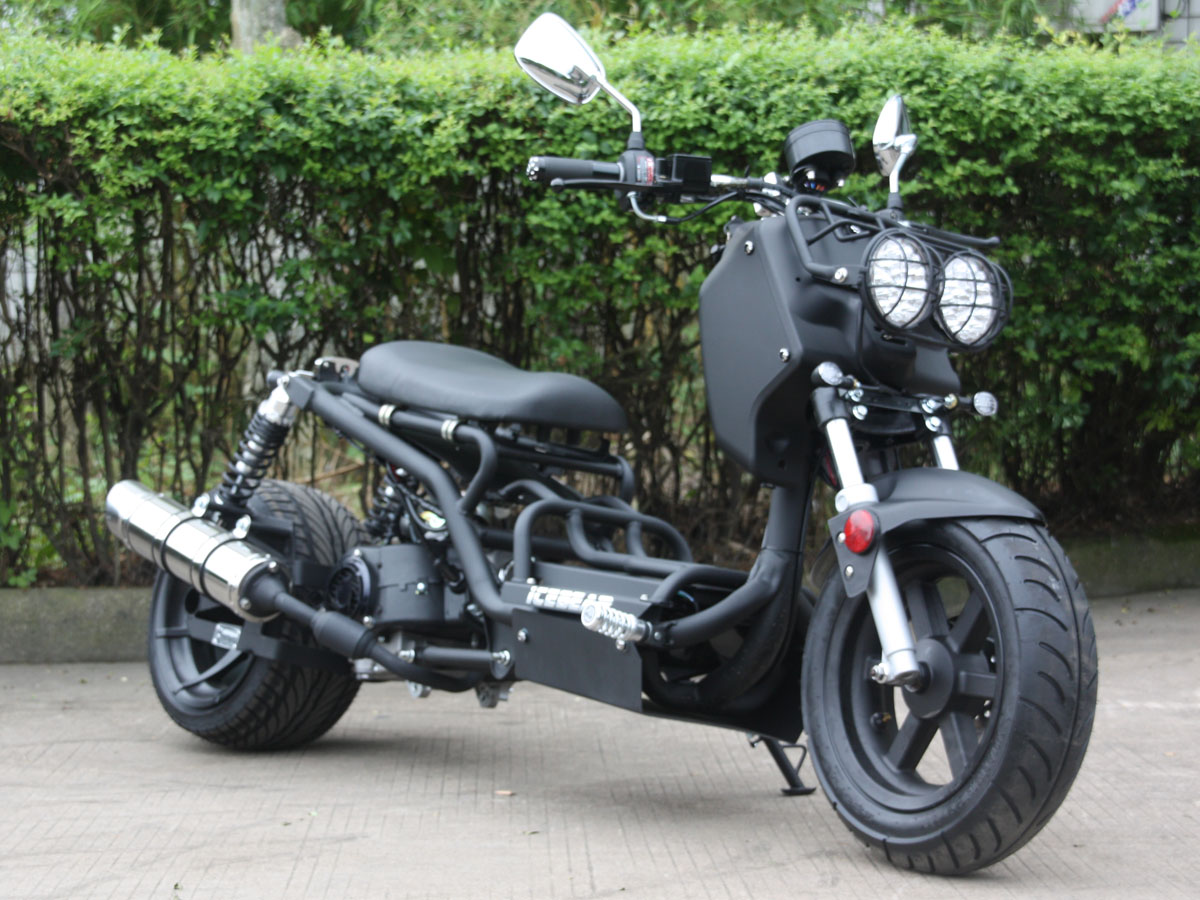

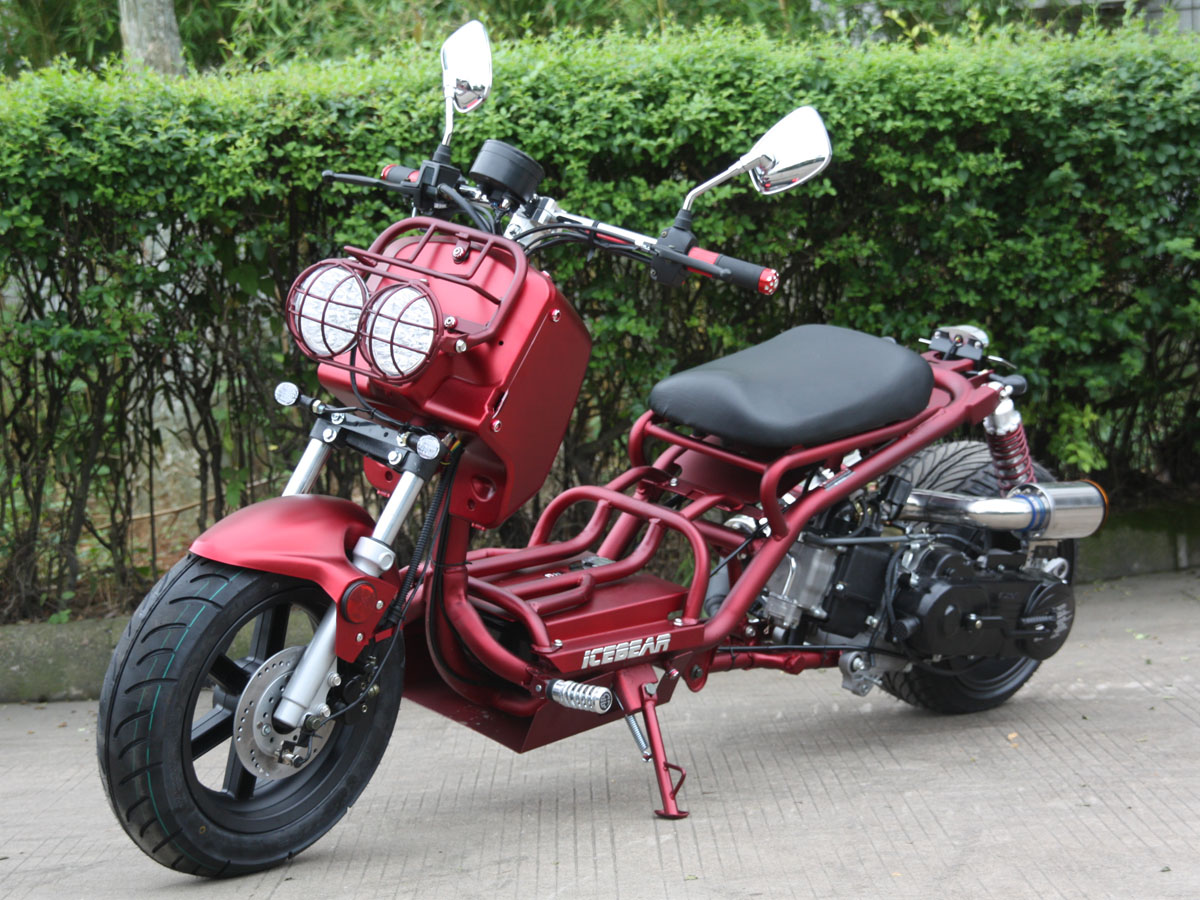

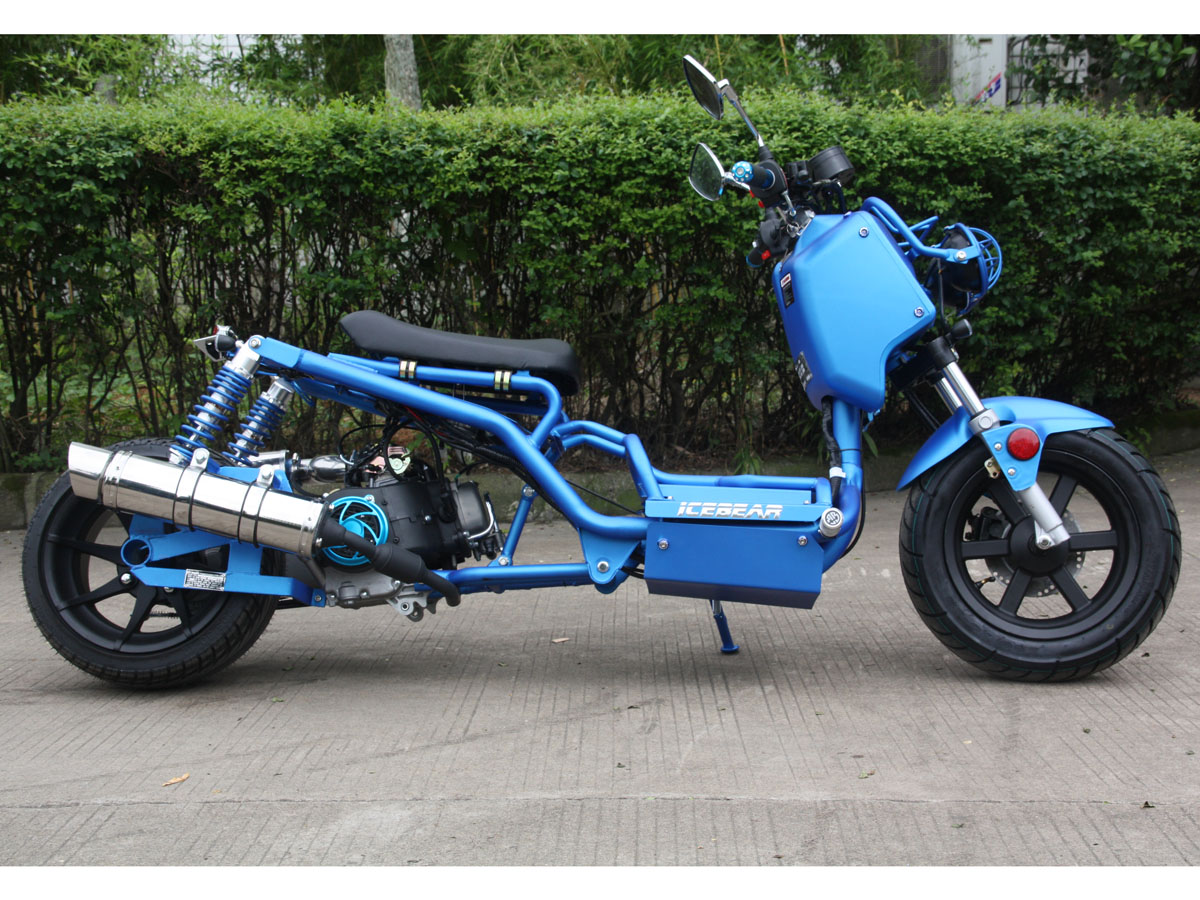

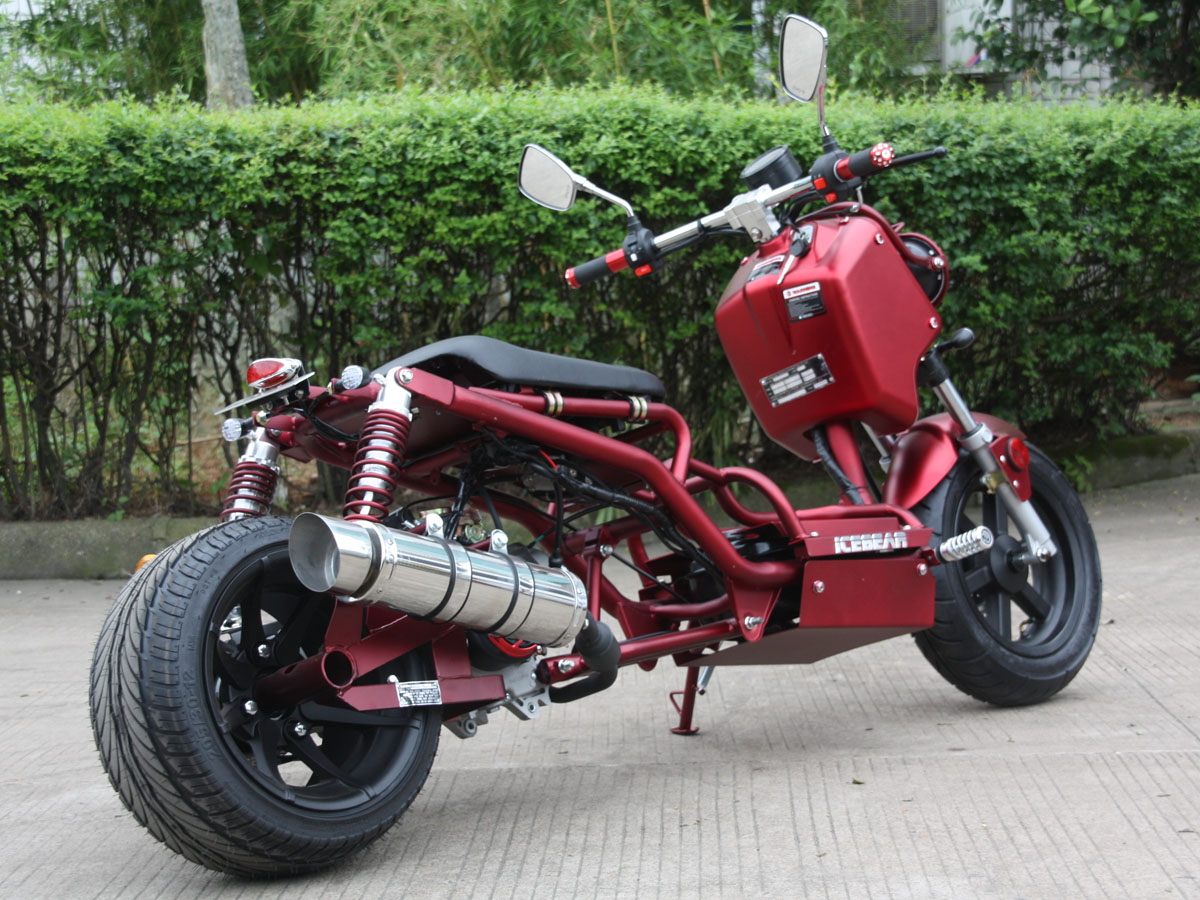

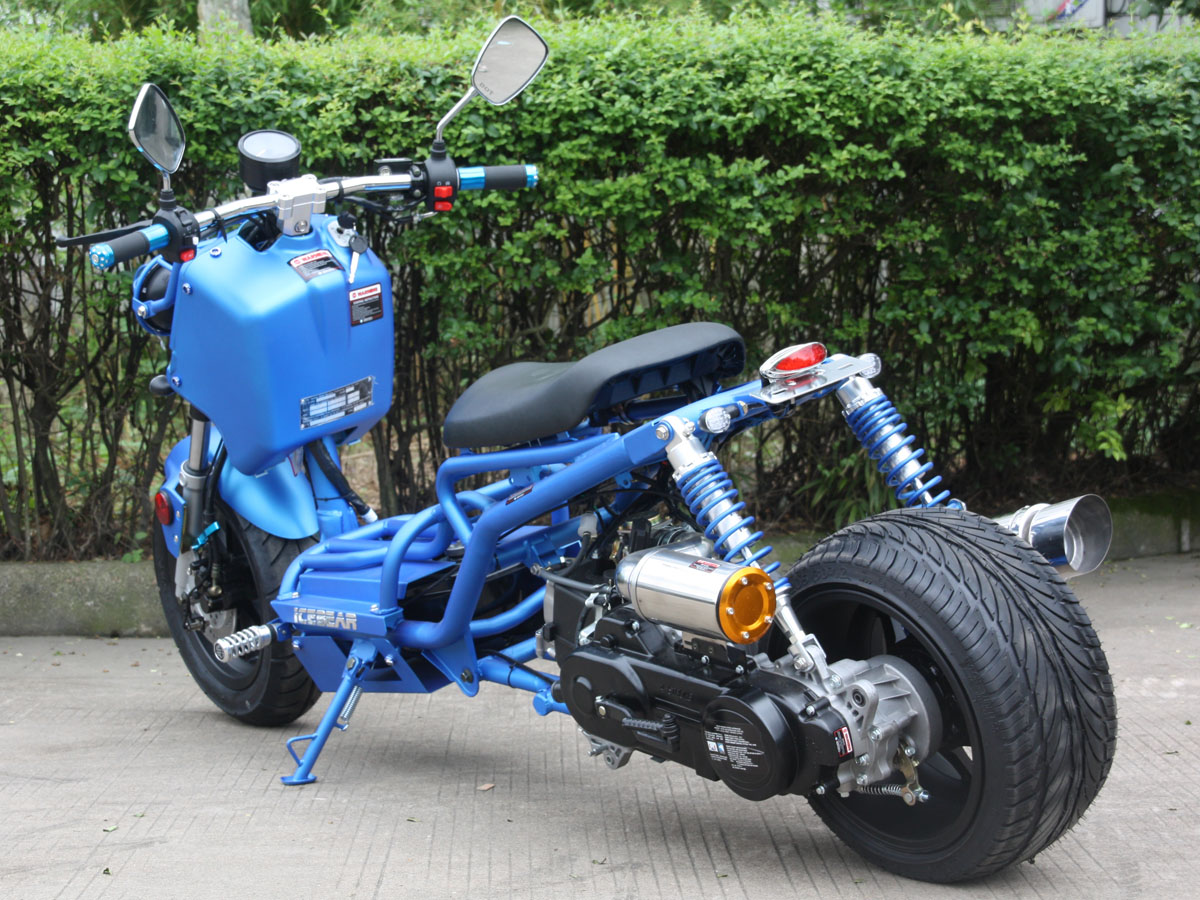

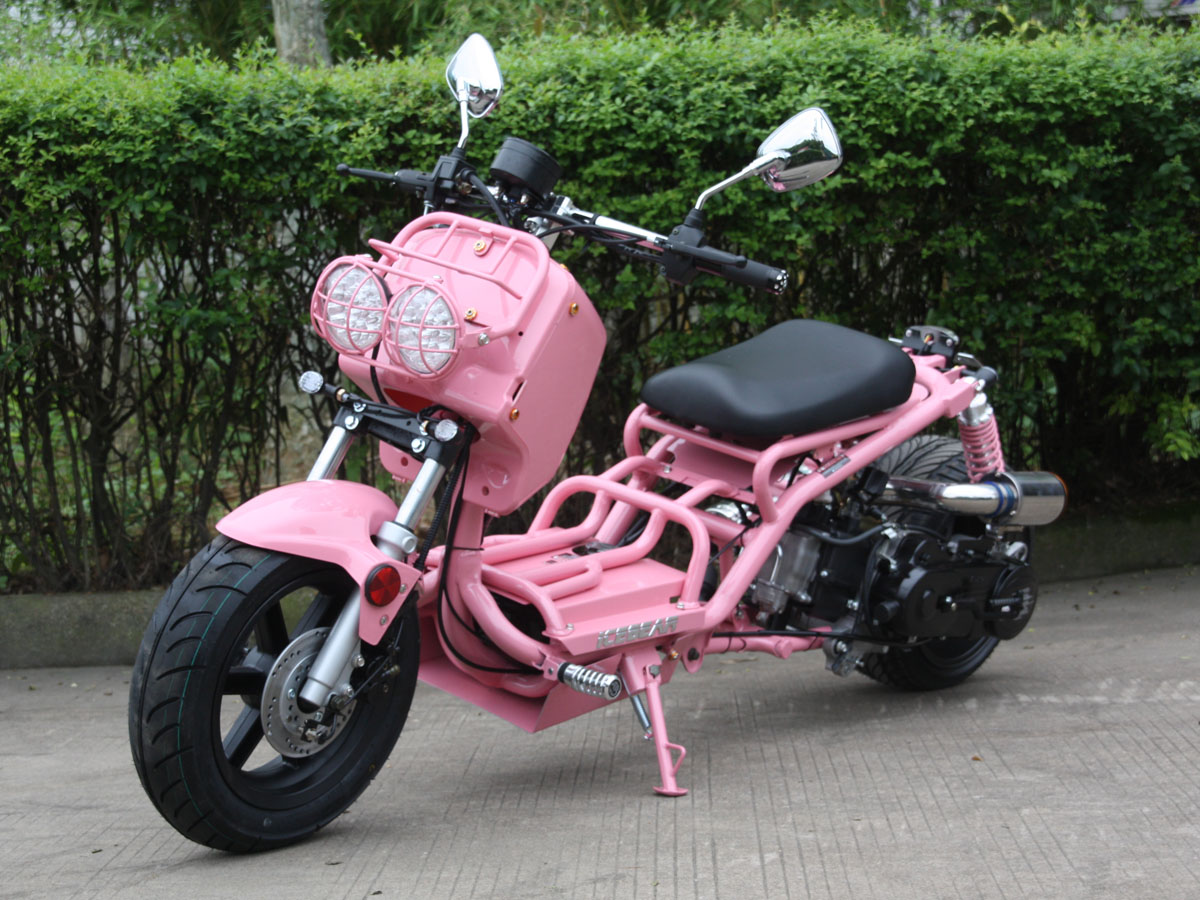

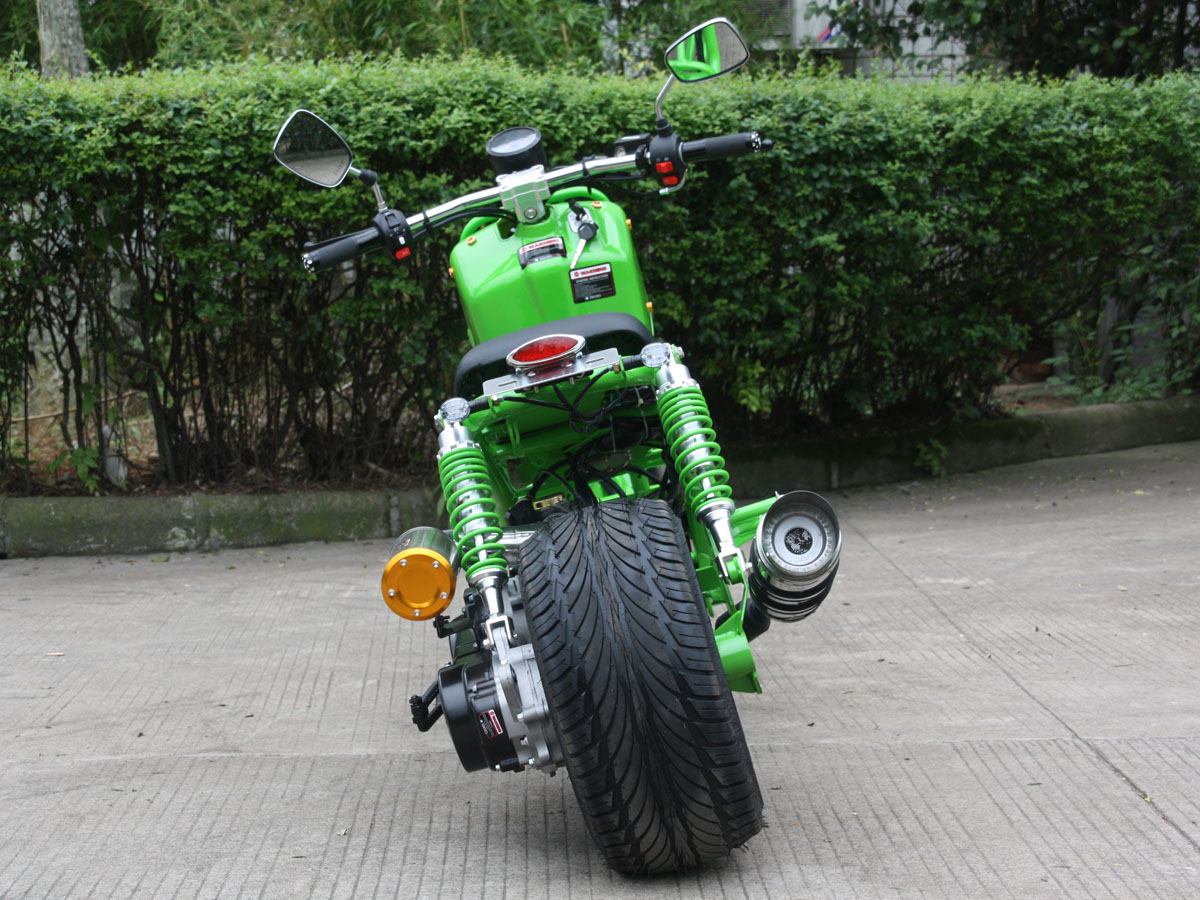

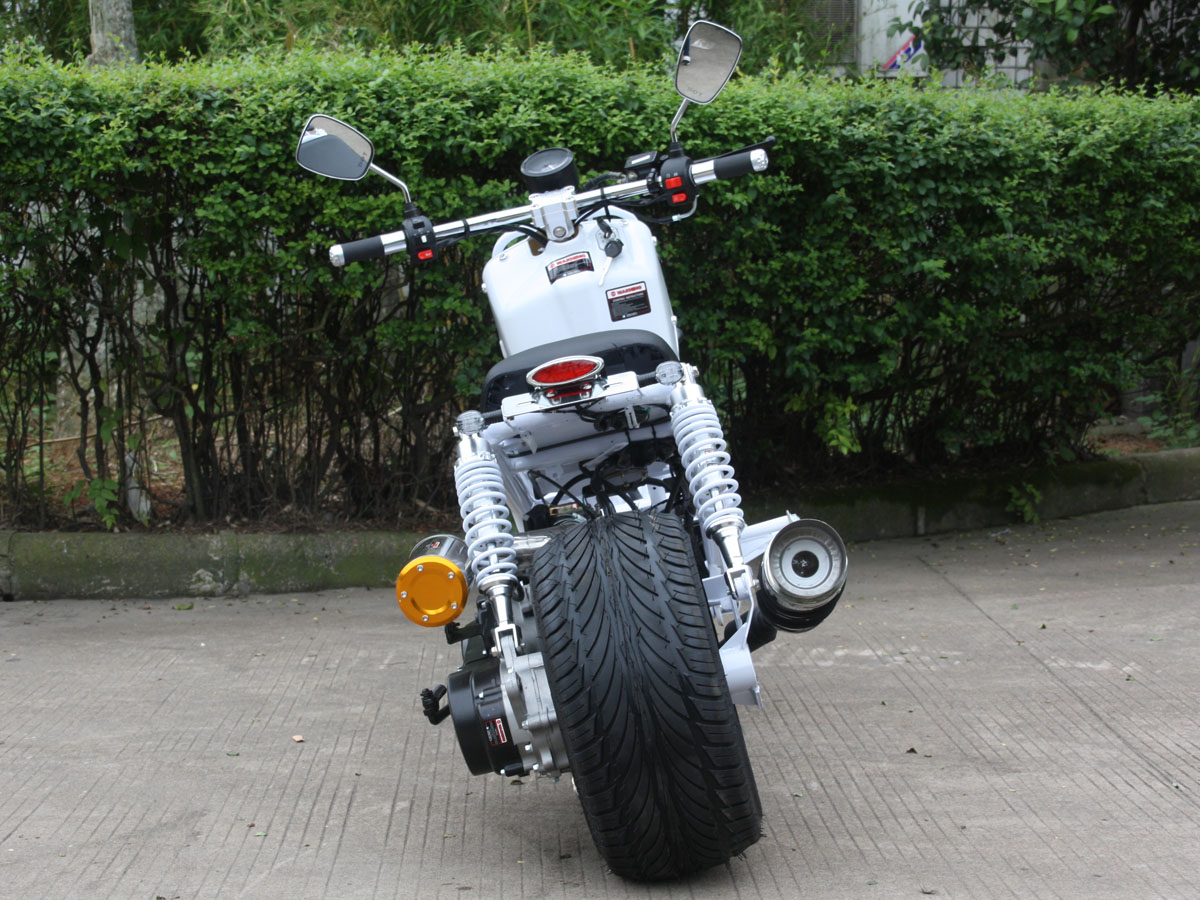

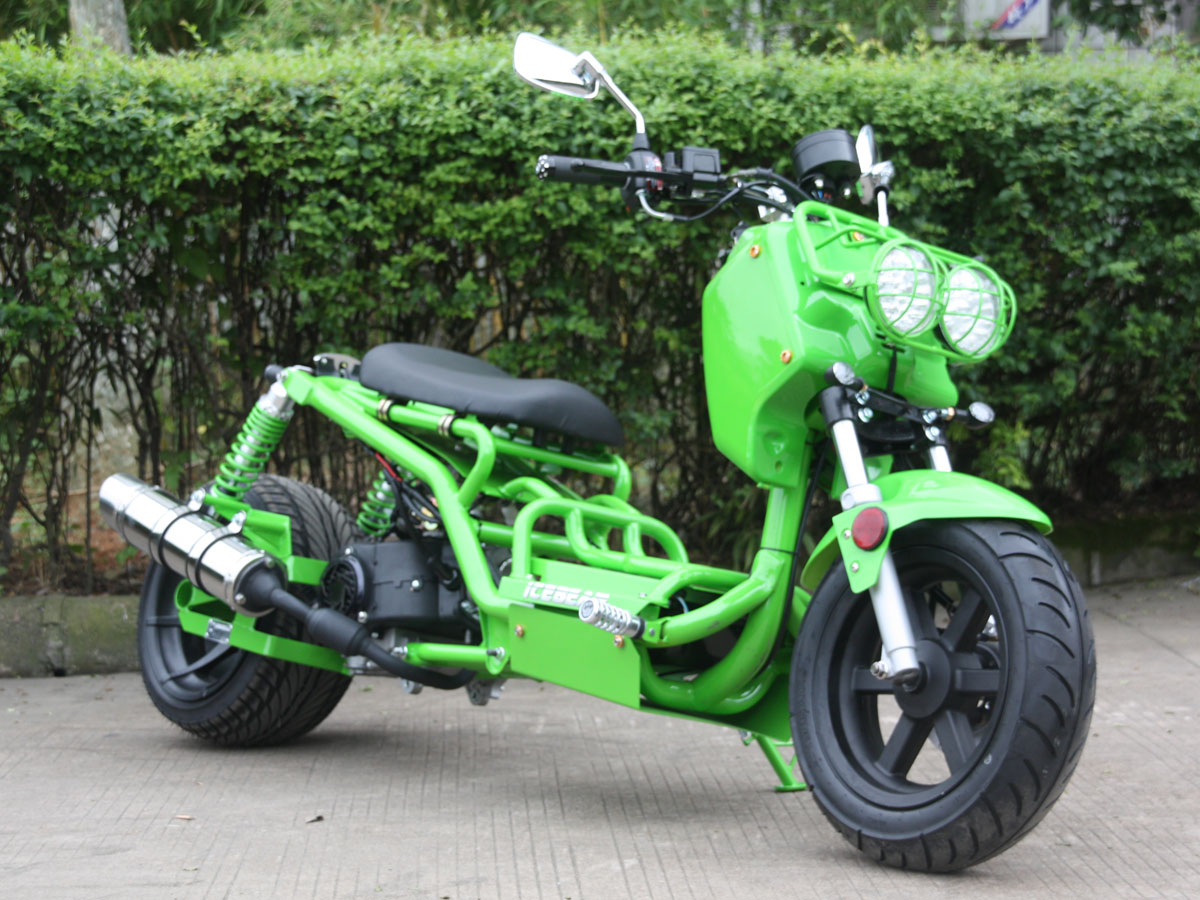

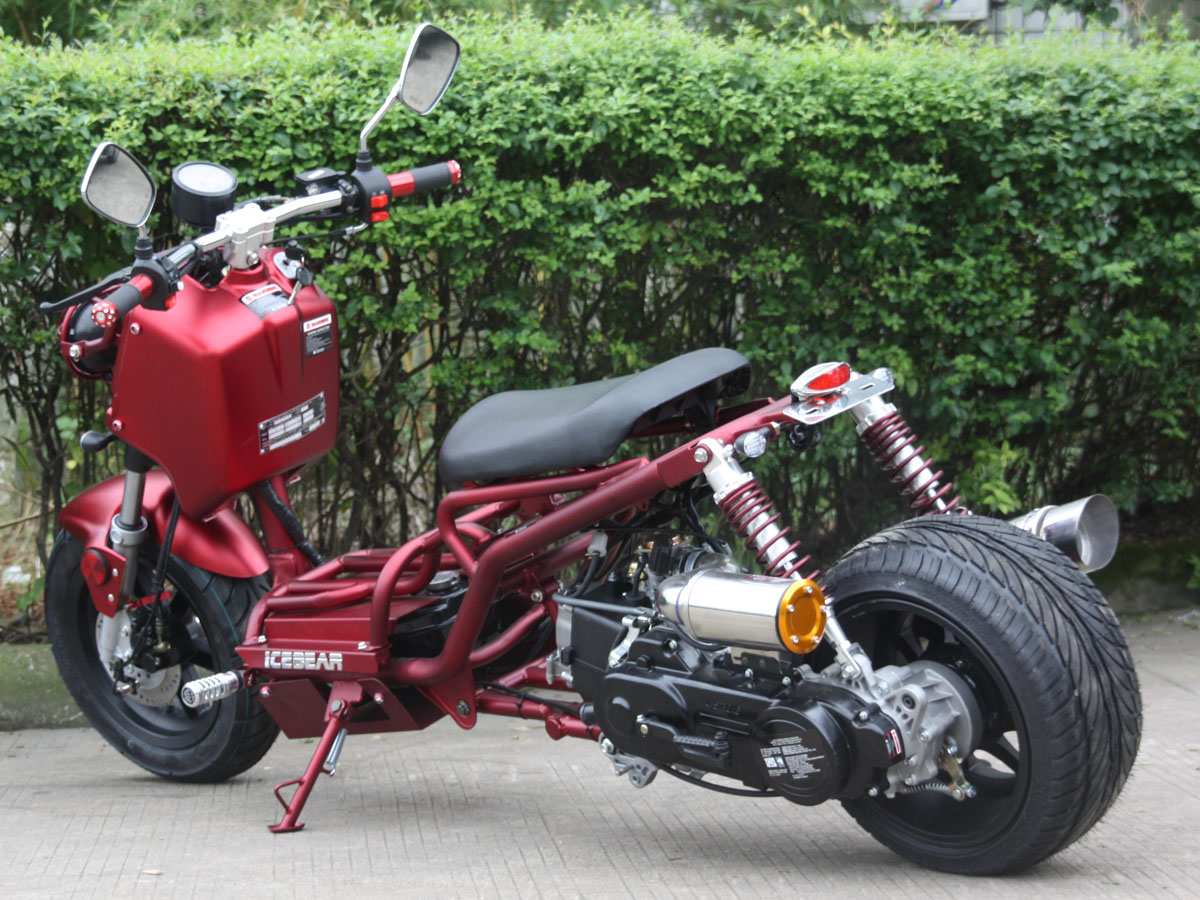

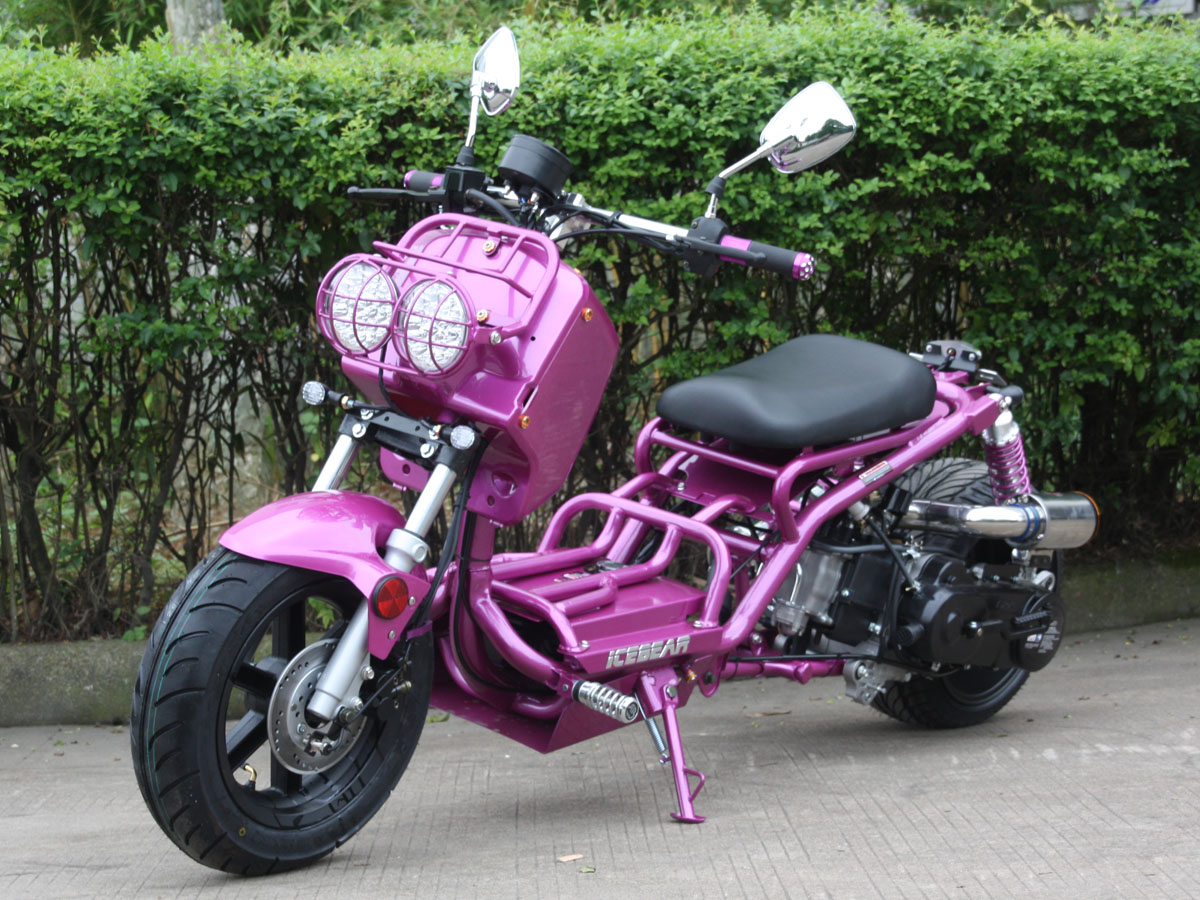

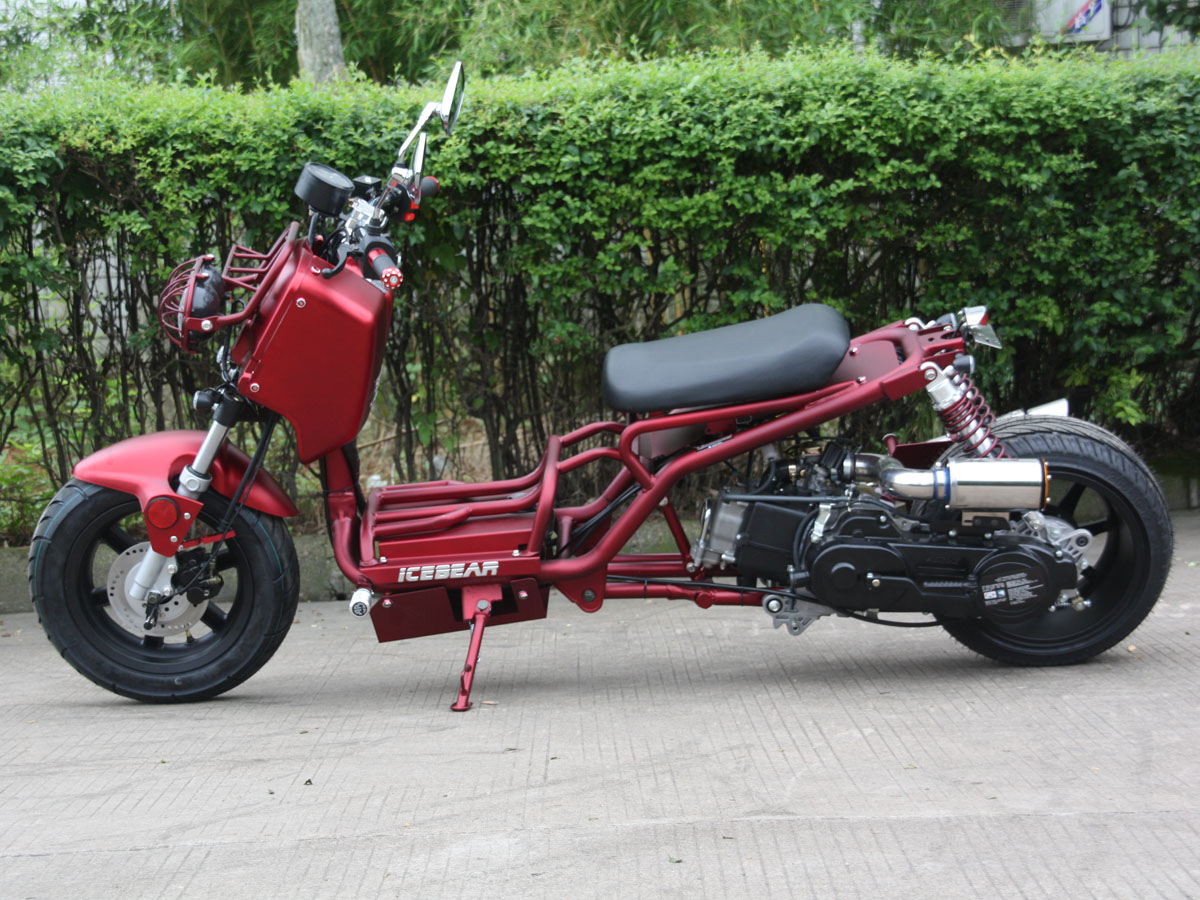

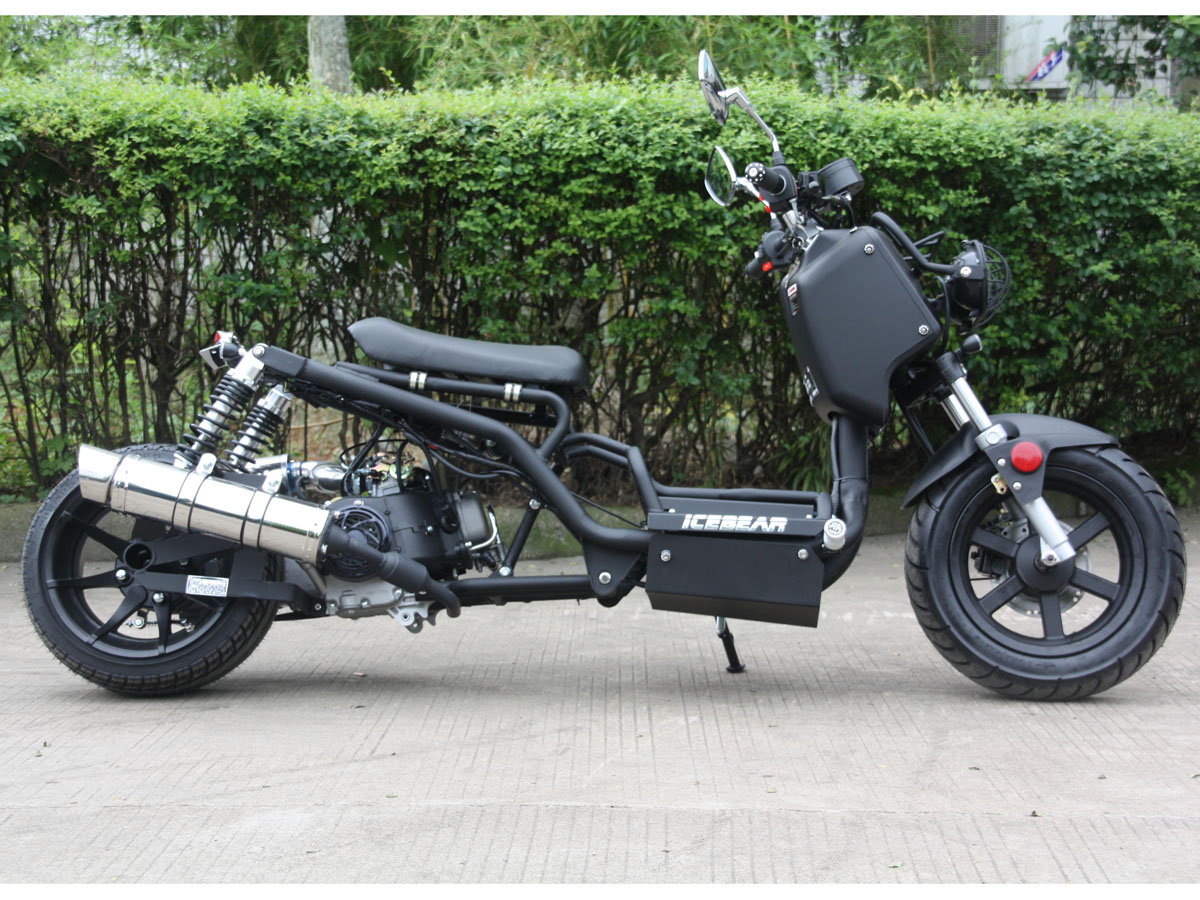

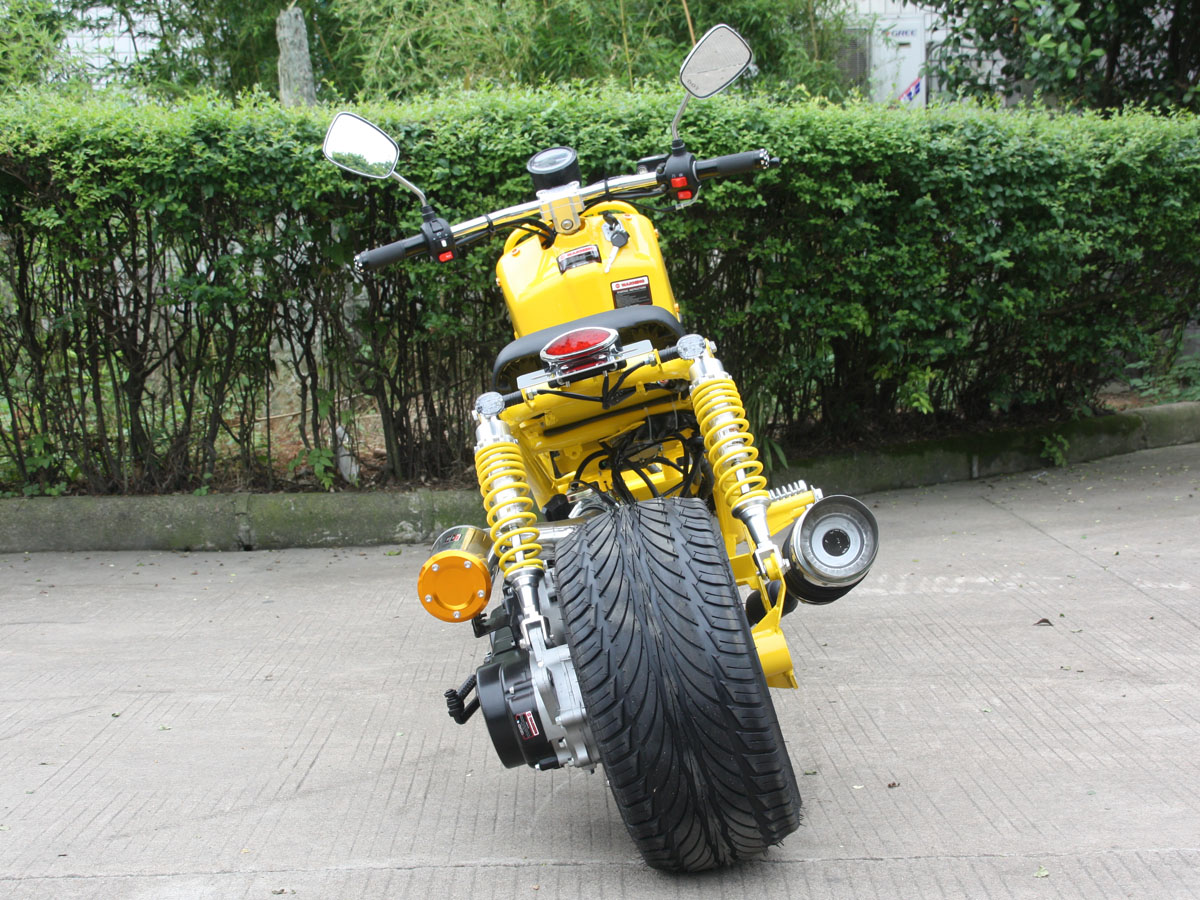

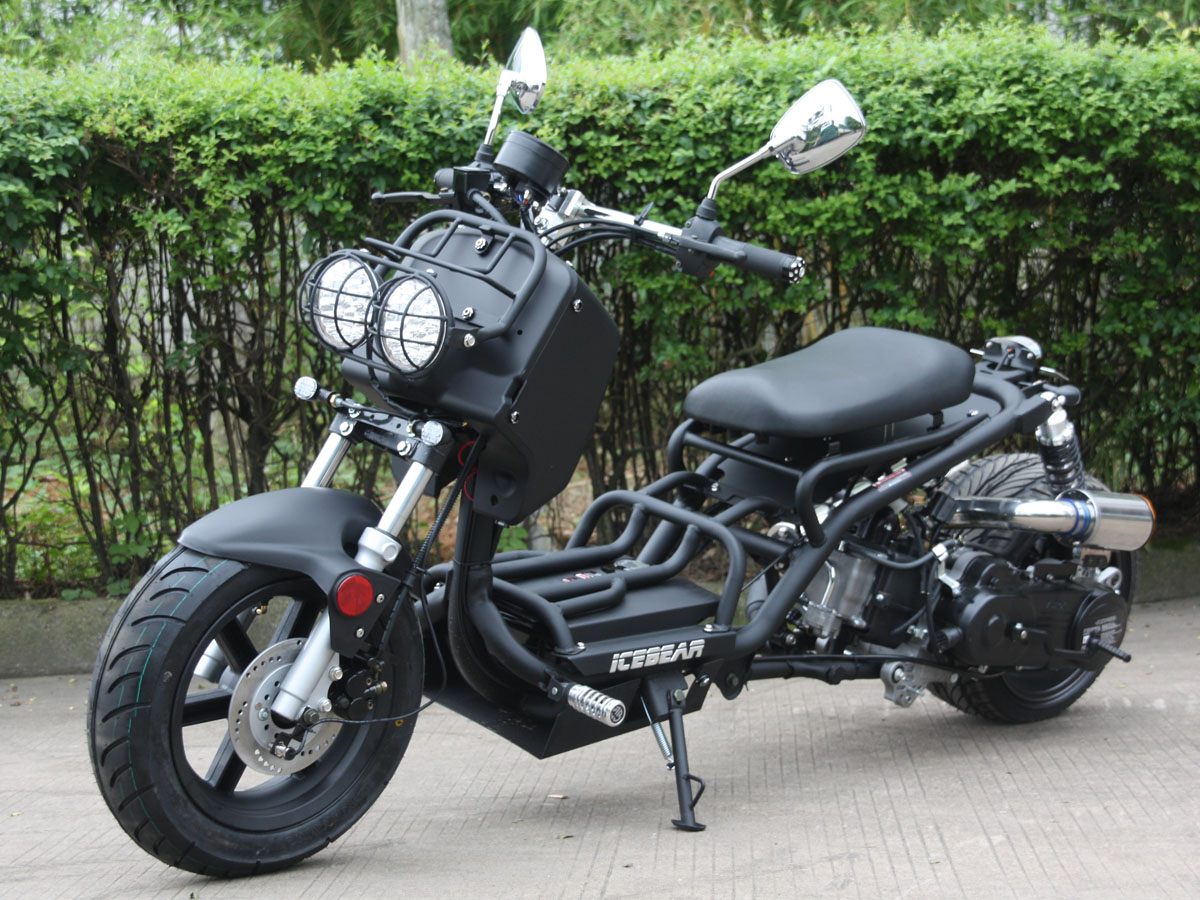

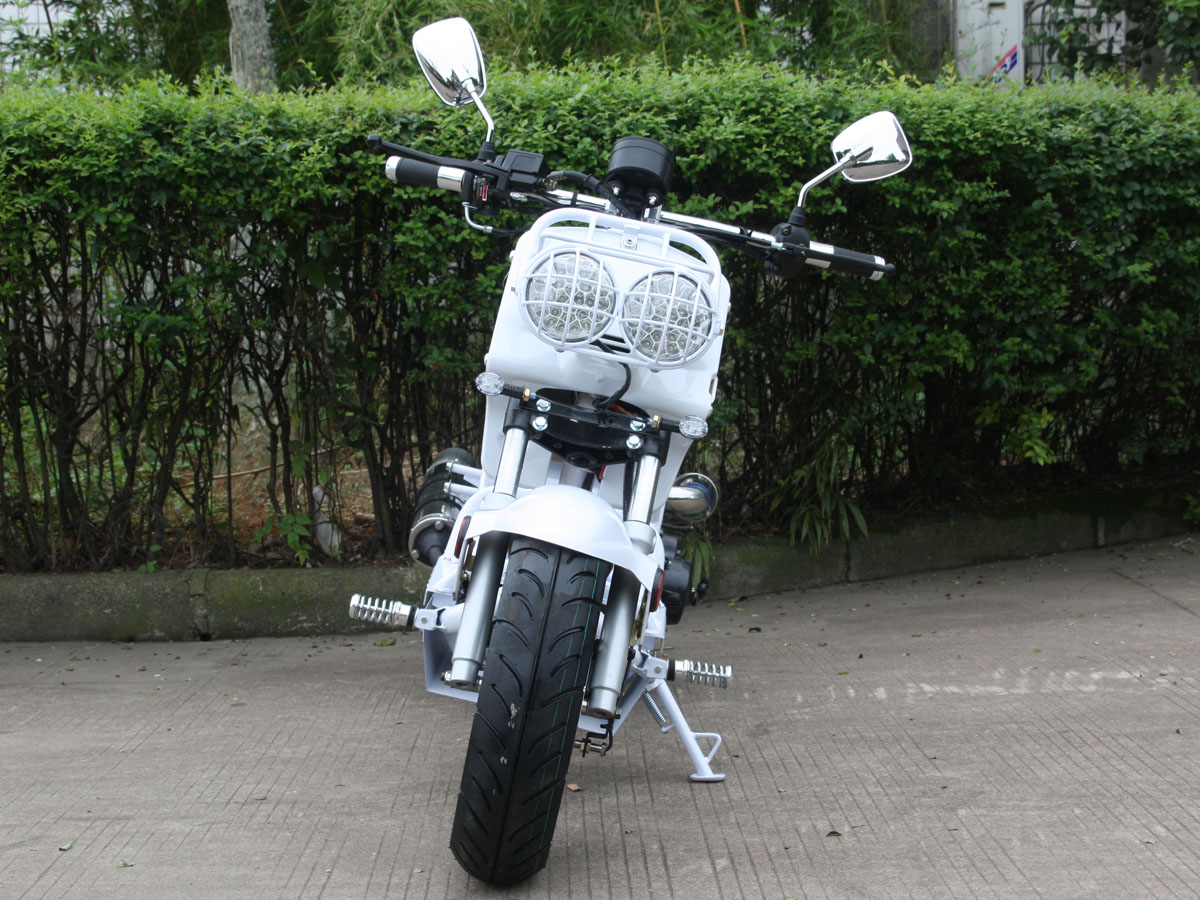

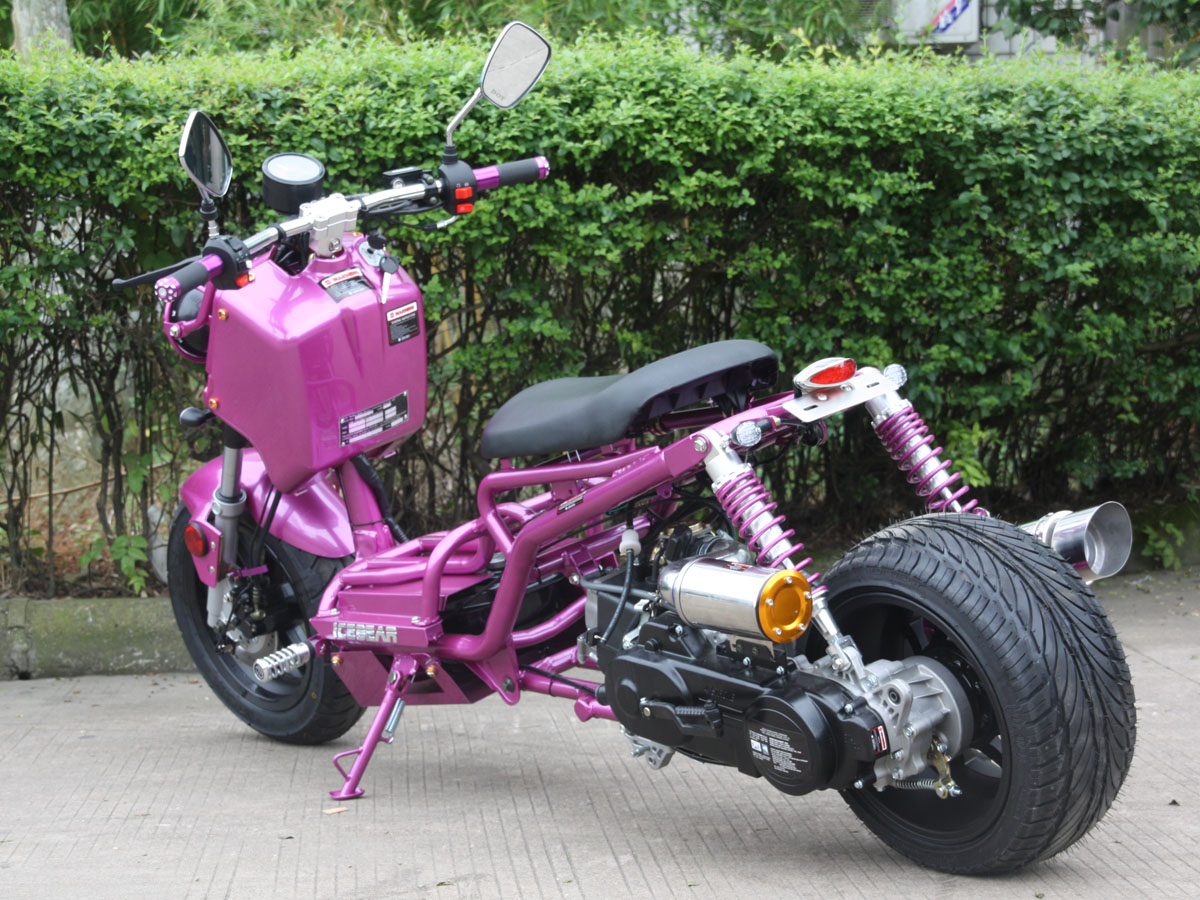

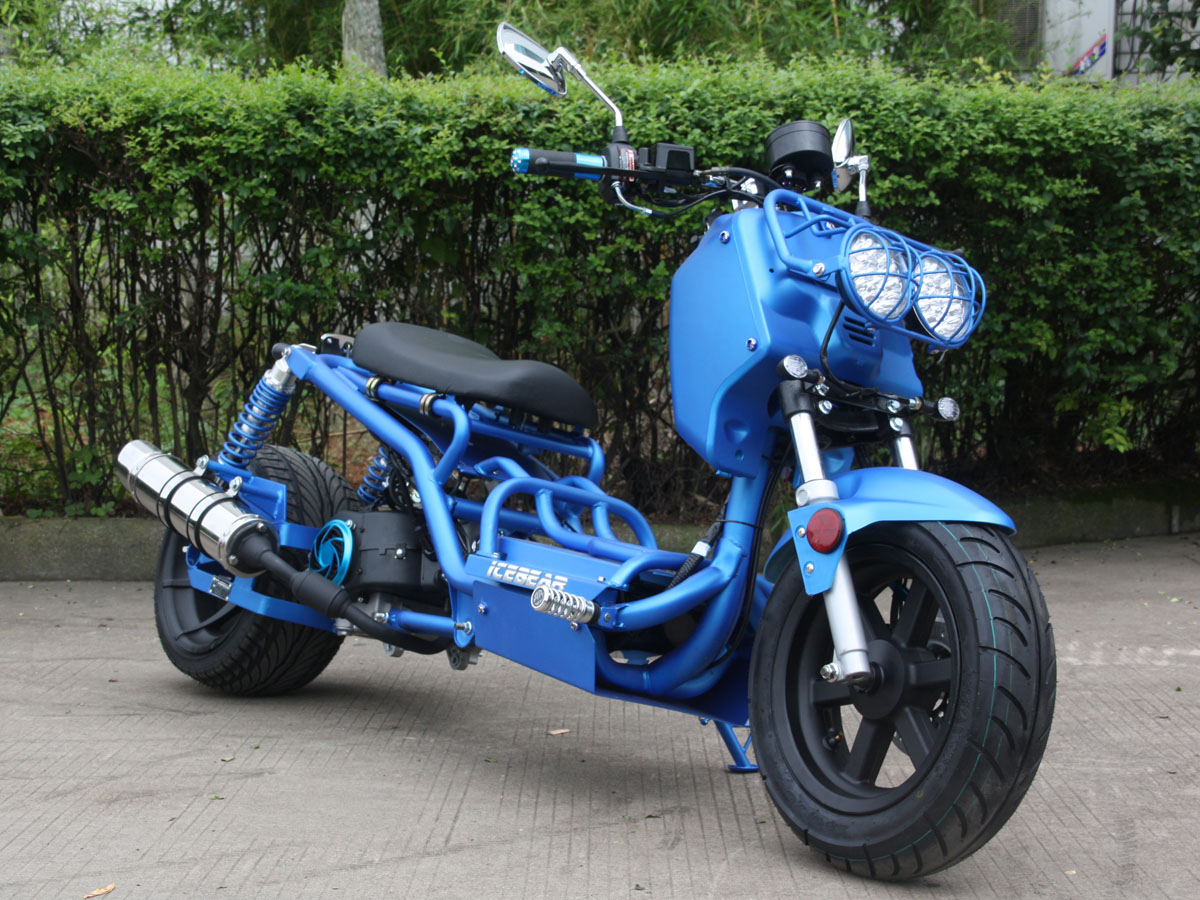

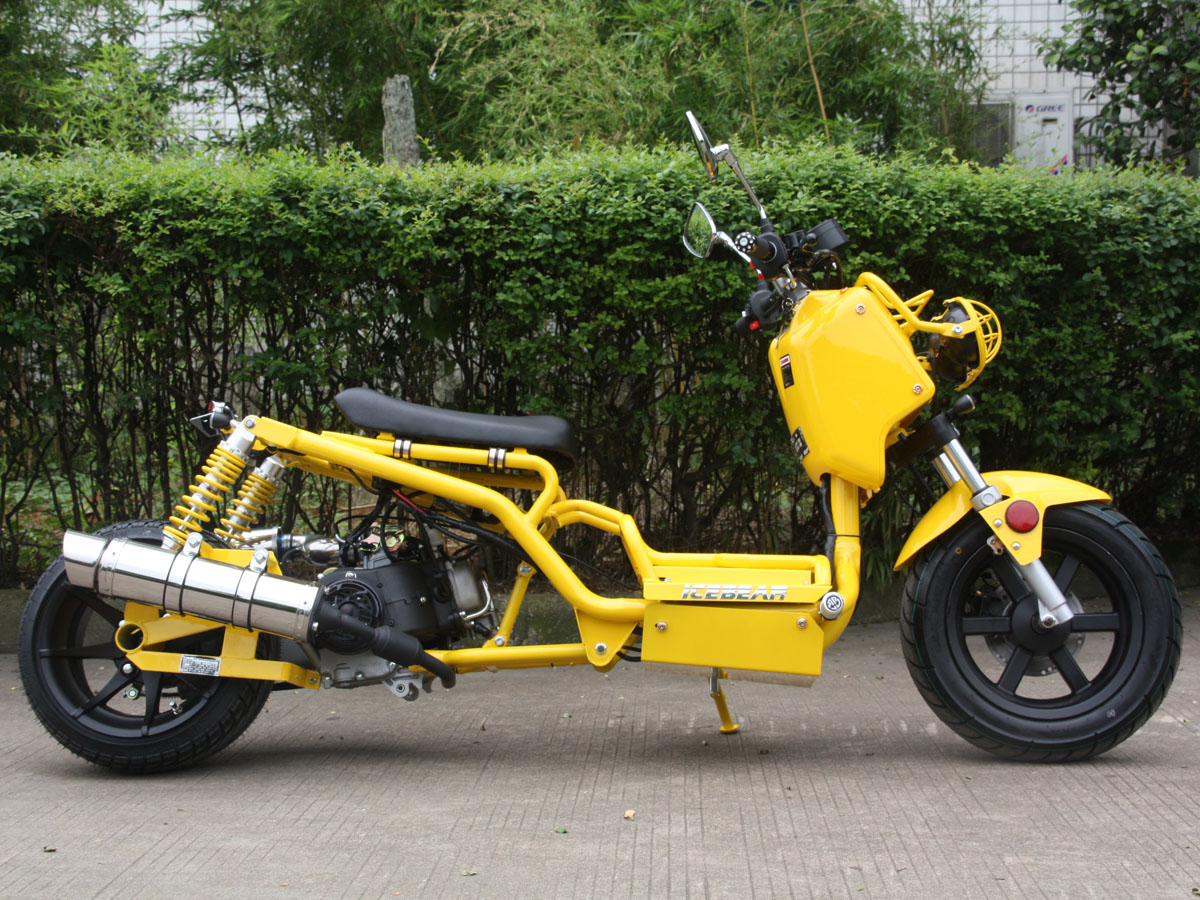

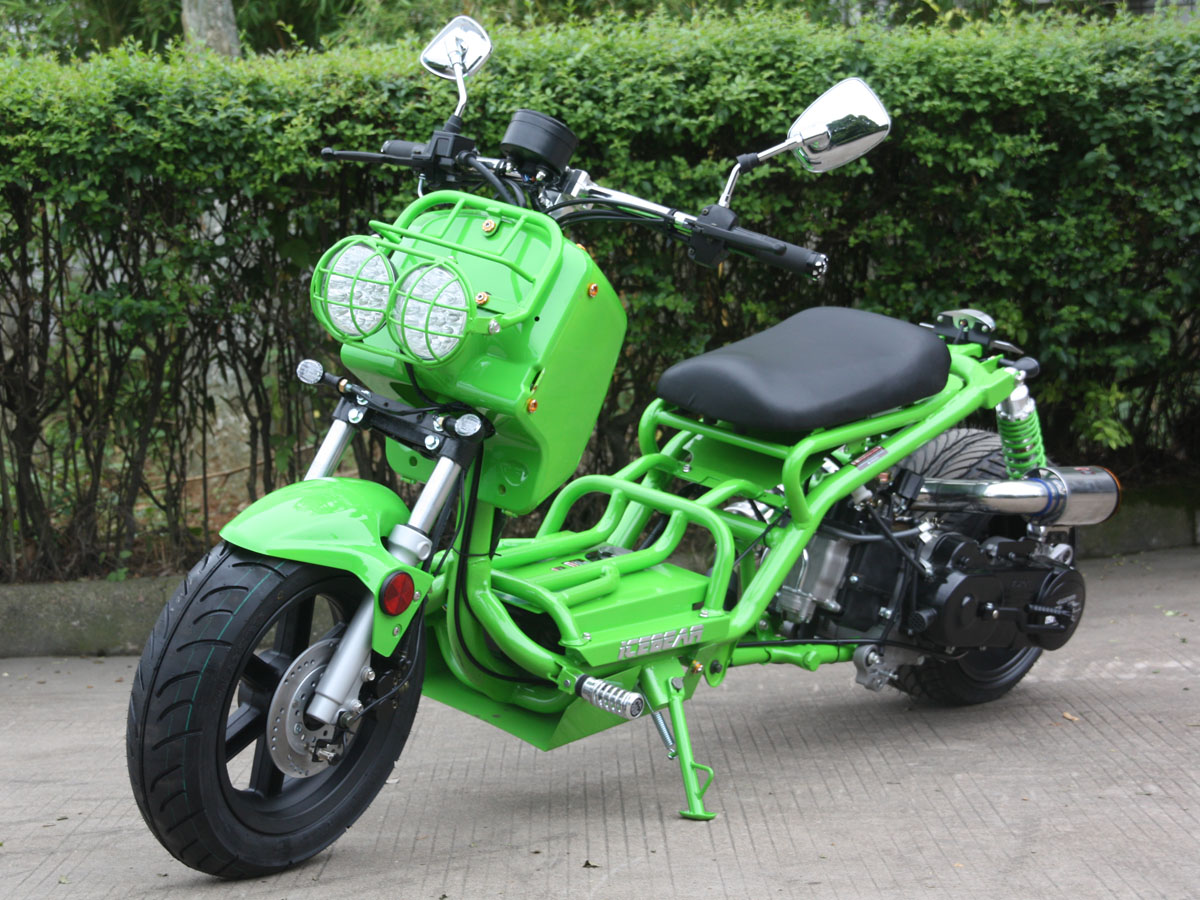

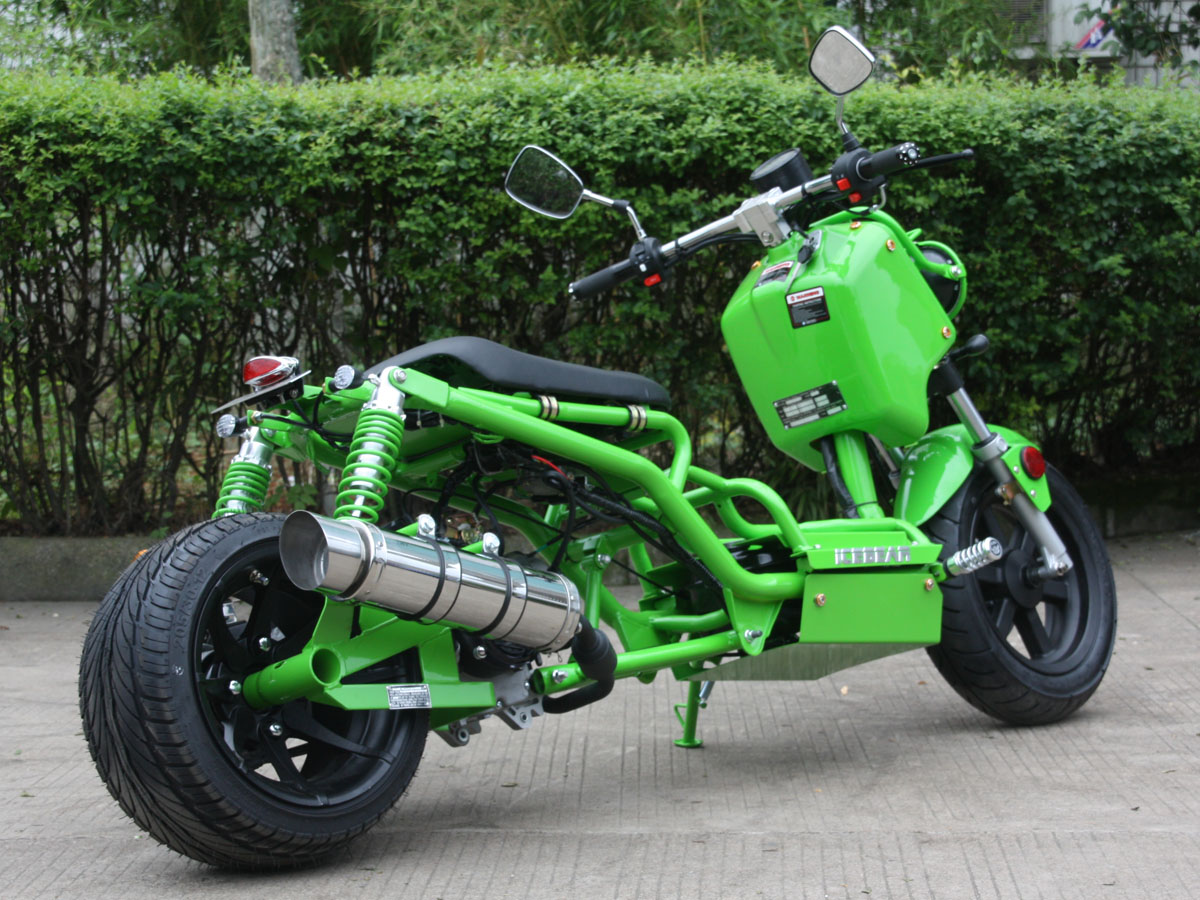

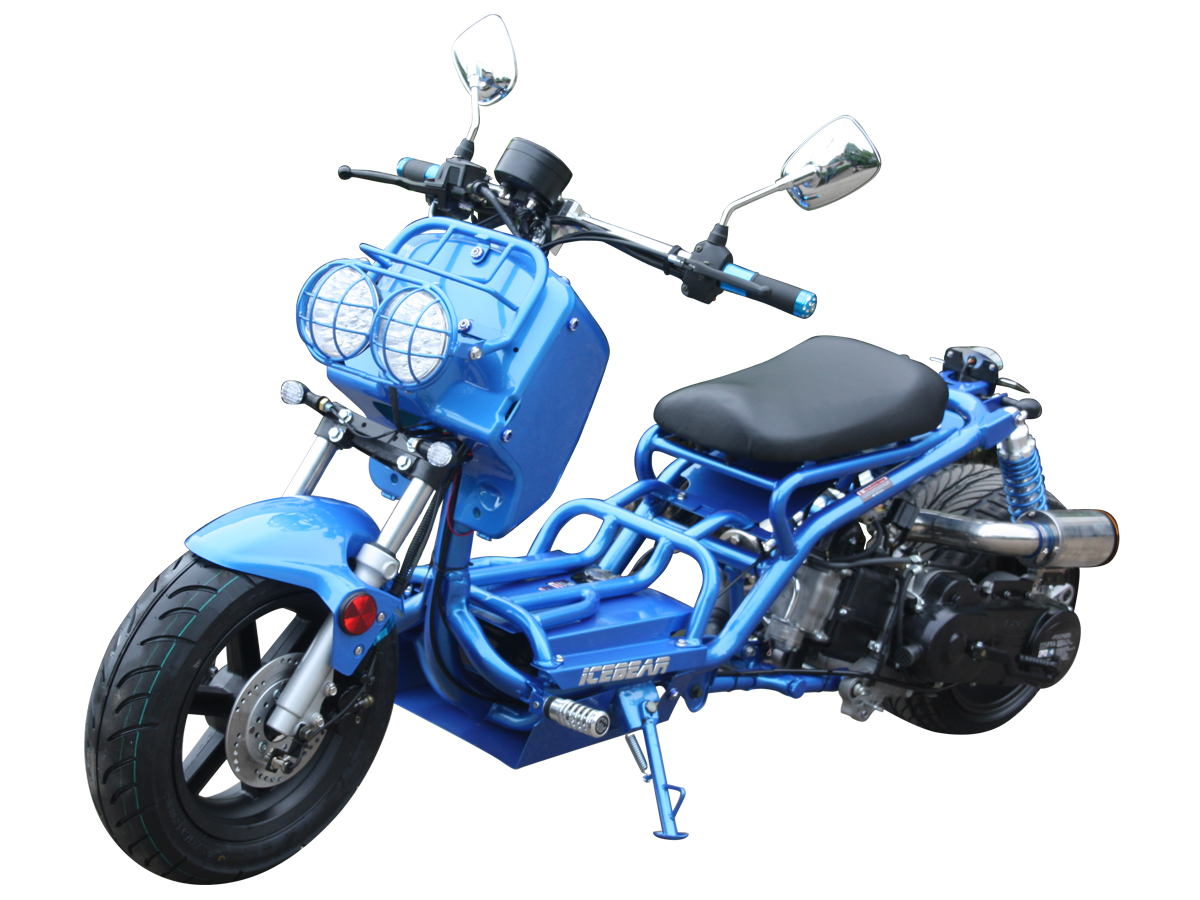

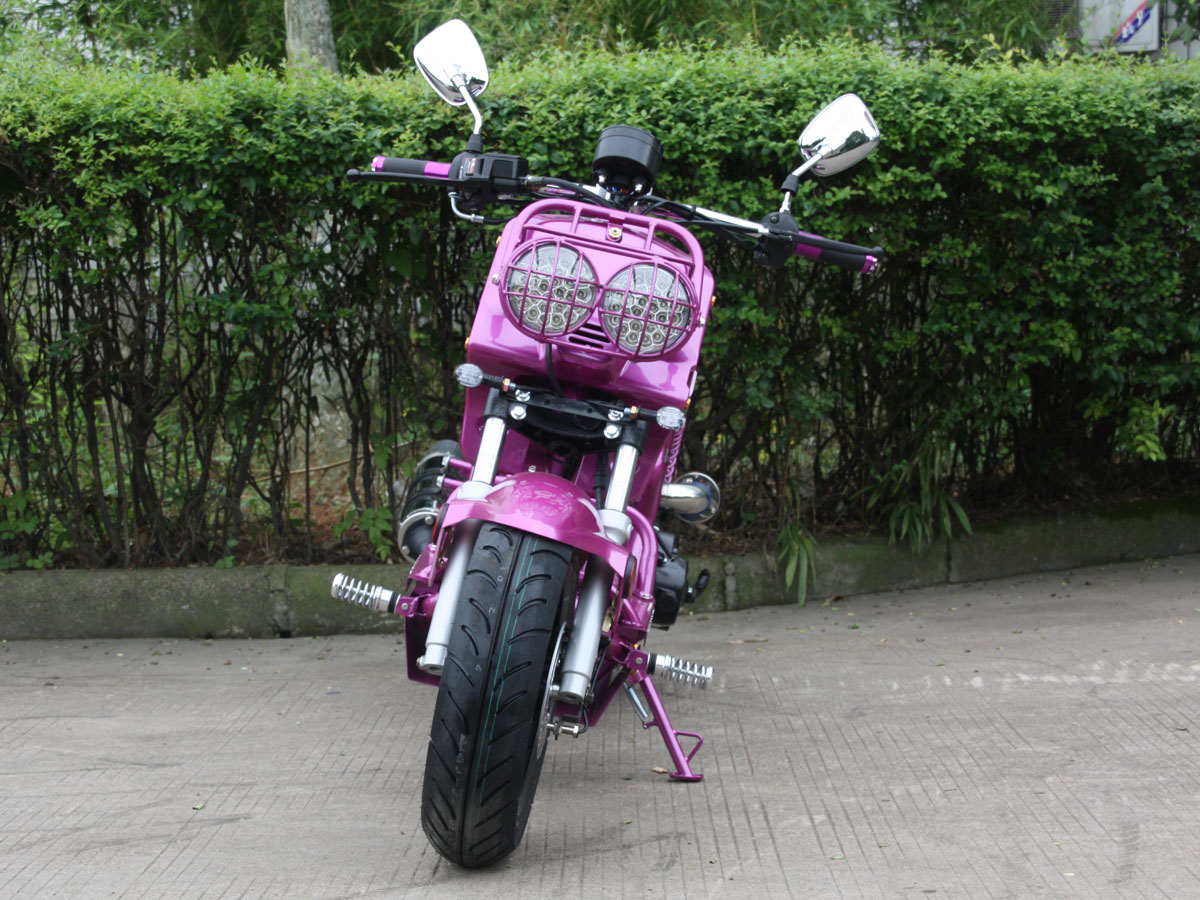

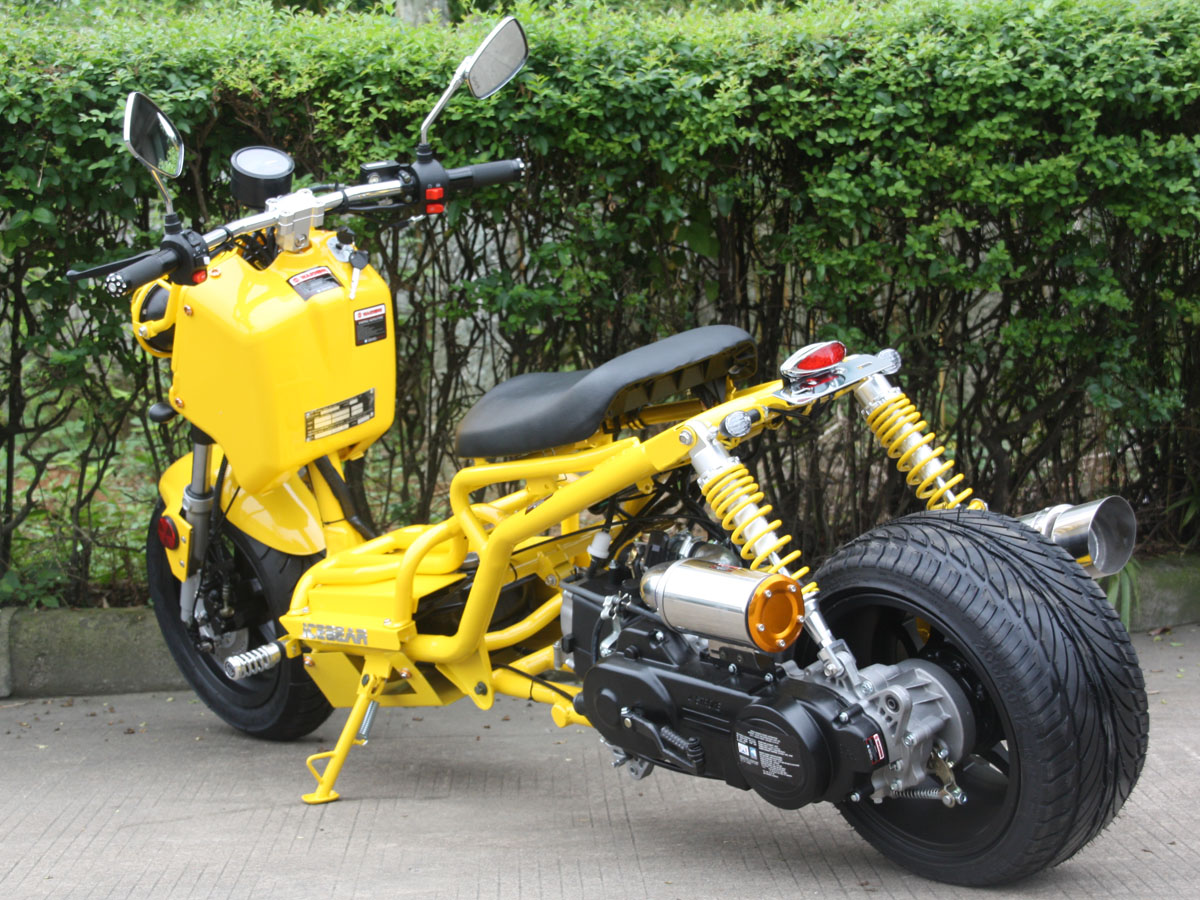

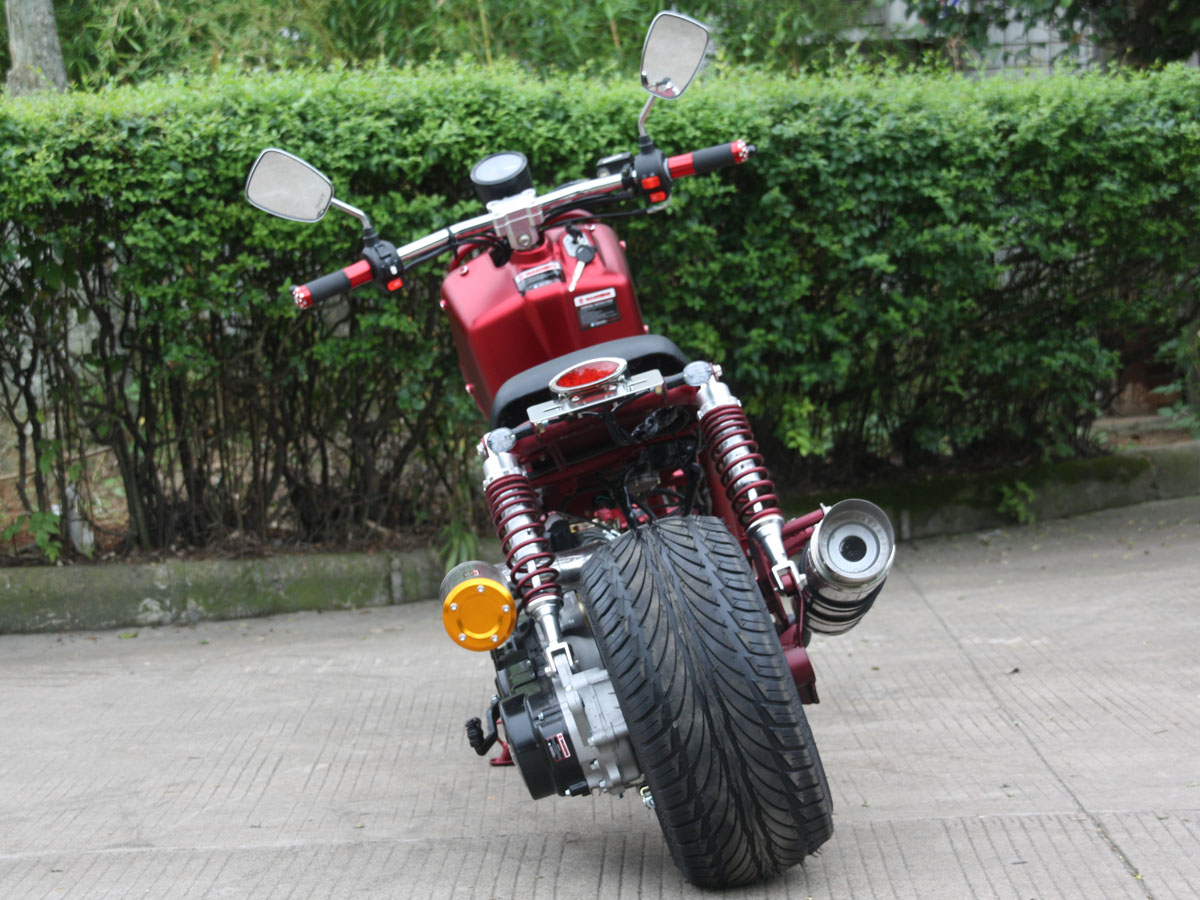

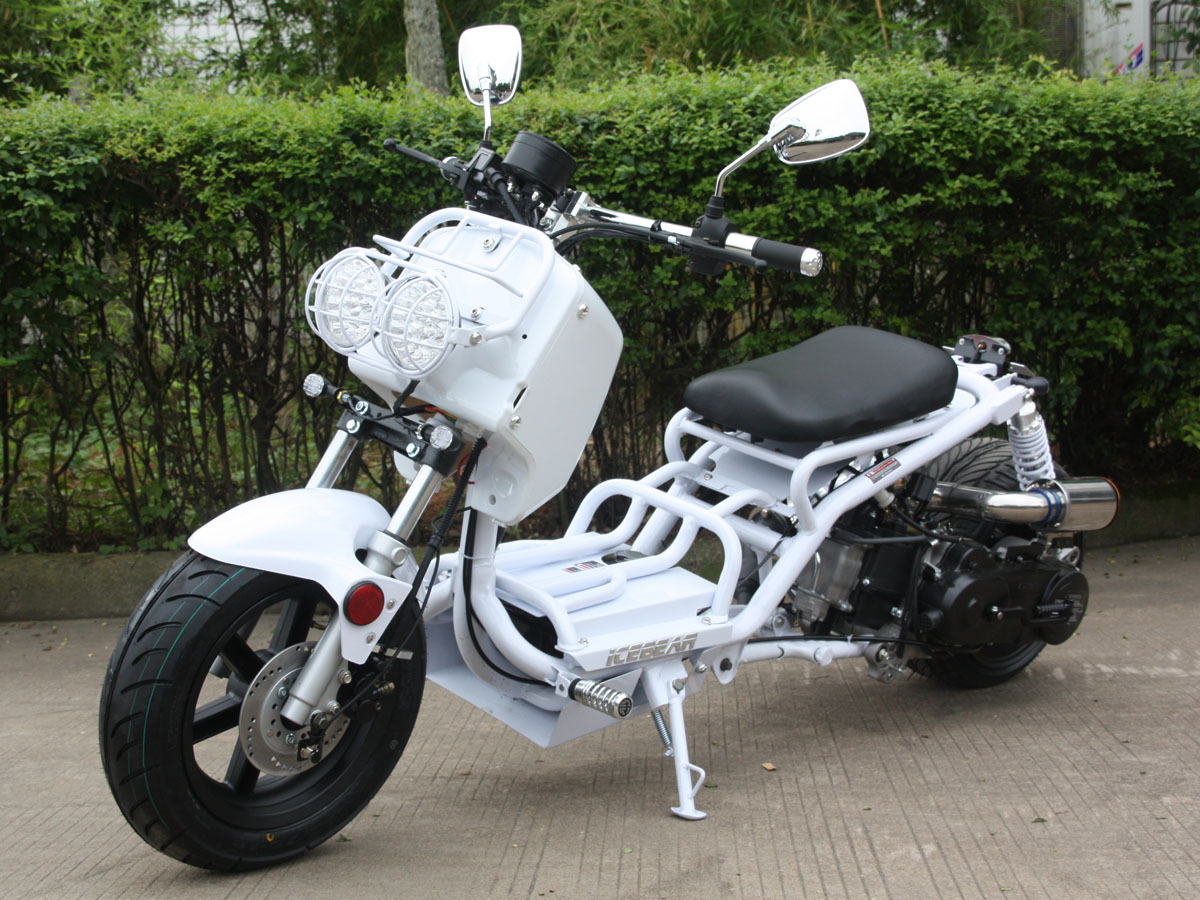

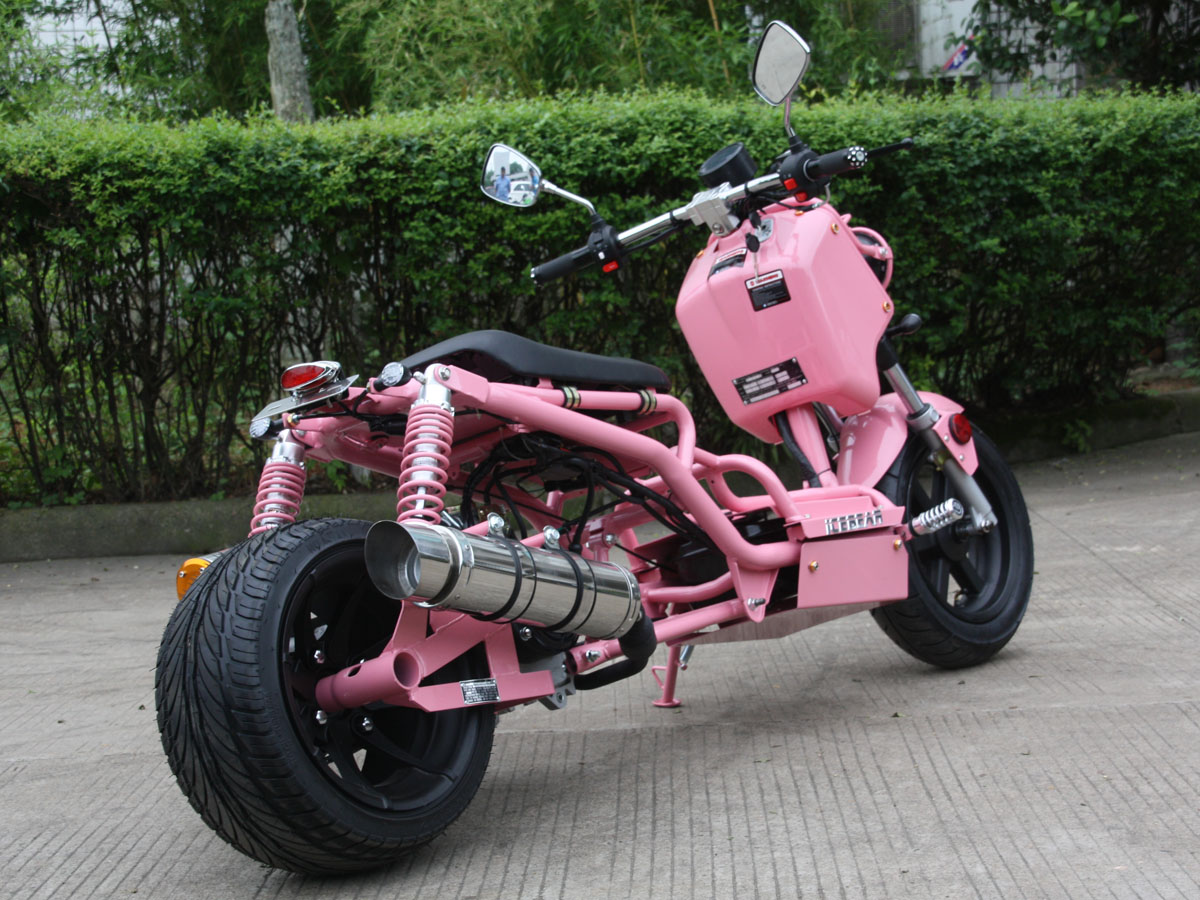

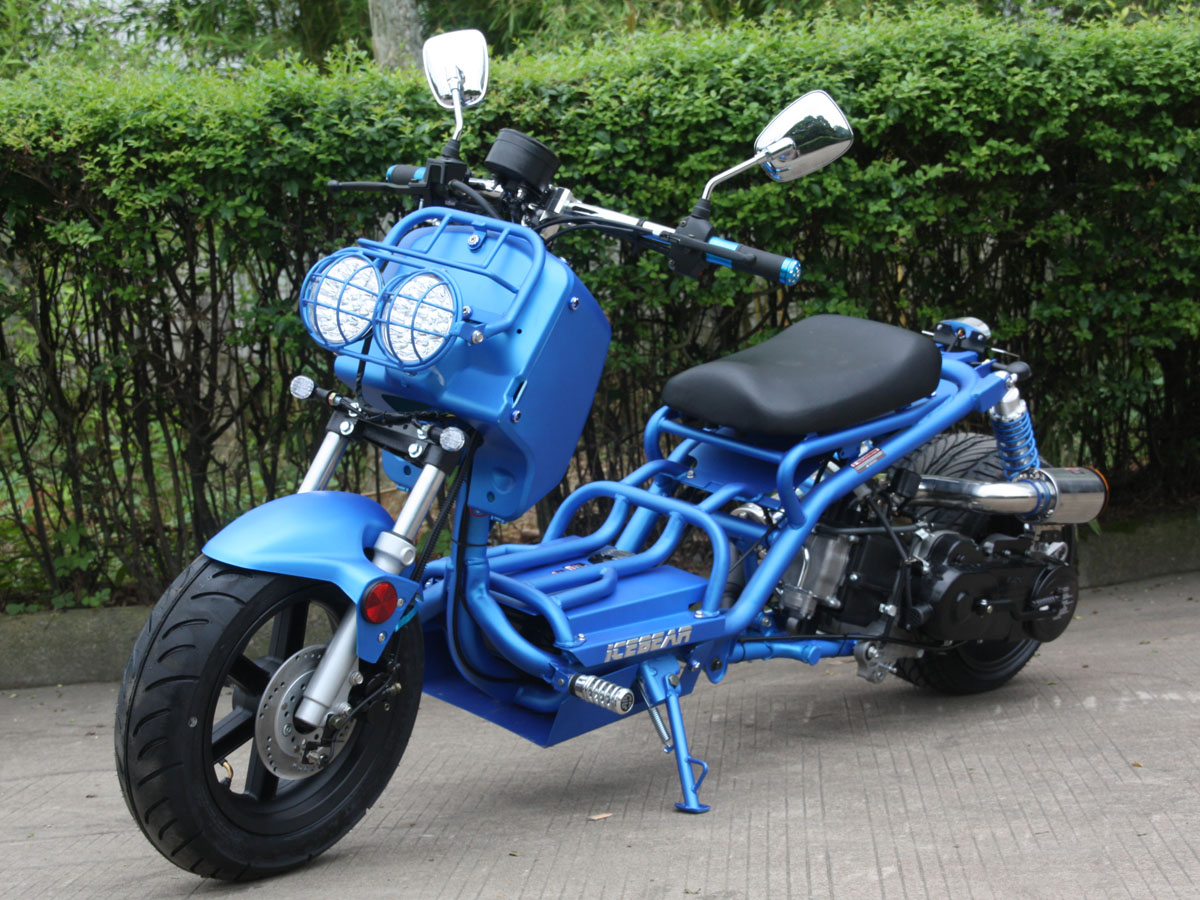

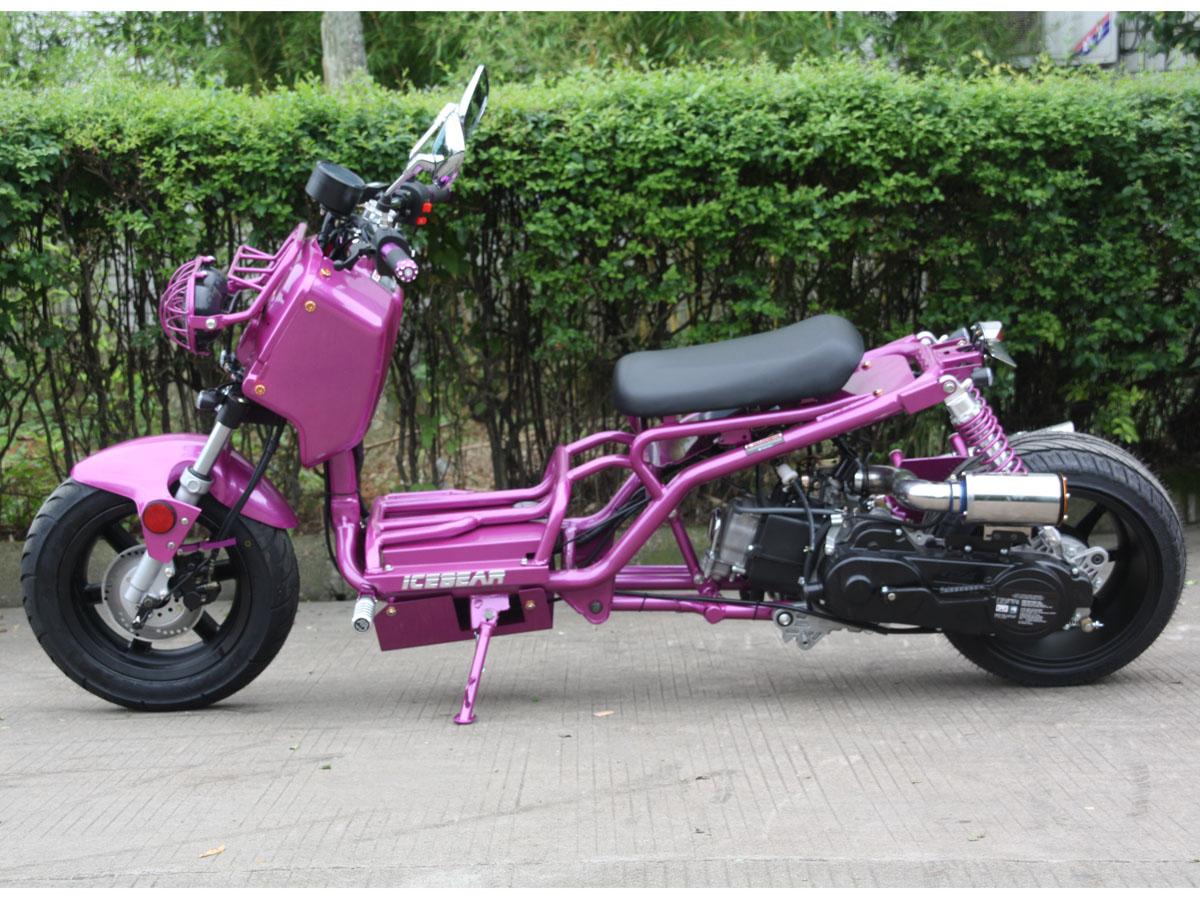

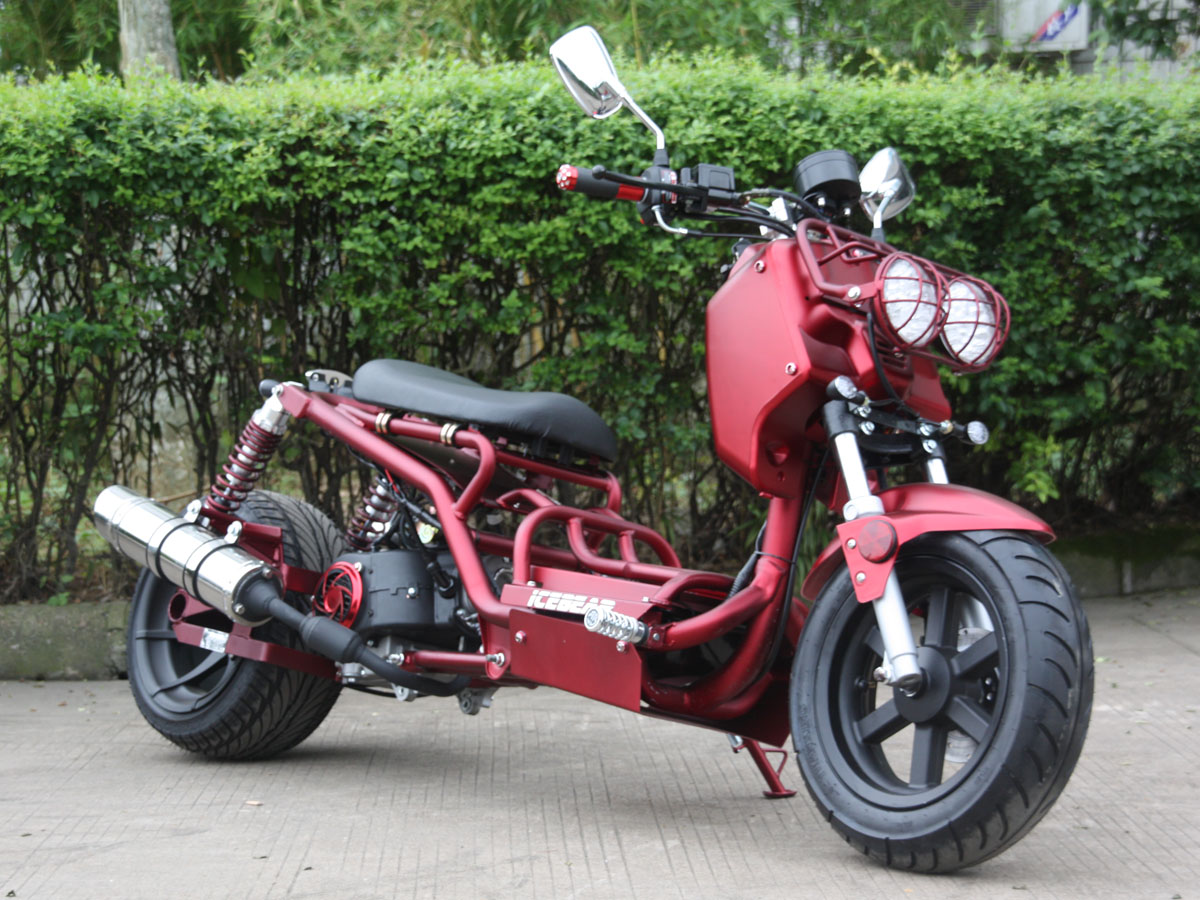

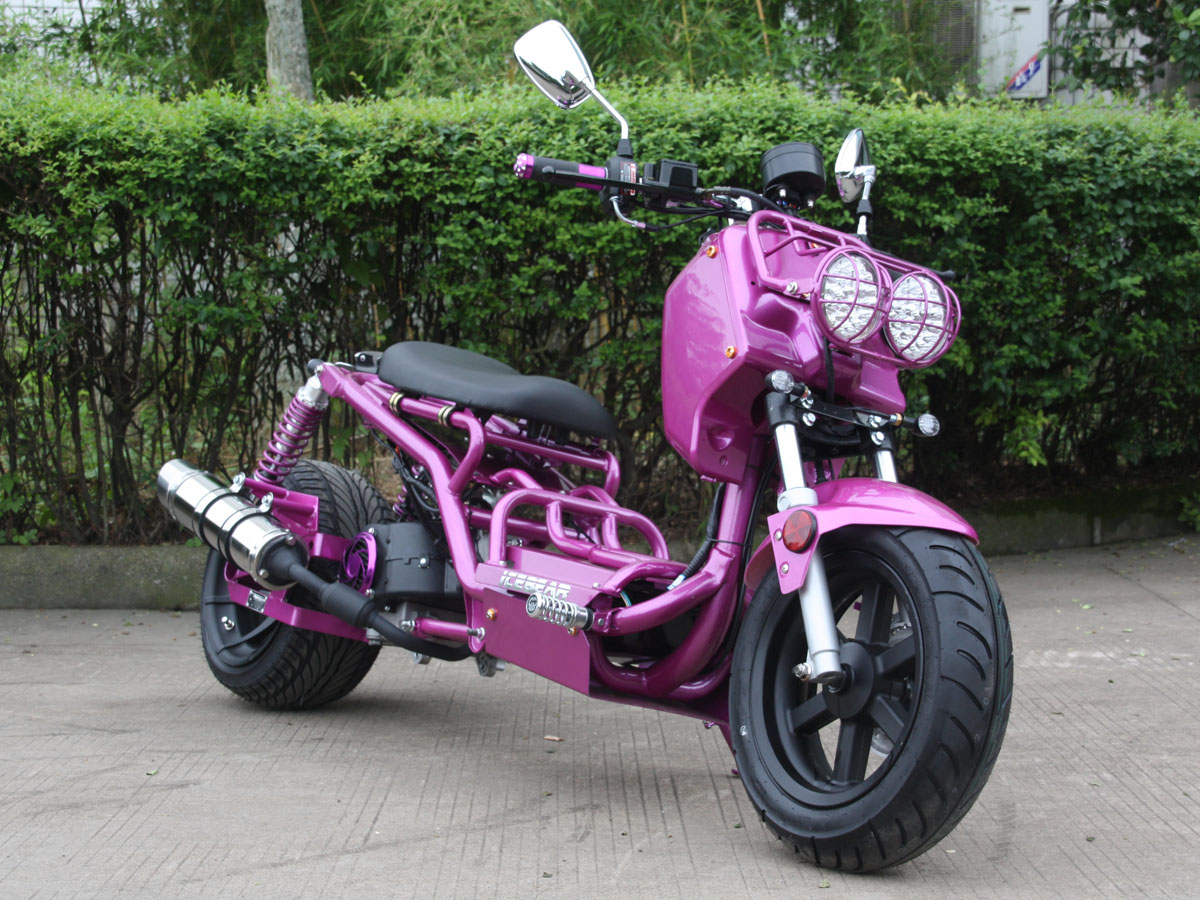

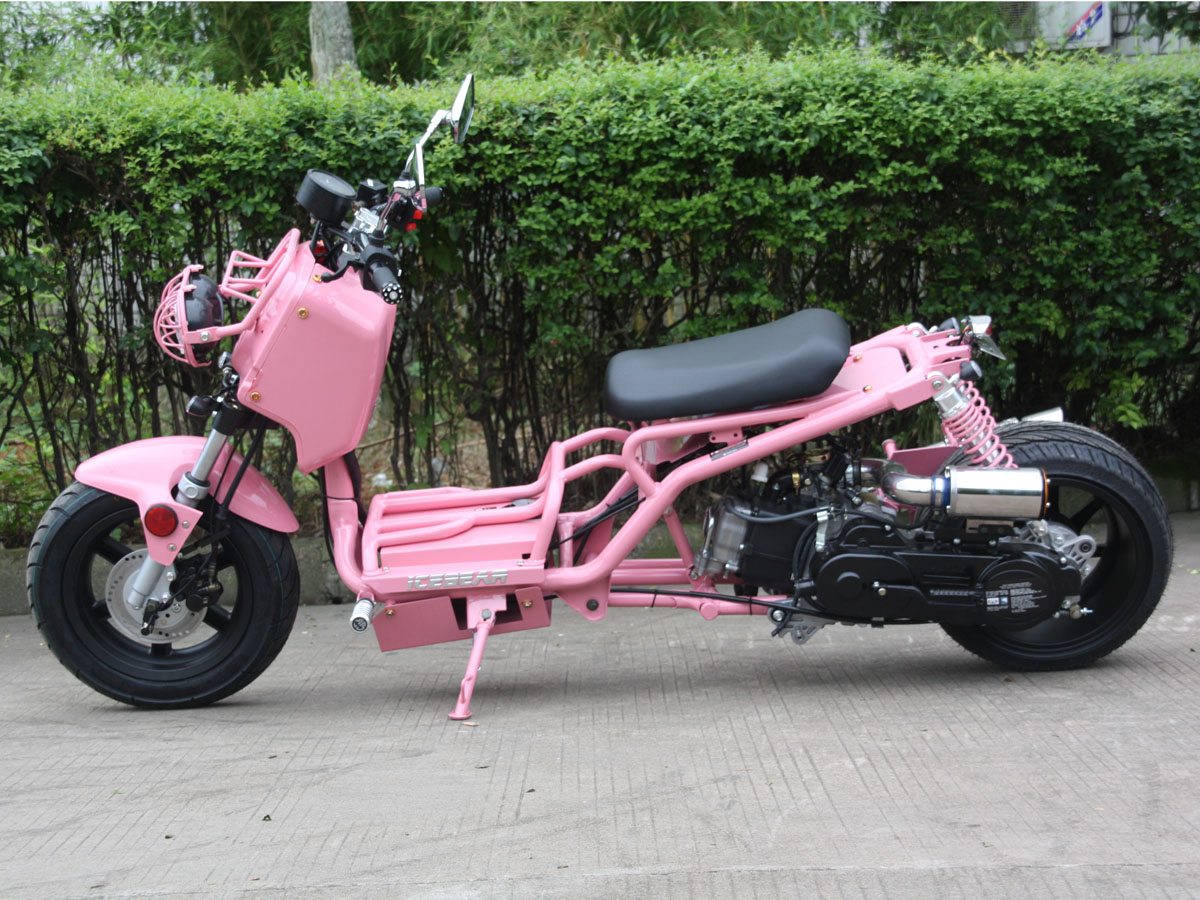

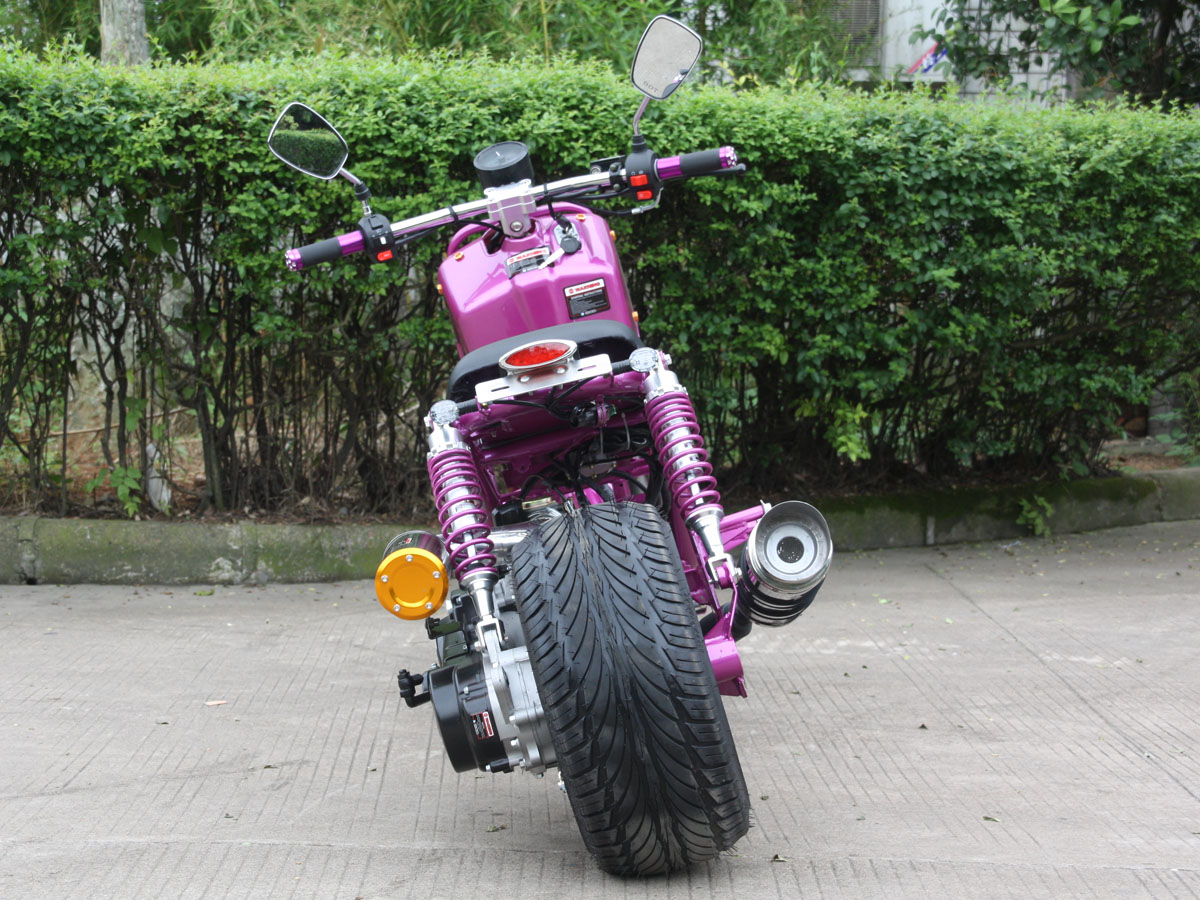

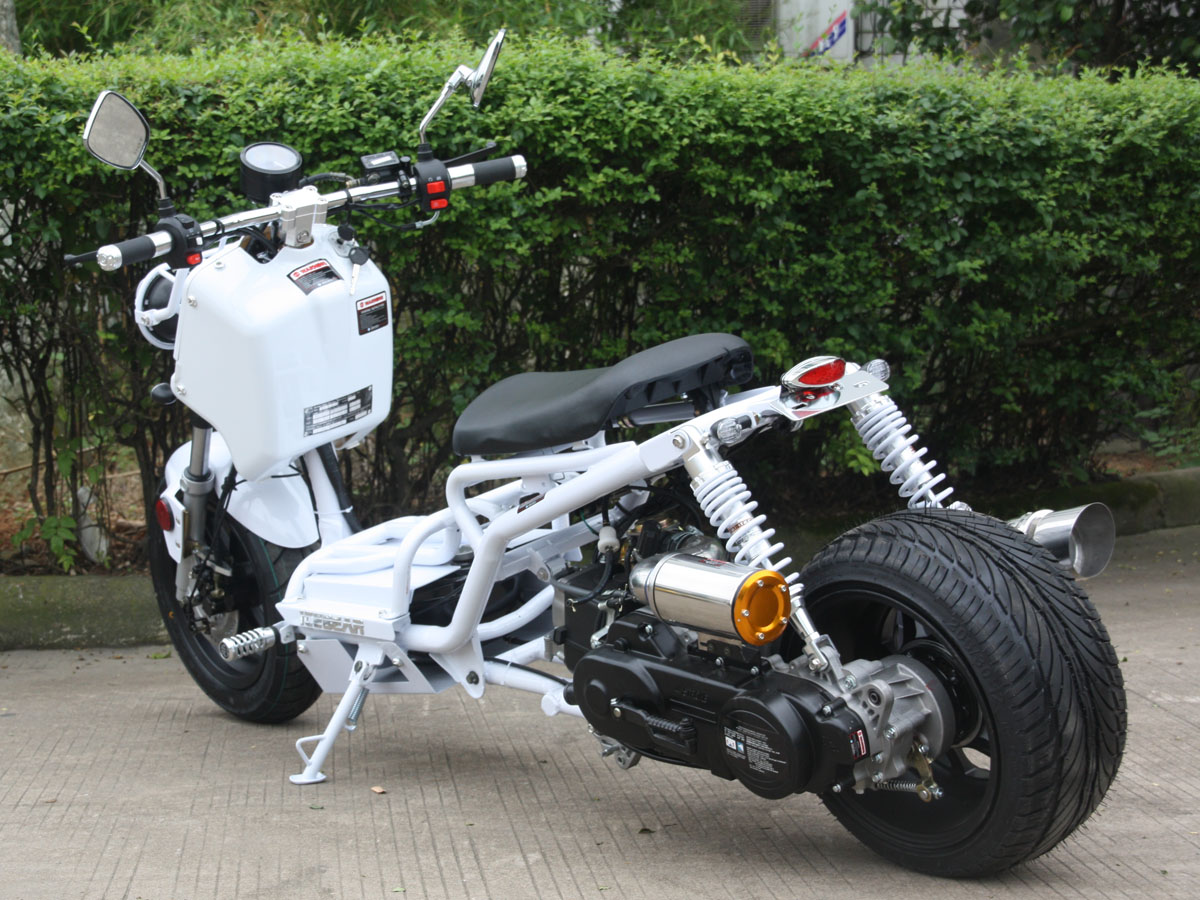

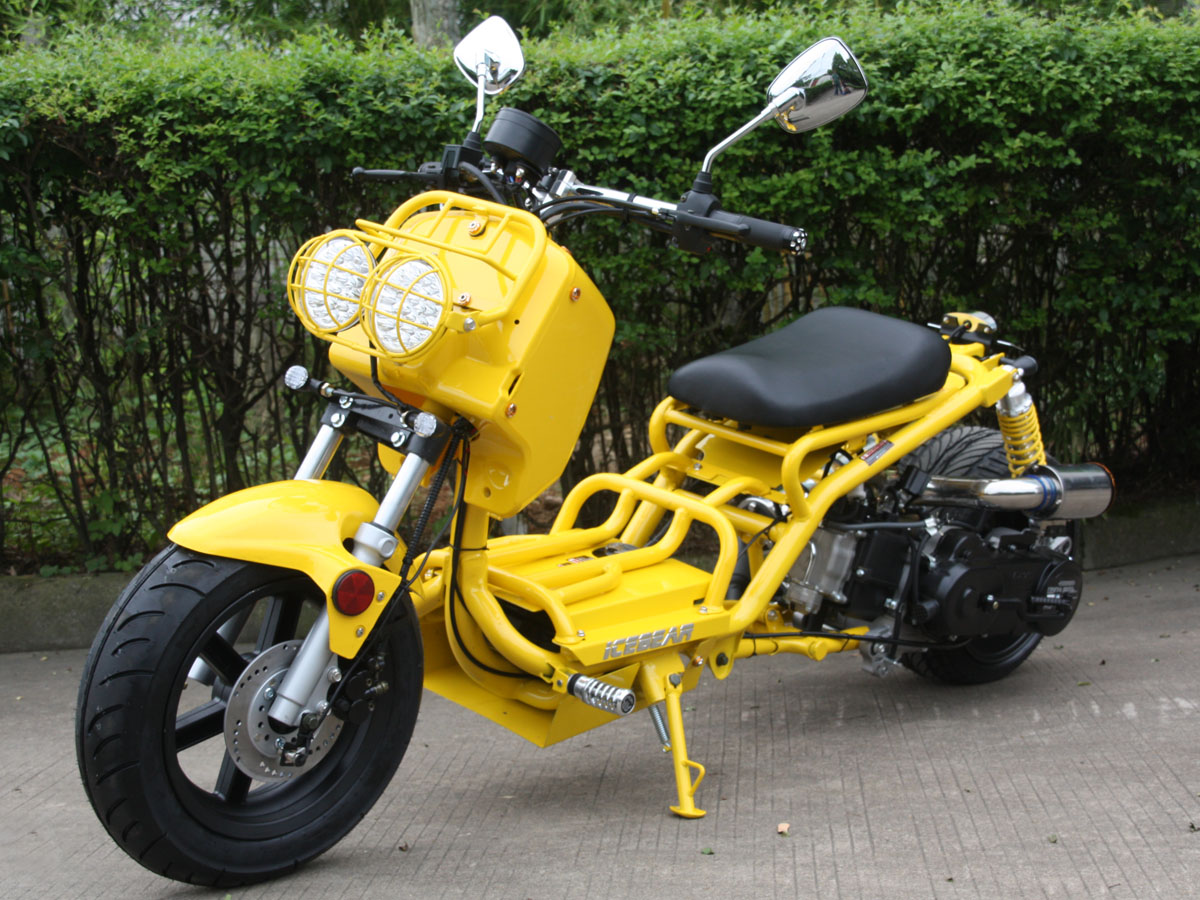

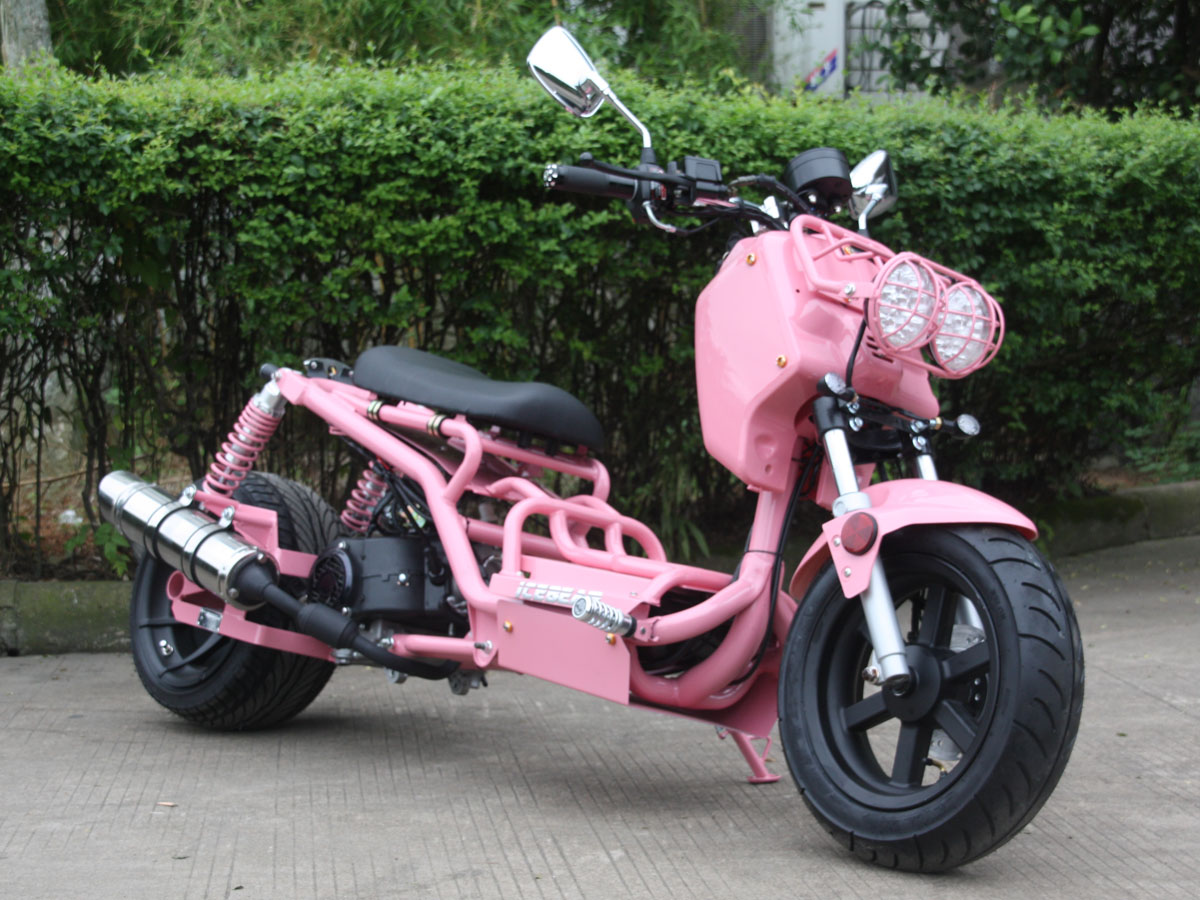

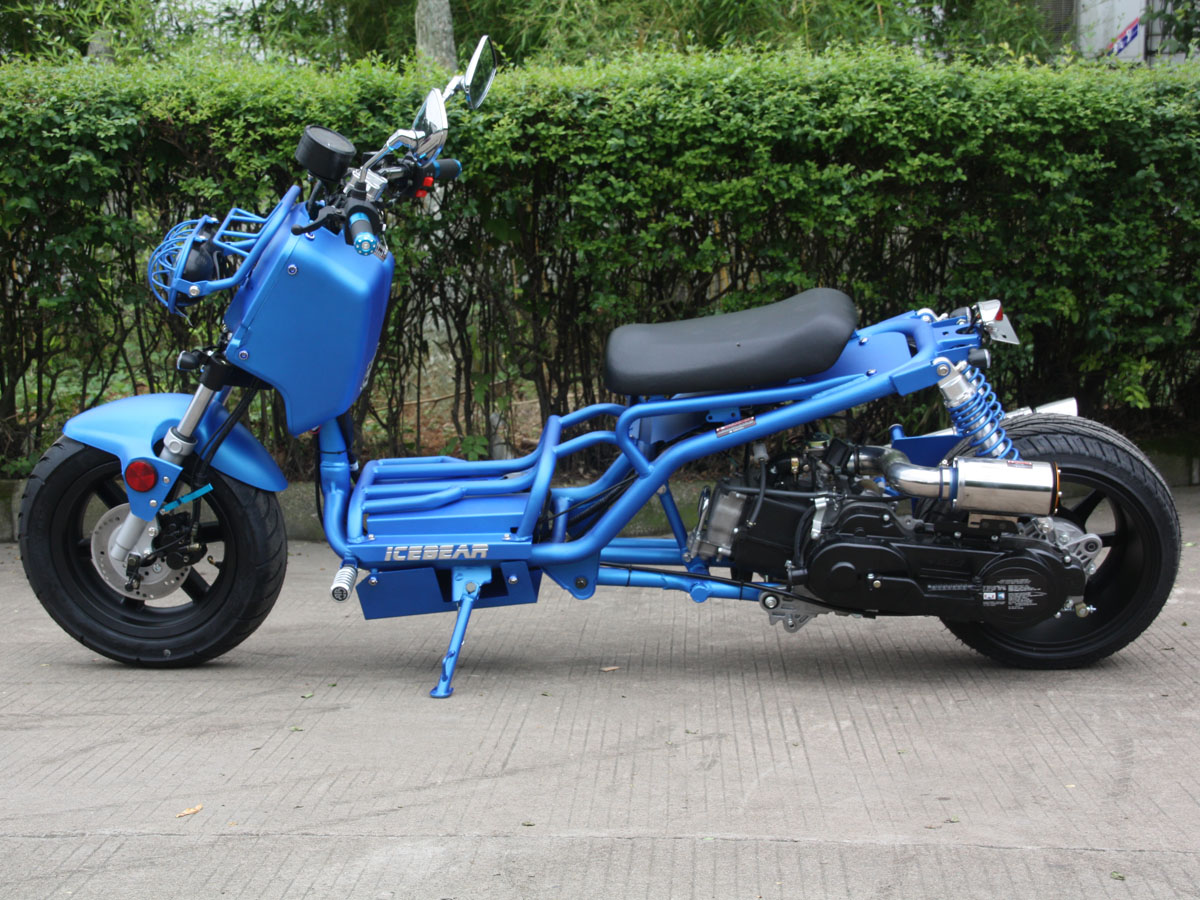

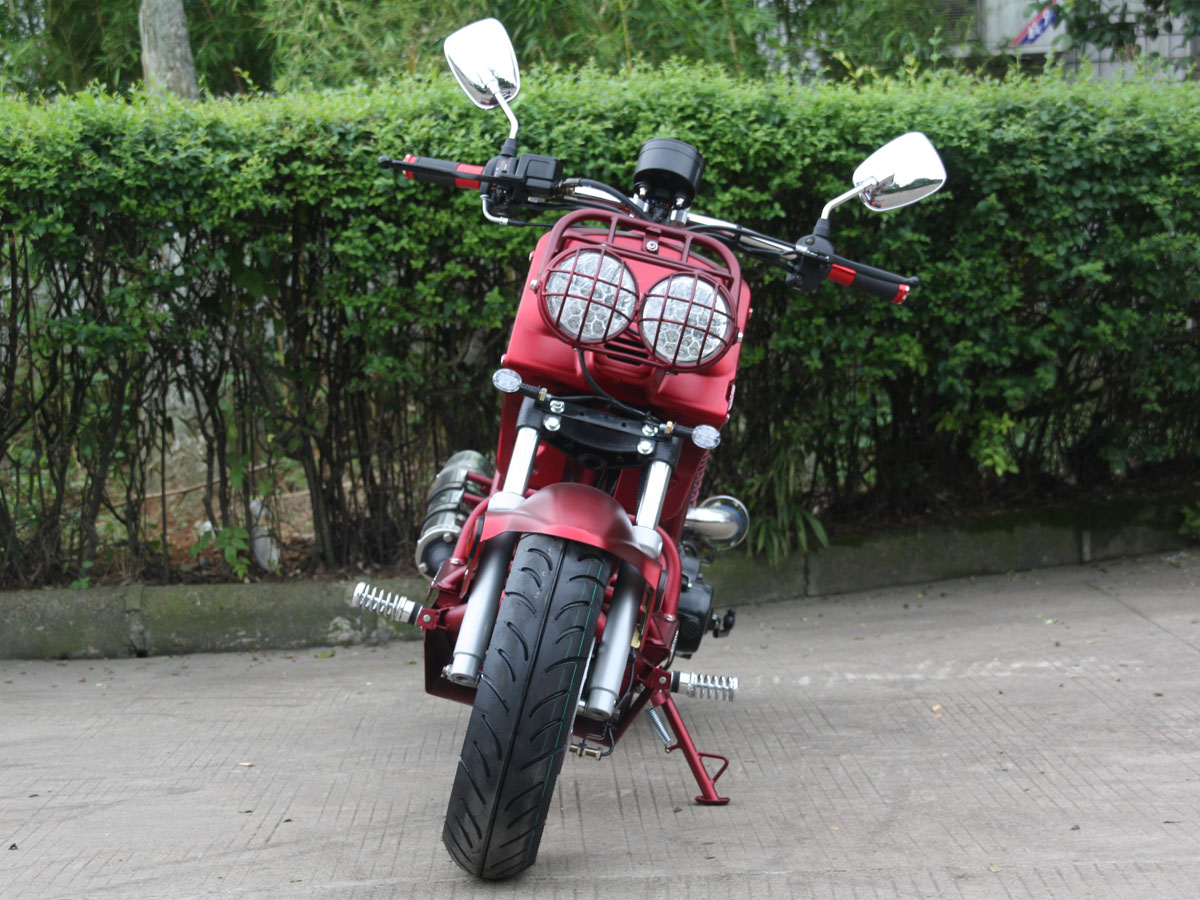

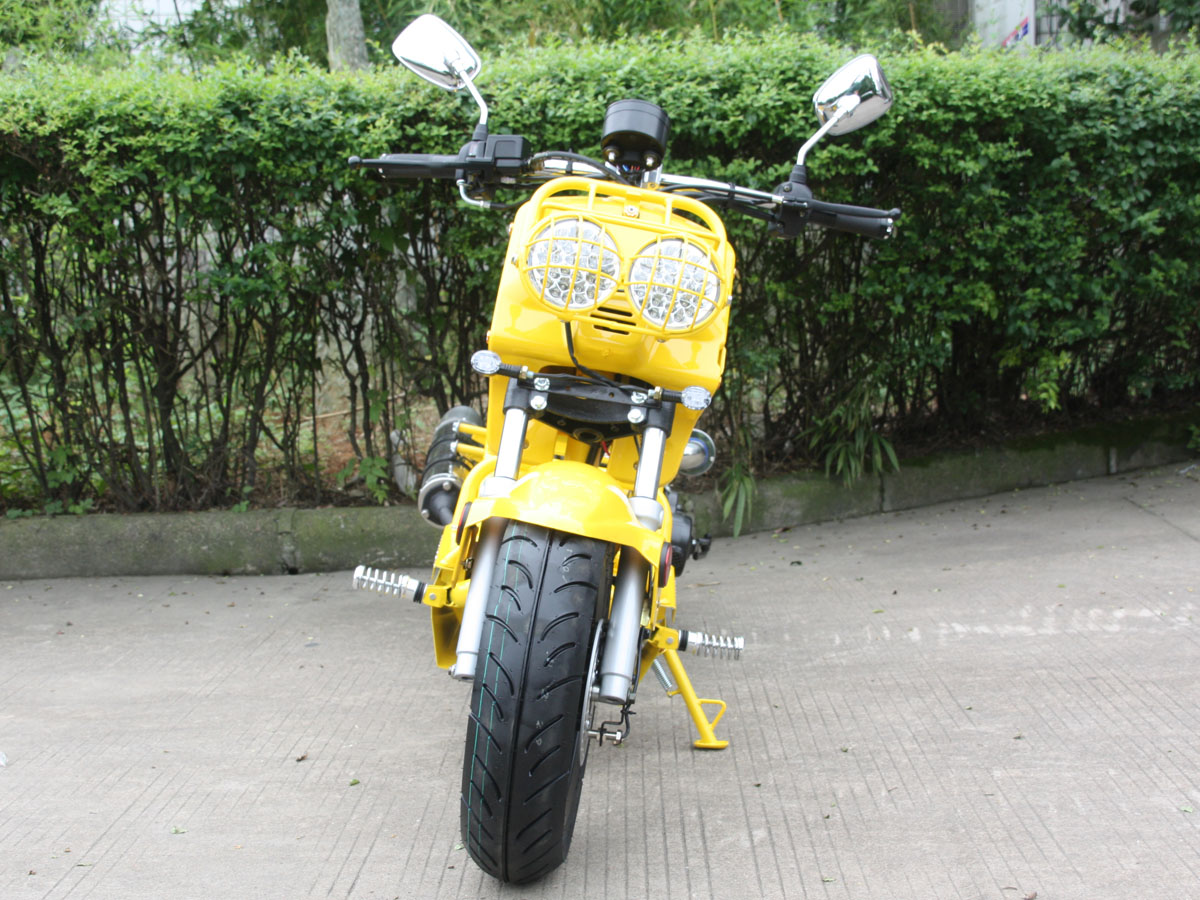

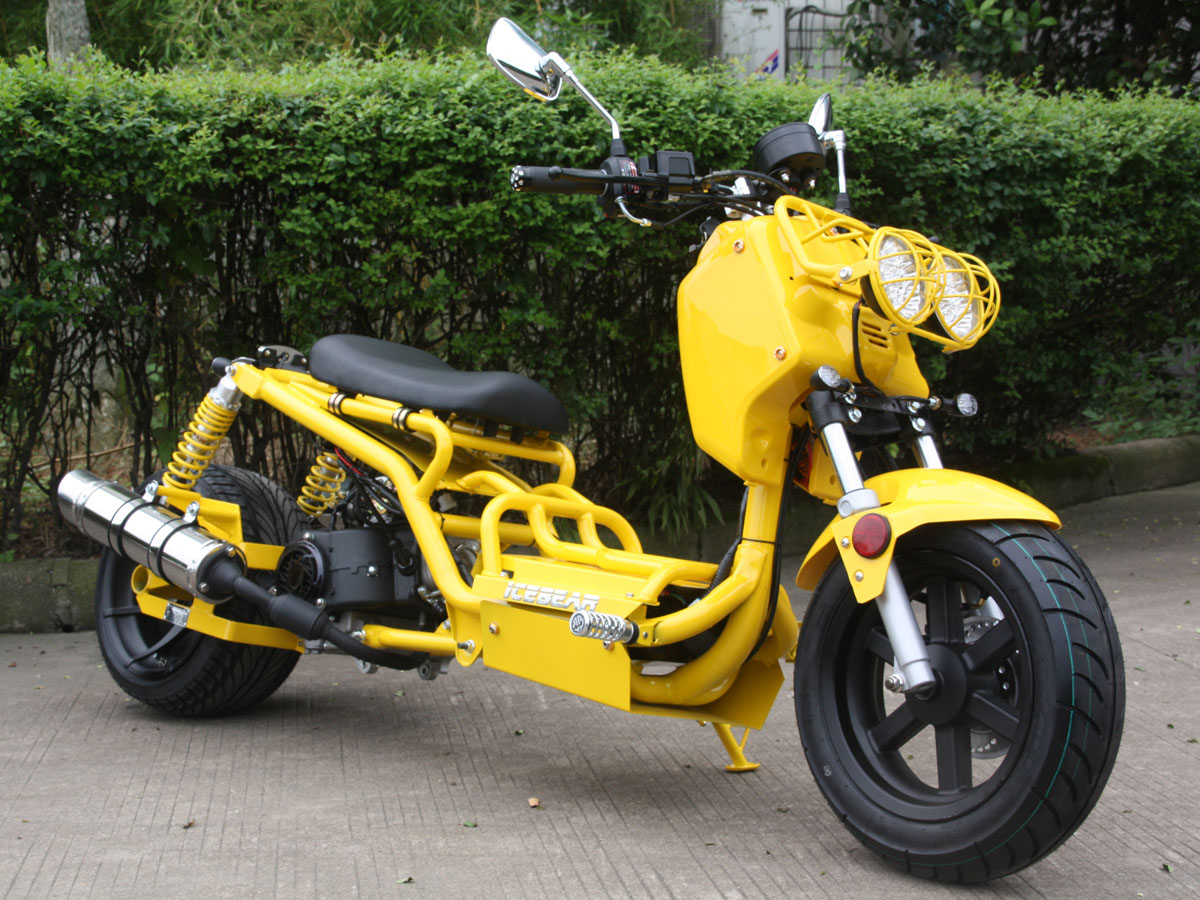

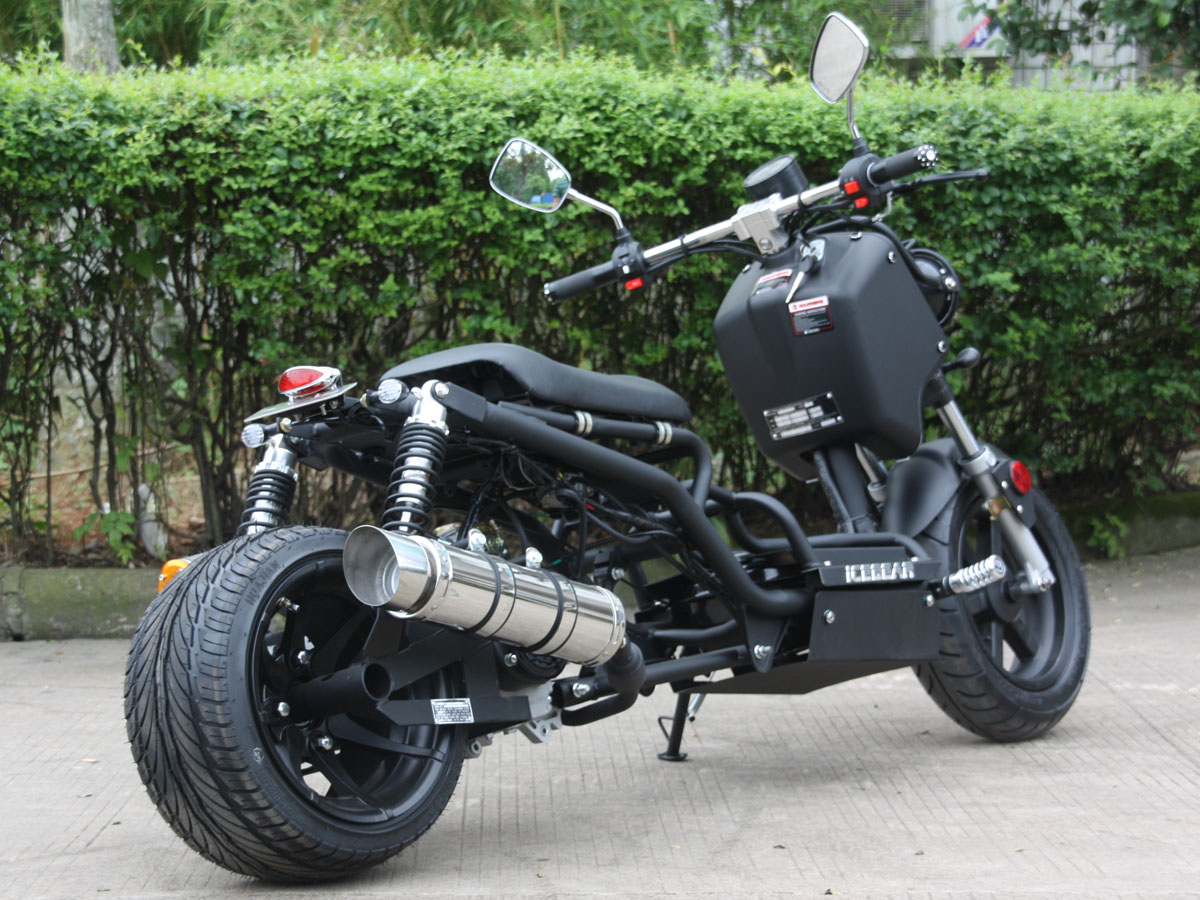

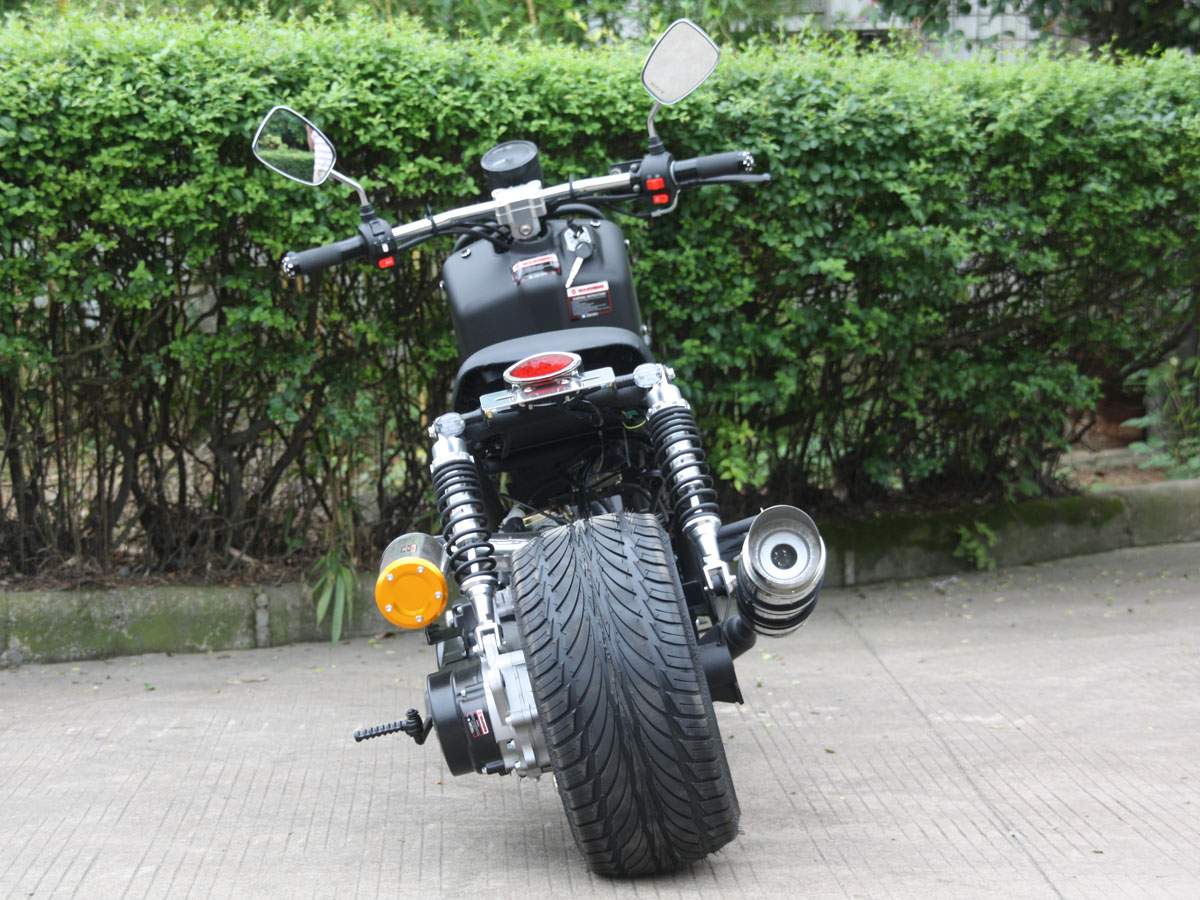

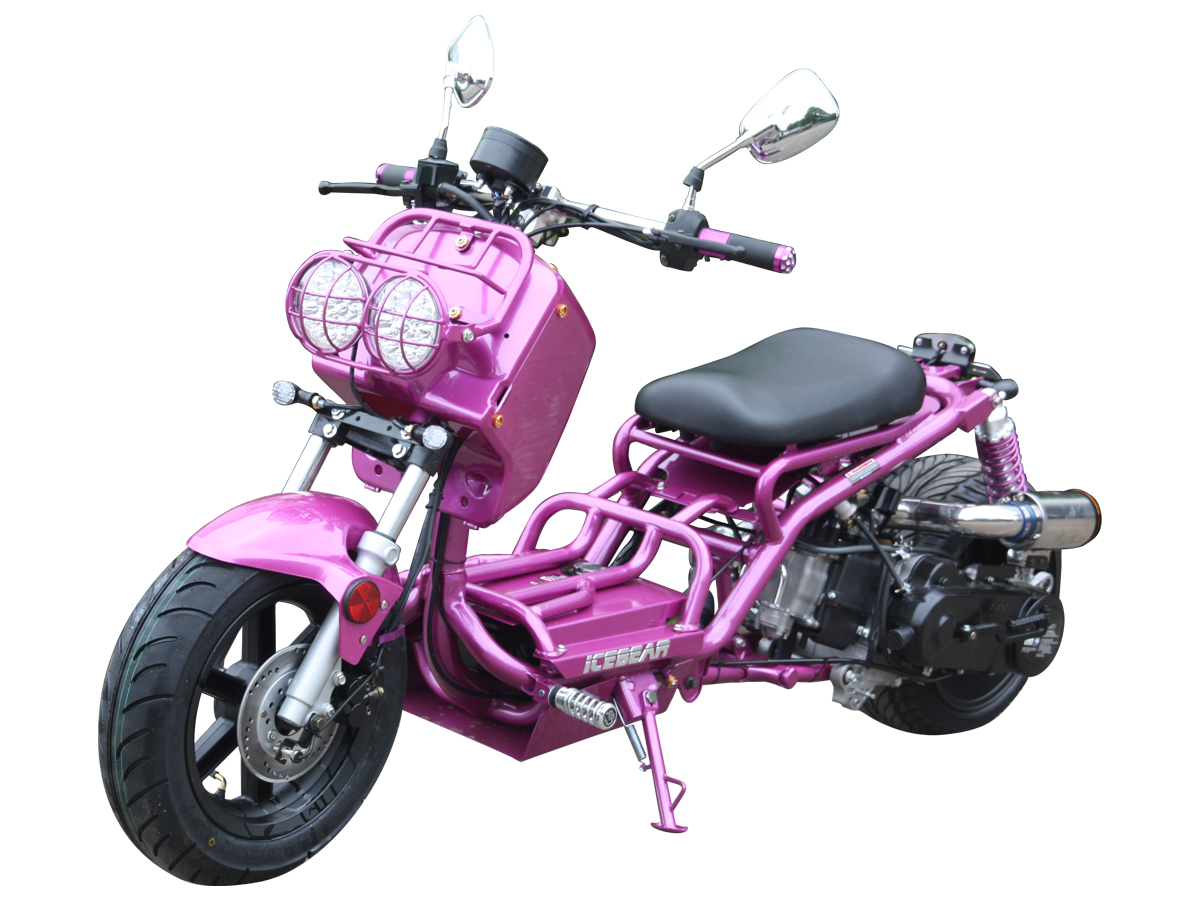

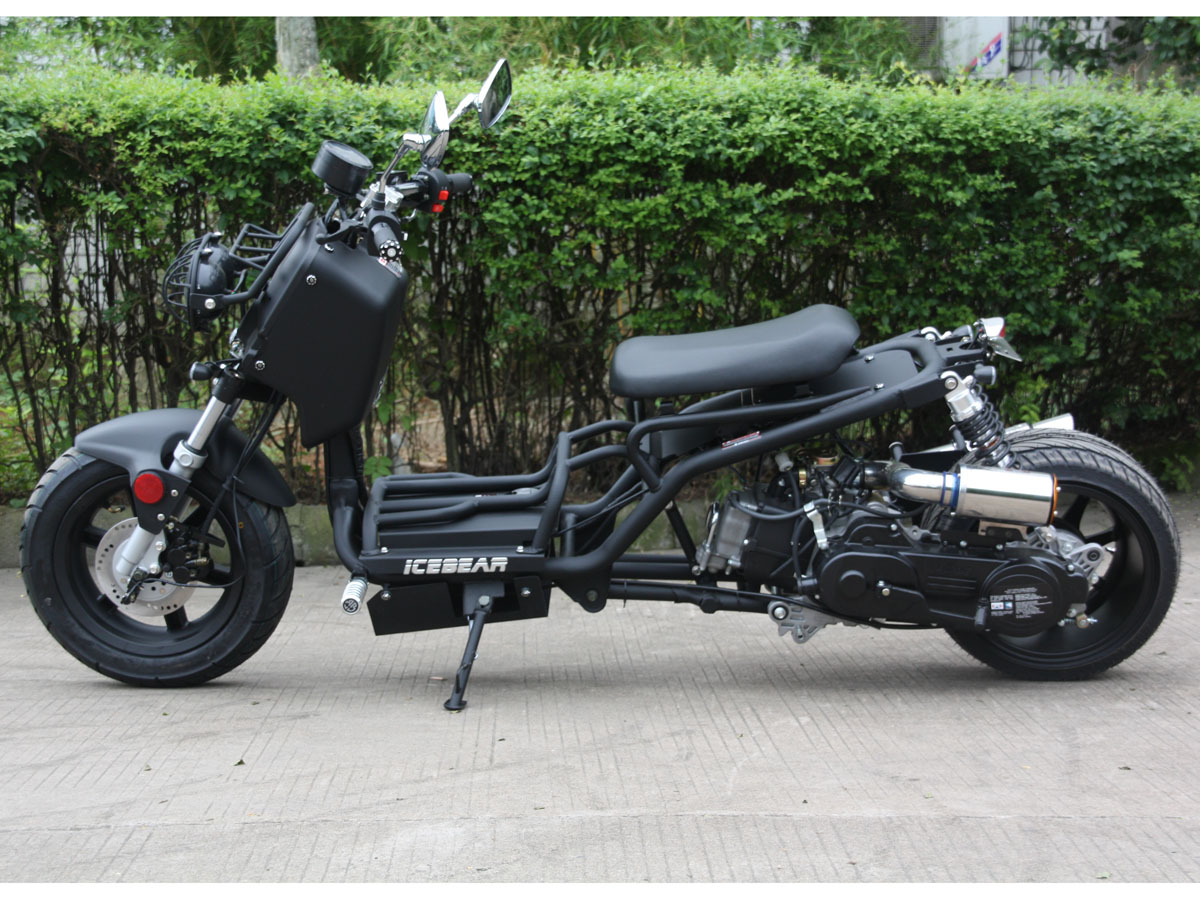

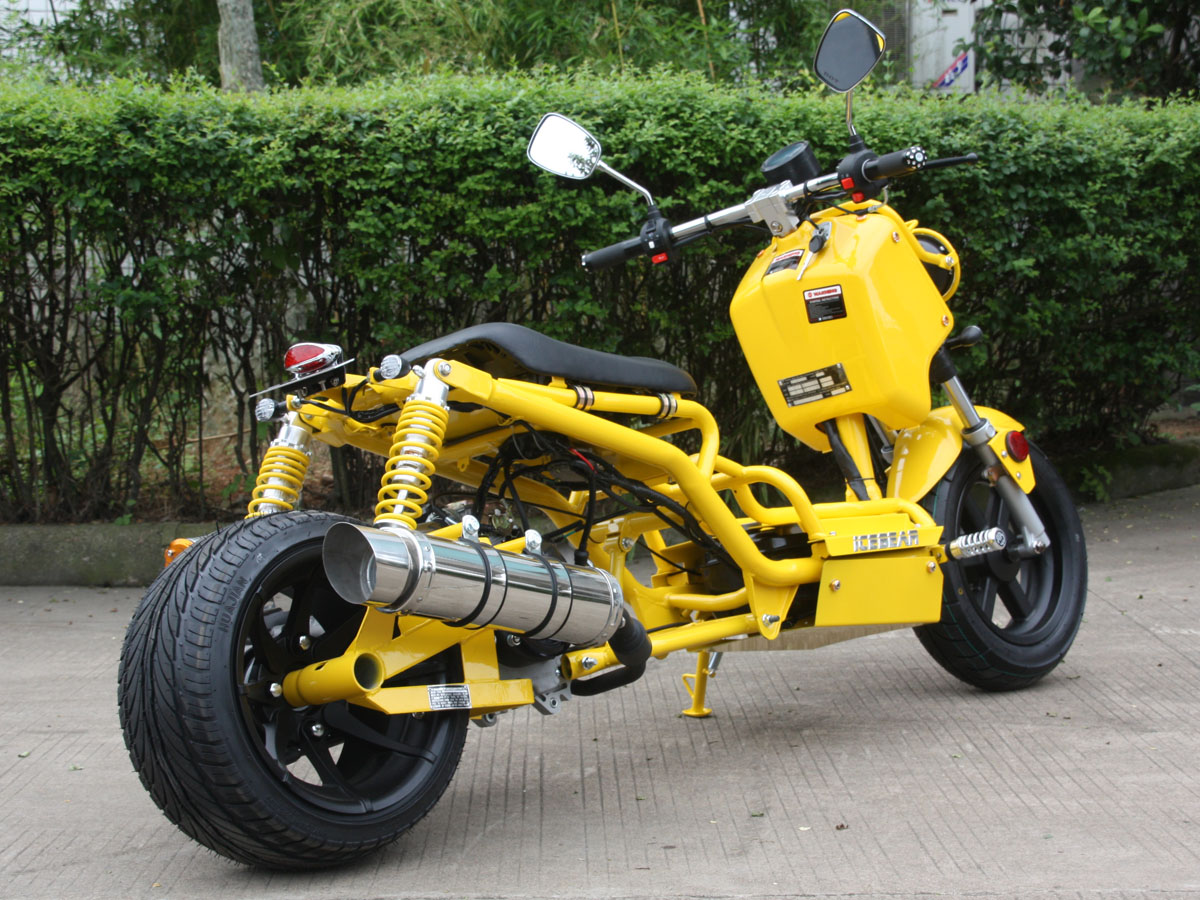

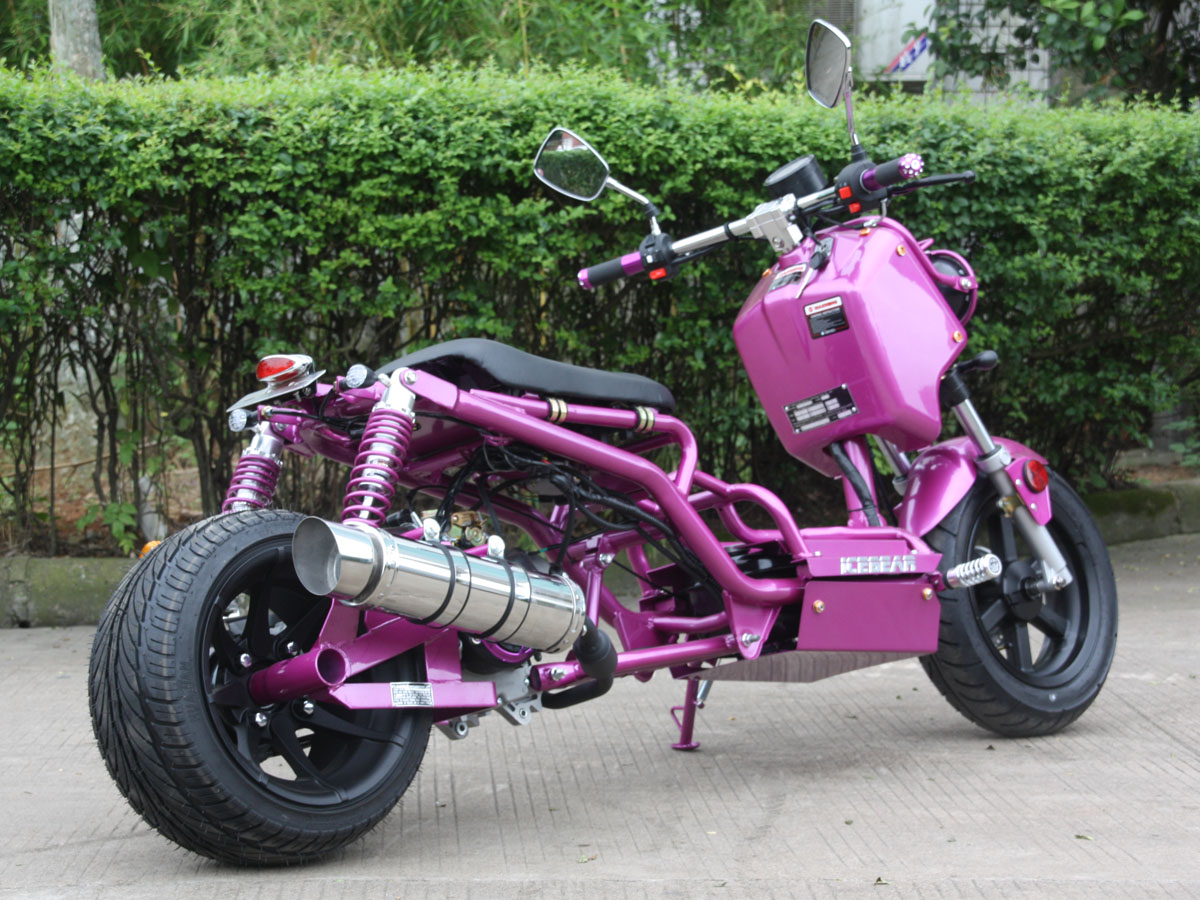

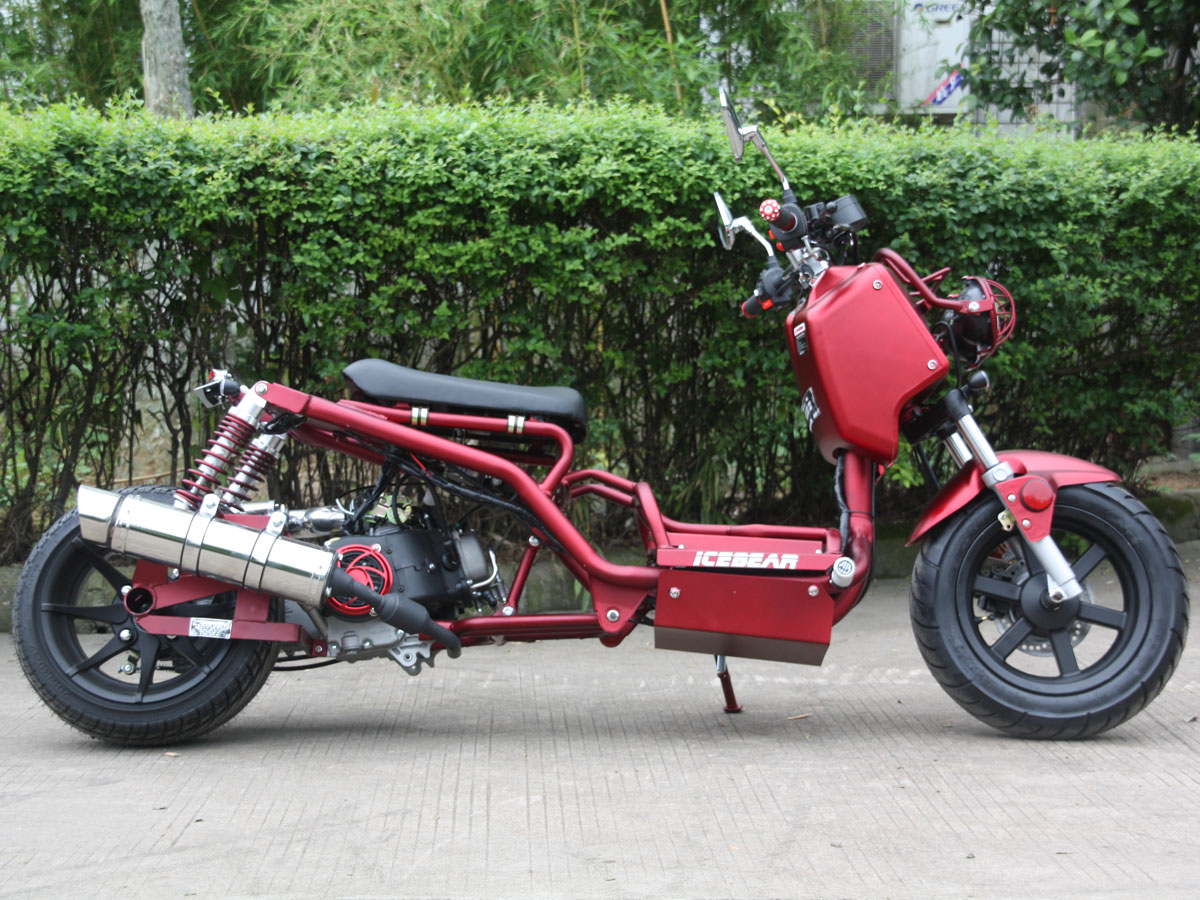

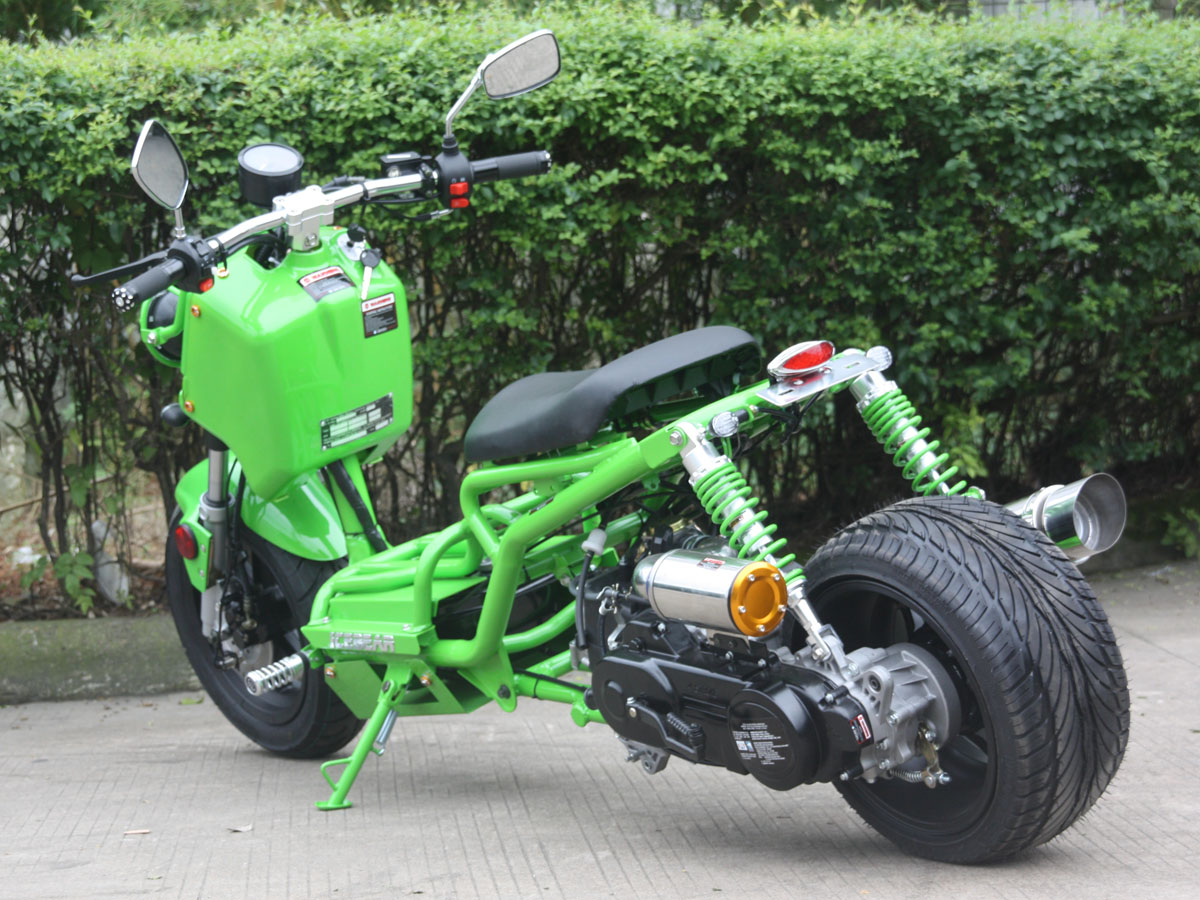

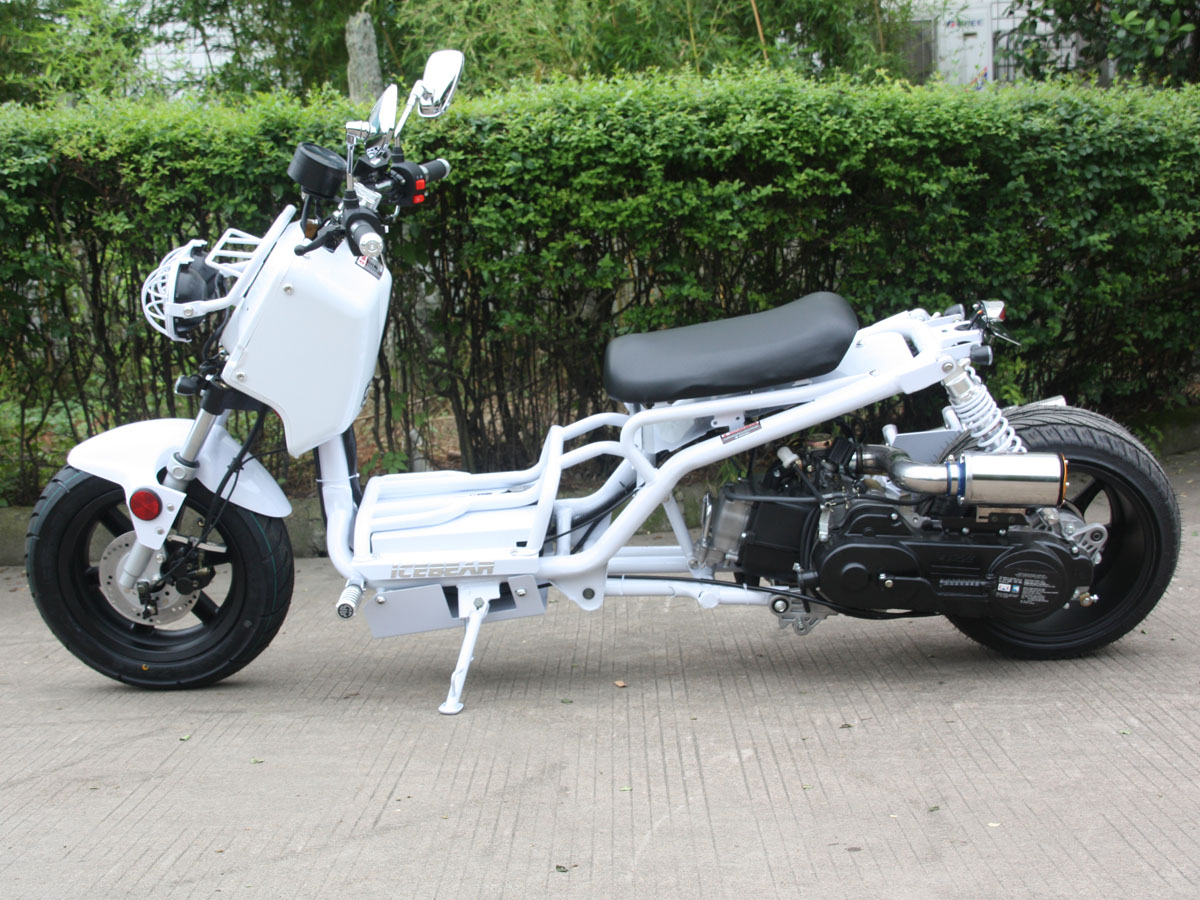

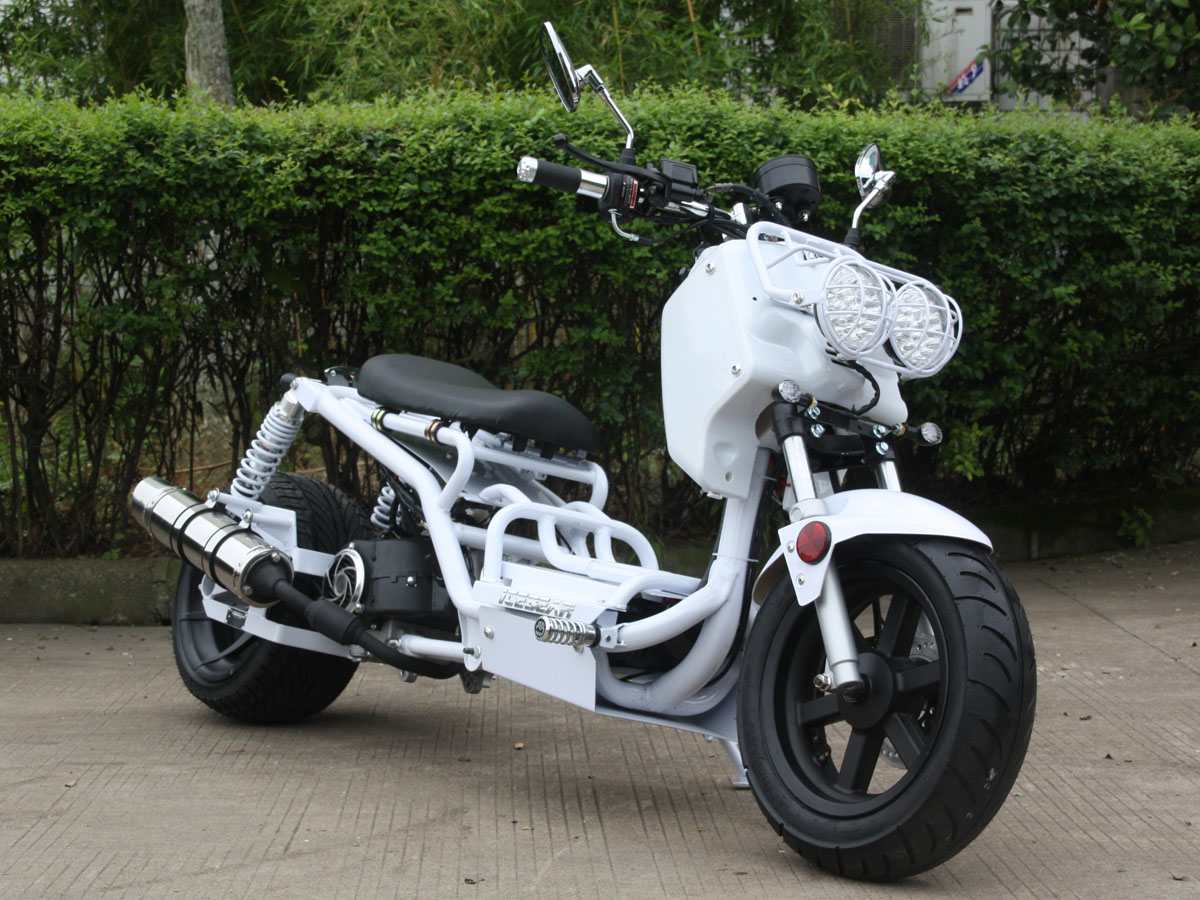

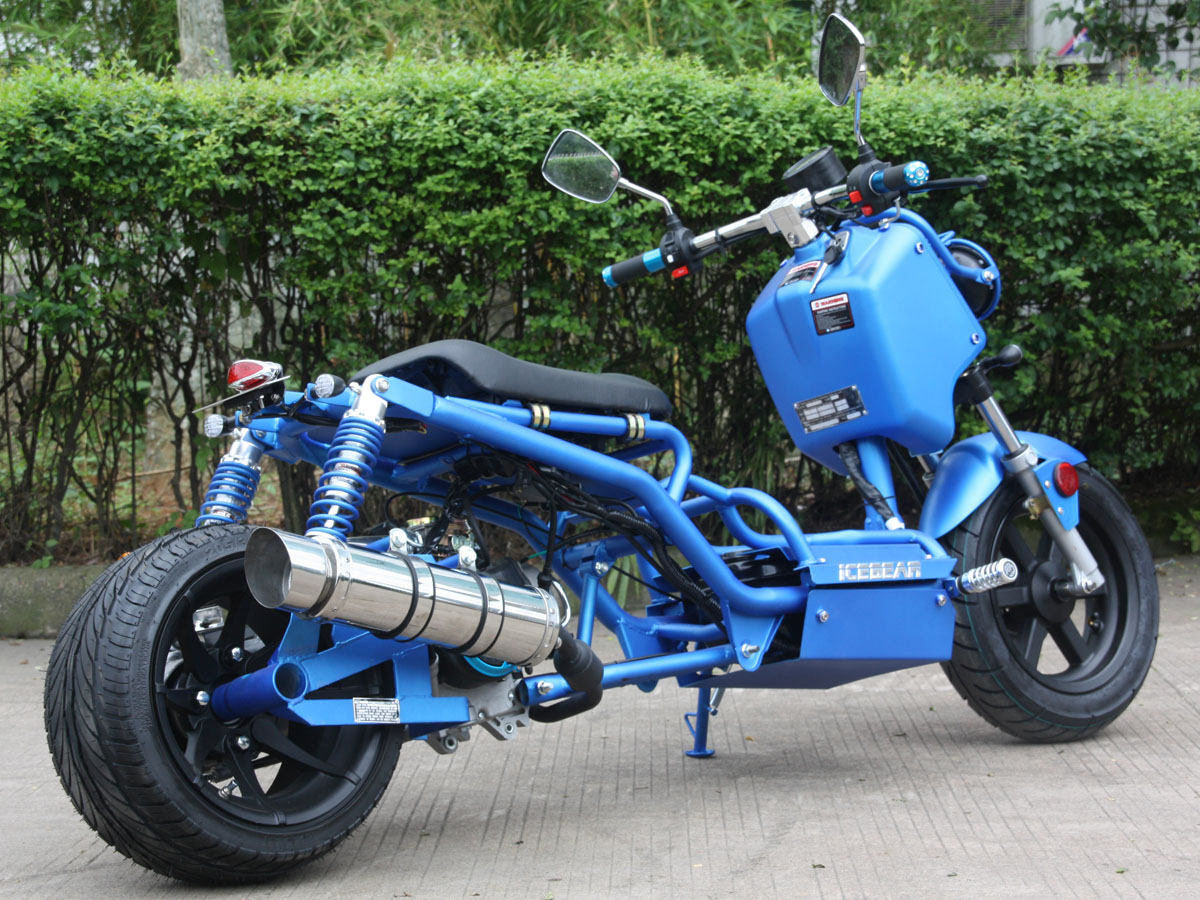

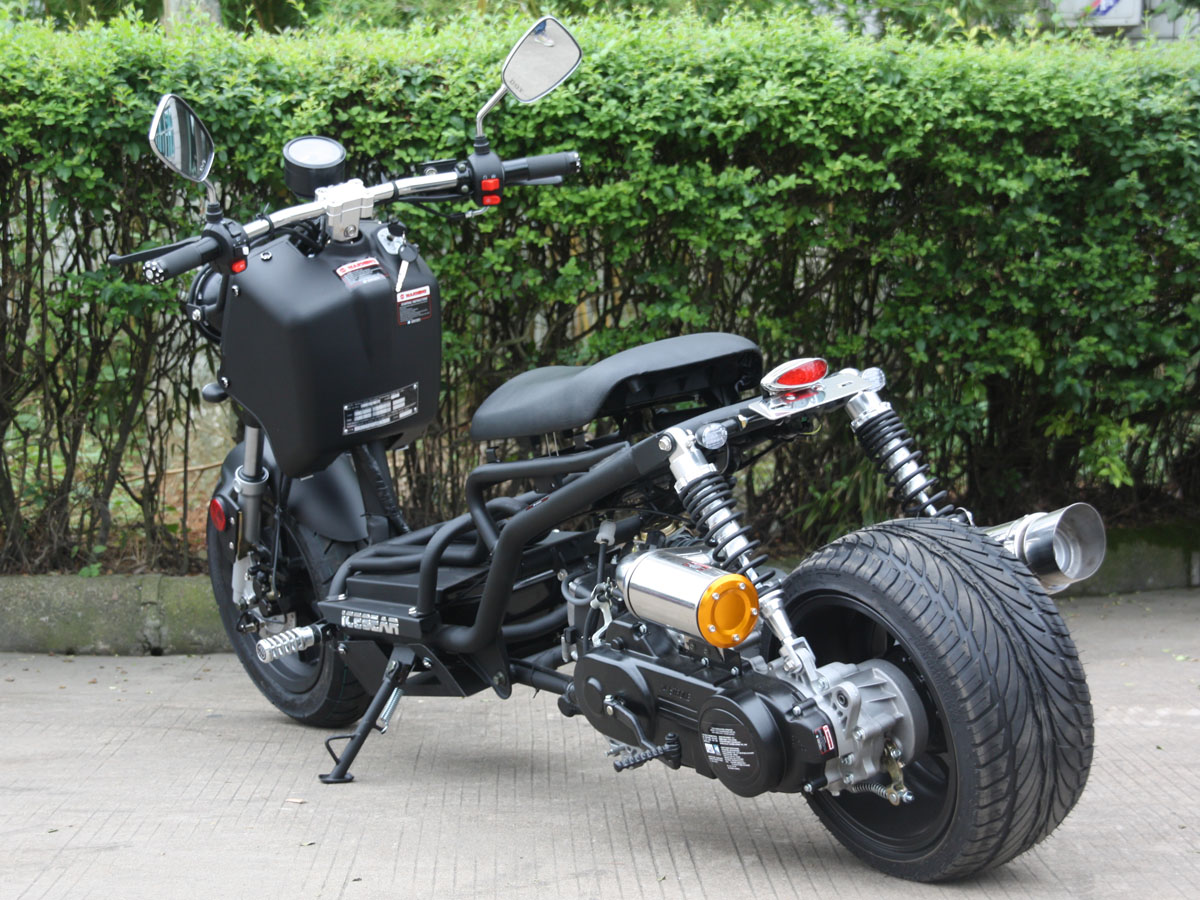

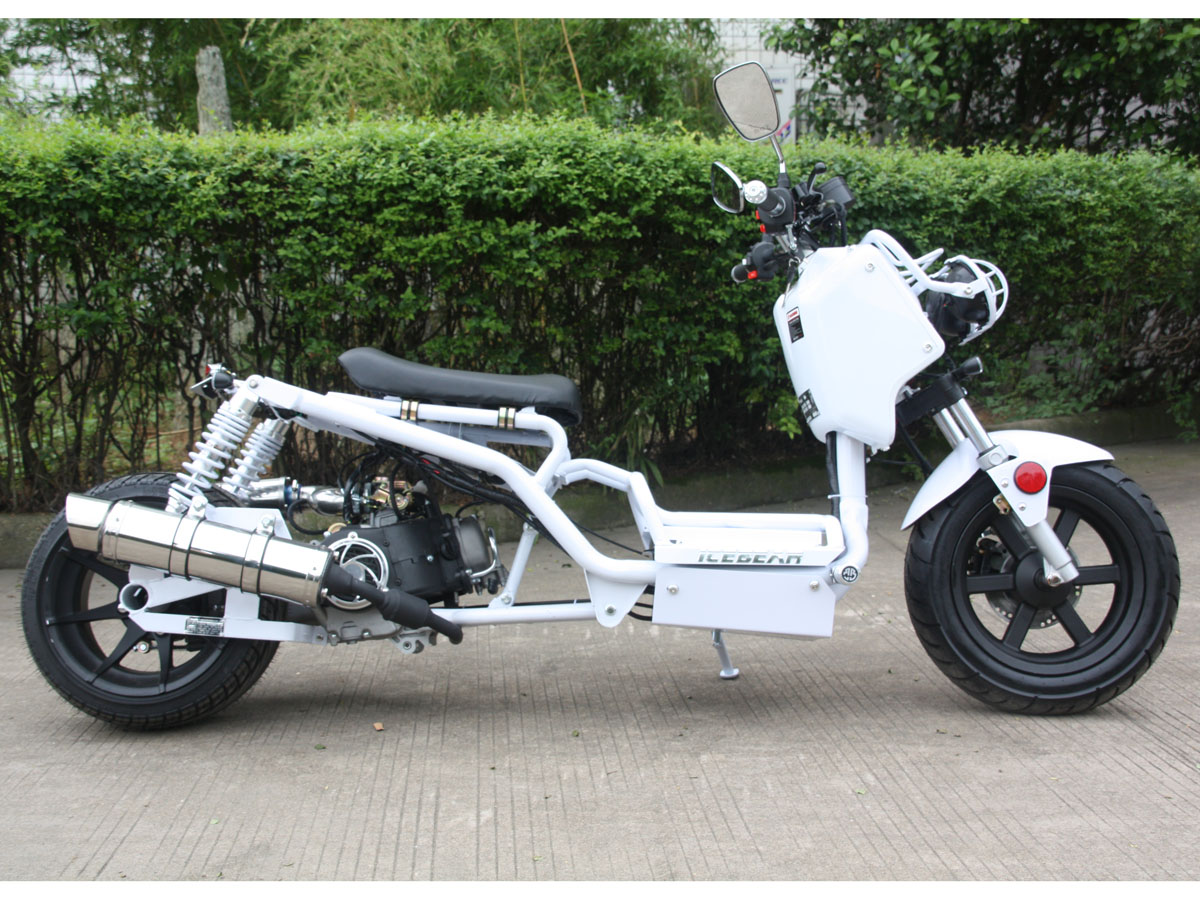

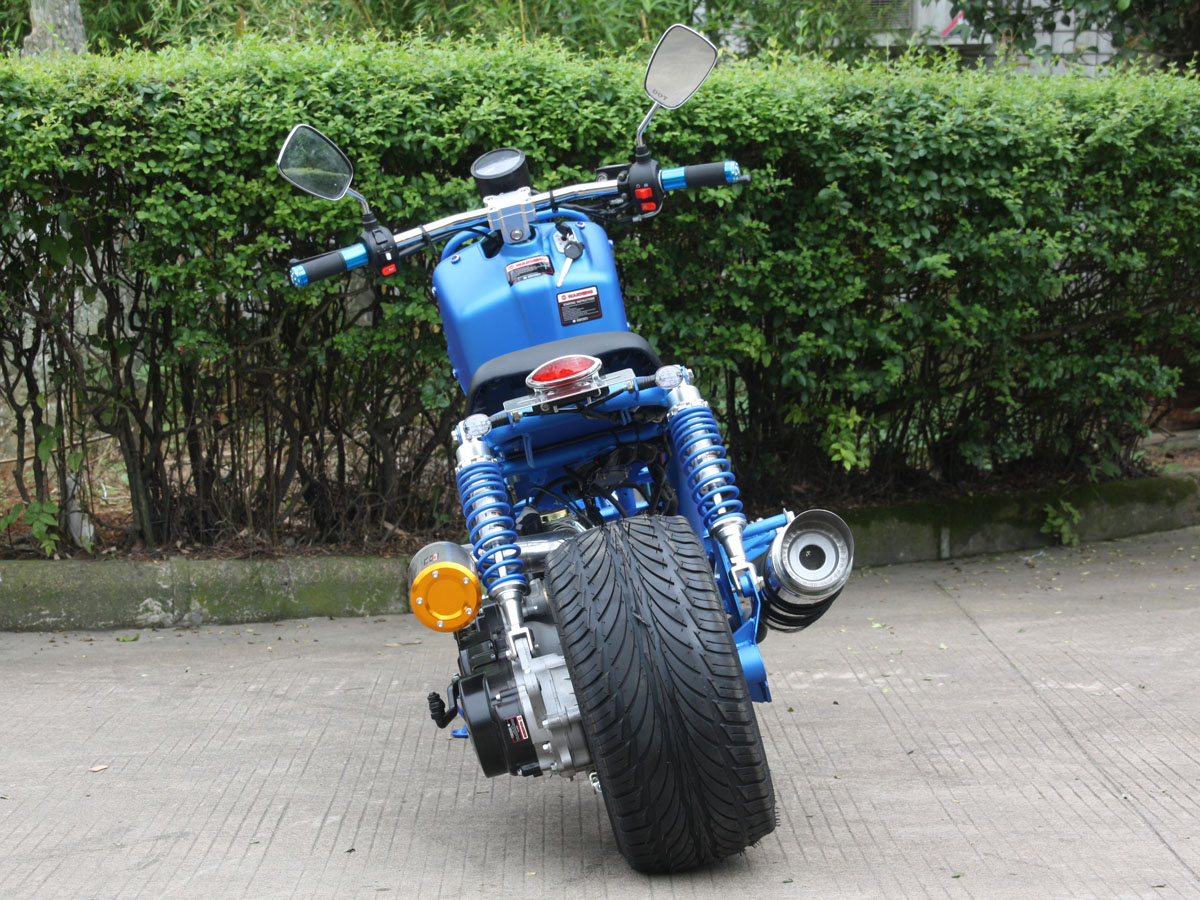

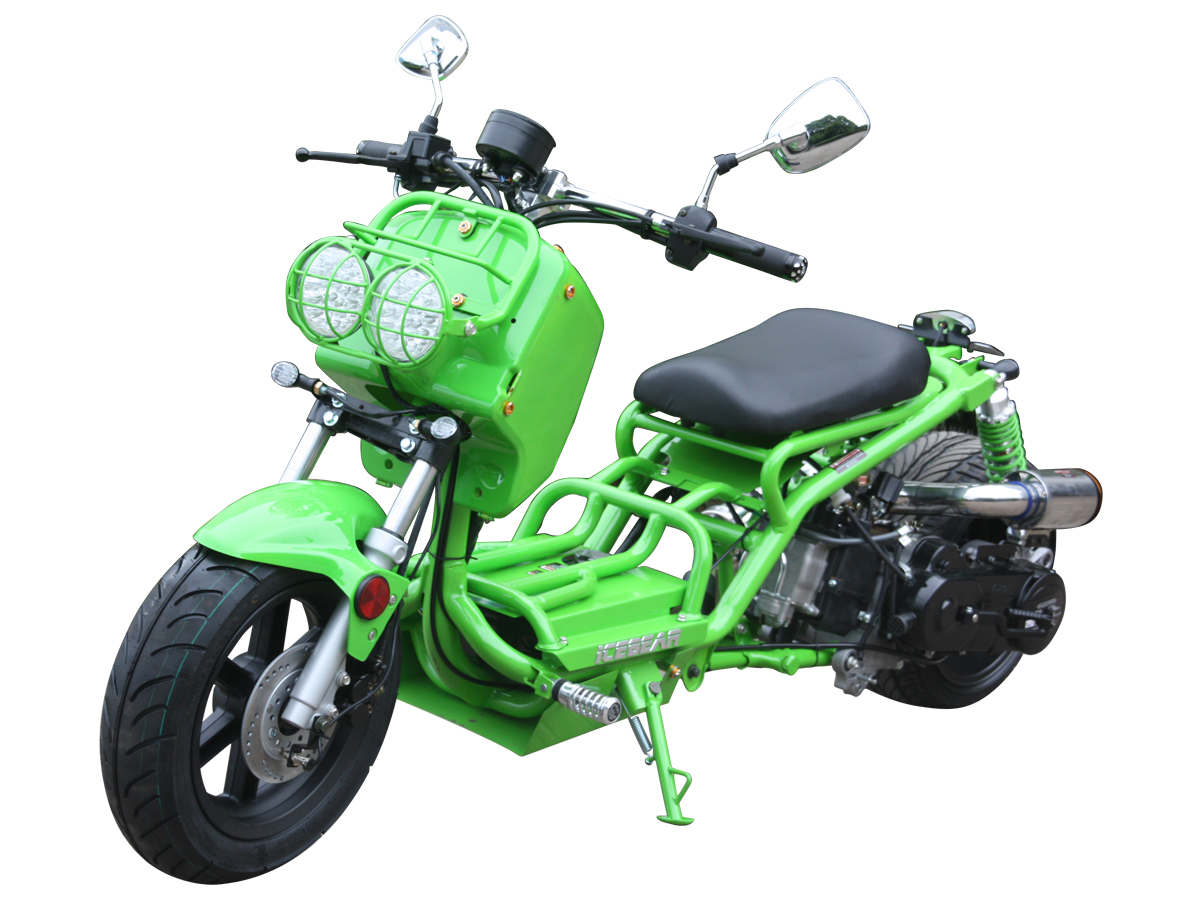

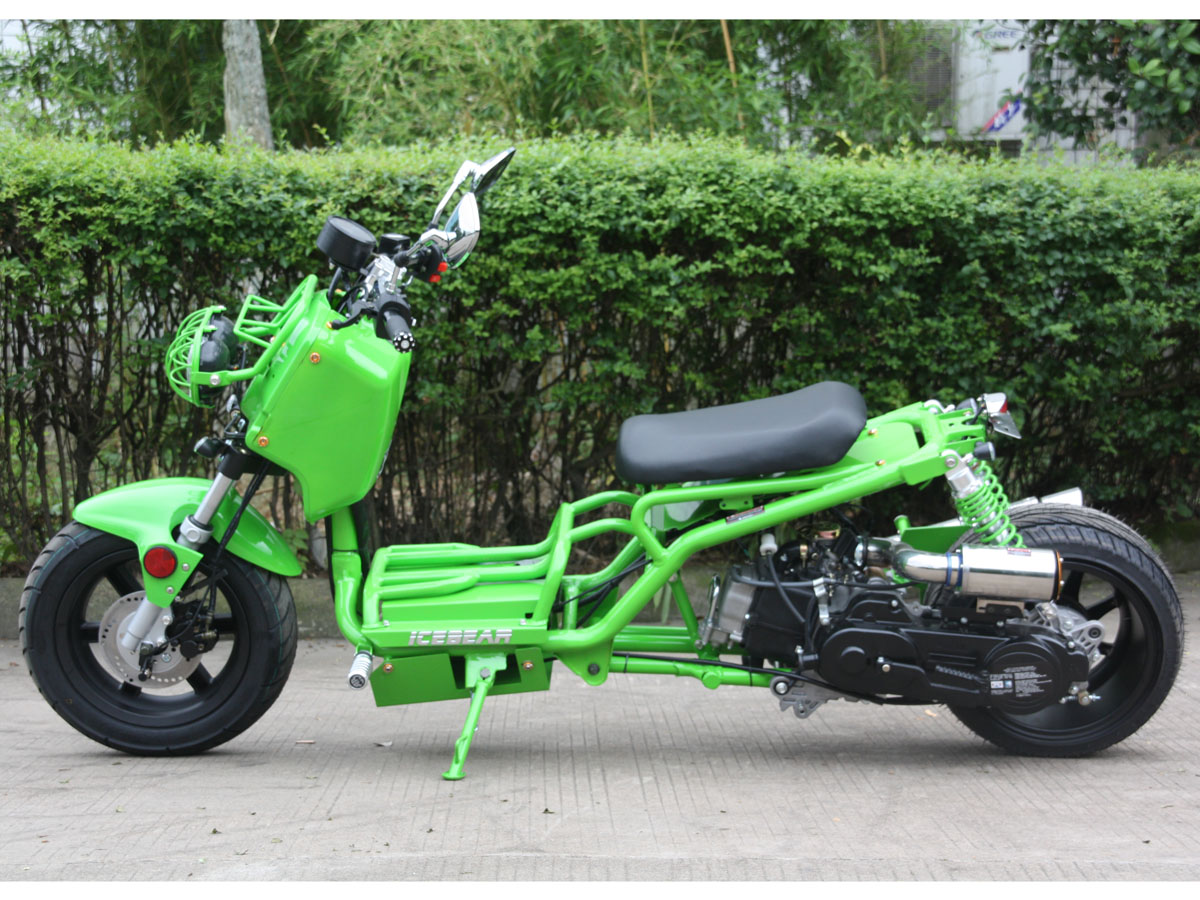

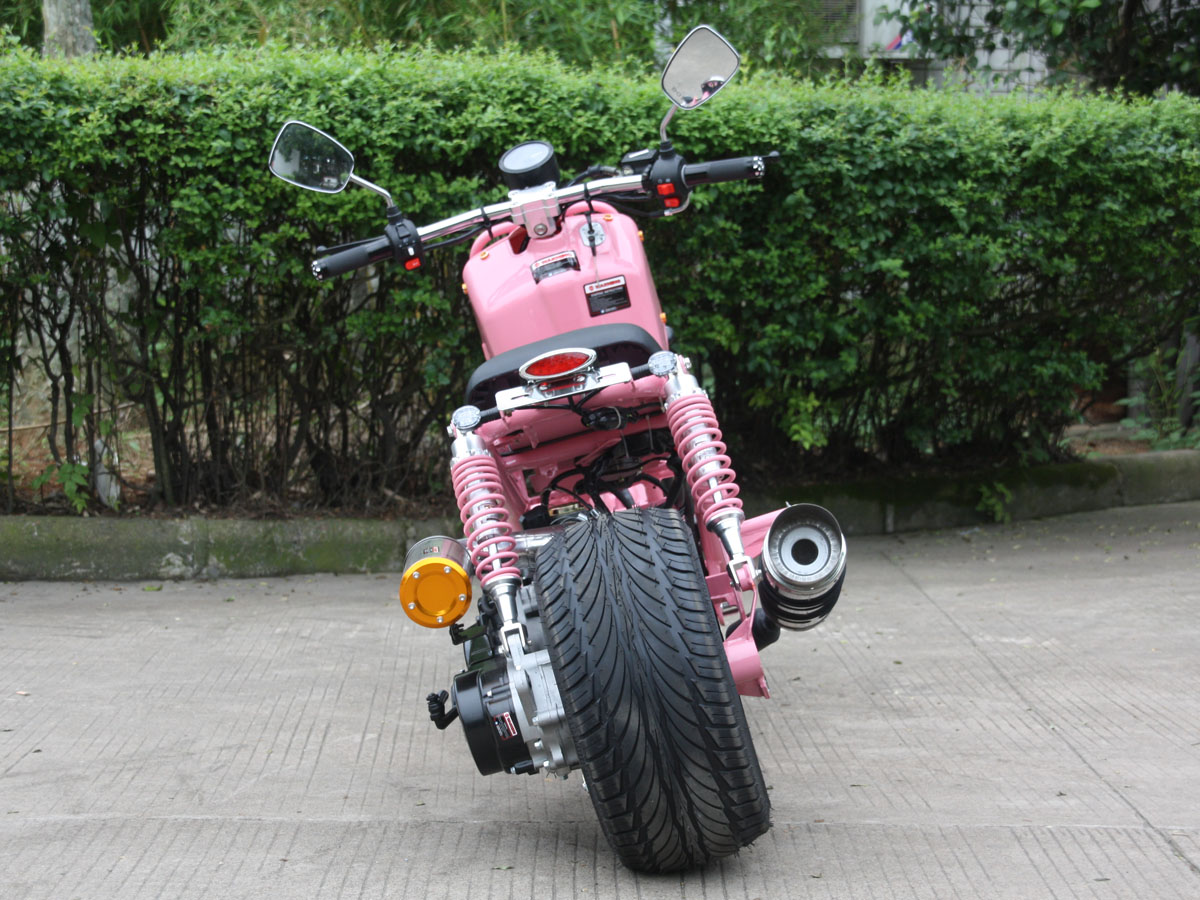

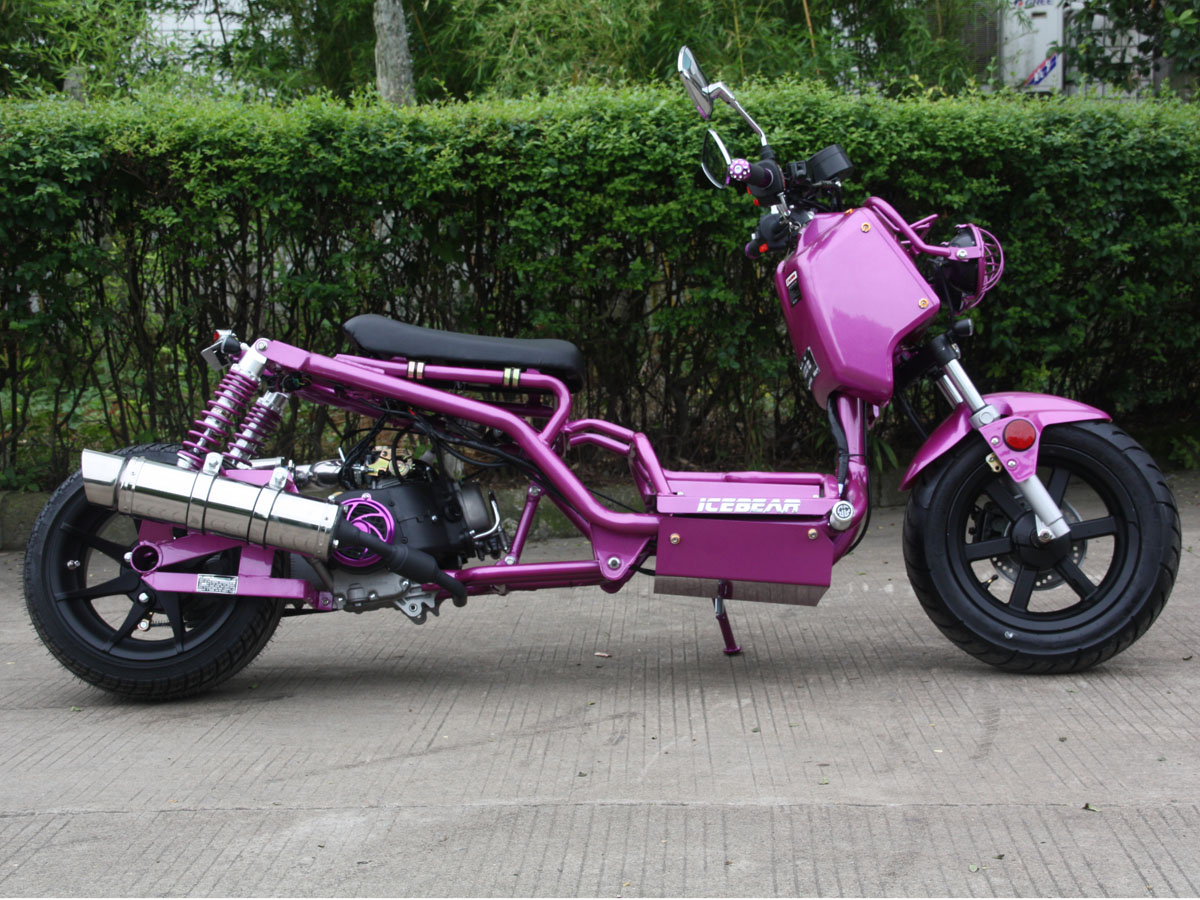

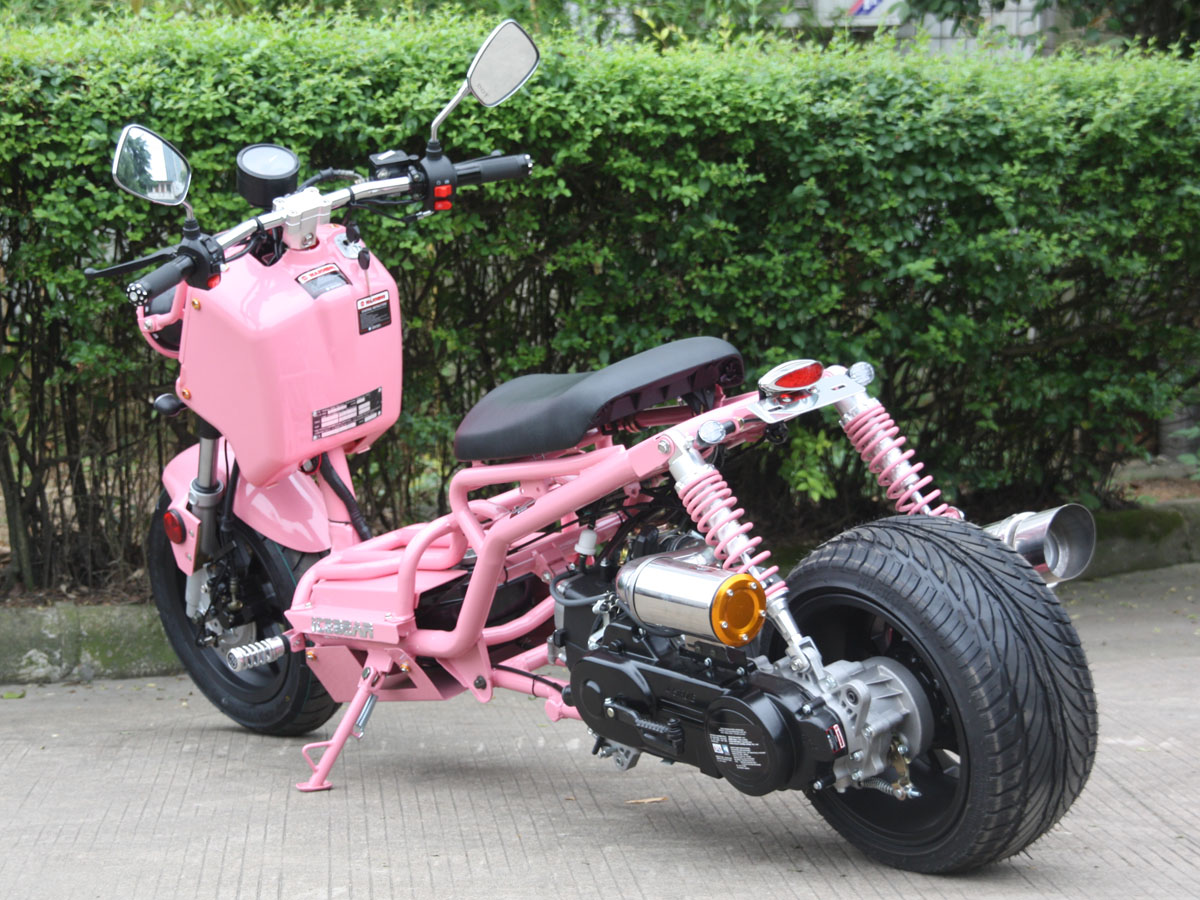

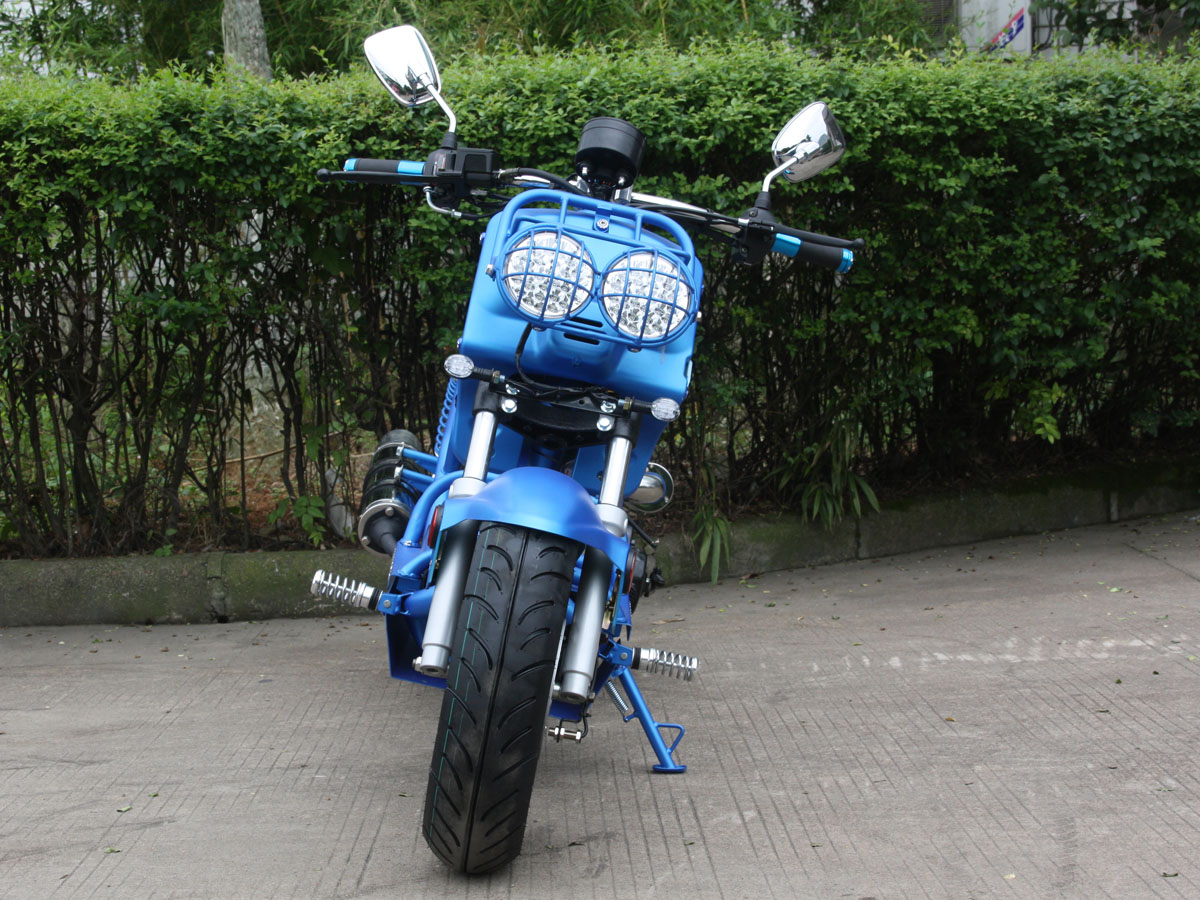

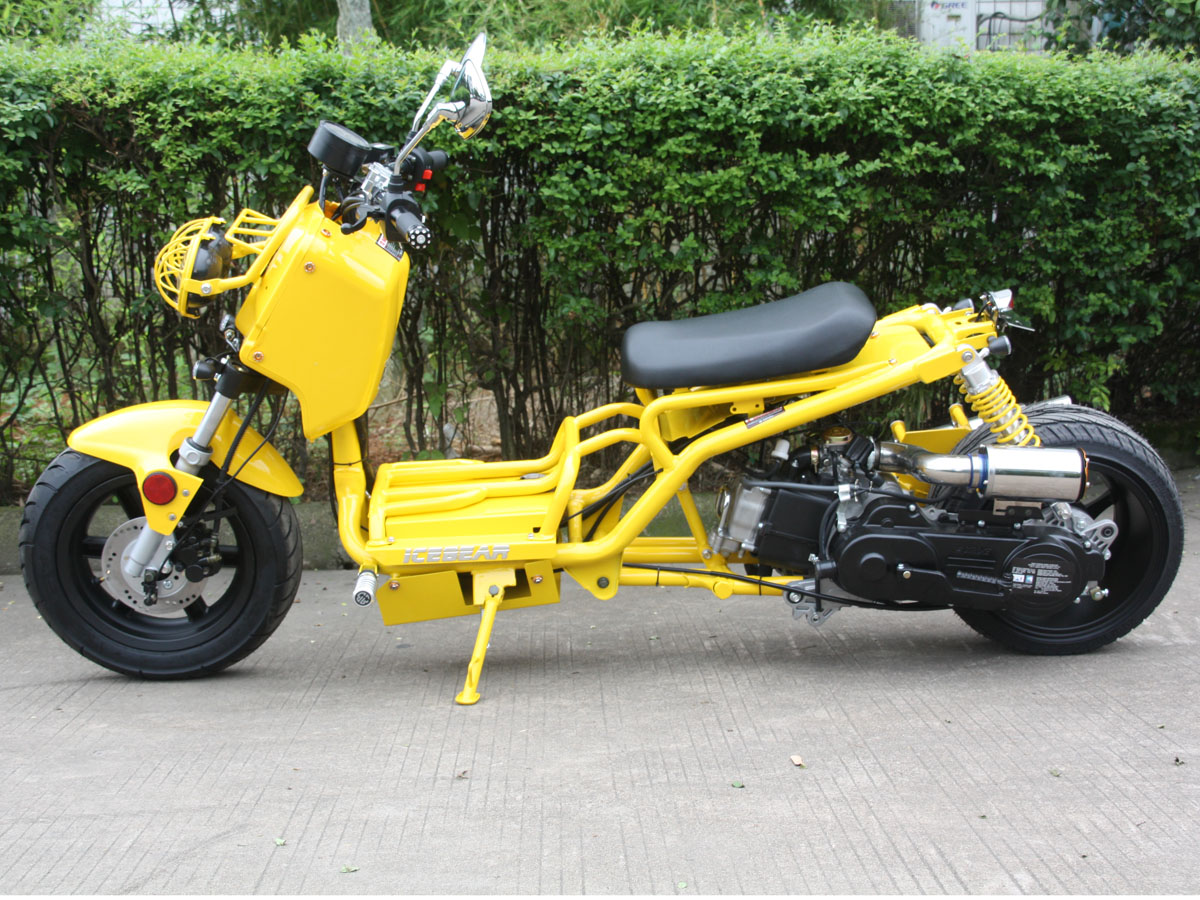

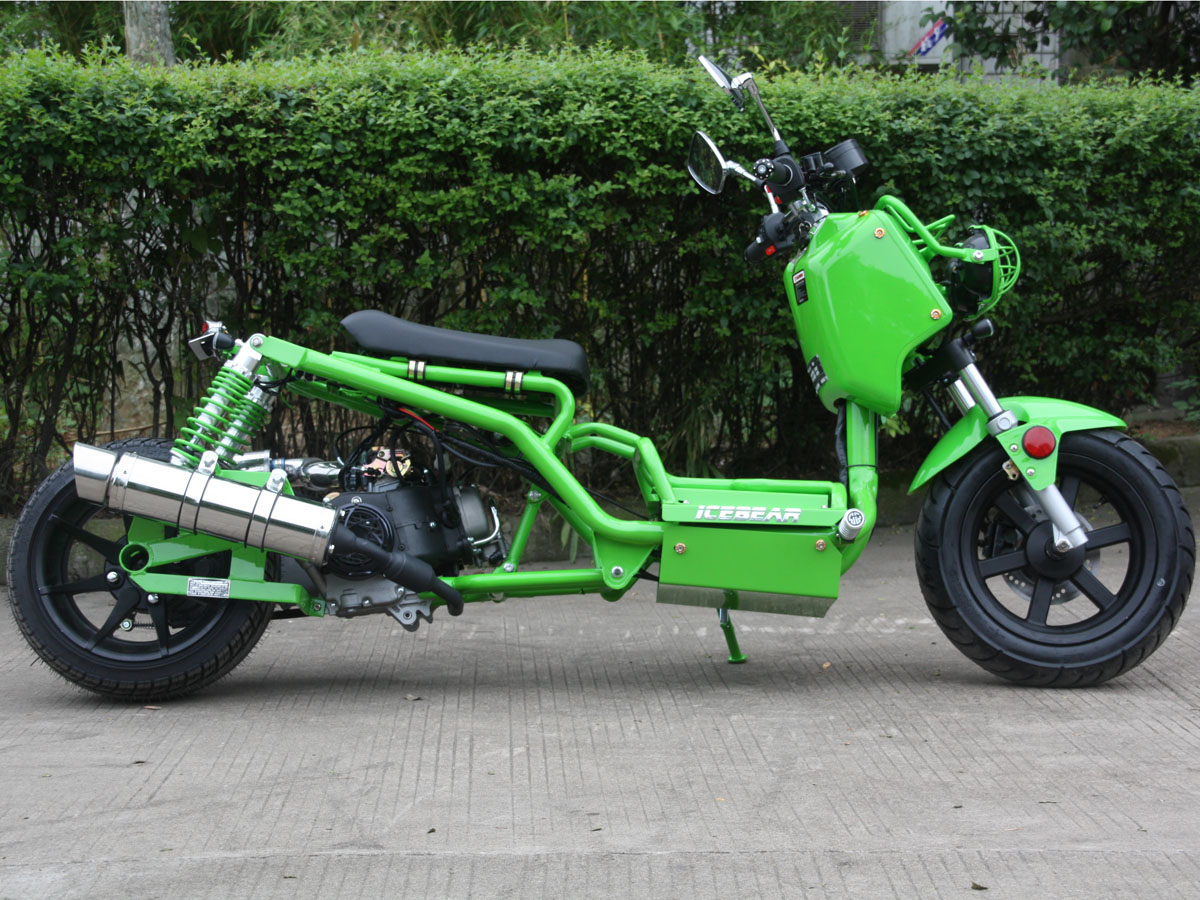

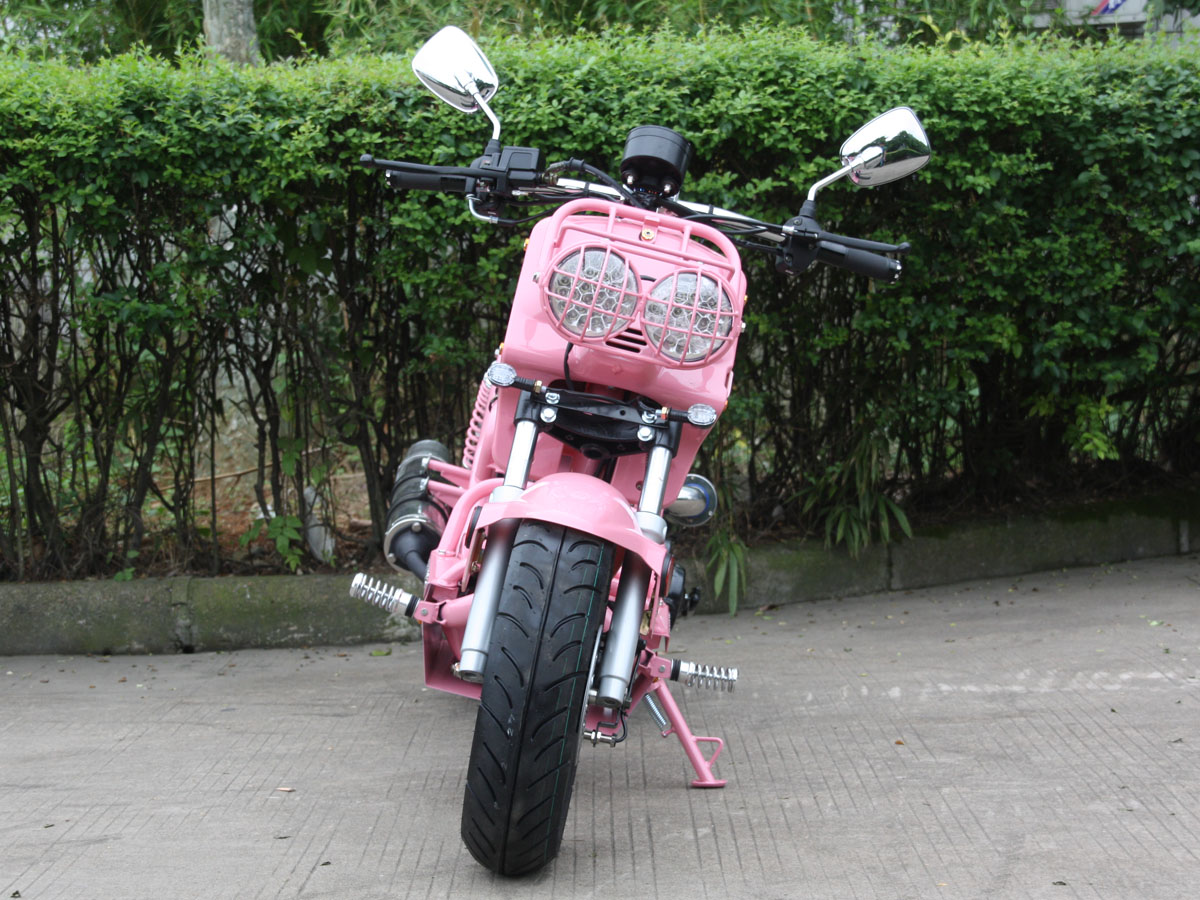

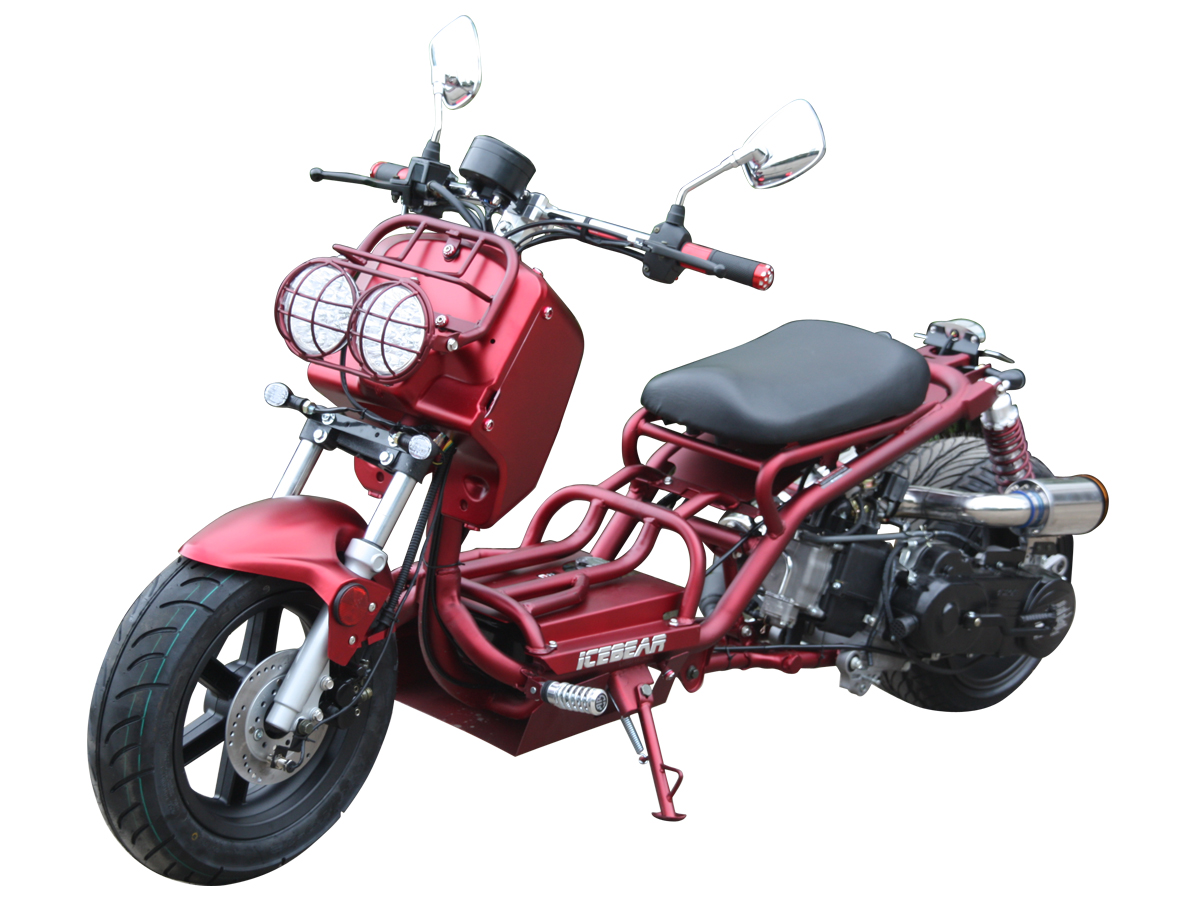

GEN III MADDOG(PMZ50-19N)
49.5cc, Air Cooled, Automatic, Front Disc, Rear Drum Brake. Some parts might be slightly different than pictures due to different batches of products.
Specifications
MSRP $2100.00
*Price does not include destination or dealer set up fees
| Engine | 50cc, 139QMB,xinba |
| Transmission | Automatic |
| Drive type | Belt |
| Belt and/or chain size | Belt: 788*18*28 |
| Starter System | Elec/kick start |
| Fuel system | Gasoline,1.2gal, carbureted |
| Brakes (Front/Rear) | Disc / Drum |
| Tire size(Front/Rear) | 120/70-12 |
| Wheel size and type(Front/Rear) | 12, Alunimum |
| Fuel Capacity (in liters) | 0.8L, 10w40 aircooled engine oil (non-synthetic) |
| Gear oil type and capacity( in liters) | GL-3,0.25L |
| Battery | 12V/9A |
| Lights | Led lights |
| Suspension(Front/Rear) | Dual Telescopic Forks/Dual Shock |
| Dimensions(in inches) | Assembled(LxWxH): 80.7x29.9x38.5, Crated(LxWxH): 76.3x22.4x33.4, Seat height: 23.6, Wheelbase: 62.9 |
| Weight | 198.4/253.5 lbs |
| Weight capacity | 242 lbs |
| Ground clearance (in inches) | 3.5 |
| Assembly required | Front wheel, front fender, handlebars, mirrors, speedometer,battery |
| Special features | Include: digital speedometer, horn, odometer, mirrors |
| EPA approved | EPA Approve, CARB Exempt |

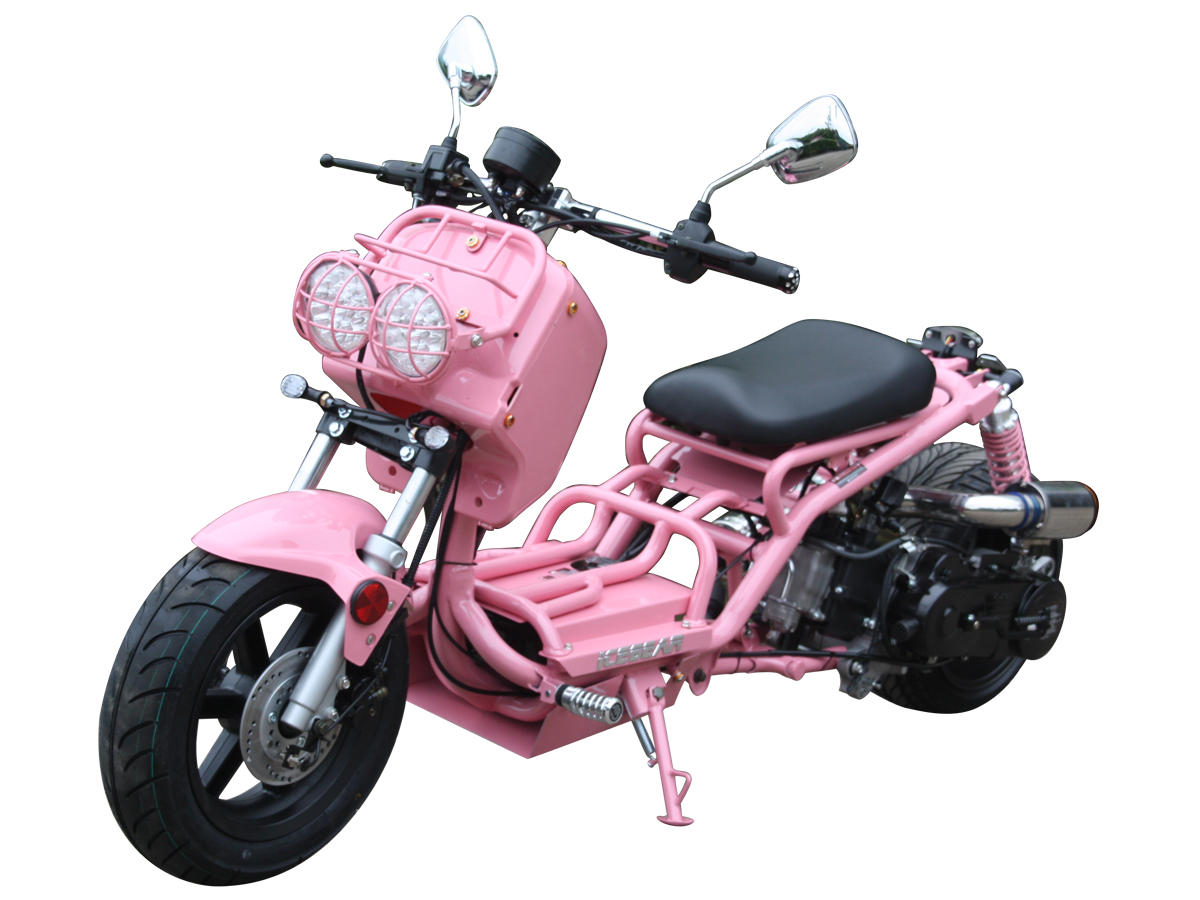

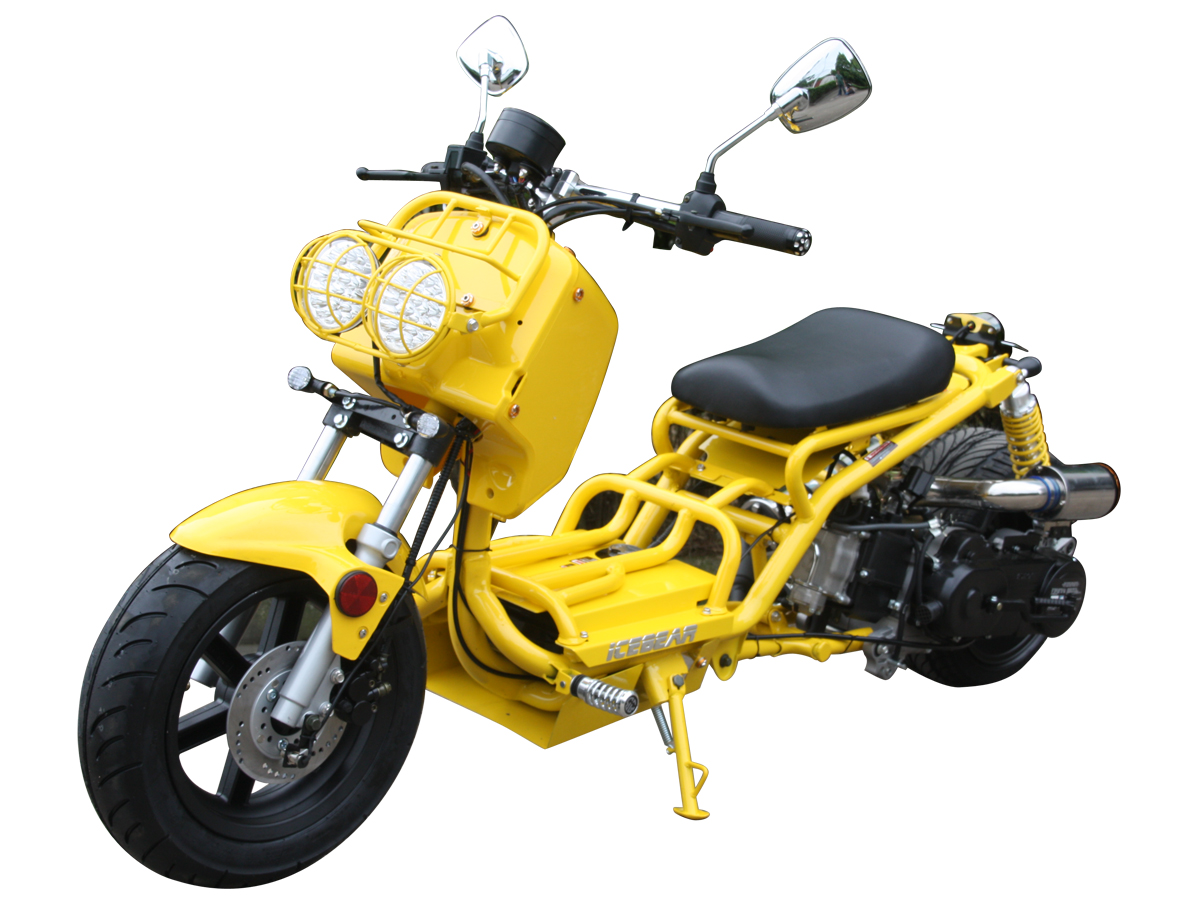

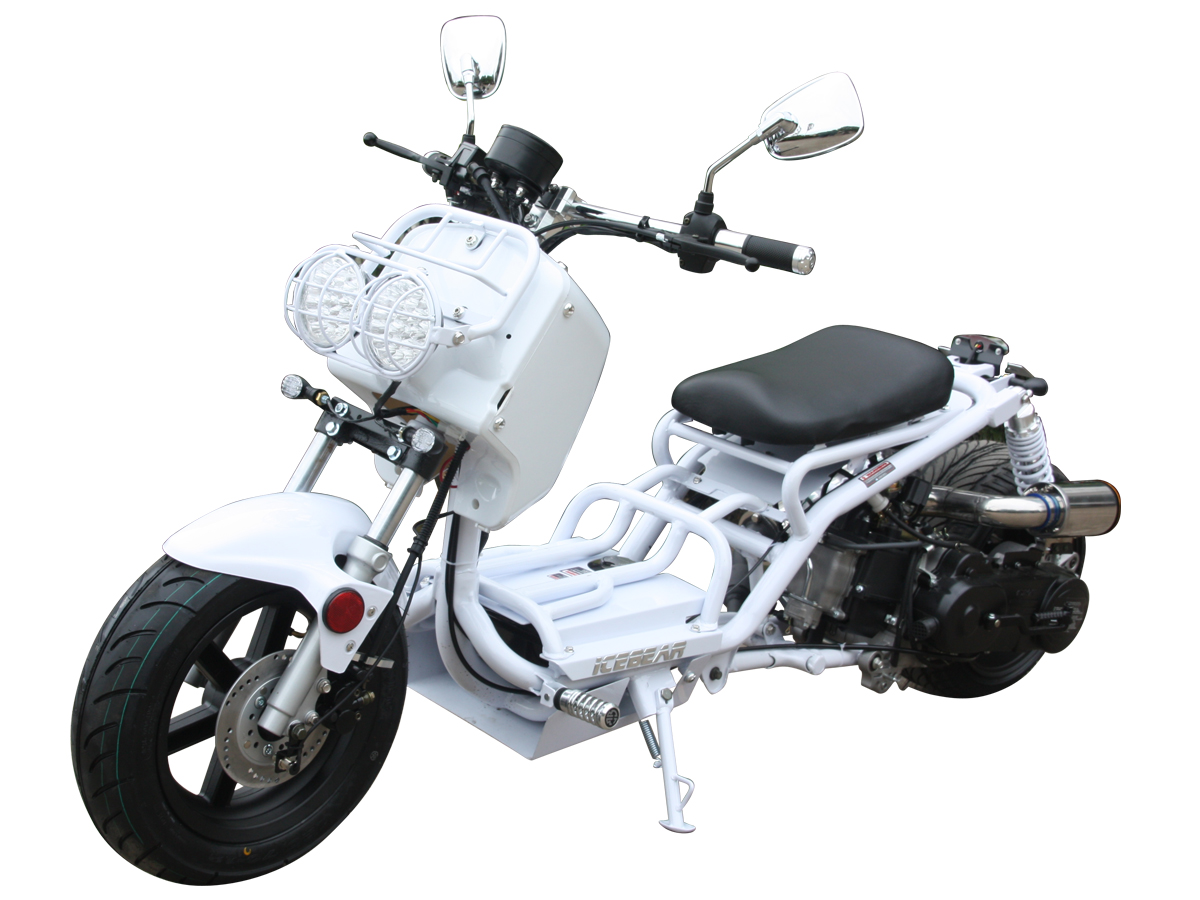

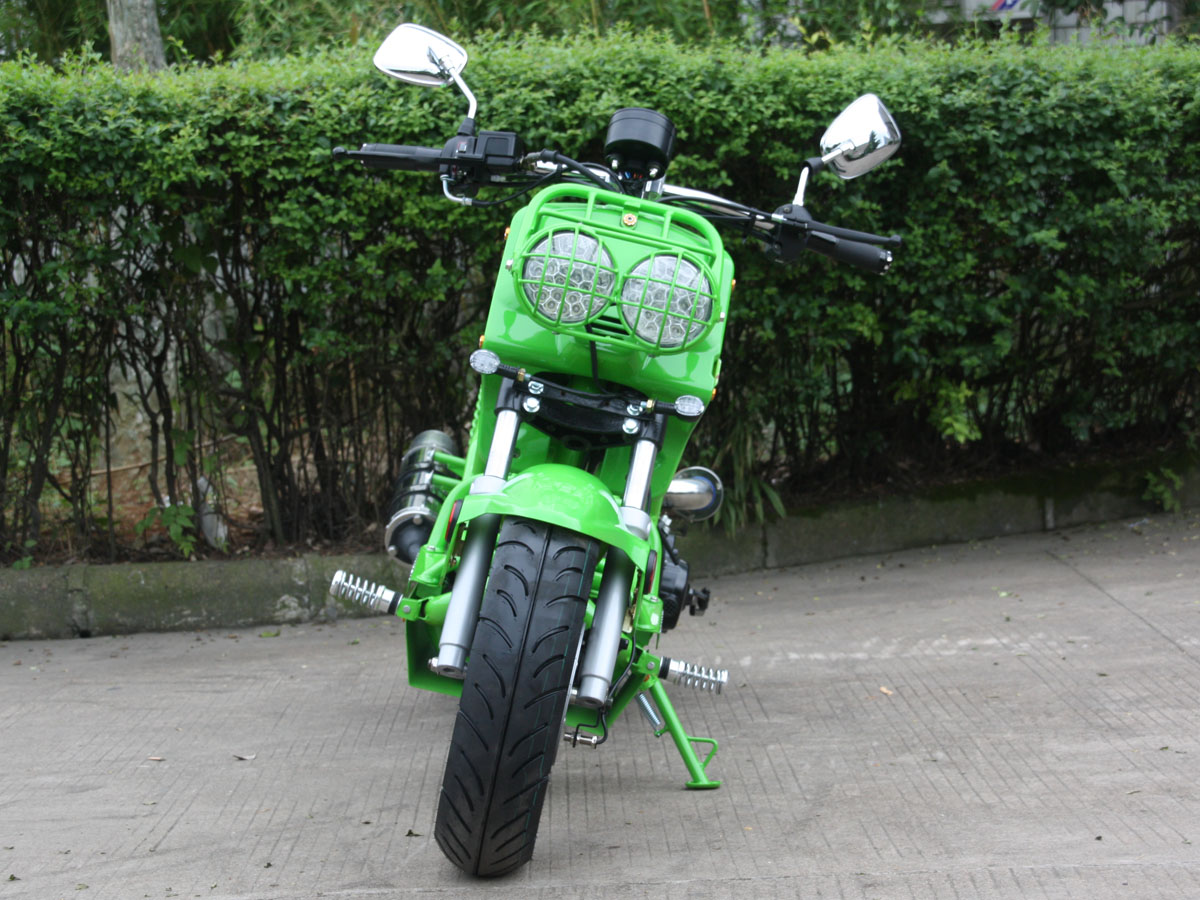

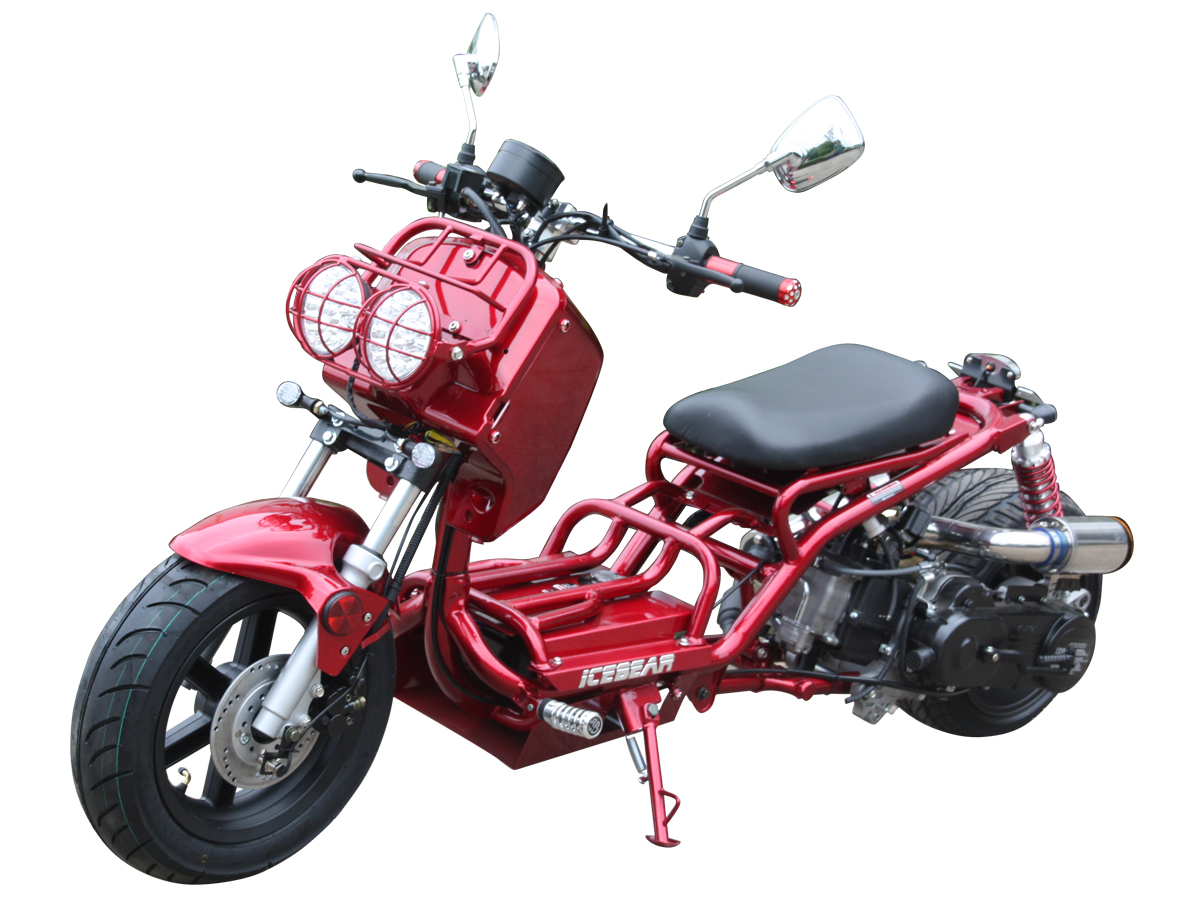

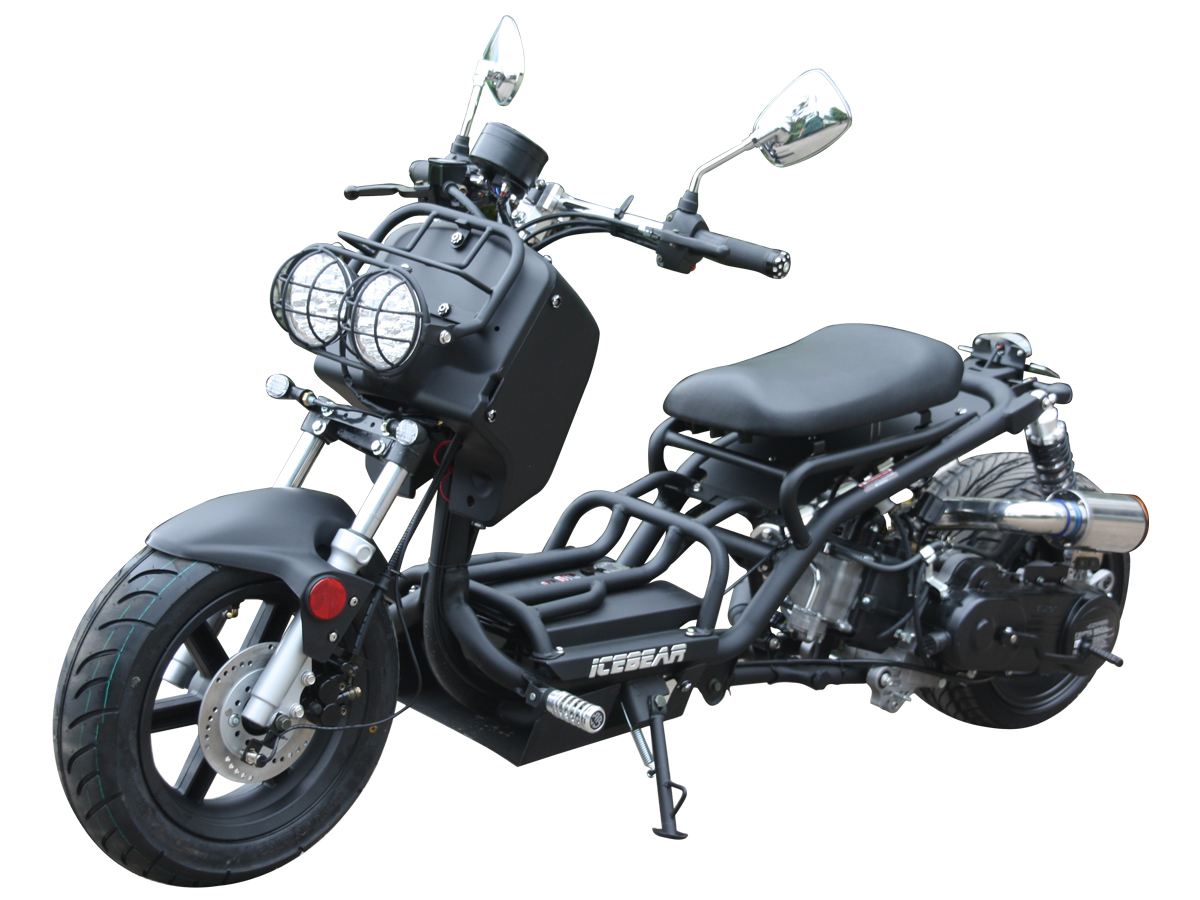

Colors
Click the icon to see all the parts for this model
