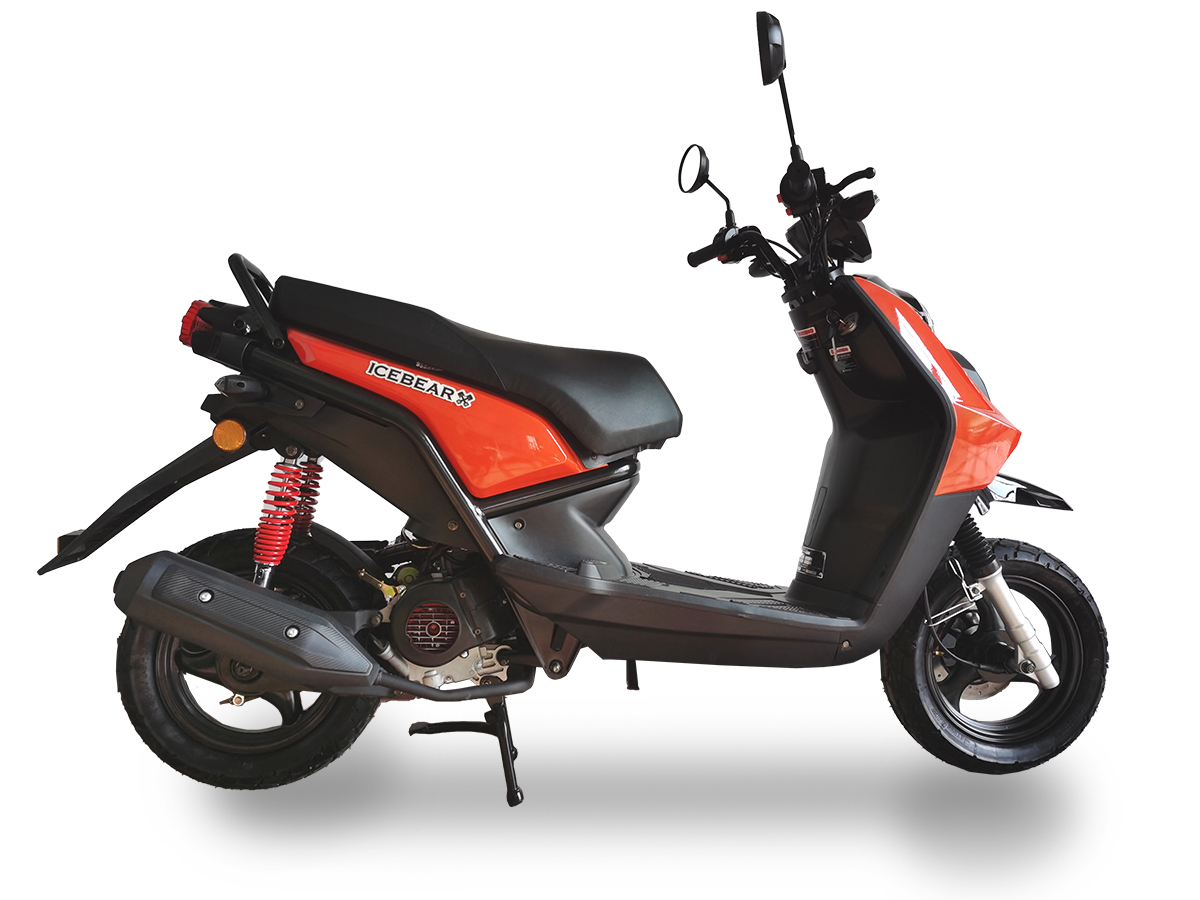

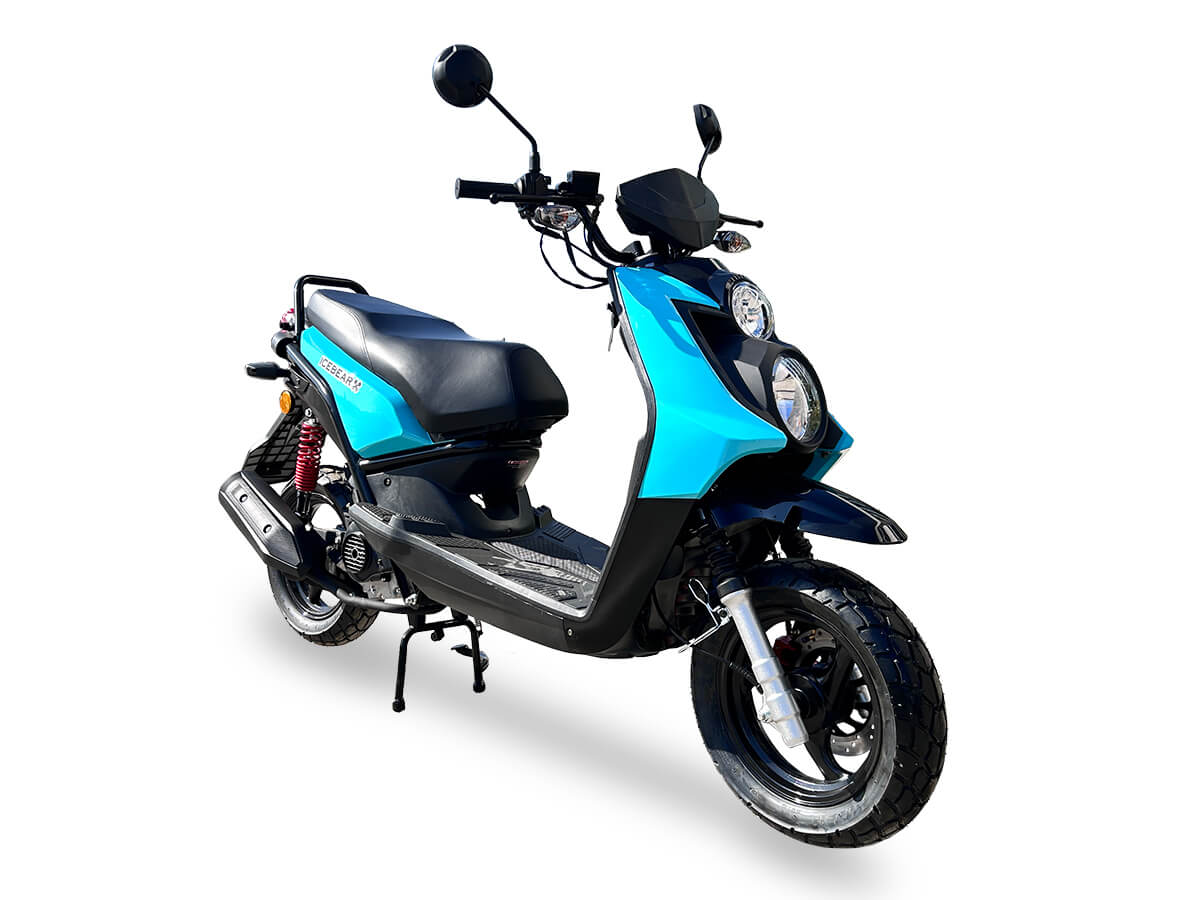

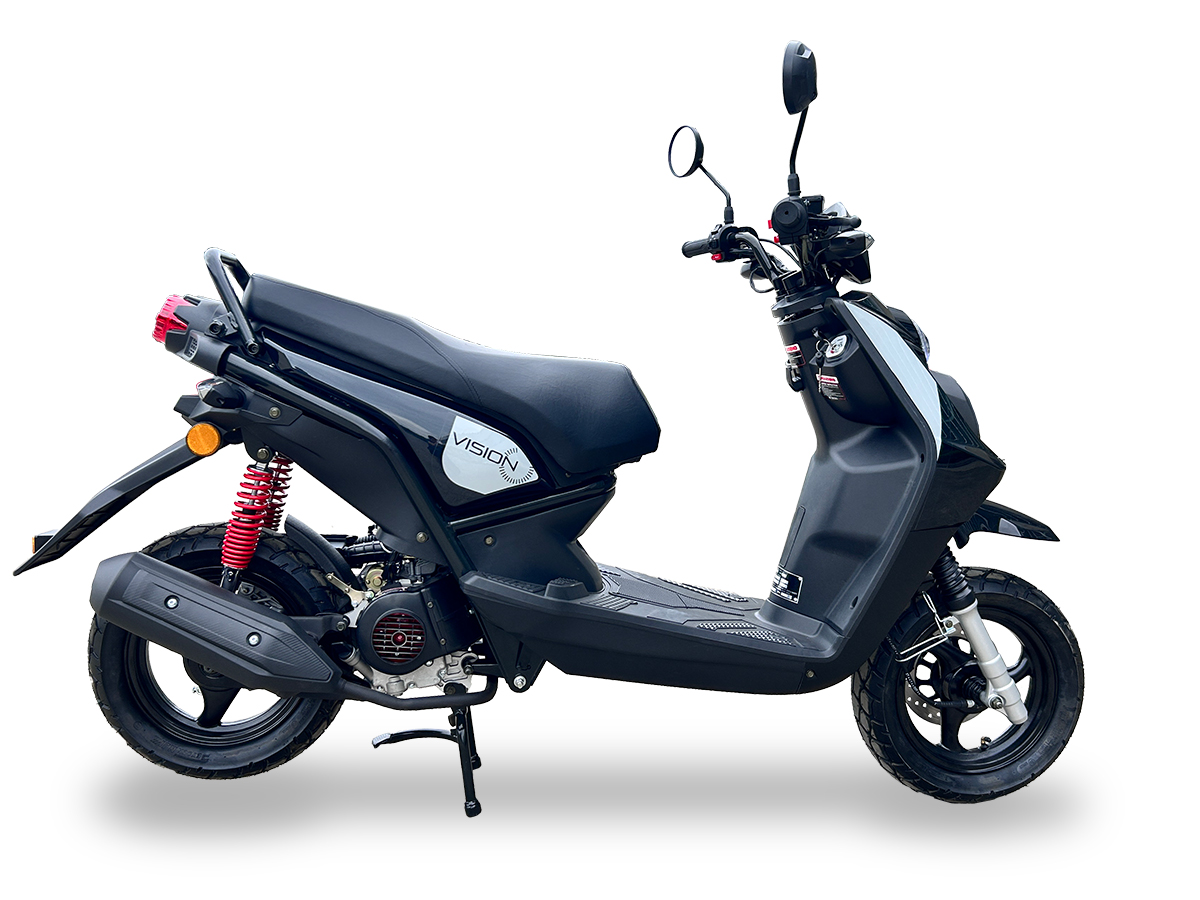

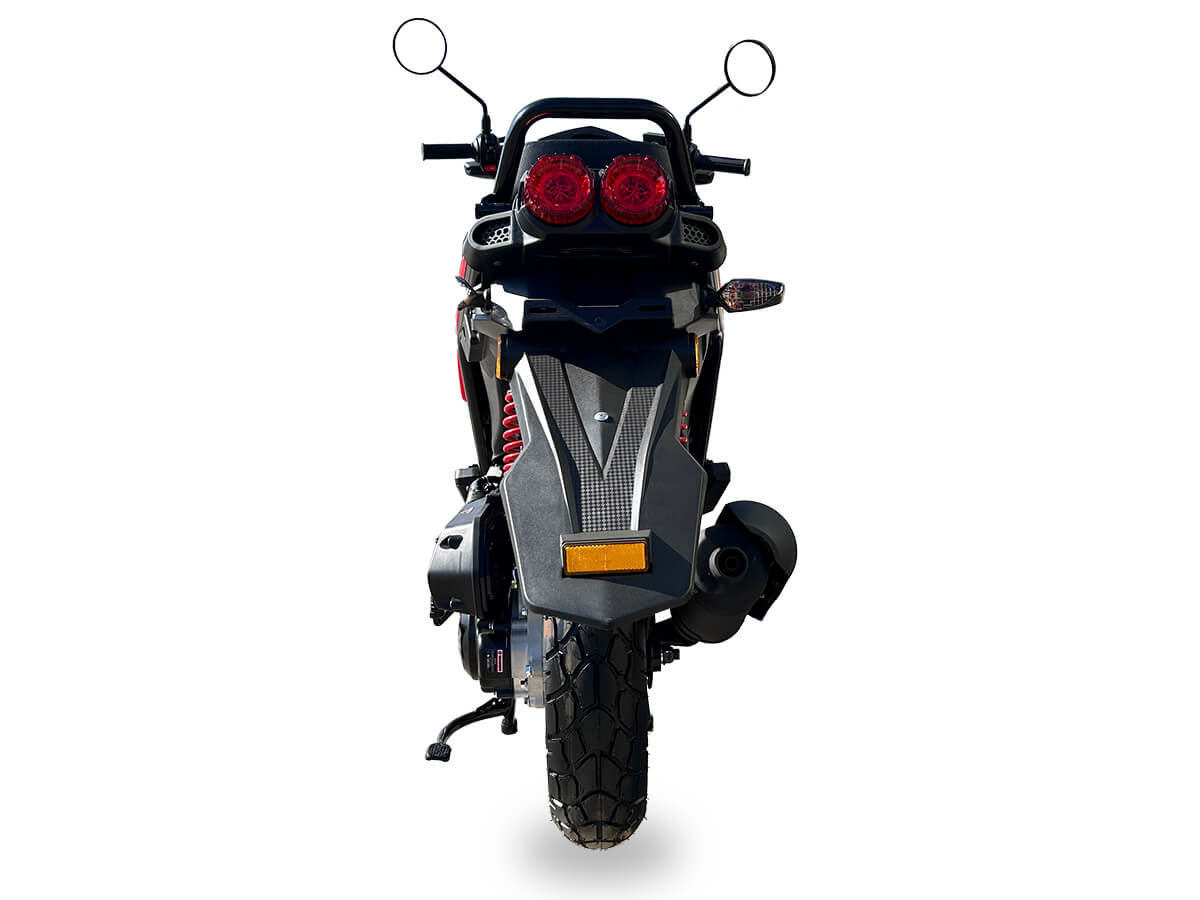

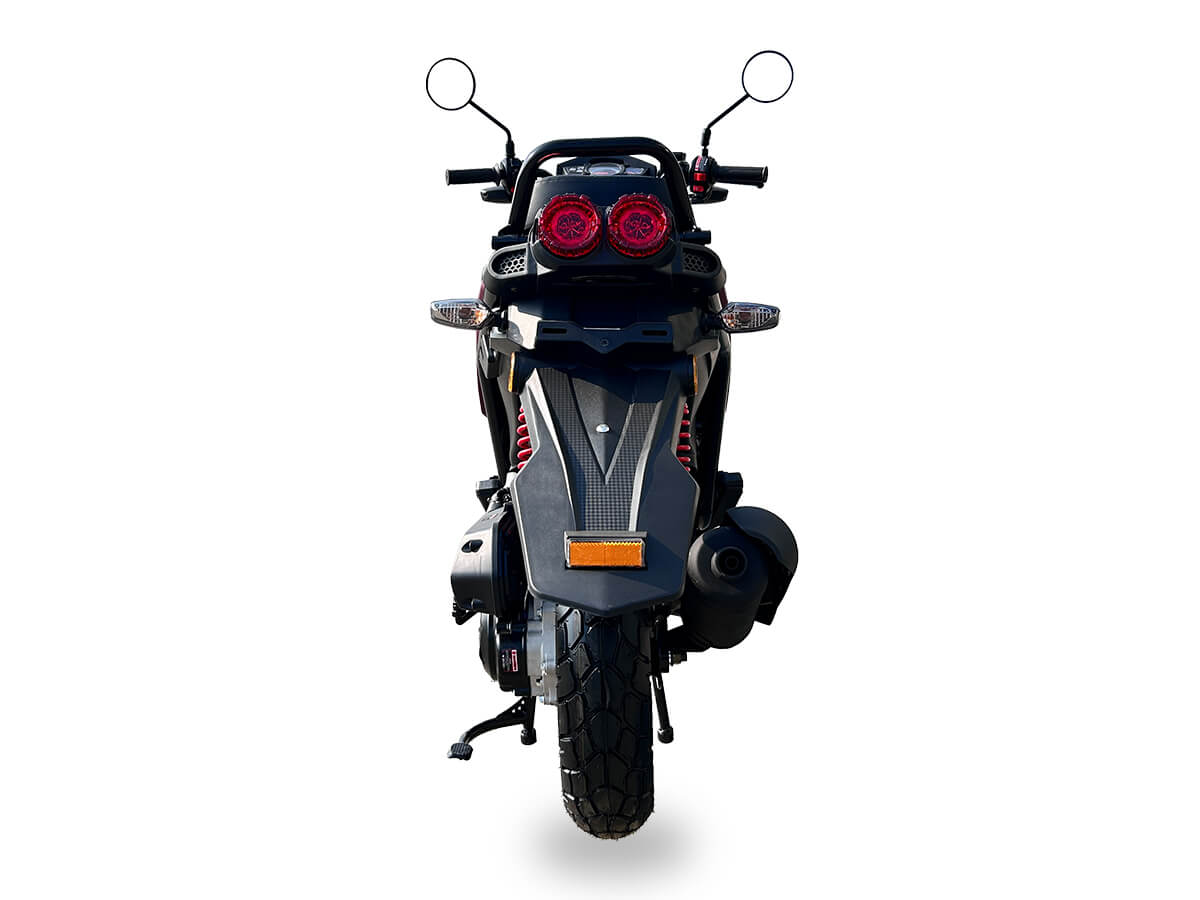

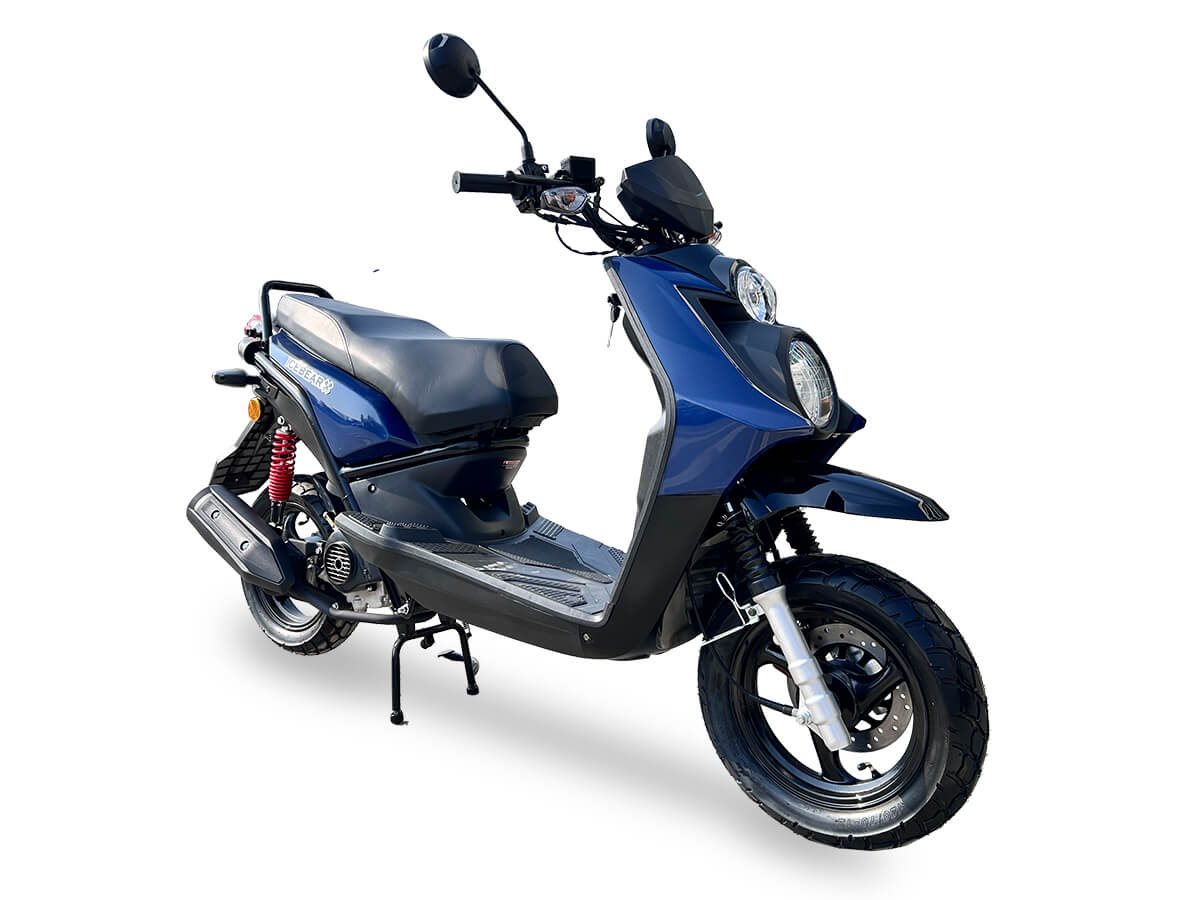

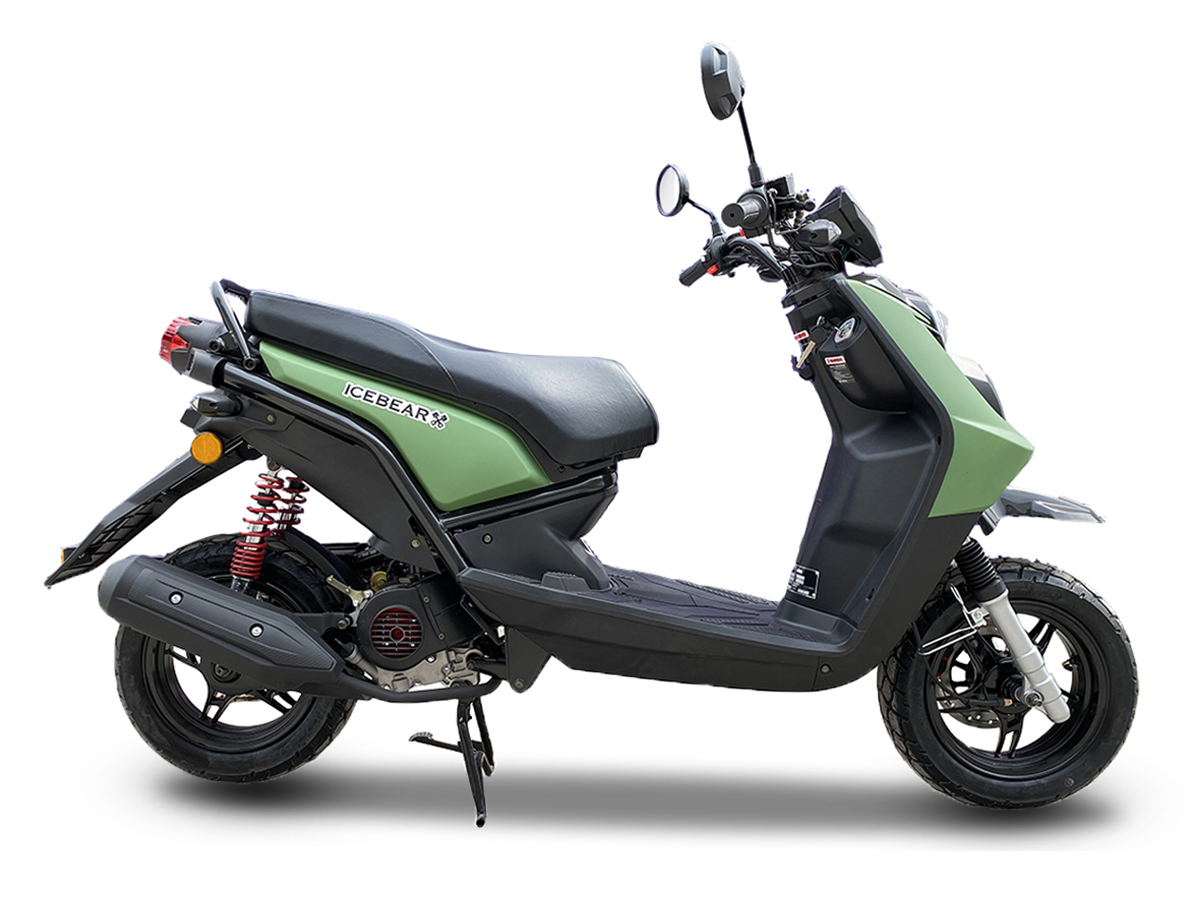

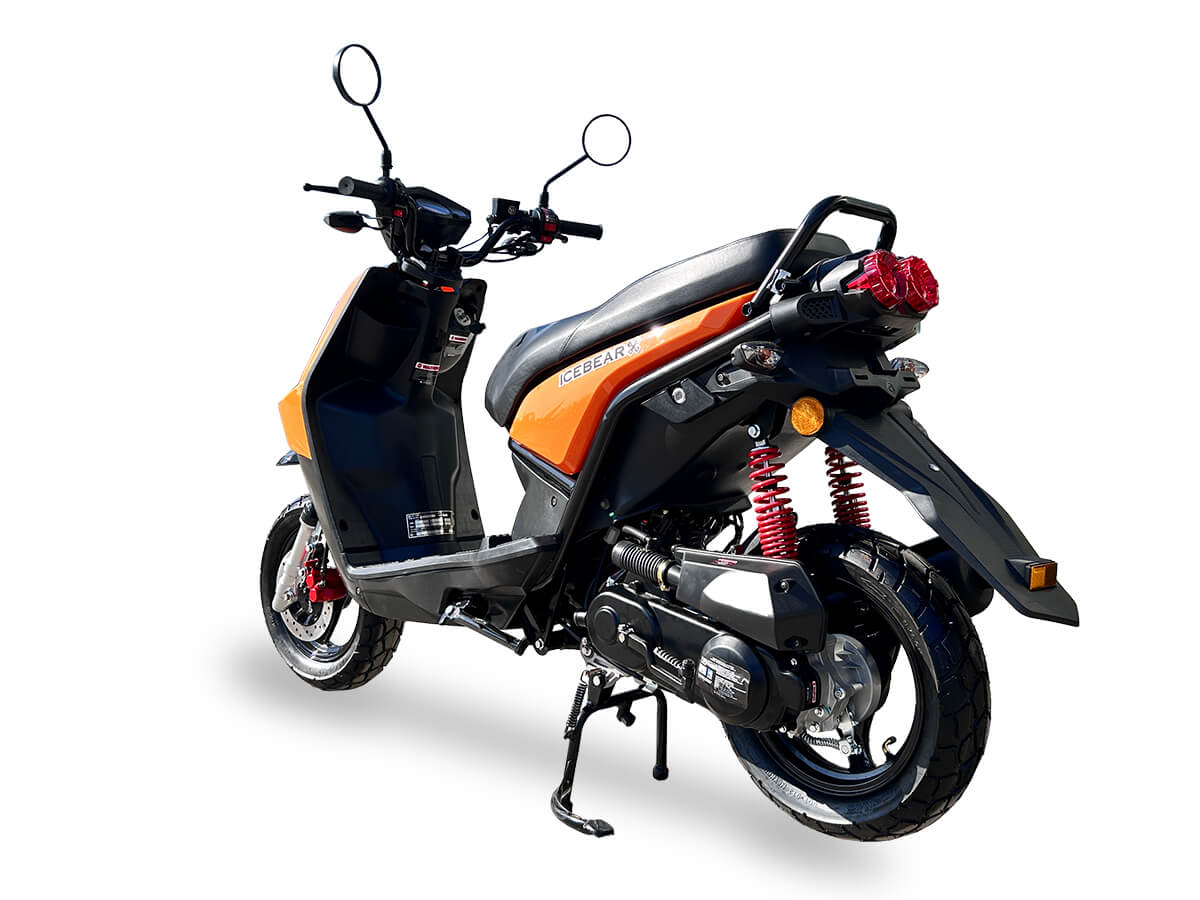

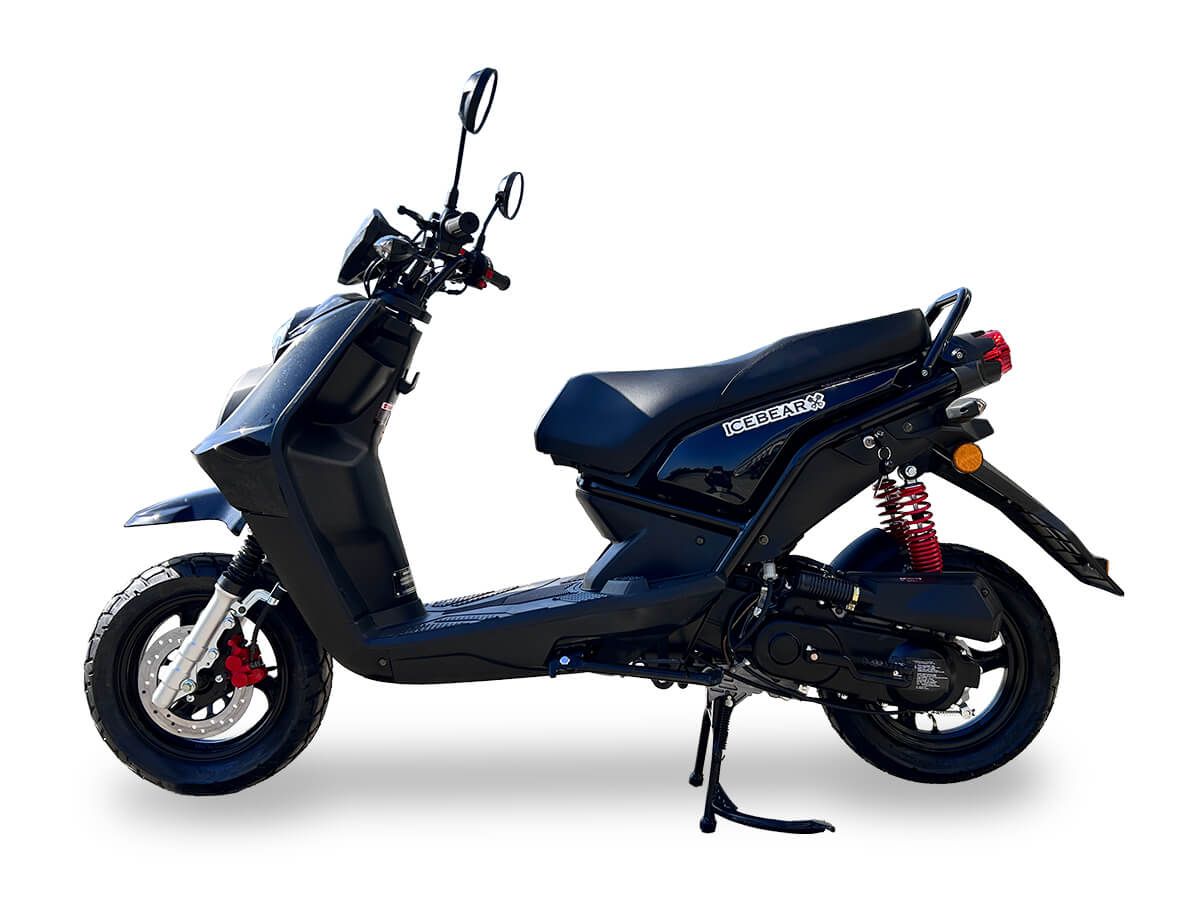

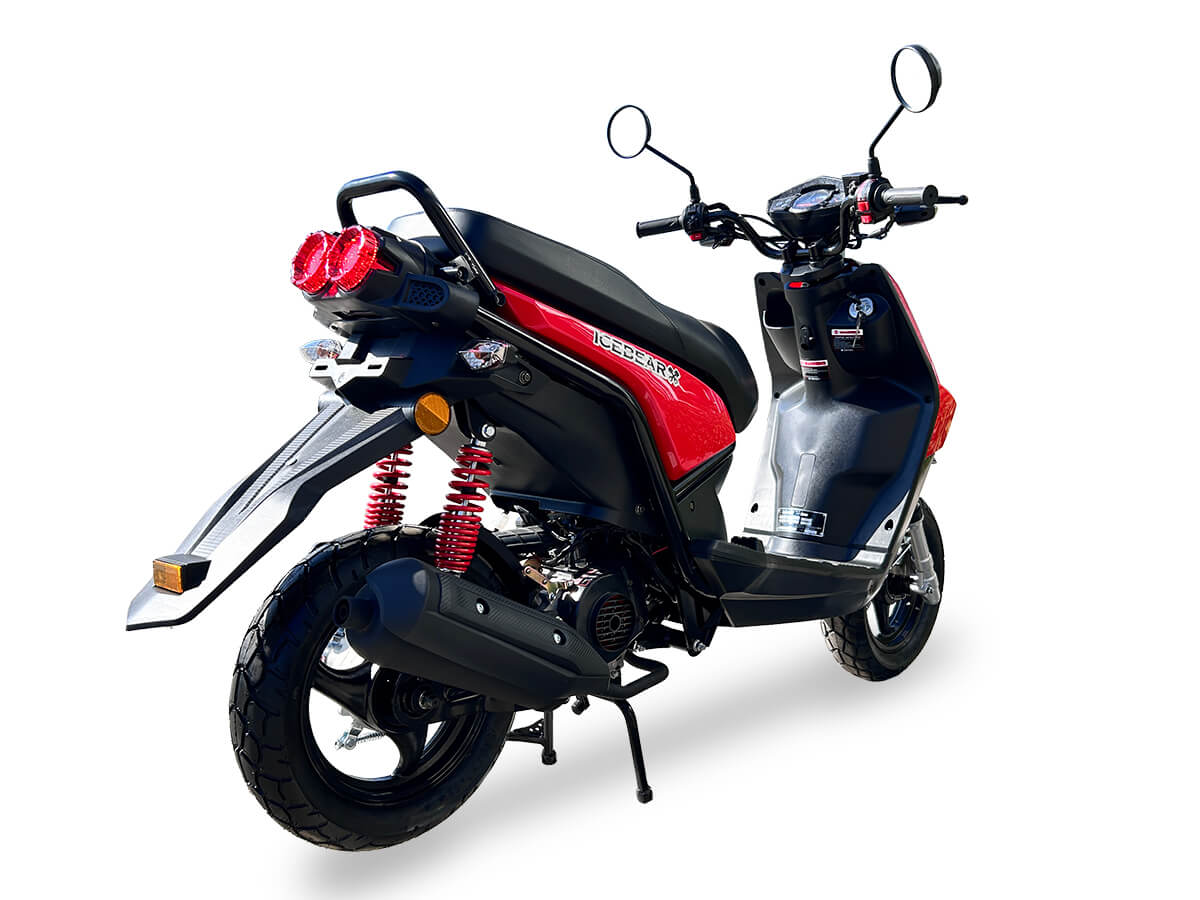

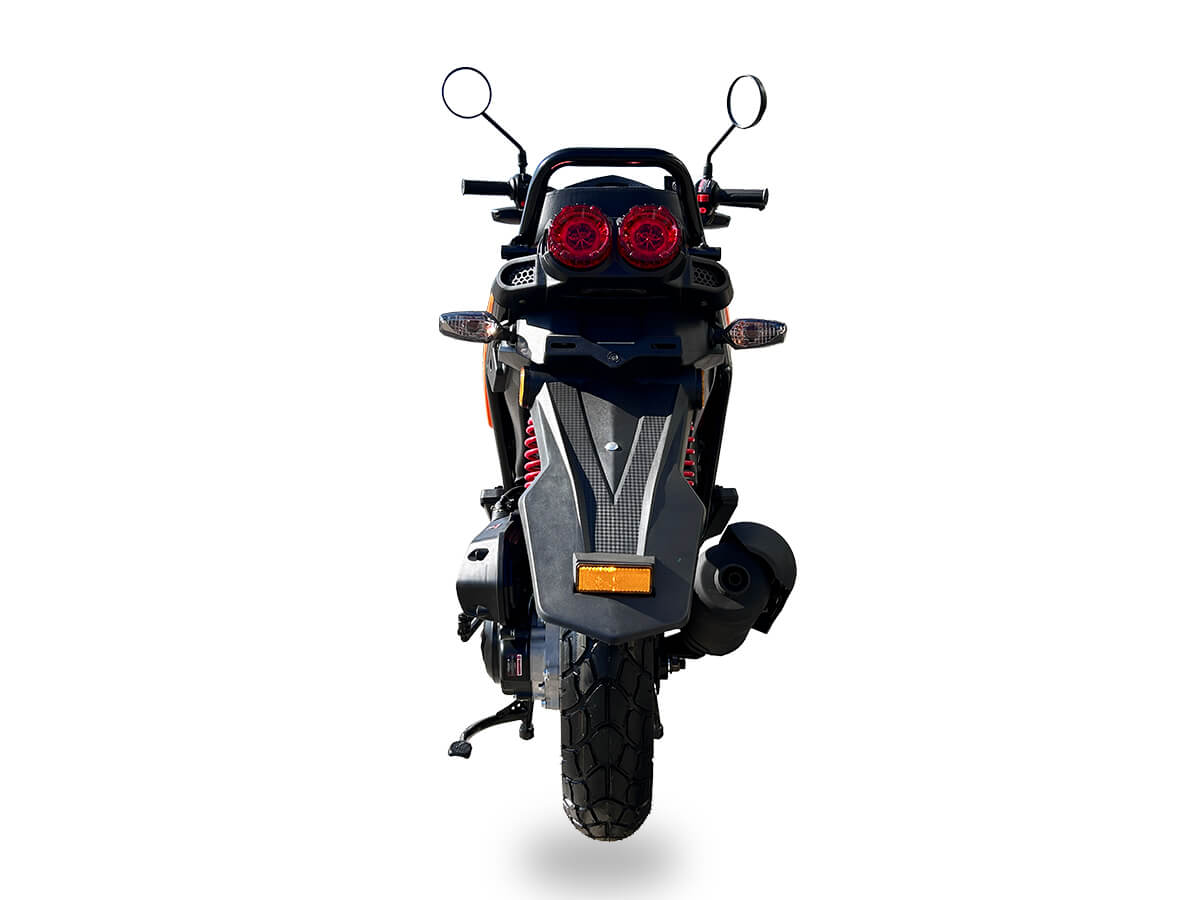

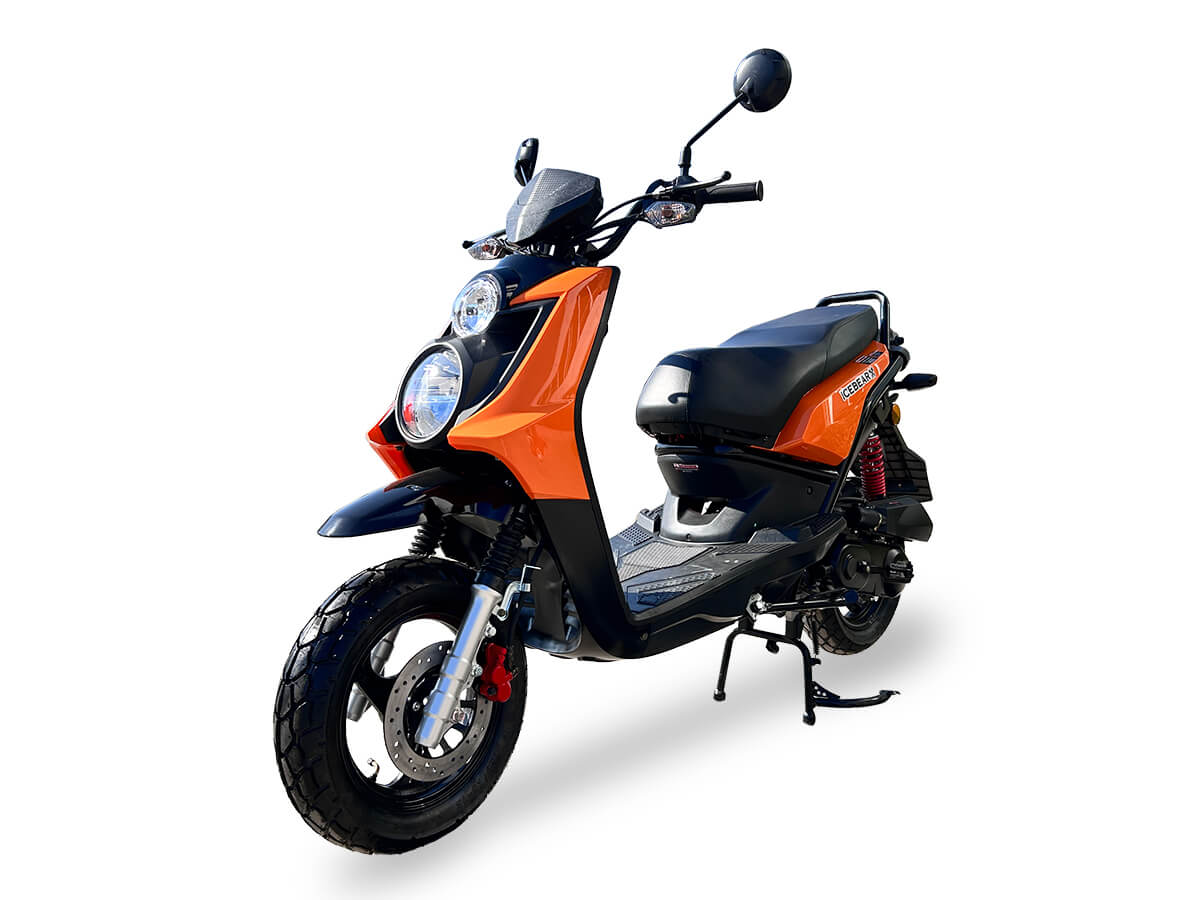

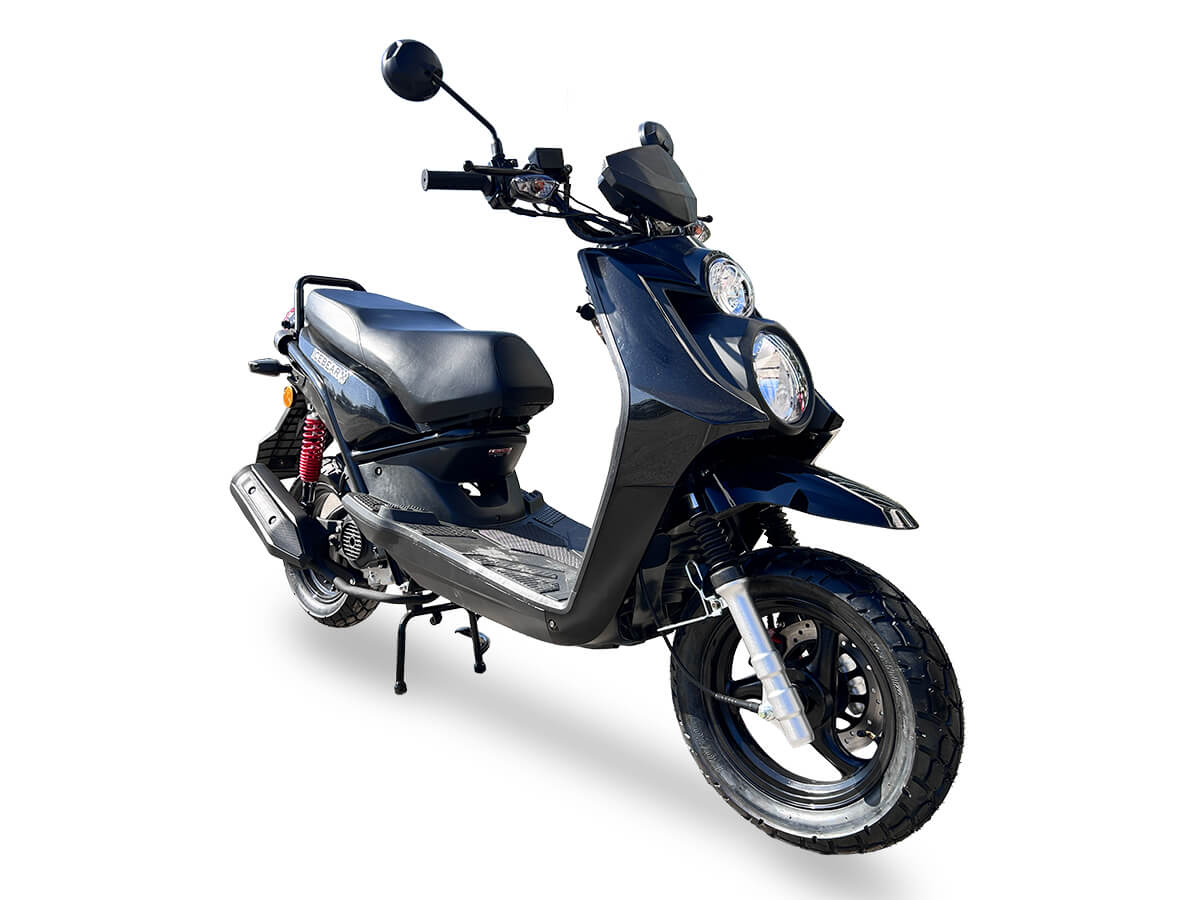

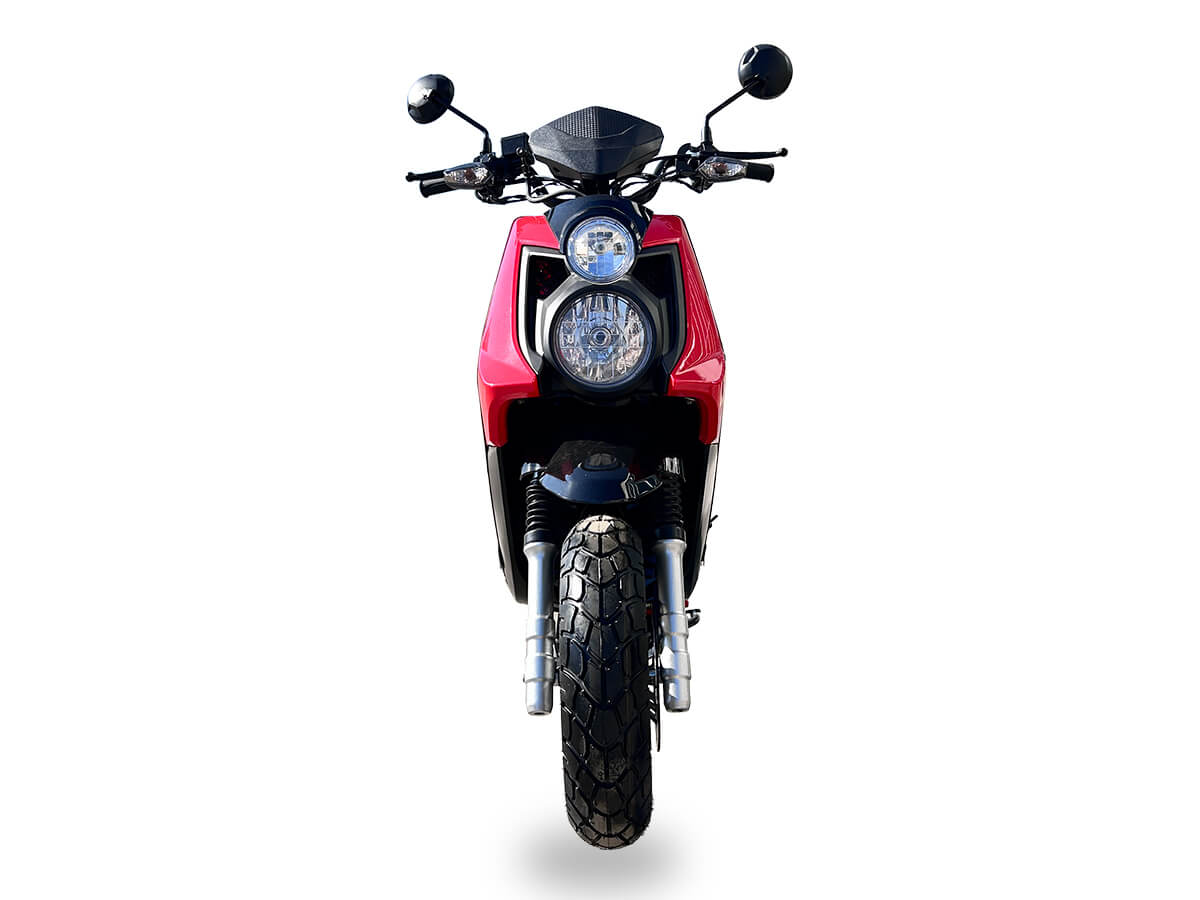

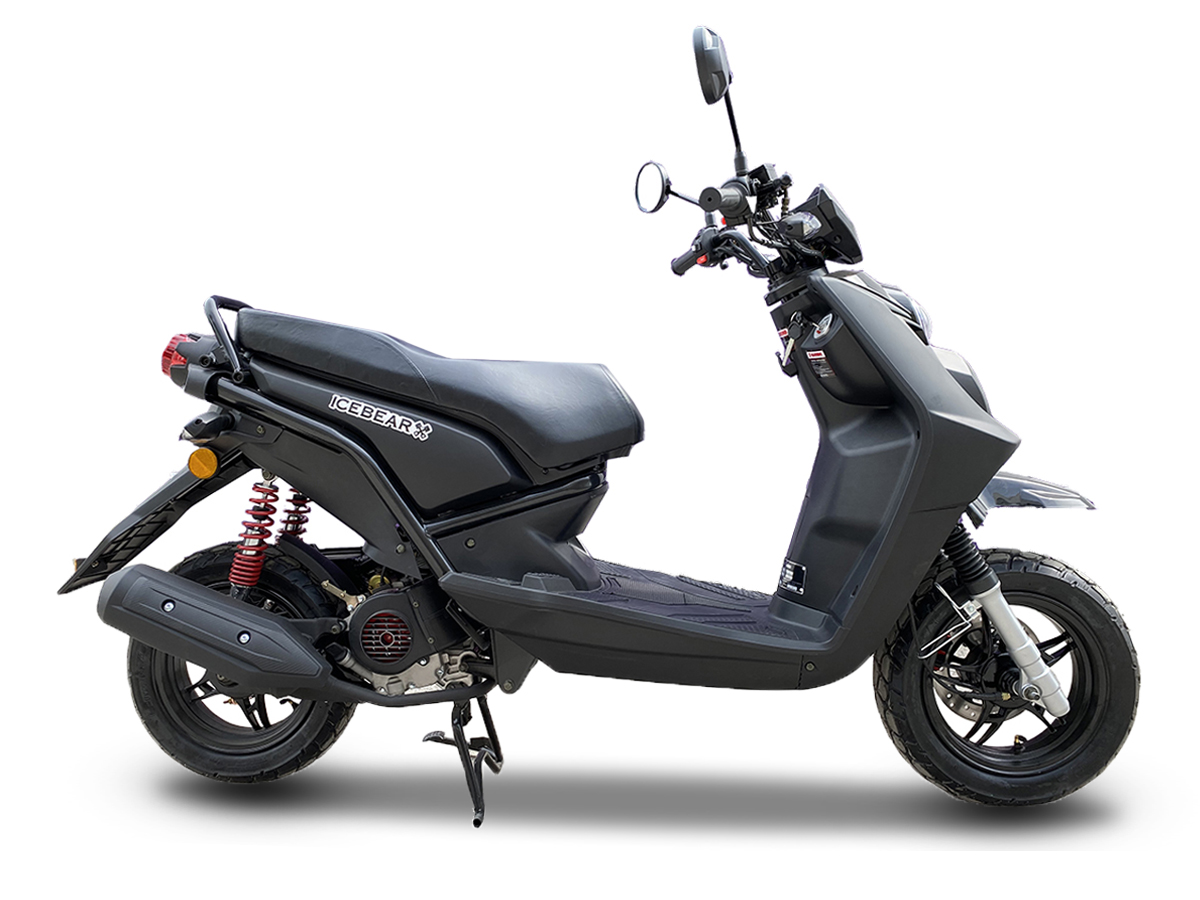

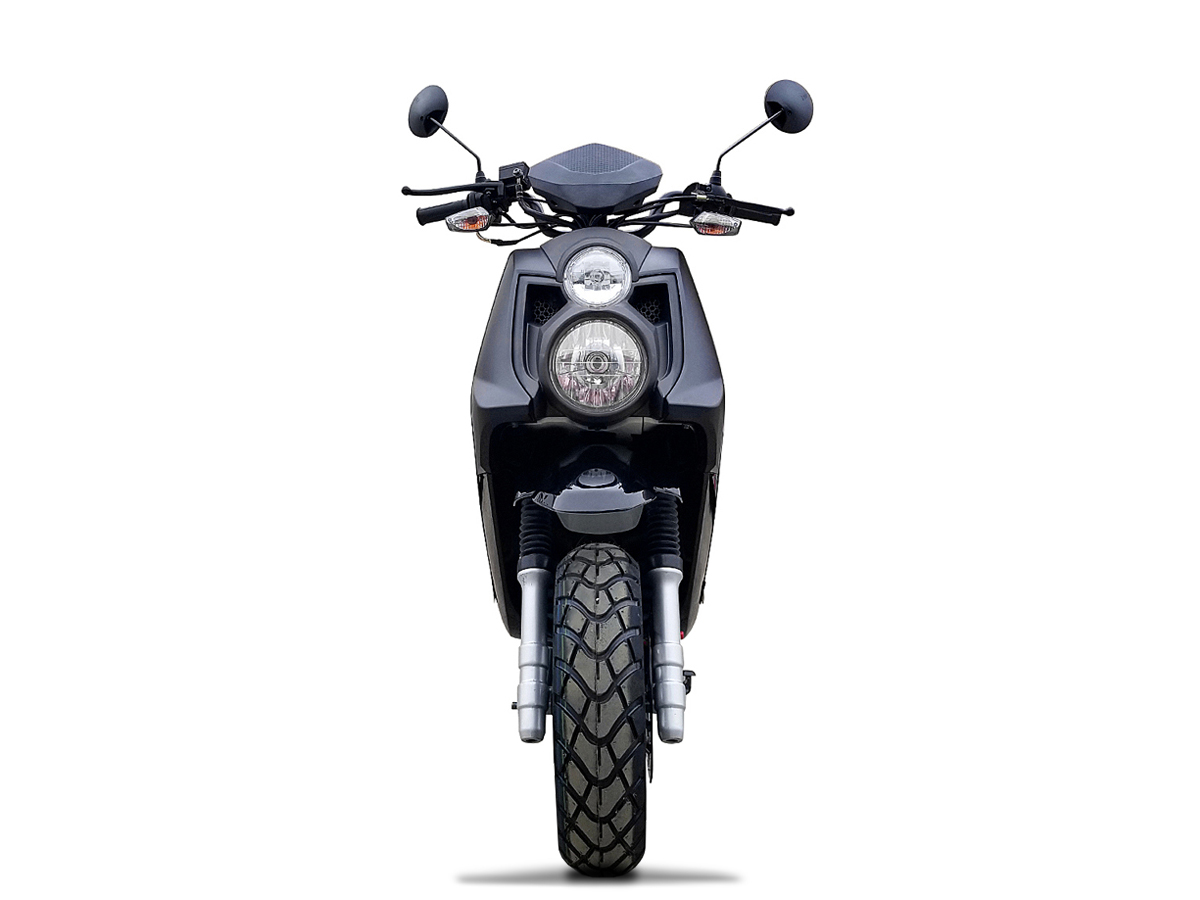

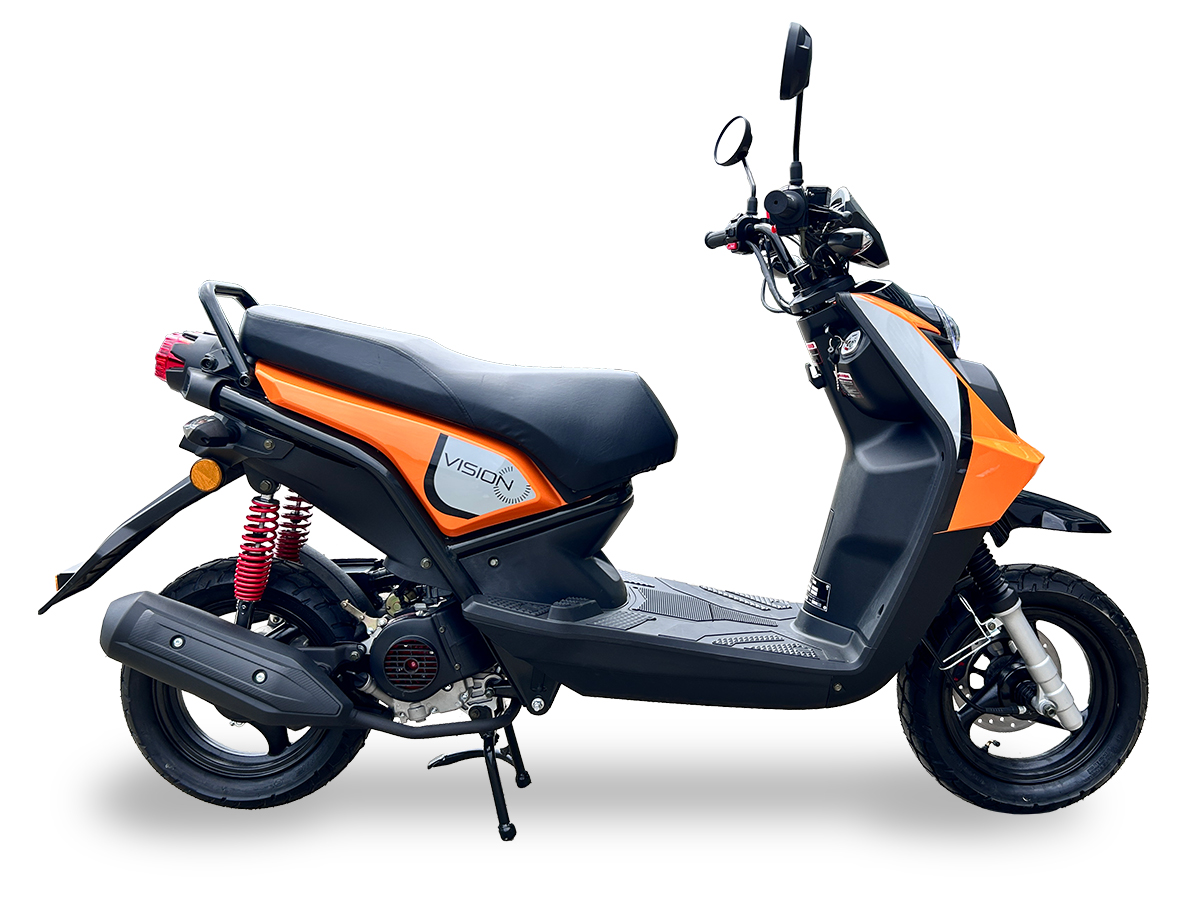

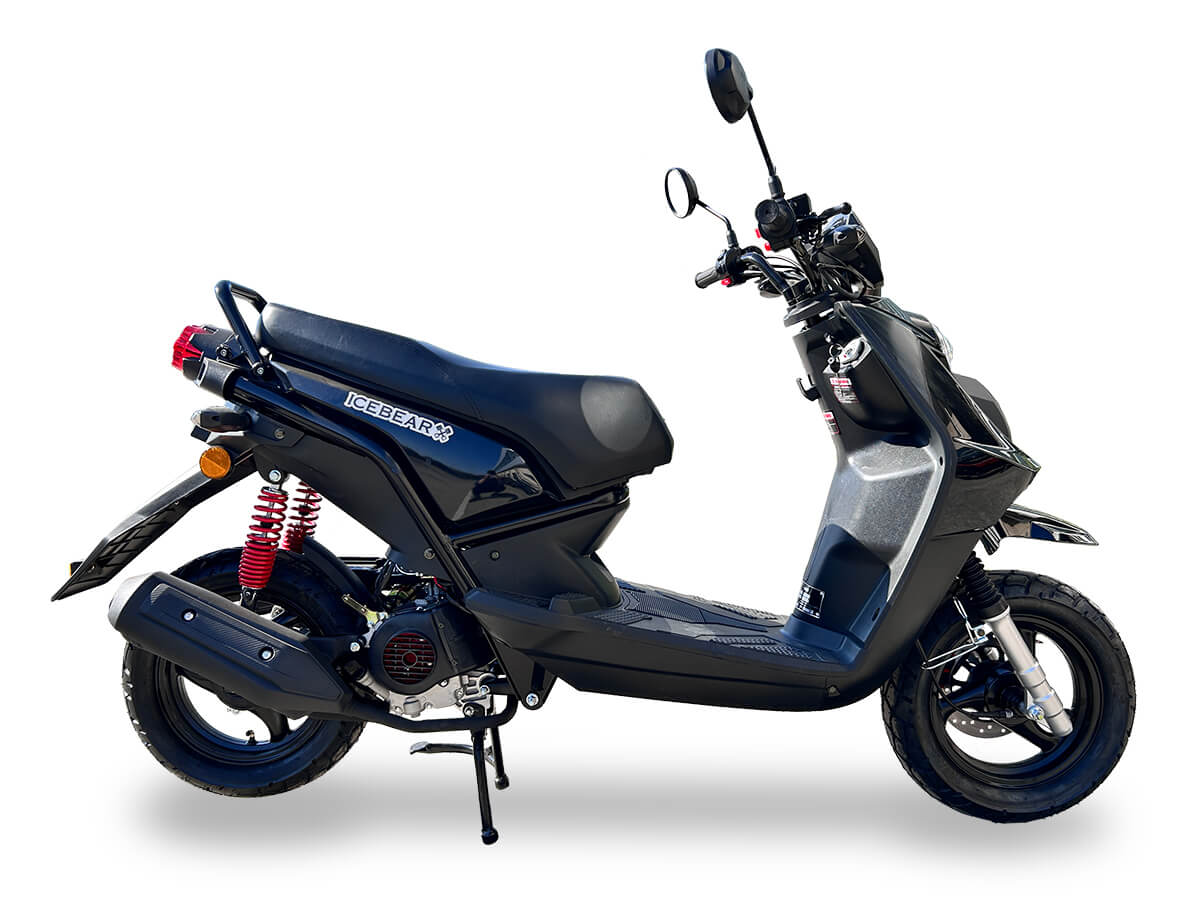

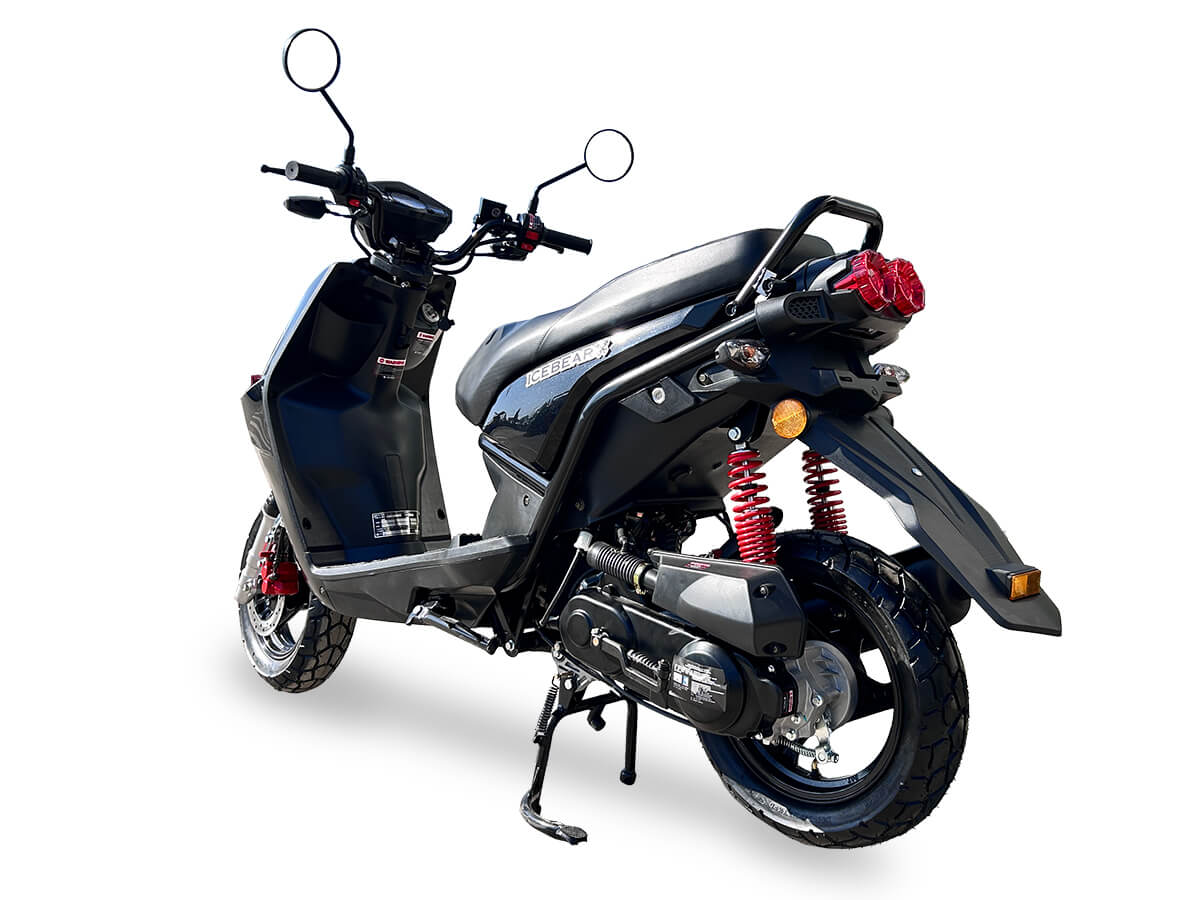

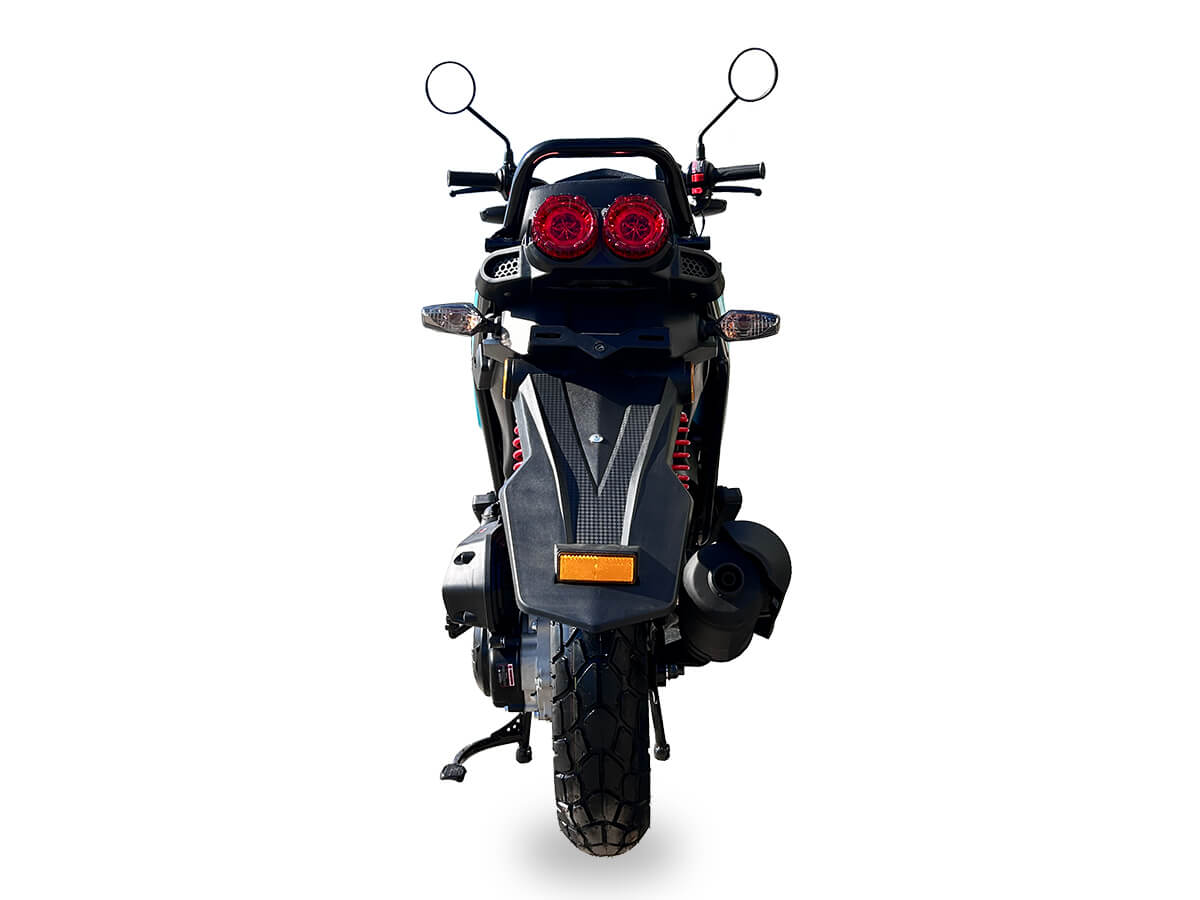

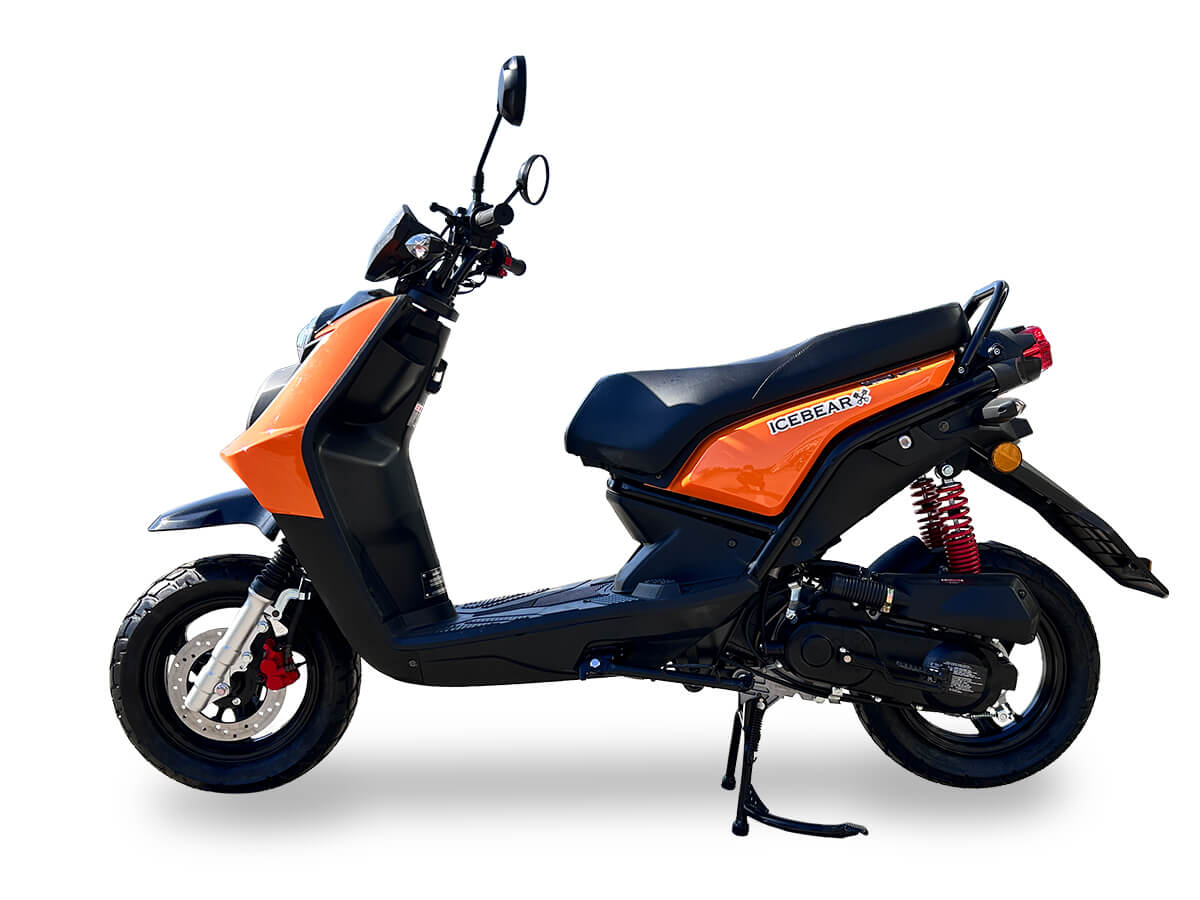

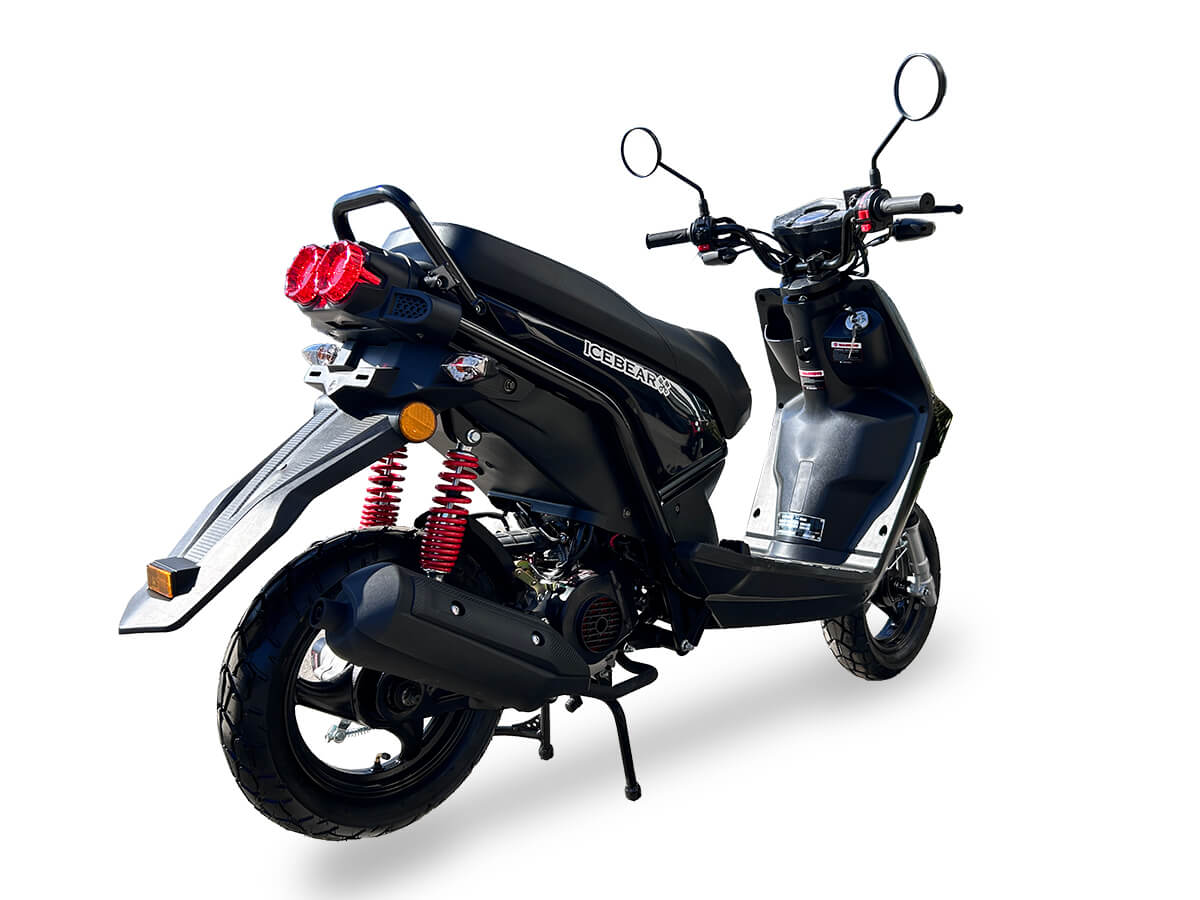

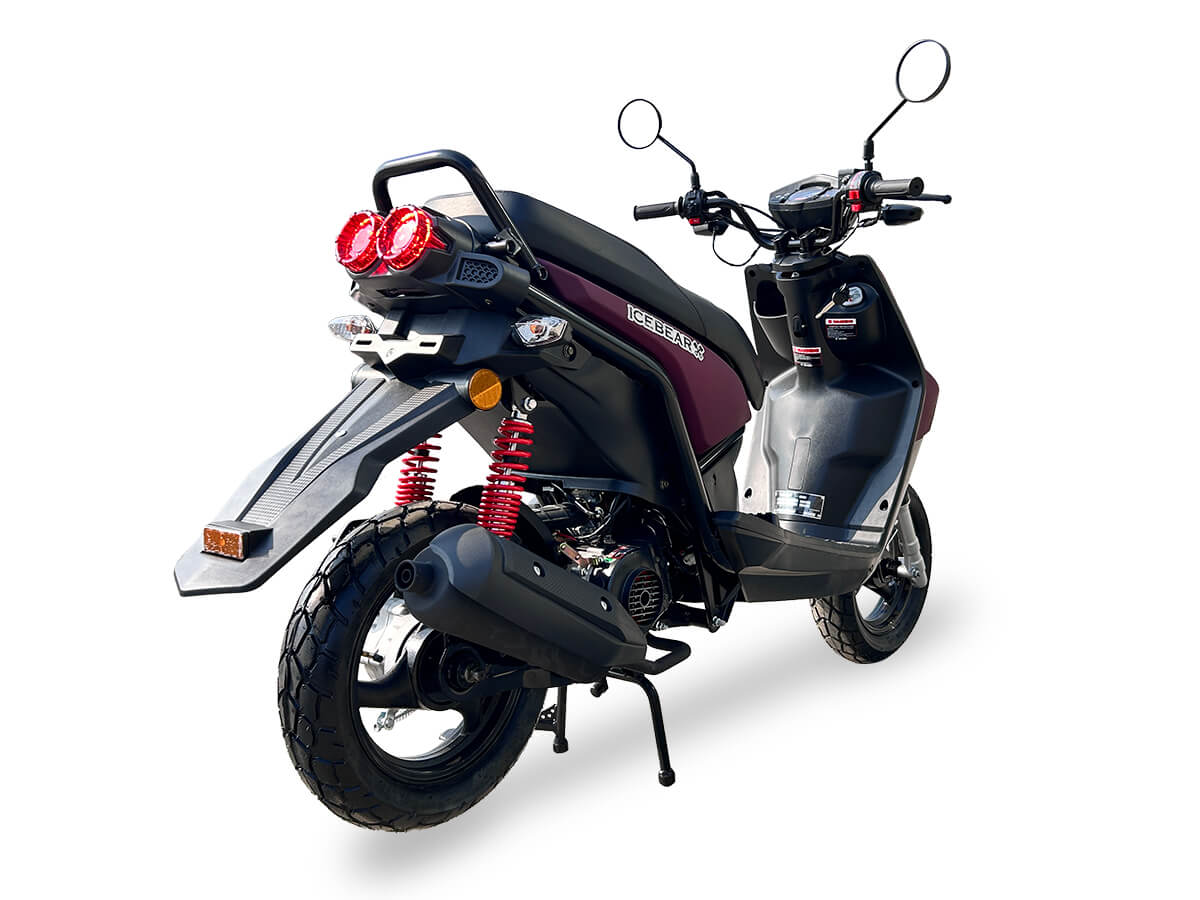

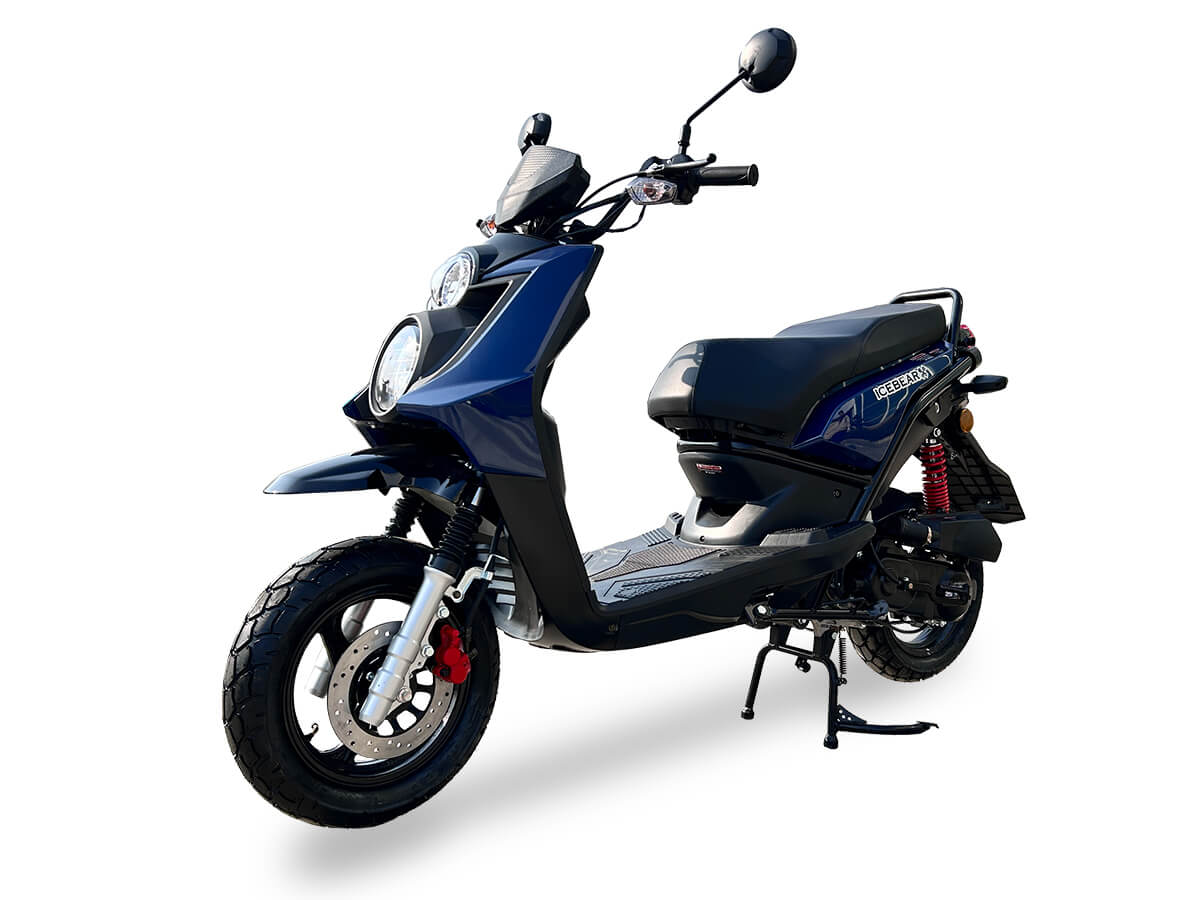

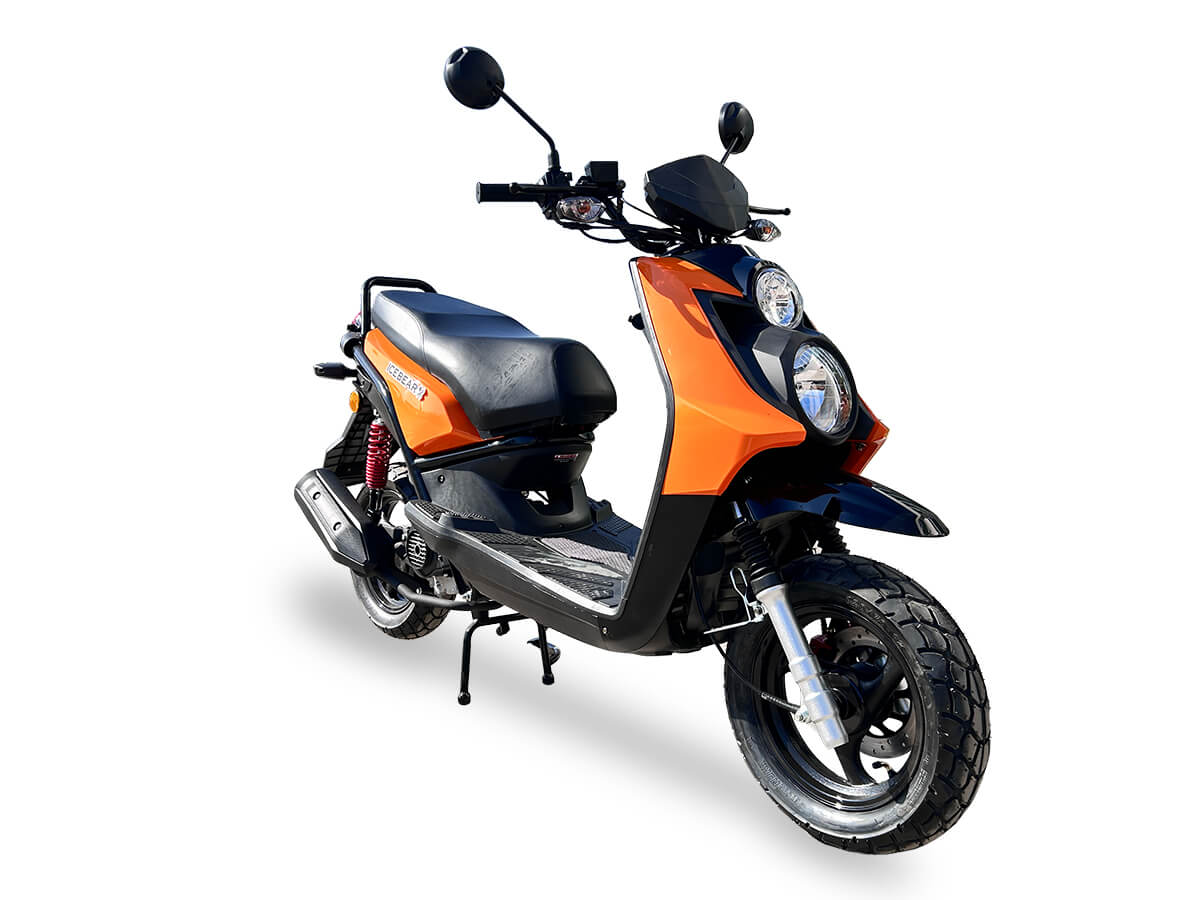

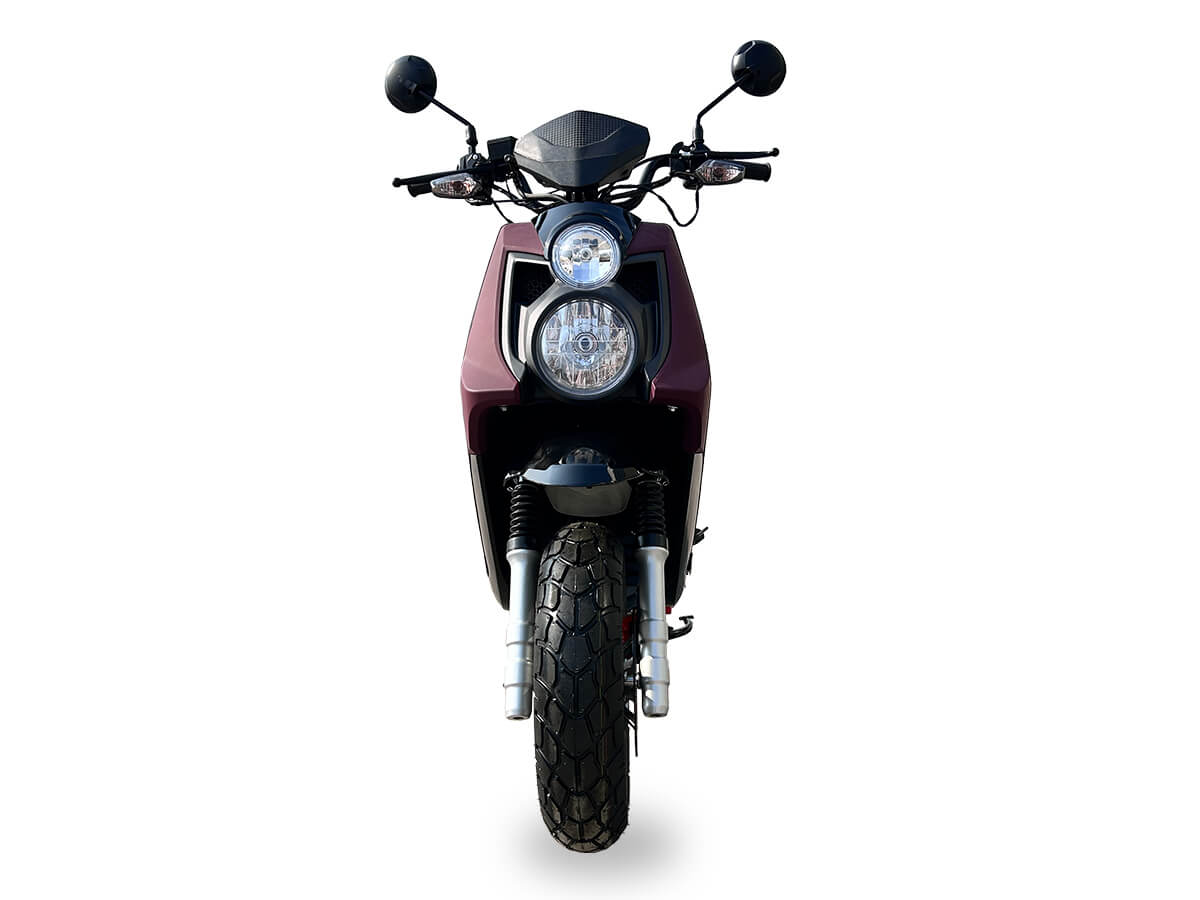

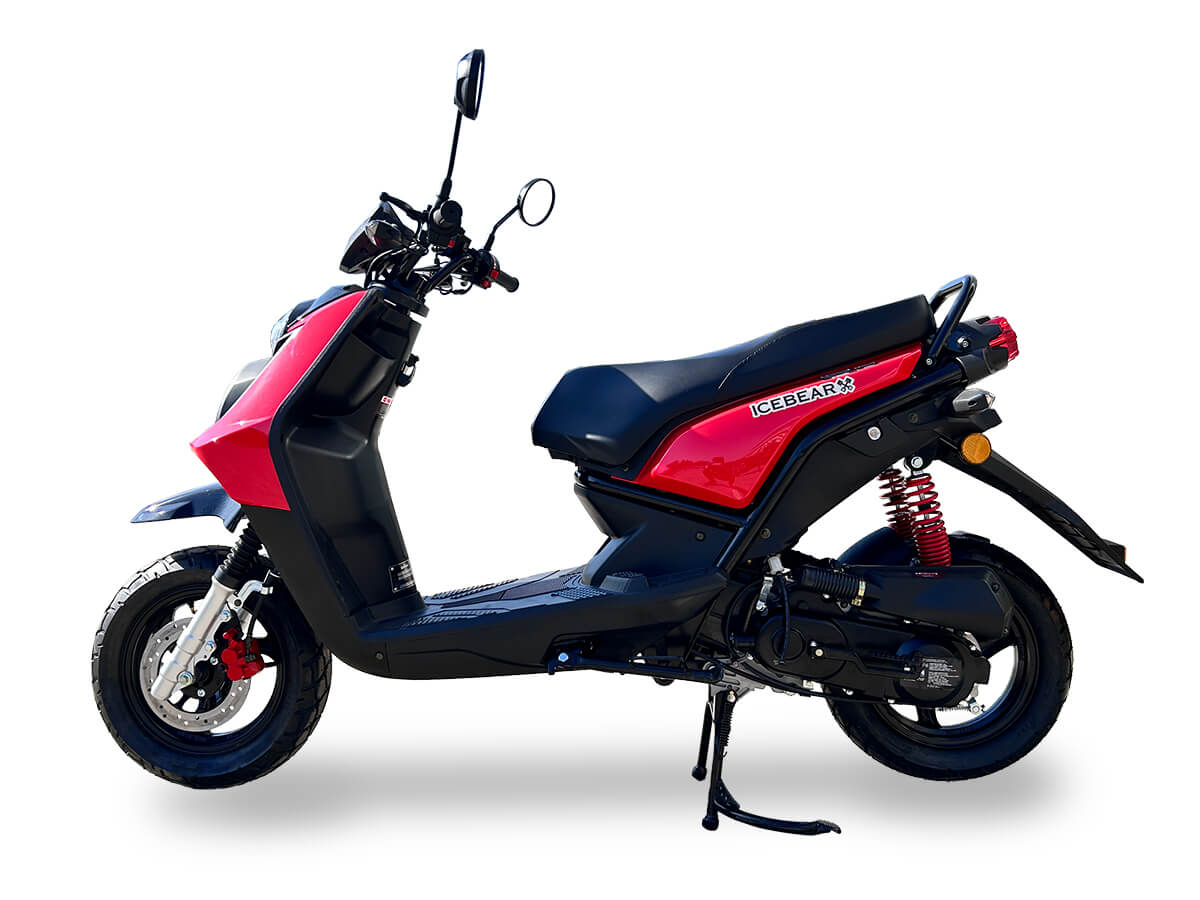

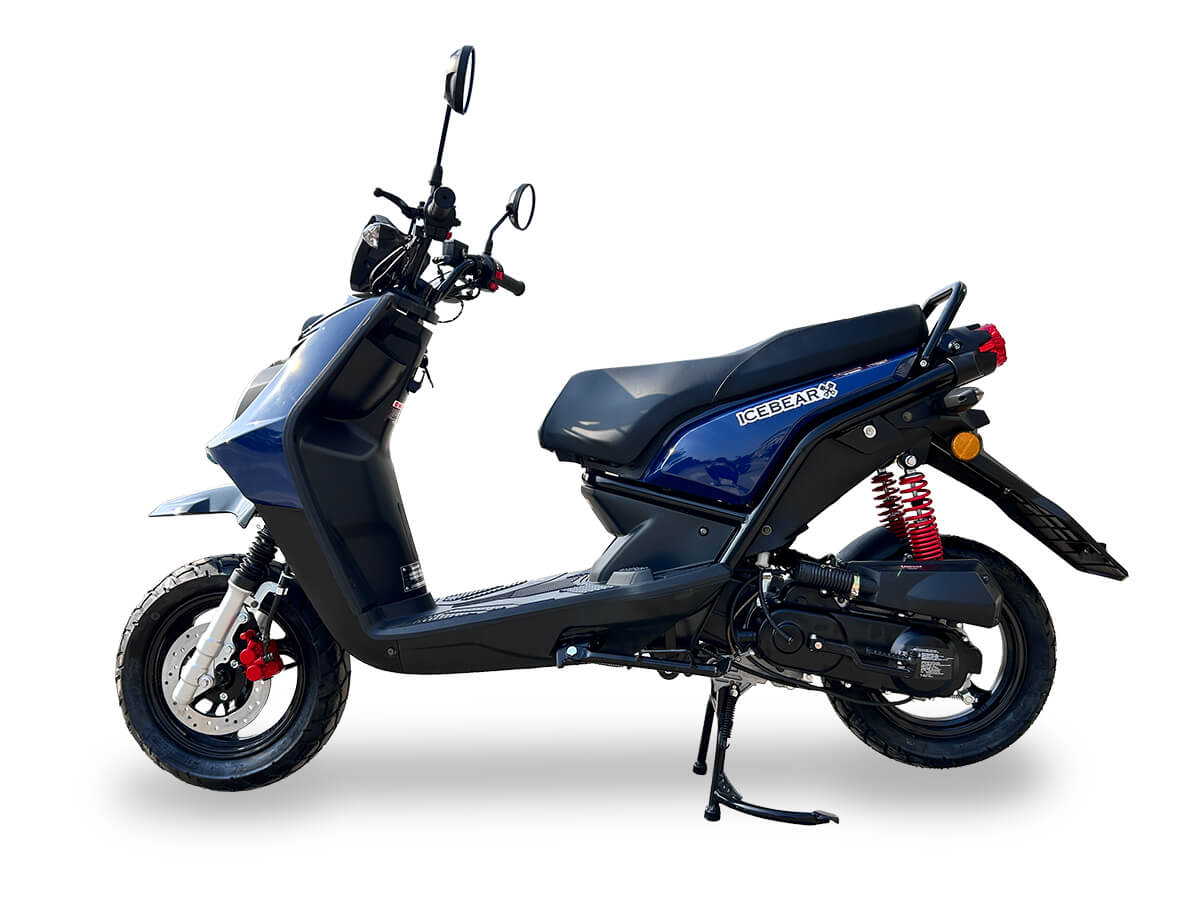

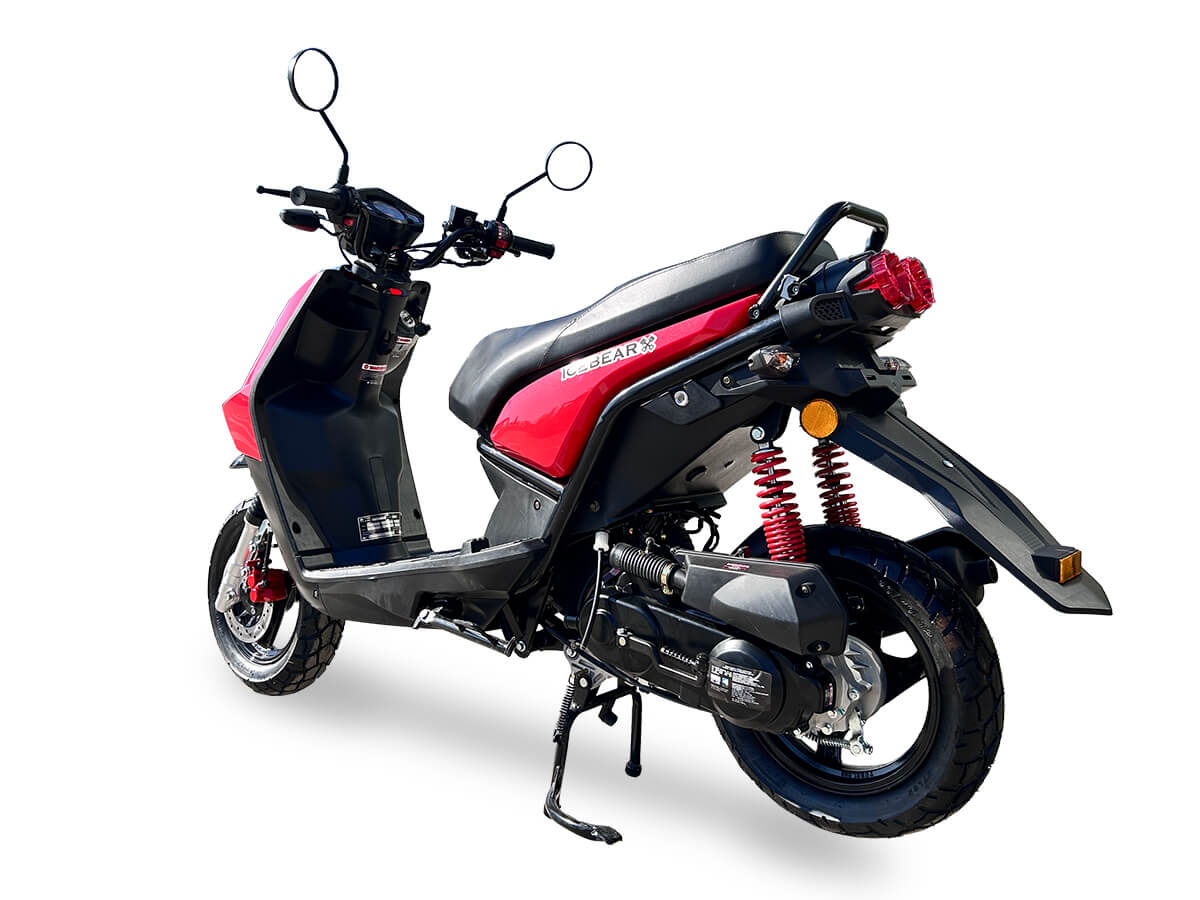

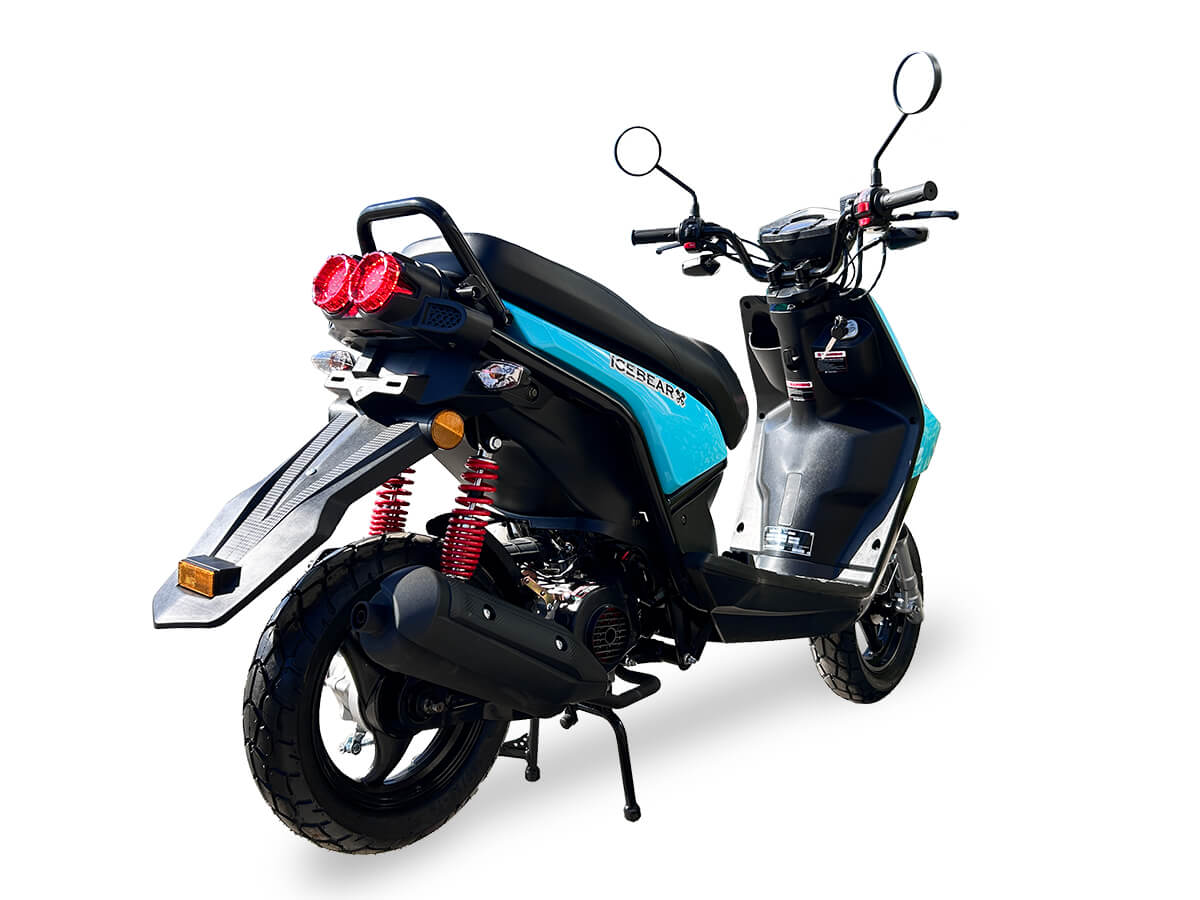

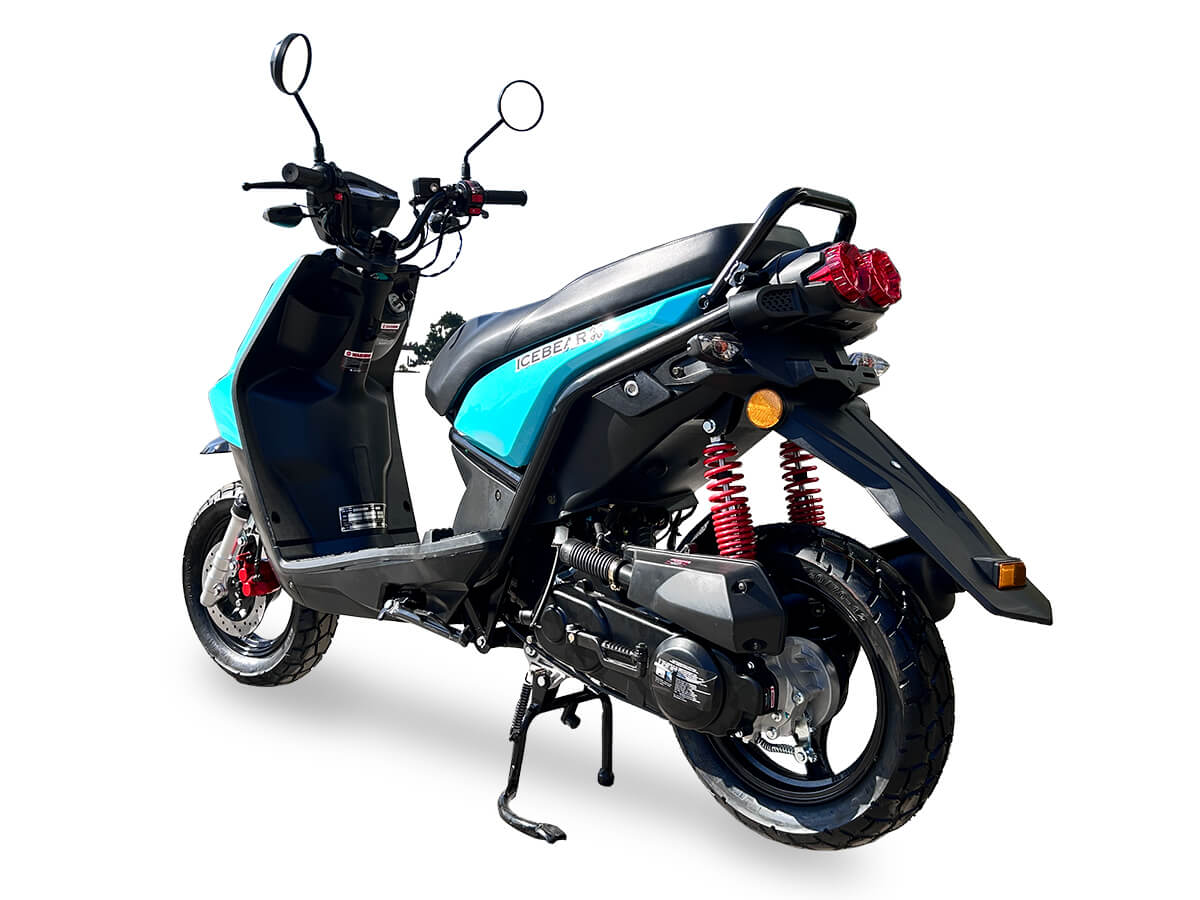

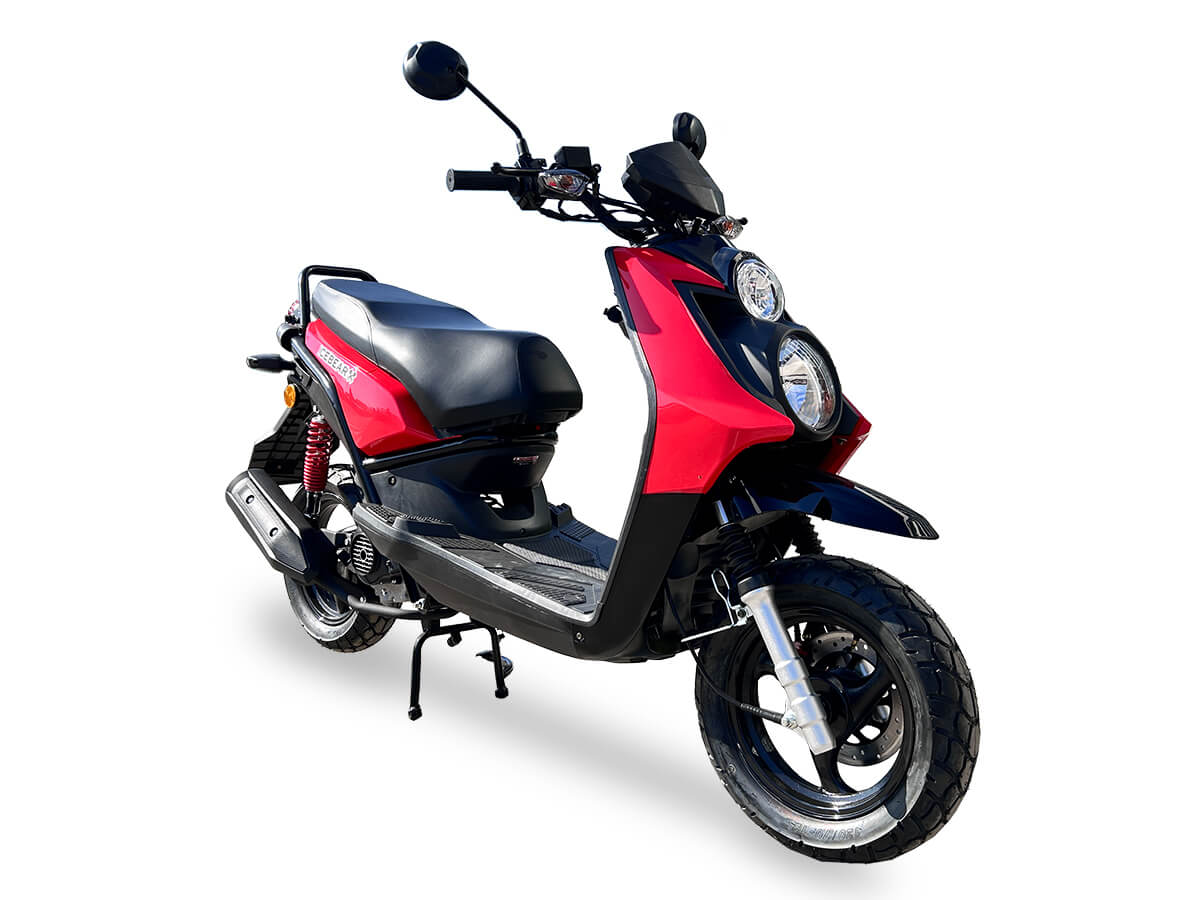

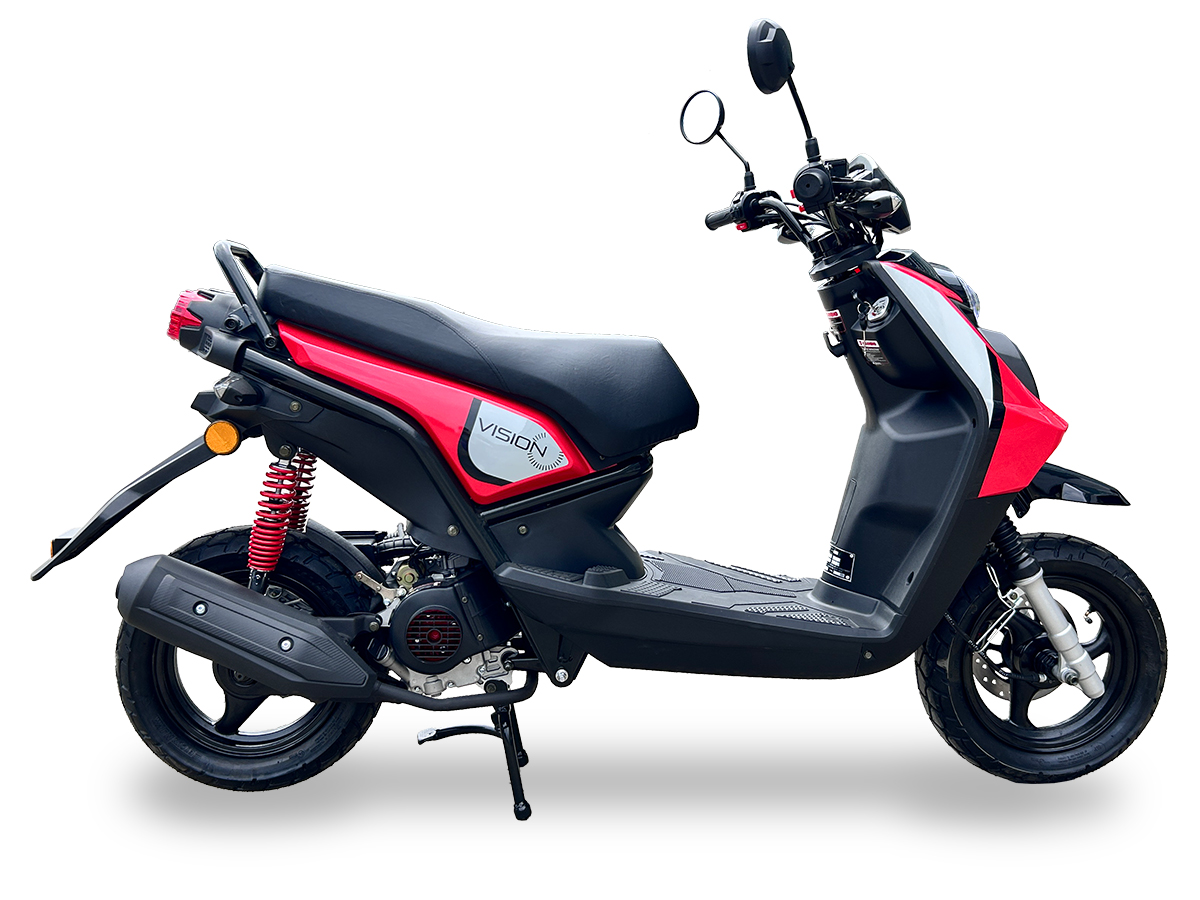

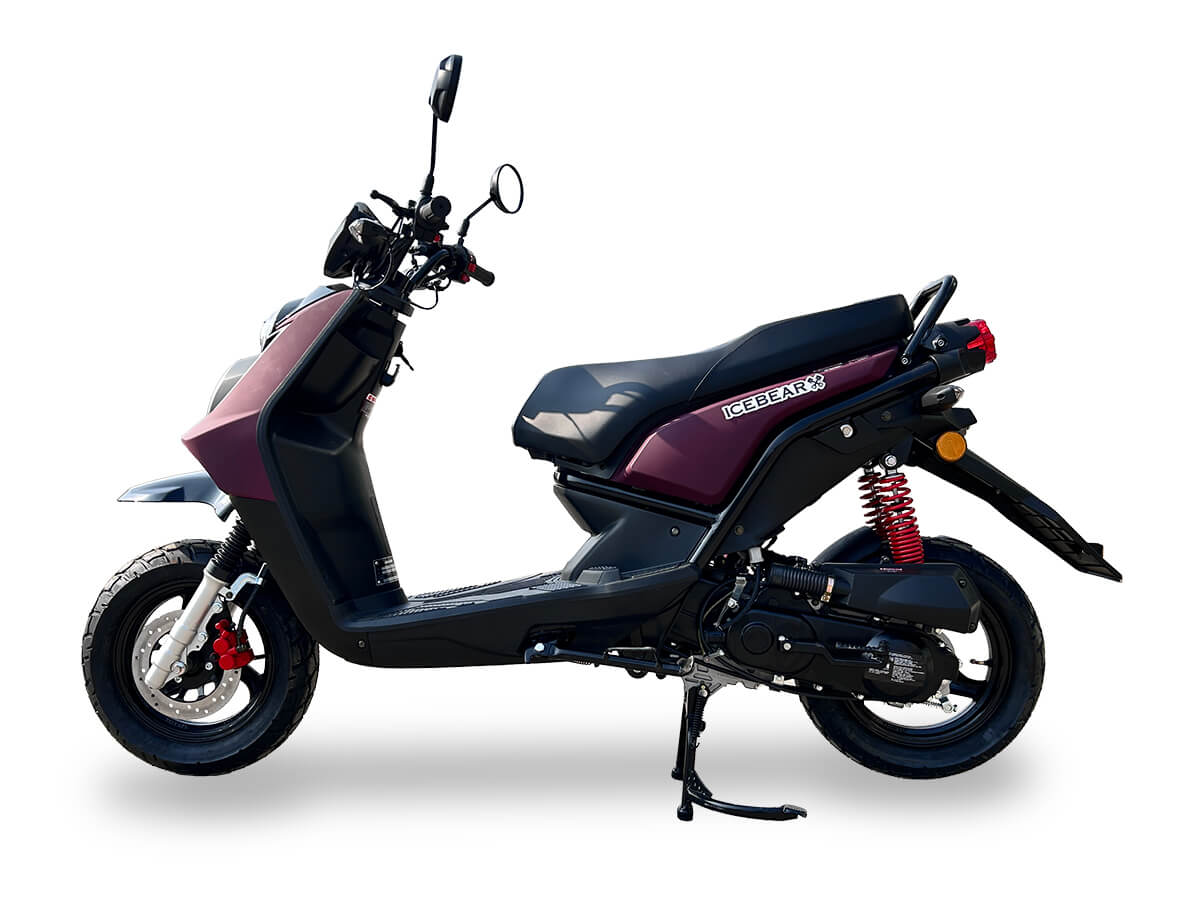

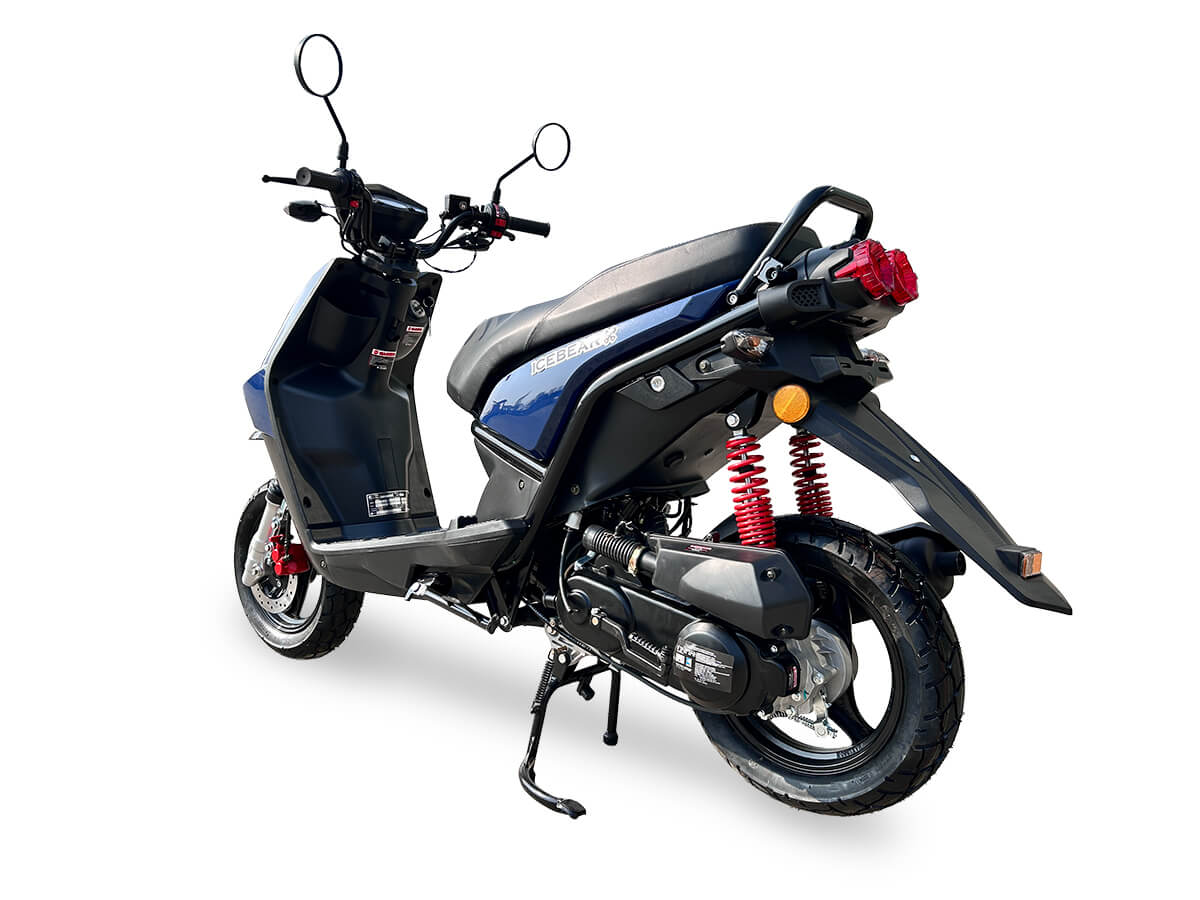

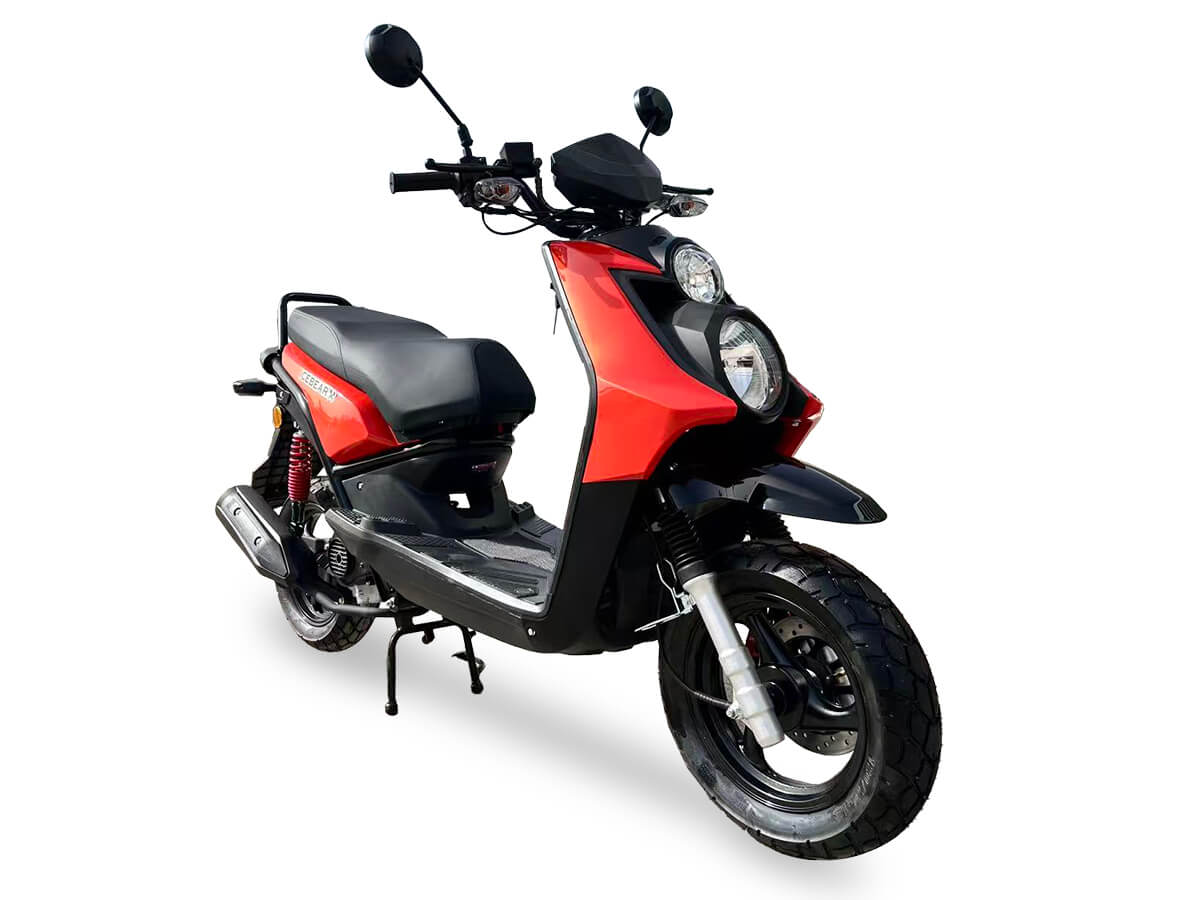

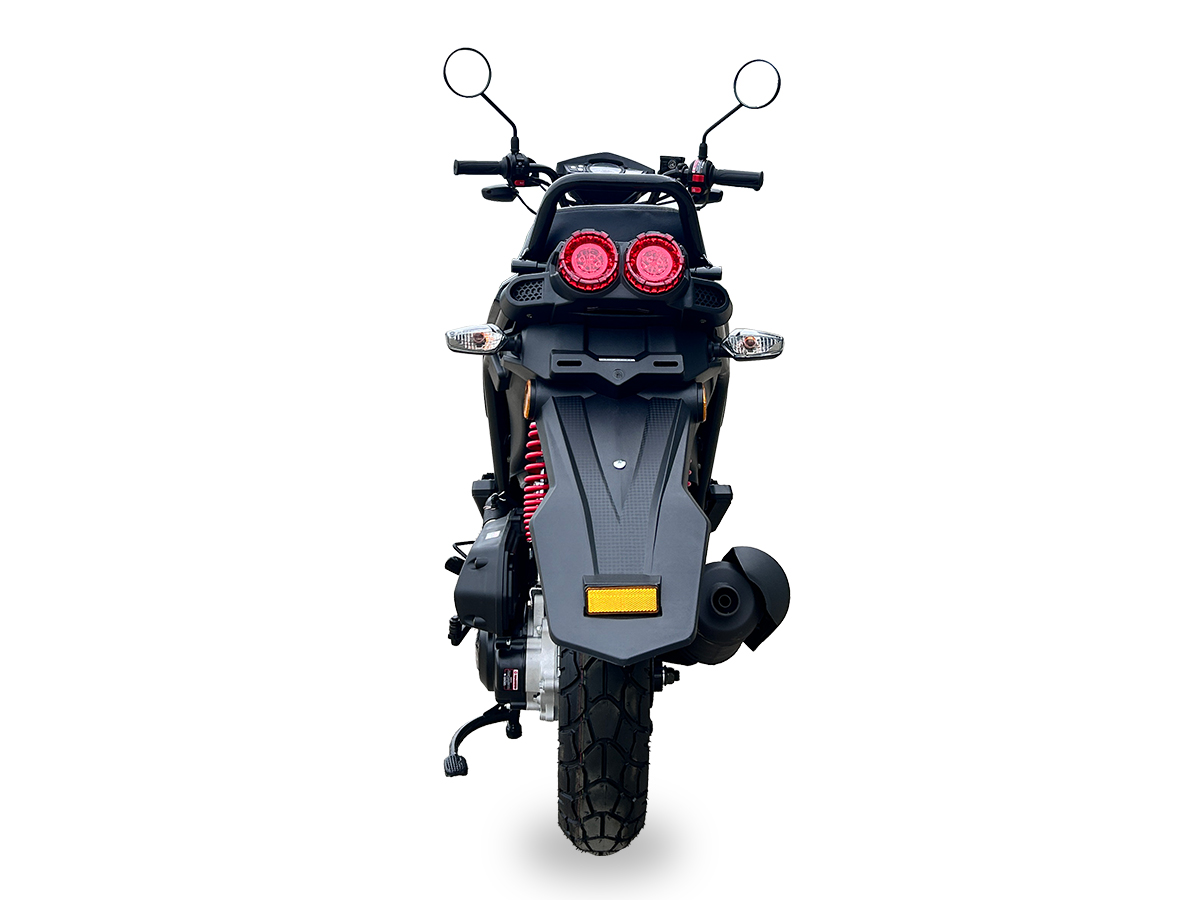

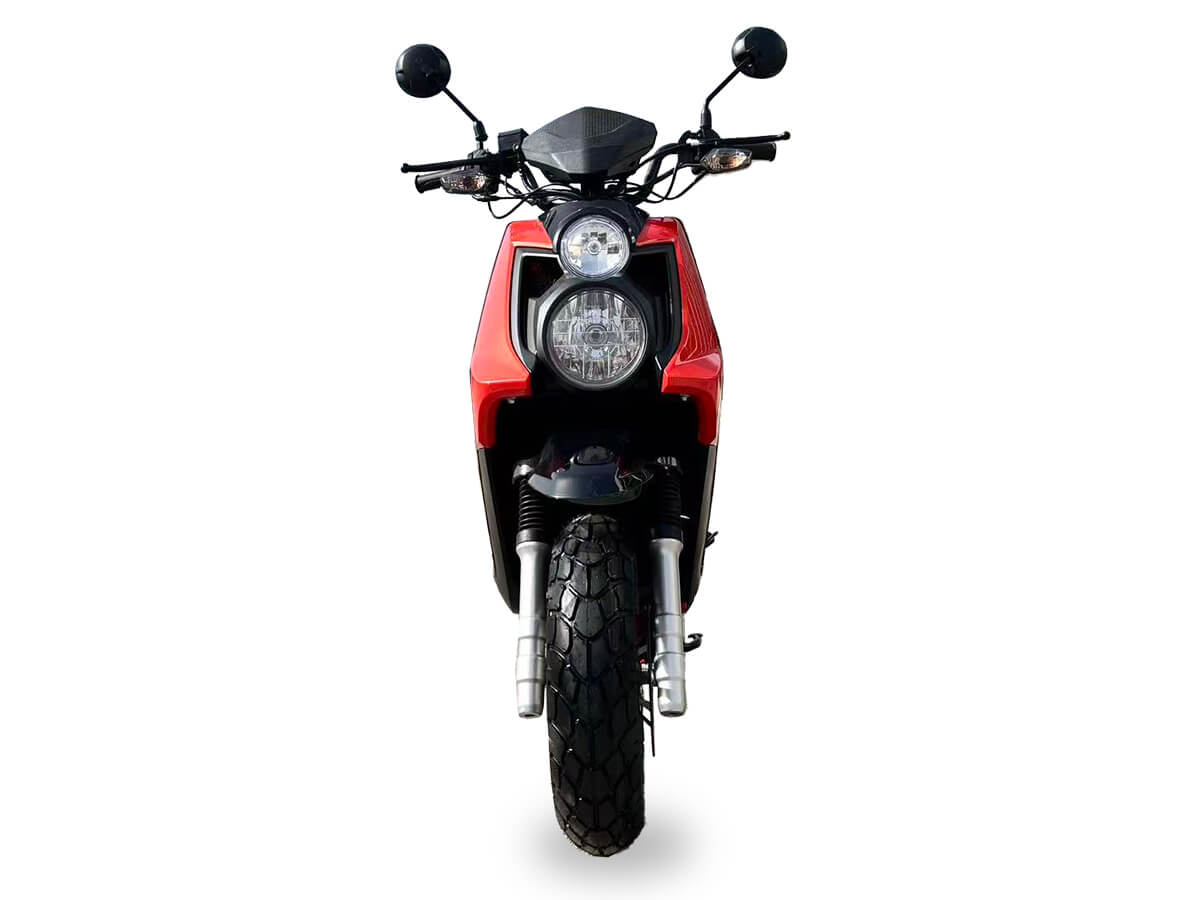

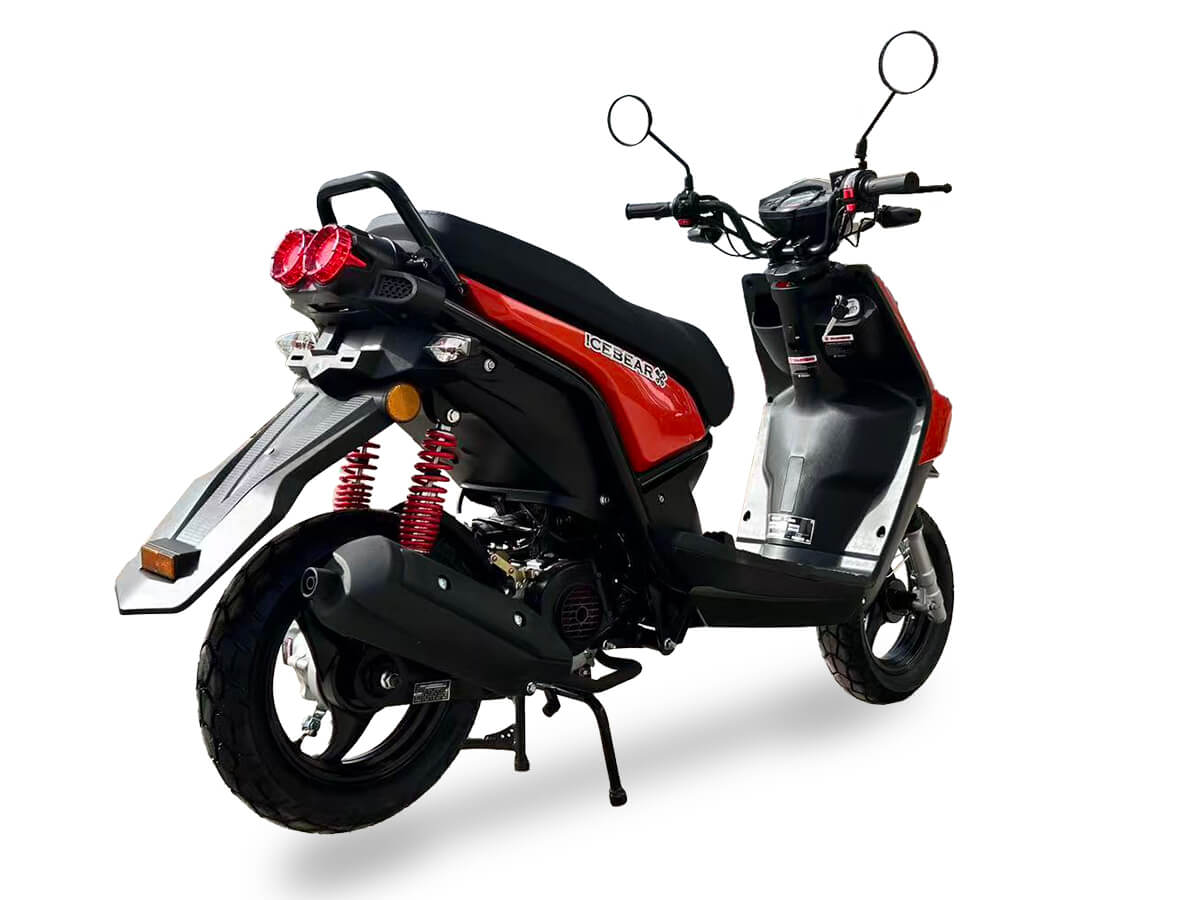

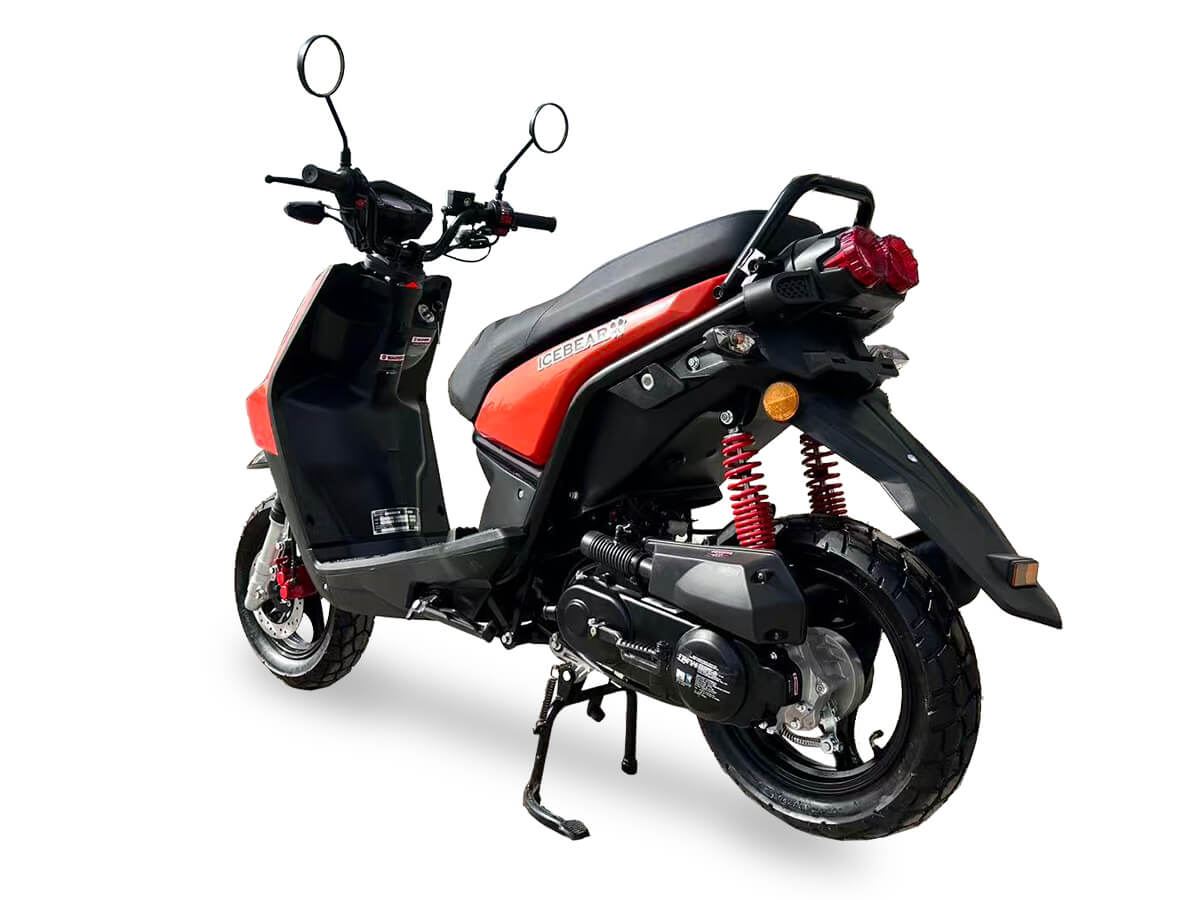

VISION (PMZ50-17)
50cc air cooled engine, front disc and rear drum brakes, 120/70-12" aluminum wheels, SEYOUN NJKK tires.
Specifications
MSRP $0.00
*Prices do not include destination or dealer setup fees
| Engine | 50cc, 139QMB, Xinba |
| Transmission | Automatic |
| Drive type | Belt |
| Belt and/or chain size | Belt: 723/18-30 |
| Starter System | Electric / kick |
| Fuel system | Gasoline, 1.32gal, carbureted |
| Brakes (Front/Rear) | Disc/Drum |
| Tire size(Front/Rear) | 120/70-12 |
| Wheel size and type(Front/Rear) | 12, Alunimum |
| Oil capacity and type (in liters) | 0.8L, 10w40 aircooled engine oil (non-synthetic) |
| Gear oil type and capacity( in liters) | GL-3, 0.25L |
| Battery | 12V/7Ah |
| Lights | Standard lights |
| Suspension(Front/Rear) | Double shock |
| Dimensions(in inches) | Assembled(LxWxH): 81.5*29.1*45.3, crated(LxWxH): 74*22.4*32.2, seat height: 33, wheelbase:56.7 |
| Weight | 330 lbs |
| Weight capacity | 242 lbs |
| Ground clearance (in inches) | 3.9 |
| Assembly required | Handlebars, front wheel, front fender, mirrors, front disc |
| Special features | Include:horn, odometer, speedometer |
| EPA approved | EPA approved, CARB exempt |

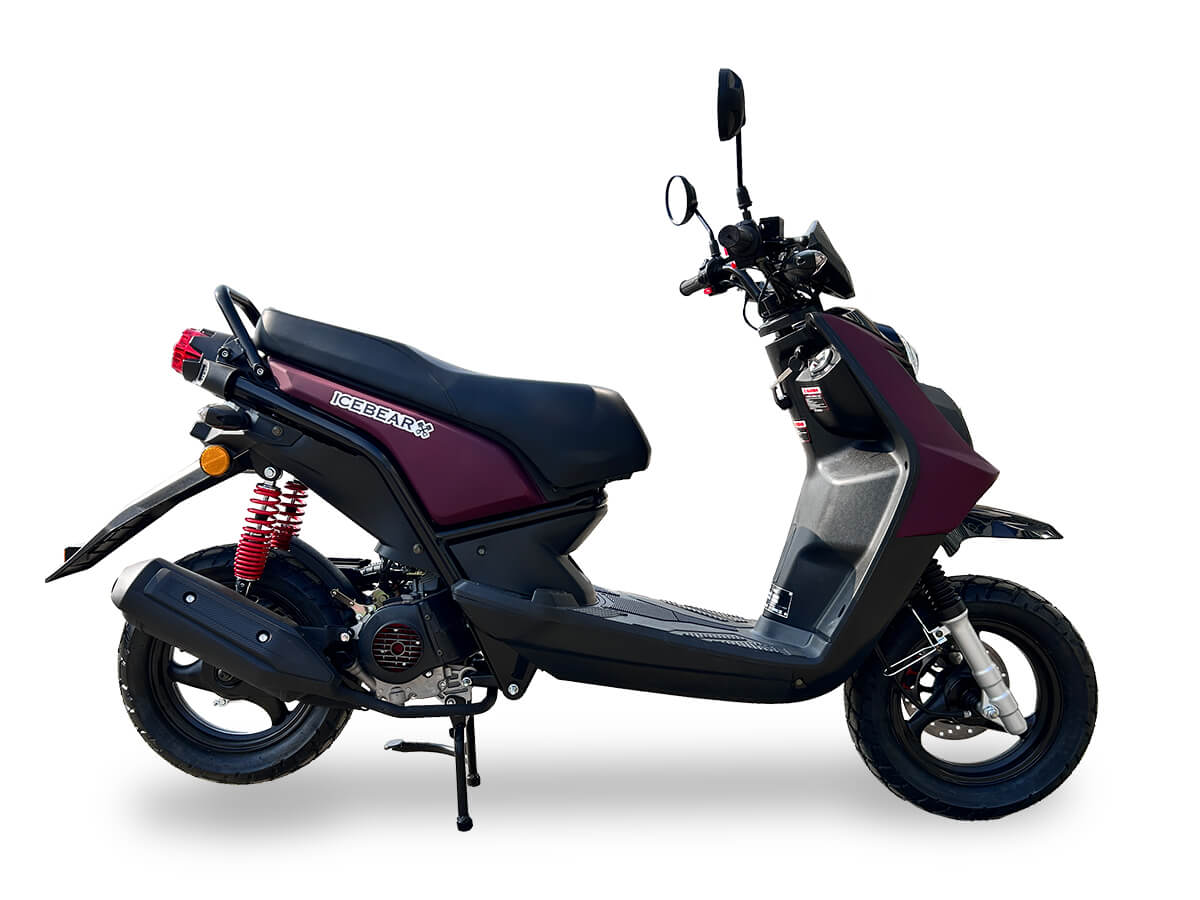

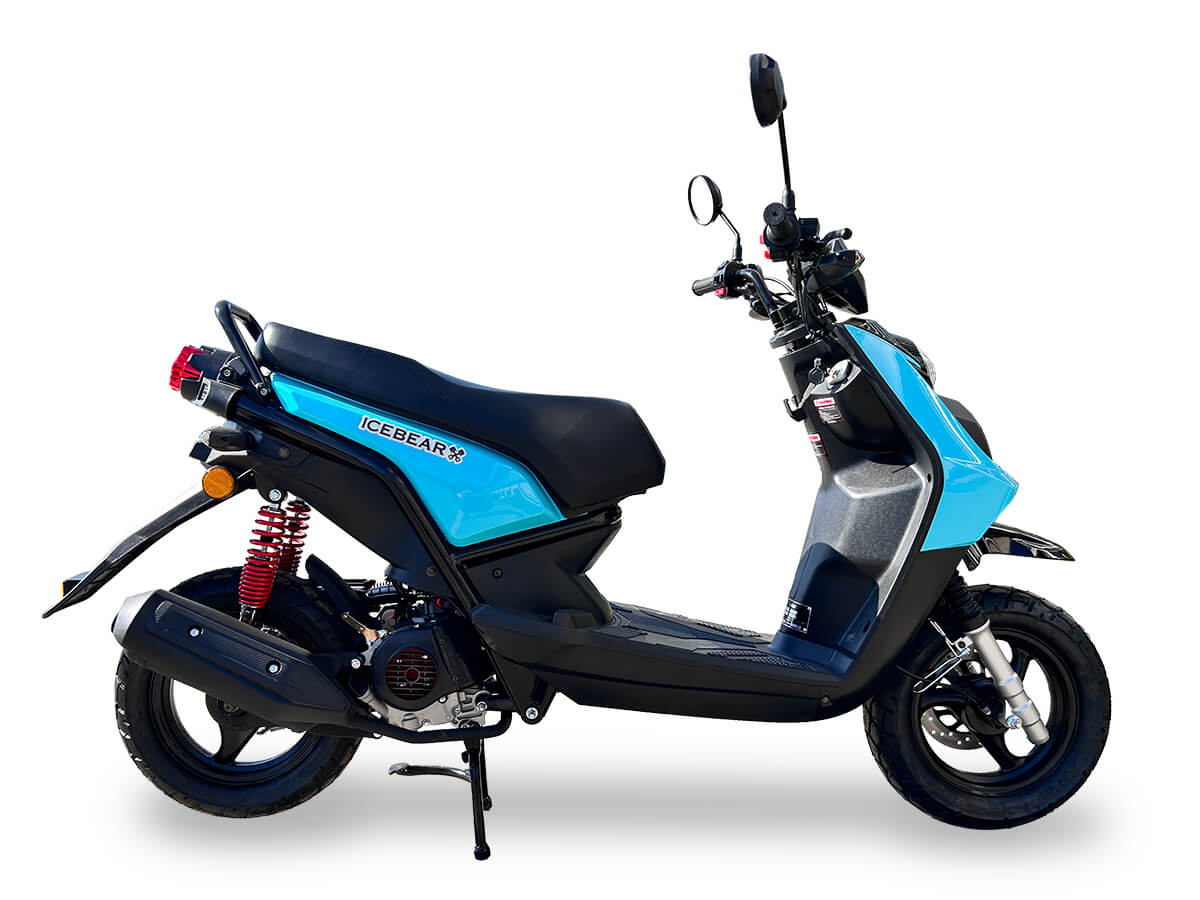

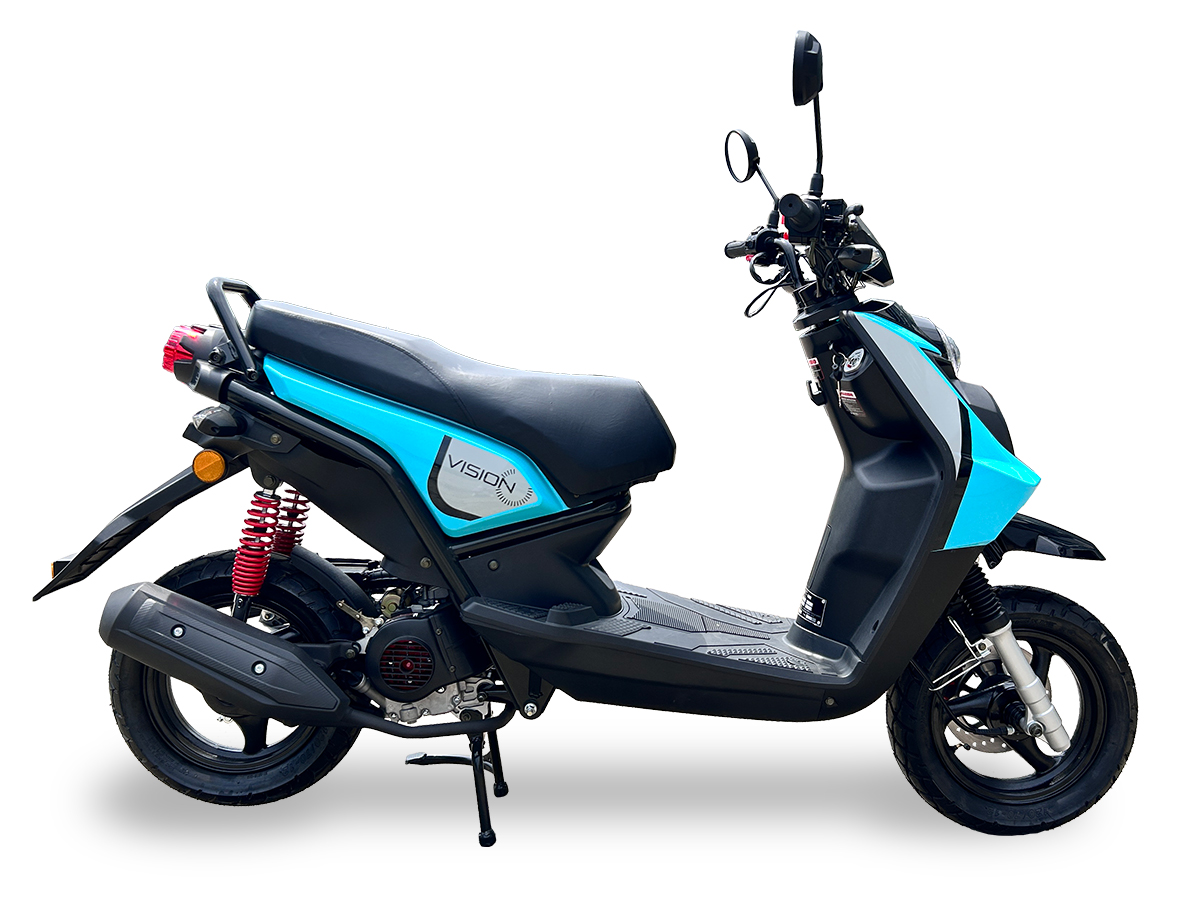

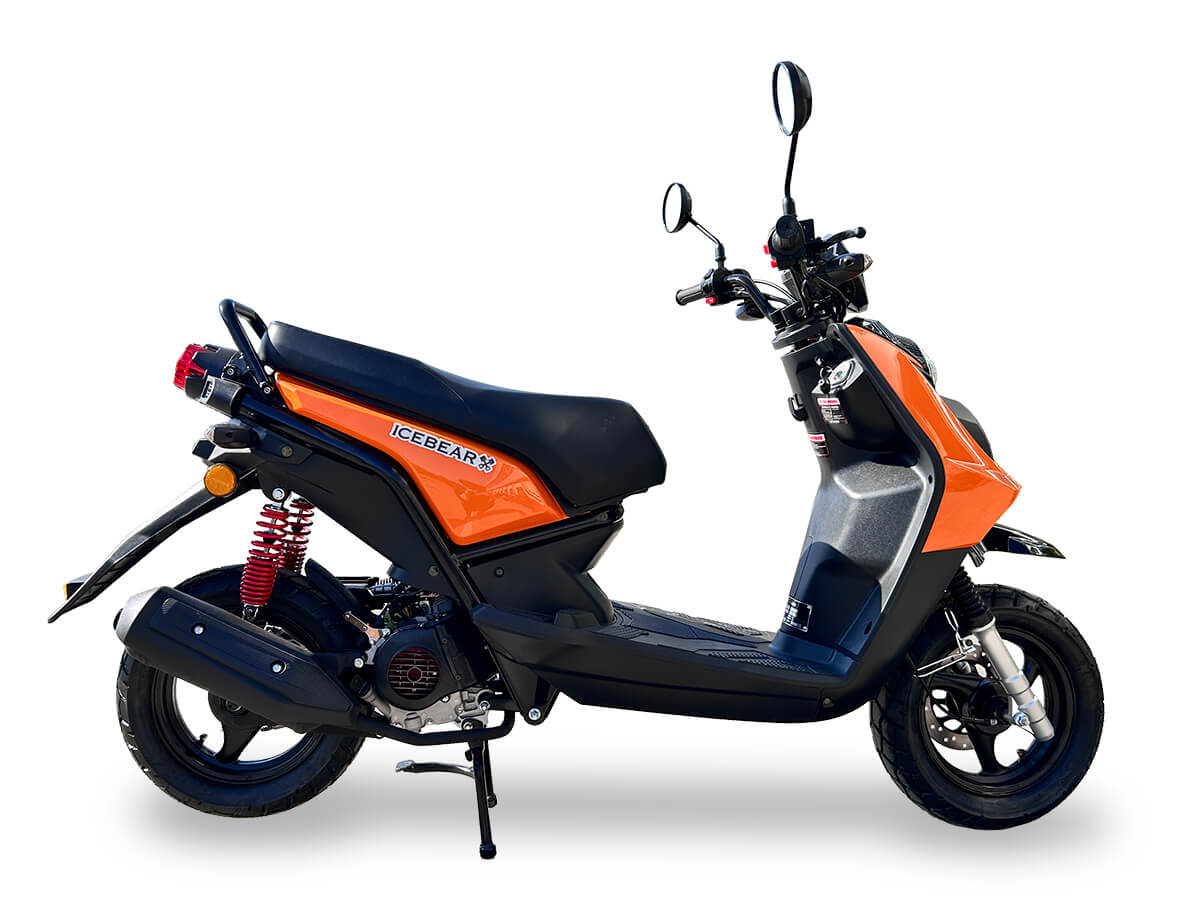

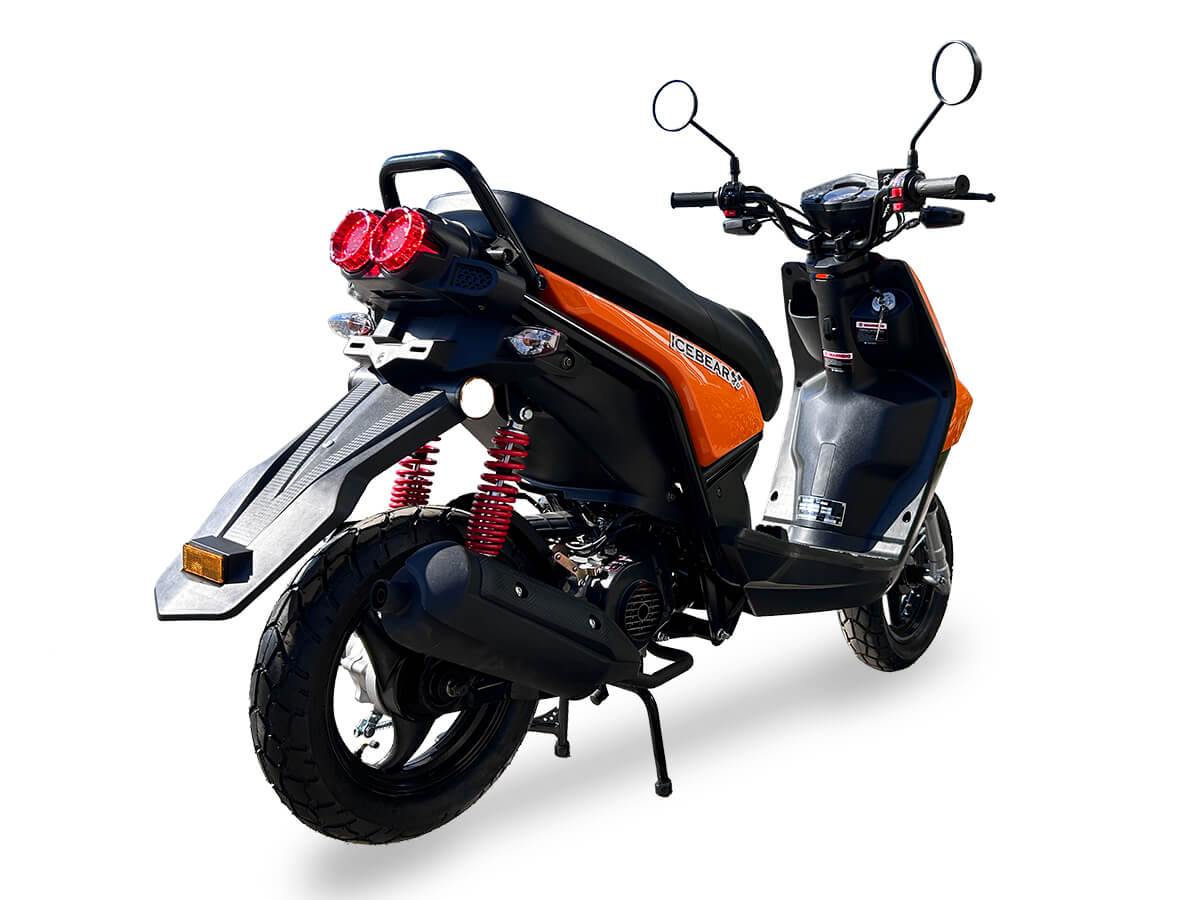

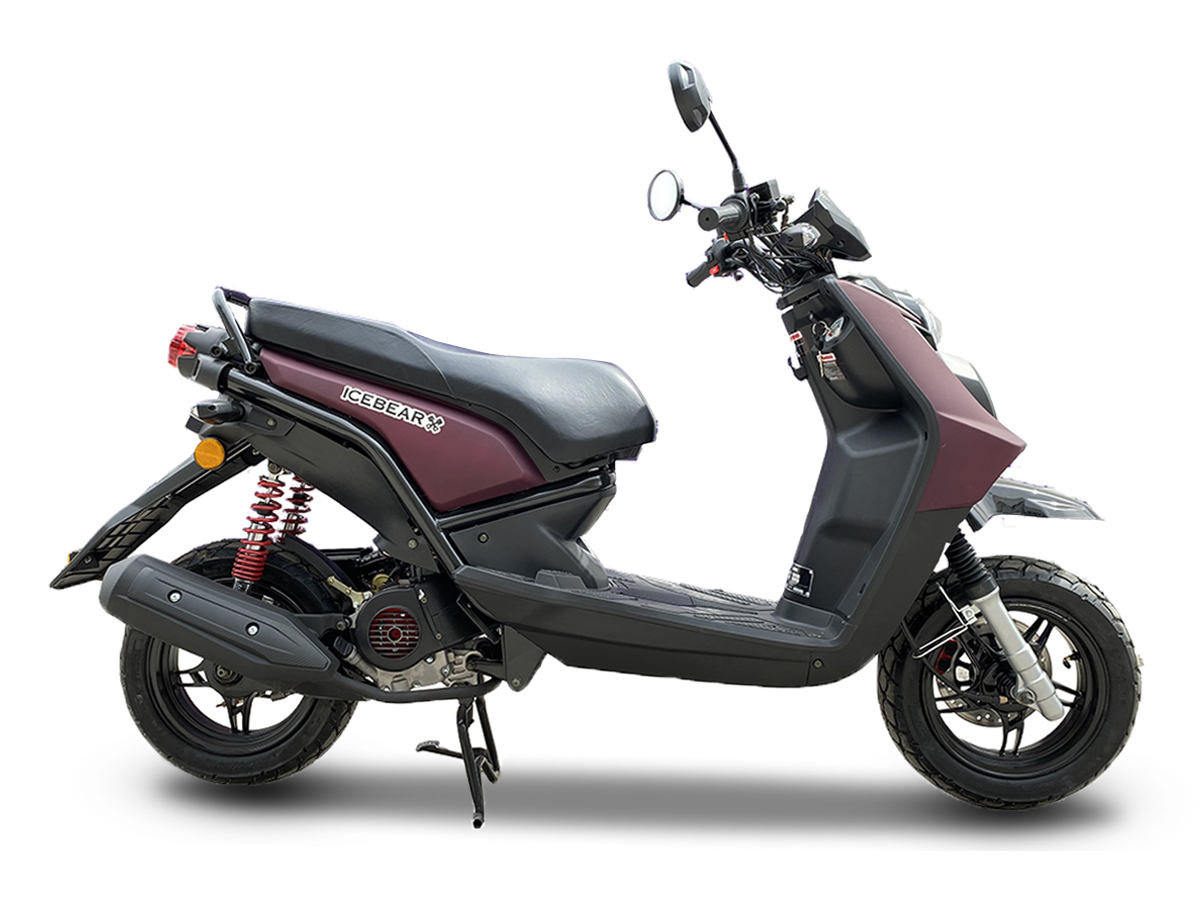

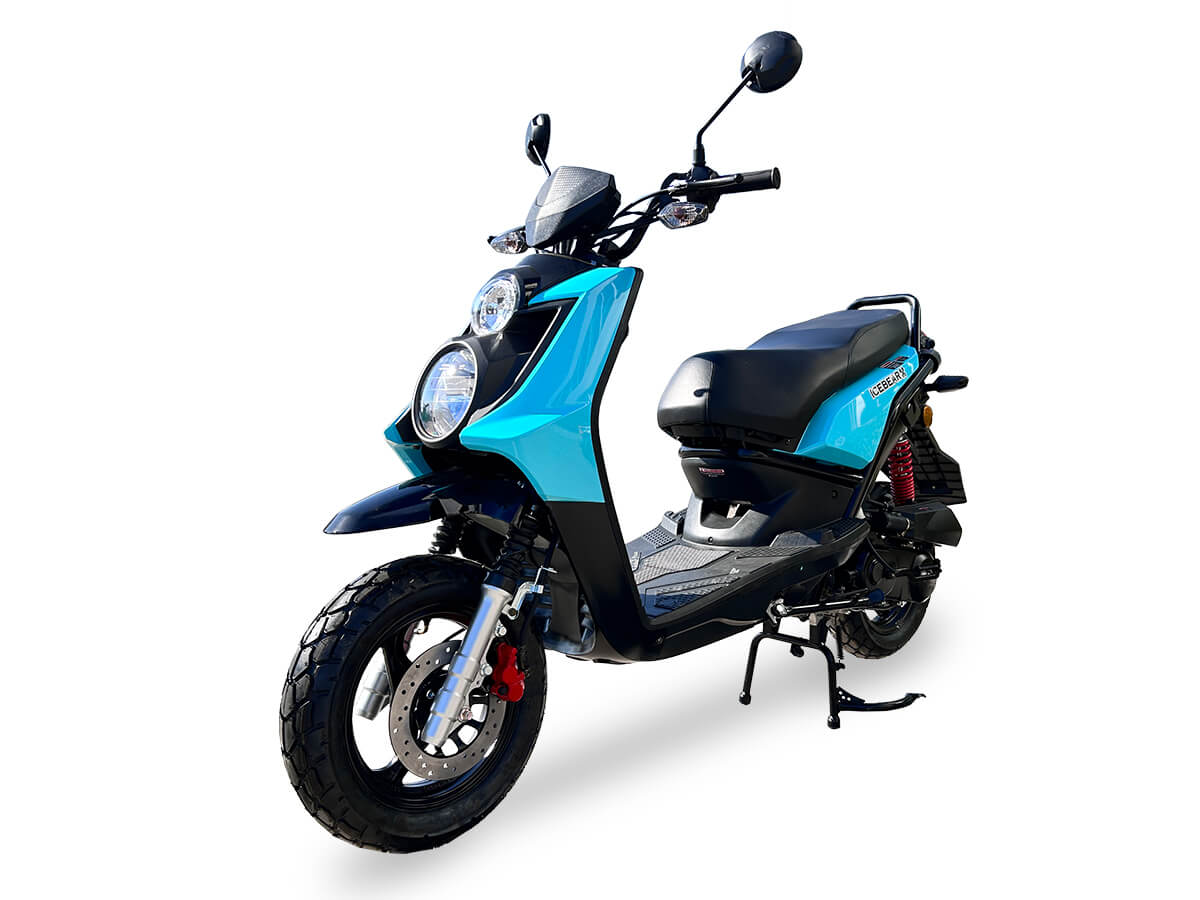

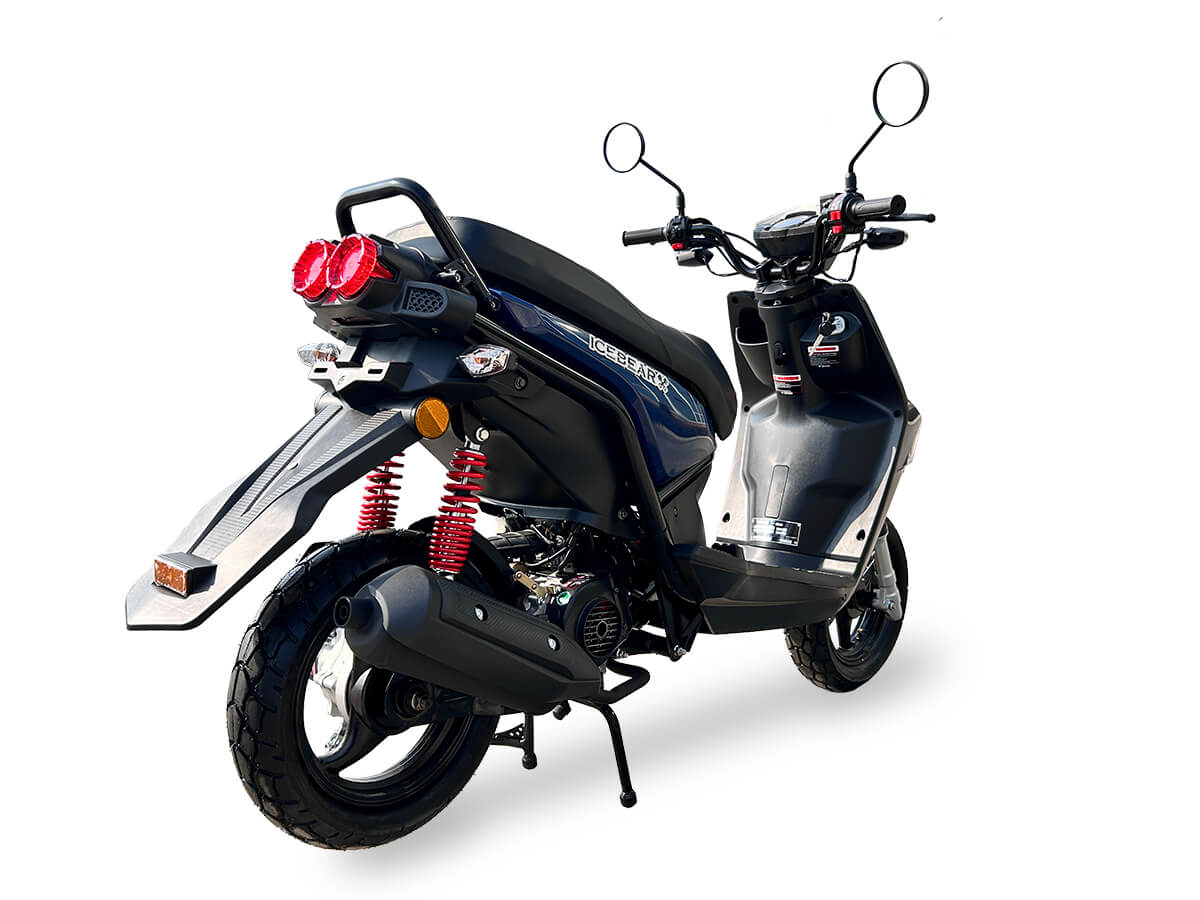

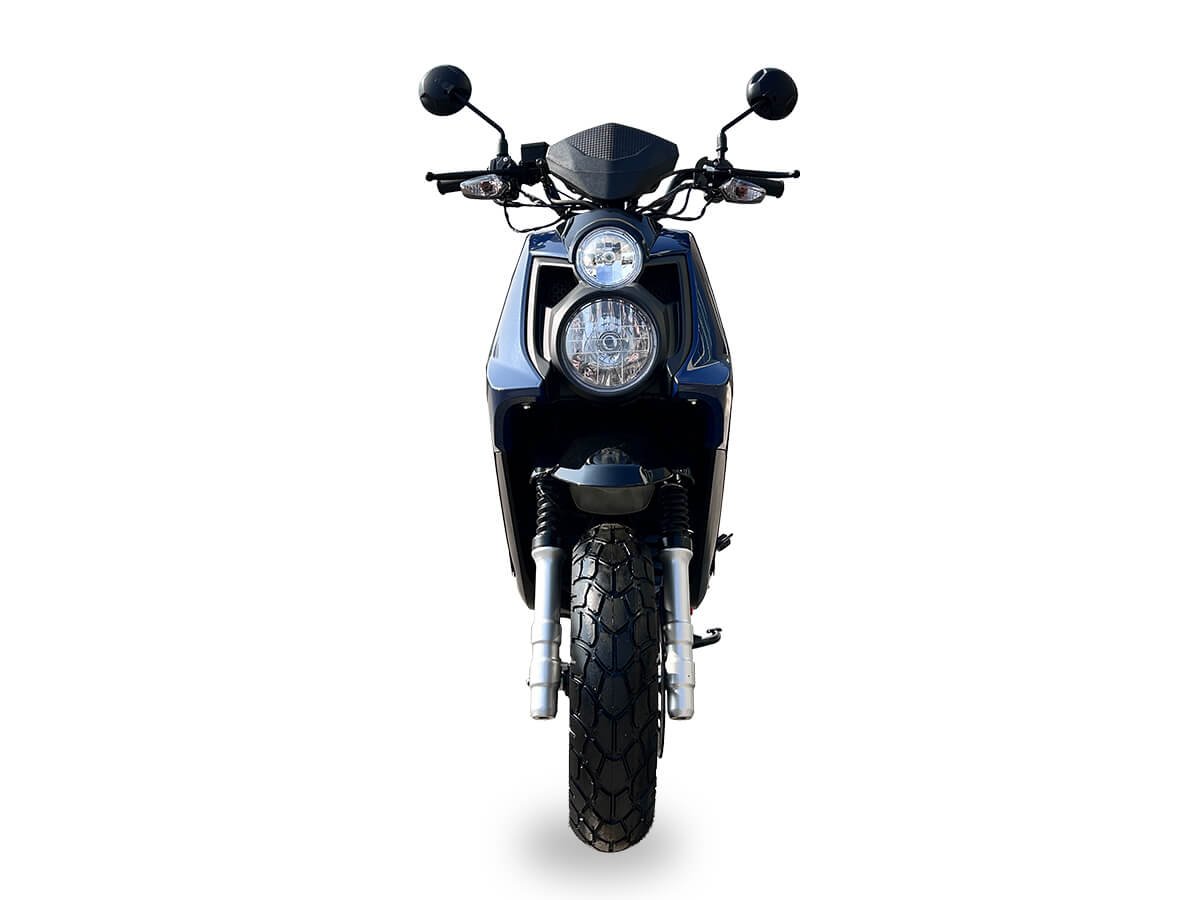

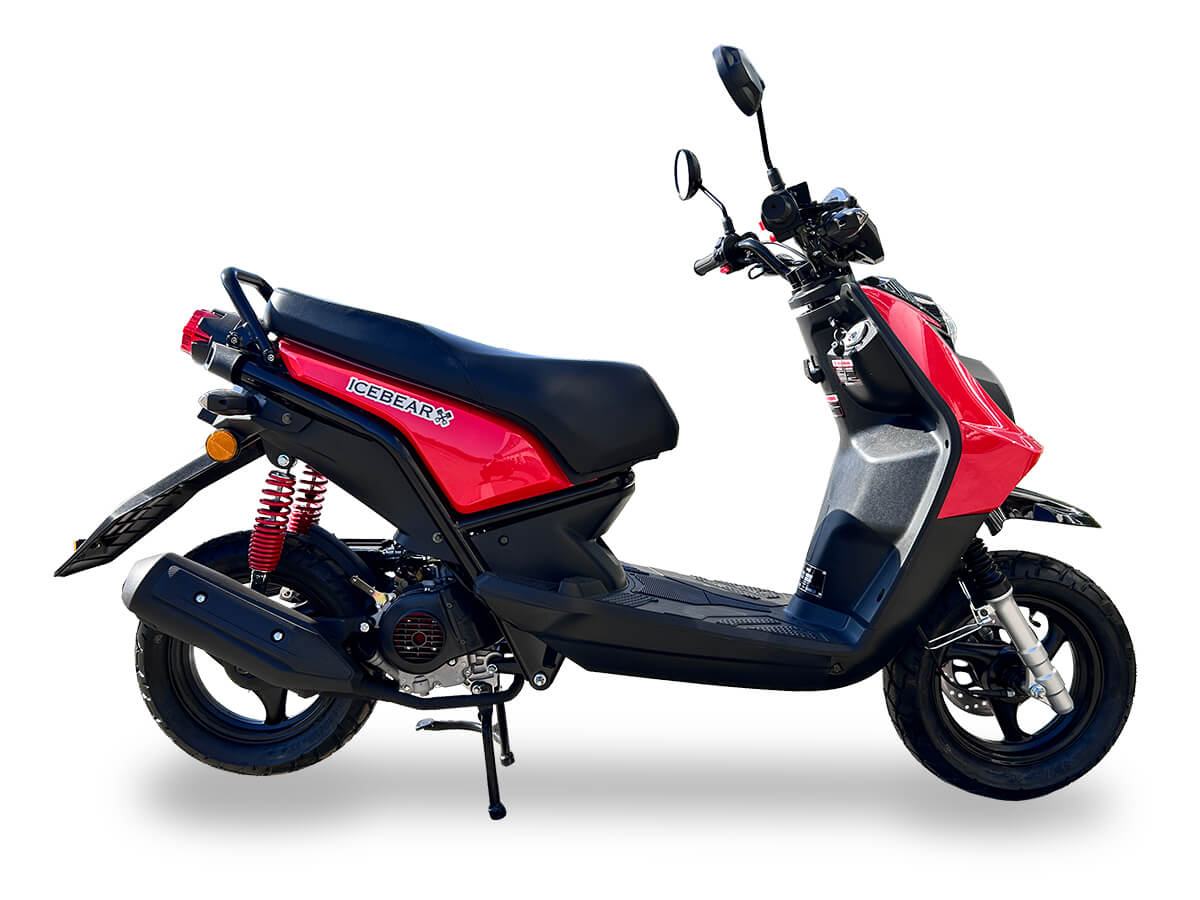

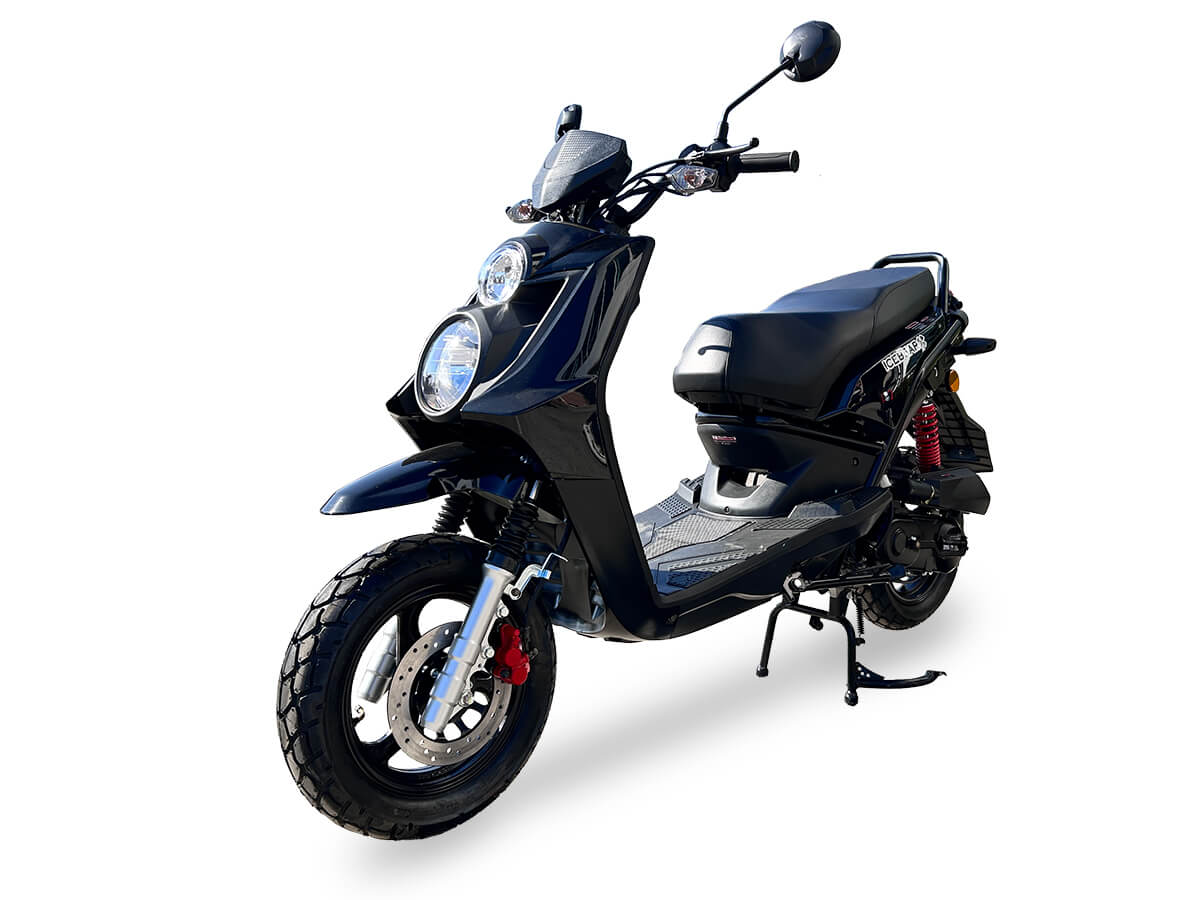

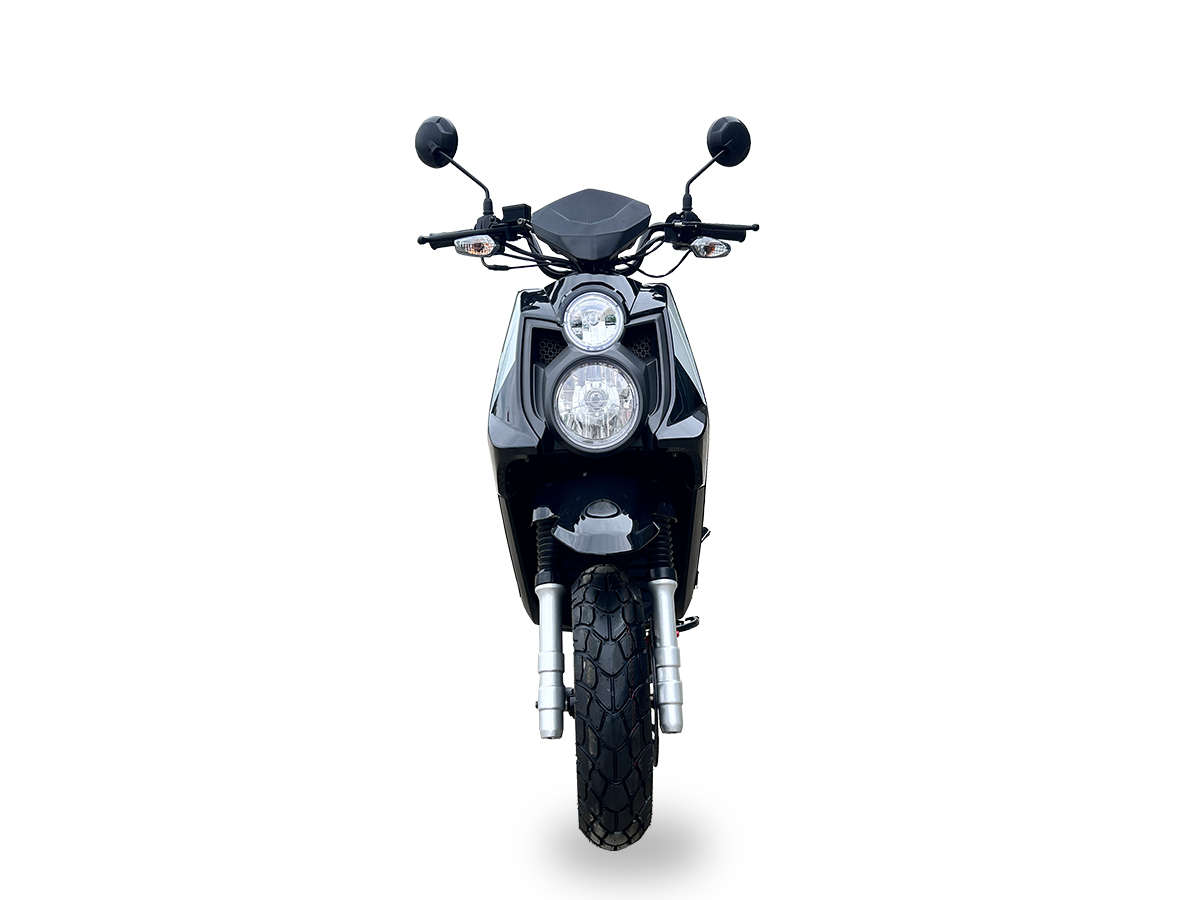

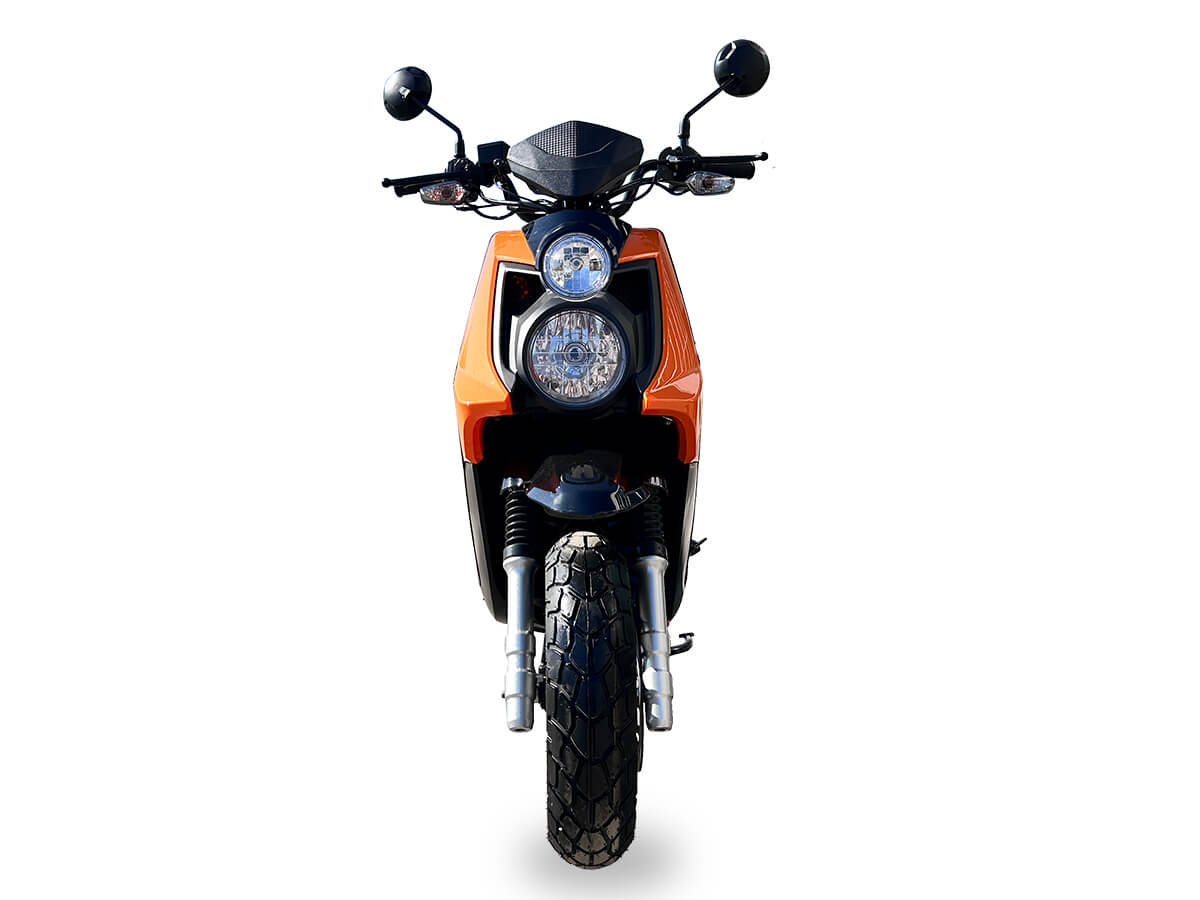

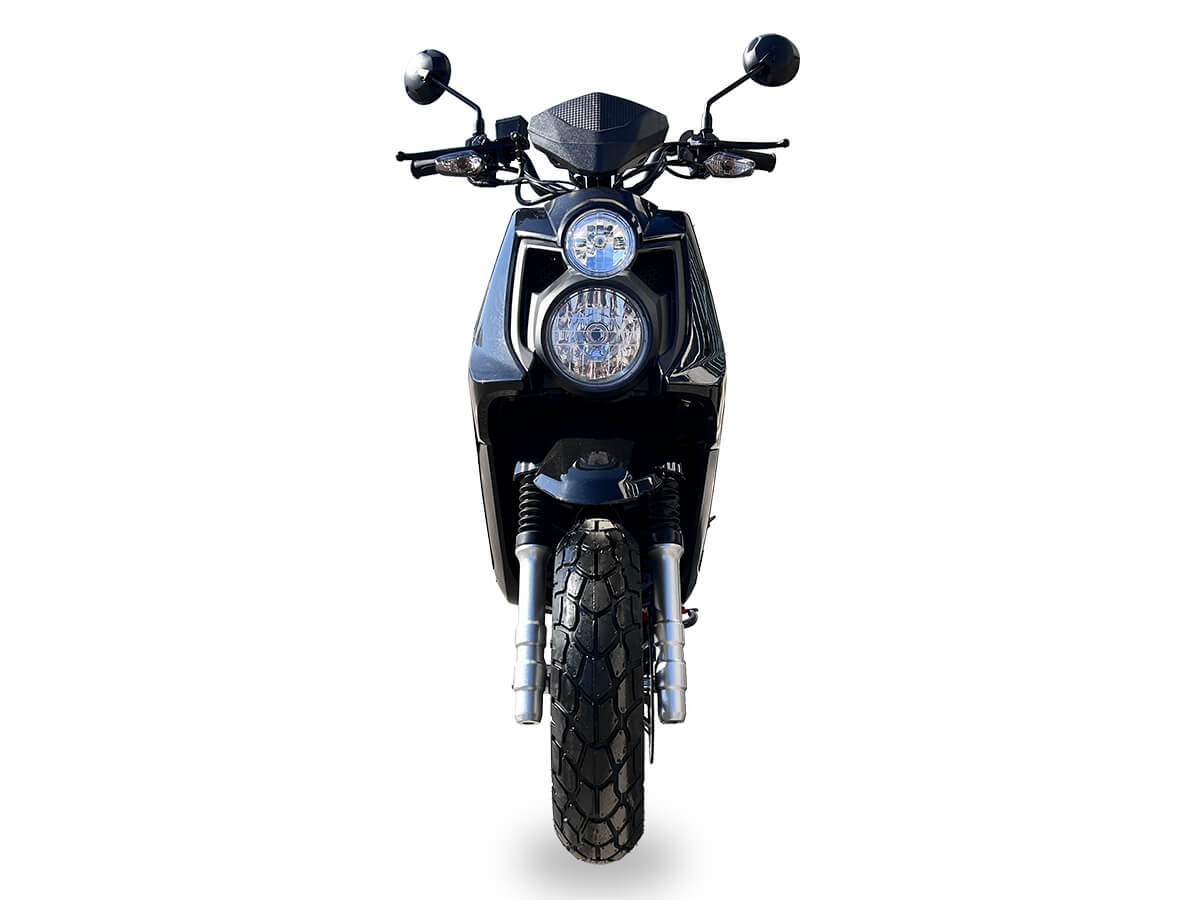

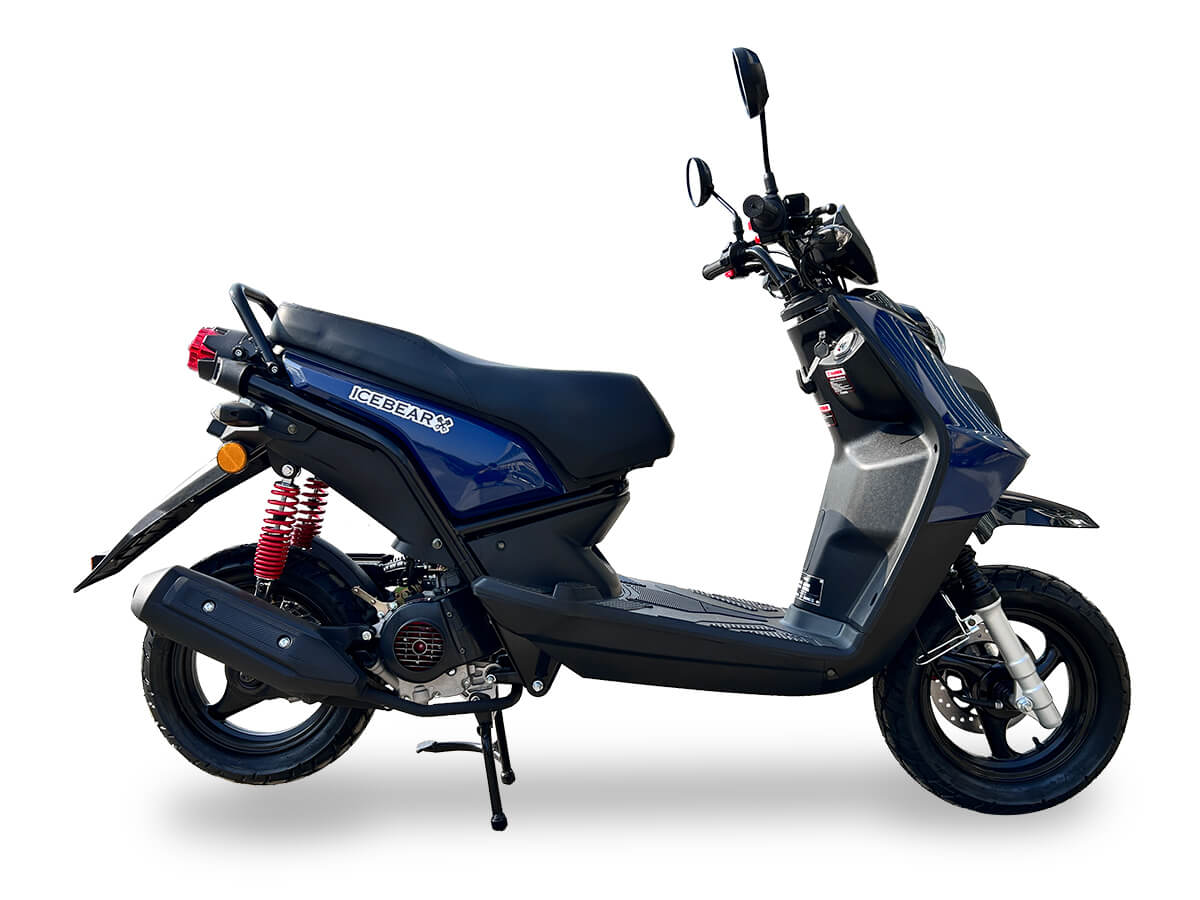

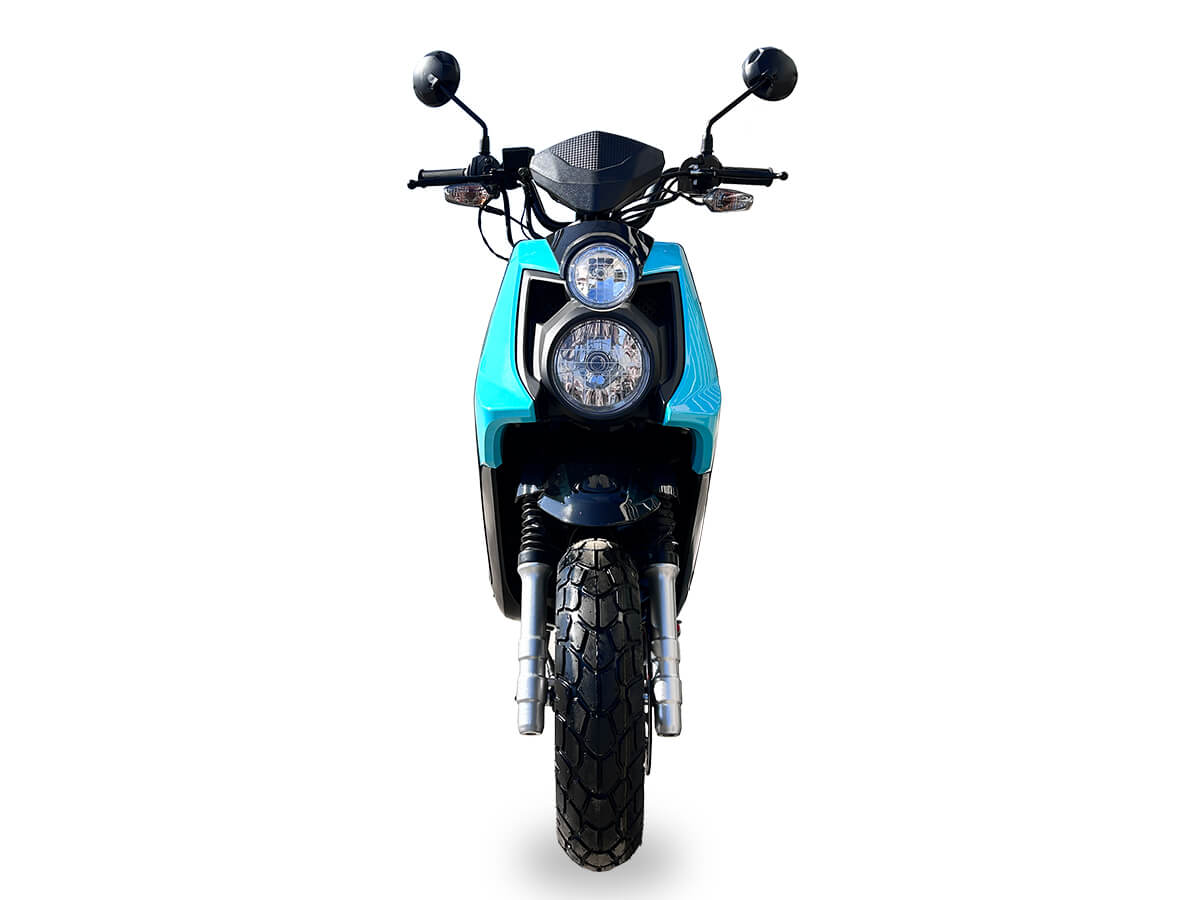

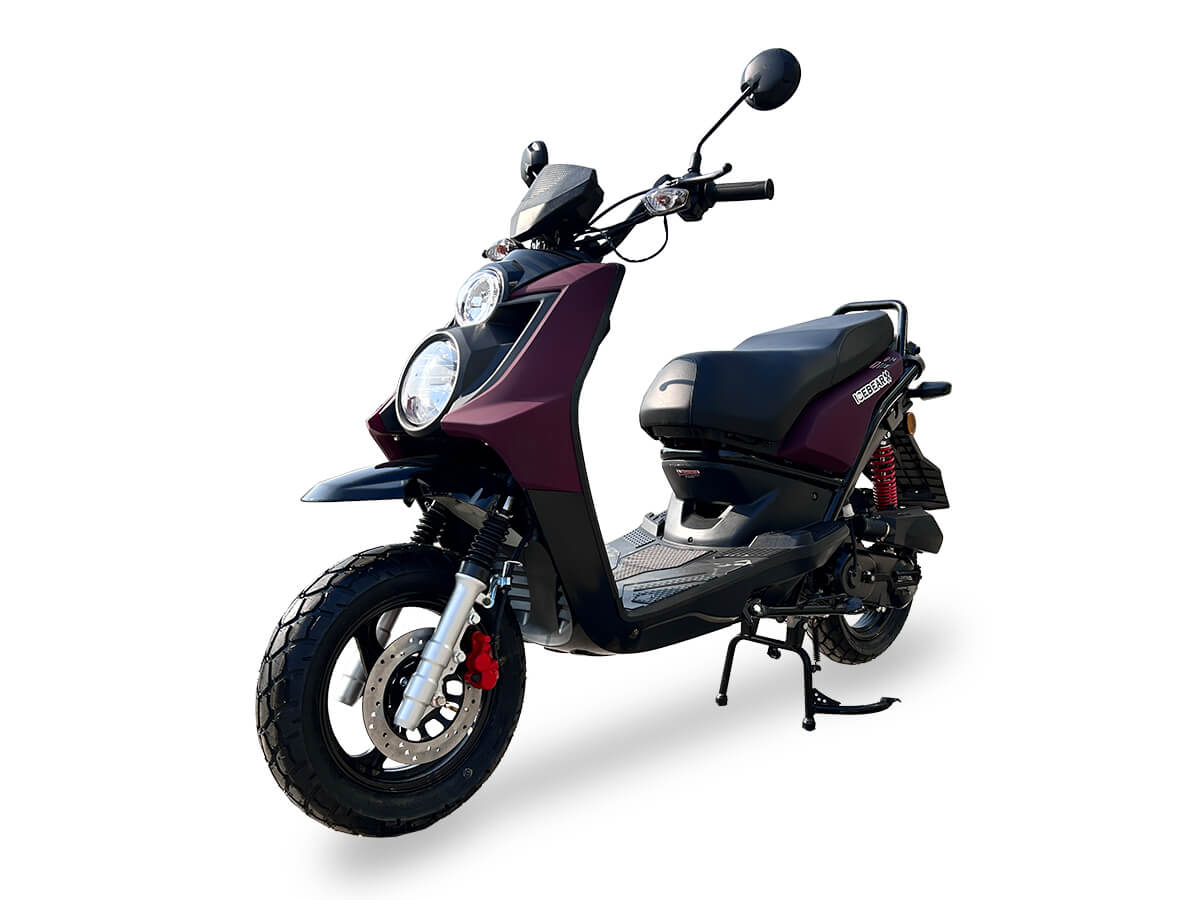

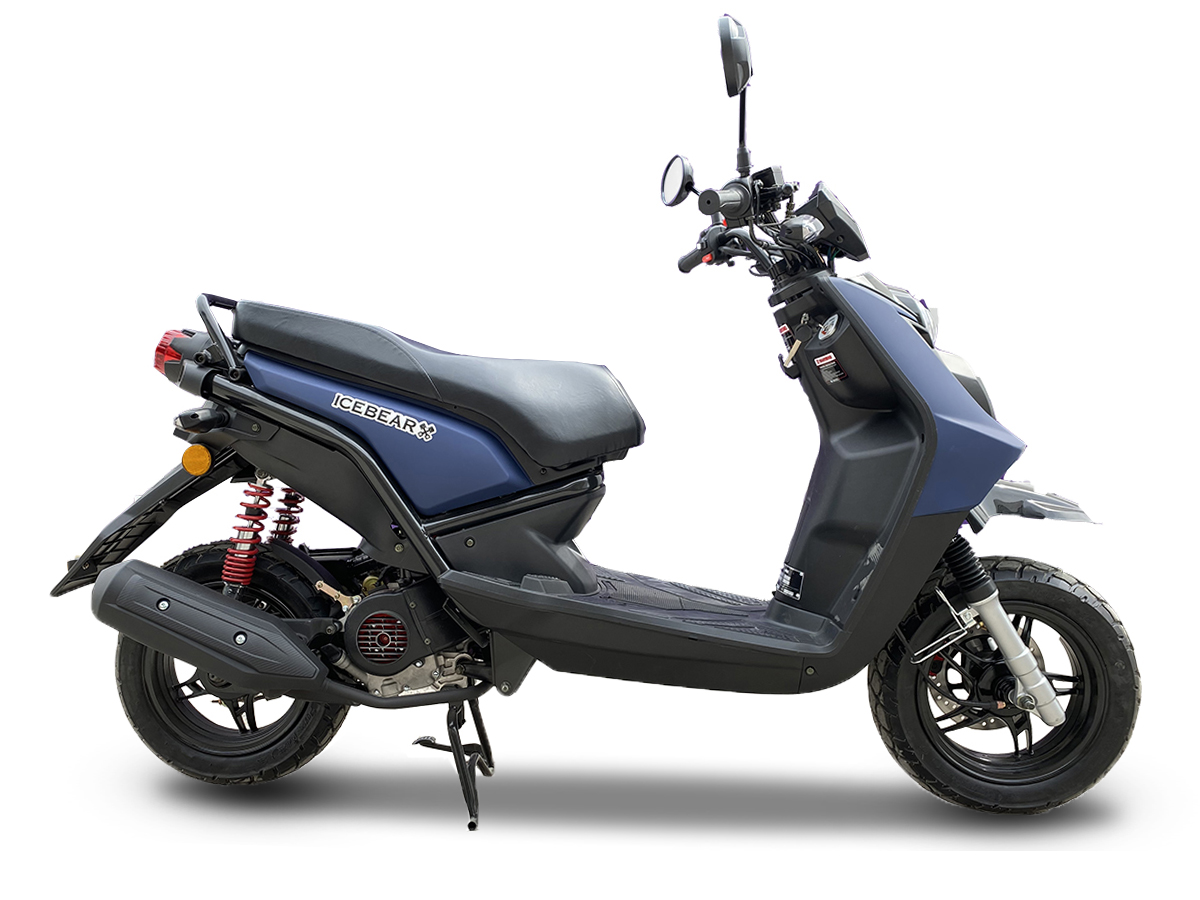

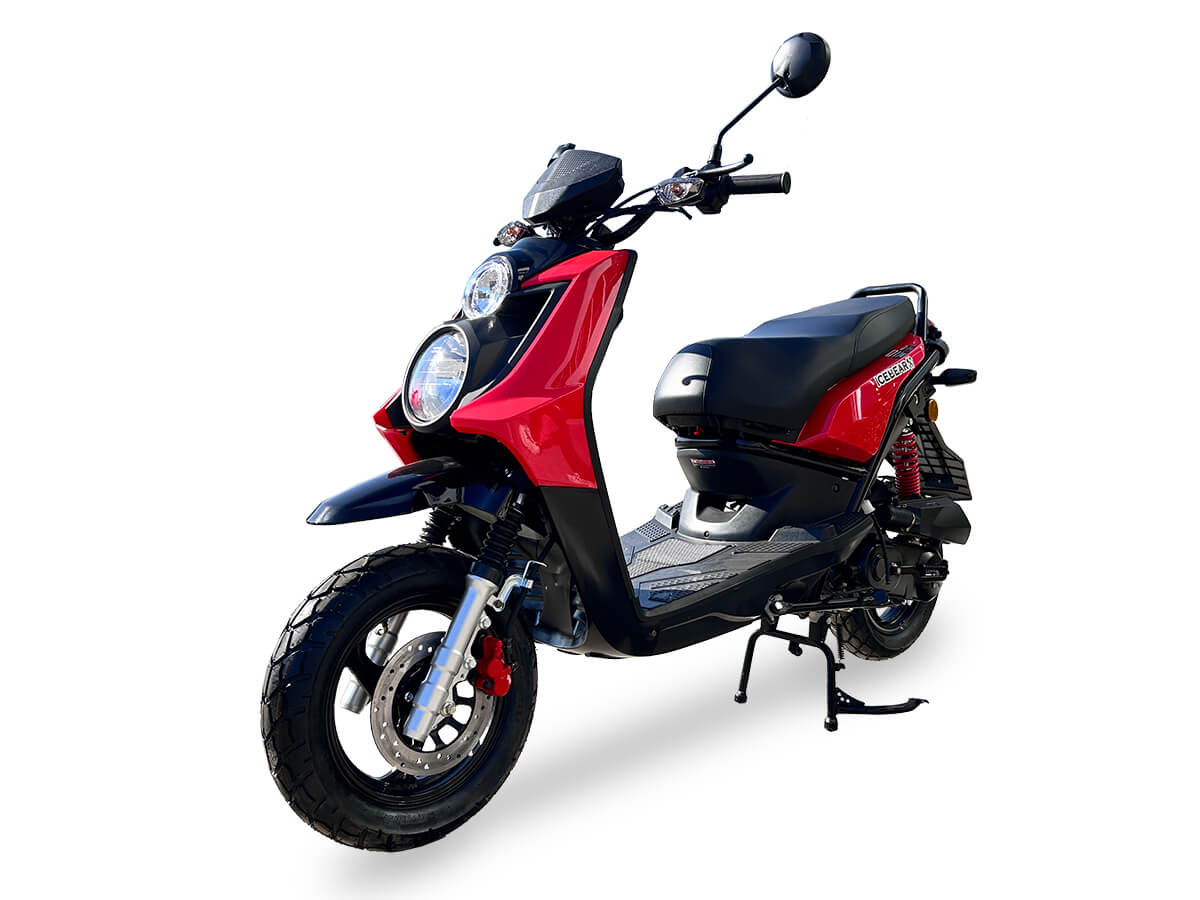

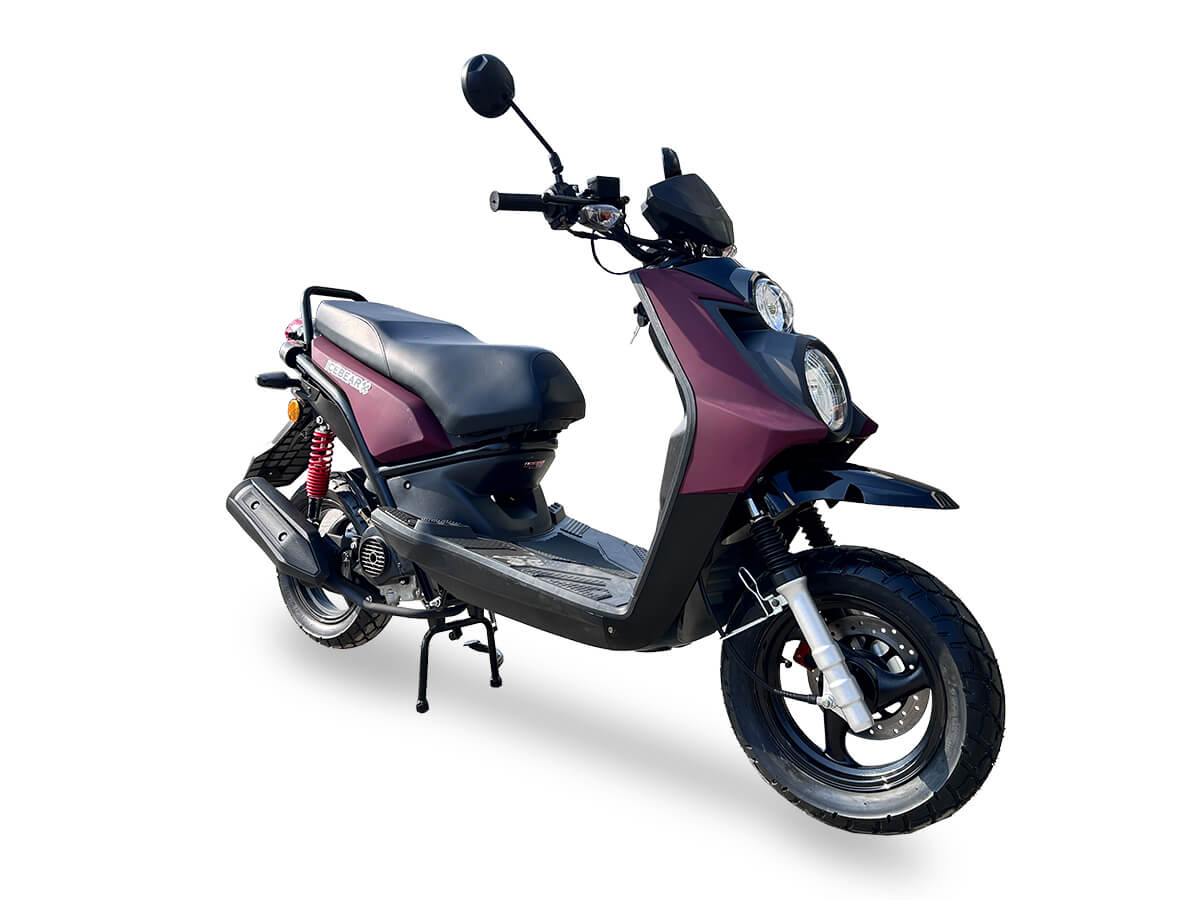

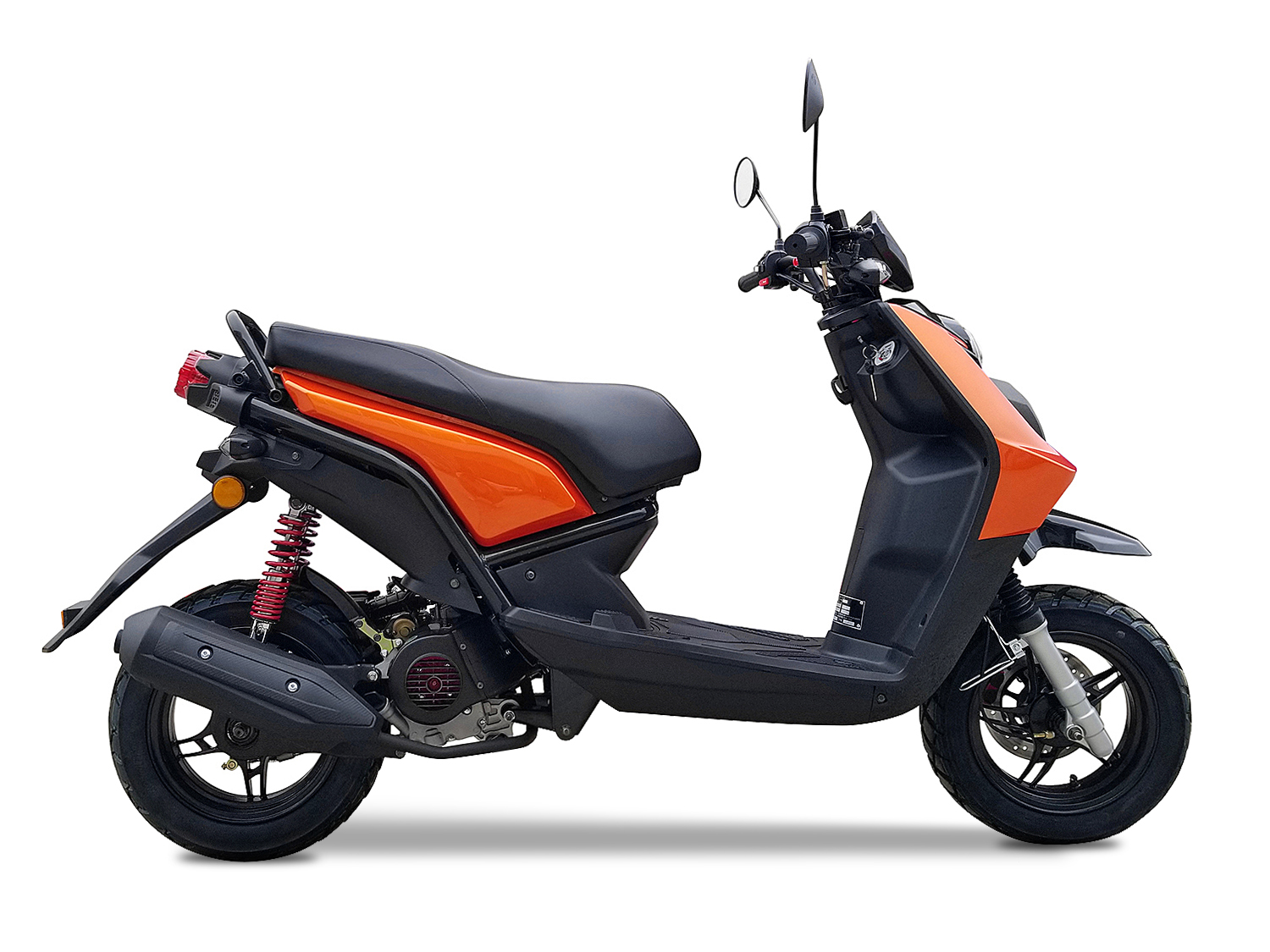

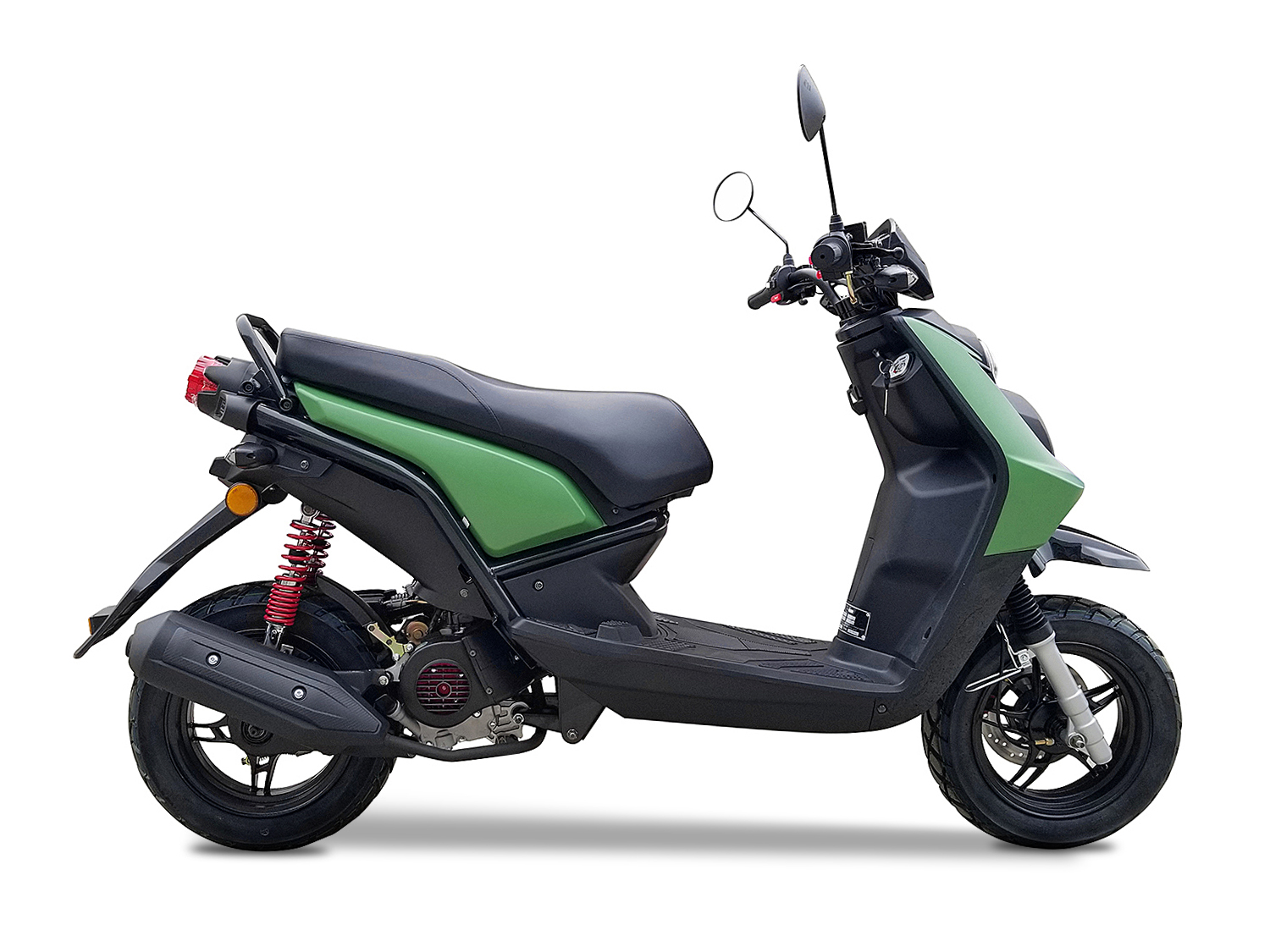

Colors
Click the icon to see all the parts for this model
